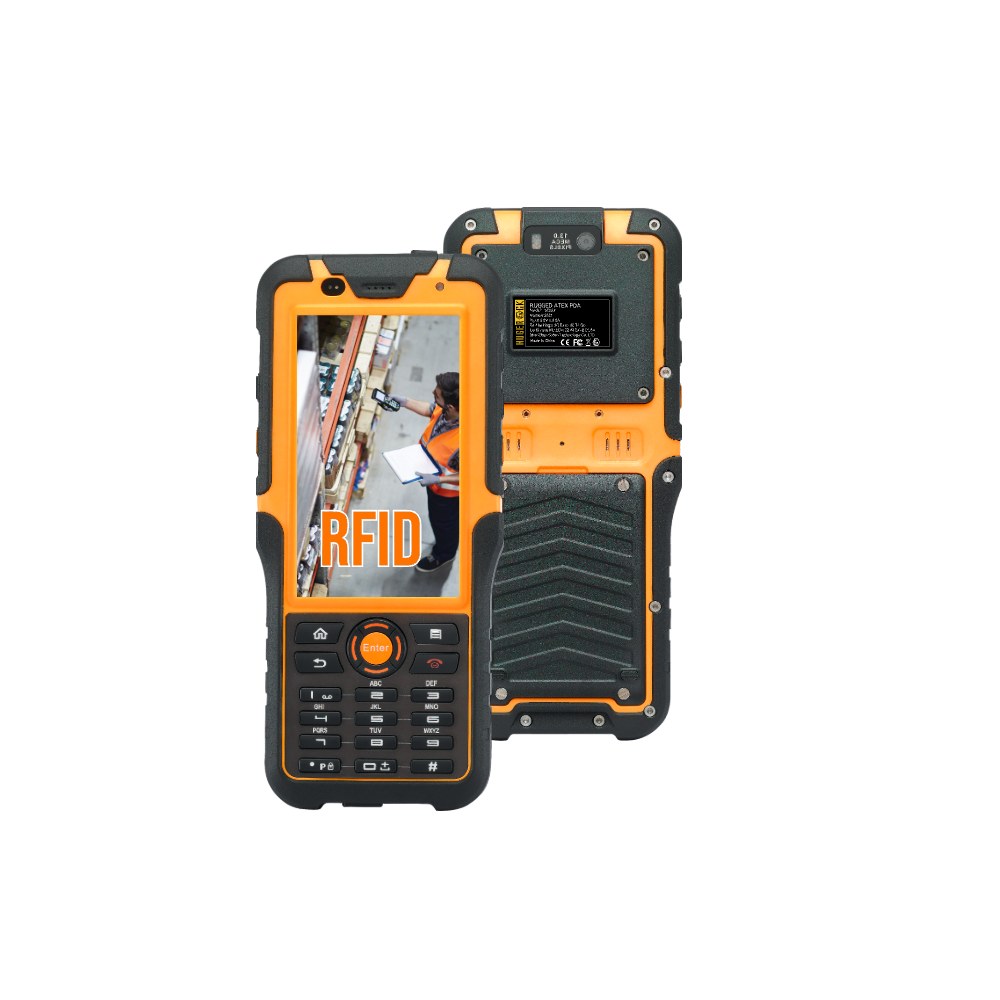

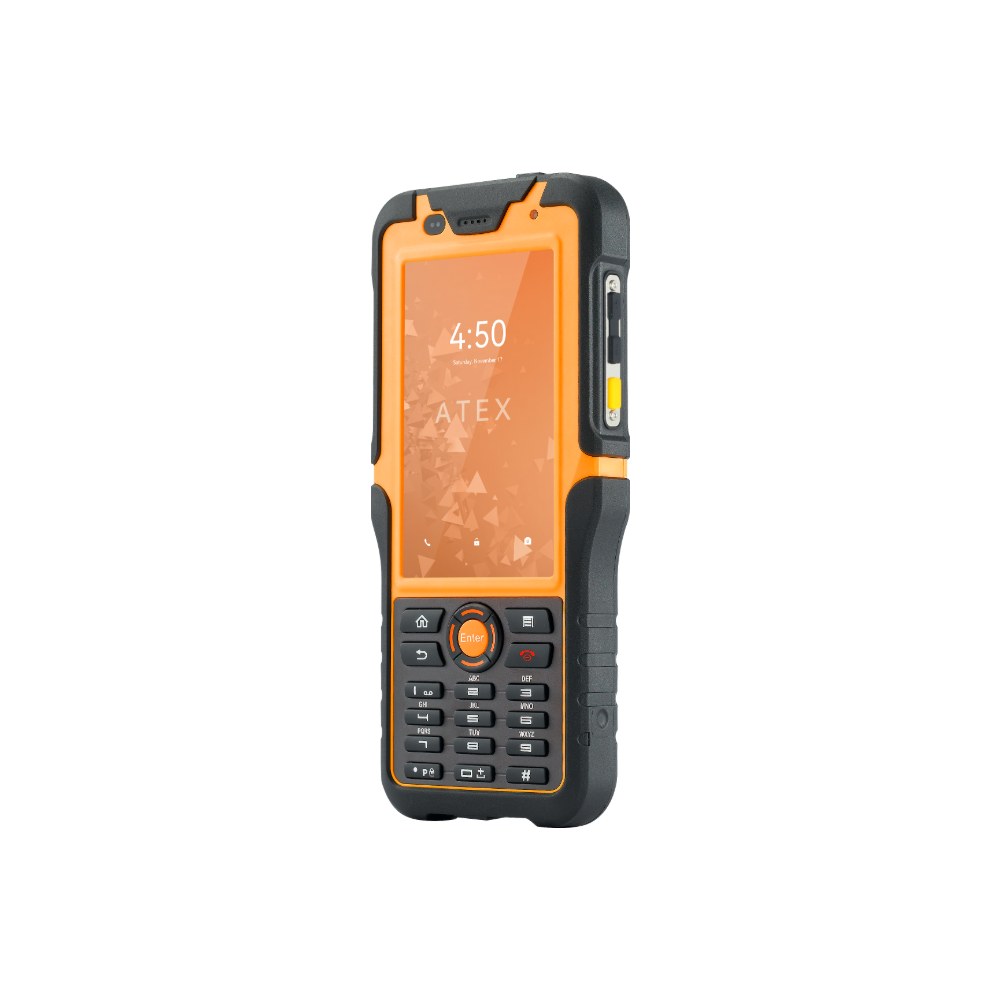

HUGEROCK S50EX Rugged PDAs
4.5 inch IPS/AFFS 540 QHD industrial 500nit Sunlight Readable, 8G + 128G, 5000mAh (Replaceable battery), Android 10 / 11, ARM Cortex A73 octa-core (2.0GHz )
HUGEROCK S50EX is a rugged PDA in the ATEX Tablets collection. The hardware supports extended interfaces, and modules can be installed according to customer needs to complete more functions,T9 keyboard input can be used in more environments.
Display: 4.5 inch IPS/AFFS 540 QHD industrial 500nit Sunlight Readable
Memory: 8G; Storage: 128G
Battery: 5000mAh (Replaceable battery)
System: Android 10 / 11
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

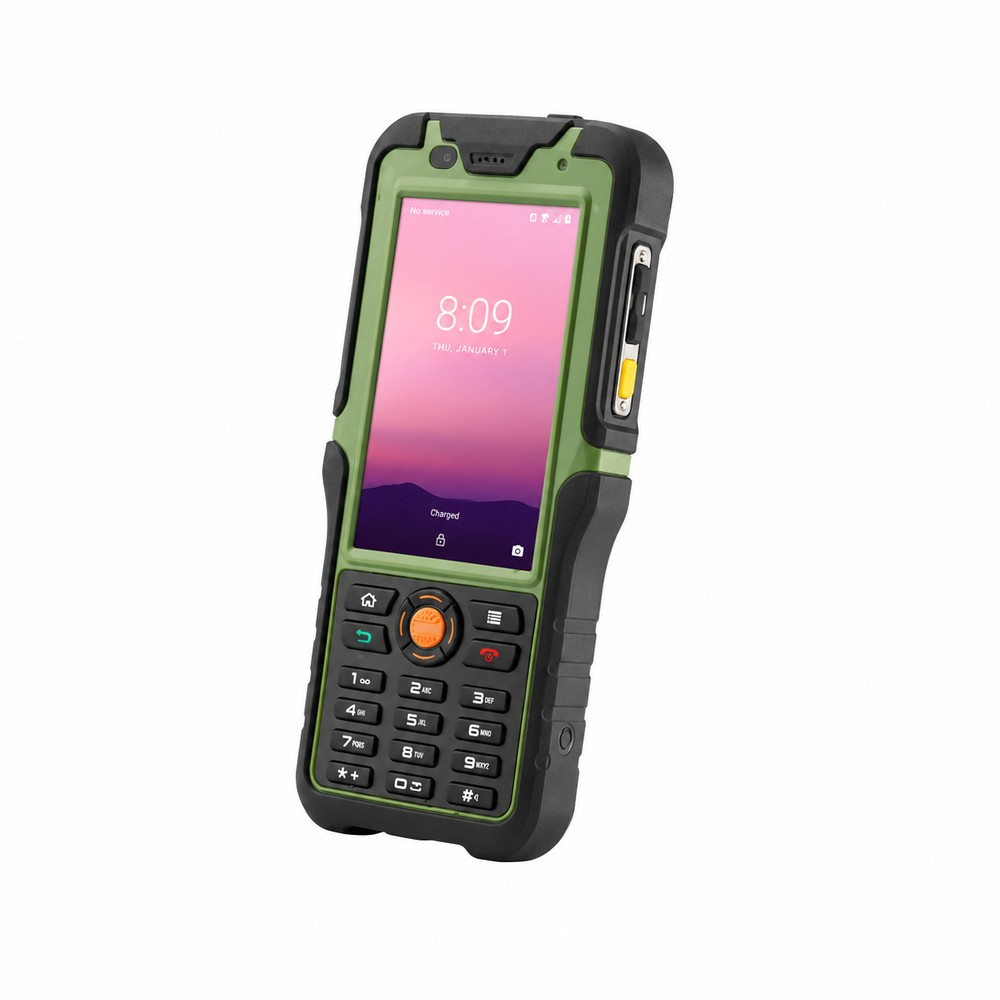

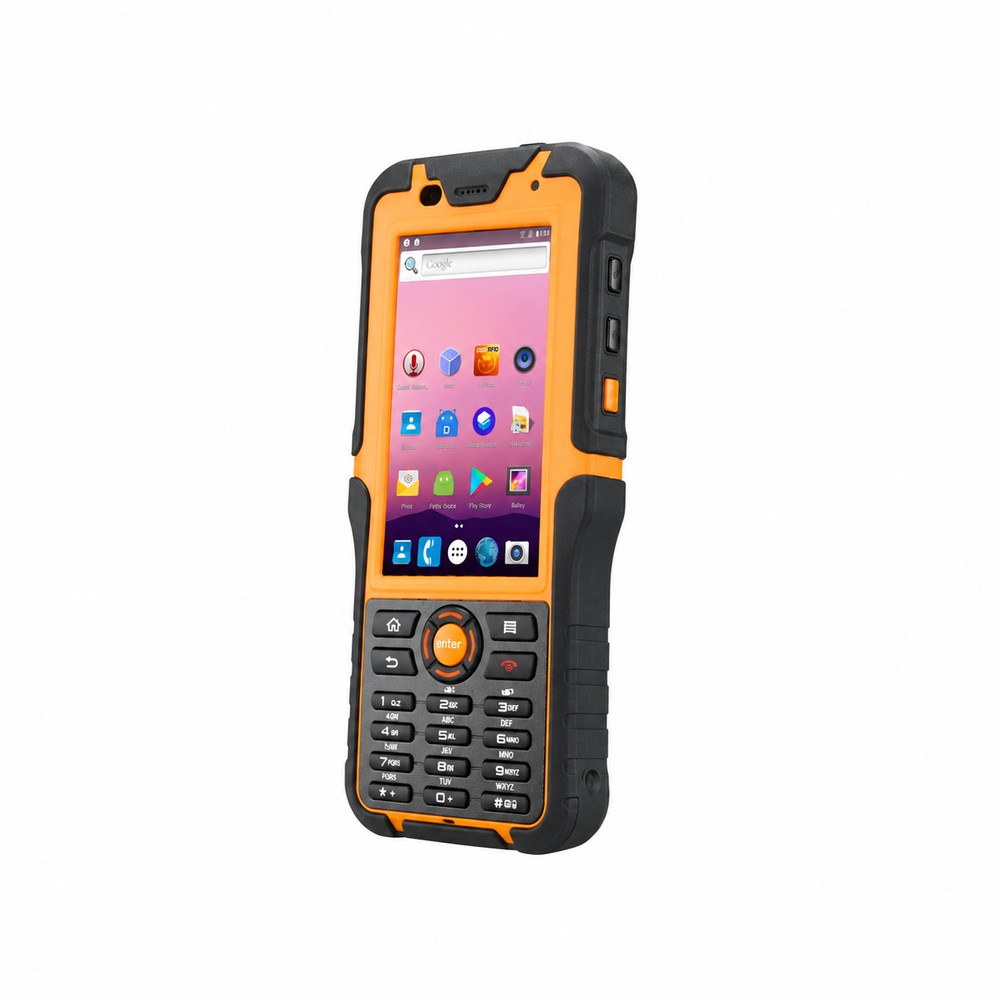

HUGEROCK S50EX Rugged PDAs
HUGEROCK S50EX is a rugged PDA in the ATEX Tablets collection. The hardware supports extended interfaces, and modules can be installed according to customer needs to complete more functions,T9 keyboard input can be used in more environments.
HUGEROCK S50EX hardware and system
HUGEROCK S50EX brings together the hardware and operating-system specifications below. CPU: ARM Cortex A73 octa-core (2.0GHz ). OS: Android 10 / 11. Memory: 8G. Storage: 128G. The Specs tab lists the configuration details, optional modules and version differences. Those tables should be checked against the configuration required for each order.
Display, battery and physical design
Battery: 5000mAh (Replaceable battery). Display: 4.5 inch IPS/AFFS 540 QHD industrial 500nit Sunlight Readable. Dimensions: 197*92*26.5mm (LxWxH). Weight: 420g. Touch: apacitive/frosted tempered film supports glove touch/spray/active capacitive pen. Screen size, resolution and brightness are useful points when comparing a device for indoor and outdoor work. The battery, dimensions and weight provide additional information for deciding how the terminal will be carried or mounted. Any removable battery, mounting hardware or optional module should be selected according to the corresponding specification table.
Connectivity and data collection
Network: Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac. Navigation: GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m). Camera: 13.0MP(AF) with flash led. Front Camera: N/A. Data ports: USB Type-C(OTG)*1. The available interfaces and communication specifications help assess compatibility with the intended workflow. Check the full network bands and module parameters before choosing a configuration. Listed optional functions describe configuration possibilities; they do not mean every module is installed on every unit.
HUGEROCK S50EX product features
MORE
FAST
MORE FAST
ARM Cortex A73 octa-core (2.0GHz ) processor solution and 8G RAM.
INTRINSIC
SAFETY
INTRINSIC SAFETY
5000mAh replaceable intrinsic safety battery, can work continuously for 12 hours.
FULL
RUGGED
FULL RUGGED
Industrial protection grade IP66, MIL-810G Drop-proof 6 ft.

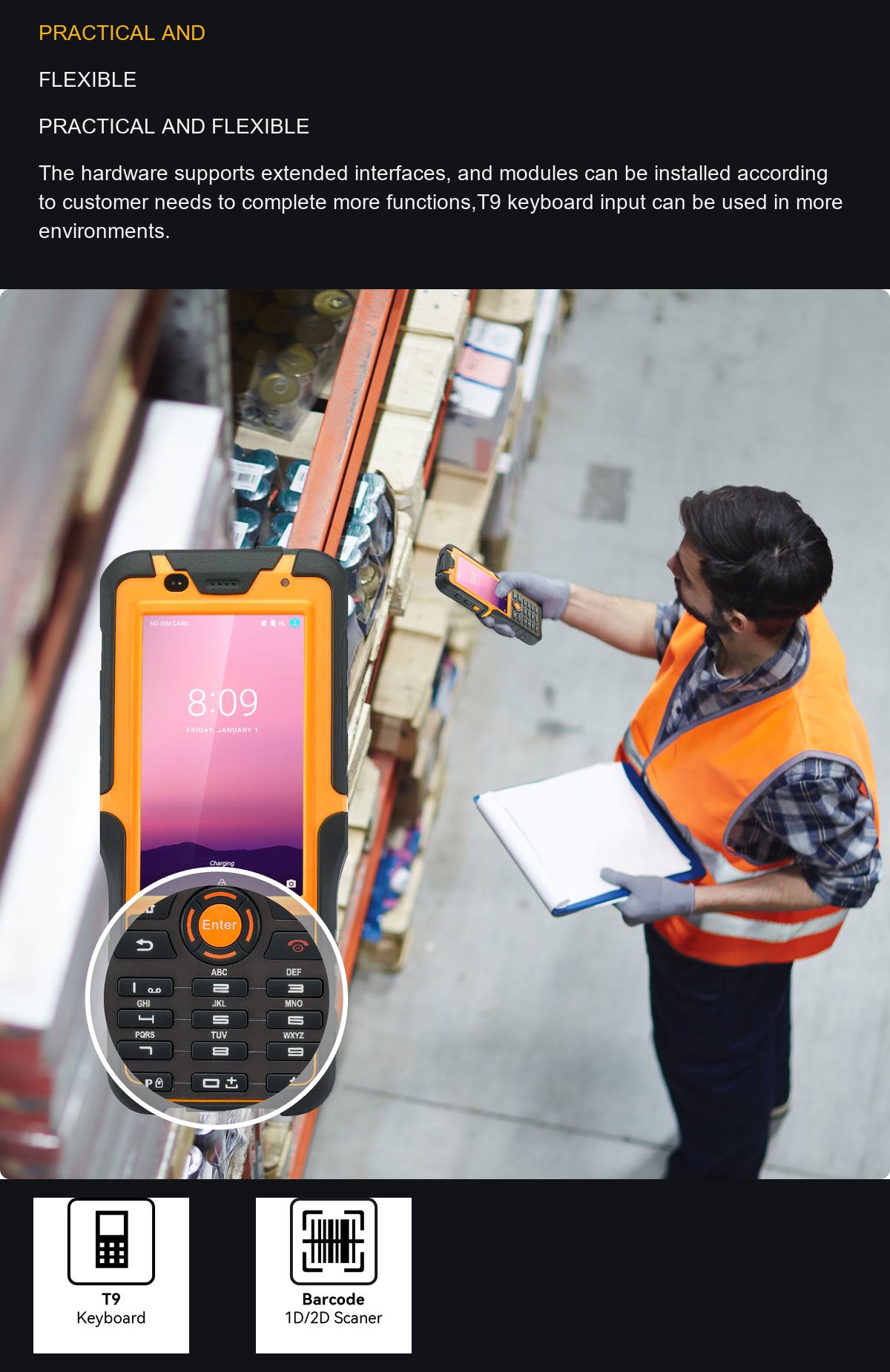

PRACTICAL AND
FLEXIBLE
PRACTICAL AND FLEXIBLE
The hardware supports extended interfaces, and modules can be installed according to customer needs to complete more functions,T9 keyboard input can be used in more environments.
REAL-TIME
COMMUNICATIONS
REAL-TIME COMMUNICATIONS
To support video conferences, screen sharing and other applications, our solutions offer a range of devices with 4G with mobile SIM and IEEE 802.11ax Wi-Fi.

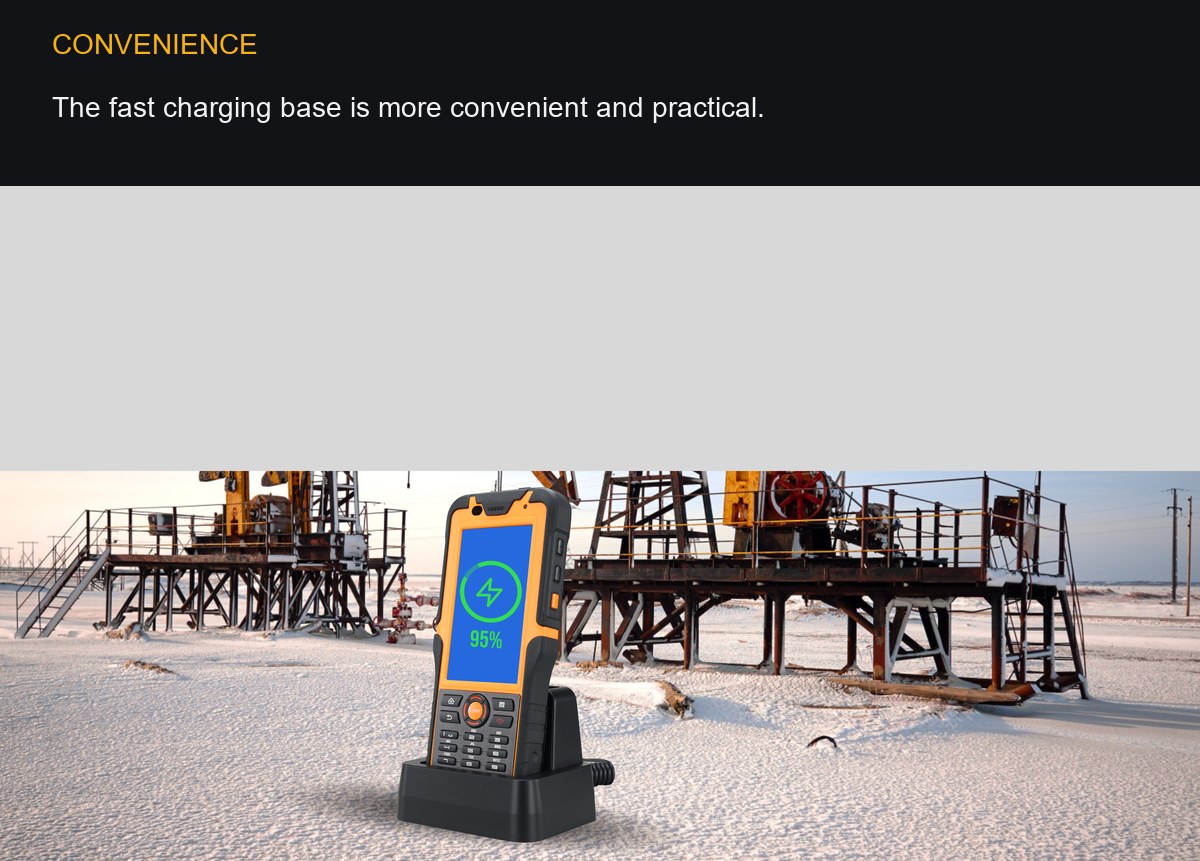

CONVENIENCE
The fast charging base is more convenient and practical.
Product photos and specifications
The HUGEROCK S50EX gallery shows the product itself. Review the Specs tab for all listed technical fields, appearance diagrams, comparison tables and module information. Browse our ATEX Tablets collection to compare more models.
Product attributes
| Operating System | Android 9/10/11/13 (Continuous updates) |
|---|---|
| Style | Handheld Computer |
| Memory Capacity | 8GB |
| Place of Origin | Guangdong, China |
| Processor Type | Octa-core |
| Screen Size | 4.5 inch |
| Weight | 420g |
| Brand Name | HUGEROCK |
| Model Number | S50EX(021) |
| Software development kit (SDK) | Yes |
| CPU | ARM A73 2.0GHz Octa-core |
| GPU | ARM Mali-G72 MP3 |
| Style | Data collector |
| Operation system | Android 9/10/11/13 (Continuous update |
| Processor type | Octa-core |
| Application | Industrial |
| Barcode scanner | 1d/2d barcod scanner |
| Interface | Type c |
| Function | Anti-explosion |
| Color | Yellow |
| Single package size: | 27X27X11 cm |
| Single gross weight: | 2.000 kg |

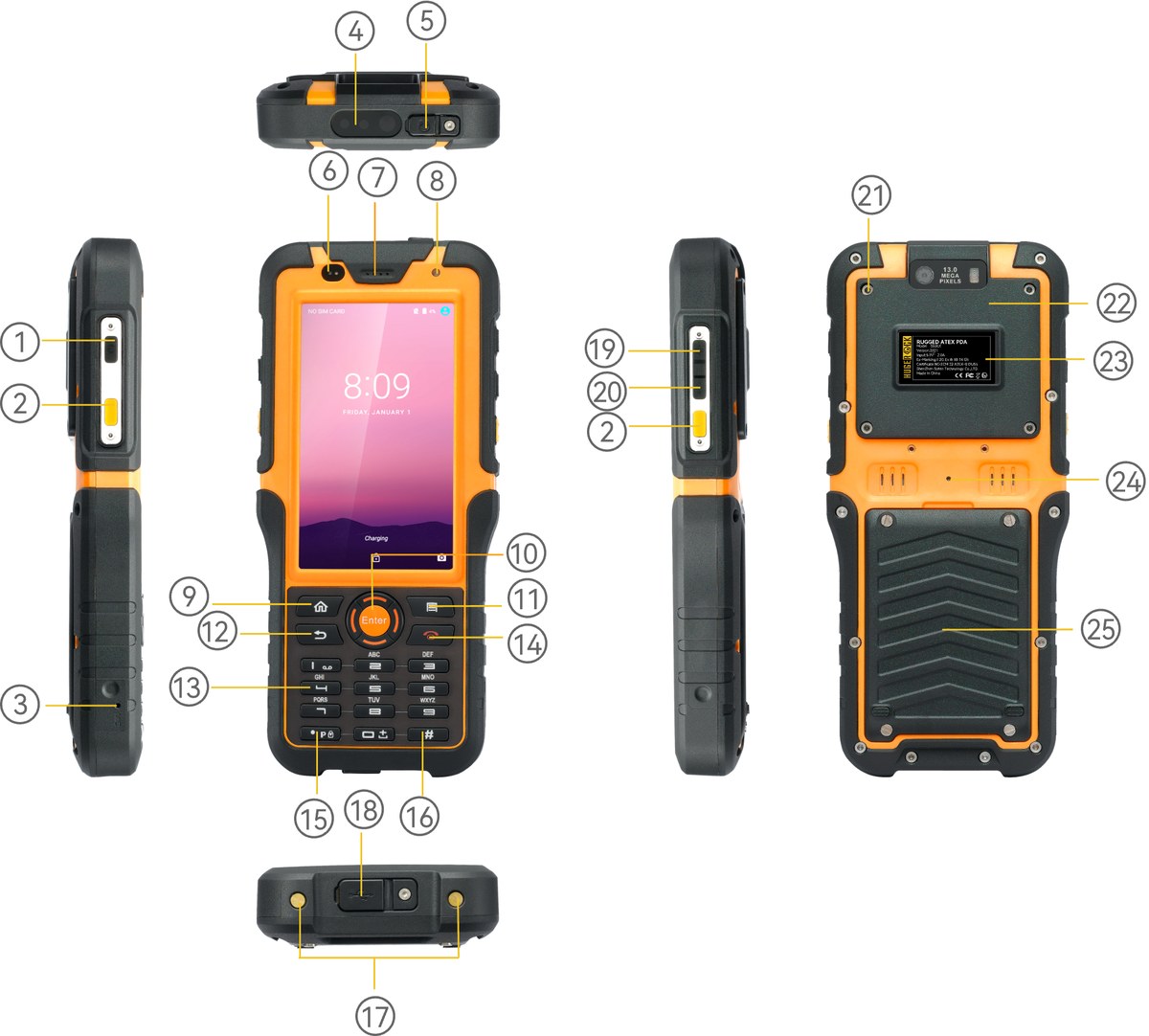

APPEARANCE
| 1. Power button |
| 2. Scan button |
| 3. MIC |
| 4. Barcode scanner (optional) |
| 5. Earphone (Sealed Cover) |
| 6. light sensation |
| 7. Handset |
| 8. Charge lamp |
| 9. Home |
| 10. Arrow and confirm Button |
| 11. Menu Button |
| 12. Back Button |
| 13. Number Button |
| 14. Power ON/OFF |
| 15. * Button |
| 16. # Button |
| 17. 2pin pogo pin |
| 18. Type-C (Sealed Cover) |
| 19. Volume up |
| 20. Volume Down |
| 21. Main camera (optional) |
| 22. Function box (optional) |
| 23. Nameplate |
| 24. Speaker |
| 25. Battery |
TECHNICAL SPECIFICATIONS
| Hardware | |
| CPU | ARM Cortex A73 octa-core (2.0GHz ) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card(T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | N/A |
| Battery | 5000mAh (Replaceable battery) |
| Display | 4.5 inch IPS/AFFS 540 QHD industrial 500nit Sunlight Readable |
| Touch Panel | apacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | 1.8/3.3V SIM card |
| TF Card | Micro SD card (T-FLASH card); max 256GB |
| Headphone | 3.5mm (CTIA) |
| Charging interface | Type-C & 2Pin pogo pin |
| Data interface | USB Type-C(OTG)*1 |
| Gravity sensor | support |
| Motion sensor | support |
| Direction Sensor | support |
| Magnetic Field Sensor | support |
| Gyro sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |

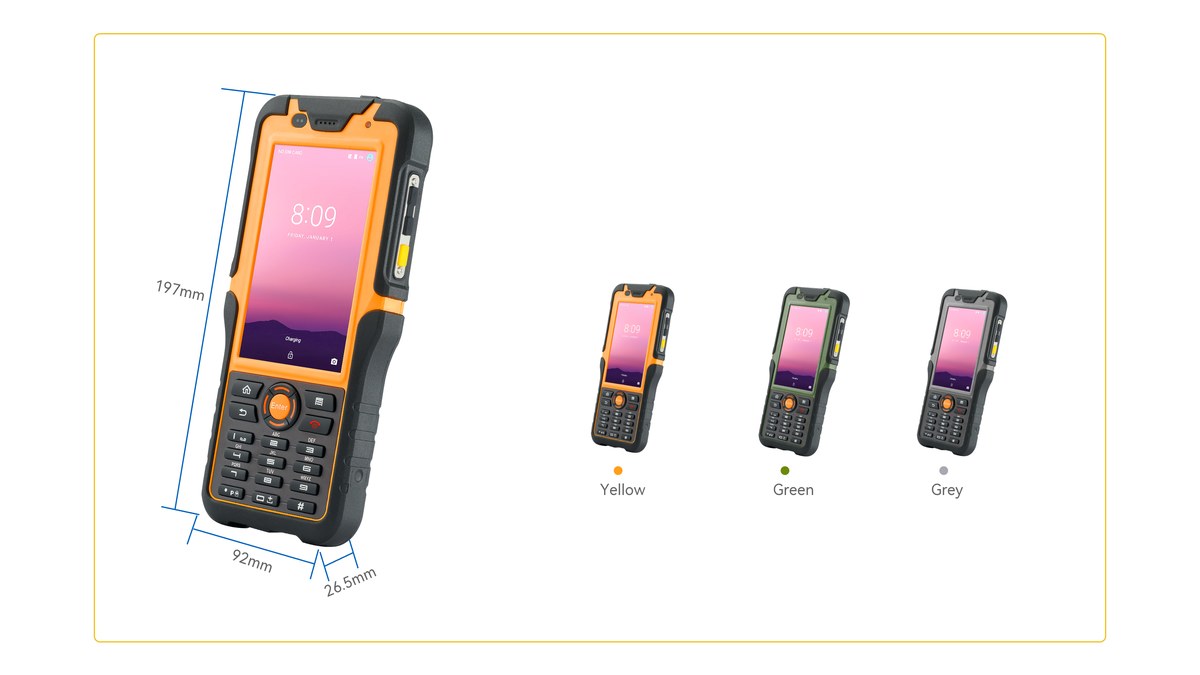

| Size | 197*92*26.5mm (LxWxH) |
| Weight | 420g |

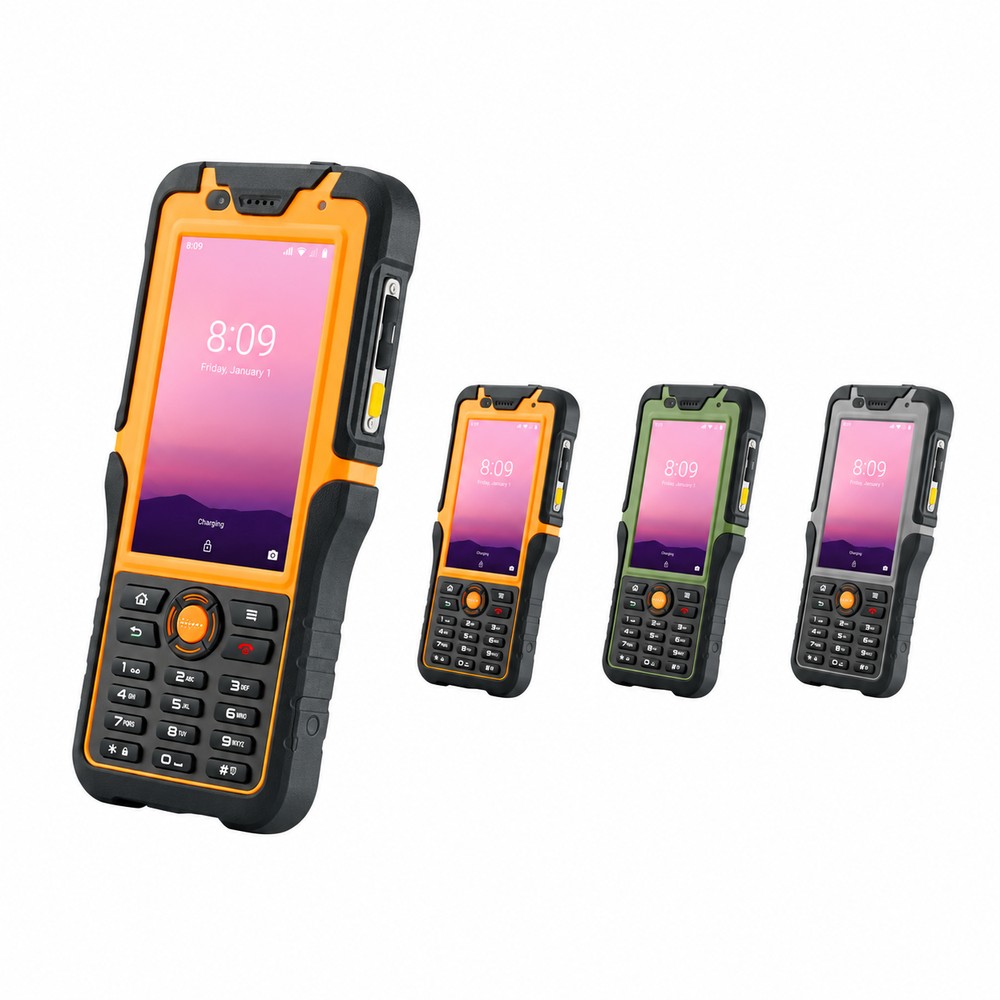

| Color & Material | Black&yellow Black&green Black&Gray |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps), EVDO |
| 3G Band | WCDMA (B1/2/5/8), Evdo: BCO/BC1 CDMA: BCO/BC1 |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink , 50Mbps uplink |
| 4G Band | TD-LTE (B38/39/40/41) ; FDD LTE(B 1/2/3/4/5/7/8/12/17/20/28) |
| WI- FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 4.2 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 5 ( IEC 60529 ) |
| Dustproof | Class 6 ( IEC 60529 ) |
| Reliability | MTBF=5000h; MTTR=0.5h |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500 m (15,000 feet) |
| Certification/OS/Software | |
| Certification | ATEX/3C/FCC/CE/ROHS/IP65 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc |
| OS | Android 10 / 11 |
| Ex-Marking | II 2G Ex ib IIB T4 Gb |
| Certificate NO. | ECM 22 ATEX-B DU54 |
| Package/Warranty terms/OEM | |
| Warranty | 24 months |
| OEM/ODM | Support |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box (Can be customized logo)/Aircraft box/Toolkit (optional) |

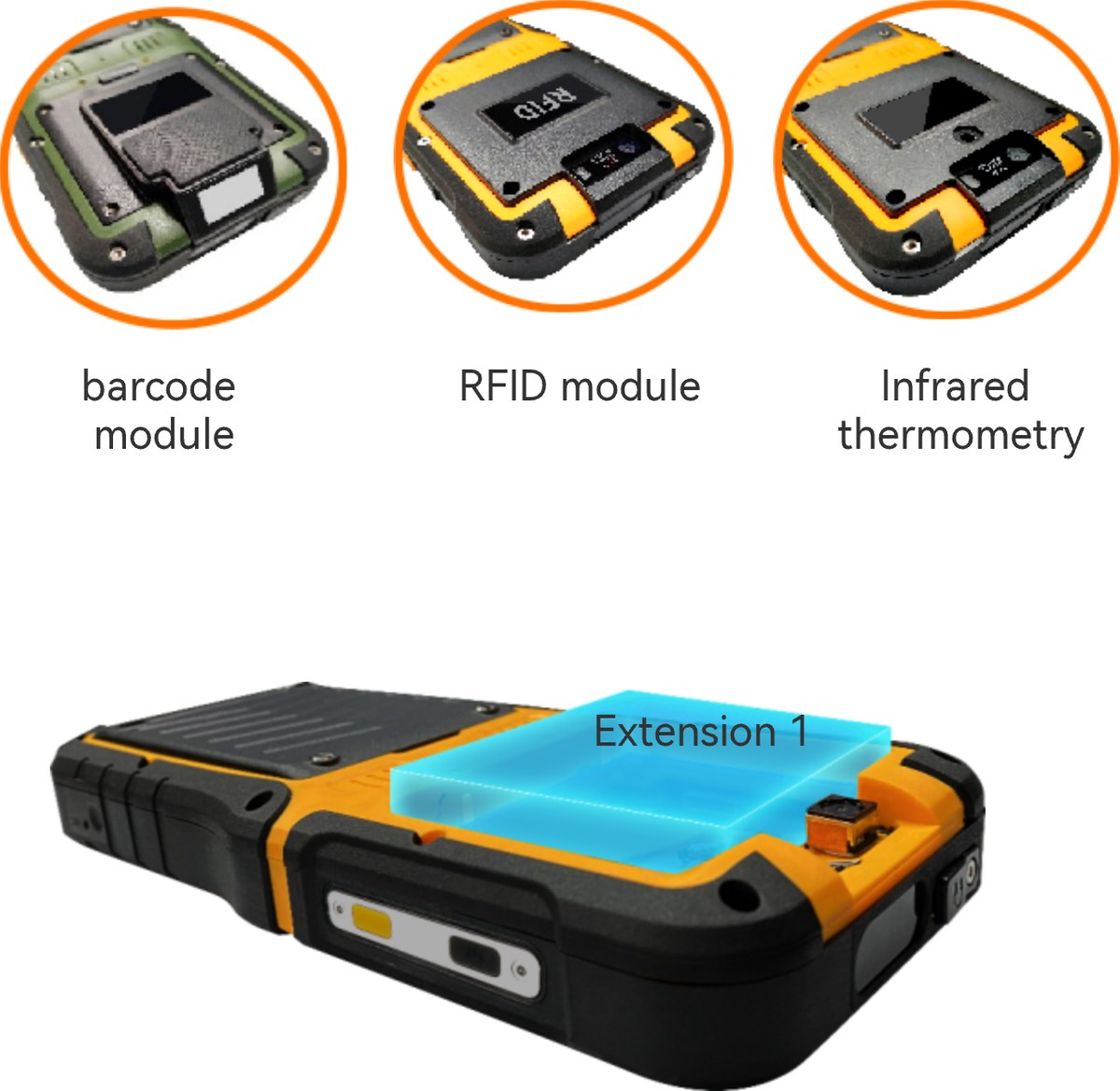

OPTIONAL MODULES
| Extension | ||
|---|---|---|
| 1 | UHF module | (M500 ASTM) + Antenna(M500 EN)+Antenna |
| LF RFID module | 125K LF ID card (8H-10D)125K LF ID card (10D)125K LF HID card module134K LF animal tag module | |
| HF RFID module | 13.56M HF module (single protocol)13.56M HF module (multi-protocol) | |
| 1D/2D Barcode module | ||
| RS232 module | ||
| NFC module | ||
| Other customer supply modules | Need to meet the interface conditions: Powered by 3.3V-1.5A/5V-1.5A, UART Interface, interface level3.3V/5V, GPIO 1/electrical level 3.3V/5V. | |
OPTIONAL MODULES & ACCESSORIES

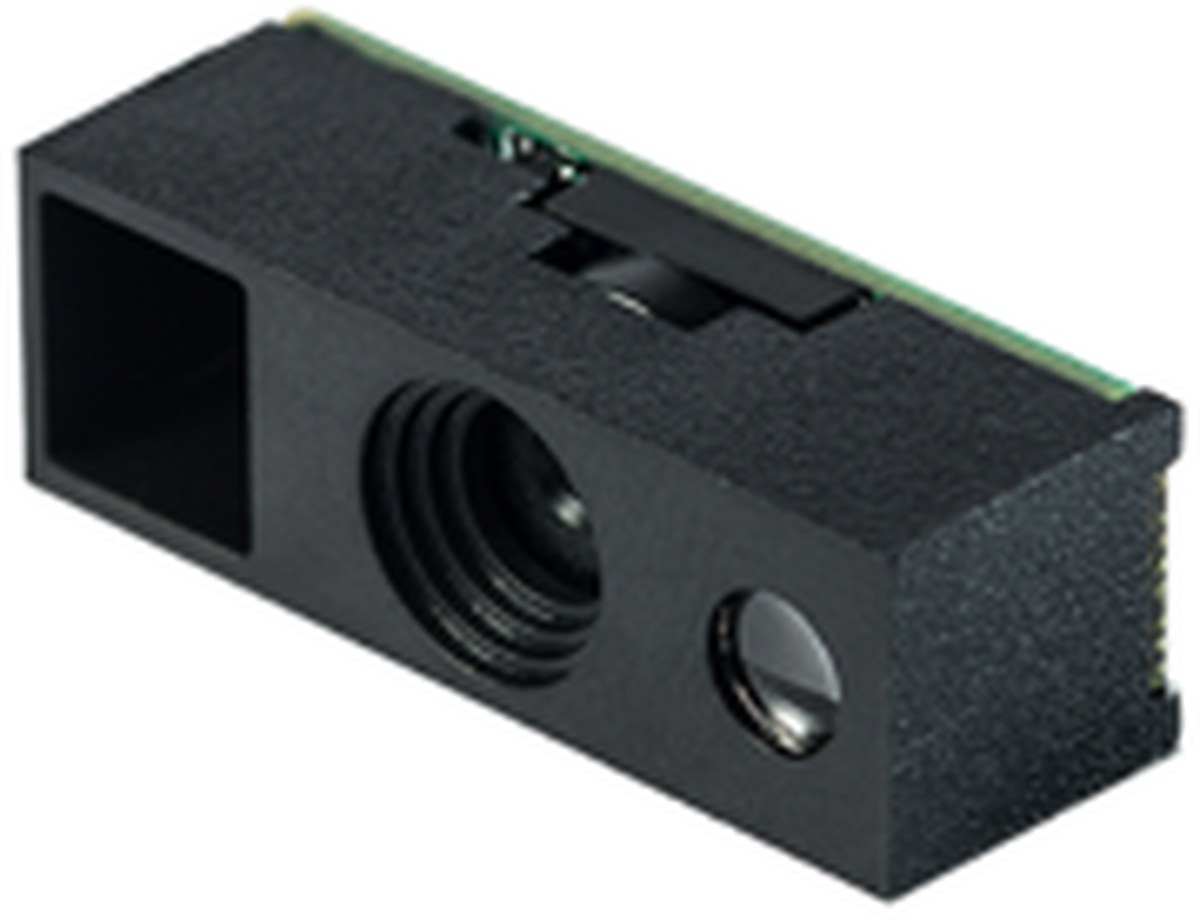

| Barcode reader Optional 2D module | |
| 2D Barcode Module N1 N12D PDF417, QR Code, Micro QR, Data Matrix 1D Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey 640*480 CMOS EAN13 (13mil) 65-350mm, PDF417 (6.7mil) 50-125mm, Code39 (5mil) 40-150mm, Data Matrix (10mil) 45-120mm, QR Code (15mil) 30-170mm |
OPTIONAL MODULES & ACCESSORIES

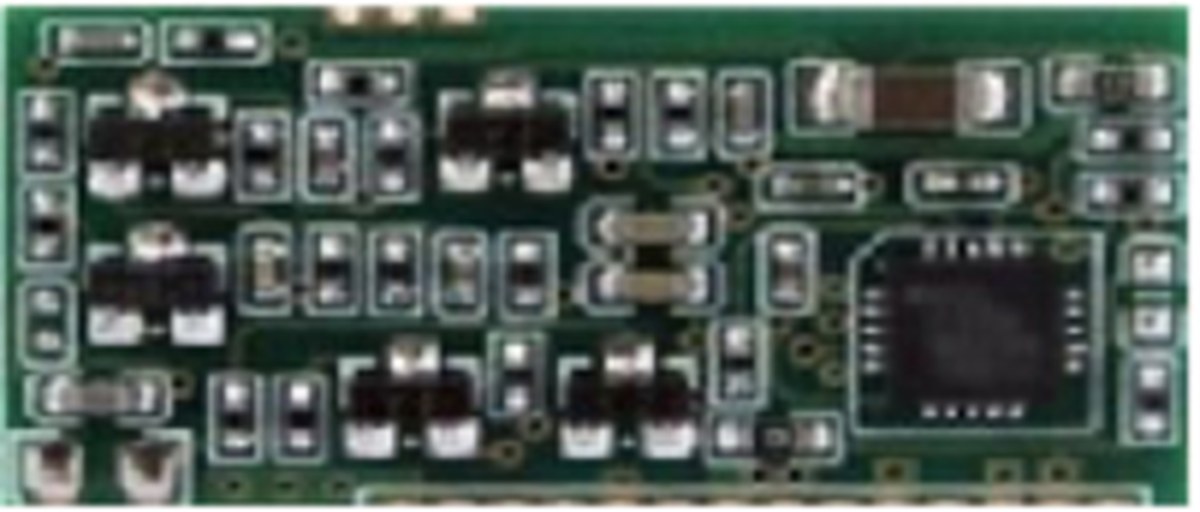

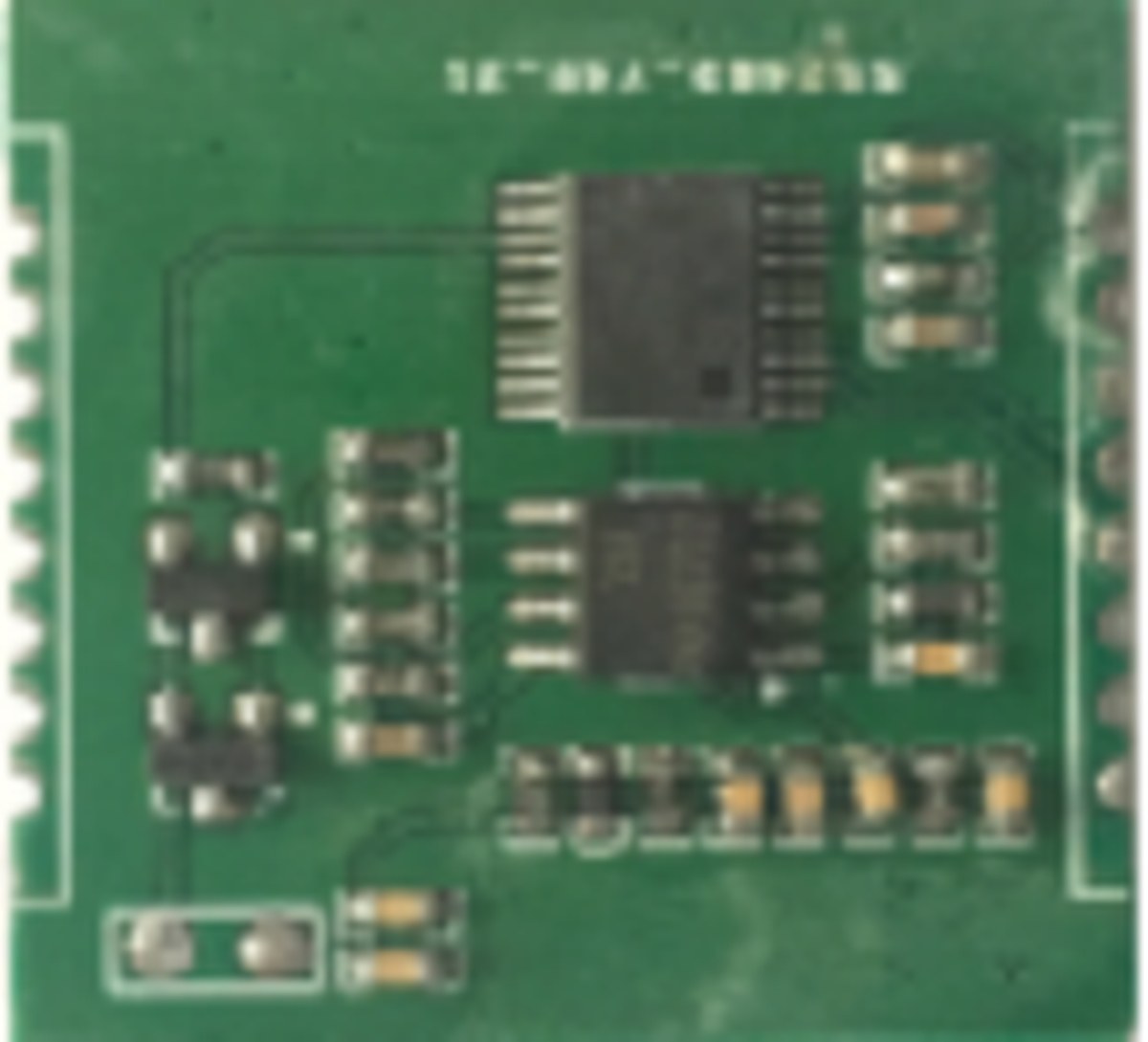

| RFID ReaderOptional LF HF UHF | |
| 125K LF RFID Module support: ID card(8H-10D)EM4100, 4001, TK4100, EM4305 Read distance 2-5cm (optional HID card support) | |

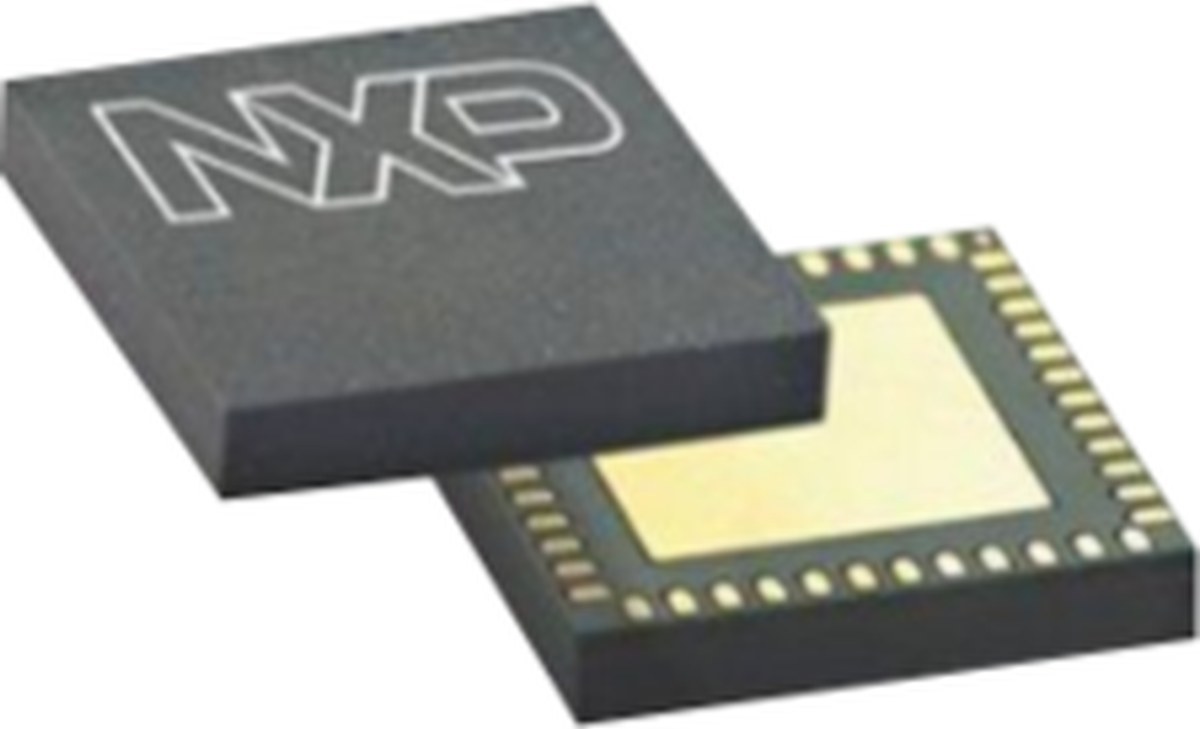

| 13.56M HF RFID or NFC Module 13.56M HF support ISO14443A/B/ISO15693 readable/data transmission/Card Emulation/encryption authenticated Read distance 2-5cm | |
| 134K LF RFID Module Operation Frequency: 134.2k Hzsupport agreement: ISO11784/5Read distance >5cm Working mode: FDX-B(full-duplex communication) | |

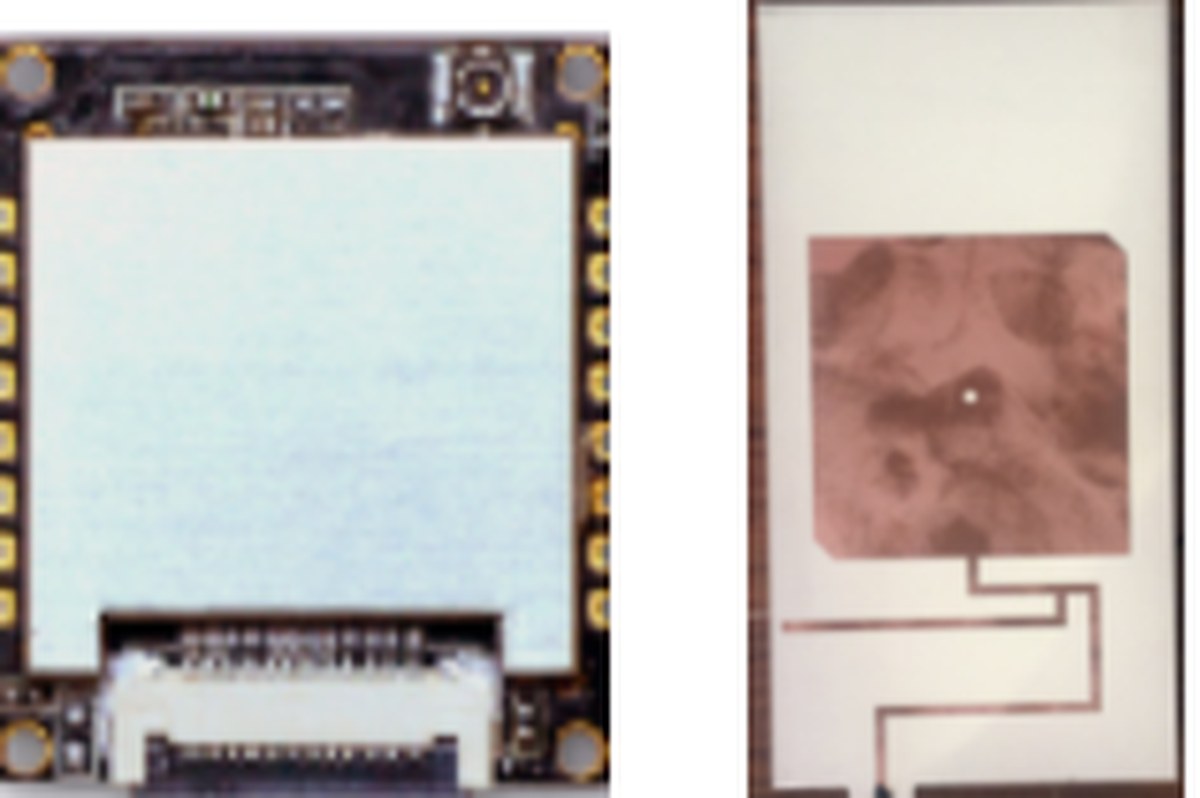

| UHF RFID Module/antenna Air interface protocol: EPCglobal UHF Class 1 Gen 2 / ISO 18000-6COperating spectrum range: 902Mhz – 928Mhz865MHz – 868MHz(Optional) Output range: 0-26 dBm Output accuracy: +/- 1dB Output power level: +/- 0.2dB Read distance: 1.5-2m(2db antenna test card E41) |
