HUGEROCK S101 Rugged Tablets
10.1 inch IPS/AFFS 1920*1200 FHD industrial 450nit Sunlight Readable, 4G + 32G, 14600mAh, Android 10 / 11, ARM Cortex A73 octa-core (2.0GHz)
HUGEROCK S101 is a rugged tablet in the Rugged Industrial Tablets collection. Large running memory makes it more stable and smooth to use and can save more data.
Display: 10.1 inch IPS/AFFS 1920*1200 FHD industrial 450nit Sunlight Readable
Memory: 4G; Storage: 32G
Battery: 14600mAh
System: Android 10 / 11
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

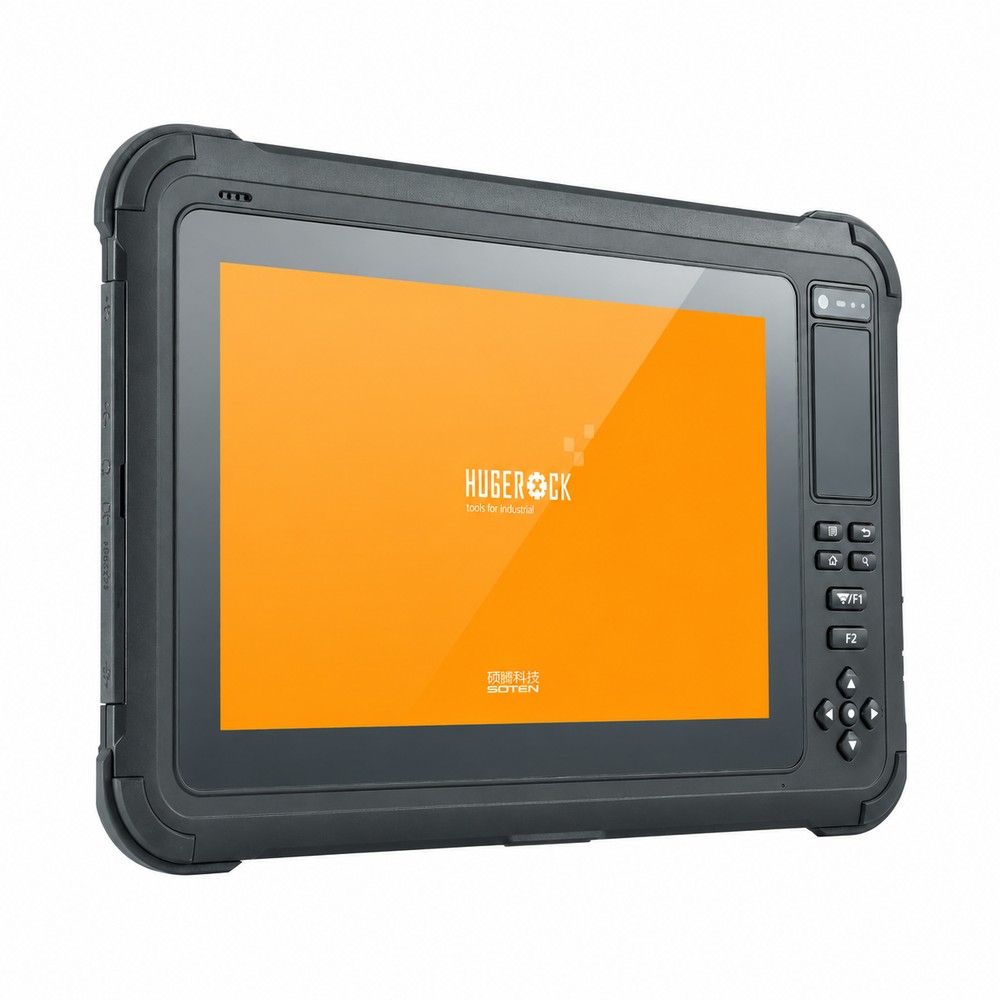

HUGEROCK S101 Rugged Tablets
HUGEROCK S101 is a rugged tablet in the Rugged Industrial Tablets collection. Large running memory makes it more stable and smooth to use and can save more data.
HUGEROCK S101 hardware and system
HUGEROCK S101 brings together the hardware and operating-system specifications below. CPU: ARM Cortex A73 octa-core (2.0GHz). OS: Android 10 / 11. Memory: 4G. Storage: 32G. The Specs tab lists the configuration details, optional modules and version differences. Those tables should be checked against the configuration required for each order.
Display, battery and physical design

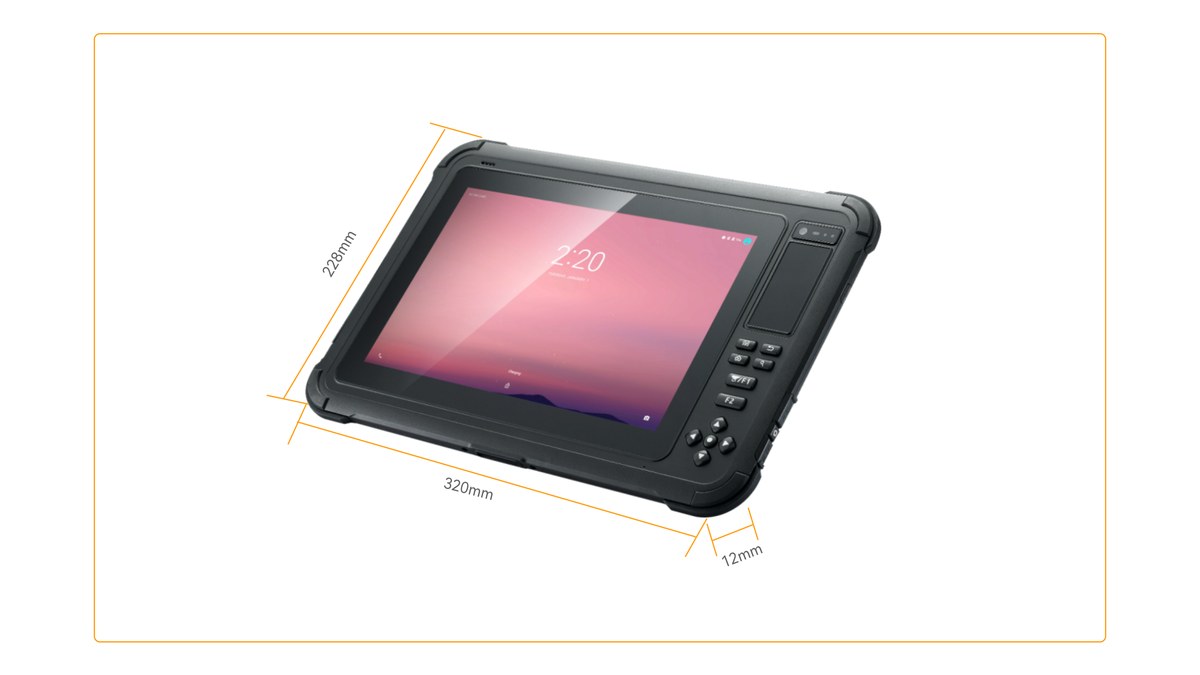

Battery: 14600mAh. Display: 10.1 inch IPS/AFFS 1920*1200 FHD industrial 450nit Sunlight Readable. Dimensions: 320*228*12mm (L×W×H). Weight: 975g. Touch: Capacitive/frosted tempered film supports glove touch/spray /active capacitive pen. Screen size, resolution and brightness are useful points when comparing a device for indoor and outdoor work. The battery, dimensions and weight provide additional information for deciding how the terminal will be carried or mounted. Any removable battery, mounting hardware or optional module should be selected according to the corresponding specification table.
Connectivity and data collection
Network: wifi, GSM, 4g, 3G. Navigation: GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m). Camera: 13.0MP(AF) with flash led. Front Camera: 5.0MP. Data ports: USB Type-A(Host)*2 , Type-C(OTG)*1. The available interfaces and communication specifications help assess compatibility with the intended workflow. Check the full network bands and module parameters before choosing a configuration. Listed optional functions describe configuration possibilities; they do not mean every module is installed on every unit.
HUGEROCK S101 product features
10.1 INCH FHD SUNLIGHT READABLE
IPS/AFFS Display 1920*1200 FHD.
HIGH CAPACITY
FAST RUNNING
Large running memory makes it more stable and smooth to use and can save more data.
FINGERPRINT
G2010 Module.
NFC
FUNCTION
NFC FUNCTION
NFC provides a very safe and fast communication method for various electronic products that are becoming more and more popular in our daily lives.
DUST-PROOF
CLASS 6 ( IEC 60529 ).

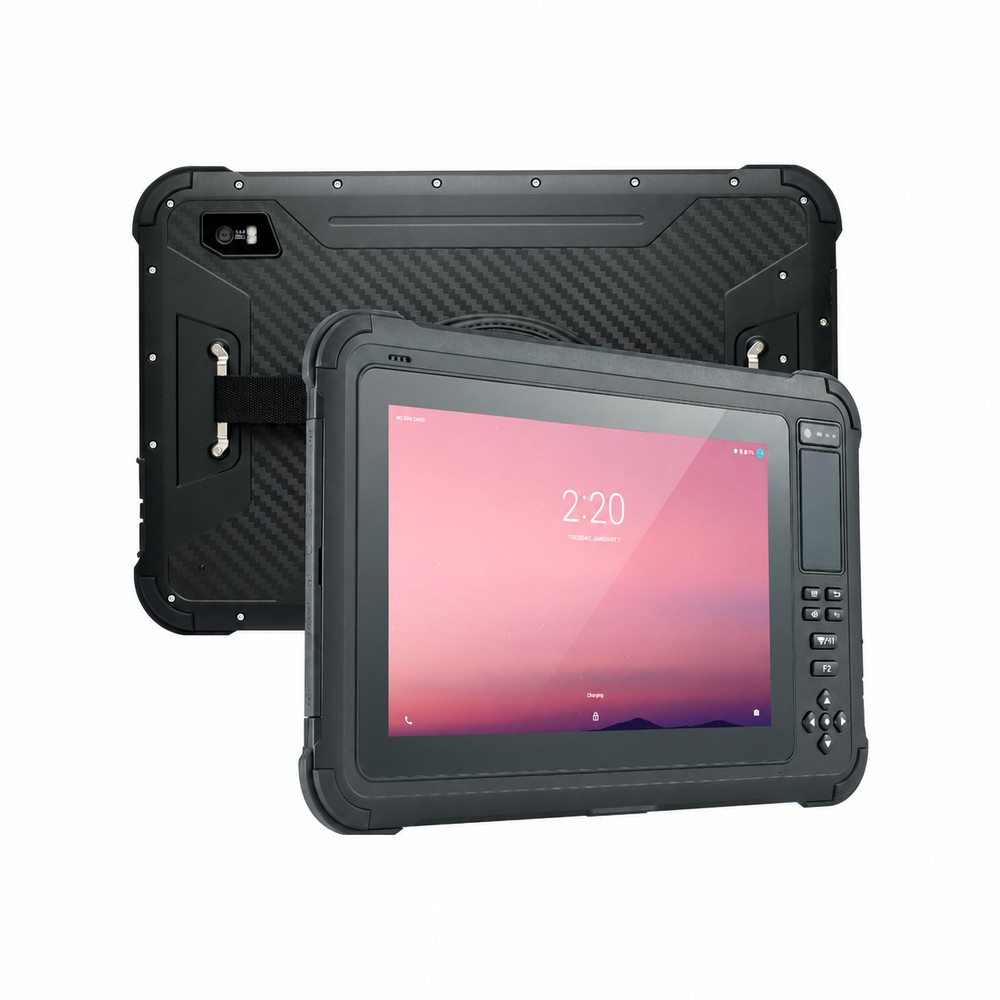

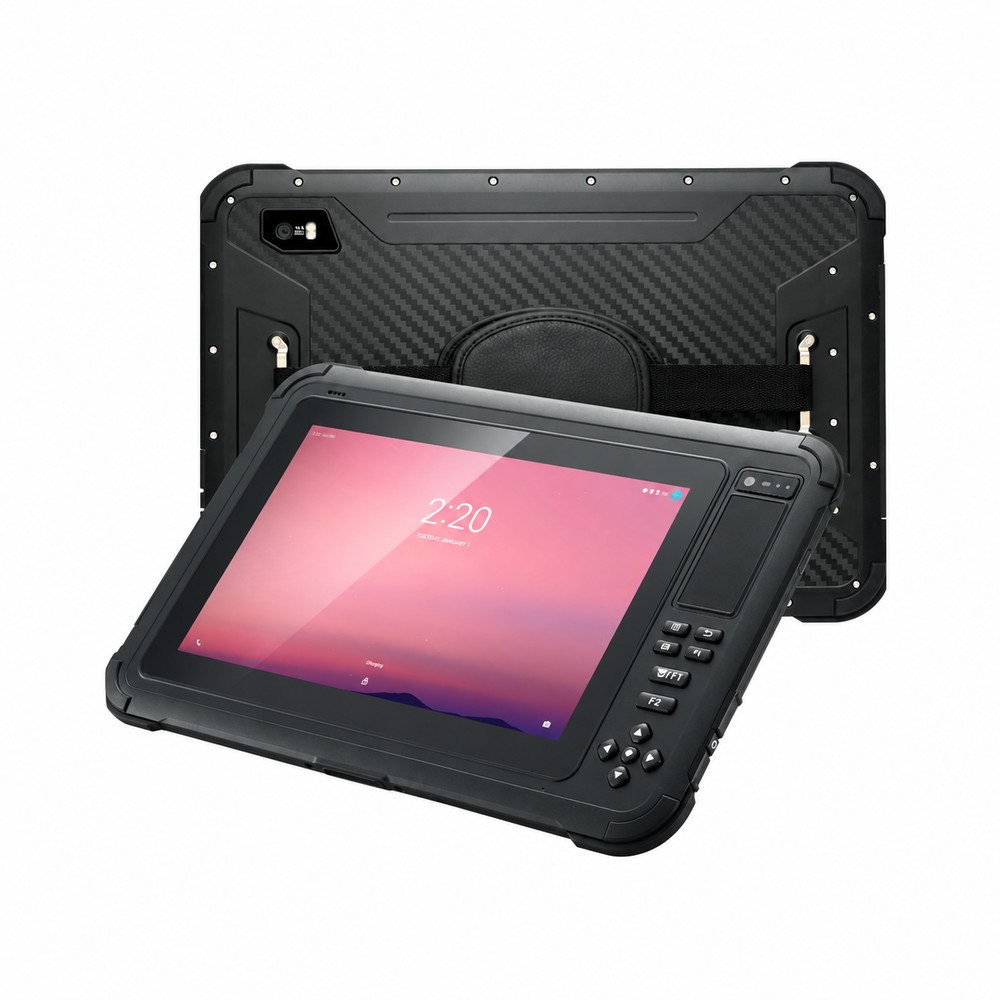

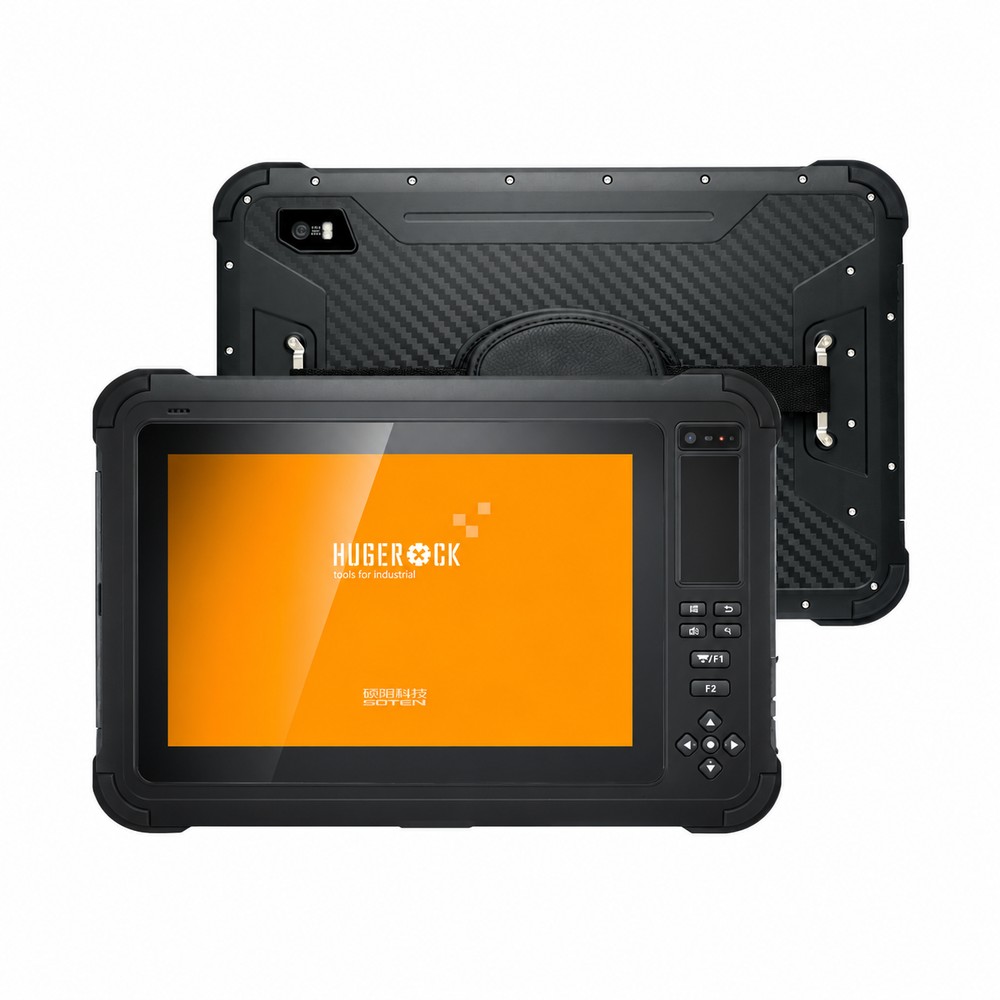

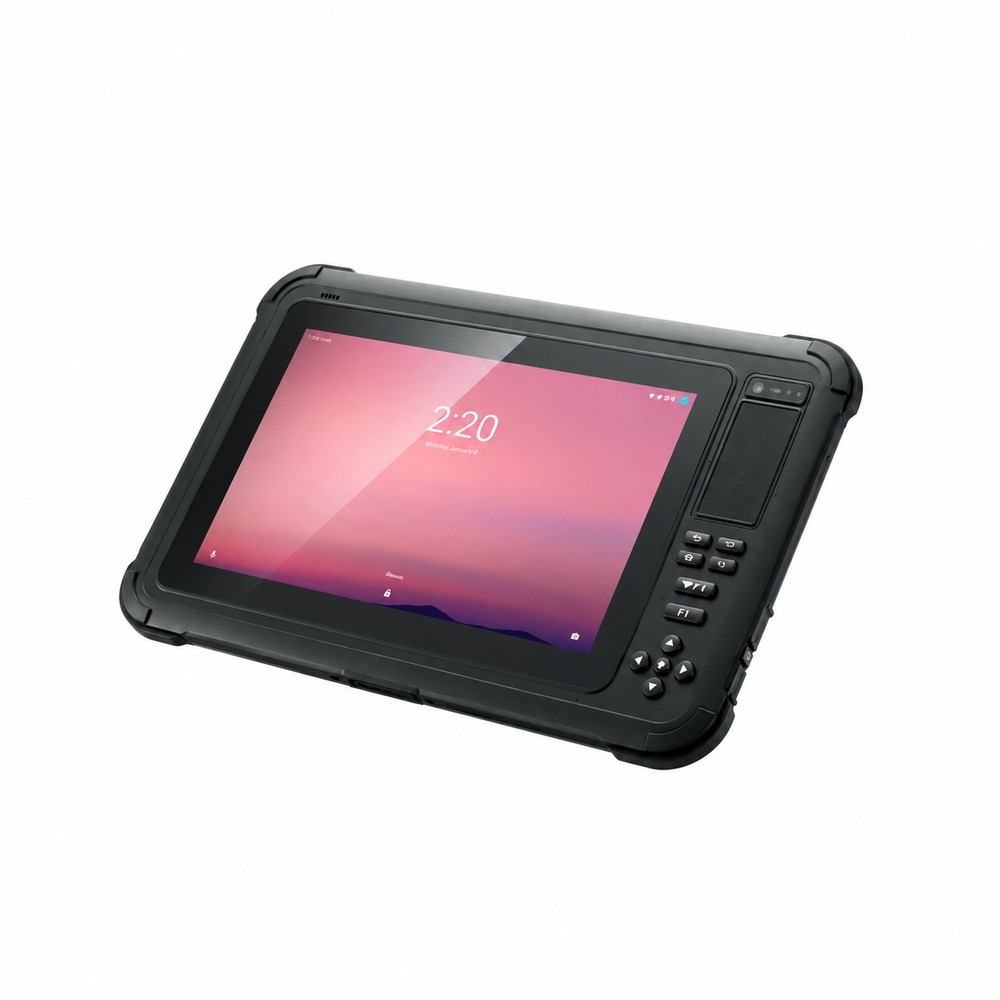

Product photos and specifications
The HUGEROCK S101 gallery shows the product itself. Review the Specs tab for all listed technical fields, appearance diagrams, comparison tables and module information. Browse our Rugged Industrial Tablets collection to compare more models.
Product attributes
| Screen Size | 10.1" |
|---|---|
| Memory Capacity | 6G |
| Display resolution | 1920*1200 |
| Operating System | Android 9/10/11/13 (Continuous updates) |
| Type | Tablet PC |
| Drive Interface | USB Type C |
| Processor Manufacture | MTK |
| Use | Industrial |
| Network | wifi, GSM, 4g, 3G |
| Warranty(Year) | 2-Year |
| Scenarios | For Professional |
| Feature | Waterproof , Shockproof, Drop resistance, Anti-Dust, Soft, Hard, SDK available |
| charging interface | Type-C & 8pin pogo pin(magnetic) & DC 5V (direct battery charging) |
| Processor Type | Octa Core |
| Processor Main Frequency | 2.0GHZ |
| Touch Screen Type | Capacitive Screen |
| Weight | 975g |
| Place of Origin | Guangdong, China |
| Brand Name | HUGEROCK |
| Model Number | S101 |
| CPU | ARM A73 2.0GHz Octa - core |
| GPU | ARM Mali-G72 MP3 |
| Display | 10.1 inch IPS/AFFS 1920*1200 FHD industrial 450nit Sunlight Readable |
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 5 ( IEC 60529 ) |
| Dustproof | Class 6 ( IEC 60529 ) |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Charger | 5.0V 2A-10W |
| Single package size: | 39X27X11 cm |
| Single gross weight: | 3.000 kg |

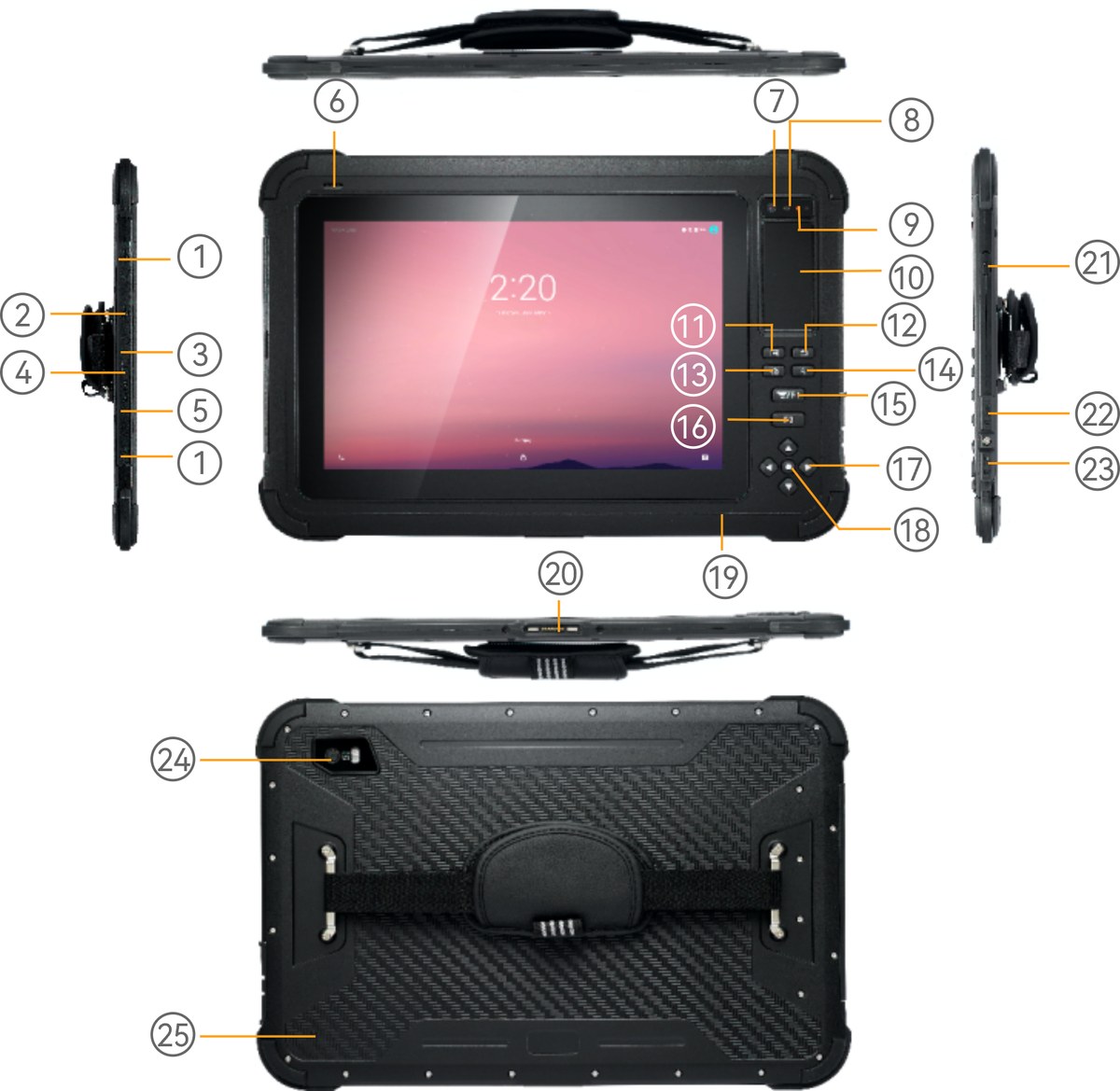

APPEARANCE
| 1. Type-A(Sealed Cover) |
| 2. Type-C(Sealed Cover) |
| 3. Handset Jack(Sealed Cover) |
| 4. DC-type(Sealed Cover) |
| 5. RS232(Sealed Cover) |
| 6. Speaker |
| 7. Sub Camera |
| 8. Ambient light sensor |
| 9. Status indicator and charging indicator |
| 10. Fingerprint(Optional) |
| 11. Menu button |
| 12. Back button |
| 13. HOME button |
| 14. Search button |
| 15. defined button(Optional) |
| 16. Defined button |
| 17. Direction button |
| 18. Confirm button |
| 19. MIC |
| 20. 8pin pogo pin(magnetic) |
| 21. Power button |
| 22. SIM (Sealed Cover) |
| 23. TF(Sealed Cover) |
| 24. Main camera |
| 25. Temperature pressure sensor(Optional) |
TECHNICAL SPECIFICATIONS
| Hardware | |
|---|---|
| CPU | ARM Cortex A73 octa-core (2.0GHz) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 4G |
| Internal Memory | 32G |
| External Memory | Micro SD card(T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 14600mAh |
| Display | 10.1 inch IPS/AFFS 1920*1200 FHD industrial 450nit Sunlight Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray /active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | 1.8/3.3V SIM card |
| TF Card | Micro SD card (T-FLASH card); max 256GB |
| Headphone | 3.5mm (CTIA) |
| Charging Interface | Type-C & 8pin pogo pin (magnetic) & DC 5V (direct battery charging) |
| Data interface | USB Type-A(Host)*2 , Type-C(OTG)*1 |
| RS232 (optinal) | Optional Rs232 Serial Port; Using 5pin Micro One Gpio Port |
| Gravity sensor | Support |
| Motion sensor | Support |
| Direction Sensor | Support |
| Magnetic Field Sensor | Support |
| Gyro sensor | Support |
| Rotation Vector | Support |
| Light-sensor | Support |
| Acceleration sensor | Support |
| Charger | 5.0V 2A -10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |
| Size | 320*228*12mm (L×W×H) |
| Weight | 975g |
| Color & Material | Black (ABS+PC+TPU) |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA 3.75G (HSDPA + 42.2 Mbps, HSUPA +11.5Mbps), EVDO |
| 3G Band | WCDMA (B1/2/5/8) , Evdo: BC0/BC1 CDMA: BC0/BC1 |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD : 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE (B38/39/40/41) ; FDD LTE ( B1/2/3/4/5/7/8/12/17/20/28) |
| WI-FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 4.2 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 5 ( IEC 60529 ) |
| Dustproof | Class 6 ( IEC 60529 ) |
| Reliability | MTBF>50000h; MTTR<0.5h |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500 m (15,000 feet) |
| Certification/OS/Software | |
| Certification | 3C/FCC/CE/ROHS/IP65 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc |
| OS | Android 10 / 11 |
| Package/Warranty terms/OEM | |
| Warranty | 24 months |
| OEM/ODM | Support |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box(Can be customized logo)/Aircraft box/Toolkit(optional) |

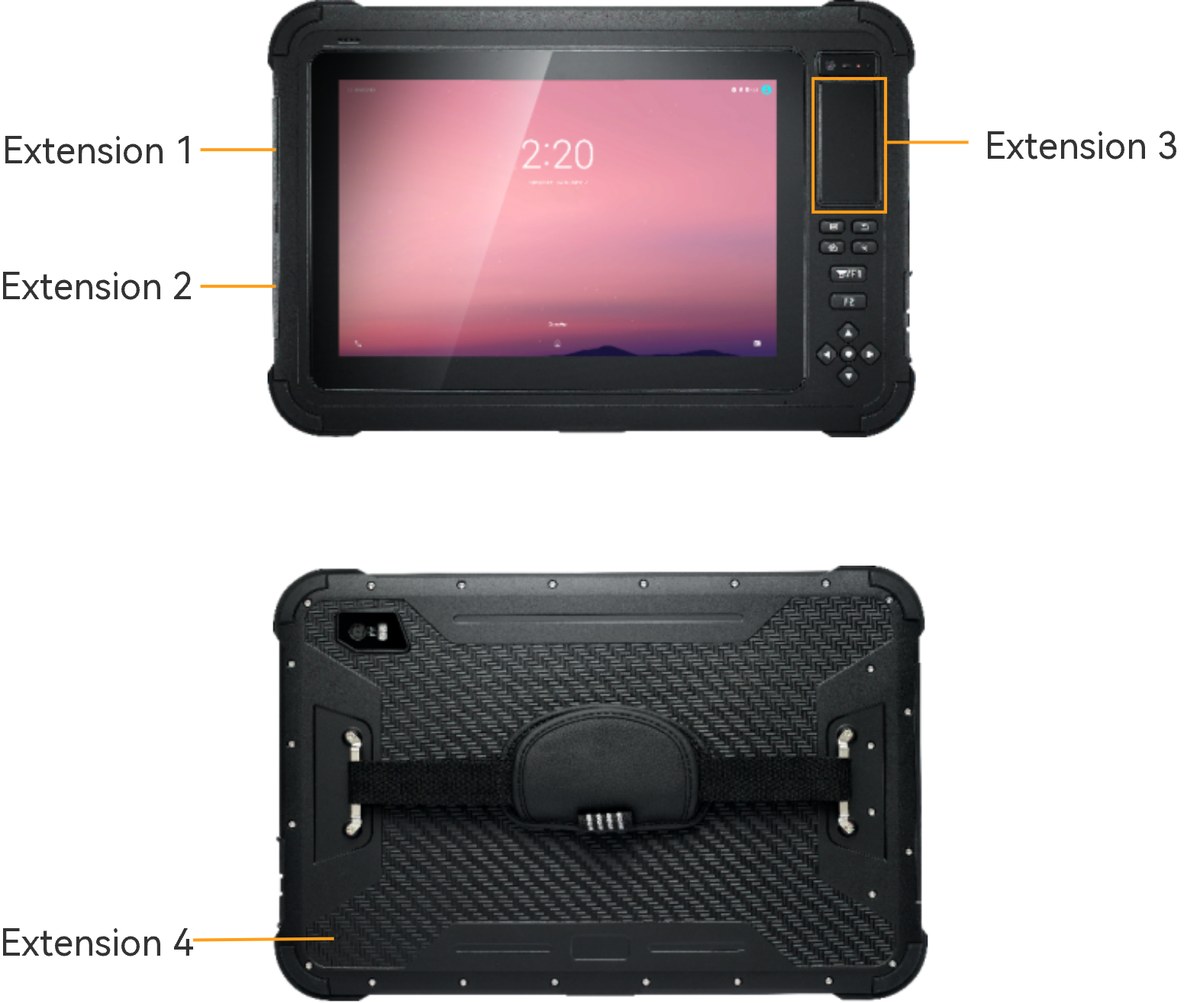

OPTIONAL MODULES
| Extension | ||
|---|---|---|
| 1 | USB Type-A(Host)*2 | |
| 2 | RS232I/O | |
| 3 | Fingerprint Module | G2010 Module |
| NFC | NFC ModuleNFC antenna | |
| 4 | Temperature pressure sensor | Need to meet the interface conditions :Powered by 3.3V/1.5A/5V-1.5A, UART Interface, interface level3.3V/5V, GPIO 1/electrical level 3.3V/5V. |
| Other customersupply modules | ||

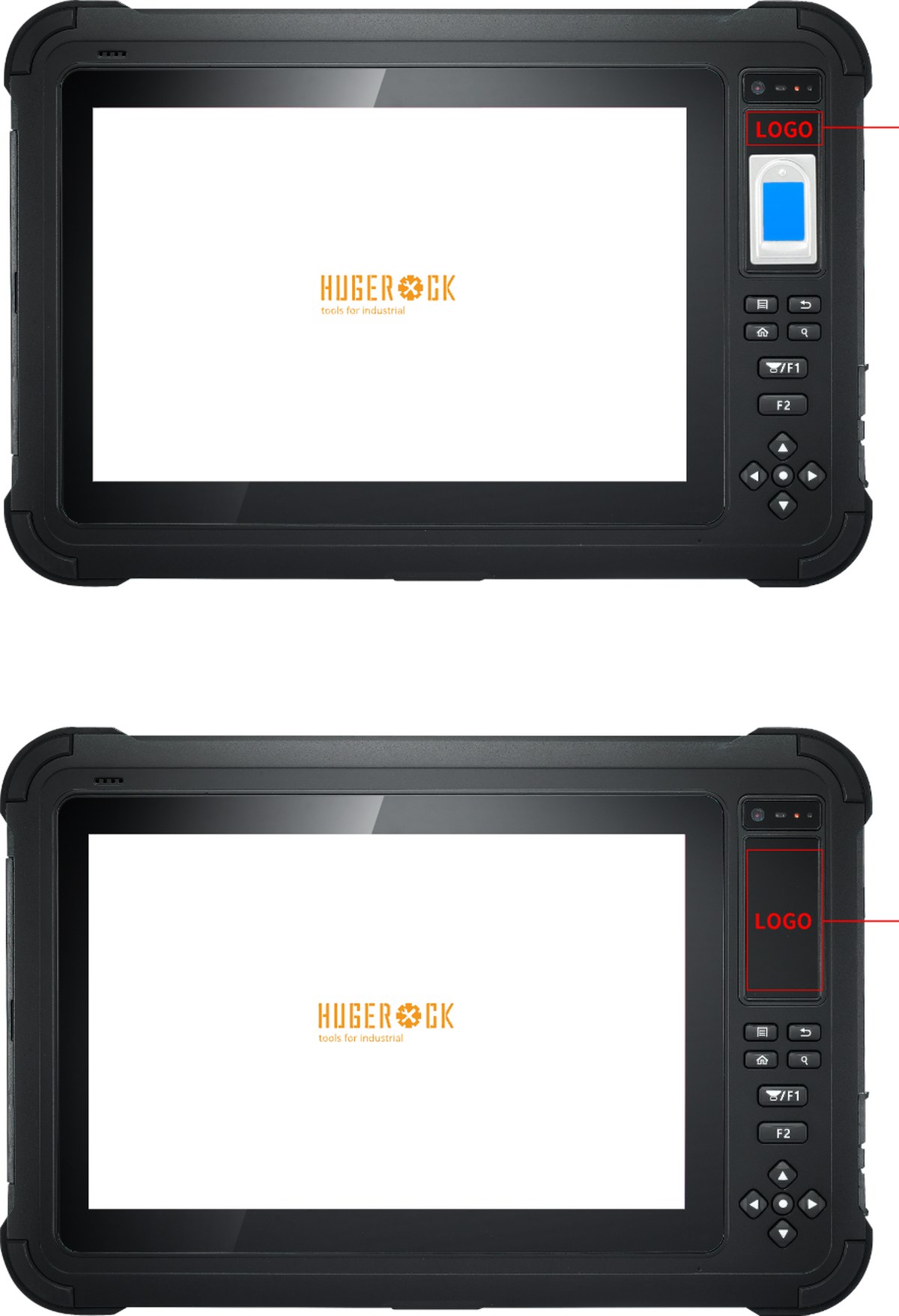

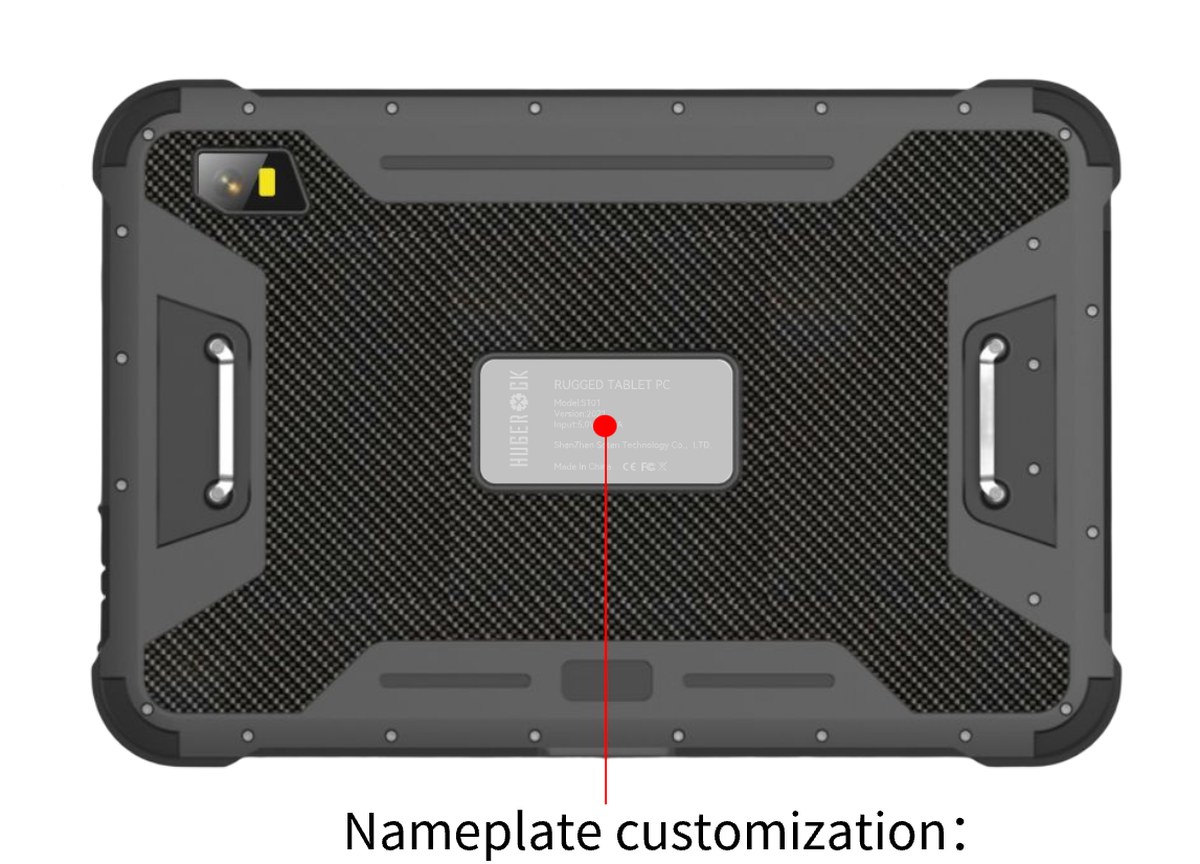

CUSTOMIZED
| Can be the silkscreen position |
| + the LOGo of the |
| NFC/ fingerprint module at the top |
| Boot screen: widthwise |
| Boot screen background color.white, light color |
| Boot screen resolution:1920*1200 |
| Without logo/ fingerprint module |
| the logo can be centered |

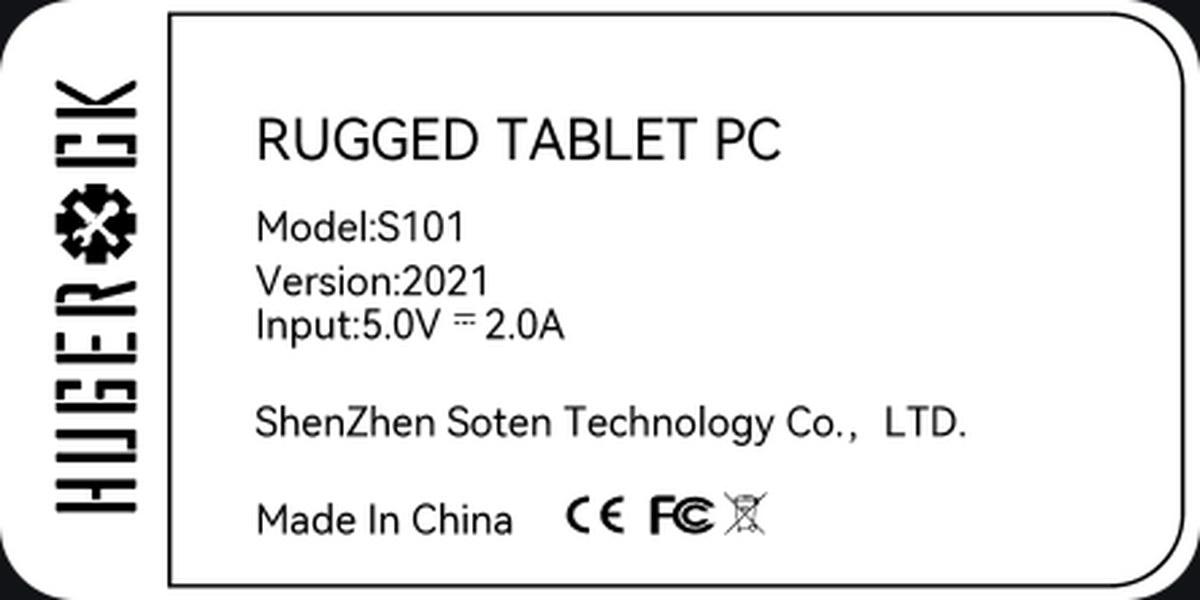

| Program 1: | C: High-gloss metallic silver |
| M: Stainless iron | |
| (select stainless iron with charging base) | |
| F: Laser carving craft |
| Program 1: | C: High-gloss metallic silver |
| Example. |
LOGO LOGO
OPTIONAL MODULES & ACCESSORIES

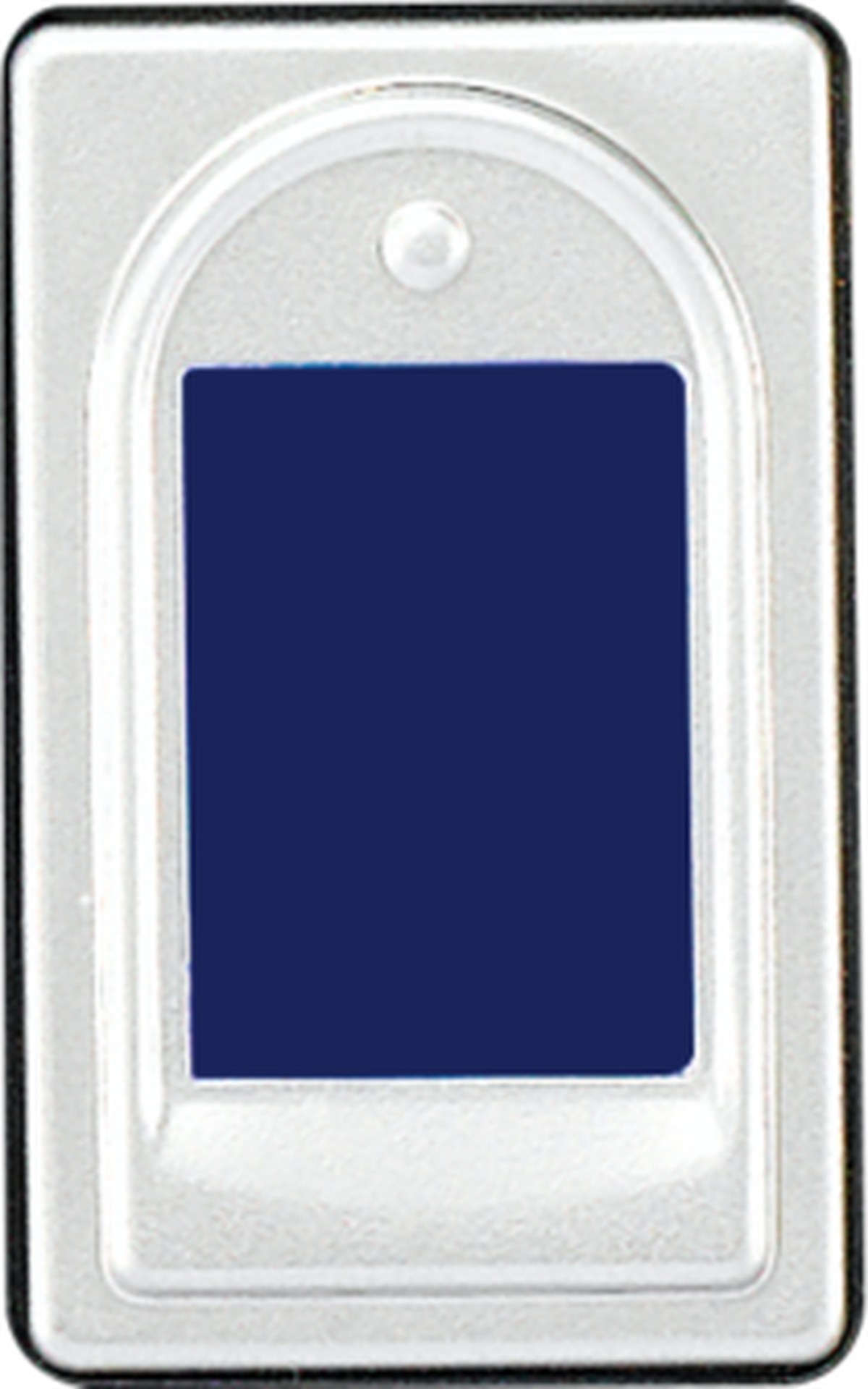

| Fingerprint Optional G2010 | |
| G2010 ModuleG2010 Capacitive fingerprintsensor, FAP10, 500 dpi, 8 bit,256X360 size, FBI MINEX II (NISTCertification) |
