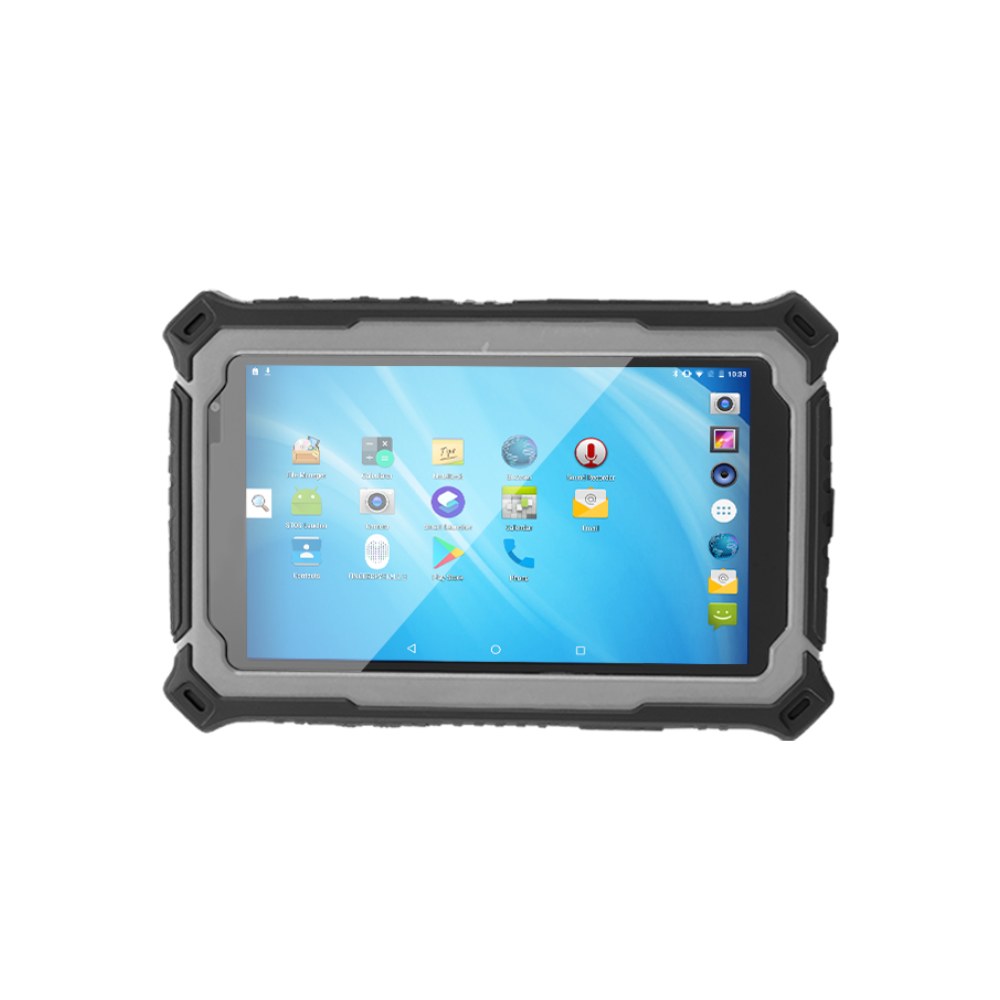

HUGEROCK R71 Rugged Tablets
7 inch IPS/AFFS 720*1280 HD industrial 1000nit Sunlight Readable, 8G + 128G, 10000mAh, Android 10 / 11, ARM Cortex A73 Octa-core (2.0GHz)
HUGEROCK R71 is a rugged tablet in the MIOT&RFID Rugged Tablets collection. 1000nit FHD display, combined with anti-glare reflective film technology, can clearly display in any strong light environment.
Display: 7 inch IPS/AFFS 720*1280 HD industrial 1000nit Sunlight Readable
Memory: 8G; Storage: 128G
Battery: 10000mAh
System: Android 10 / 11
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
HUGEROCK R71 Rugged Tablets
HUGEROCK R71 is a rugged tablet in the MIOT&RFID Rugged Tablets collection. 1000nit FHD display, combined with anti-glare reflective film technology, can clearly display in any strong light environment.
HUGEROCK R71 hardware and system
HUGEROCK R71 brings together the hardware and operating-system specifications below. CPU: ARM Cortex A73 Octa-core (2.0GHz). OS: Android 10 / 11. Memory: 8G. Storage: 128G. The Specs tab lists the configuration details, optional modules and version differences. Those tables should be checked against the configuration required for each order.
Display, battery and physical design
Battery: 10000mAh. Display: 7 inch IPS/AFFS 720*1280 HD industrial 1000nit Sunlight Readable. Dimensions: 202*138*22mm (LxWxH). Weight: 700g. Touch: Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen. Screen size, resolution and brightness are useful points when comparing a device for indoor and outdoor work. The battery, dimensions and weight provide additional information for deciding how the terminal will be carried or mounted. Any removable battery, mounting hardware or optional module should be selected according to the corresponding specification table.
Connectivity and data collection
Network: wifi, GSM, 4g, 3G. Navigation: GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m). Camera: 13.0MP(AF) with flash led. Front Camera: 5.0MP. Data ports: USB Type-A(Host)*1, Type-C*1. The available interfaces and communication specifications help assess compatibility with the intended workflow. Check the full network bands and module parameters before choosing a configuration. Listed optional functions describe configuration possibilities; they do not mean every module is installed on every unit.
HUGEROCK R71 product features
1000 NIT
1000nit FHD display, combined with anti-glare reflective film technology, can clearly display in any strong light environment.
FULL
RUGGED
FULL RUGGED
Industrial protection grade IP67, MIL-810G Drop-proof 1.5m.
MORE FAST
AdoptHelio P60 A73 12nm FinFET 8-core processor solution and 8G RAM.
EFFICIENT
low-power UHF RFID module and ultra-thin UHF antenna.
POWERFUL
10000mAh battery, can work continuously for 12 hours.

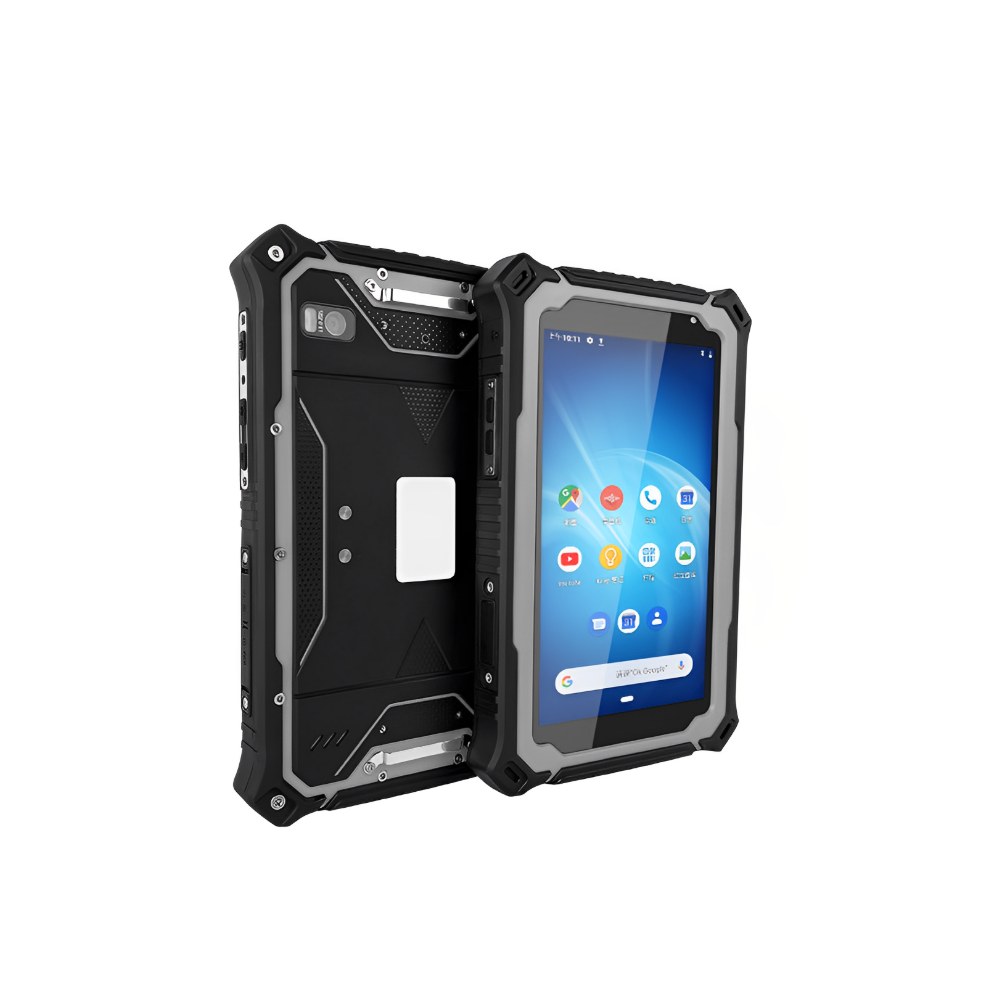

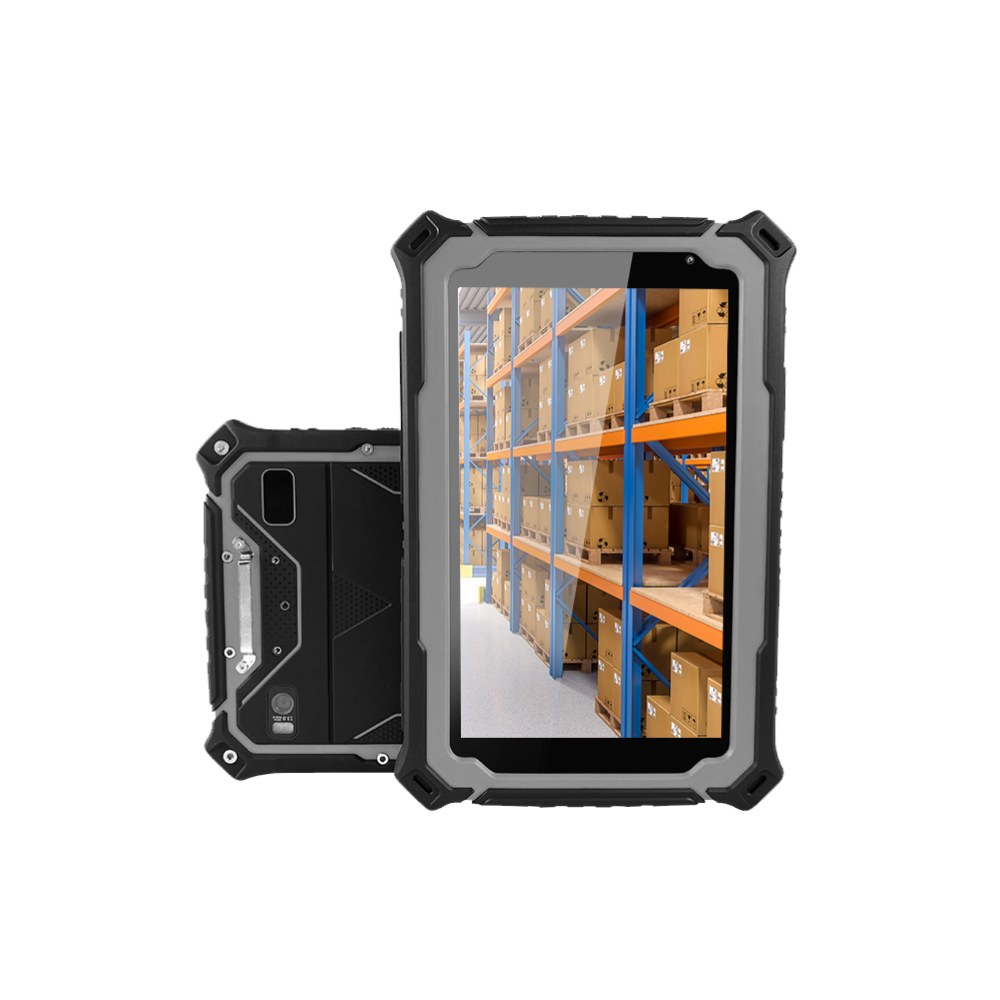

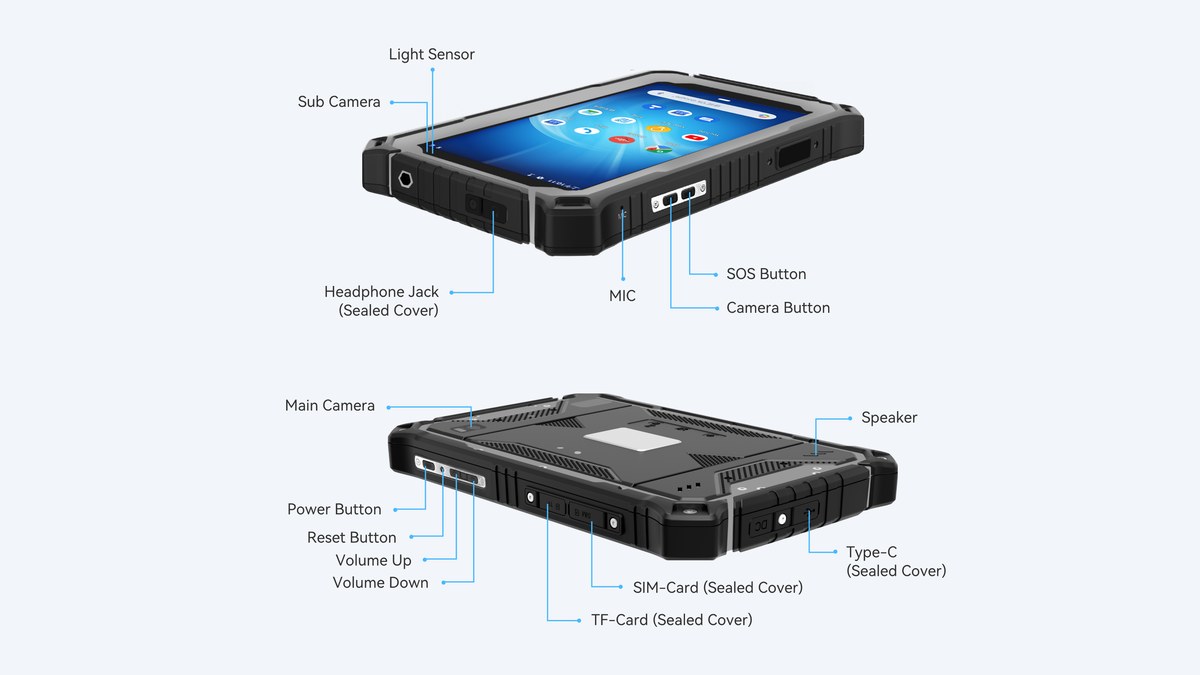

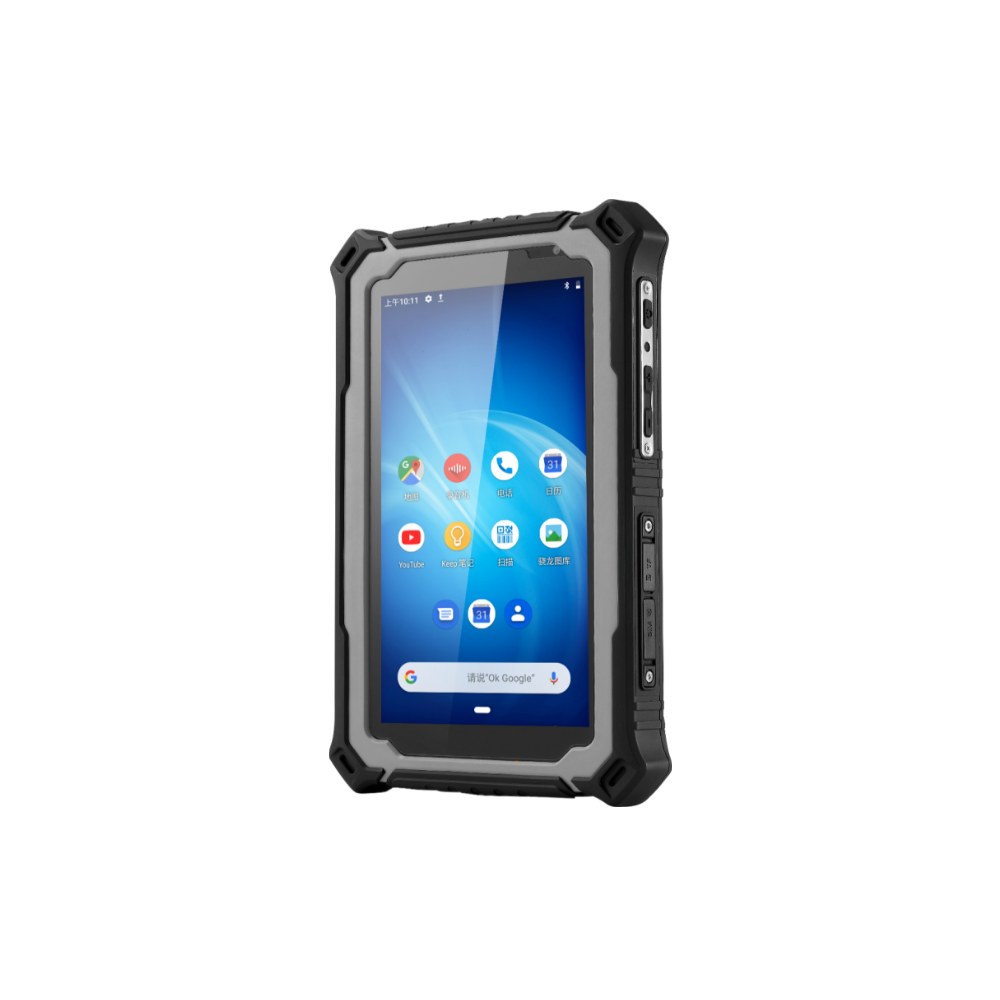

Product photos and specifications
The HUGEROCK R71 gallery shows the product itself. Review the Specs tab for all listed technical fields, appearance diagrams, comparison tables and module information. Browse our MIOT&RFID Rugged Tablets collection to compare more models.
Product attributes
| Screen Size | 7" |
|---|---|
| Memory Capacity | 8GB |
| Display resolution | 720*1280 |
| Operating System | Android 11 / 13 |
| Type | Tablet PC |
| Drive Interface | USB Type C |
| Processor Manufacture | MTK |
| Use | Industrial |
| Network | wifi, GSM, 4g, 3G |
| Warranty(Year) | 2-Year |
| Scenarios | For Professional |
| Feature | Waterproof , Shockproof, Drop resistance, Anti-Dust, Soft, Hard, SDK available |
| charging interface | Type-C*1 |
| Processor Type | Octa Core |
| Processor Main Frequency | 2.0GHZ |
| Touch Screen Type | Capacitive Screen |
| Weight | 700g |
| Place of Origin | Guangdong, China |
| Brand Name | HUGEROCK |
| Model Number | R71(1050) |
| CPU | ARM Cortex A73 Octa-core (2.0GHz) |
| GPU | Arm Mali-G72 MP3 |
| Sim Card | 1.8/3.3V SIM card |
| Display | 7 inch IPS/AFFS 720*1280 HD industrial 1000nit Sunlight Readable |
| Data interface | USB Type-C(OTG)*1 |
| Battery | 10000mAh |
| OS | Android 11 / 13 |
| Memory | 8+128GB |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Single package size: | 27X27X7 cm |
| Single gross weight: | 2.000 kg |
SPECIFICATION
| Hardware | |
| CPU | ARM Cortex A73 Octa-core (2.0GHz) |
| GPU | Arm Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card (T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 10000mAh |
| Display | 7 inch IPS/AFFS 720*1280 HD industrial 1000nit Sunlight Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | 1.8/3.3V SIM card |
| TF Card | Micro SD card (T-FLASH card); max 256GB |
| Headphone | 3.5mm (CTIA) |
| Charging interface | Type-C+ 8PIN magnetic charging |
| Data interface | USB Type-A(Host)*1, Type-C*1 |
| Gravity sensor | support |
| Direction Sensor | support |
| Magnetic Field Sensor | support |
| Gyro sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Motion sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |

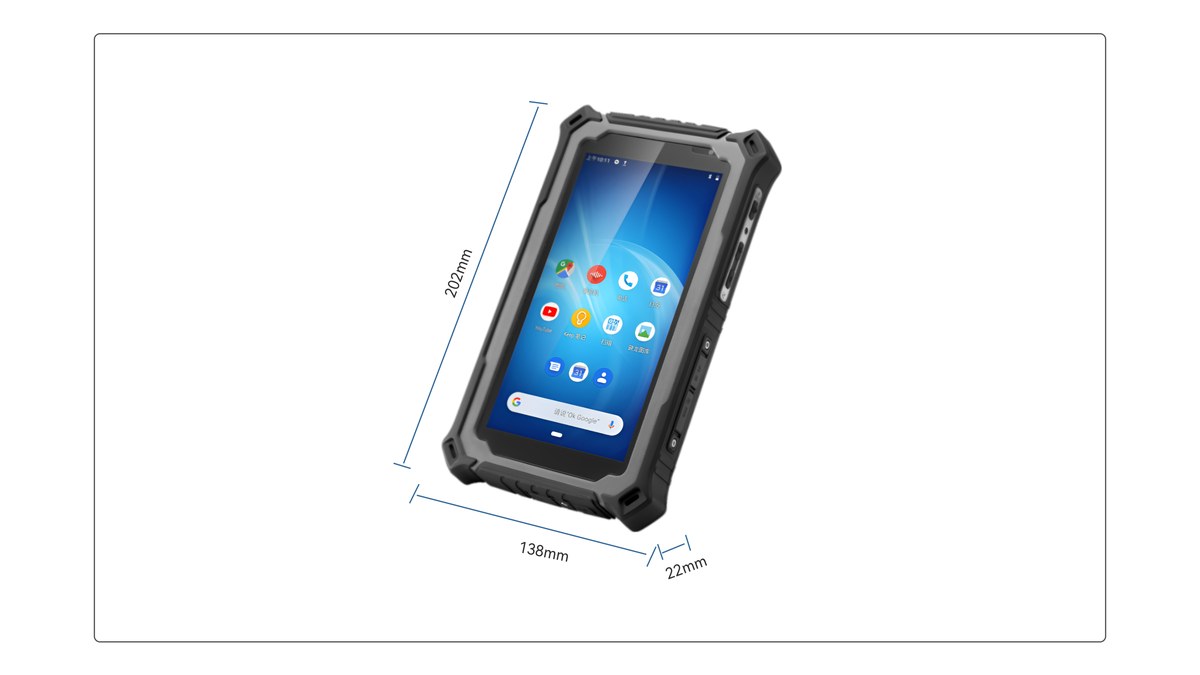

| Size | 202*138*22mm (LxWxH) |
| Weight | 700g |
| Color & Material | Black&Gray |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA |
| 3G Band | WCDMA 3.75G (HSDPA + 42.2Mbps, HSUPA + 11.5Mbps), EVDO |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE (B38/39/40/41); FDD LTE (B1/2/3/4/5/7/8/12/17/20/28) |
| WI- FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 4.2 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/ 0.10mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 7 (IEC 60529) |
| Dustproof | Class 6 (IEC 60529) |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| Reliability | MTBF=50000h; MTTR=0.5h |
| RH | 5%RH-95% |
| Operating Altitude | Max: 4,500m (15,000 feet) |
| Certification/OS/Software | |
| Certification | 3C/FCC/CE/ROHS/IP67 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc. |
| OS | Android 10 / 11 |
| Package/Warranty terms/OEM | |
| Warranty | 24 months |
| OEM/ODM | Support |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box (Can be customized logo) |

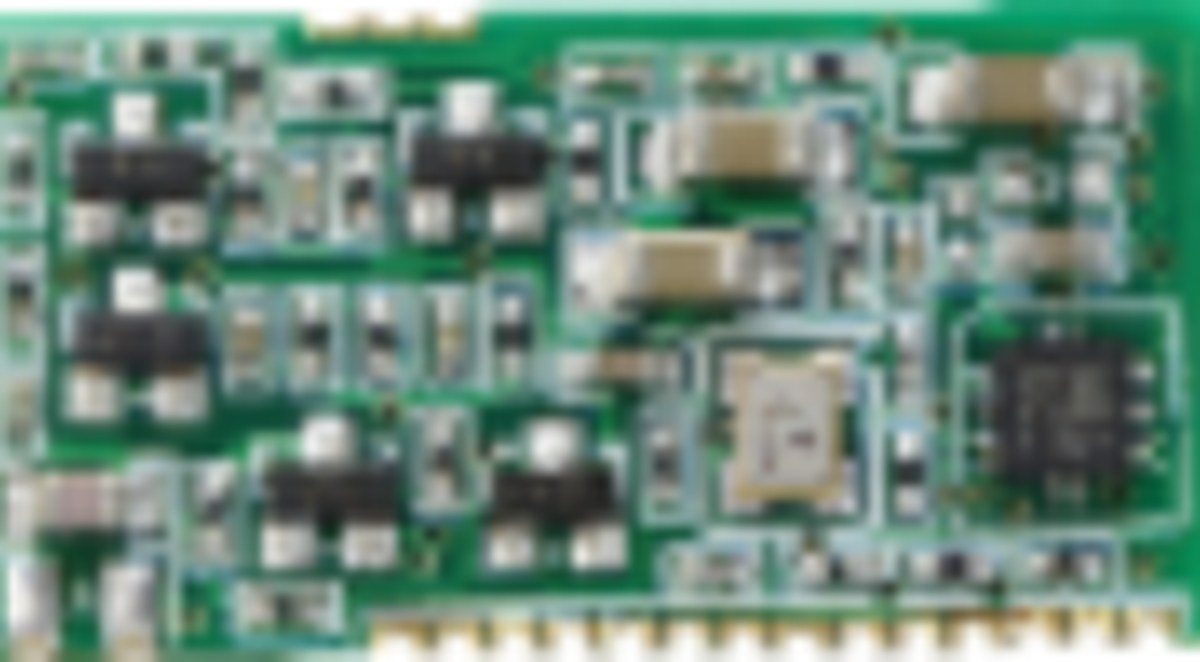

FUNCTION MODULES

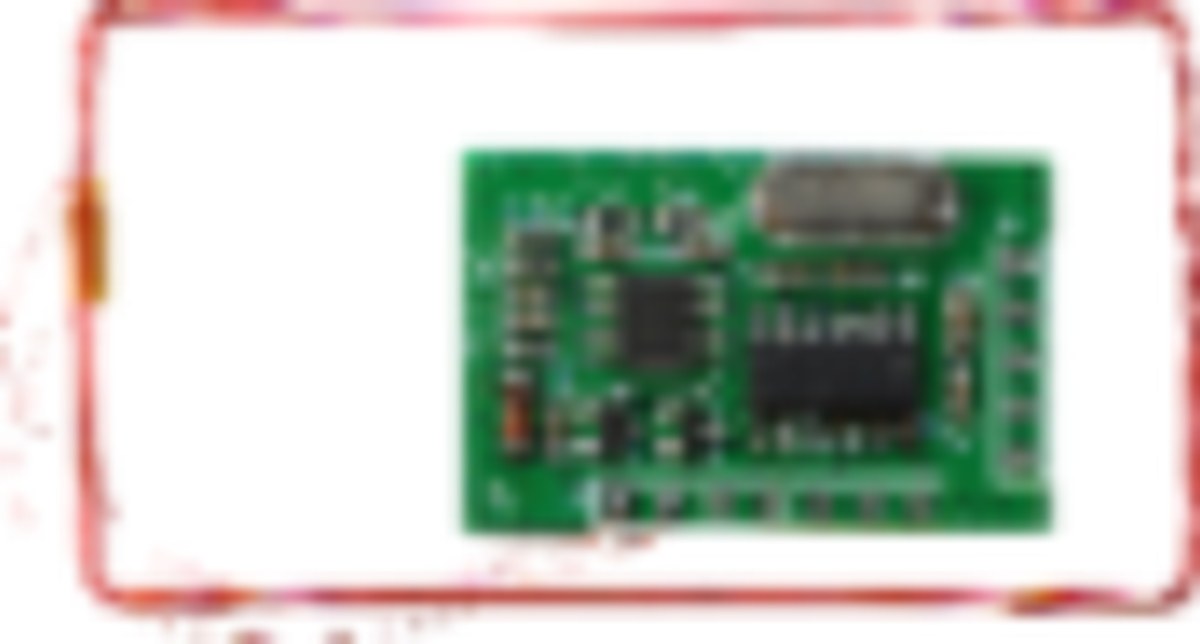

| LF RFlD data module | |||
|---|---|---|---|
| 125K LF | 125K LF RFID | LF RFID,125K | |
| 134K LF | 134 LF RFID Module | LF RFID, 134k Animal module | |

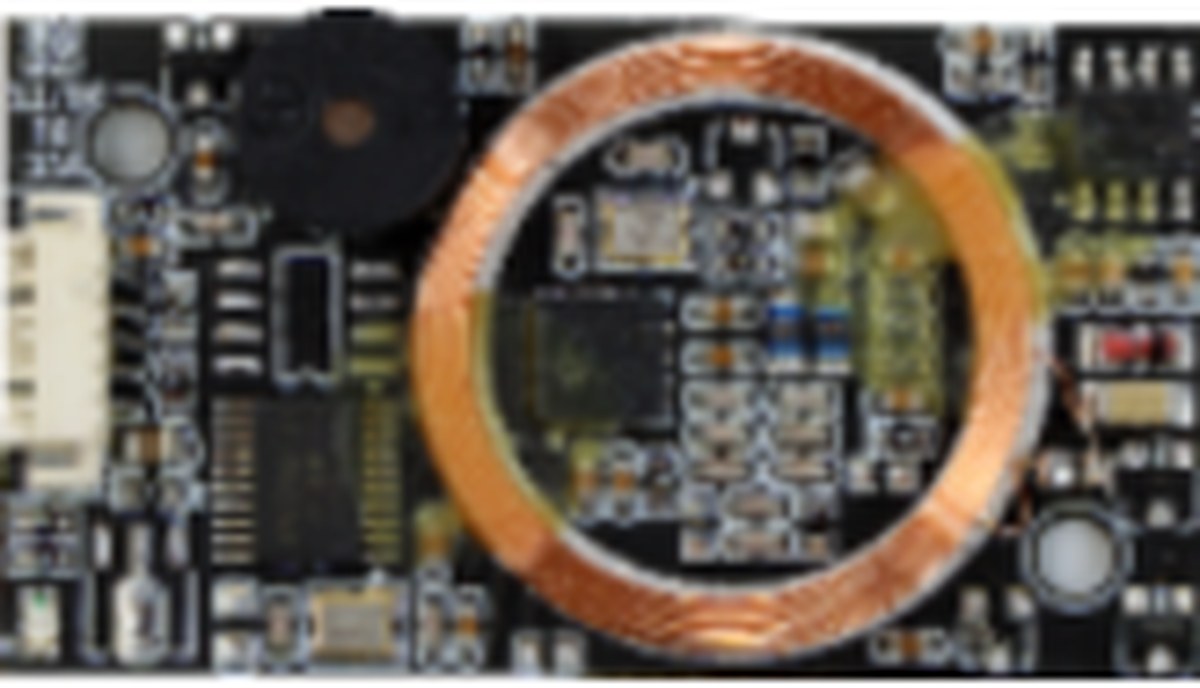

| HF RFID/NFC module | |||

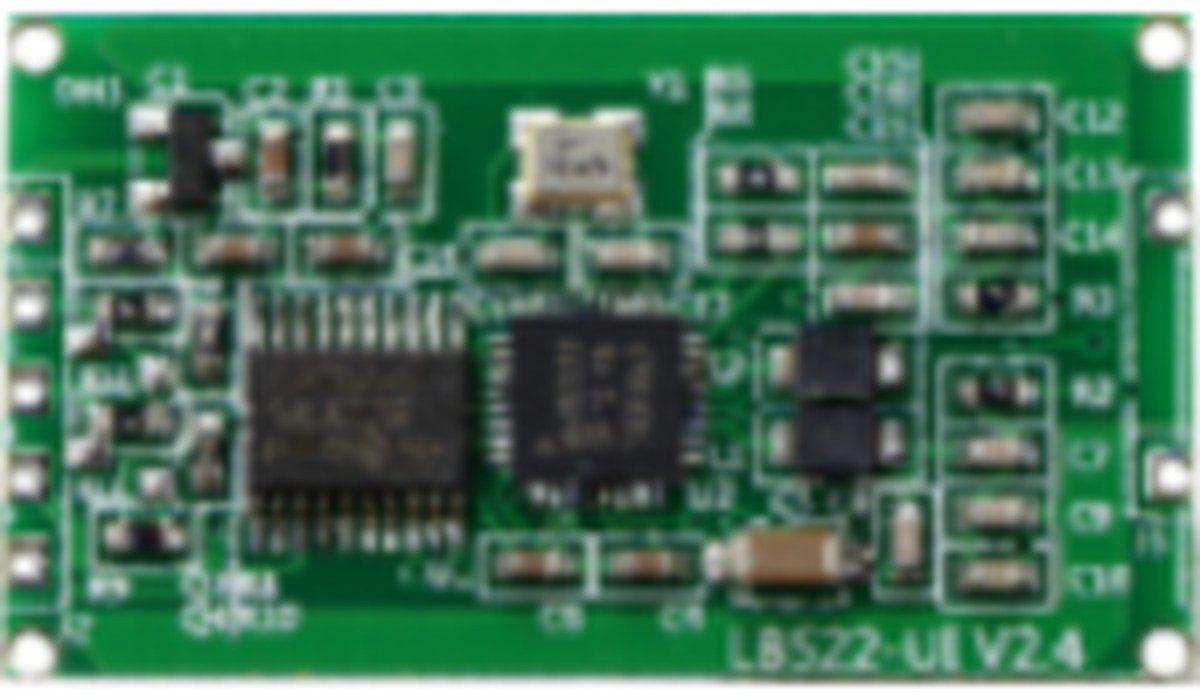

| HF&LF dualfrequency ID/lCcard read-only module | Frequency | 13.56MHz | |
| HF&LF dualfrequency ID/lCcard read-only module | |||
| Protocol standard | IS014443A/B,IS015693,NFC | ||
| 13.56M HF multi-protocol module | Label standard | M1(S50, S70), CPU, NFC | |
| 13.56M HF multi-protocol module | |||
| NFC module | Read-write distance | 2-5cm | |
| NFC module | |||
| UHF module | |||

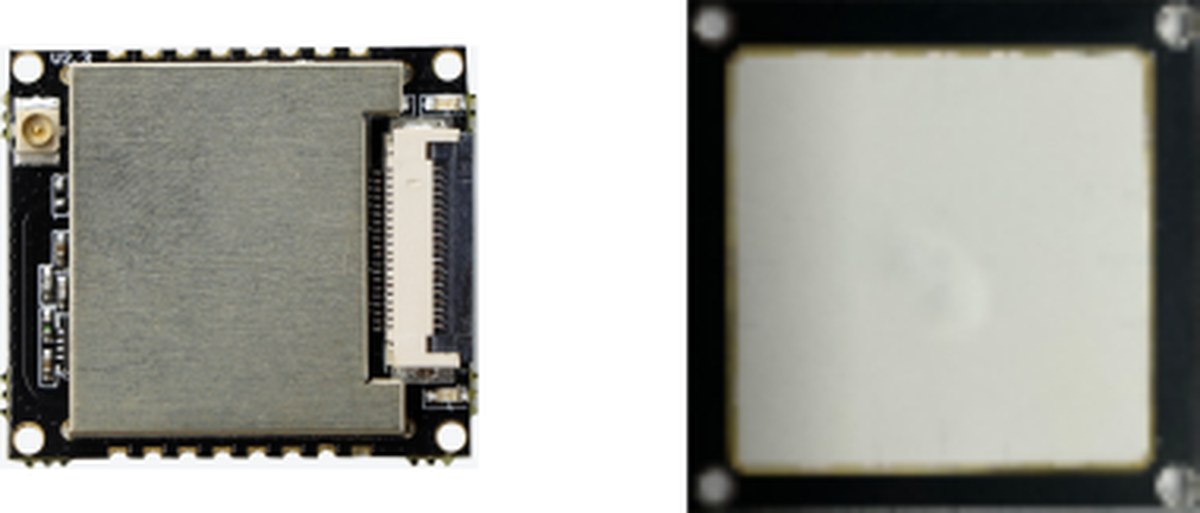

| UHF module (M500+Ceramic antenna) | Air interface protocol | EPCglobal UHF Class 1 Gen2/1s0 18000-6C | |
| Operating spectrum range | 902Mhz – 928Mhz 865MHz – 868MHz(Optional) | ||
| Output range | 0-26bdm | ||
| Output accuracy | +/- 1dB | ||
| Output power level | +/-0.2dB ,The label is sensitive and stable | ||
| Reading distance | ≥1.8m(E41 tag) | ||
| HF&LF dualfrequency ID/lCcard read-only module |
| 13.56M HF multi-protocol module |
| NFC module |
