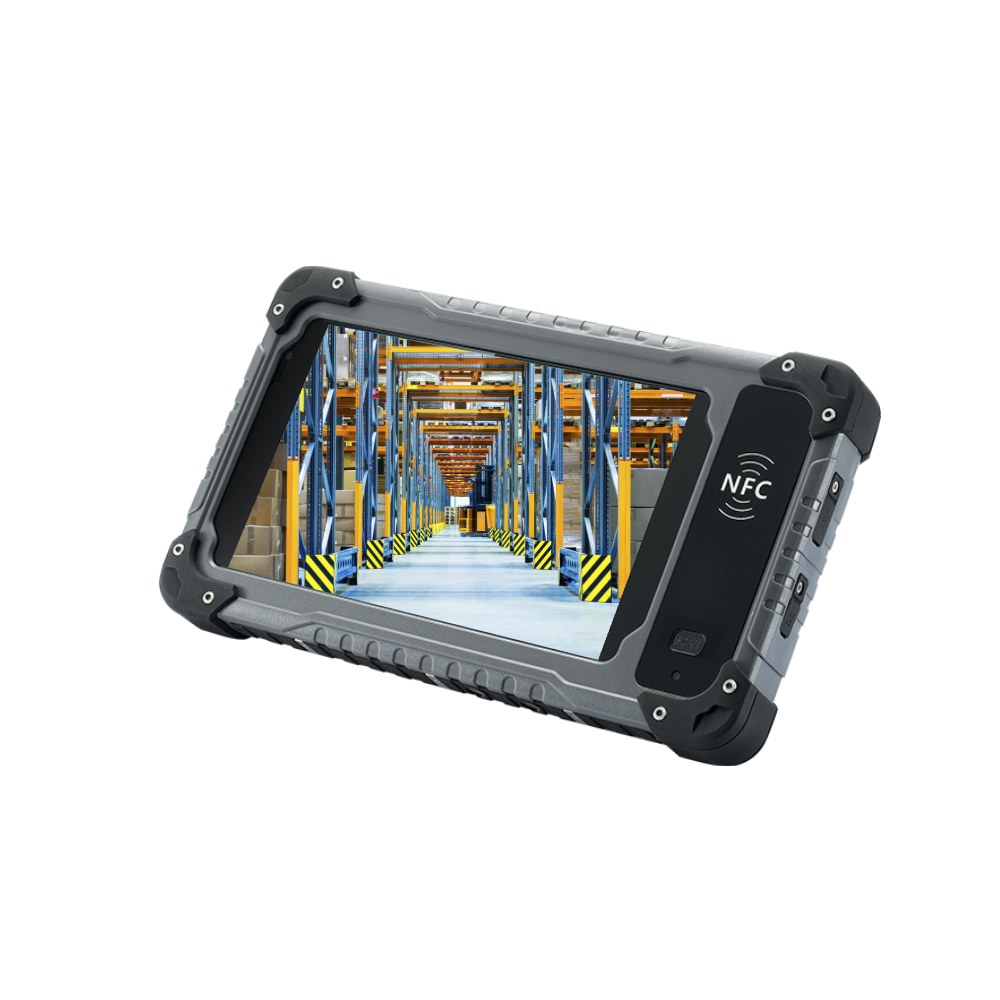

HUGEROCK R70 Rugged Tablets
7 inch IPS/AFFS 1280*720 HD industrial 1000nit Sunlight Readable, 8G + 128G, 10000mAh, Android 10 / 11, ARM Cortex A73 Octa-core (2.0GHz)
HUGEROCK R70 is a rugged tablet in the MIOT&RFID Rugged Tablets collection. Optional high-quality low-power UHF RFID module can be used for UHF RFID label operations, fast and efficient.
Display: 7 inch IPS/AFFS 1280*720 HD industrial 1000nit Sunlight Readable
Memory: 8G; Storage: 128G
Battery: 10000mAh
System: Android 10 / 11
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
HUGEROCK R70 Rugged Tablets
HUGEROCK R70 is a rugged tablet in the MIOT&RFID Rugged Tablets collection. Optional high-quality low-power UHF RFID module can be used for UHF RFID label operations, fast and efficient.
HUGEROCK R70 hardware and system
HUGEROCK R70 brings together the hardware and operating-system specifications below. CPU: ARM Cortex A73 Octa-core (2.0GHz). OS: Android 10 / 11. Memory: 8G. Storage: 128G. The Specs tab lists the configuration details, optional modules and version differences. Those tables should be checked against the configuration required for each order.
Display, battery and physical design
Battery: 10000mAh. Display: 7 inch IPS/AFFS 1280*720 HD industrial 1000nit Sunlight Readable. Dimensions: 237*137*29mm (LxWxH). Weight: 780g. Touch: Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen. Screen size, resolution and brightness are useful points when comparing a device for indoor and outdoor work. The battery, dimensions and weight provide additional information for deciding how the terminal will be carried or mounted. Any removable battery, mounting hardware or optional module should be selected according to the corresponding specification table.
Connectivity and data collection
Network: wifi, GSM, 4g, 3G. Navigation: GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m). Camera: 13.0MP(AF) with flash led. Front Camera: 5.0MP. Data ports: USB Type-A(Host)*1, Type-C*1. The available interfaces and communication specifications help assess compatibility with the intended workflow. Check the full network bands and module parameters before choosing a configuration. Listed optional functions describe configuration possibilities; they do not mean every module is installed on every unit.
HUGEROCK R70 product features
FULL
RUGGED
FULL RUGGED
Industrial protection grade IP65, MIL-810G Drop-proof 1.5m.
MORE
FAST
MORE FAST
AdoptHelio P60 A73 12nm FinFET 8-core processor solution and 8G RAM/128G storage.
ACCURATELY
IDENTIFY
ACCURATELY IDENTIFY
High-quality barcode module, reliable recognition accuracy and barcode format compatibility.
EFFICIENT
Optional high-quality low-power UHF RFID module can be used for UHF RFID label operations, fast and efficient.
FLEXIBLE
The hardware supports extended interfaces, and modules can be installed according to customer needs to complete more functions.
POWERFUL
10000mAh battery, can work continuously for 12 hours.

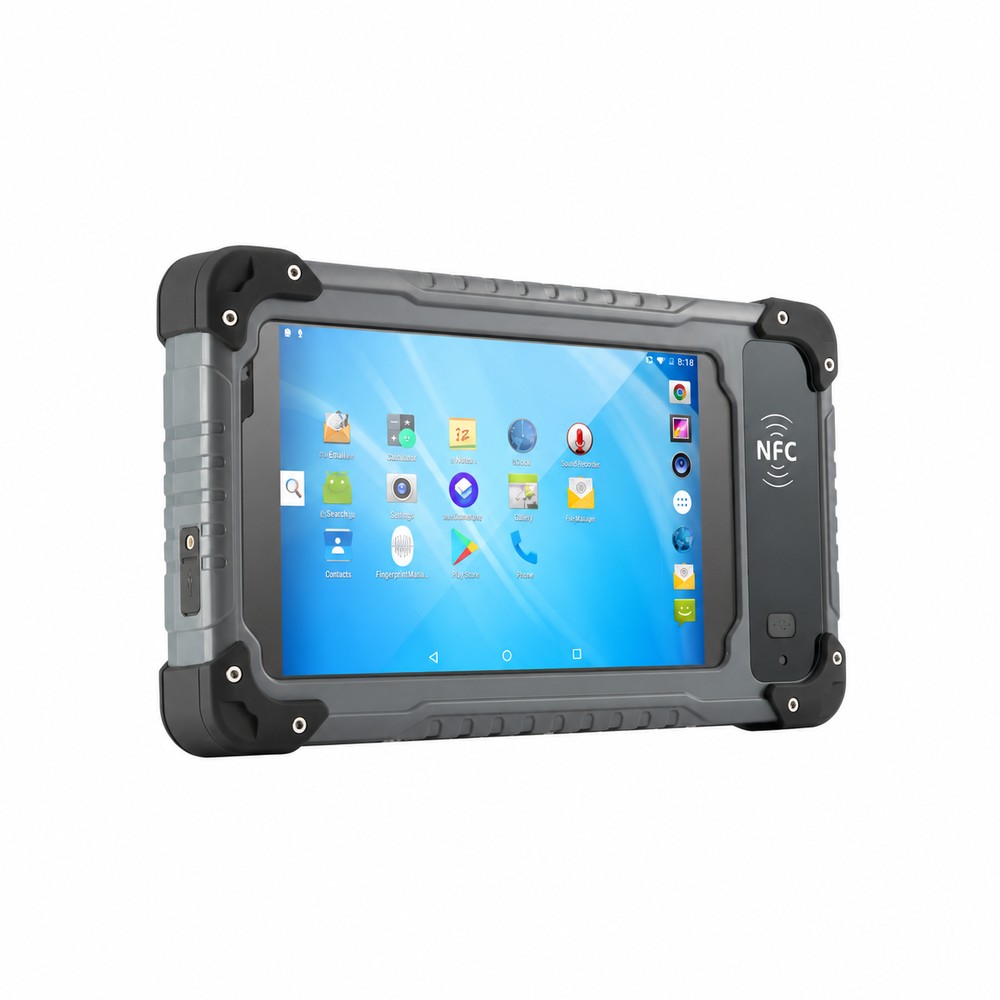

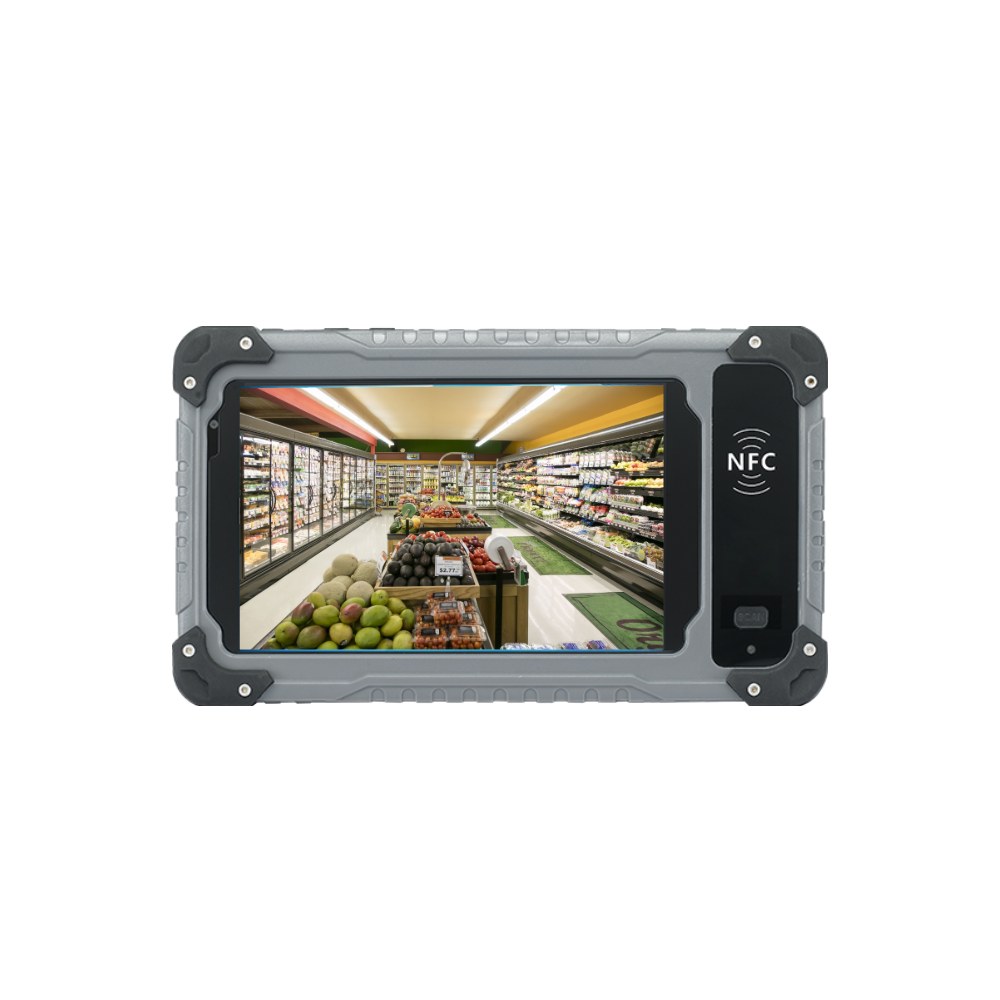

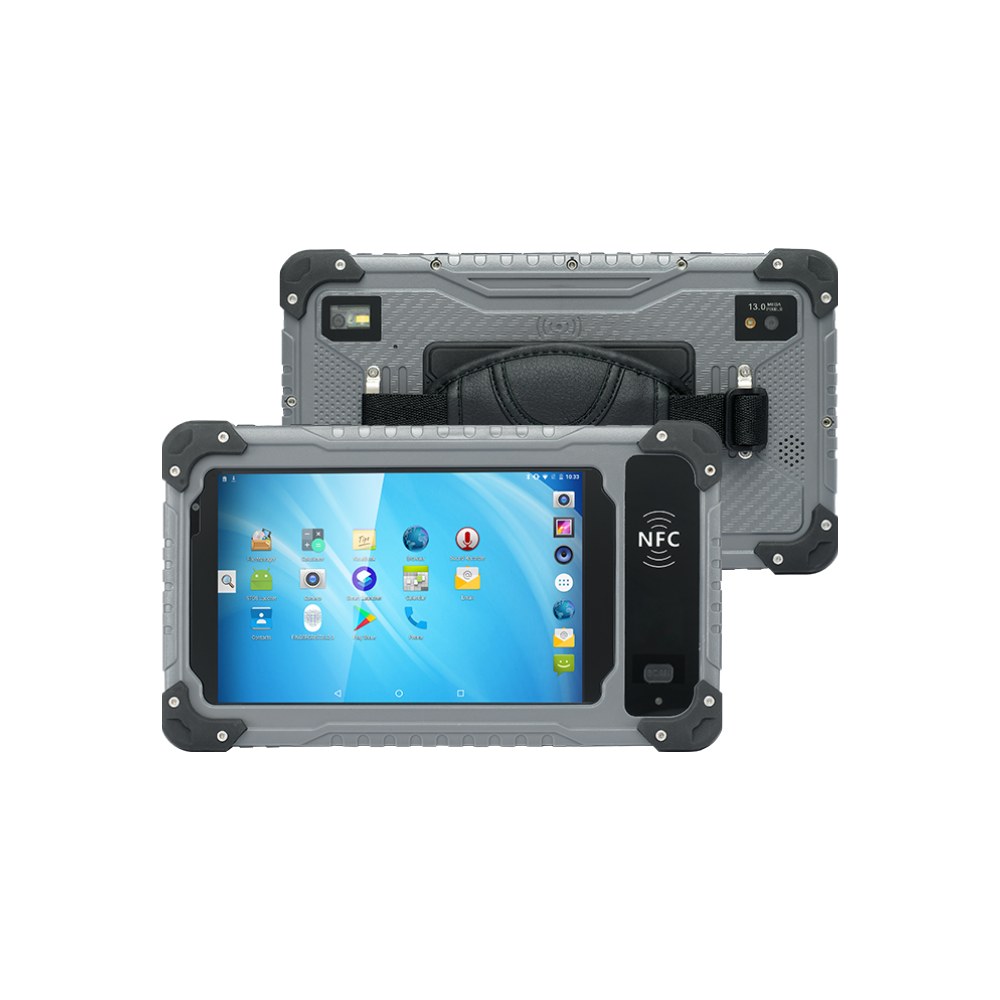

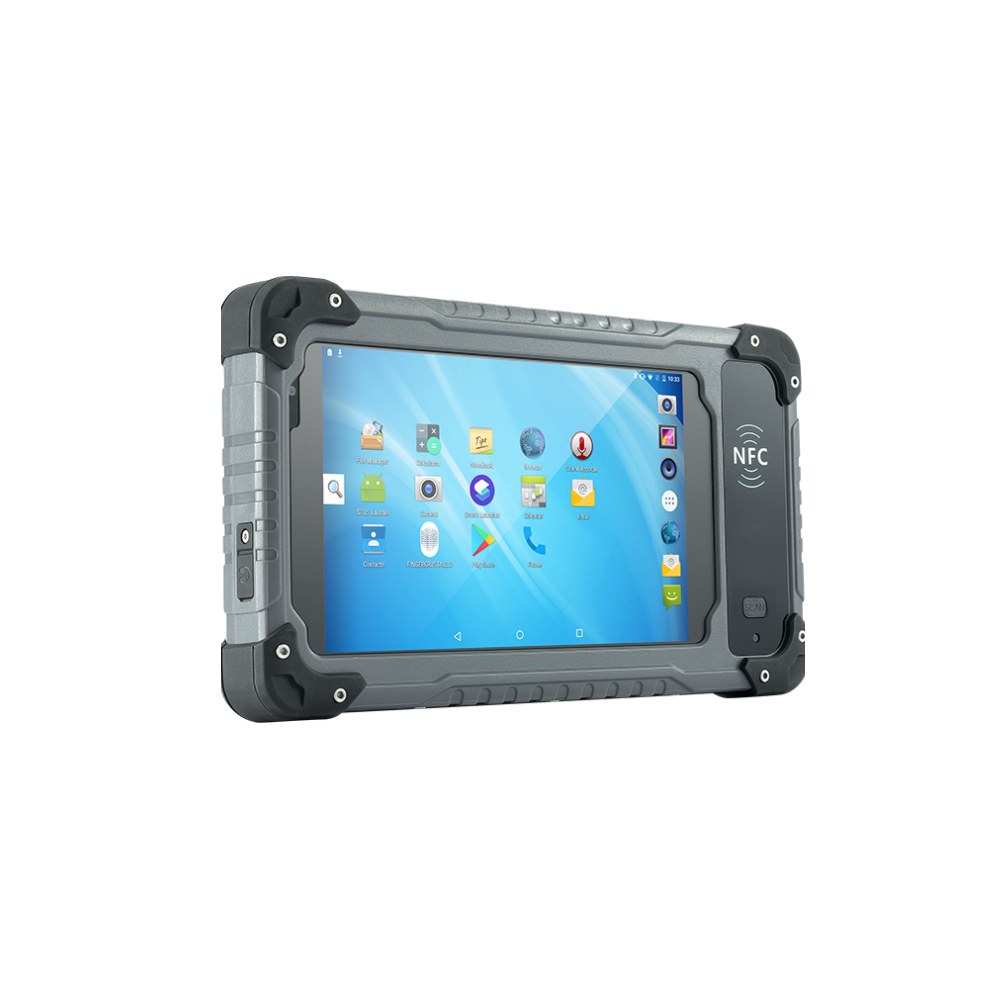

Product photos and specifications
The HUGEROCK R70 gallery shows the product itself. Review the Specs tab for all listed technical fields, appearance diagrams, comparison tables and module information. Browse our MIOT&RFID Rugged Tablets collection to compare more models.
Product attributes
| Screen Size | 7" |
|---|---|
| Memory Capacity | 8GB |
| Display resolution | 1280x720 |
| Operating System | Android 10/11/13 (Continuous updates) |
| Type | Tablet PC |
| Drive Interface | USB Type C |
| Processor Manufacture | MTK |
| Use | Industrial |
| Network | wifi, GSM, 4g, 3G |
| Warranty(Year) | 2-Year |
| Scenarios | For Professional |
| Feature | Waterproof , Shockproof, Drop resistance, Anti-Dust, Soft, Hard, SDK available |
| charging interface | Type-C & 2pin pogo pin & DC 5V (direct battery charging) |
| Processor Type | Octa Core |
| Processor Main Frequency | 2.0GHZ |
| Touch Screen Type | Capacitive Screen |
| Weight | 780g |
| Place of Origin | Guangdong, China |
| Brand Name | HUGEROCK |
| Model Number | R70(1046) |
| CPU | ARM Cortex A73 Octa-core (2.0GHz) |
| GPU | Arm Mali-G72 MP3 |
| Sim Card | Nano sim card*2 |
| Display | 7 inch IPS/AFFS 1280*720 HD industrial 1000nit Sunlight Readable |
| Headphone | 3.5mm (CTIA) |
| Battery | 10000mAh |
| OS | Android 10/11/13 (Continuous updates) |
| Memory | 8+128GB |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Port | shenzhen |
| Single package size: | 27X27X11 cm |
| Single gross weight: | 2.000 kg |

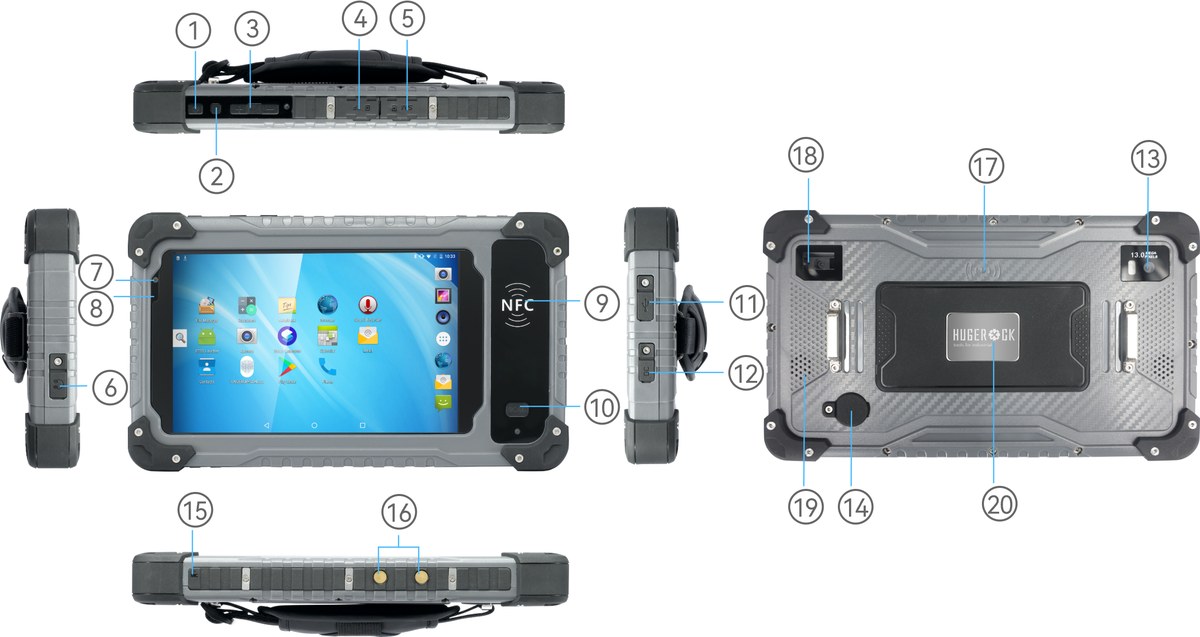

APPEARANCE
| 1. Power button |
| 2. Reset button |
| 3. Volumn up and down |
| 4. TP -card (Sealed Cover) |
| 5. SIM -card (Sealed Cover) |
| 6. Handset Jack (Sealed Cover) |
| 7. Sub camera |
| 8. Light sensor |
| 9. NFC(Optional) |
| 10. Scan button |
| 11. Type-C (Sealed Cover) |
| 12. DC-Type (Sealed Cover) |
| 13. Main camera |
| 14. Type-A (Sealed Cover) |
| 15. MIC |
| 16.Pogo in |
| 17. UHF RFID (optional) |
| 18. Barcode Scaner (optional) |
| 19.Speaker |
| 20.Nameplate |
SPECIFICATION
| Hardware | |
| CPU | ARM Cortex A73 Octa-core (2.0GHz) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card (T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 10000mAh |
| Display | 7 inch IPS/AFFS 1280*720 HD industrial 1000nit Sunlight Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | 1.8/3.3V SIM card |
| TF Card | Micro SD card (T-FLASH card); max 256GB |
| Headphone | 3.5mm CTIA) |
| Charging interface | Type-C & 2pin pogo pin & DC 5V (direct battery charging) |
| Data interface | USB Type-A(Host)*1, Type-C*1 |
| Gravity sensor | support |
| Direction Sensor | support |
| Magnetic Field Sensor | support |
| Gyro sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Motion sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |

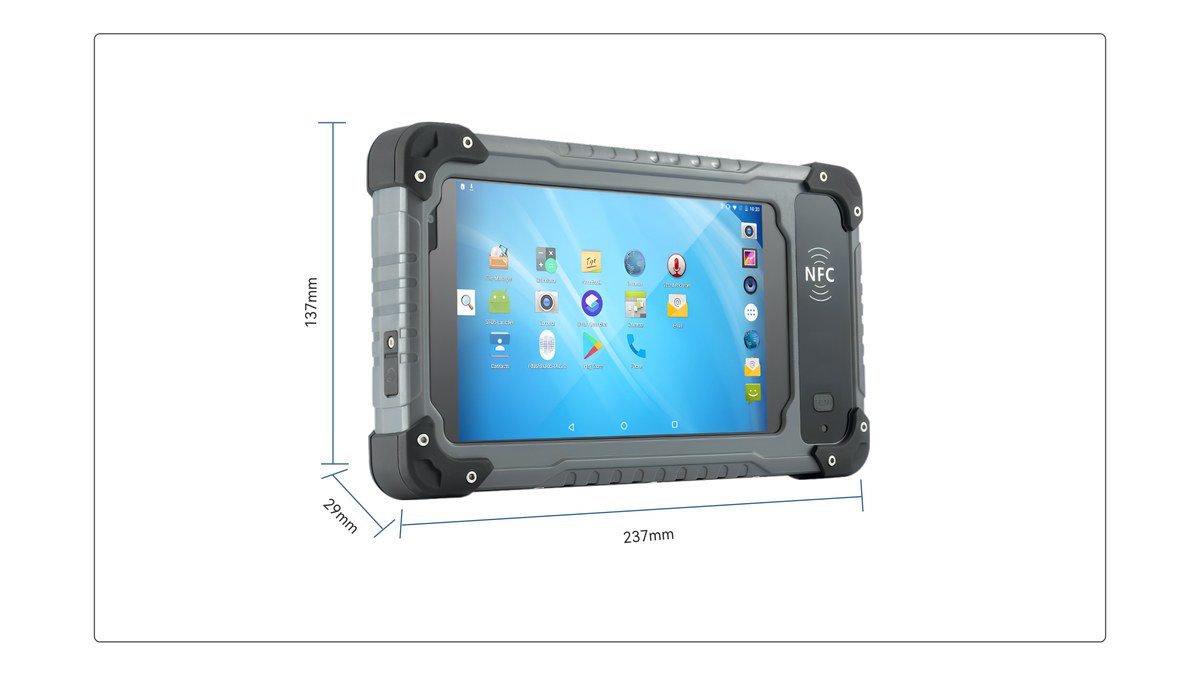

| Size | 237*137*29mm (LxWxH) |
| Weight | 780g |
| Color & Material | Black&Gray |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA |
| 3G Band | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps), EVDO |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE (B38/39/40/41); FDD LTE (B1/2/3/4/5/7/8/12/17/20/28) |
| WI- FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 5.0 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/ 0.10mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 5 (IEC 60529) |
| Dustproof | Class 6 (IEC 60529) |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| Reliability | MTBF>50000h; MTTR<0.5h |
| RH | 5%RH-95% |
| Operating Altitude | Max: 4,500m (15,000 feet) |
| Certification/OS/Software | |
| Certification | 3C/FCC/CE/ROHS/IP65 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc. |
| OS | Android 10 / 11 |
| Package/Warranty terms | |
| Warranty | 24 months |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box/Aircraft box/Toolkit (optional) |
FUNCTION MODULES
| Barcode module | |||
|---|---|---|---|

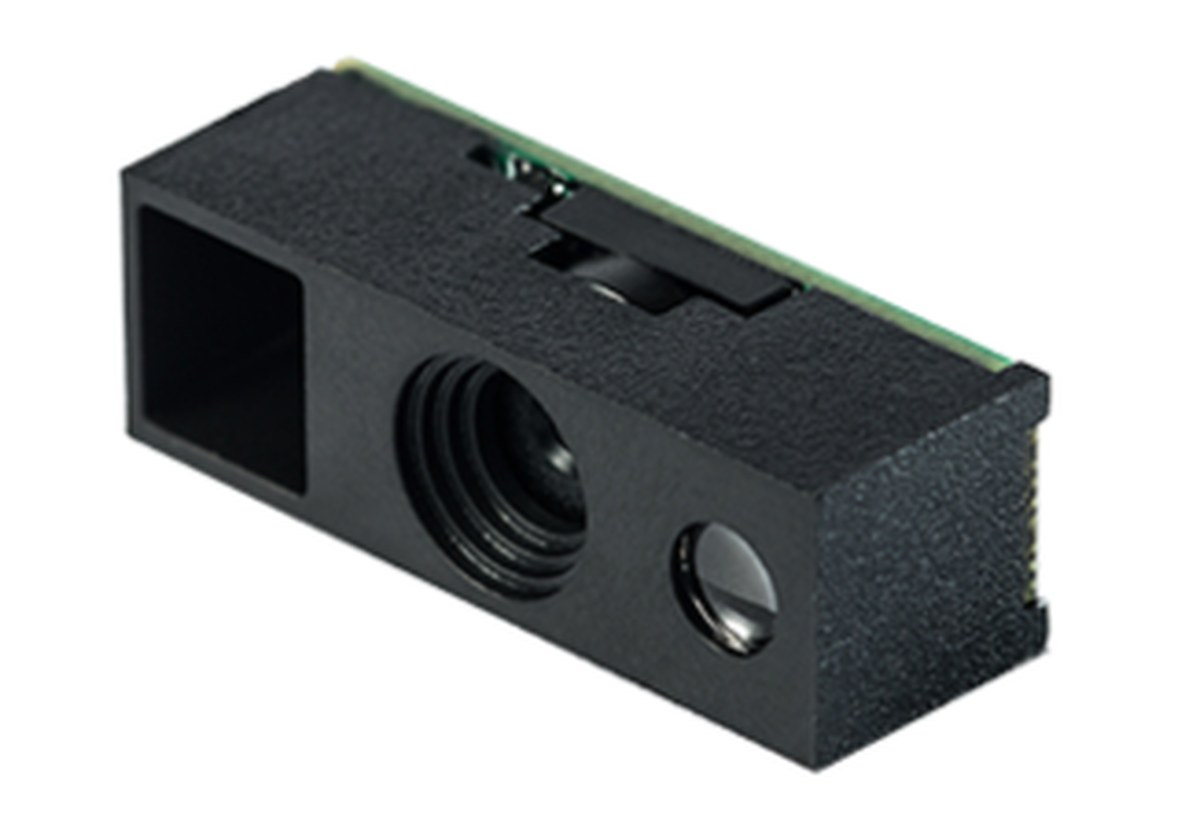

| E20 Barcode Module | Scanning engine | E20 Barcode Module | |
| 2D | QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code,Dotcode,Composite. | ||
| 1D | Code 128(ISBT 128,AIM 128,GSI 128),EAN-13,EAN-8, UPC-E, UPC-A,ISBN, ISSN,Code11, Interleaved 2 of 5,Code39, Code93, Code32, Codabar, Matrix 2 of 5, industrial 25IATA25,MSl Plessey,GSl DataBar, Plessey, Febraban. | ||

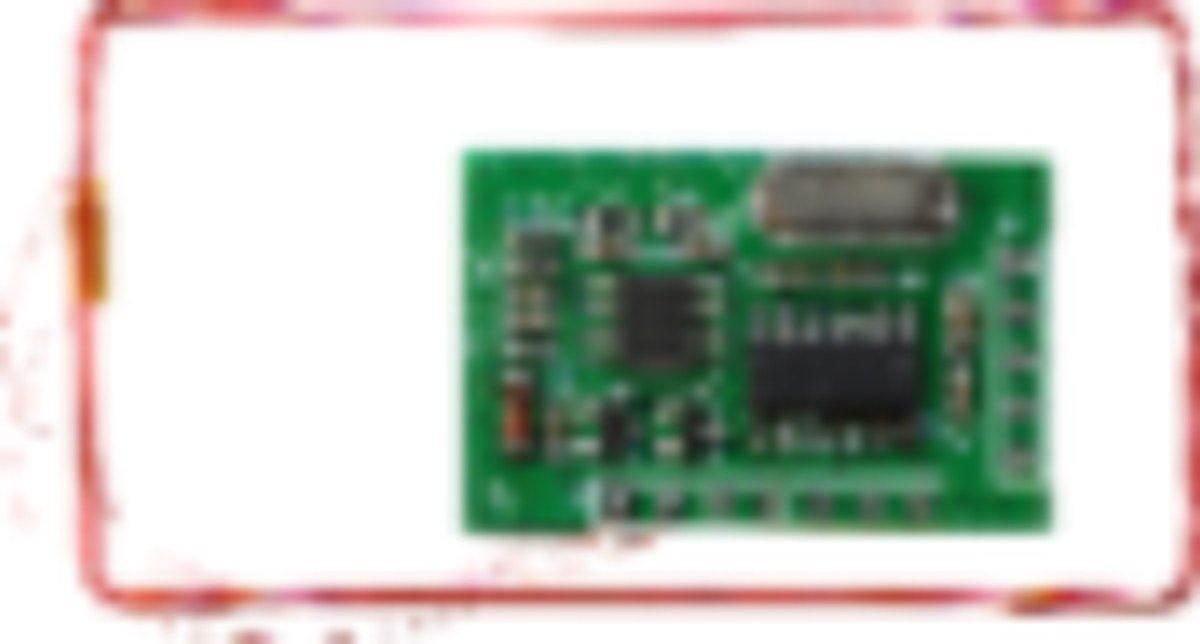

| LF RFlD data module | |||
| 125K LF | 125K LF RFID | LF RFID,125K | |
| 134K LF | 134 LF RFID Module | LF RFID, 134k Animal module | |
| HF RFID/NFC module | |||

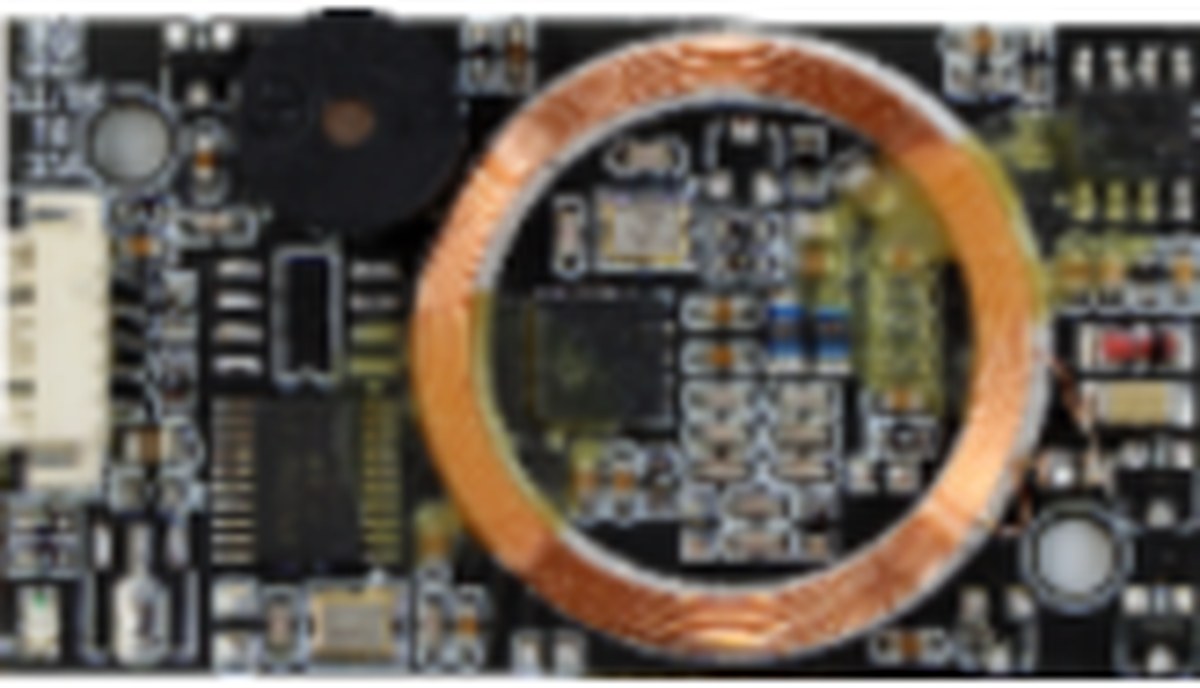

| HF&LF dualfrequency ID/lCcard read-only module | Frequency | 13.56MHz | |
| HF&LF dualfrequency ID/lCcard read-only module | |||
| Protocol standard | IS014443A/B,IS015693,NFC | ||

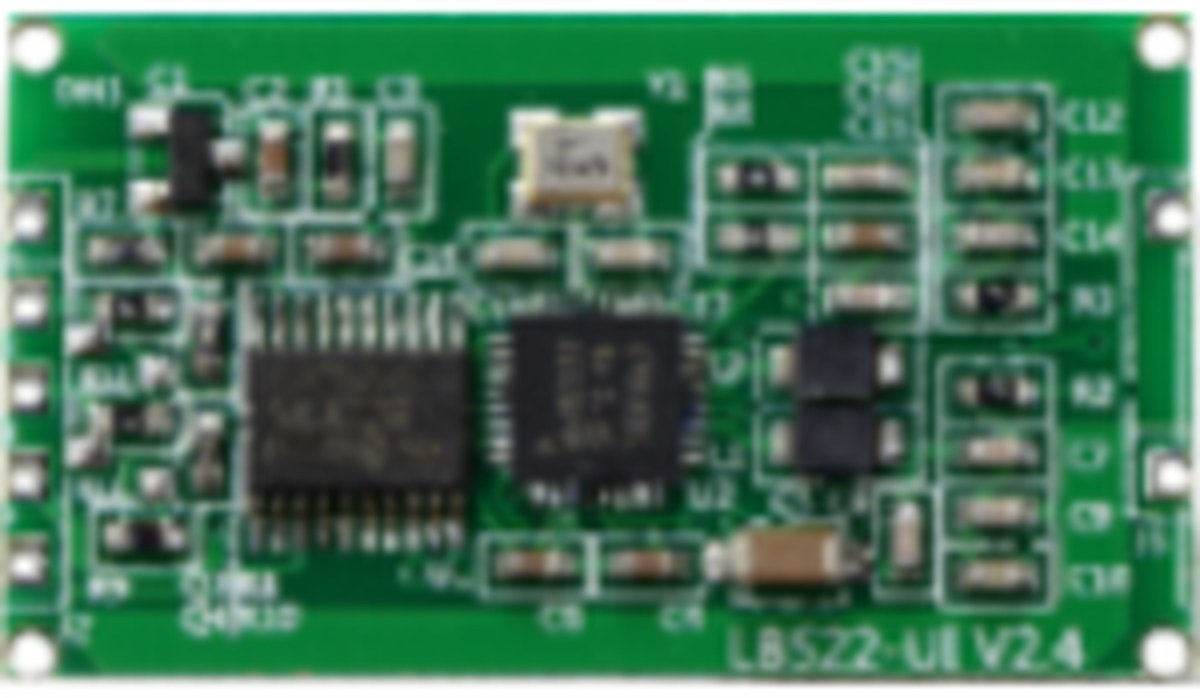

| 13.56M HF multi-protocol module | Label standard | M1(S50, S70), CPU, NFC | |
| 13.56M HF multi-protocol module | |||
| NFC module | Read-write distance | 2-5cm | |
| NFC module | |||

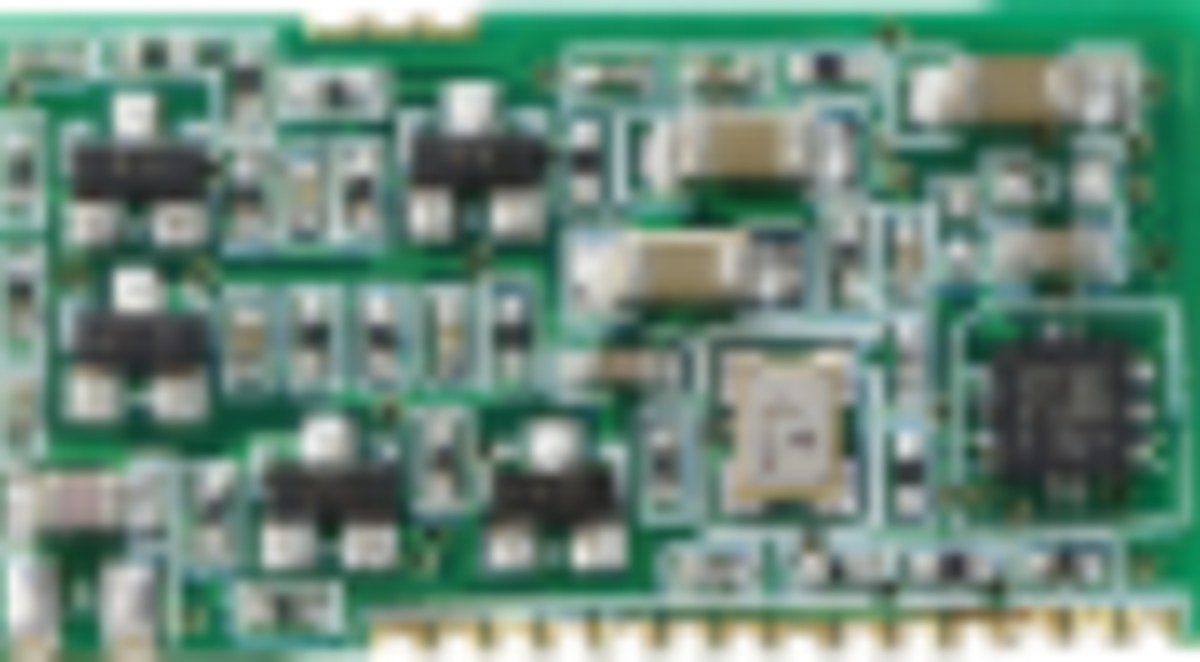

| UHF module | |||

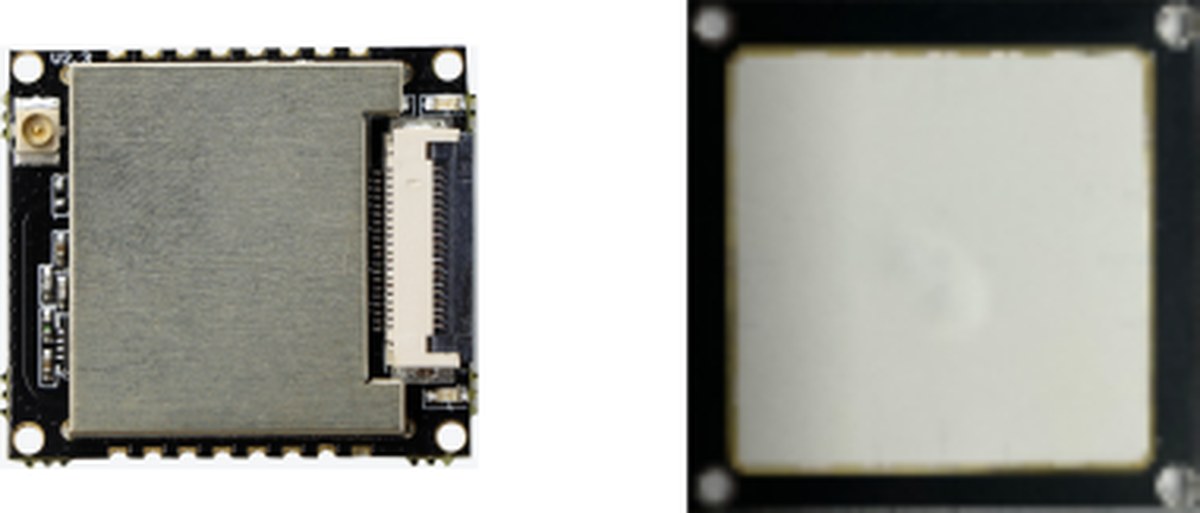

| UHF module (M500+Ceramic antenna) | Air interface protocol | EPCglobal UHF Class 1 Gen2/1s0 18000-6C | |
| Operating spectrum range | 902Mhz – 928Mhz 865MHz – 868MHz(Optional) | ||
| Output range | 0-26bdm | ||
| Output accuracy | +/- 1dB | ||
| Output power level | +/-0.2dB ,The label is sensitive and stable | ||
| Reading distance | ≥1.8m(E41 tag) | ||
| HF&LF dualfrequency ID/lCcard read-only module |
| 13.56M HF multi-protocol module |
| NFC module |
