HUGEROCK R60 Rugged PDAs
5.5 inch IPS/AFFS 1080*1920 FHD industrial 500cd/m2 Sunlight Readable, 8G + 128G, 7800mAh (Replaceable battery), Android 10 / 11, ARM Cortex A73 Octa-core (2.0GHz)
HUGEROCK R60 is a rugged PDA in the MIOT&RFID Rugged Tablets collection. It equipped with 7800mAh intrinsically safe battery, can work continuously for 12 hours.
Display: 5.5 inch IPS/AFFS 1080*1920 FHD industrial 500cd/m2 Sunlight Readable
Memory: 8G; Storage: 128G
Battery: 7800mAh (Replaceable battery)
System: Android 10 / 11
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

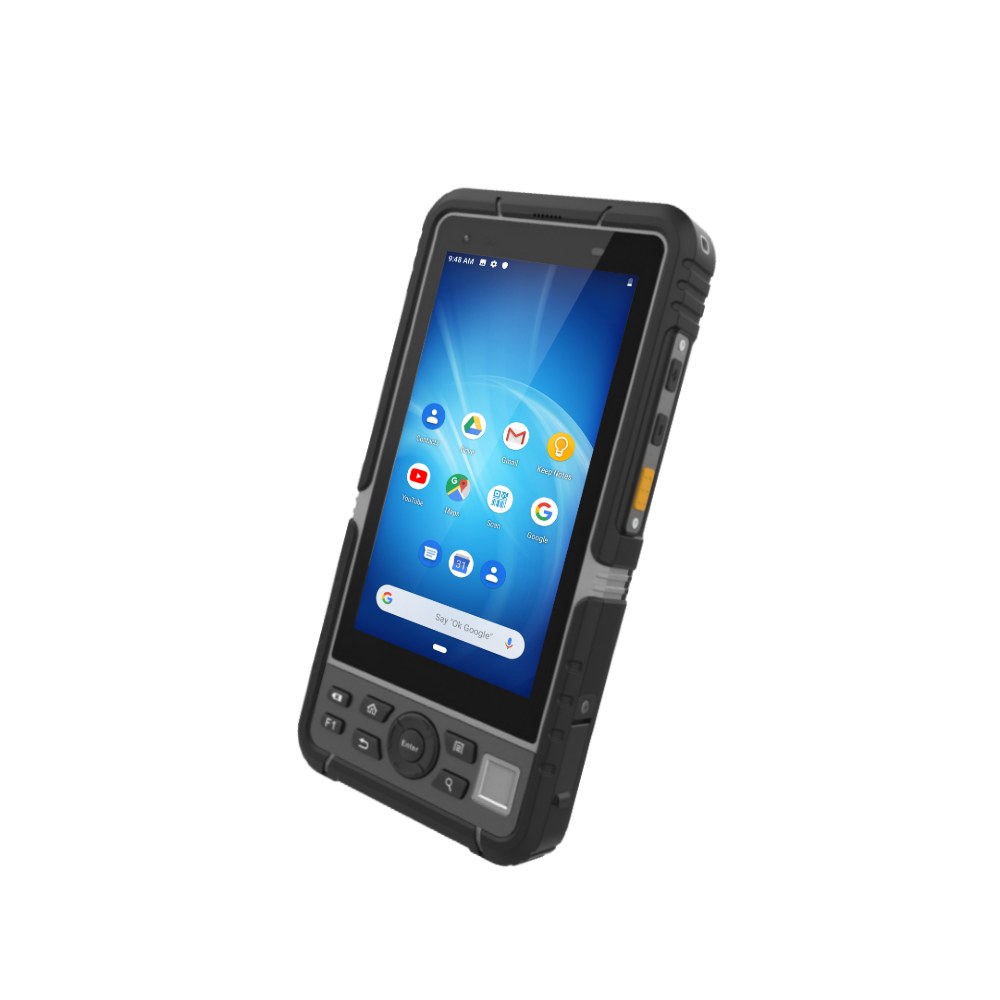

HUGEROCK R60 Rugged PDAs
HUGEROCK R60 is a rugged PDA in the MIOT&RFID Rugged Tablets collection. It equipped with 7800mAh intrinsically safe battery, can work continuously for 12 hours.
HUGEROCK R60 hardware and system
HUGEROCK R60 brings together the hardware and operating-system specifications below. CPU: ARM Cortex A73 Octa-core (2.0GHz). OS: Android 10 / 11. Memory: 8G. Storage: 128G. The Specs tab lists the configuration details, optional modules and version differences. Those tables should be checked against the configuration required for each order.
Display, battery and physical design
Battery: 7800mAh (Replaceable battery). Display: 5.5 inch IPS/AFFS 1080*1920 FHD industrial 500cd/m2 Sunlight Readable. Dimensions: 195*98*22mm (LxWxH). Weight: 460g. Touch: Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen. Screen size, resolution and brightness are useful points when comparing a device for indoor and outdoor work. The battery, dimensions and weight provide additional information for deciding how the terminal will be carried or mounted. Any removable battery, mounting hardware or optional module should be selected according to the corresponding specification table.
Connectivity and data collection
Network: Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac. Navigation: GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m). Camera: 13.0MP(AF) with flash led. Front Camera: 5.0MP. Data ports: USB Type-C(OTG)*1. The available interfaces and communication specifications help assess compatibility with the intended workflow. Check the full network bands and module parameters before choosing a configuration. Listed optional functions describe configuration possibilities; they do not mean every module is installed on every unit.
HUGEROCK R60 product features
MORE
FAST
MORE FAST
ARM Cortex A73 octa-core (2.0GHz ) processor solution and 8G RAM.
INTRINSIC
SAFETY
INTRINSIC SAFETY
It equipped with 7800mAh intrinsically safe battery, can work continuously for 12 hours.
FULL
RUGGED
FULL RUGGED
Industrial protection grade IP67, MIL-810G Drop-proof 5 ft.
FULLY INTEGRATED
SOLUTIONS
FULLY INTEGRATED SOLUTIONS
The hardware supports extended interfaces, and modules can be installed according to customer needs to complete more functions.
REAL-TIME
COMMUNICATIONS
REAL-TIME COMMUNICATIONS
To support video conferences, screen sharing and other applications, our solutions offer a range of devices with 4G with mobile SIM and IEEE 802.11ax Wi-Fi.
CUSRTOM
NO MOQ
CUSRTOM NO MOQ
We work closely with our partners to provide a variety of customized solutions, including personalized customization of boot screen, SDK, function modules, product packaging, promotional materials, etc.
Product photos and specifications

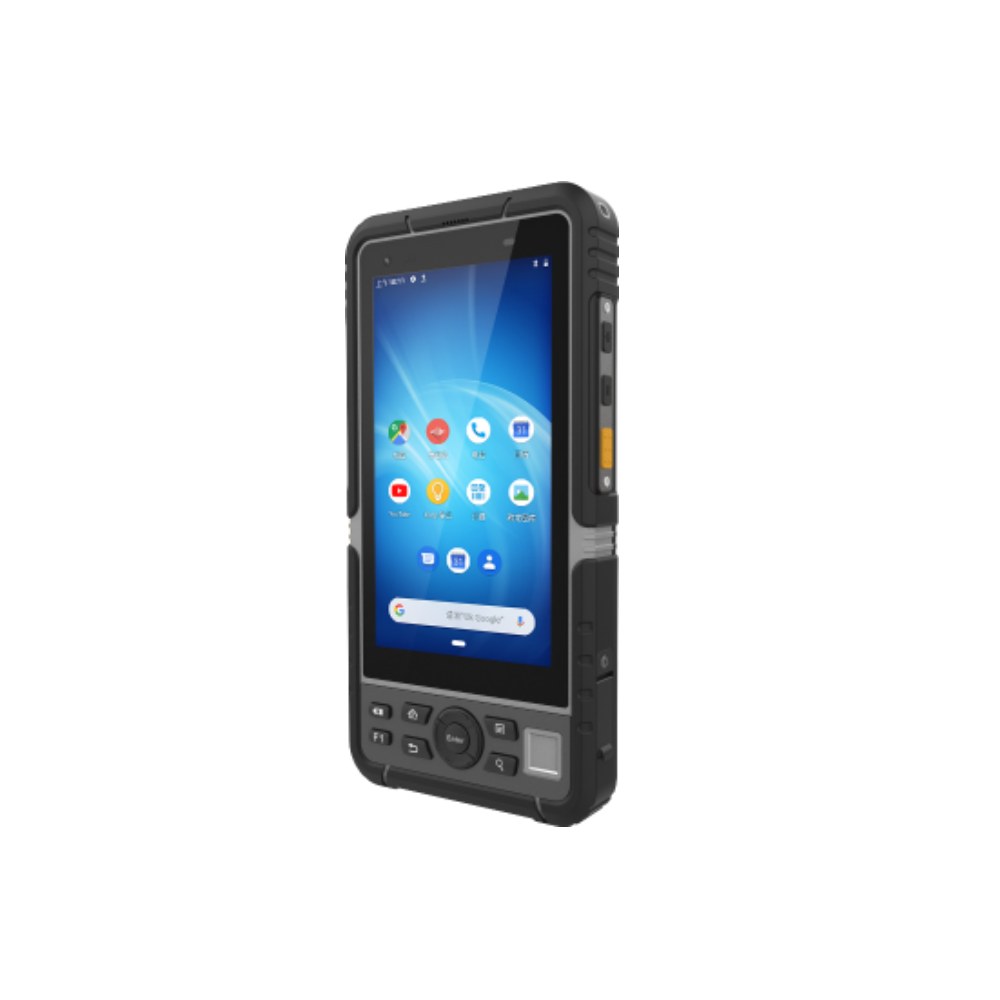

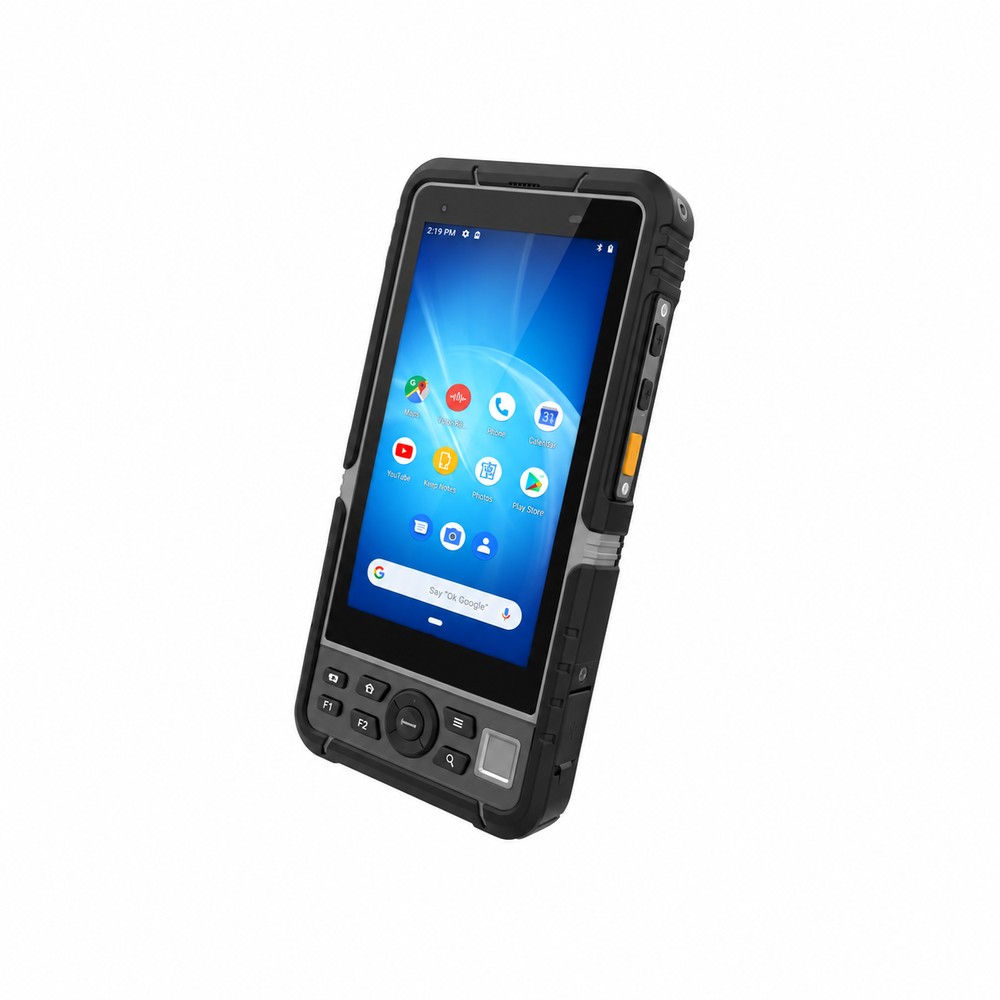

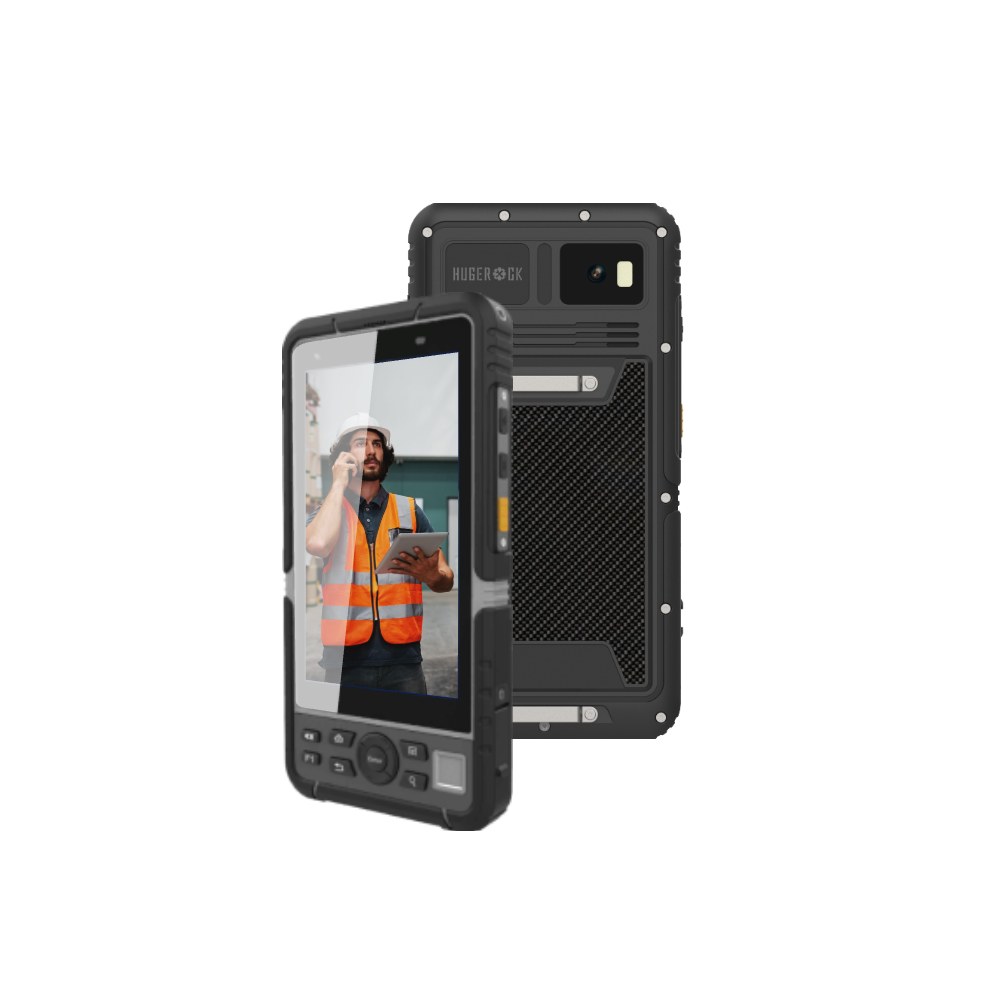

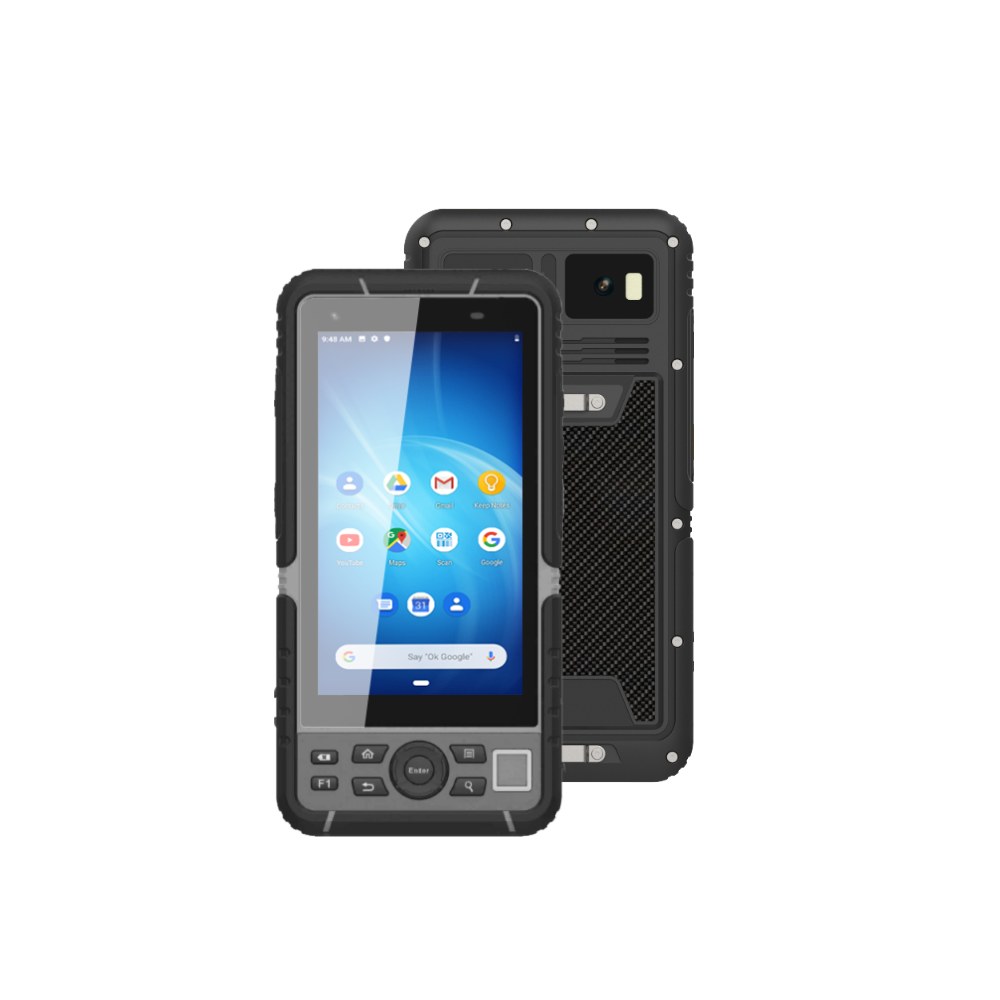

The HUGEROCK R60 gallery shows the product itself. Review the Specs tab for all listed technical fields, appearance diagrams, comparison tables and module information. Browse our MIOT&RFID Rugged Tablets collection to compare more models.
Product attributes
| Operating System | Android 11/13 (Continuous updates) |
|---|---|
| Style | Handheld Computer |
| Memory Capacity | 8GB |
| Place of Origin | Guangdong, China |
| Processor Type | MTK |
| Screen Size | 5.5 inch |
| Weight | 460g |
| Brand Name | HUGEROCK |
| Model Number | R60(1045) |
| Software development kit (SDK) | Yes |
| CPU | ARM Cortex A73 Octa --core ( 2.0GHz) |
| GPU | ARM Mali--G72 MP3 |
| RAM | 8GB |
| Internal Memory | 128GB |
| Battery | 9000mAh (Replaceable battery) |
| Display | 5.5 inch IPS/AFFS 1080*1920 FHD industrial 500nits Sunlight Readable |
| SIM Card | Nano sim card*2 |
| Headphone | 3.5mm (CTIA) |
| Data interface | USB Type-C(OTG)*1 |
| Charger | 5.0V 2A-10W |
| Single package size: | 26X26X10 cm |
| Single gross weight: | 2.000 kg |

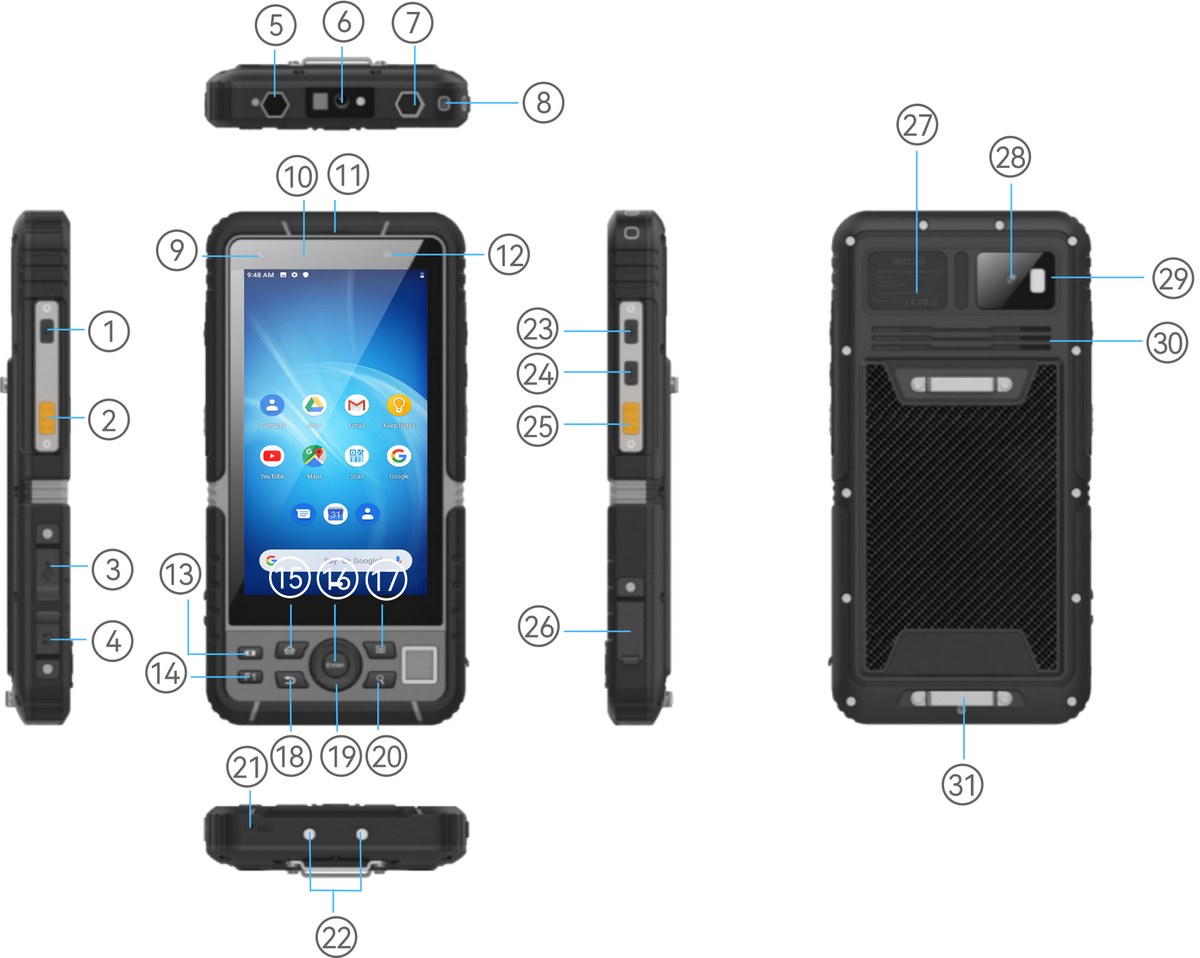

APPEARANCE
| 1. Power button | 2. SOS button |
| 3. Type-C (Sealed Cover) | 4. Earphone (Sealed Cover) |
| 5. RS232 (Optional) | 6. Barcode module(Optional) |
| 7. SMA (Optional) | 8. Hanging hole |
| 9. Front camera | 10. Charge lamp |
| 11. Receiver | 12. Light sensor |
| 13. Delete button | 14. Custom button |
| 15. Home button | 16. Confirm button |
| 17. Menu button | 18. Back button |
| 19. Arrow button | 20. Search button |
| 21. MIC | 22. 2pin pogo pin |
| 23. Volume up | 24. Volume down |
| 25. Scan button(Definition) | 26. SIM (Sealed Cover) |
| 27. Nameplate | 28. Main camera |
| 29. Flash light | 30. Speaker |
| 31. Fihand strap xing parts |
TECHNICAL SPECIFICATIONS
| Hardware | |
| CPU | ARM Cortex A73 Octa-core (2.0GHz) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card (T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 7800mAh (Replaceable battery) |
| Display | 5.5 inch IPS/AFFS 1080*1920 FHD industrial 500cd/m2 Sunlight Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | Nano sim card*2 |
| TF Card | Micro SD card(T-FLASH card); max 256GB |
| Headphone | 3.5mm (CTIA) |
| Charging interface | Type-C & 2pin pogo pin |
| Data interface | USB Type-C(OTG)*1 |
| RS232(optional) | RS232*1 |
| Gravity sensor | support |
| Direction Sensor | support |
| Magnetic Field Sensor | support |
| Gyro sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Motion sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |

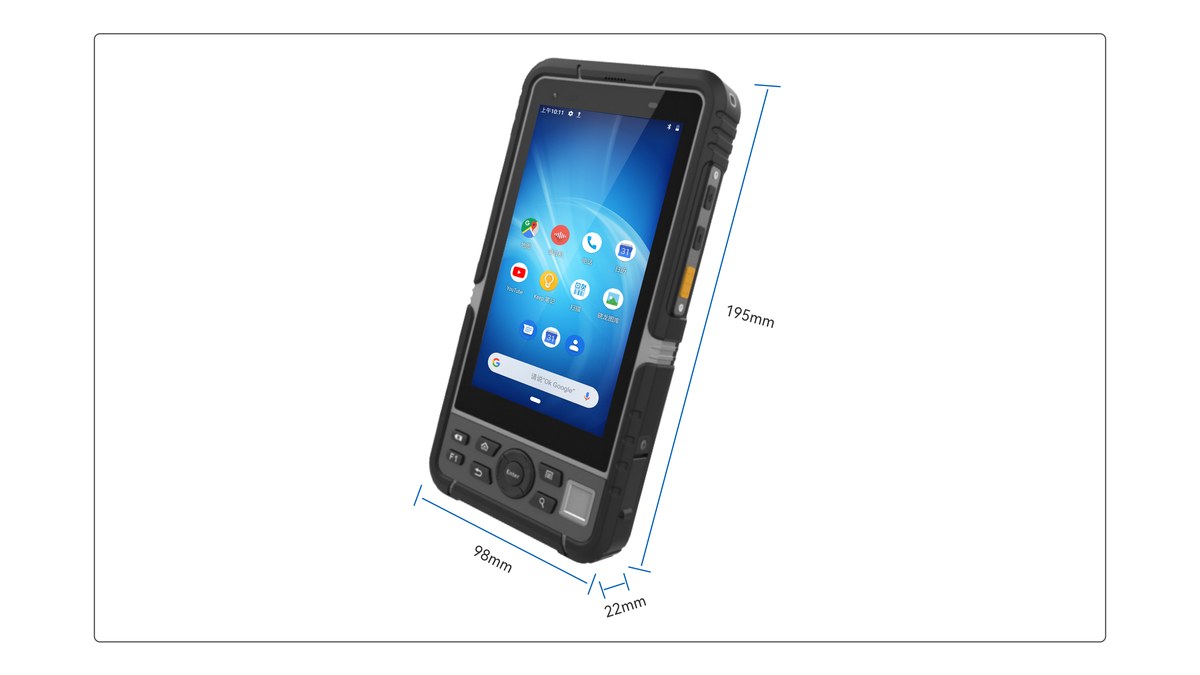

| Size | 195*98*22mm (LxWxH) |
| Weight | 460g |
| Color & Material | Black&Gray |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA |
| 3G Band | WCDMA 3.75G (HSDPA + 42.2Mbps, HSUPA + 11.5Mbps), EVDO |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE (B38/39/40/41); FDD LTE (B1/2/3/4/5/7/8/12/17/20/28) |
| WI- FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 5.0 Low Energy(LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/ 0.10mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 7(IEC 60529) |
| Dustproof | Class 6 (IEC 60529) |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| Reliability | MTBF>50000h; MTTR<0.5h |
| RH | 5%RH-95% |
| Operating Altitude | Max: 4,500m (15,000 feet) |
| Certification/OS/Software | |
| Certification | 3C/FCC/CE/ROHS/IP67 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc. |
| OS | Android 10 / 11 |
| Package/Warranty terms | |
| Warranty | 24 months |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box/Aircraft box/Toolkit(optional)/OTG x 1/SIM Card Ejector x 1 |
FUNCTION MODULES

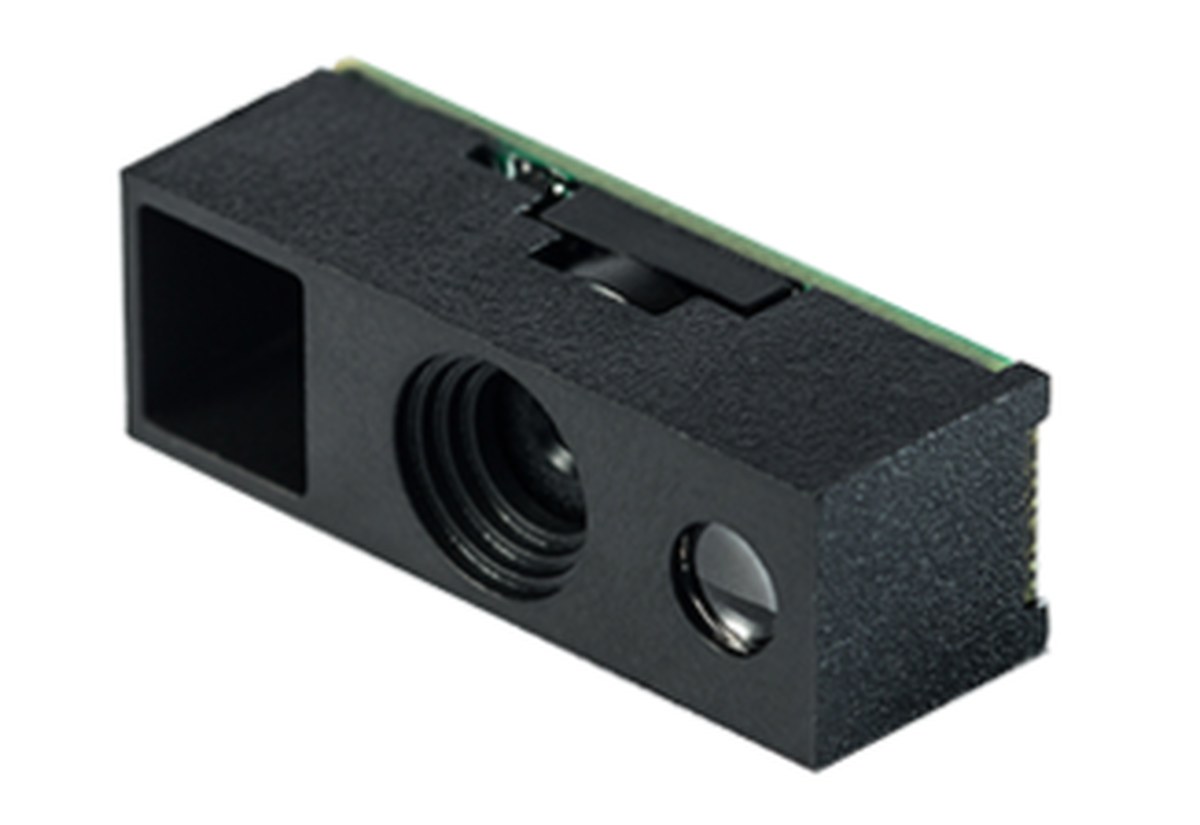

| Barcode module | |||
|---|---|---|---|
| N1 | Scanning engine | E20 Barcode Module | |
| 2D | QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code, Dotcode, Composite. | ||
| 1D | Code 128 ( ISBT 128, AIM 128, GSI 128 ), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban. | ||

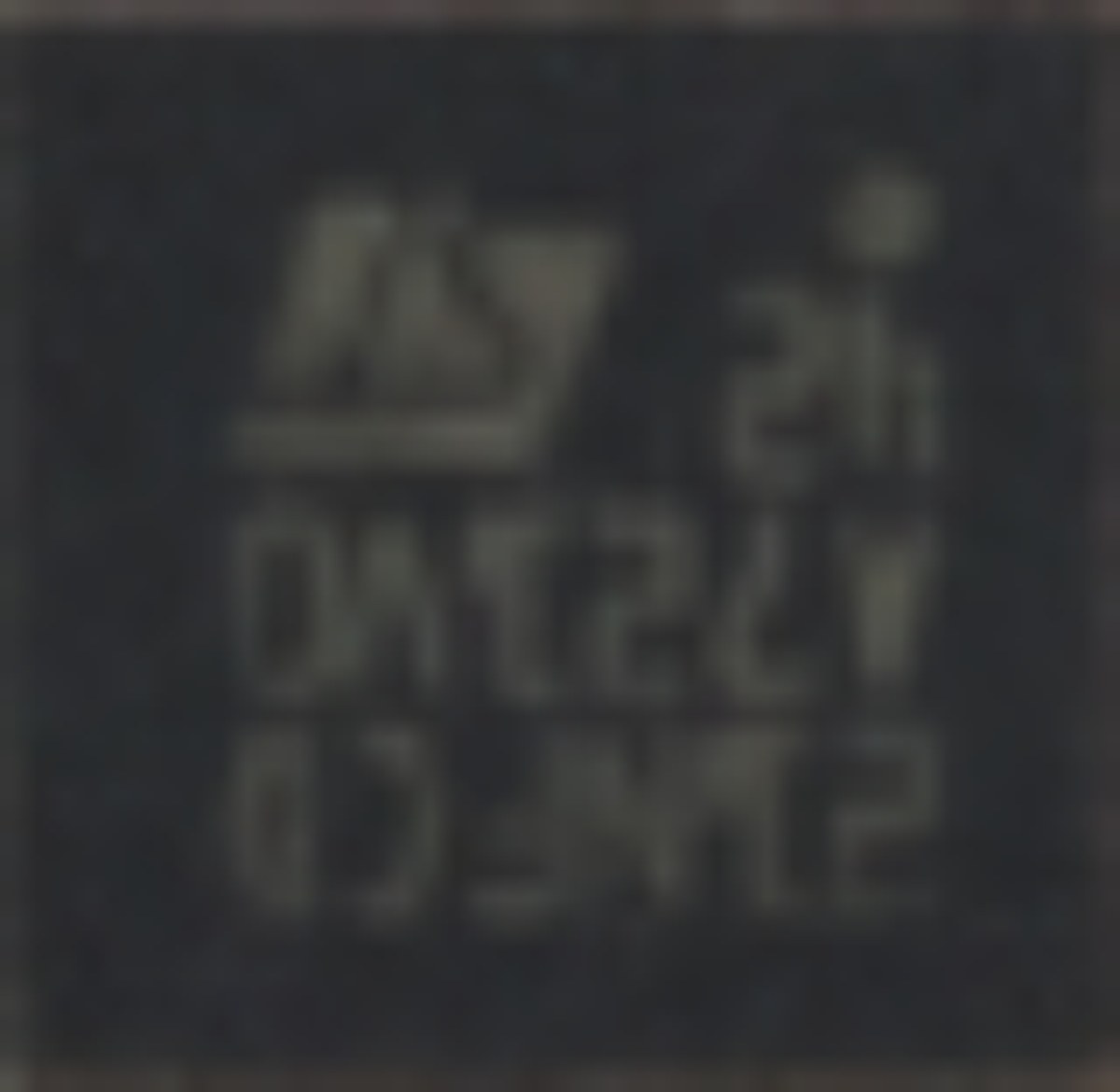

| NFC module | |||
| NFC module | Frequency | 13.56MHz | |
| Protocol standard | ISO14443A/B, ISO15693, NFC | ||
| Label standard | M1(S50, S70), CPU, NFC | ||
| Read-write distance | 2-5cm | ||

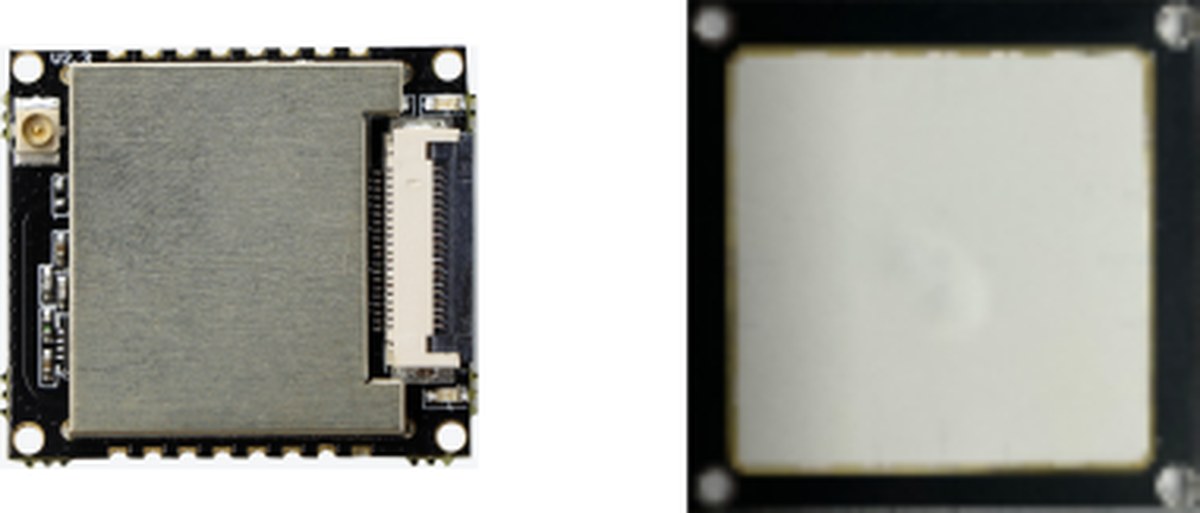

| UHF module | |||
| UHF module (M500+Ceramic antenna) | Air interface protocol | EPCglobal UHF Class 1 Gen2/1s0 18000-6C | |
| Operating spectrum range | 902Mhz – 928Mhz 865MHz – 868MHz(Optional) | ||
| Output range | 0-26bdm | ||
| Output accuracy | +/- 1dB | ||
| Output power level | +/-0.2dB ,The label is sensitive and stable | ||
| Reading distance | ≥1.8m(E41 tag) | ||
