HUGEROCK R50UB Rugged PDAs
4.5 inch IPS/AFFS 540*960 QHD industrial 500nit Sunlight Readable, 8G + 128G, 5000mAh (Replaceable battery), Android 10 / 11, ARM Cortex-A73 Octa-core (2.0GHz)
HUGEROCK R50UB is a rugged PDA in the MIOT&RFID Rugged Tablets collection. It can seamlessly read barcodes from10 cm to 30 m* [4 in to 99 ft* ] using the latest technology for a fast auto-focus mechanism.
Display: 4.5 inch IPS/AFFS 540*960 QHD industrial 500nit Sunlight Readable
Memory: 8G; Storage: 128G
Battery: 5000mAh (Replaceable battery)
System: Android 10 / 11
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

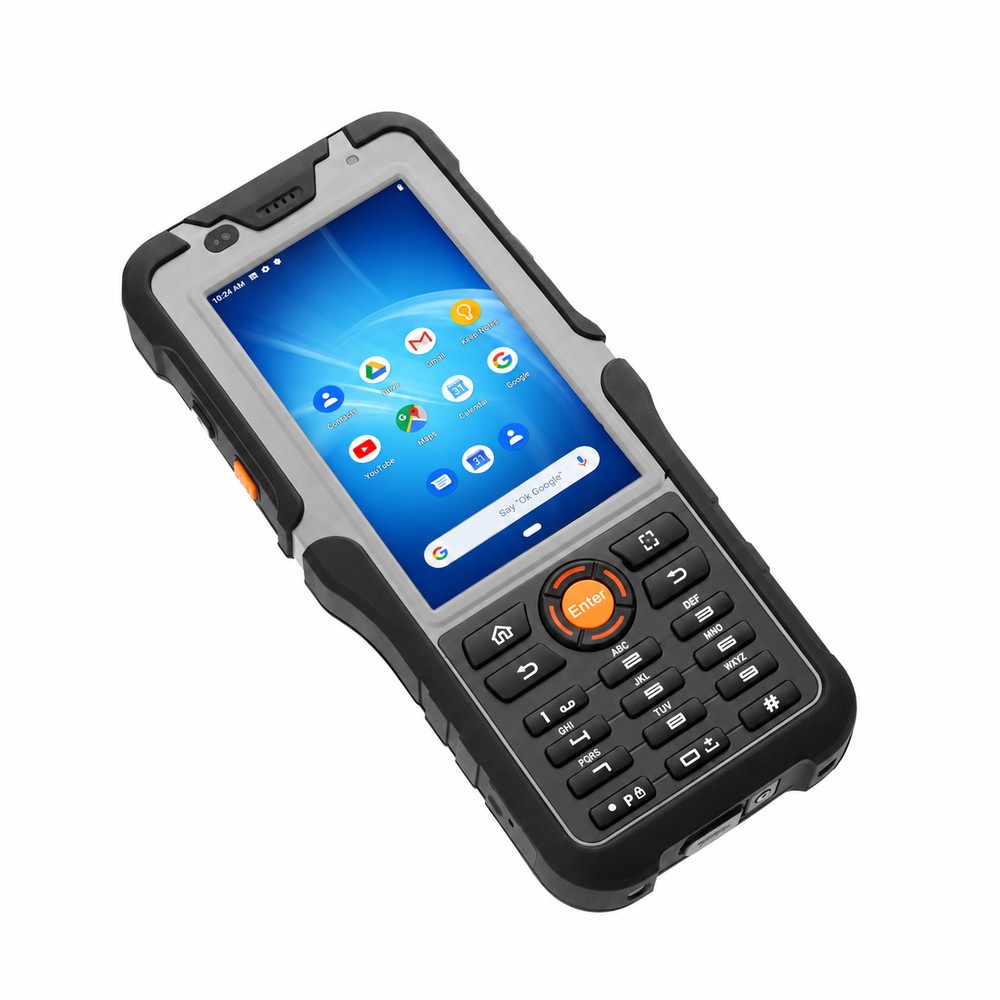

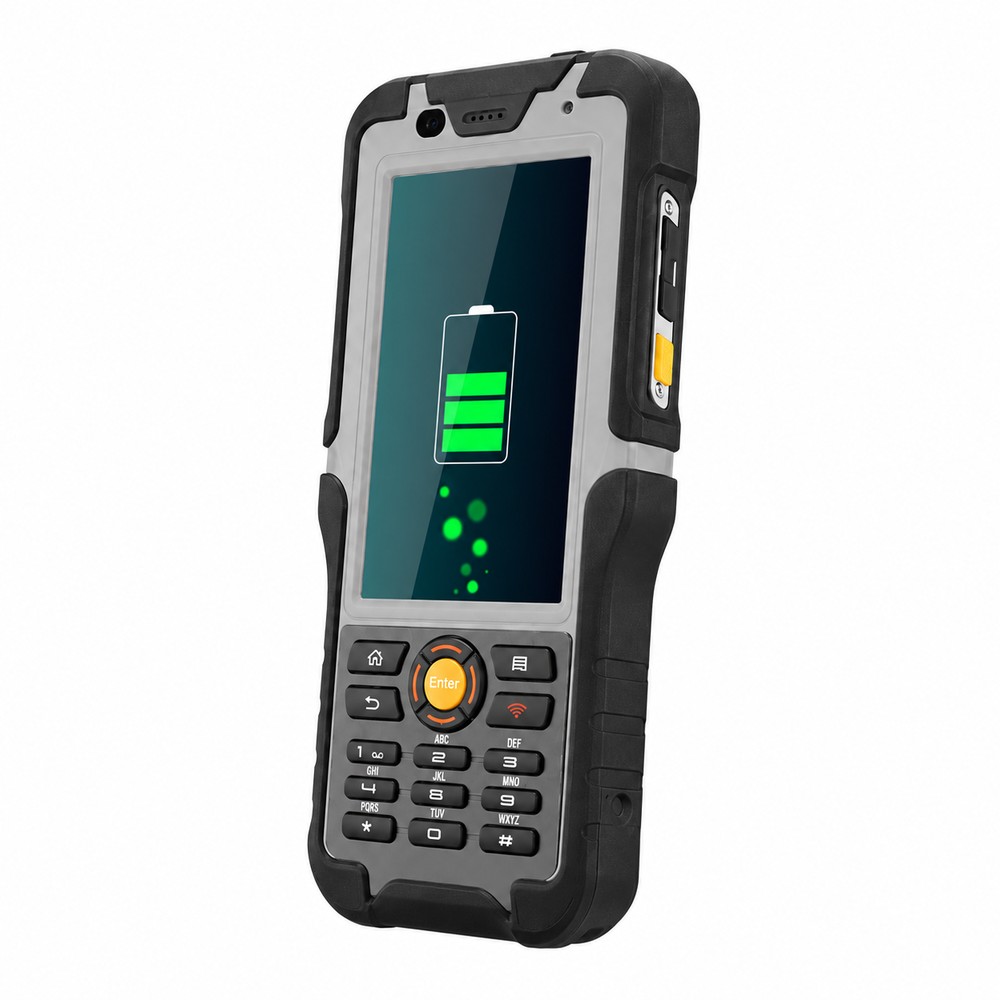

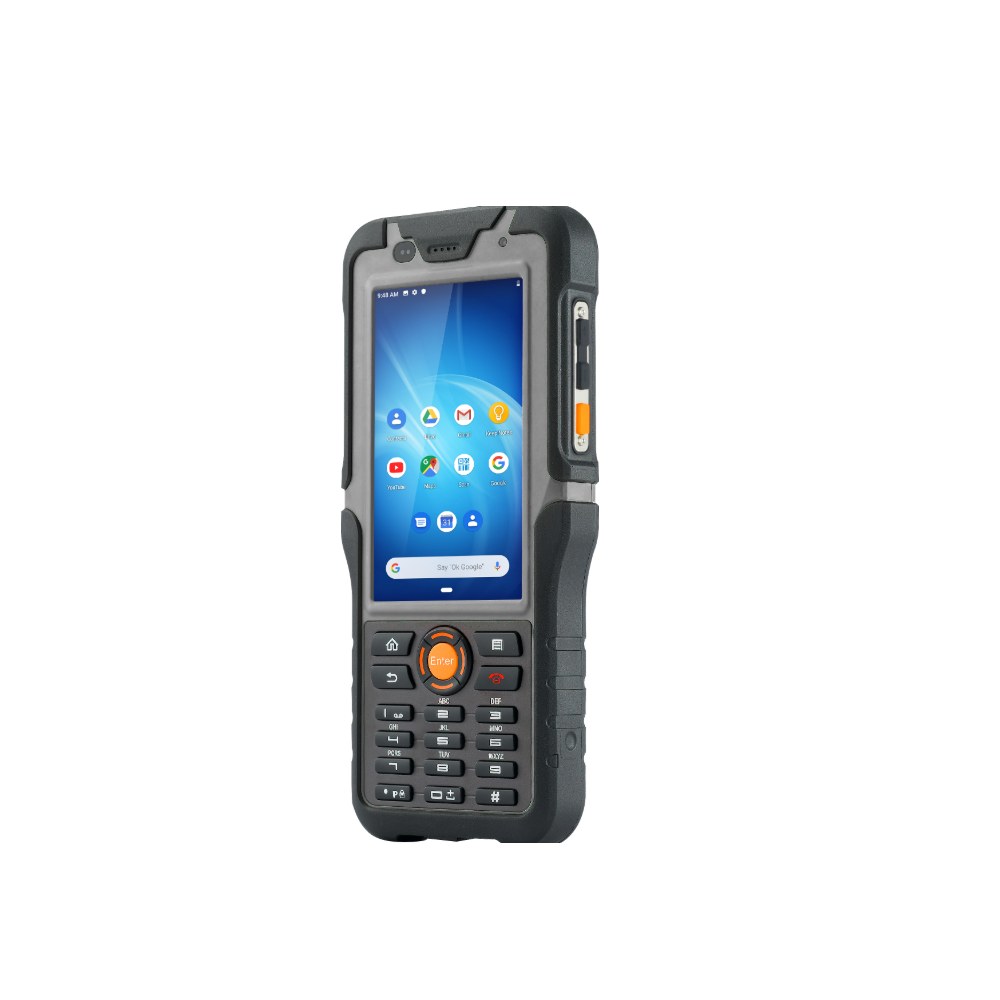

HUGEROCK R50UB Rugged PDAs
HUGEROCK R50UB is a rugged PDA in the MIOT&RFID Rugged Tablets collection. It can seamlessly read barcodes from10 cm to 30 m* [4 in to 99 ft* ] using the latest technology for a fast auto-focus mechanism.
HUGEROCK R50UB hardware and system
HUGEROCK R50UB brings together the hardware and operating-system specifications below. CPU: ARM Cortex-A73 Octa-core (2.0GHz). OS: Android 10 / 11. Memory: 8G. Storage: 128G. The Specs tab lists the configuration details, optional modules and version differences. Those tables should be checked against the configuration required for each order.
Display, battery and physical design
Battery: 5000mAh (Replaceable battery). Display: 4.5 inch IPS/AFFS 540*960 QHD industrial 500nit Sunlight Readable. Dimensions: 197*92*45mm (LxWxH). Weight: 420g. Touch: Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen. Screen size, resolution and brightness are useful points when comparing a device for indoor and outdoor work. The battery, dimensions and weight provide additional information for deciding how the terminal will be carried or mounted. Any removable battery, mounting hardware or optional module should be selected according to the corresponding specification table.
Connectivity and data collection
Network: Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac. Navigation: GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m). Camera: 13.0MP(AF) with flash led. Front Camera: N/A. Data ports: USB Type-C(OTG)*1. The available interfaces and communication specifications help assess compatibility with the intended workflow. Check the full network bands and module parameters before choosing a configuration. Listed optional functions describe configuration possibilities; they do not mean every module is installed on every unit.
HUGEROCK R50UB product features

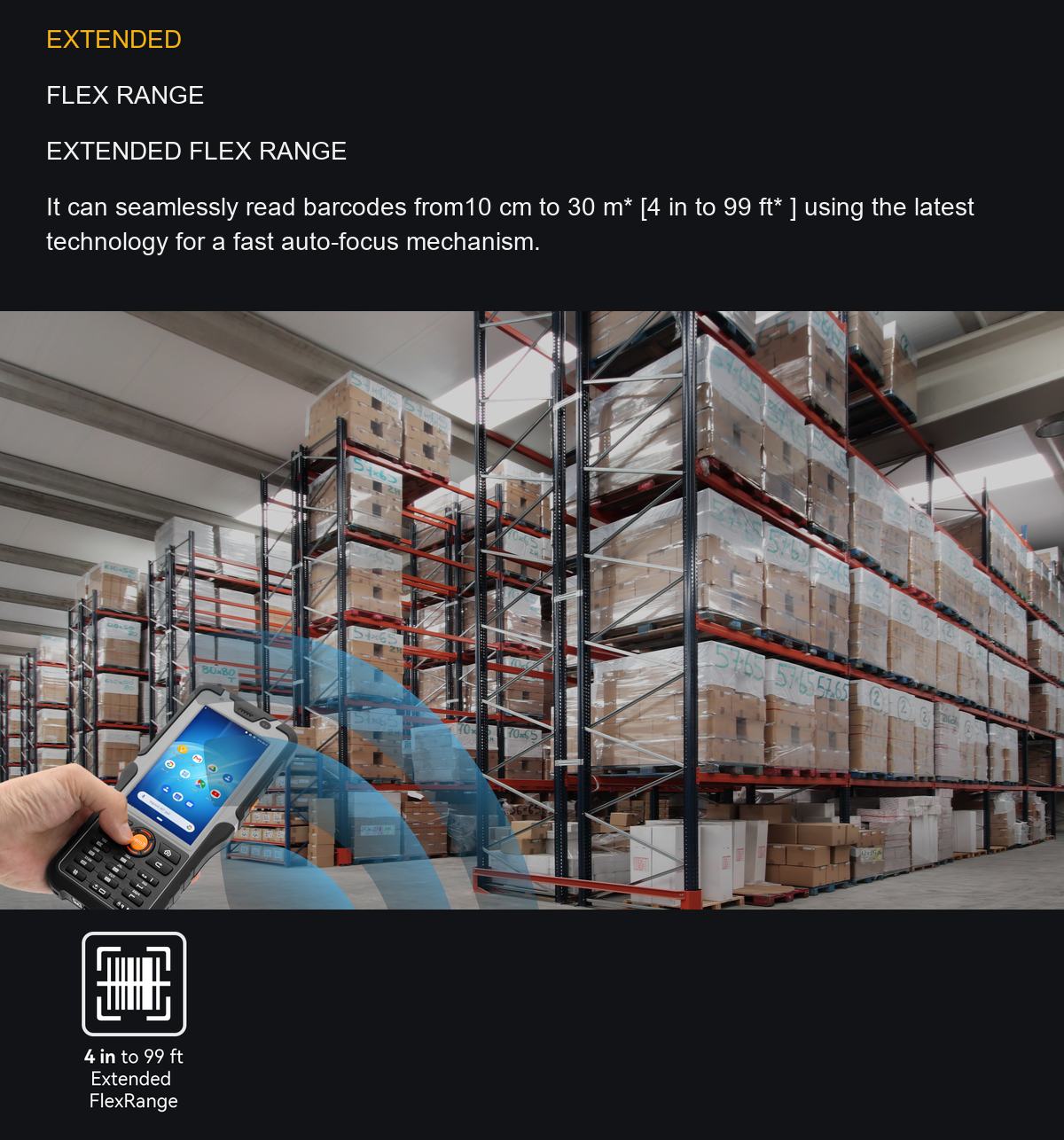

EXTENDED
FLEX RANGE
EXTENDED FLEX RANGE
It can seamlessly read barcodes from10 cm to 30 m* [4 in to 99 ft* ] using the latest technology for a fast auto-focus mechanism.

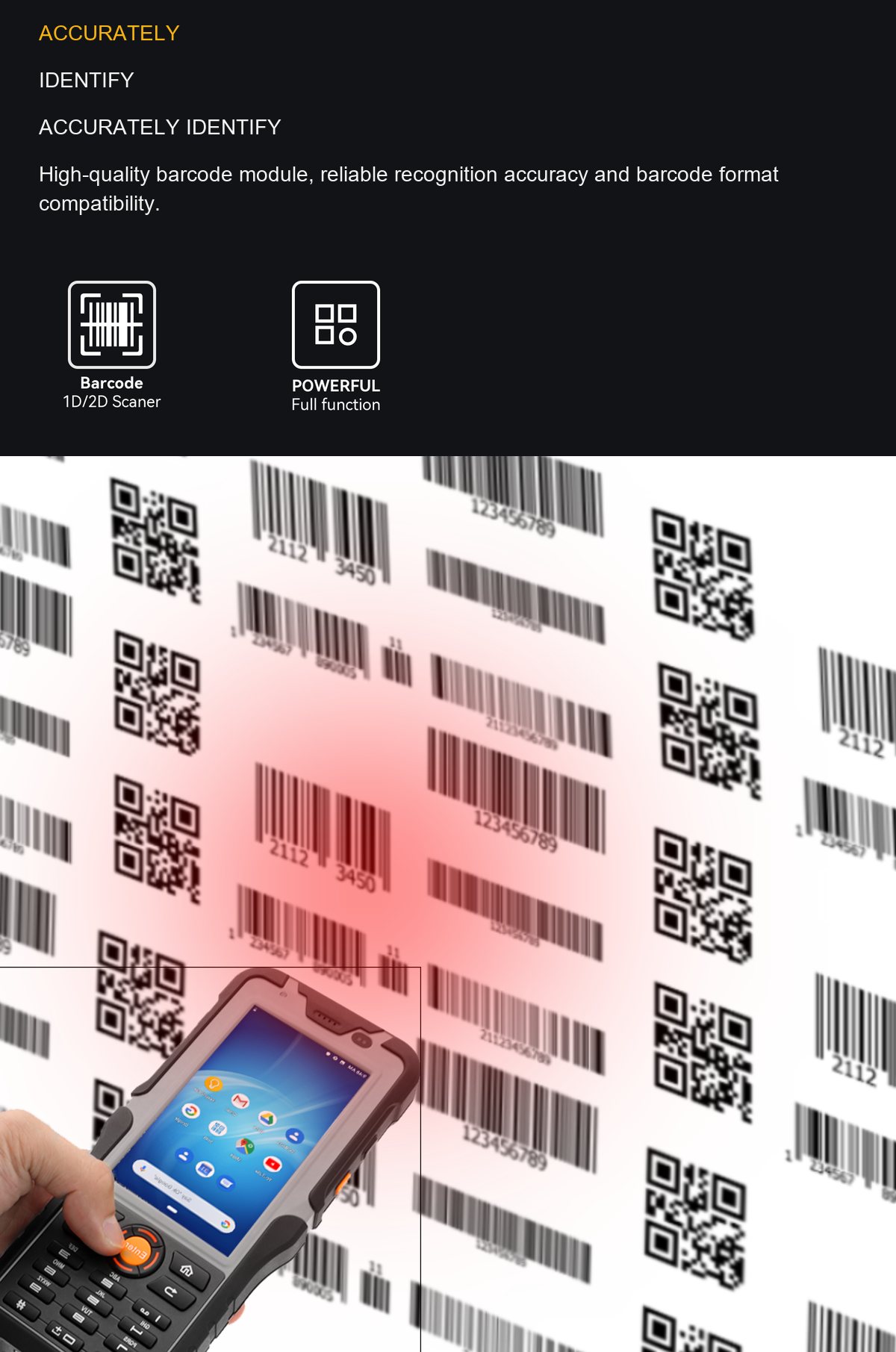

ACCURATELY
IDENTIFY
ACCURATELY IDENTIFY
High-quality barcode module, reliable recognition accuracy and barcode format compatibility.
MORE
FAST
MORE FAST
AdoptHelio P60 A73 12nm FinFET 8-core processor solution and 4G RAM.
CONNECTIVITY
WHEREVER YOU GO
CONNECTIVITY WHEREVER YOU GO
Use WLAN，4G, for easy and fast connection networks, or BT for short-range wireless connection to peripheral devices.
RUGGED AND
LONG-LASTING
RUGGED AND LONG-LASTING
Full rugged, Industrial protection grade IP66,Drop-proof height range 6ft./1.8 m.
5000MAH
REPLACEABLE BATTERY
5000MAH REPLACEABLE
BATTERY
Can work continuously for 12 hours.

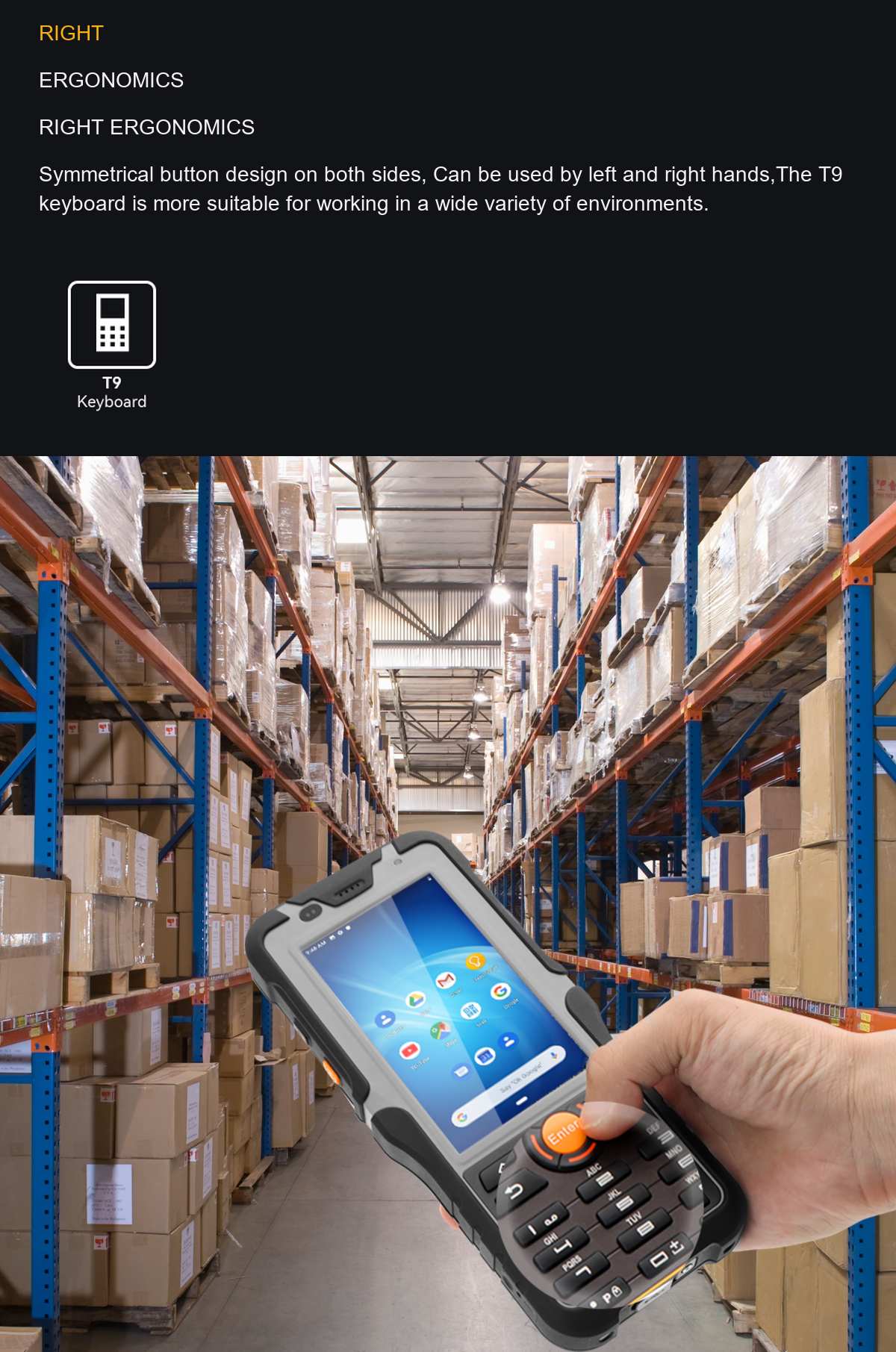

RIGHT
ERGONOMICS
RIGHT ERGONOMICS
Symmetrical button design on both sides, Can be used by left and right hands,The T9 keyboard is more suitable for working in a wide variety of environments.
CONVENIENCE
The fast charging base is more convenient and practical.

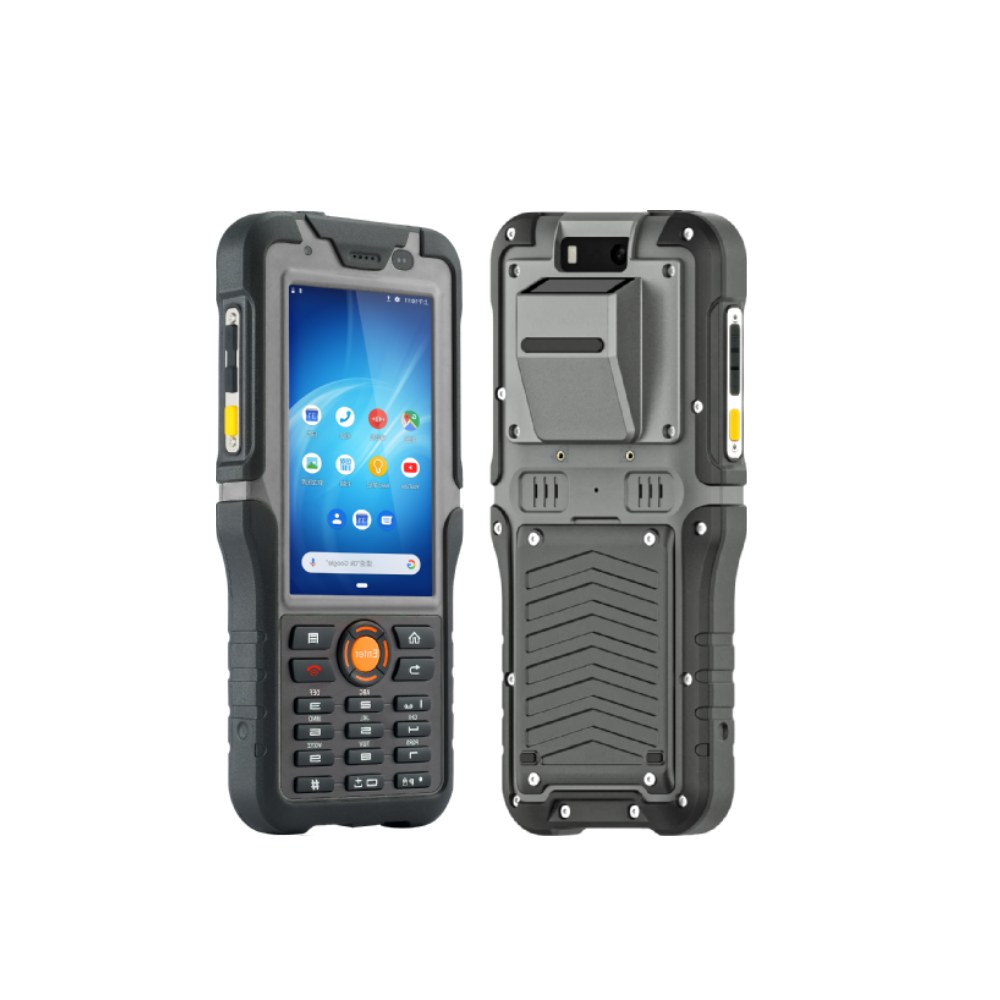

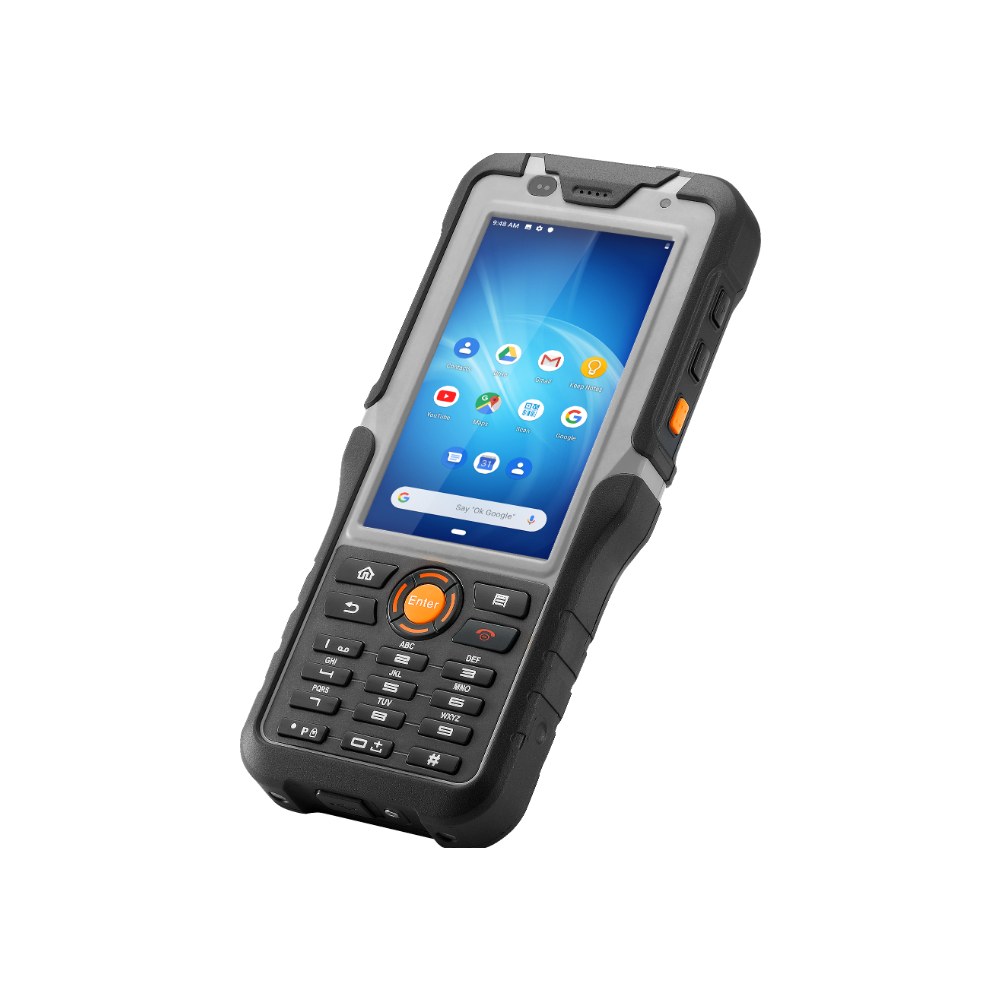

Product photos and specifications
The HUGEROCK R50UB gallery shows the product itself. Review the Specs tab for all listed technical fields, appearance diagrams, comparison tables and module information. Browse our MIOT&RFID Rugged Tablets collection to compare more models.
Product attributes
| Operating System | Android10/11/13 (Continuous updates) |
|---|---|
| Style | Handheld Computer |
| Memory Capacity | 8GB |
| Place of Origin | Guangdong, China |
| Processor Type | MTK |
| Screen Size | 4.5 inch |
| Weight | 420g |
| Brand Name | HUGEROCK |
| Model Number | R50UB |
| Software development kit (SDK) | Yes |
| CPU | ARM Cortex A73 Octa-core (2.0GHz) |
| GPU | ARM Mali-G72 MP3 |
| Product name | Industrial Handheld Terminal PDA |
| Memory | 8+128GB |
| Battery | 5000mAh (Replaceable battery) |
| Display | 4.5 inch IPS/AFFS 540*960 QHD industrial 500nits |
| SIM Card | 1.8/3.3V SIM Card |
| Operating System | Andoid 13 |
| Data interface | USB Type-C(OTG)*1 |
| Single package size: | 27X27X11 cm |
| Single gross weight: | 2.000 kg |

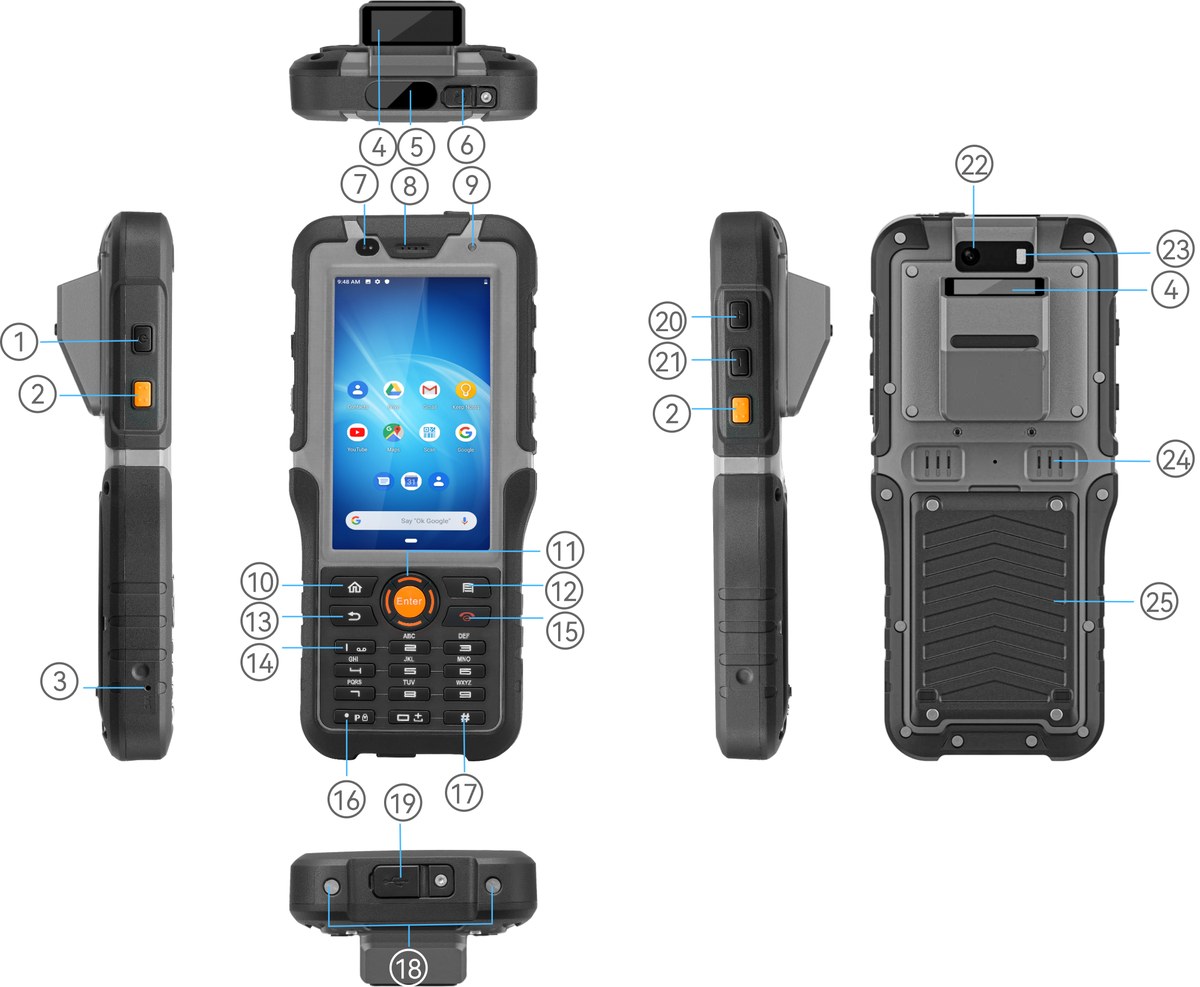

APPEARANCE
| 1. Power button |
| 2. Scan button |
| 3. MIC |
| 4. Scanner |
| 5. Decorative pieces |
| 6. Earphone (Sealed Cover) |
| 7. light sensation |
| 8. Handset |
| 9. Charge lamp |
| 10. Home |
| 11. Arrow and confirm Button |
| 12. Menu Button |
| 13. Back Button |
| 14. Number Button |
| 15. Power ON/OFF |
| 16. * Button |
| 17. # Button |
| 18. 2pin pogo pin |
| 19. Type-C (Sealed Cover) |
| 20. Volume up |
| 21. Volume Down |
| 22. main camera(optional) |
| 23. LED |
| 24. Speaker |
| 25. Battery |
SPECIFICATION
| Hardware | |
| CPU | ARM Cortex-A73 Octa-core (2.0GHz) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card (T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | N/A |
| Battery | 5000mAh (Replaceable battery) |
| Display | 4.5 inch IPS/AFFS 540*960 QHD industrial 500nit Sunlight Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| Data capture | Honeywell EX30 long-distance 1D/2D scan engin |
| Scanning Engine | Honeywell N6603 |
| IO/Sensor/Navigation | |
| SIM Card | 1.8/3.3V SIM card |
| TF Card | Micro SD card(T-FLASH card); max 256GB |
| Headphone | 3.5mm (CTIA) |
| Charging interface | Type-C & 2pin pogo pin |
| Data interface | USB Type-C(OTG)*1 |
| Gravity sensor | support |
| Direction Sensor | support |
| Magnetic Field Sensor | support |
| Gyro sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Motion sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |

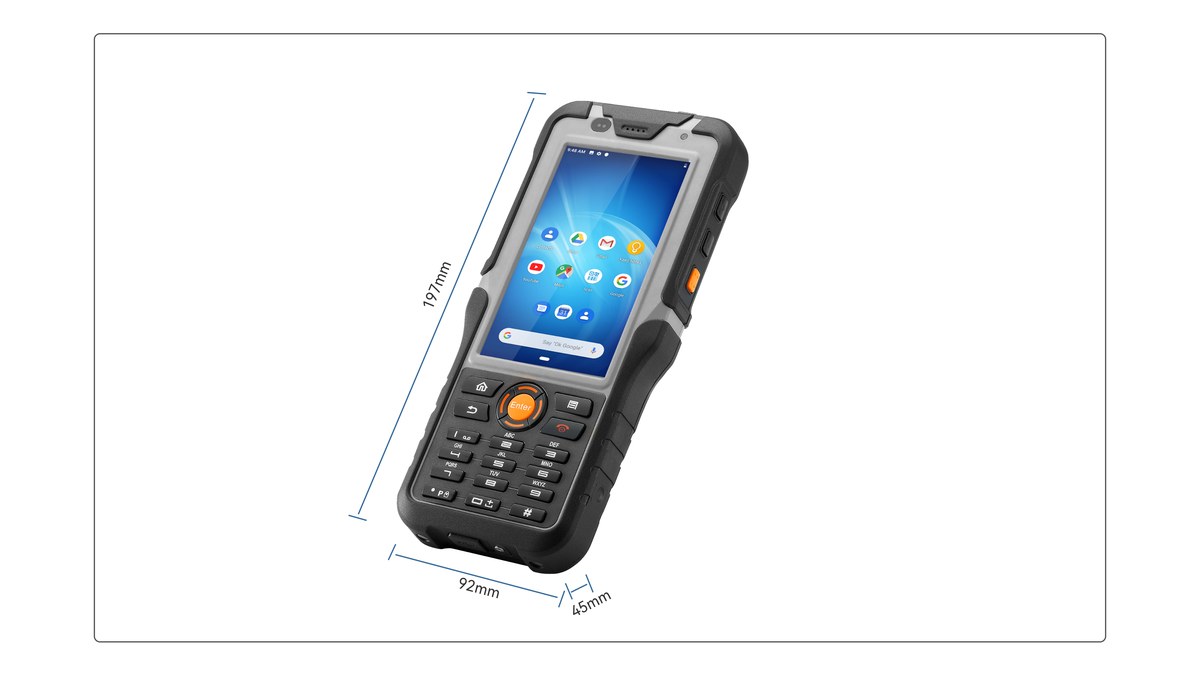

| Size | 197*92*45mm (LxWxH) |
| Weight | 420g |
| Color & Material | Gray (PC+ABS) |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA |
| 3G Band | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps), EVDO |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE (B38/39/40/41); FDD LTE (B1/2/3/4/5/7/8/12/17/20/28) |
| WI- FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 4.2 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/ 0.10mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 6 (IEC 60529) |
| Dustproof | Class 6 (IEC 60529) |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| Reliability | MTBF>50000h; MTTR<0.5h |
| RH | 5%RH-95% |
| Operating Altitude | Max: 4,500m (15,000 feet) |
| Certification/OS/Software | |
| Certification | 3C /FCC/CE/ROHS/IP66 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc. |
| OS | Android 10 / 11 |
| Package/Warranty terms/OEM | |
| Warranty | 24 months |
| OEM/ODM | Support |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box (Can be customized logo)/Aircraft box/Toolkit (optional) |
MODULE PARAMETERS

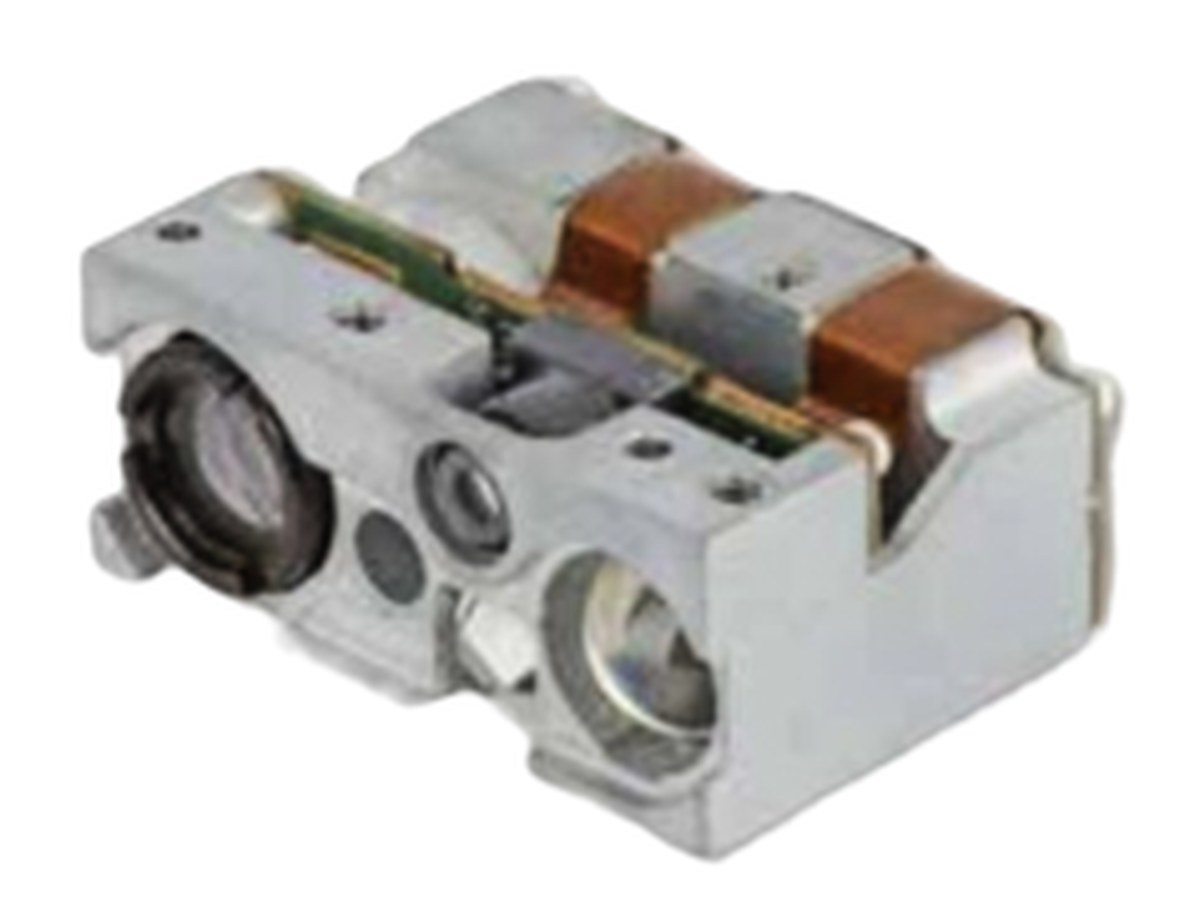

| 1D/2D Barcode Scan Engine | |
| 10CM-30M Extended FlexRange Sensor Technology: global shutter Resoluyion: 1280*800 pixels Frames per second: white LED Aimer: laser pointer(dot) Motion Tolerance: near(up to 6 m/s [19.7 ft/s]) Far(up to 0,9 m/s [3.0 ft/s]) Field of view: Near(horizontal: 42.5° ±2°, vertical: 27.4° ±2°) FAR(horizontal: 11.4° ±1°, vertical: 7.2° ±1°) Symbol Contrast: 20% | |
| SYMBOLOGIES TYPE LINEAR Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation, GS1 Data Bar 2D STACKED Codablock A, Codablock F, PDF417, MicroPDF417 二维码堆叠二维码2D MATRIX Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin), Grid Matrix, Dot Code POSTAL Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet. |
MODULE PARAMETERS
| READ RANGES (TYPICAL, WHITE ILLUMINATION) | ||
|---|---|---|
| SYMBOLOGY | NEAR DISTANCE (CM [IN])** | FAR DISTANCE (CM [IN])** |
| 13 MIL UPC | 5 [1.97] | 280 [100.24] |
| 5 MIL C39 | 9,5 [3.74] | 136 [53.54] |
| 10 MIL C39 | 6 [2.36] | 236 [103.54] |
| 20 MIL C39 | 8 [3.15] | 589 [231.89] |
| 55 MIL C39 | 20 [7.07] | 1500 [590.55] |
| 10 MIL QR | 9 [3.54] | 138 [54.33] |
| 55 MIL QR | 12 [4.72] | 704 [277.16] |
| 100 MILS C39 RFL | 36 [14.17] | 2900 [1141.73] |
| 100 MILS C128 RFL | 26 [10.24] | 2250 [885.83] |
| * Depends on the width of the bar code (shorter bar codes can be read even at closer distances, while wider bar codes need to be further away). ** In darker ambient light conditions, the distance is reduced. | ||
