HUGEROCK R36 Rugged PDAs
5.5 inch IPS HD screen 450nit, respectively rate (720 * 1440), 2GB (4GB optional) + 16GB (64GB optional), 3.8V, 4600mAh(removable), Android 9.0, Octa-core Qualcomm SDM450 1.8GHz
HUGEROCK R36 is a rugged PDA in the MIOT&RFID Rugged Tablets collection. Ergonomics, the size of the product is suitable for any working group to hold with one hand, symmetrical buttons on both sides, both left and right hands can be used.
Display: 5.5 inch IPS HD screen 450nit, respectively rate (720 * 1440)
Memory: 2GB (4GB optional); Storage: 16GB (64GB optional)
Battery: 3.8V, 4600mAh(removable)
System: Android 9.0
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

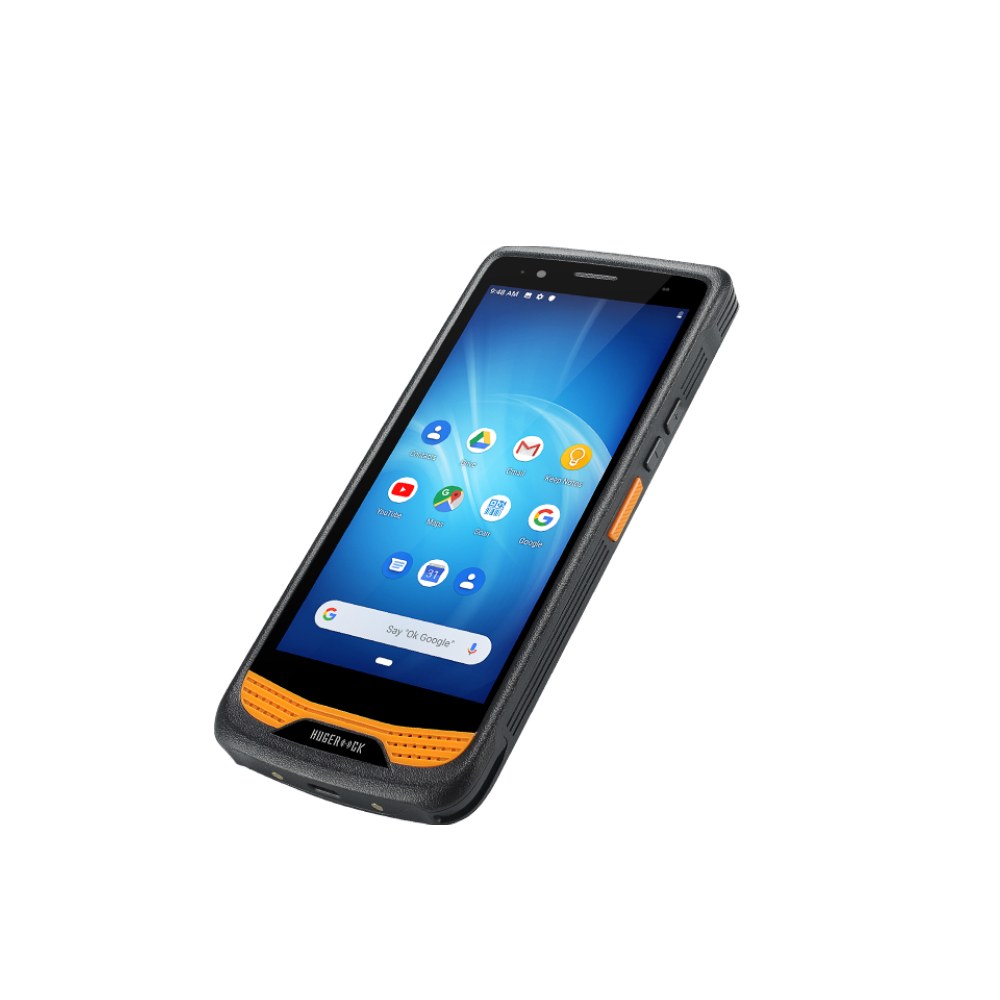

HUGEROCK R36 Rugged PDAs
HUGEROCK R36 is a rugged PDA in the MIOT&RFID Rugged Tablets collection. Ergonomics, the size of the product is suitable for any working group to hold with one hand, symmetrical buttons on both sides, both left and right hands can be used.
HUGEROCK R36 hardware and system
HUGEROCK R36 brings together the hardware and operating-system specifications below. CPU: Octa-core Qualcomm SDM450 1.8GHz. OS: Android 9.0. Memory: 2GB (4GB optional). Storage: 16GB (64GB optional). The Specs tab lists the configuration details, optional modules and version differences. Those tables should be checked against the configuration required for each order.
Display, battery and physical design

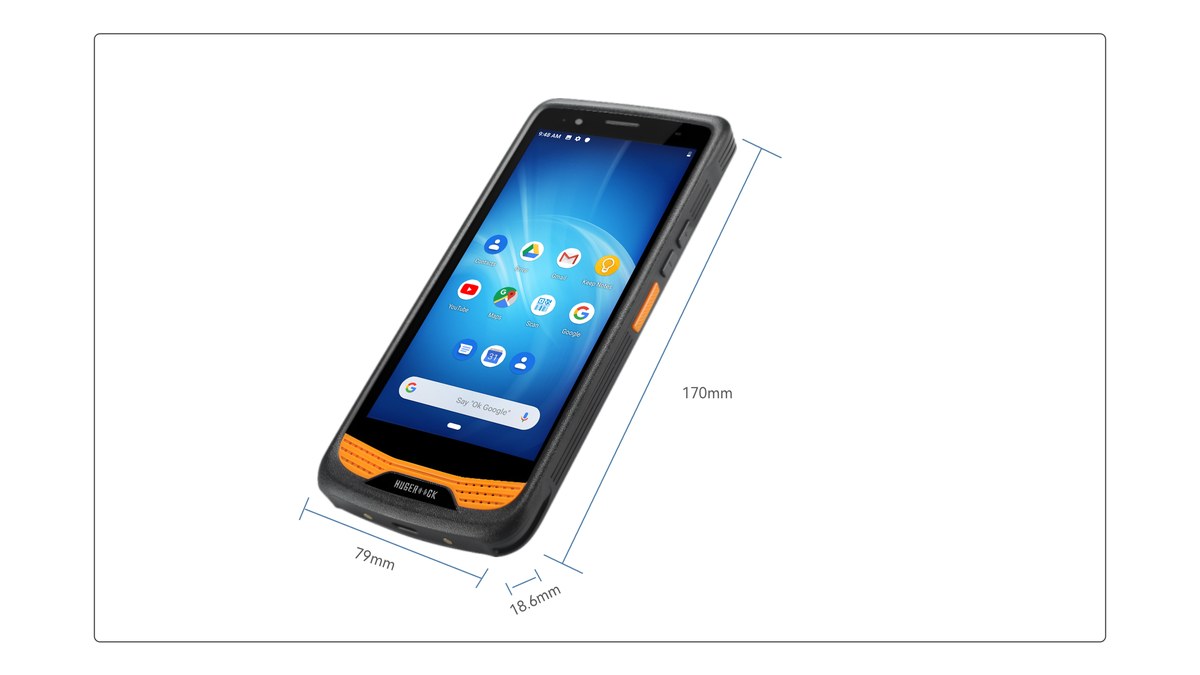

Battery: 3.8V, 4600mAh(removable). Display: 5.5 inch IPS HD screen 450nit, respectively rate (720 * 1440). Dimensions: 170*79*18.6mm(LxWxH). Weight: 285g. Touch: Corning's third-generation Gorilla Glass, capacitive screen, multi-touch, support wet hands, glove operation Use anti-oil stain and anti-fingerprint coating. Screen size, resolution and brightness are useful points when comparing a device for indoor and outdoor work. The battery, dimensions and weight provide additional information for deciding how the terminal will be carried or mounted. Any removable battery, mounting hardware or optional module should be selected according to the corresponding specification table.
Connectivity and data collection
Network: Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac. Navigation: Integrated GPS + GLONASS + Beidou positioning, support AGPS. Camera: Rear 16 MP, autofocus camera with flash. Data ports: USB 2.0 Type-C, support OTG. The available interfaces and communication specifications help assess compatibility with the intended workflow. Check the full network bands and module parameters before choosing a configuration. Listed optional functions describe configuration possibilities; they do not mean every module is installed on every unit.
HUGEROCK R36 product features
BROAD
5.5-inch HD full screen.
FIT
Ergonomics, the size of the product is suitable for any working group to hold with one hand, symmetrical buttons on both sides, both left and right hands can be used.
PORTABLE
Weight 260 g, thickness 16mm.
SPEED
Adopt Qualcomm 8-core processor solution.
ACCURATELY
IDENTIFY
ACCURATELY IDENTIFY
High-quality barcode module, reliable recognition accuracy and barcode format compatibility.
STABILIZE
Stable wifi connection, sensitive antenna, support high-speed WIFI wireless LAN, 4G network, faster.
RIGHT
ERGONOMICS

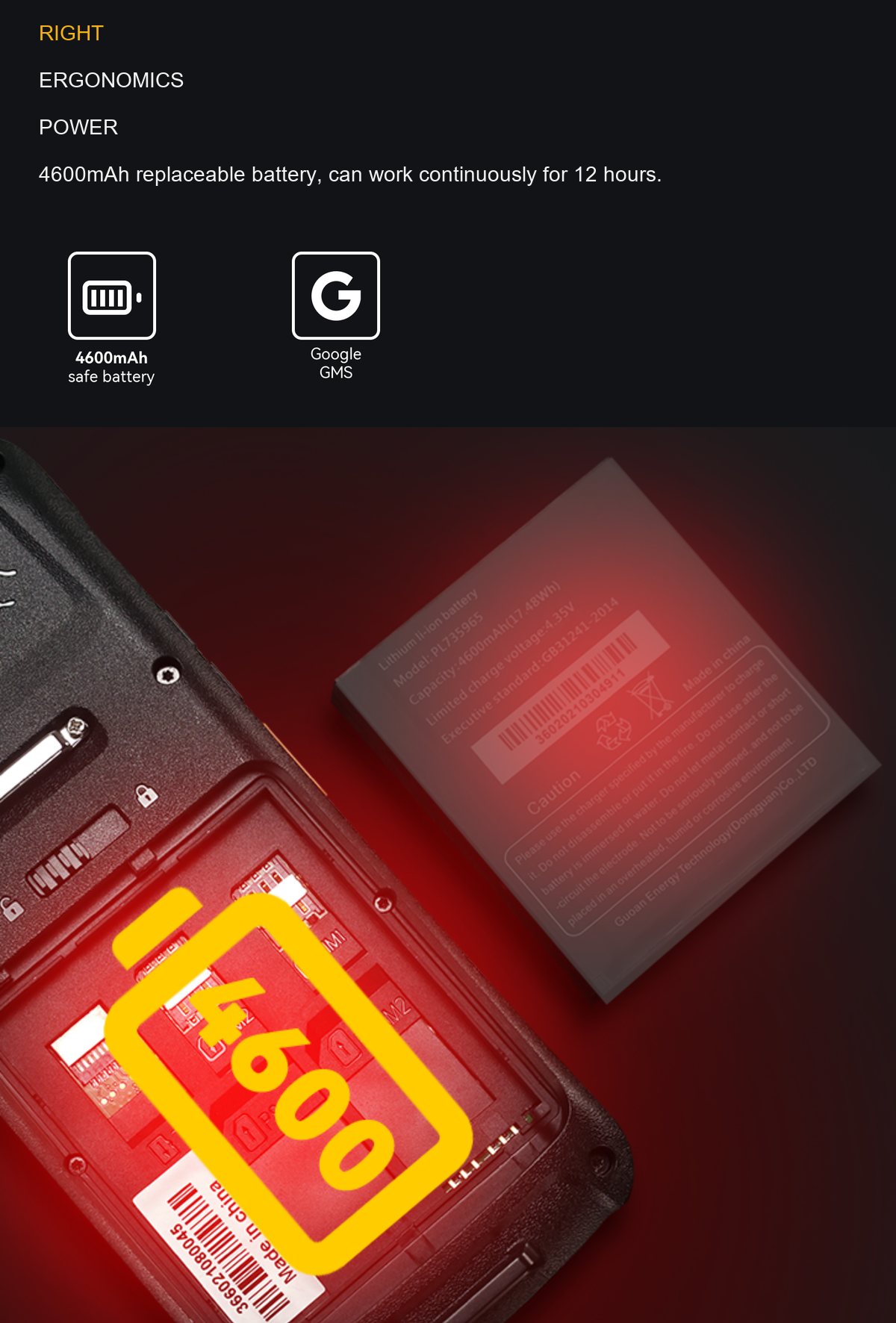

POWER
4600mAh replaceable battery, can work continuously for 12 hours.
RUGGED
Industrial protection grade IP65, MIL-810G Drop-proof 1.5m.

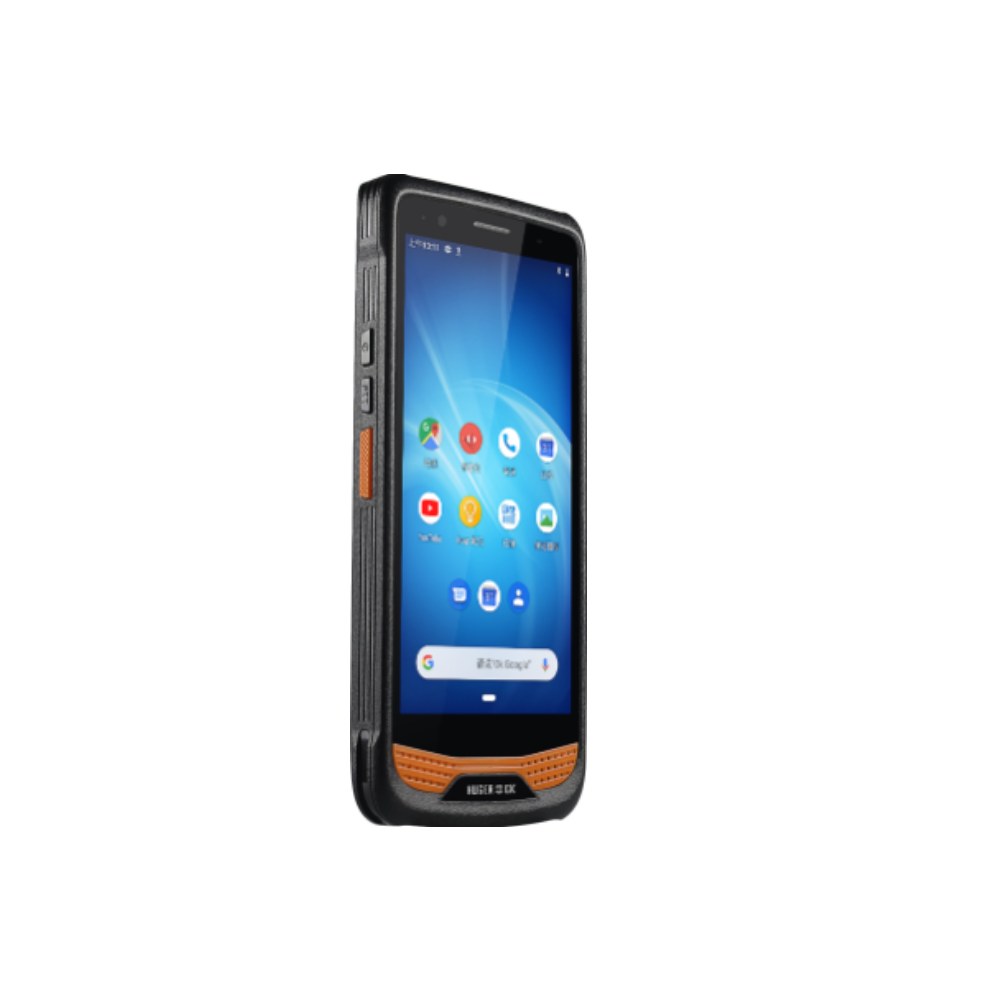

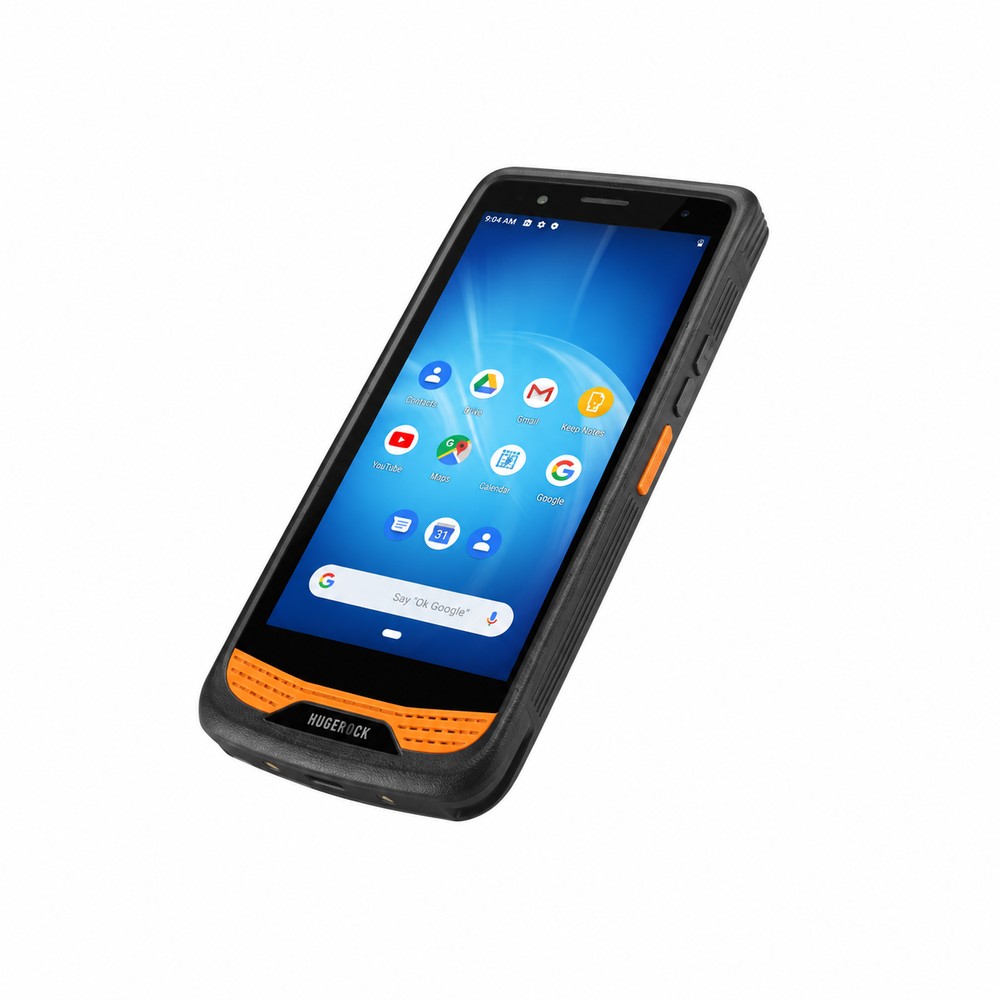

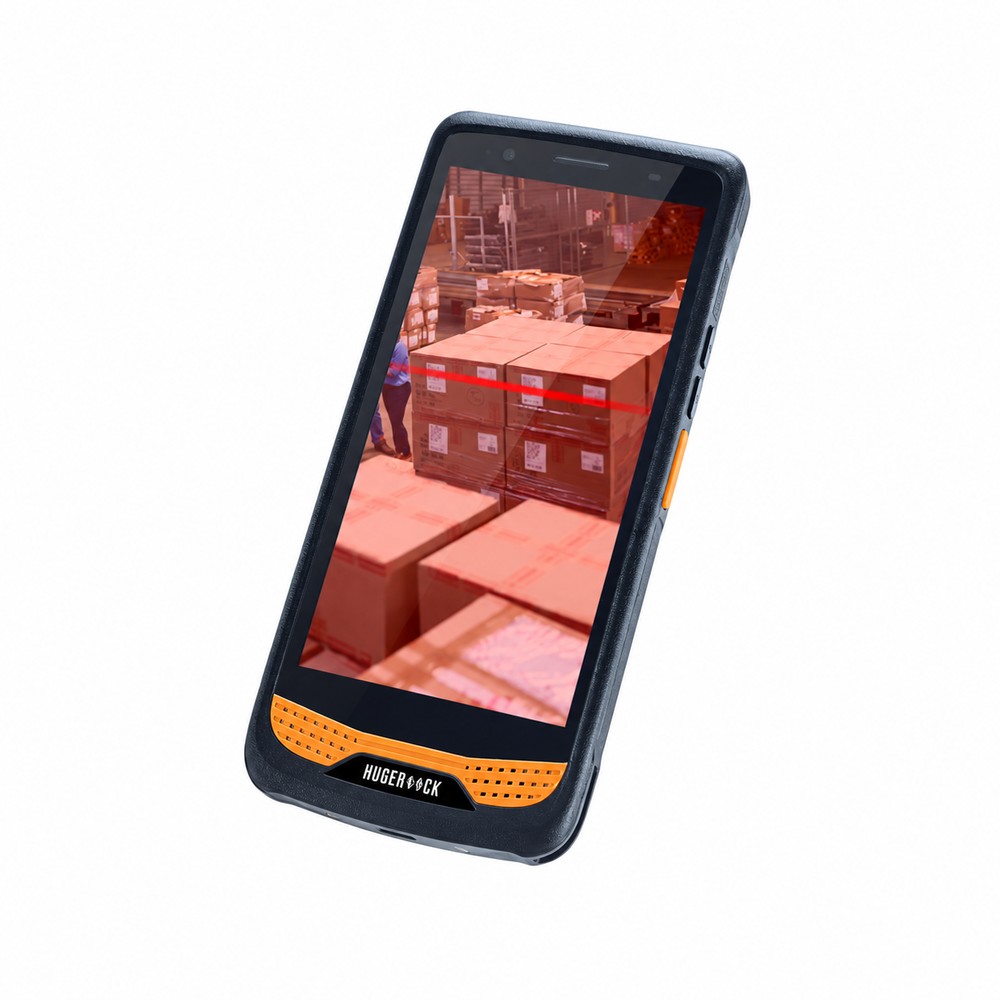

Product photos and specifications
The HUGEROCK R36 gallery shows the product itself. Review the Specs tab for all listed technical fields, appearance diagrams, comparison tables and module information. Browse our MIOT&RFID Rugged Tablets collection to compare more models.
Product attributes
| Operating System | Android 13 |
|---|---|
| Style | Handheld Computer |
| Memory Capacity | 4GB |
| Place of Origin | Guangdong, China |
| Processor Type | Octa-core |
| Screen Size | 5.5" |
| Weight | 300g |
| Brand Name | HUGEROCK |
| Model Number | R36 |
| Software development kit (SDK) | Yes |
| CPU | Qualcomm 8-cores 2.4GHz |
| GPU | Adreno 506 |
| RAM | 4G |
| Internal Memory | 64G |
| External Memory | Micro SD card ( T-FLASH card), max 128GB |
| Battery | 3.8V,4600mAh(removable) |
| Display | 5.5 inch IPS HD screen 450nit, respectively rate (720 * 1440) |
| Expansion Slots | Nano-SIM card*2, TF card*1 |
| TF Card | Expansible through TF, support 128GB |
| Charger | 5.0V 2A-10W |
| Single package size: | 27X27X10 cm |
| Single gross weight: | 1.000 kg |

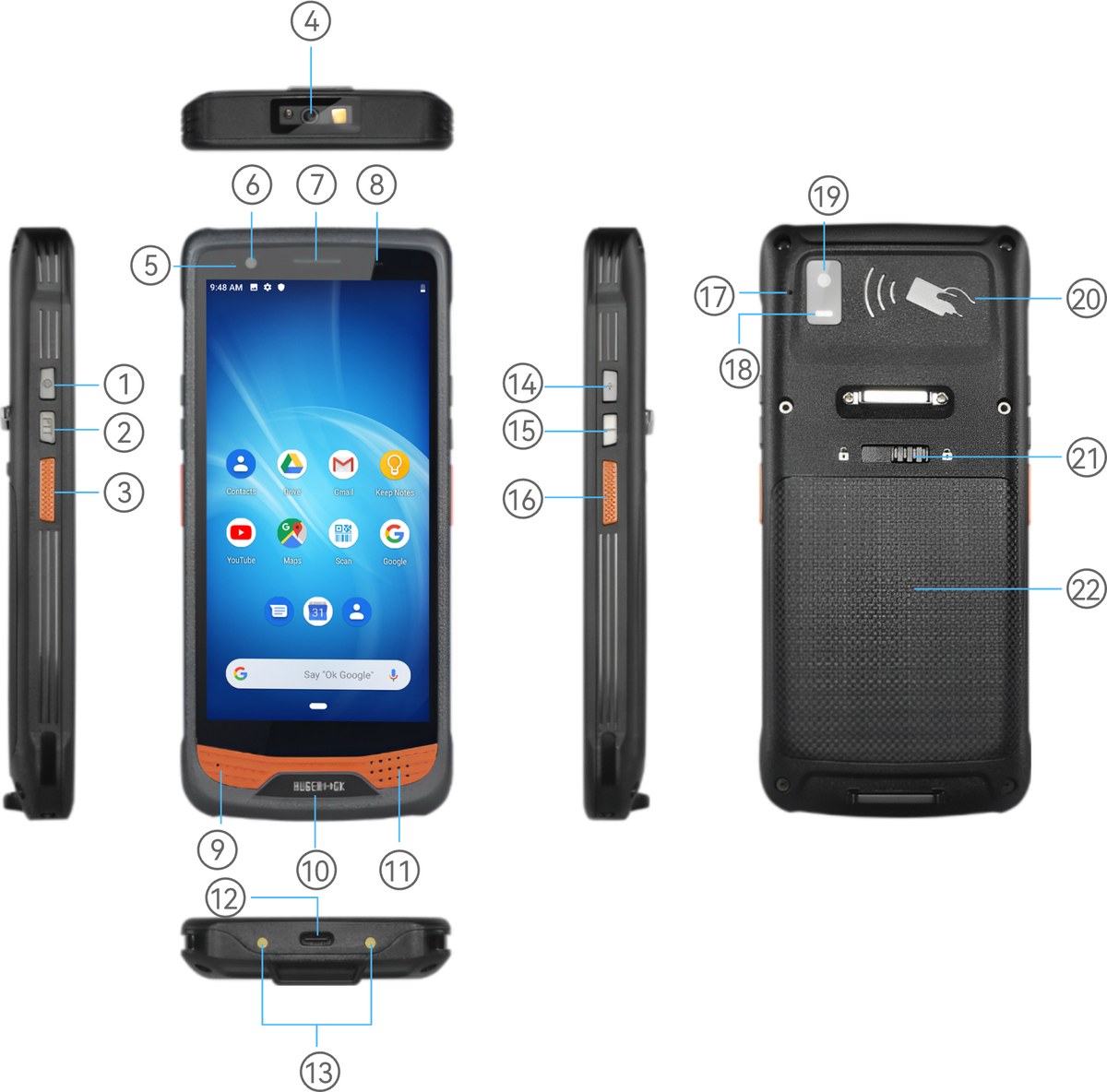

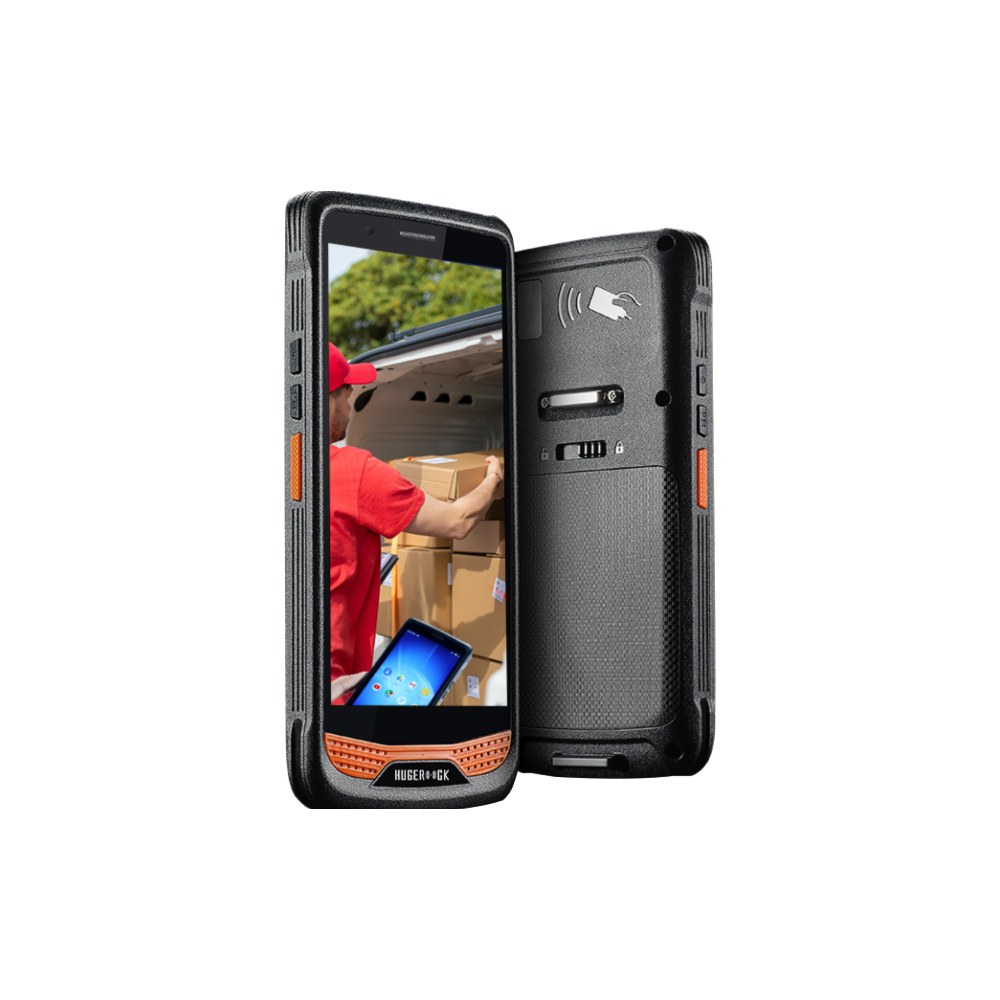

APPEARANCE
| 1: Power button |
| 2: PTT button |
| 3: Side scan button |
| 4: Scanning head |
| 5: Indicator light |
| 6: Front camera(optional) |
| 7: Receiver |
| 8: Proximity sensor |
| 9: Main mic hole |
| 10: Nameplate |
| 11: Speaker hole |
| 12: TYPE-C interface |
| 13: Charging base contact |
| 14: Volume + |
| 15: Volume - |
| 16: Side scan button |
| 17: Mic |
| 18: Flash lamp |
| 19: Rear camera |
| 20: Card reading area |
| 21: Battery cover slinging buckle |
| 22: Battery |
SPECIFICATION
| Hardware | |
| CPU | Octa-core Qualcomm SDM450 1.8GHz |
| GPU | Adreno 506 |
| RAM | 2GB (4GB optional) |
| Internal Memory | 16GB (64GB optional) |
| External Memory | Micro SD card (T-FLASH card), max 128GB |
| Main Camera | Rear 16 MP, autofocus camera with flash |
| Battery | 3.8V, 4600mAh(removable) |
| Display | 5.5 inch IPS HD screen 450nit, respectively rate (720 * 1440) |
| Touch Panel | Corning's third-generation Gorilla Glass, capacitive screen, multi-touch, support wet hands, glove operation Use anti-oil stain and anti-fingerprint coating |
| IO/Sensor/Navigation | |
| Expansion Slots | Nano-SIM card*2, TF card*1, PSAM*2 |
| TF Card | Expansible through TF, support 128GB |
| keyboard | Side buttons: Power button, SCAN button*2, Volume button, PTT button Screen virtual button: Back, Menu, HOME |
| Data interface | USB 2.0 Type-C, support OTG |
| Motion sensor | Support |
| Direction Sensor | Optional |
| Magnetic Field Sensor | Optional |
| Gyro sensor | Optional |
| Light-sensor | Optional |
| Charger | 5.0V 2A-10W |
| Navigation | Integrated GPS + GLONASS + Beidou positioning, support AGPS |
| Appearance | |
| Size | 170*79*18.6mm(LxWxH) |
| Weight | 285g |
| Color & Material | Black |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| EUR&AP VER (Standard) | GSM: B2/B3/B5/B8 TD-SCDMA (B34/B39), CDMA/BCO, EVDO(BCO) TDD-LTE (B38/39/40/41) FDD-LTE: (B1/3/5/7/8/20) |
| NA&SA VER (Options) | TDD-LTE: B3/4/5/4/7/12/13/17/28b, WCDMA: B2/4/5 |
| JPN VER (Options) | TDD-LTE: B1/3/8/9/19/26/28, WCDMA: B1/8/9/19 |
| WI- FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 4.0 BLE |
| Industrial & Reliability Design | |
| Dustproof | 1-19Hz/ 0.10mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 5 ( IEC 60529 ) |
| Dustproof | Class 6 ( IEC 60529) |
| Drop specification | Within the operating temperature range, all 6 sides can withstand the impact of multiple drops to the concrete floor from a height of 1.2 meters |
| Rolling test | Continuously rolling 1,000 times at 1.6 feet/0.5 meters, the 6 contact surfaces still run stably after rolling, reaching IEC rolling specifications |
| Static Protection | ±8KV air discharge, ±4KV contact discharge |
| Operating temperature | -10℃ to 50℃ |
| Storage Temperature | -40℃ to 70℃ |
| Reliability | MTBF>50000h; MTTR<0.5h |
| RH | 5% to 95%RH (No condensation) |
| Operating Altitude | 4500-5000m |
| Certification/OS/Software | |
| Certification | FCC /CE/ROHS |
| Language | English, Sp, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc. |
| OS | Android 9.0 |
| SDK | Software Development Kit |
| Development language | Java |
| Development tools | Eclipse/Android Studio |
| Package/Warranty terms/OEM | |
| Warranty | 12 months |
| OEM/ODM | Support |
| Package | Power adapter, USB data line, Screen protector, Manual, hand strap |
MODULE PARAMETERS

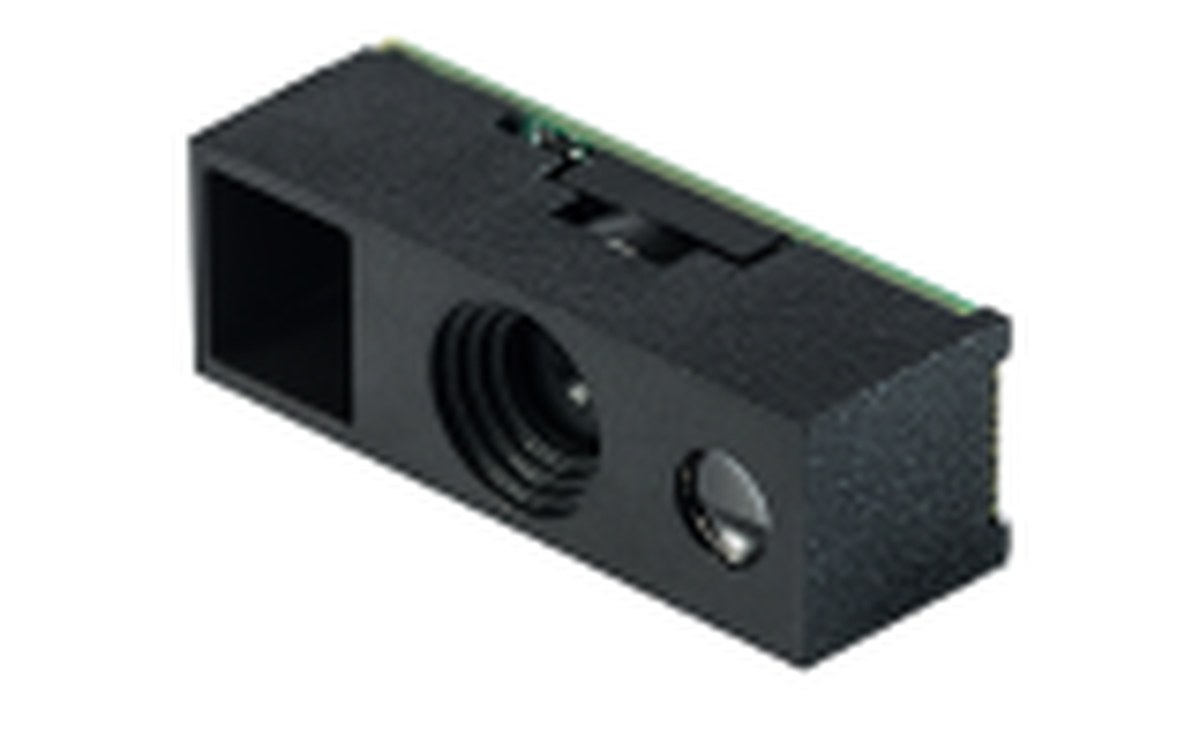

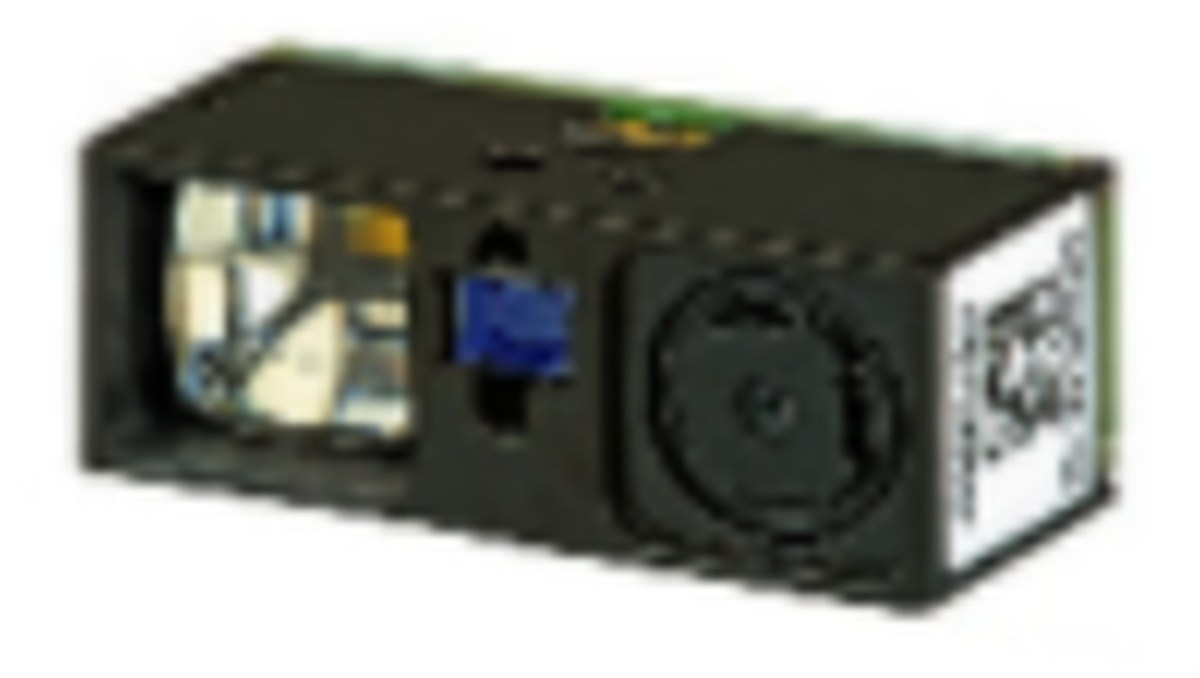

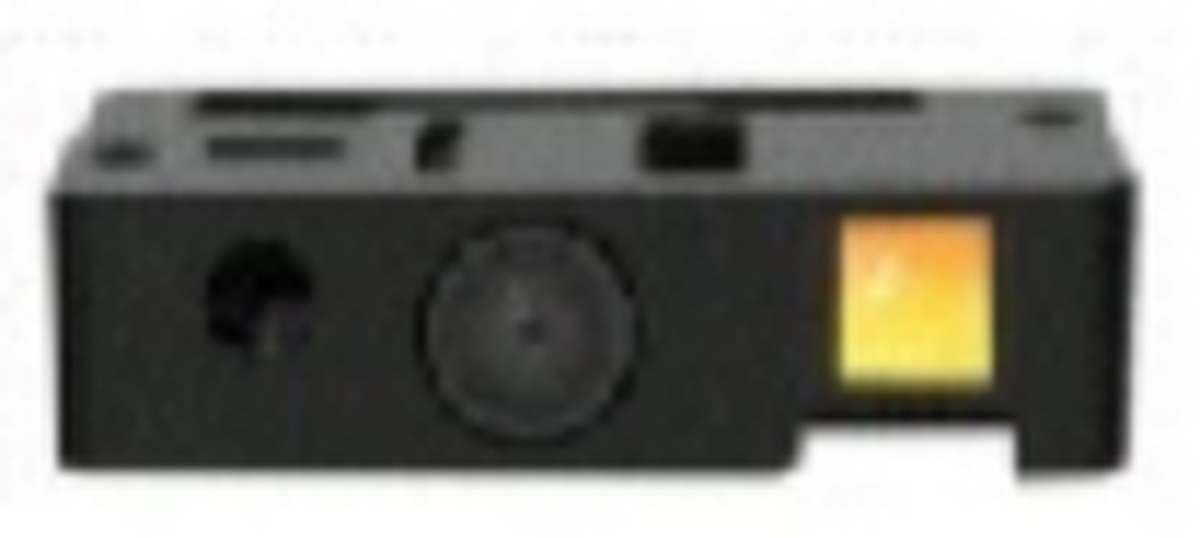

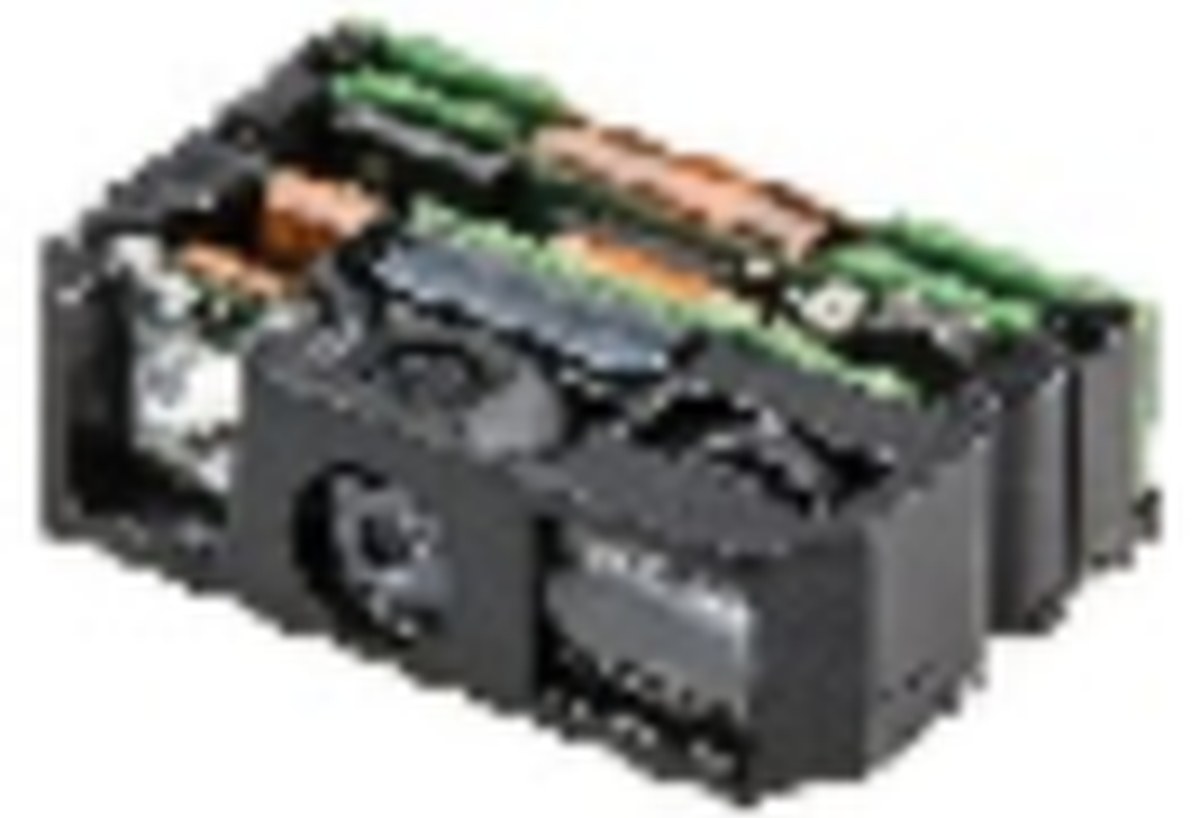

| Barcode module | |||
|---|---|---|---|
| N1 | M5600 | Scanning engine | Newland N1, Minde M5600, Honeywell 6603/3603 |
| 1D | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, ETC | ||
| N3603 | N6603 | 2D | Code39, Code128, PDF417, MicroPDF417, DataMatrix, Composite, RSS, TLC-39, QR code, Micro QR code, Aztec, MaxiCode, Postal Code; US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, etc. |

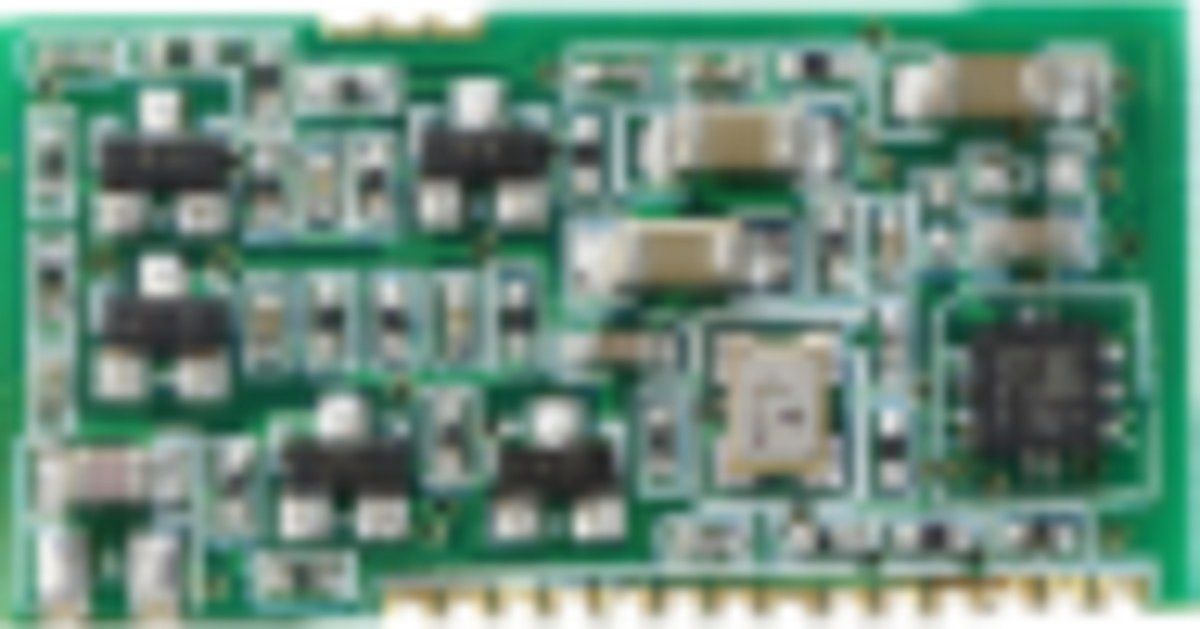

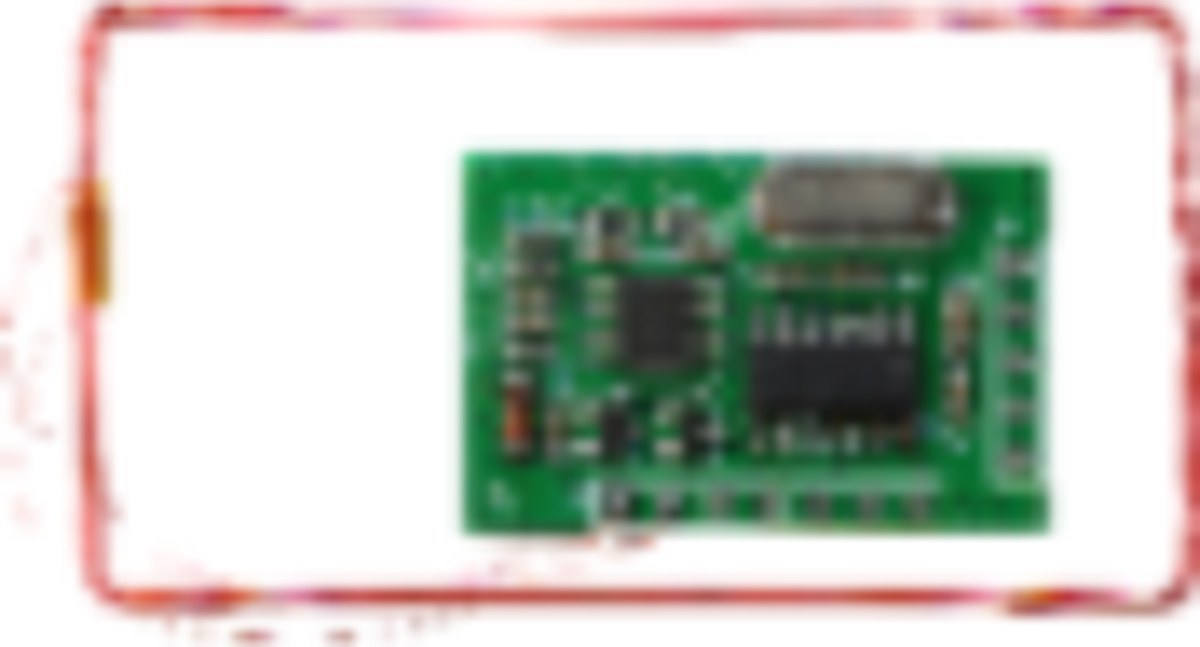

| LF RFID data module | |||
| 125K LF | 125K LF ID Module | LF RFID, 125K | |
| 134K LF | 134 LF RFID Module | LF RFID, 134k Animal module | |

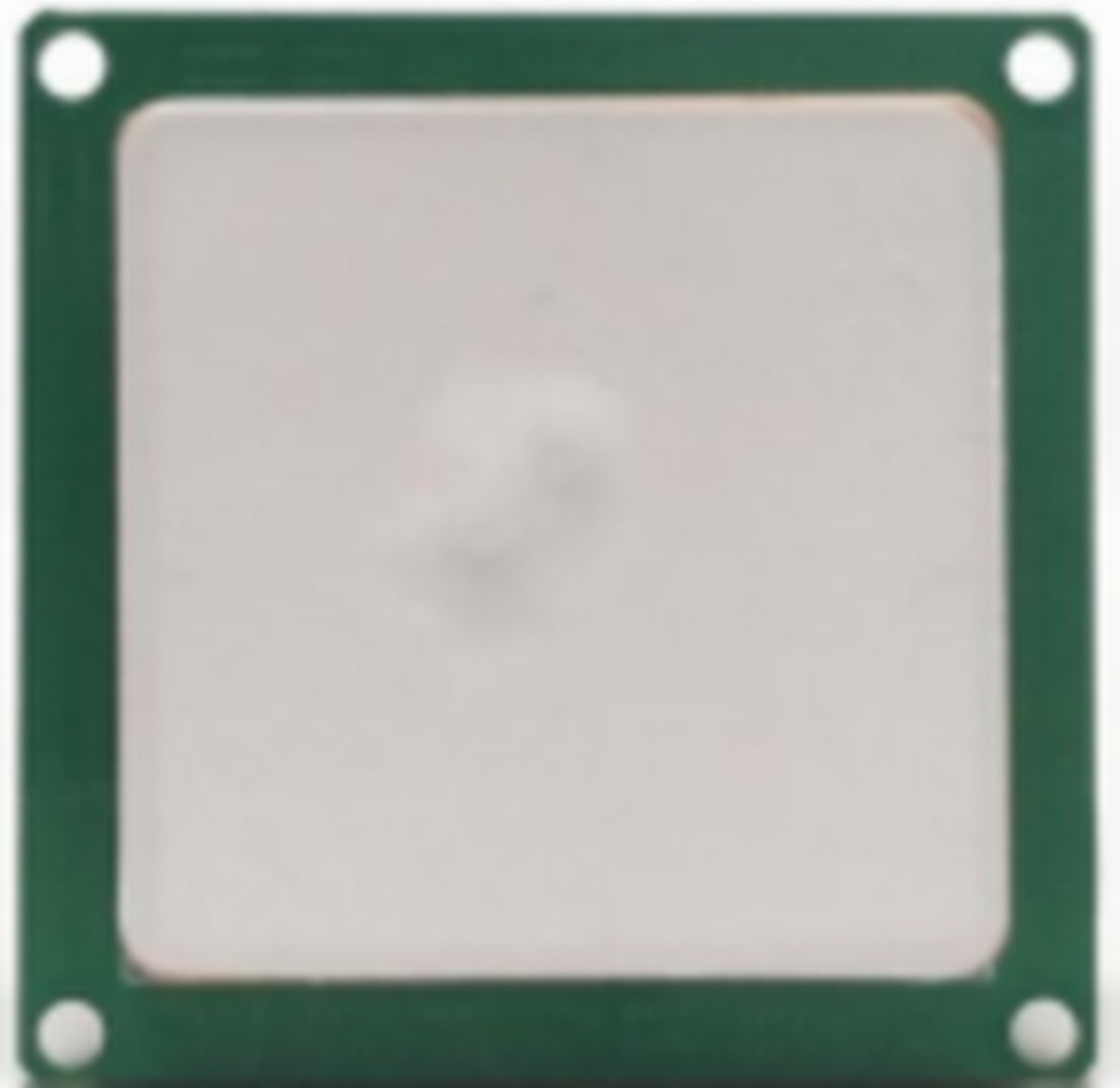

| HF RFID/NFC | |||
| NFC | 915M UHF | Frequency | 13.56MHz |
| Label standard | M1(S50, S70), CPU, NFC | ||
| Protocol standard | ISO14443A/B, ISO15693, NFC | ||
| Read-write distance | 2-5cm | ||

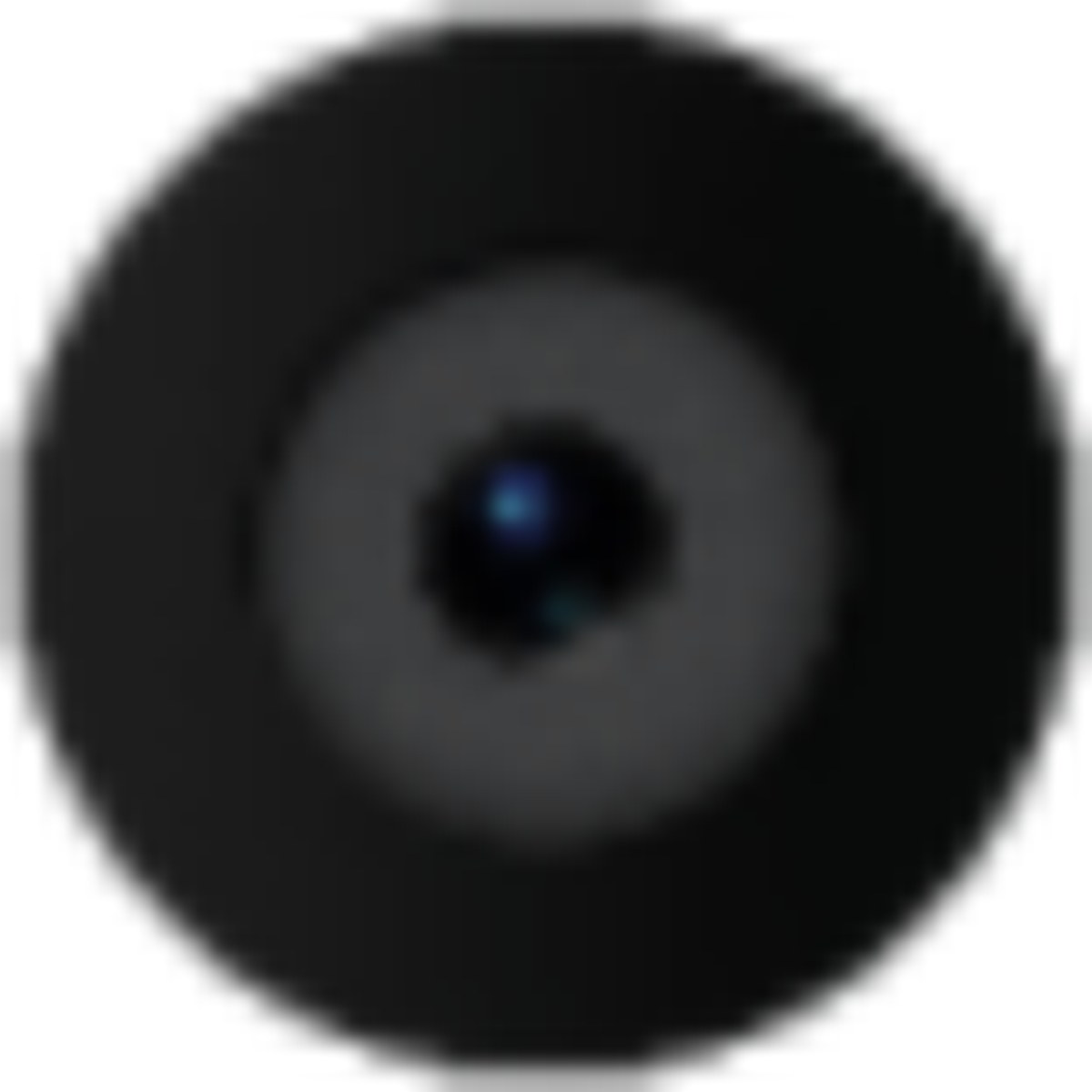

| Sub Camera | |||
| Sub Camera | Sub Camera | 8.0MP | |
