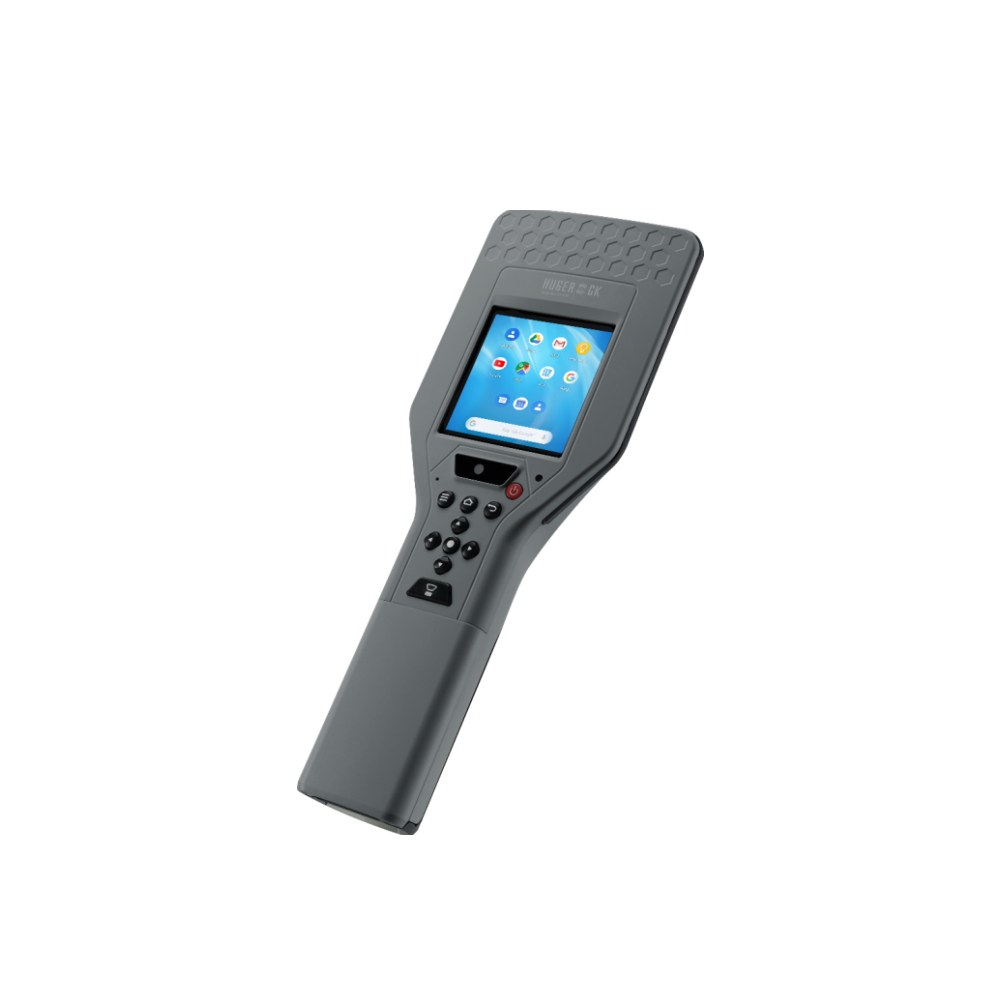

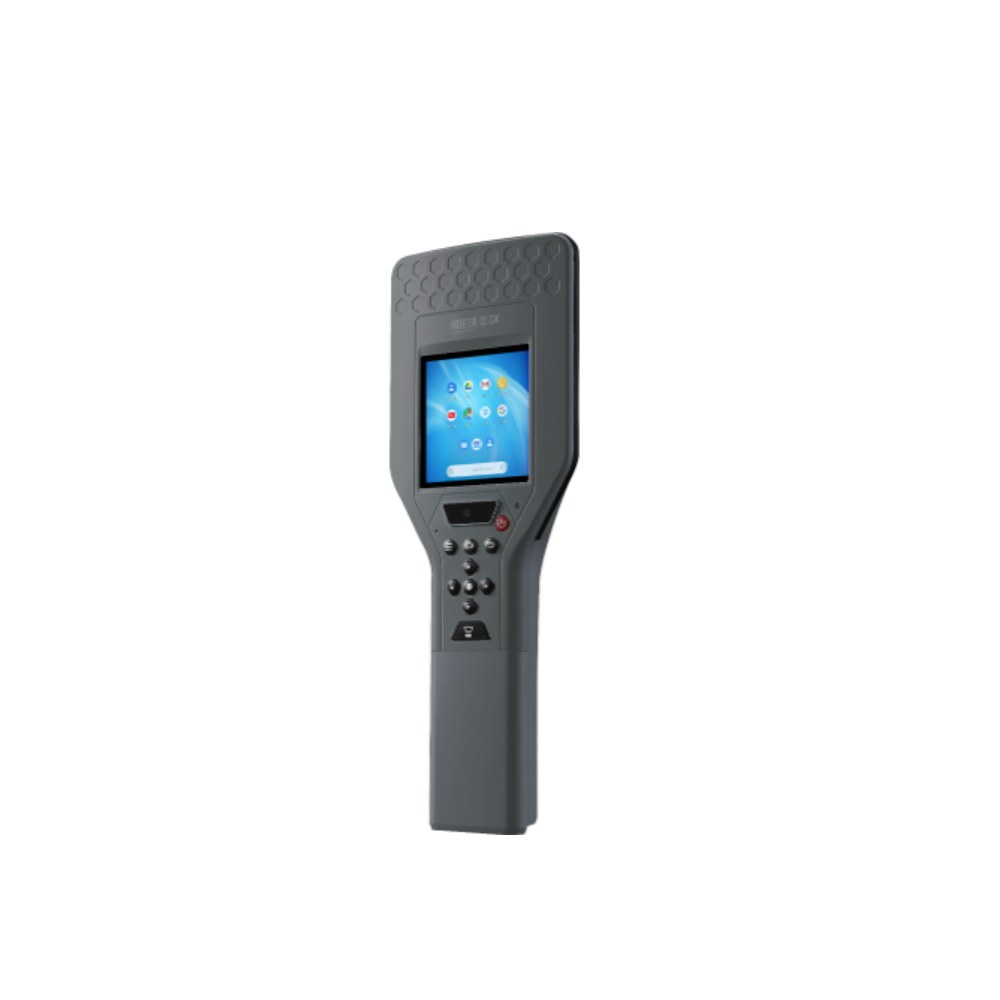

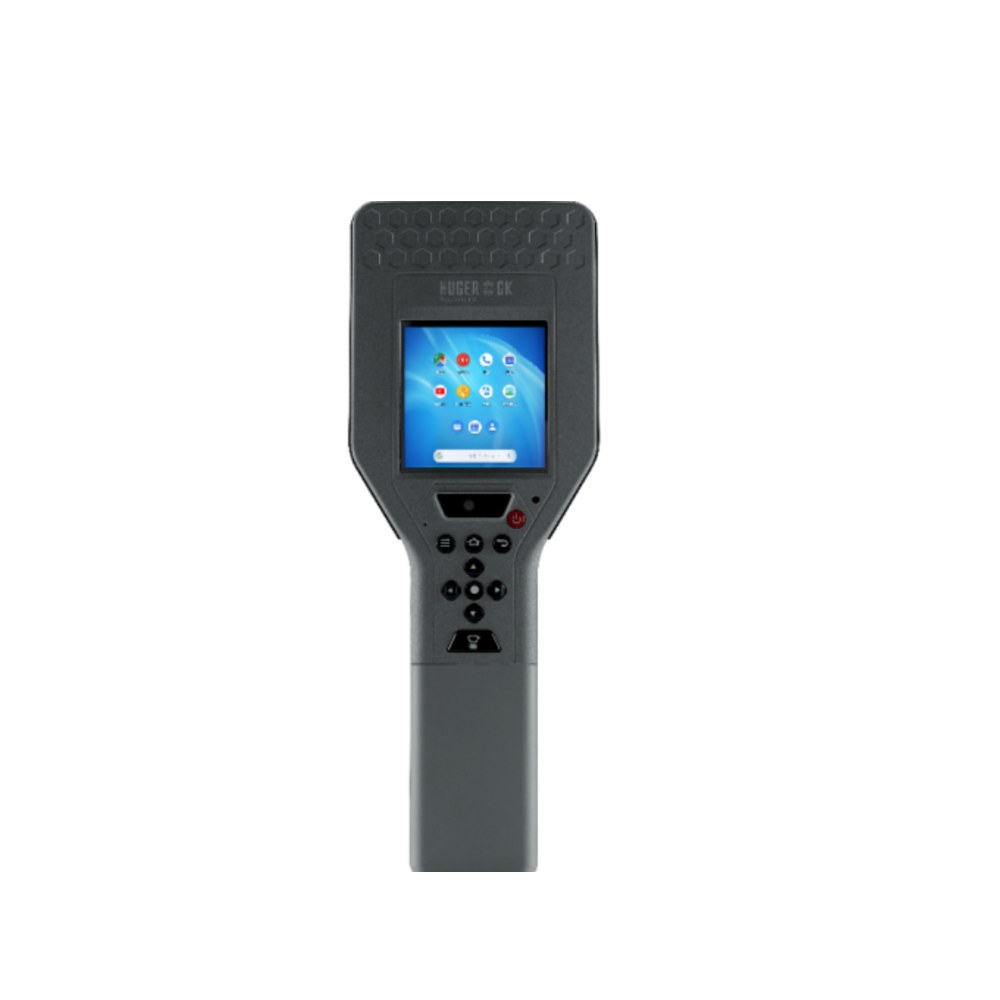

HUGEROCK R30B Rugged PDAs
3.1inch HD display 720*720, 4GB + 32GB, 7200mAh (Replaceable battery), Android 10, MTK P60 (ARM A73 2.0GHz Octa-core)
HUGEROCK R30B is a rugged PDA in the MIOT&RFID Rugged Tablets collection. High-quality 134K RFID module and antenna, RFID Tags within a 30cm range can be read，Support HDX/FDX.
Display: 3.1inch HD display 720*720
Memory: 4GB; Storage: 32GB
Battery: 7200mAh (Replaceable battery)
System: Android 10
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
HUGEROCK R30B Rugged PDAs
HUGEROCK R30B is a rugged PDA in the MIOT&RFID Rugged Tablets collection. High-quality 134K RFID module and antenna, RFID Tags within a 30cm range can be read，Support HDX/FDX.
HUGEROCK R30B hardware and system
HUGEROCK R30B brings together the hardware and operating-system specifications below. CPU: MTK P60 (ARM A73 2.0GHz Octa-core). OS: Android 10. Memory: 4GB. Storage: 32GB. The Specs tab lists the configuration details, optional modules and version differences. Those tables should be checked against the configuration required for each order.
Display, battery and physical design
Battery: 7200mAh (Replaceable battery). Display: 3.1inch HD display 720*720. Dimensions: 267*100*38 (LxWxH). Weight: 447g. Touch: Capacitive/frosted tempered film supports glove touch/spray/active pen. Screen size, resolution and brightness are useful points when comparing a device for indoor and outdoor work. The battery, dimensions and weight provide additional information for deciding how the terminal will be carried or mounted. Any removable battery, mounting hardware or optional module should be selected according to the corresponding specification table.
Connectivity and data collection
Network: Dual-band (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac. Navigation: GPS+Beidou+Glonass+AGPS+SBAS(EPO 2.5m). Camera: 13.0MP(AF) with flash led. Front Camera: 1.0MP. Data ports: Magnetic interface (Pogo pin) USB&data. The available interfaces and communication specifications help assess compatibility with the intended workflow. Check the full network bands and module parameters before choosing a configuration. Listed optional functions describe configuration possibilities; they do not mean every module is installed on every unit.
HUGEROCK R30B product features
HIGH
EFFICIENCY
HIGH EFFICIENCY
High-quality 134K RFID module and antenna, RFID Tags within a 30cm range can be read，Support HDX/FDX.
MORE
FAST
MORE FAST
AdoptHelio P60 A73 12nm FinFET 8-core processor solution and 4G RAM.
FULL
RUGGED
FULL RUGGED
Industrial protection grade IP65, MIL-810G Drop-proof 1.5m.
POWERFUL
7200 mAh battery, the battery can be replaced continuously， can work continuously for 24 hours.

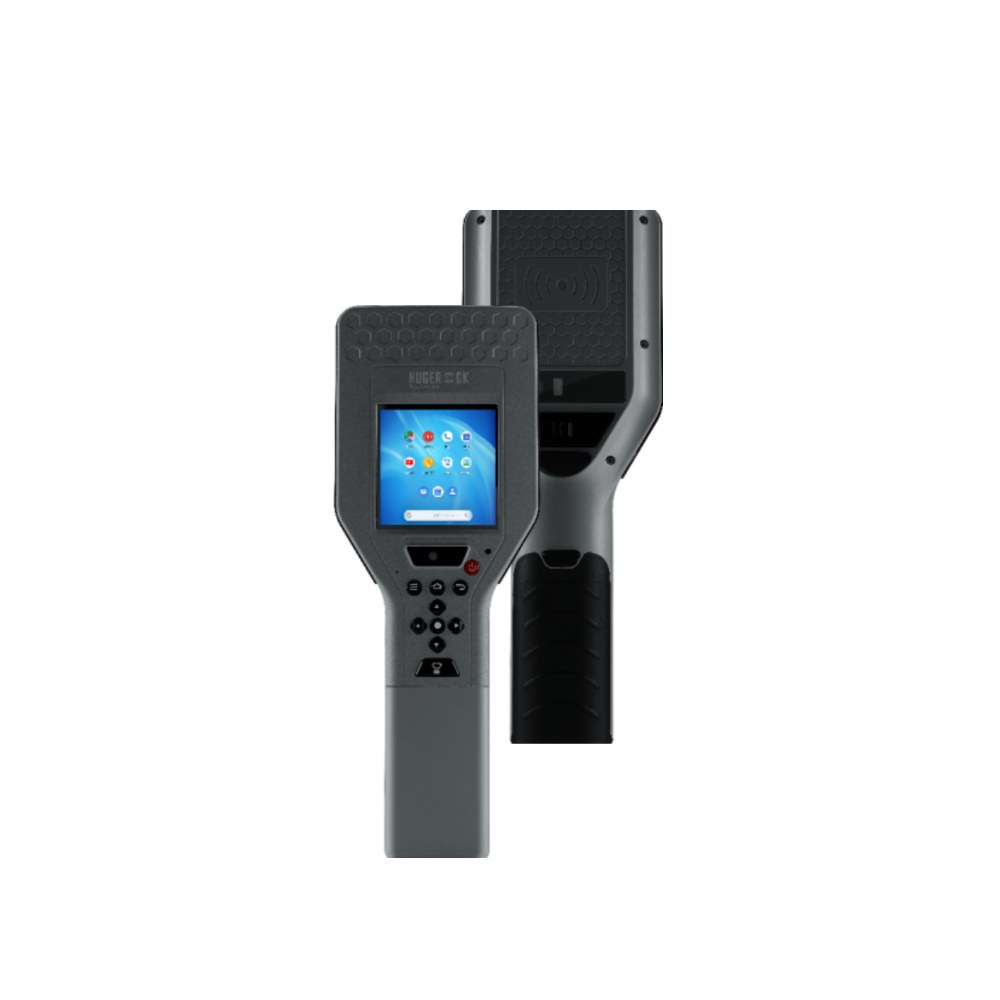

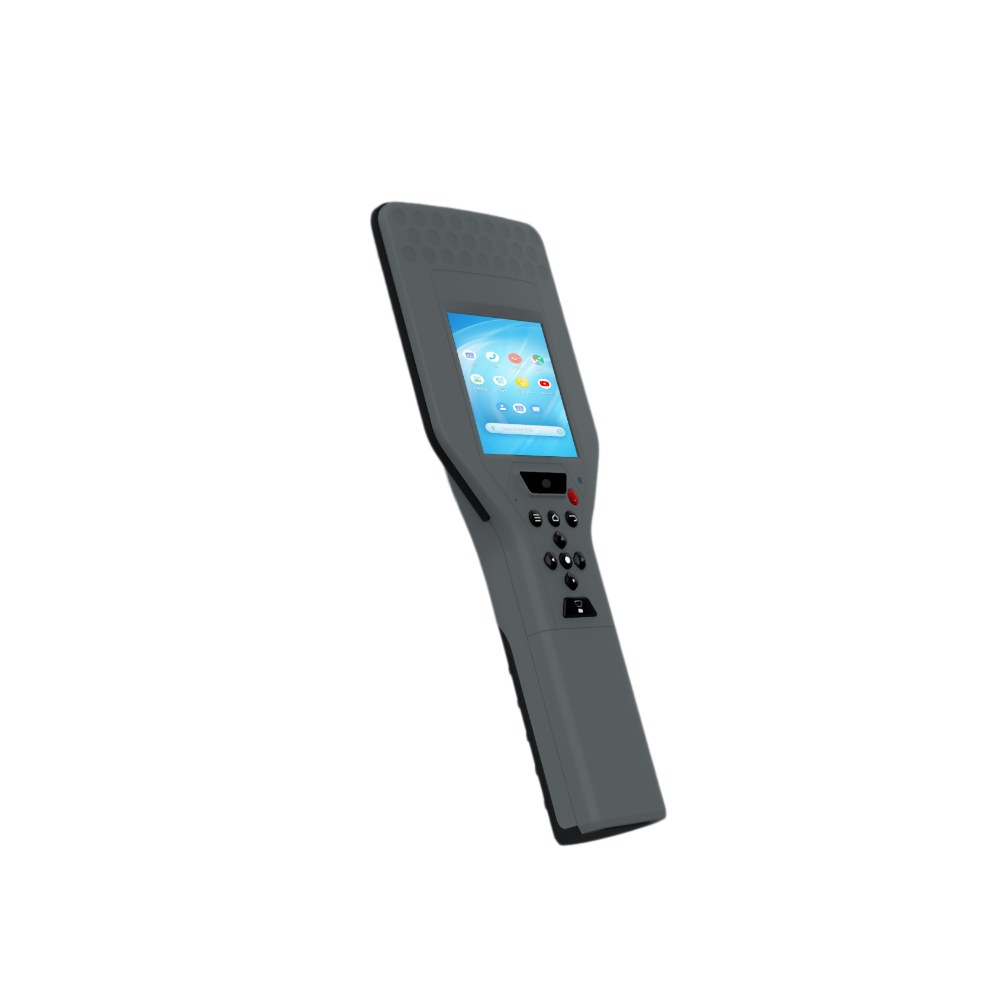

Product photos and specifications
The HUGEROCK R30B gallery shows the product itself. Review the Specs tab for all listed technical fields, appearance diagrams, comparison tables and module information. Browse our MIOT&RFID Rugged Tablets collection to compare more models.
Product attributes
| Operating System | Android 10 |
|---|---|
| Style | Handheld Computer |
| Memory Capacity | 8GB |
| Place of Origin | Guangdong, China |
| Processor Type | Octa-core |
| Screen Size | 3.1 inch |
| Weight | 447g |
| Brand Name | HUGEROCK |
| Model Number | R30B |
| Software development kit (SDK) | Yes |
| CPU | ARM Cortex A73 Octa-core (2.0GHz) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 4GB |
| Internal Memory | 32GB |
| Battery | 7200mAh (Replaceable battery) |
| Display | 3.1inch HD display 720*720 |
| Data interface | Magnetic interface(Pogo pin)USB&data |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Single package size: | 35X22X8 cm |
| Single gross weight: | 2.000 kg |

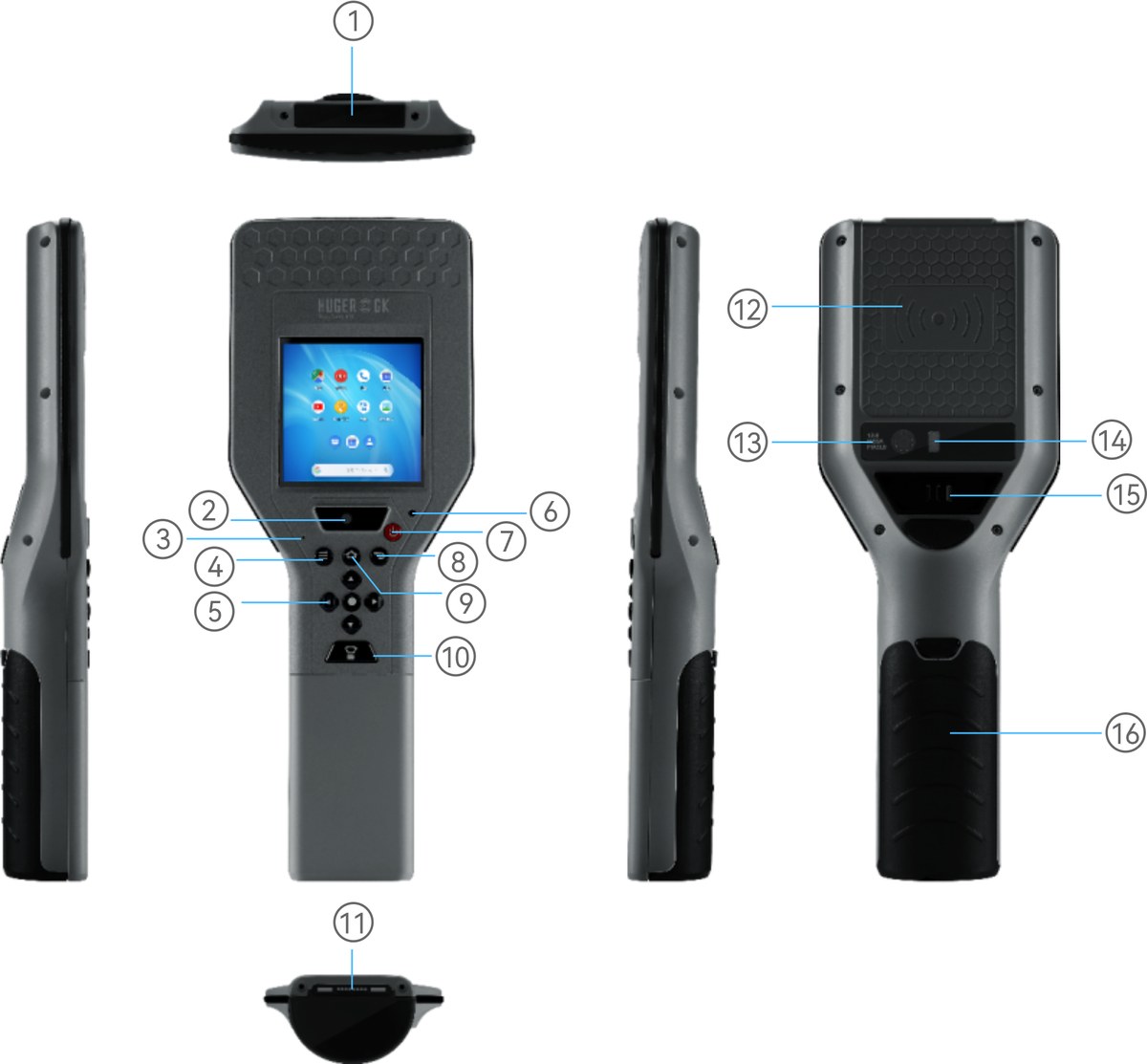

APPEARANCE
| 1. Barcode scanner (optional) |
| 2. Front camera (optional) |
| 3. Mic |
| 4. Menu button |
| 5. Arrow button and confirm button |
| 6. Charge lamp |
| 7. Power button |
| 8. Back button |
| 9. Home button |
| 10. Scan button |
| 11. Magnetic interface (Pogo pin) |
| 12. 134k RFID scanner |
| 13. Main camera (optional) |
| 14. Flash lamp |
| 15. Speaker |
| 16. Battery |
SPECIFICATION
| Hardware | |
| CPU | MTK P60 (ARM A73 2.0GHz Octa-core) |
| GPU | Arm Mali-G72 MP3 |
| RAM | 4GB |
| Internal Memory | 32GB |
| External Memory | Micro SD card (T-FLASH card), max 128GB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 1.0MP |
| Battery | 7200mAh (Replaceable battery) |
| Display | 3.1inch HD display 720*720 |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active pen |
| IO/Sensor/Navigation | |
| SIM Card | Micro SIM |
| TF Card | Micro SD card (T-FLASH card); max 128GB |
| Data interface | Magnetic interface (Pogo pin) USB&data |
| RFID module | 134K animal tags |
| Gravity sensor | support |
| Motion sensor | support |
| Direction Sensor | support |
| Magnetic Field Sensor | support |
| Gyro sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS(EPO 2.5m) |
| Appearance | |

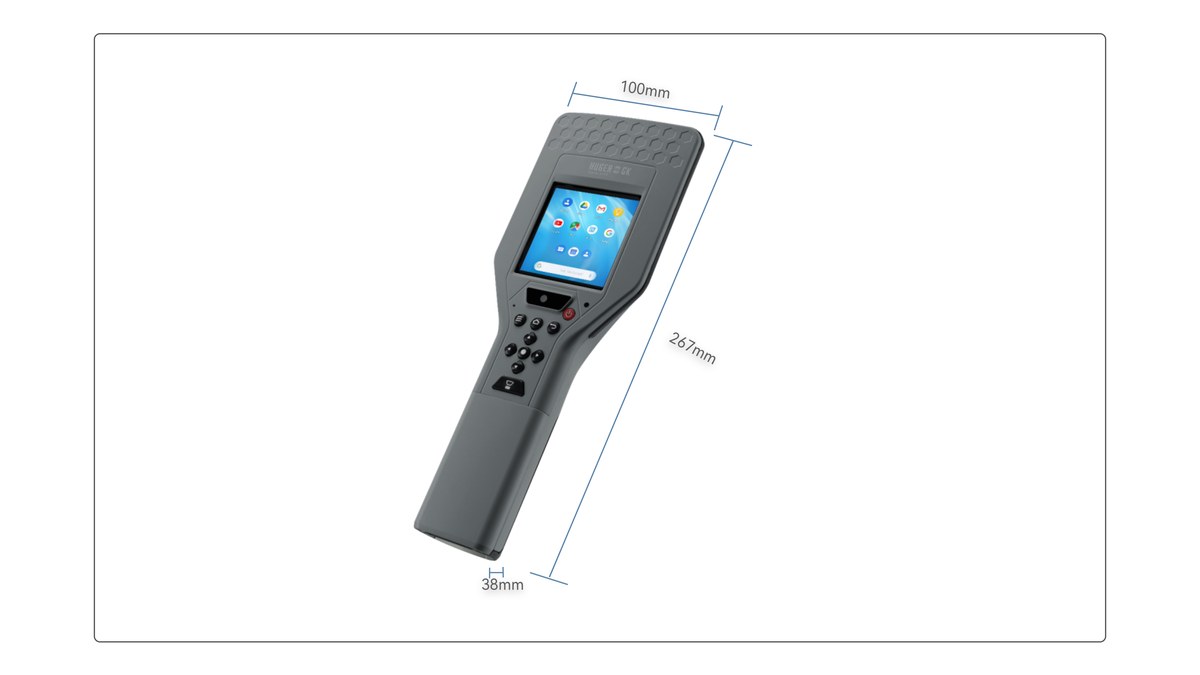

| Size | 267*100*38 (LxWxH) |
| Weight | 447g |
| Color & Material | Black + grey(Metal &ABS) |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA |
| 3G Band | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps), EVDO (B1/2/5/8), Evdo: BC0/BC1 CDMA: BC0/BC1 |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE(B38/39/40/41); FDD LTE (B1, B2, B3, B4, B5, B7, B8, B12, B17, B20, B28) |
| WI- FI | Dual-band (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 4.2 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/ 0.10mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 5 (IEC 60529) |
| Dustproof | Class 6 (IEC 60529) |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| Reliability | MTBF>50000h; MTTR<0.5h |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500m (15,000 feet) |
| Certification/OS/Software | |
| Language | English, Spanish, Portuguese(Brazil), Portuguese(Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified,Chinese,Chinese Traditional, etc. |
| OS | Android 10 |
| Package/Warranty terms/OEM | |
| Warranty | 24 months |
| OEM/ODM | Support |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box/Aircraft box |
FUNCTION MODULES

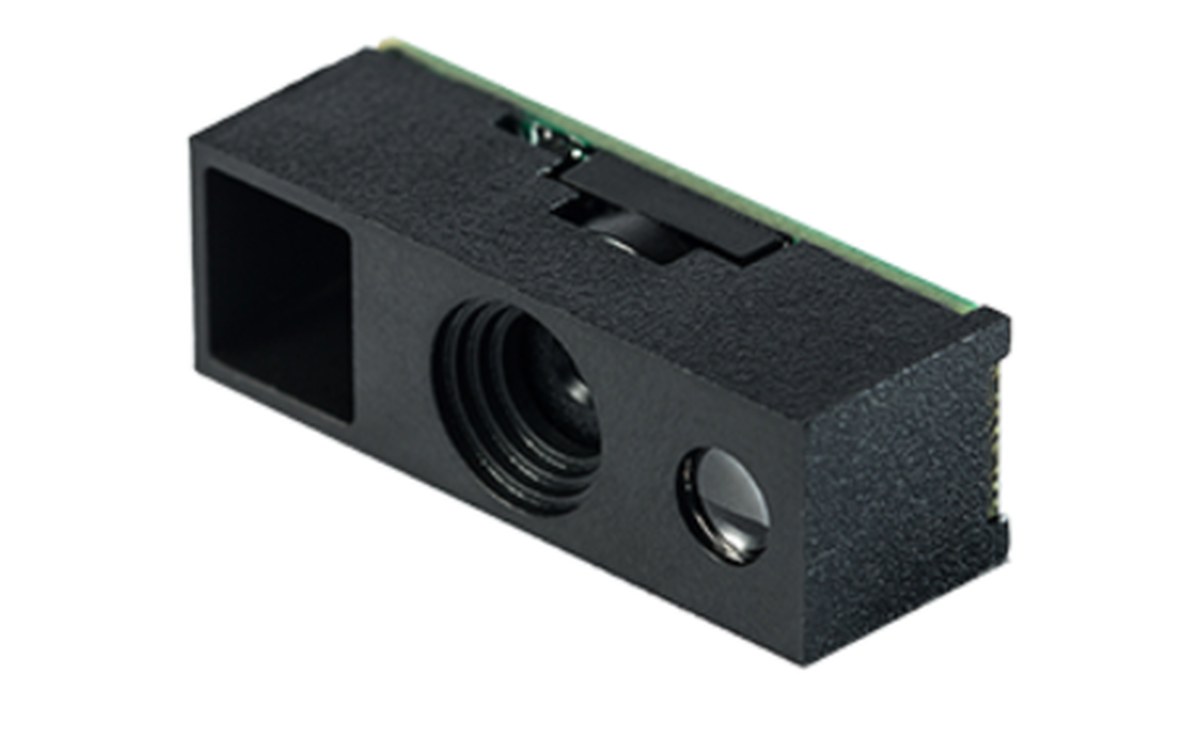

| Barcode module | |||
|---|---|---|---|
| N1 | Scanning engine | Newland N1 | |
| 1D | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, ETC | ||
| 2D | Code39, Code128, PDF417, MicroPDF417, DataMatrix, Composite, RSS, TLC-39, QR code, Micro QR code, Aztec, MaxiCode, Postal Code; US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, etc. | ||

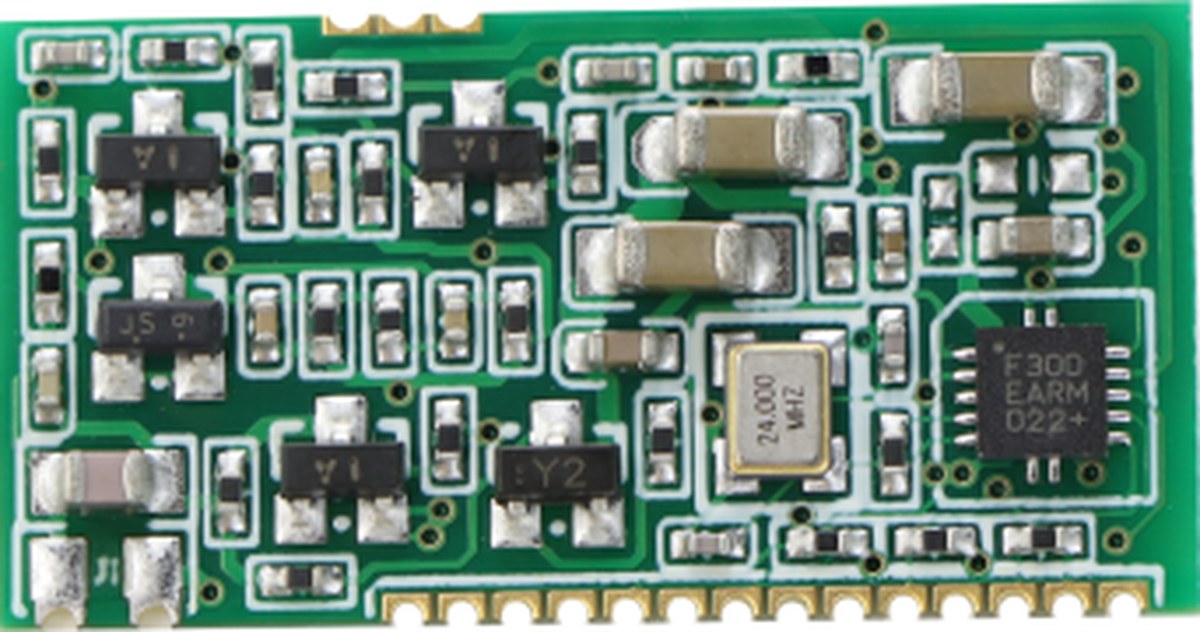

| 134k LF RFID (support Animal tags) module | |||
| 134k LF Animal tags | Operation Frequency | 134 kHz | |
| support agreement | ISO11784/5 | ||
| Read distance | >30cm | ||
| Working mode | FDX-B/HDX | ||
| HF RFID/NFC module | |||
| NFC | Frequency | 13.56MHz | |
| Protocol standard | ISO14443A/B, ISO15693, NFC | ||
| Label standard | M1(S50, S70), CPU, NFC | ||
| Read-write distance | 2-5cm | ||
