HUGEROCK R101 Rugged Tablets
10.1 inch IPS/AFFS 1920*1200 FHD industrial 1000nit Sunlight Readable, 8G + 128G, 14600mAh, Android 10 / 11, ARM Cortex A73 Octa-core (2.0GHz)
HUGEROCK R101 is a rugged tablet in the MIOT&RFID Rugged Tablets collection. 1000nit FHD display, combined with anti-glare reflective film technology, can clearly display in any strong light environment.
Display: 10.1 inch IPS/AFFS 1920*1200 FHD industrial 1000nit Sunlight Readable
Memory: 8G; Storage: 128G
Battery: 14600mAh
System: Android 10 / 11
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

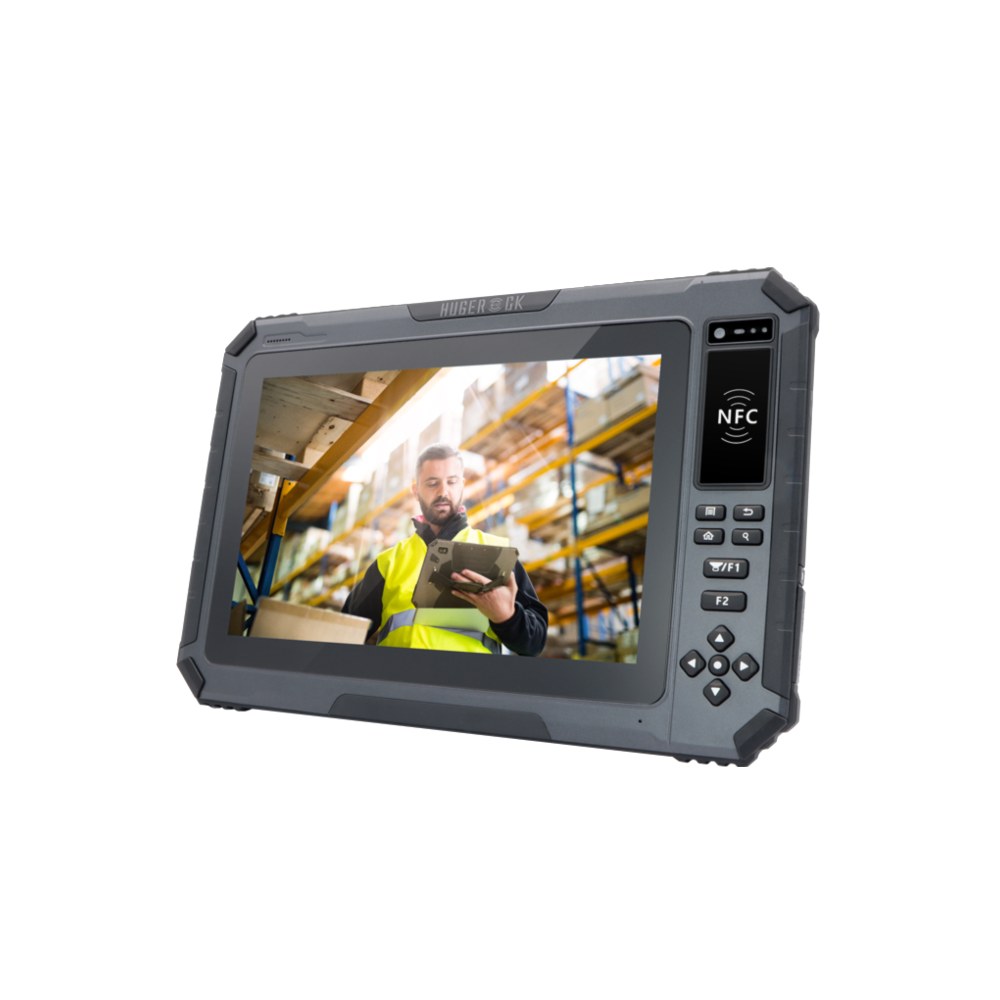

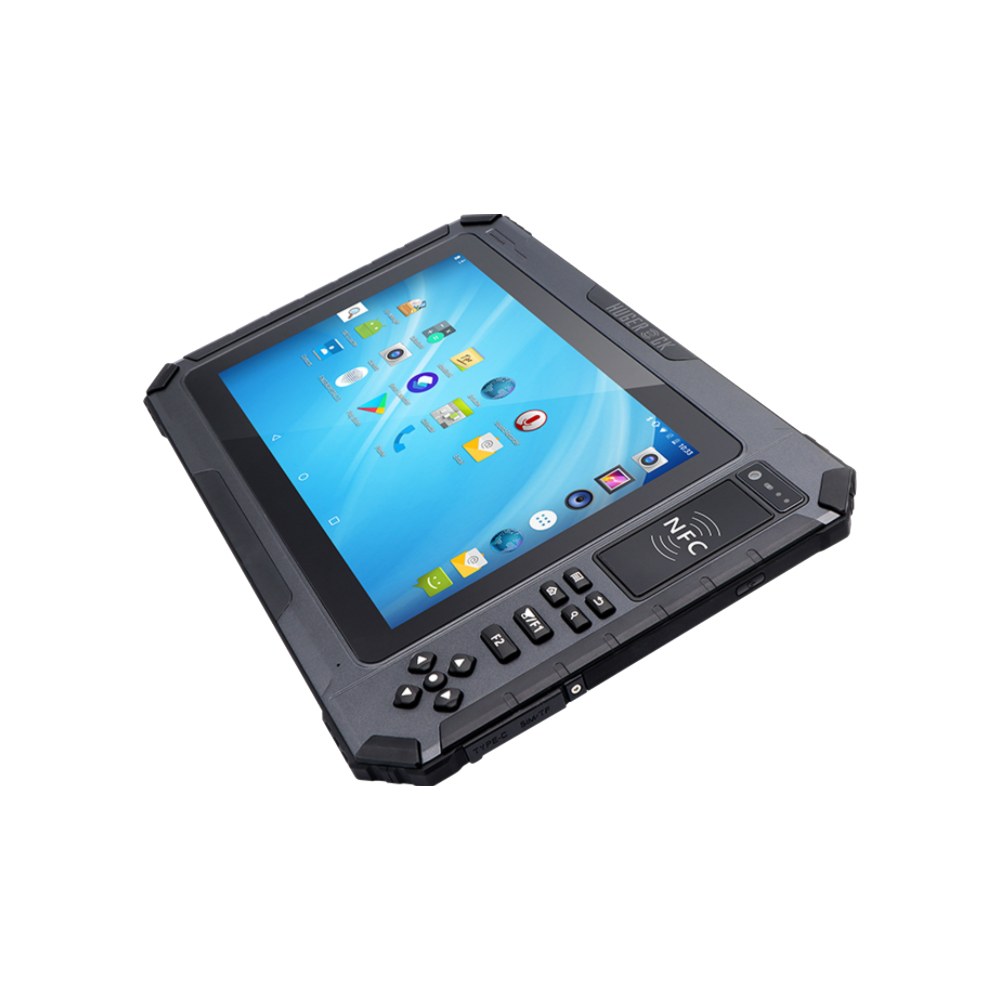

HUGEROCK R101 Rugged Tablets
HUGEROCK R101 is a rugged tablet in the MIOT&RFID Rugged Tablets collection. 1000nit FHD display, combined with anti-glare reflective film technology, can clearly display in any strong light environment.
HUGEROCK R101 hardware and system
HUGEROCK R101 brings together the hardware and operating-system specifications below. CPU: ARM Cortex A73 Octa-core (2.0GHz). OS: Android 10 / 11. Memory: 8G. Storage: 128G. The Specs tab lists the configuration details, optional modules and version differences. Those tables should be checked against the configuration required for each order.
Display, battery and physical design
Battery: 14600mAh. Display: 10.1 inch IPS/AFFS 1920*1200 FHD industrial 1000nit Sunlight Readable. Dimensions: 320*228*12mm (LxWxH). Weight: 1360g. Touch: Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen. Screen size, resolution and brightness are useful points when comparing a device for indoor and outdoor work. The battery, dimensions and weight provide additional information for deciding how the terminal will be carried or mounted. Any removable battery, mounting hardware or optional module should be selected according to the corresponding specification table.
Connectivity and data collection
Network: wifi, GSM, 4g, 3G. Navigation: GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m). Camera: 13.0MP(AF) with flash led. Front Camera: 5.0MP. Data ports: USB Type-A(Host)*2, Type-C(OTG)*1. The available interfaces and communication specifications help assess compatibility with the intended workflow. Check the full network bands and module parameters before choosing a configuration. Listed optional functions describe configuration possibilities; they do not mean every module is installed on every unit.
HUGEROCK R101 product features
1000 NIT
1000nit FHD display, combined with anti-glare reflective film technology, can clearly display in any strong light environment.
FULL RUGGED
Industrial protection grade IP65, MIL-810G Drop-proof 1.2m.
MORE FAST
AdoptHelio P60 A73 12nm FinFET 8-core processor solution and 8G RAM.
ACCURATELY
IDENTIFY
ACCURATELY IDENTIFY
High-quality barcode module, reliable recognition accuracy and barcode format compatibility.
EFFICIENT
Can integrate NFC, barcode and other industrial data collection modules.
POWERFUL
14600mAh battery, can work continuously for 12 hours.

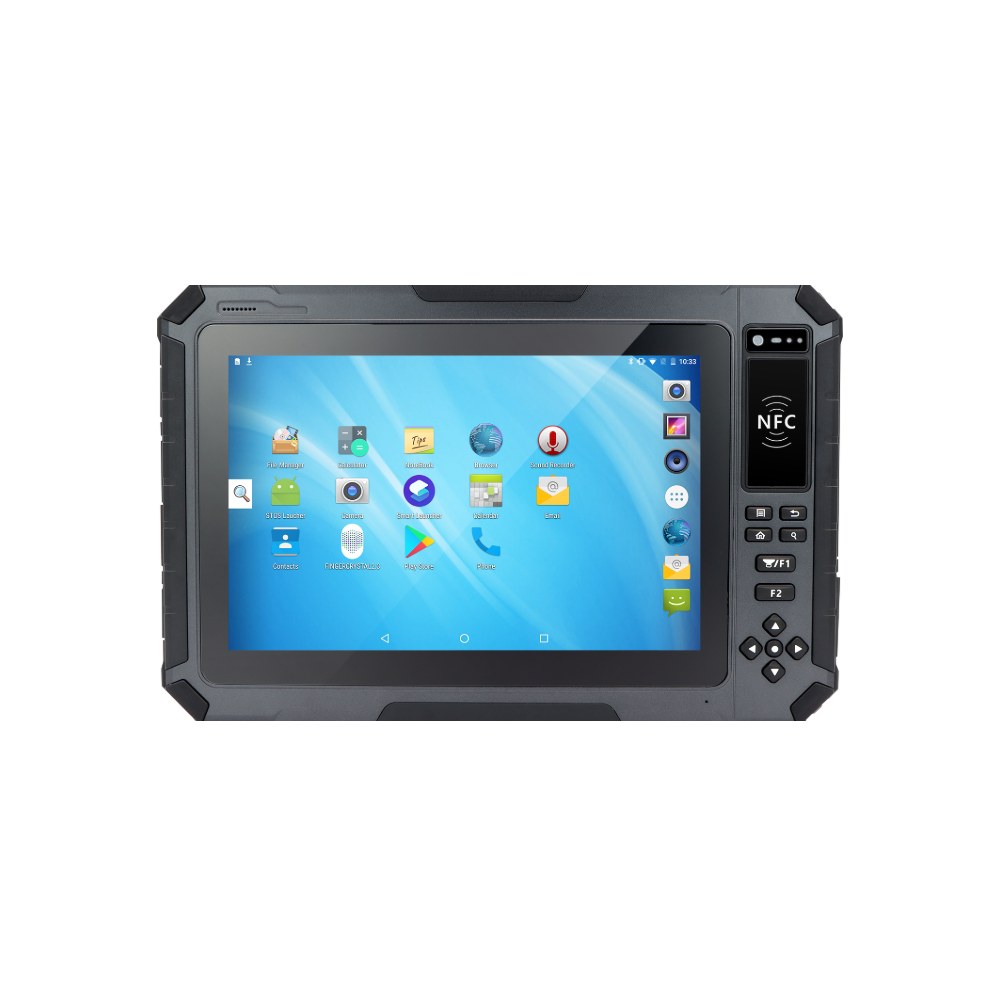

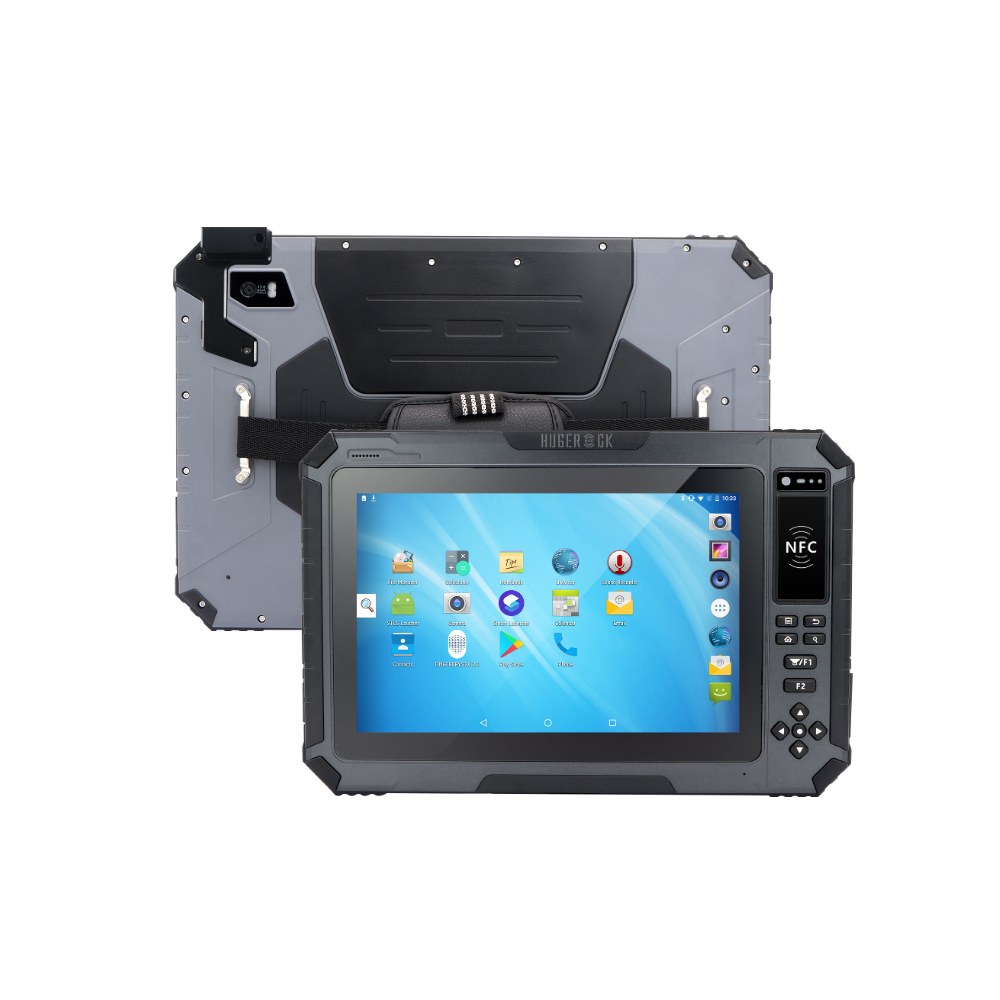

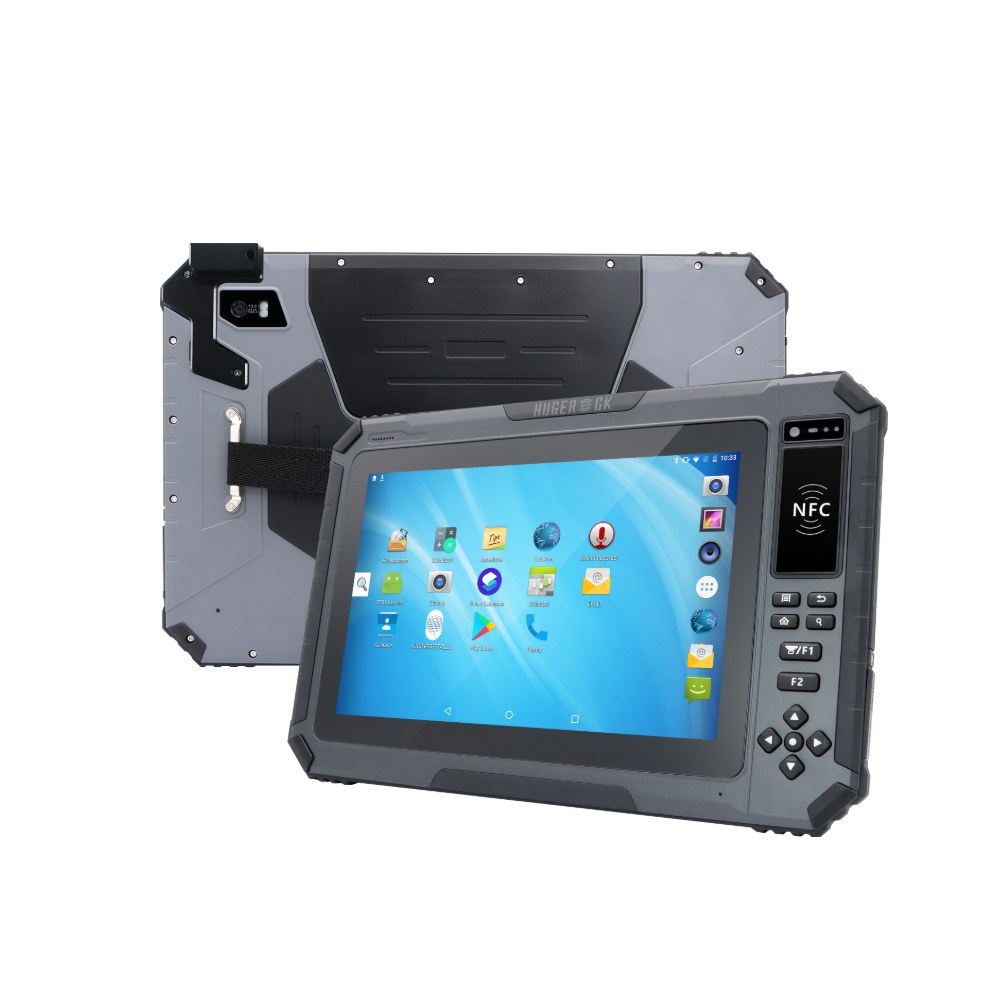

Product photos and specifications
The HUGEROCK R101 gallery shows the product itself. Review the Specs tab for all listed technical fields, appearance diagrams, comparison tables and module information. Browse our MIOT&RFID Rugged Tablets collection to compare more models.
Product attributes
| Screen Size | 10.1" |
|---|---|
| Memory Capacity | 8GB |
| Display resolution | 1920x1200 |
| Operating System | Android 13 |
| Type | Tablet PC |
| Drive Interface | USB Type C |
| Processor Manufacture | MTK |
| Use | Industrial |
| Network | wifi, GSM, 4g, 3G |
| Warranty(Year) | 2-Year |
| Scenarios | For Professional |
| Feature | Waterproof , Shockproof, Drop resistance, Anti-Dust, Soft, Hard, SDK available |
| charging interface | Type-C & 8PIN magnetic charging |
| Processor Type | Octa Core |
| Processor Main Frequency | 2.0GHZ |
| Touch Screen Type | Capacitive Screen |
| Weight | 1360g |
| Place of Origin | Guangdong, China |
| Brand Name | HUGEROCK |
| Model Number | R101 |
| CPU | ARM Cortex A73 Octa-core (2.0GHz) |
| GPU | Arm Mali--G72 MP3 |
| Battery | 14600mAh |
| Display | 10.1 inch IPS/AFFS 1920*1200 FHD industrial 1000nit Sunlight Readable |
| SIM Card | Nano sim card*2 |
| Data interface | USB Type-A(Host)*2 Type-C(OTG)*1 |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Single package size: | 40X30X20 cm |
| Single gross weight: | 3.000 kg |

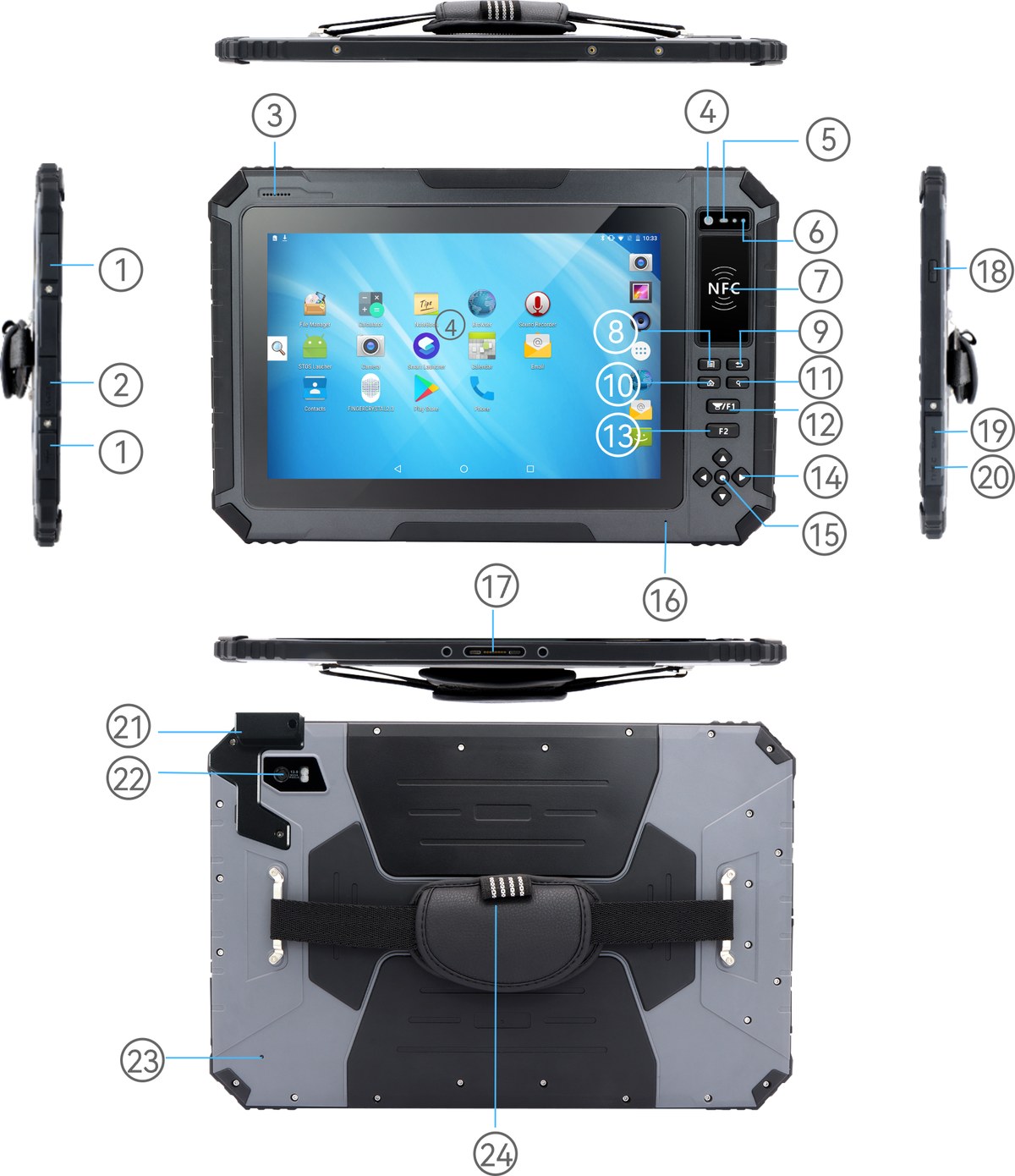

APPEARANCE
| 1: | Type-A(Sealed Cover) |
| 2: | RS232(Sealed Cover) |
| 3: | Speaker |
| 4: | Sub camera |
| 5: | Ambient light sensor |
| 6: | Charge lamp |
| 7: | NFC |
| 8: | Menu button |
| 9: | Back button |
| 10: | Home button |
| 11: | Search button |
| 12: | Scan button |
| 13: | Defined button |
| 14: | Direction button |
| 15: | Confirm button |
| 16: | MIC |
| 17: | Magnetic charging interface |
| 18: | Power button |
| 19: | TF/SIM card port(Sealed Cover) |
| 20: | Type-C(Sealed Cover) |
| 21: | E20 Barcode module* |
| 22: | Main camera |
| 23: | Temperature pressure sensor(Optional) |
| 24: | Nameplate |
SPECIFICATION
| Hardware | |
| CPU | ARM Cortex A73 Octa-core (2.0GHz) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card (T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 14600mAh |
| Display | 10.1 inch IPS/AFFS 1920*1200 FHD industrial 1000nit Sunlight Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | Nano sim card*2 |
| TF Card | Micro SD card (T-FLASH card); max 256GB |
| Charging interface | Type-C & 8PIN magnetic charging |
| Data interface | USB Type-A(Host)*2, Type-C(OTG)*1 |
| RS232 | RS232 (5pin micro GPIO) *1 |
| Gravity sensor | support |
| Direction Sensor | support |
| Magnetic Field Sensor | support |
| Gyro sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Motion sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |

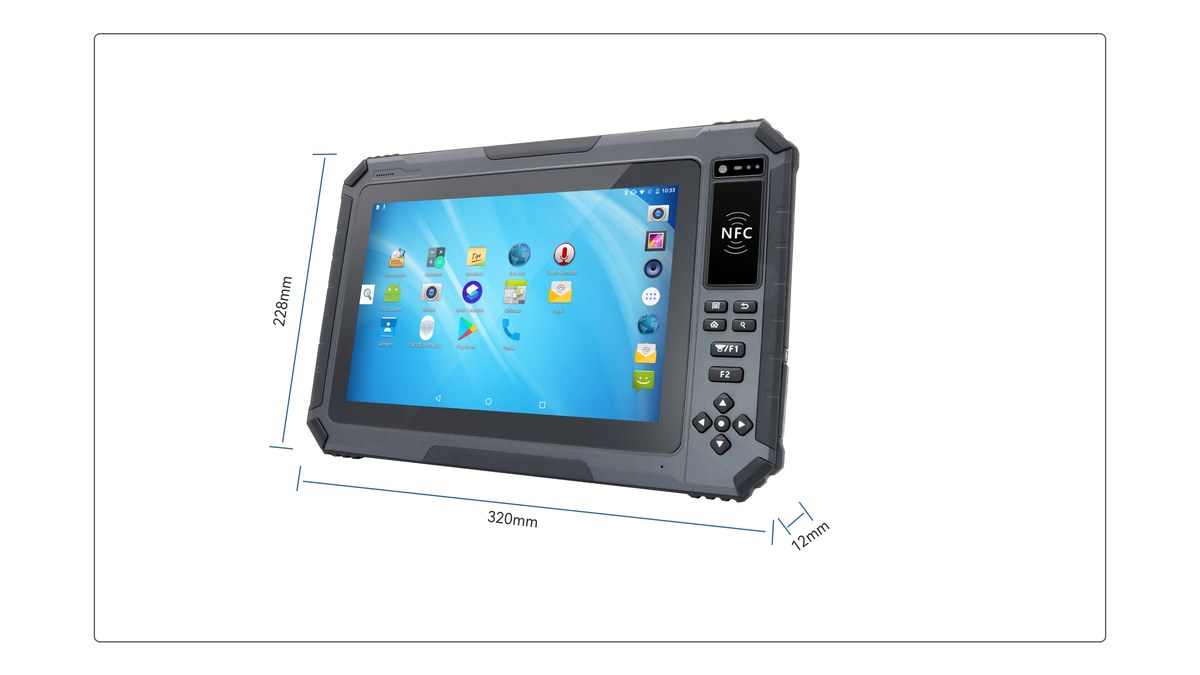

| Size | 320*228*12mm (LxWxH) |
| Weight | 1360g |
| Color & Material | Gray (Titanium alloy+ABS+PC+TPU) |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA |
| 3G Band | WCDMA 3.75G (HSDPA + 42.2Mbps, HSUPA + 11.5Mbps), EVDO |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE (B38/39/40/41); FDD LTE (B1/2/3/4/5/7/8/12/17/20/28) |
| WI- FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 5.0 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/ 0.10mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 5 (IEC 60529) |
| Dustproof | Class 6 (IEC 60529) |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| Reliability | MTBF=50000h; MTTR=0.5h |
| RH | 5%RH-95% |
| Operating Altitude | Max: 4,500m (15,000 feet) |
| Certification/OS/Software | |
| Certification | 3C/FCC/CE/ROHS/IP65 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese,Chinese Traditional, etc. |
| OS | Android 10 / 11 |
| Package/Warranty terms | |
| Warranty | 24 months |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box/ Aircraft box/Toolkit (optional)/SIM Card Ejector |
FUNCTION MODULES
| Barcode module | ||
|---|---|---|

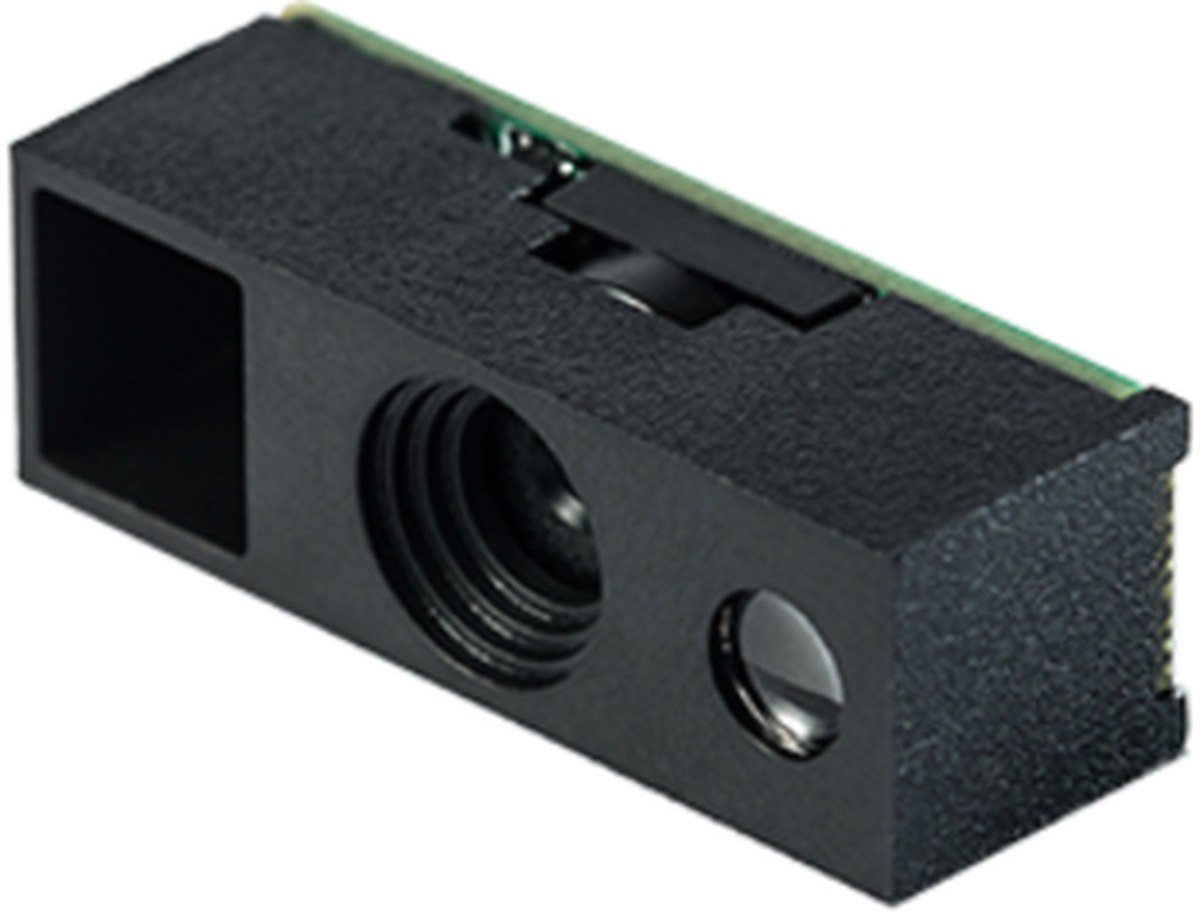

| E20 | Scanning engine | E20 Barcode module |
| 2D | QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code, Dotcode, Composite. | |
| 1D | Code 128 ( ISBT 128, AIM 128, GSI 128 ), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban. | |
| NFC module | ||
| NFC Module | Frequency | 13.56MHz |
| Protocol standard | ISO14443A/B, ISO15693, NFC | |
| Label standard | M1(S50, S70), CPU, NFC | |
| Read-write distance | 2-5cm | |
