HUGEROCK G80N Rugged Tablets
8 inch IPS/AFFS FHD 1920*1200 industrial 1000nit Sunlight-Readable, 8G + 128G, 18900mAh, Android 11, ARM Cortex A73 octa-core(2.0GHz )
HUGEROCK G80N is a rugged tablet in the GNSS RTK Rugged Tablets collection. ARM Cortex A73, 8G RAM and 128G ROM, 1000NIT FHD Display, 18900mAh High-capacity Battery.
Display: 8 inch IPS/AFFS FHD 1920*1200 industrial 1000nit Sunlight-Readable
Memory: 8G; Storage: 128G
Battery: 18900mAh
System: Android 11
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

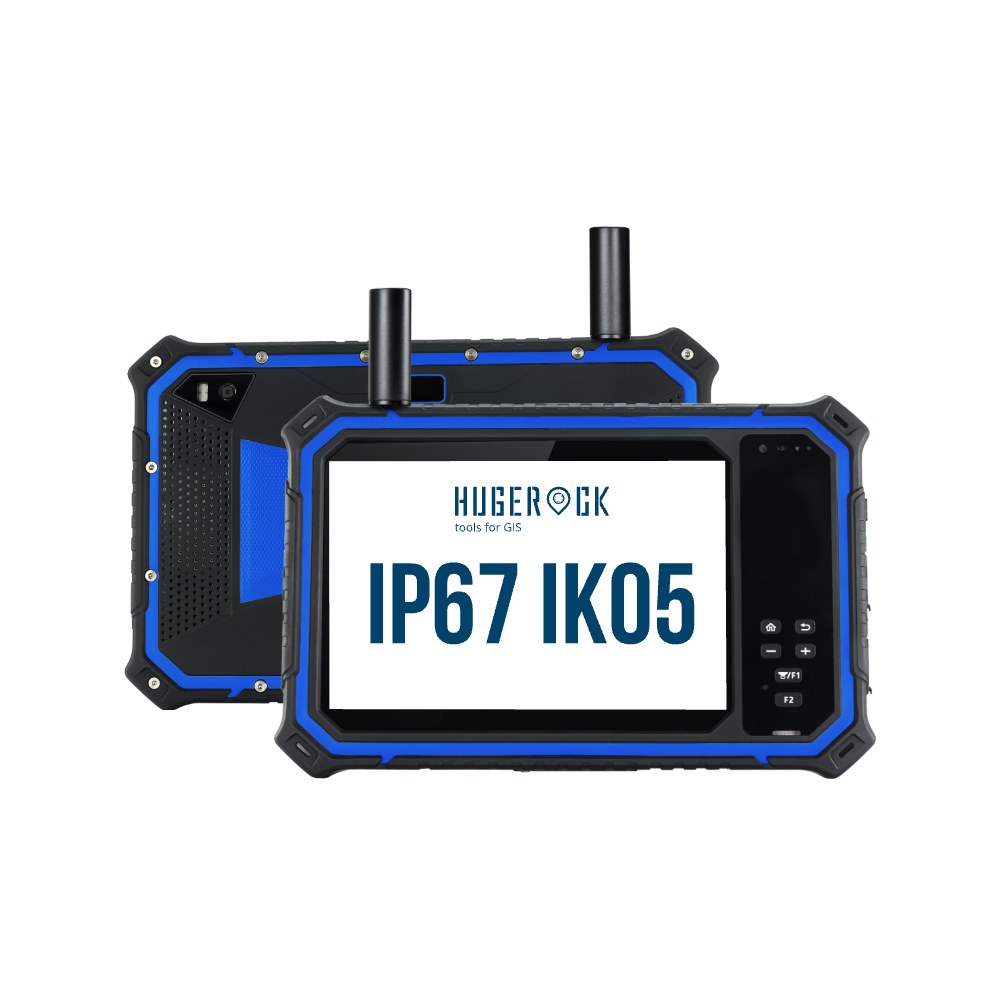

HUGEROCK G80N Rugged Tablets
HUGEROCK G80N is a rugged tablet in the GNSS RTK Rugged Tablets collection. ARM Cortex A73, 8G RAM and 128G ROM, 1000NIT FHD Display, 18900mAh High-capacity Battery.
HUGEROCK G80N hardware and system
HUGEROCK G80N brings together the hardware and operating-system specifications below. CPU: ARM Cortex A73 octa-core(2.0GHz ). OS: Android 11. Memory: 8G. Storage: 128G. The Specs tab lists the configuration details, optional modules and version differences. Those tables should be checked against the configuration required for each order.
Display, battery and physical design
Battery: 18900mAh. Display: 8 inch IPS/AFFS FHD 1920*1200 industrial 1000nit Sunlight-Readable. Dimensions: 256*159*23mm (LxWxH). Weight: 1015g. Touch: Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen. Screen size, resolution and brightness are useful points when comparing a device for indoor and outdoor work. The battery, dimensions and weight provide additional information for deciding how the terminal will be carried or mounted. Any removable battery, mounting hardware or optional module should be selected according to the corresponding specification table.
Connectivity and data collection
Network: wifi, GSM, 4g, 3G. Navigation: GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m). Camera: 13.0MP(AF)with flash led. Front Camera: 5.0MP. Data ports: USB Type-A(Host)*1, Type-C*1. The available interfaces and communication specifications help assess compatibility with the intended workflow. Check the full network bands and module parameters before choosing a configuration. Listed optional functions describe configuration possibilities; they do not mean every module is installed on every unit.
HUGEROCK G80N product features
MORE FAST MORE
POWERFUL
MORE FAST MORE POWERFUL
ARM Cortex A73, 8G RAM and 128G ROM, 1000NIT FHD Display, 18900mAh High-capacity Battery.
ULTRA-BRIGHT AND
HIGH-SATURATION
1000 nits+FHD ultra-bright,high-saturation and sunlight readable.
HIGH
RELIABILITY
HIGH RELIABILITY
IP67, Waterproof, Dustproof Shockproof, shock resistant.
SUPER STRONG
SIGNAL ADAPTABILITY
SUPER STRONG SIGNAL
ADAPTABILITY
Improve survey performance in challenging GNSS environments.

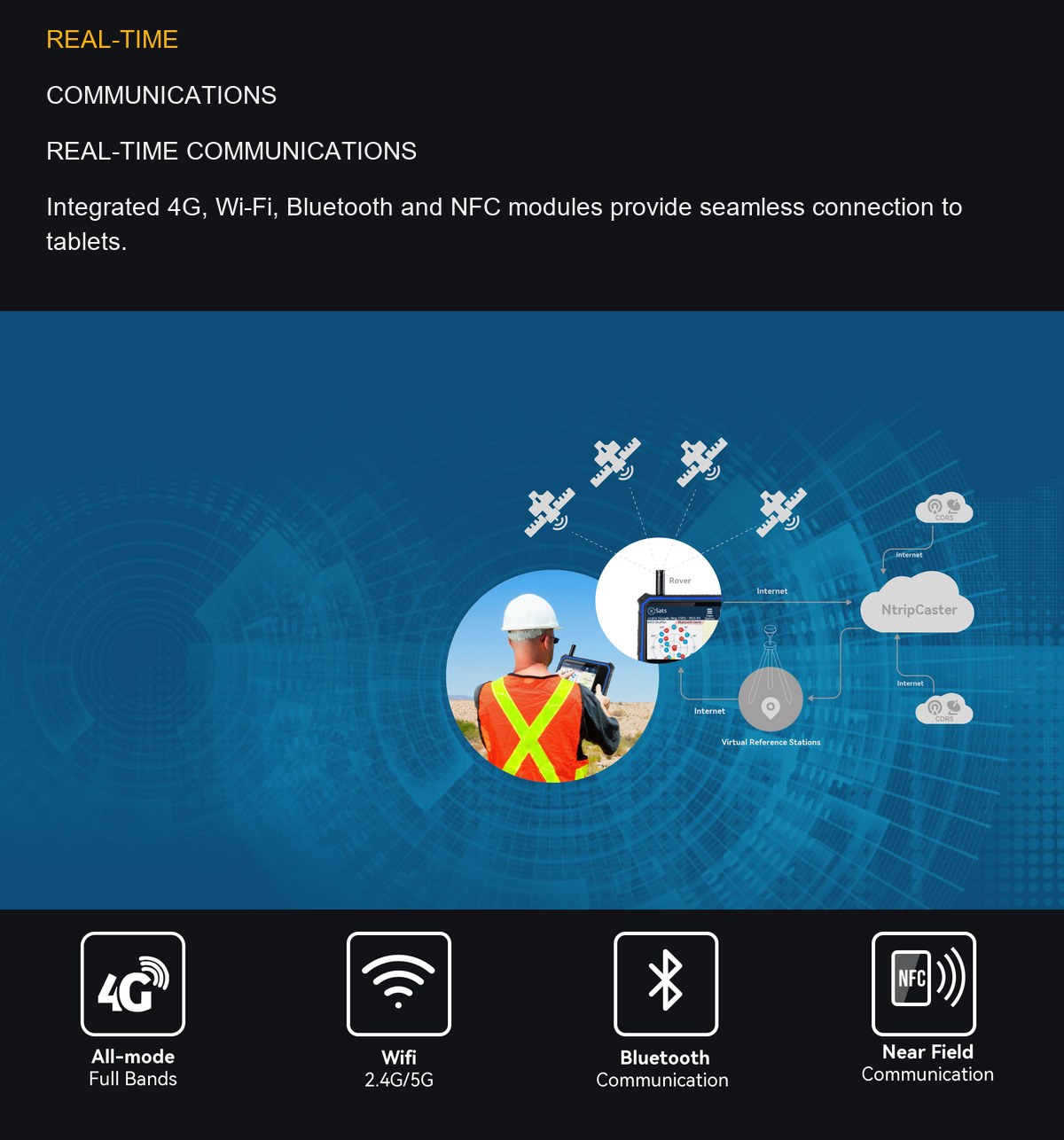

REAL-TIME
COMMUNICATIONS
REAL-TIME COMMUNICATIONS
Integrated 4G, Wi-Fi, Bluetooth and NFC modules provide seamless connection to tablets.
CUSRTOM
NO MOQ
CUSRTOM NO MOQ
We work closely with our partners to provide a variety of customized solutions, including personalized customization of boot screen, SDK, function modules, product packaging, promotional materials, etc.
Product photos and specifications
The HUGEROCK G80N gallery shows the product itself. Review the Specs tab for all listed technical fields, appearance diagrams, comparison tables and module information. Browse our GNSS RTK Rugged Tablets collection to compare more models.
Product attributes
| Screen Size | 8" |
|---|---|
| Memory Capacity | 8GB |
| Display resolution | 1920x1200 |
| Operating System | Android 9/10/11/13 (Continuous Update) |
| Type | Tablet PC |
| Drive Interface | USB Type C |
| Processor Manufacture | MTK |
| Use | Industrial |
| Network | wifi, GSM, 4g, 3G |
| Warranty(Year) | 2-Year |
| Scenarios | For Professional |
| Feature | Waterproof , Shockproof, Drop resistance, Anti-Dust, Soft, Hard, SDK available |
| charging interface | 4pin pogo pin (magnetic) |
| Processor Type | Octa Core |
| Processor Main Frequency | 2.0GHZ |
| Touch Screen Type | Capacitive Screen |
| Weight | 1015g |
| Place of Origin | Guangdong, China |
| Brand Name | HUGEROCK |
| Model Number | G80N |
| CPU | ARM Cortex A73 octa-core(2.0GHz ) |
| GPU | ARM Mali-G72 MP3 |
| Display | 8 inch IPS/AFFS FHD 1920*1200 industrial 1000nit Sunlight-Readable |
| Battery | 18900mAh |
| SIM Card | Nano sim card*2 |
| Data interface | USB Type-A(Host)*1, Type-C*1 |
| Charger | 5.0V 2A-10W |
| OS | Android 9/10/11/13 (Continuous update) |
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Single package size: | 39X27X10 cm |
| Single gross weight: | 3.000 kg |

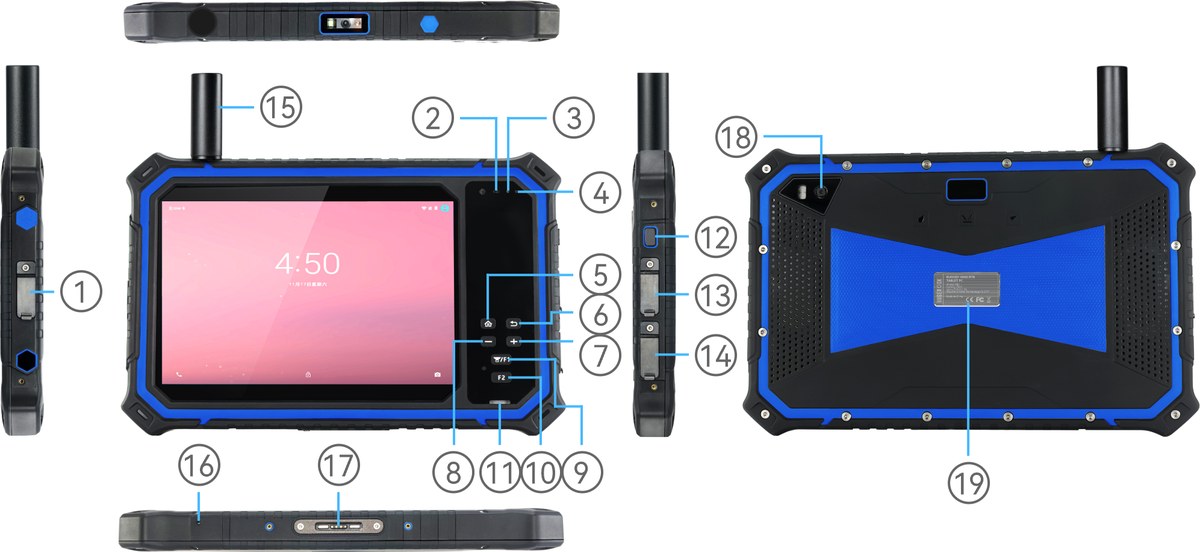

APPEARANCE
| 1: Type-A (Sealed Cover) |
| 2: Front camera |
| 3: Light sensor |
| 4: Charging light |
| 5: Home button |
| 6: Back button |
| 7: Volume up |
| 8: Volume Down |
| 9: Scan button |
| 10: Custom button |
| 11: Speaker |
| 12: Power button |
| 13: SIM/TF (Sealed Cover) |
| 14: Type-c (Sealed Cover) |
| 15: Antenna |
| 16: MIC |
| 17: 4pin pogo pin(magnetic) (Optional) |
| 18: Main camera |
| 19: Nameplate |
TECHNICAL SPECIFICATIONS
| Hardware | |
| CPU | ARM Cortex A73 octa-core(2.0GHz ) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card ( T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF)with flash led |
| Sub Camera | 5.0MP |
| Battery | 18900mAh |
| Display | 8 inch IPS/AFFS FHD 1920*1200 industrial 1000nit Sunlight-Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | Nano sim card*2 |
| TF Card | Micro SD card(T-FLASH card) ; max 256GB |
| Charging interface | Type-C & 4pin pogo pin (magnetic) |
| Data interface | USB Type-A(Host)*1, Type-C*1 |
| Gravity sensor | support |
| Magnetic Field Sensor | support |
| Motion sensor | support |
| Rotation vector sensor | support |
| Acceleration sensor | support |
| Gyro sensor | support |
| Light-sensor | support |
| Proximity sensor | support |
| Temperature pressure sensor | Optional |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |

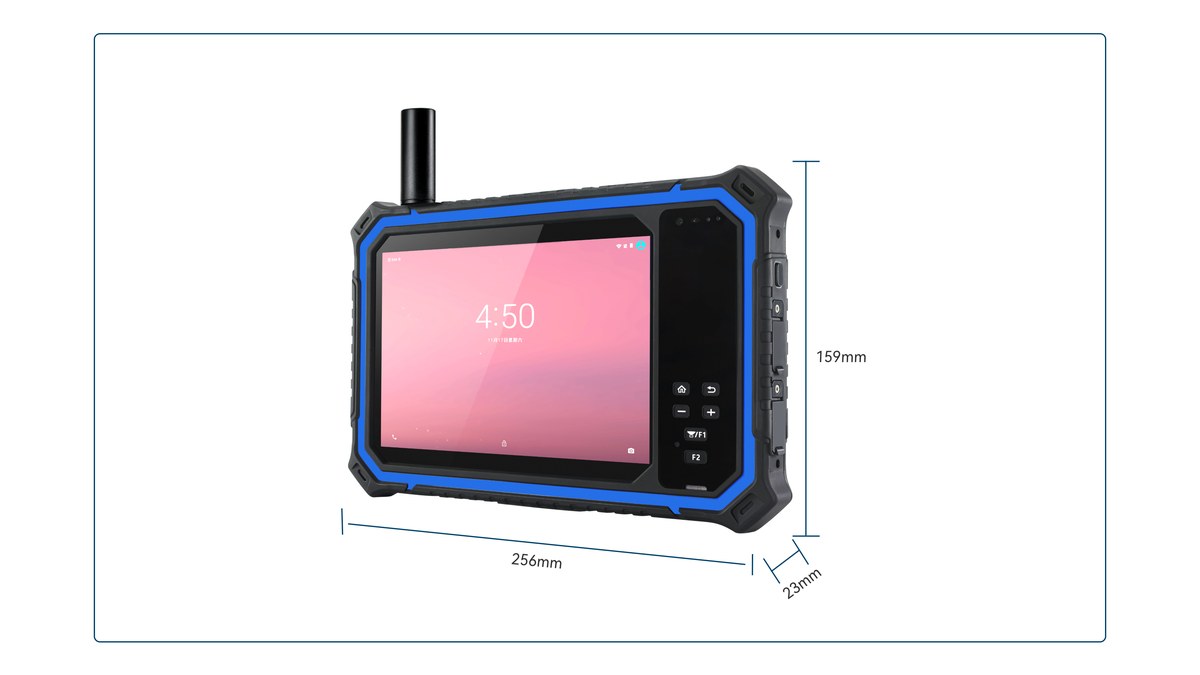

| Size | 256*159*23mm (LxWxH) |
| Weight | 1015g |
| Color & Material | Blue(PC+ABS)+black(TPU) |
| Communications & Networking | |
| Phone Call | GSM/WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA 3.75G (HSDPA+42.2Mbps, HSUPA+11.5Mbps), EVDO |
| 3G Band | WCDMA(B1/2/5/8), Evdo: BC0/BC1 CDMA |
| 4G | FDD: 150Mbps down, 50Mbps up TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE(B38/39/40/41); FDD LTE(B1/2/3/4/5/7/8/12/17/20/28) |
| Wi-FI | Dual-band WIFI (2.4GHz/5GHz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 5.0 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 7 (IEC 60529) |
| Dustproof | Class 6 (IEC 60529) |
| Reliability | MTBF>5000h ; MTTR<0.5h |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 70℃ |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500 m(15,000 feet) |
| Certification/OS/Software | |
| Certification | 3C /FCC/CE/ROHS/IP67 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese(Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese,Chinese Traditional,etc |
| OS | Android 11 |
| Package/Warranty terms | |
| Warranty | 24 months |
| Package | USB cable / Charger 5V 2A / Introduction manual / Screen protector / Aircraft box / Toolkit / SIM Card Ejector x 1 |
EXTERNAL

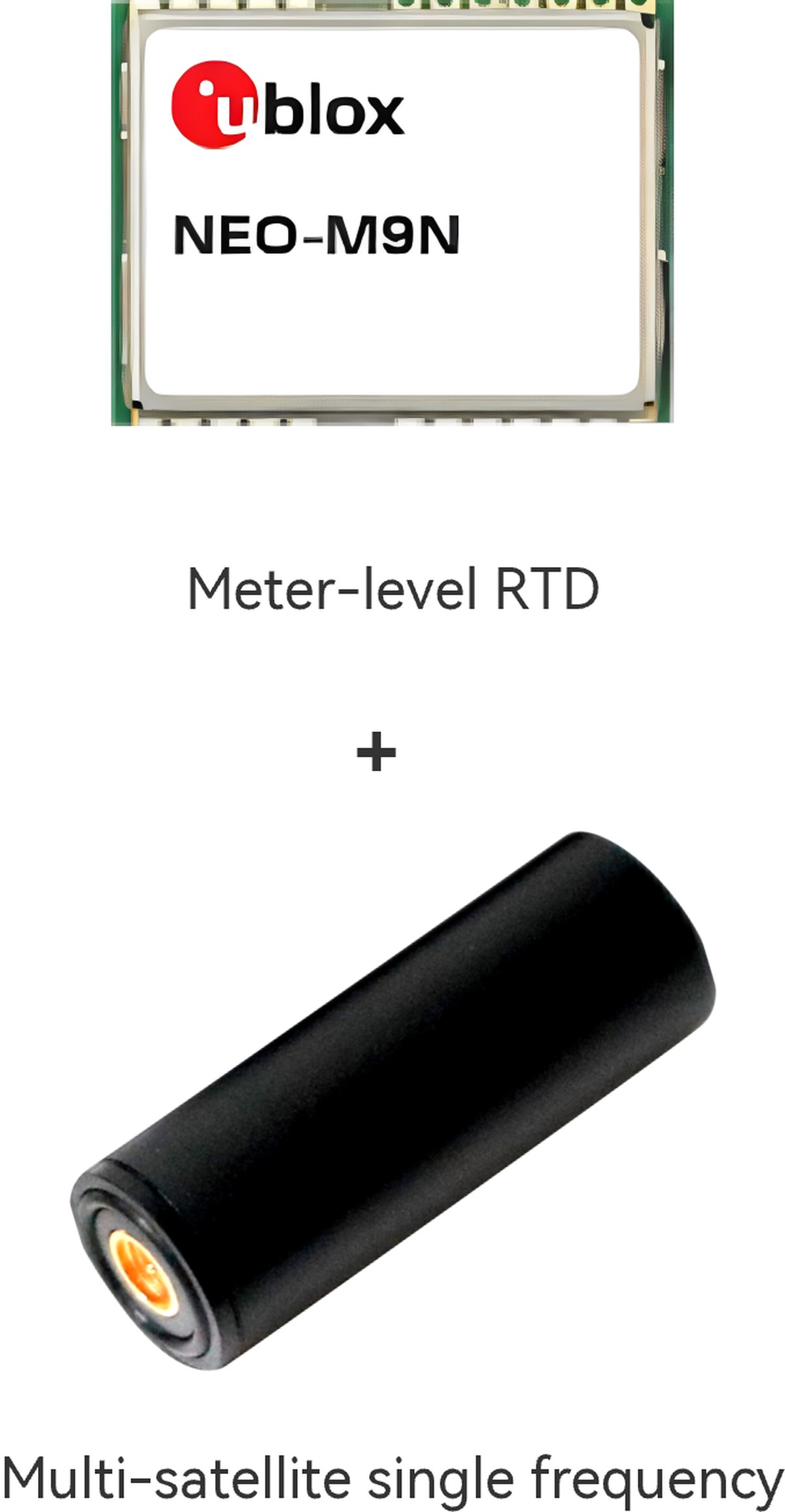

| EXTERNAL HELIX ATENNA ITEMS | |
|---|---|
| Antenna | Multi-satellite single frequency |
| Antenna frequency band | BDS B1; GPS L1; GLONASS G1; GALILEO E1 |
| Antenna size | Φ18.5mm*50mm |
| Installation method | SMA |
| Horizontal coverage | 360° |
| Impedance matching | 50 Ω |
| Polarization mode | Right-handed circular polarization (RHCP) |
| spindle ratio | ≤3dB |
| Gain | 30±2dB |
| Maximum gain | ≥1.5 dBi |
| Noise factor | ≤1.5 dB |
| FEATURES OF THE POSITIONING RECEIVER | |
| Module | High-precision multi-mode GNSS positioning module(meter-level RTD) |
| Signal (tracking frequency) | BDS: B1I; GPS: L1 C/A; GLONASS: L1 0F;Galileo: E1B/C; QZSS: L1 C/A/S; SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN |
| Channel | 92-channel |
| Single-point positioning accuracy | 1.5 m CEP (with SBAS); 2.0 m CEP (without SBAS) |
| RTD Accuracy | 1.5 m CEP (with RTD) |
| Nav. update rate | 1– 25 Hz |
| Cold start | 24 s |
| Hot start | 2 s |
| Aided start | 2 s |
| Cors data | RTCM 3.3 |
| Data Format | NMEA 4.10, UBX binary, RTCM 3.3 |
| Inertial navigation | none |
