HUGEROCK G71L Rugged Tablets
7 inch IPS/AFFS 1200*1920 FHD industrial 1000nit Sunlight Readable, 8G + 128GB, 10000mAh, Android 10 / 11, ARM A73 2.0GHz Octa-core
HUGEROCK G71L is a rugged tablet in the GNSS RTK Rugged Tablets collection. Integrated 4G,Wi-Fi, Bluetooth and NFCmodules provide seamless connectionto tablets. Enable any GNSS survey mode, from RTK Networks NTRIP connections tobase-rover configurations. GNSS RTKcorrections can be accessed orbroadcasted continuously for accuratepositioning in all circumstances.
Display: 7 inch IPS/AFFS 1200*1920 FHD industrial 1000nit Sunlight Readable
Memory: 8G; Storage: 128GB
Battery: 10000mAh
System: Android 10 / 11
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

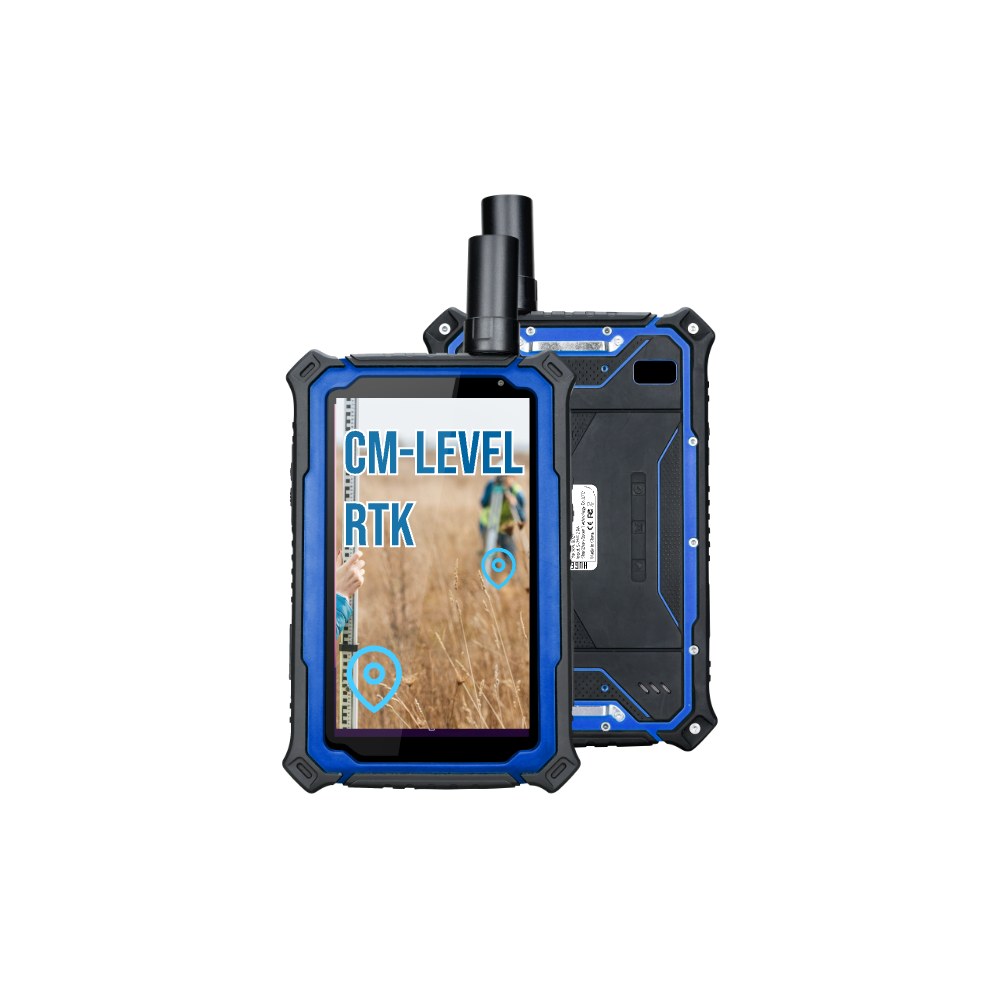

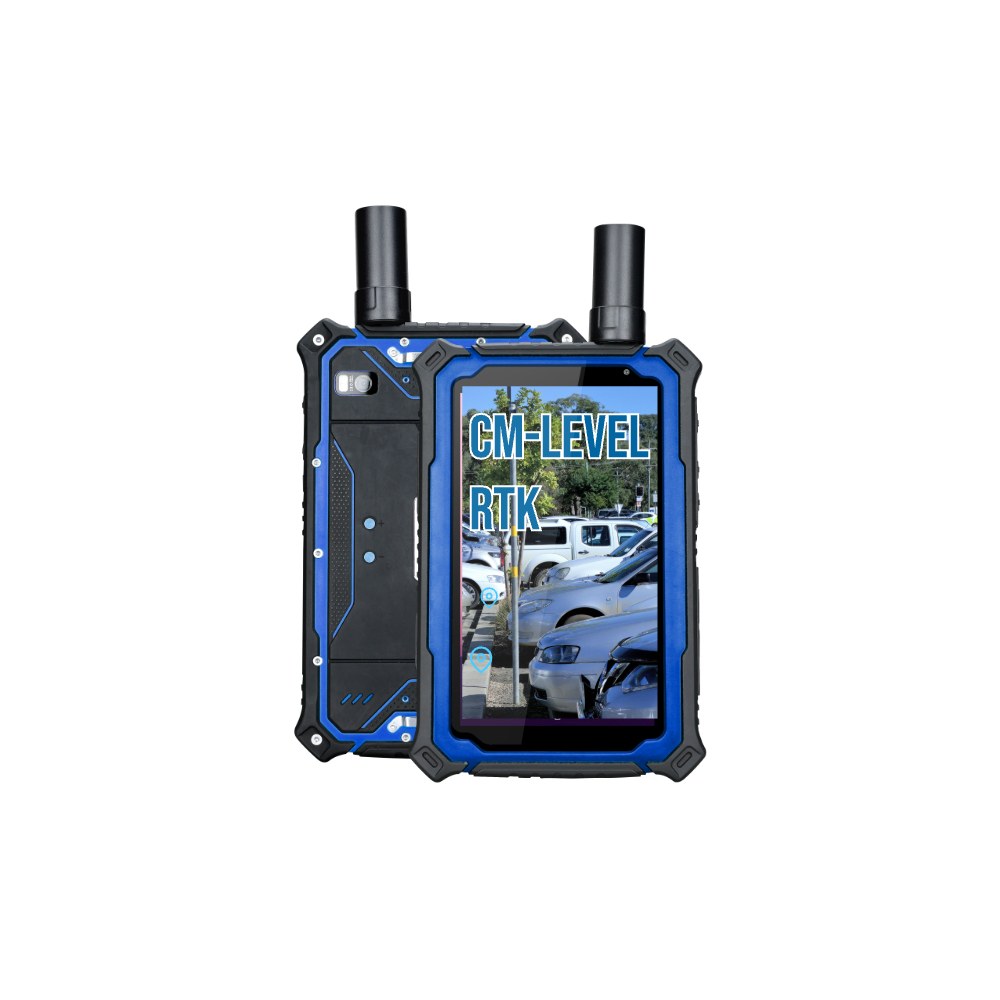

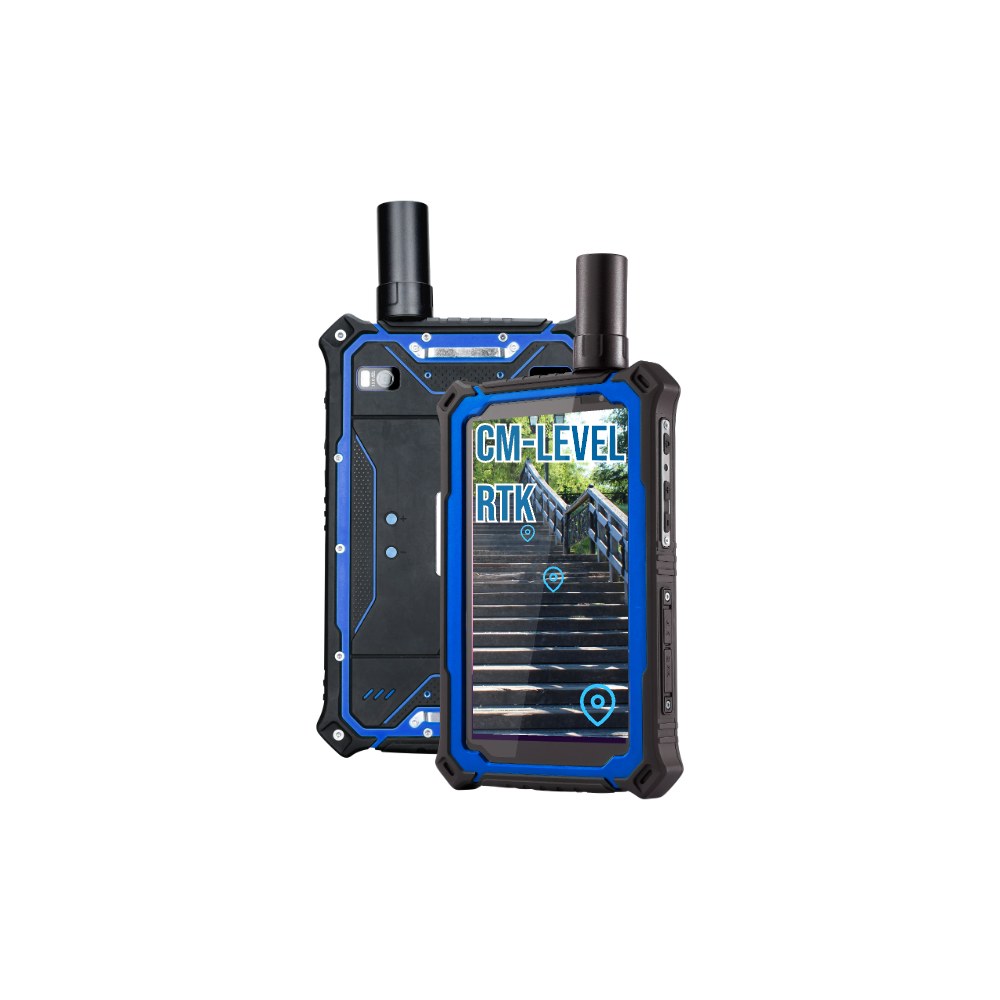

HUGEROCK G71L Rugged Tablets
HUGEROCK G71L is a rugged tablet in the GNSS RTK Rugged Tablets collection. Integrated 4G,Wi-Fi, Bluetooth and NFCmodules provide seamless connectionto tablets. Enable any GNSS survey mode, from RTK Networks NTRIP connections tobase-rover configurations. GNSS RTKcorrections can be accessed orbroadcasted continuously for accuratepositioning in all circumstances.
HUGEROCK G71L hardware and system
HUGEROCK G71L brings together the hardware and operating-system specifications below. CPU: ARM A73 2.0GHz Octa-core. OS: Android 10 / 11. Memory: 8G. Storage: 128GB. The Specs tab lists the configuration details, optional modules and version differences. Those tables should be checked against the configuration required for each order.
Display, battery and physical design
Battery: 10000mAh. Display: 7 inch IPS/AFFS 1200*1920 FHD industrial 1000nit Sunlight Readable. Dimensions: 202*138*22mm(L×W×H). Weight: 700g. Touch: Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen. Screen size, resolution and brightness are useful points when comparing a device for indoor and outdoor work. The battery, dimensions and weight provide additional information for deciding how the terminal will be carried or mounted. Any removable battery, mounting hardware or optional module should be selected according to the corresponding specification table.
Connectivity and data collection
Network: wifi, GSM, 4g. Navigation: GPS+Beidou+Glonass+AGPS+SBAS(EPO 2.5m). Camera: 13.0MP(AF)with flash led. Front Camera: 5.0MP. Data ports: USB Type-C(OTG)*1. The available interfaces and communication specifications help assess compatibility with the intended workflow. Check the full network bands and module parameters before choosing a configuration. Listed optional functions describe configuration possibilities; they do not mean every module is installed on every unit.
HUGEROCK G71L product features
MORE
FAST
MORE FAST MORE POWERFUL
ARM Cortex A73，8G RAM and 128G ROM,1000NIT FHD Display, 10000mAh Battery.
ULTRA-BRIGHT
HIGH-SATURATION
ULTRA-BRIGHT AND
1000 nits+ FHD ultra-bright, high-saturation and sunlight readable
HIGH
RELIABILITY
HIGH RELIABILITY
IP 67,Waterproof, Dustproof , Shockproof，shock resistant.
FAST, ACCURATE
AND HIGH-PRECISION
FAST, ACCURATE AND
RTK centering rod, Precise PointPositioning with RTK GNSS.
SUPER STRONG
SIGNALADAPTABILITY
SUPER STRONG SIGNAL
ADAPTABILITY
Improve survey performance in challengingGNSS environments.
EASY TO
CARRY
LIGHTWEIGHT AND EASY TO CARRY
RTK usability greatly improved, and potential humanerror reduced.

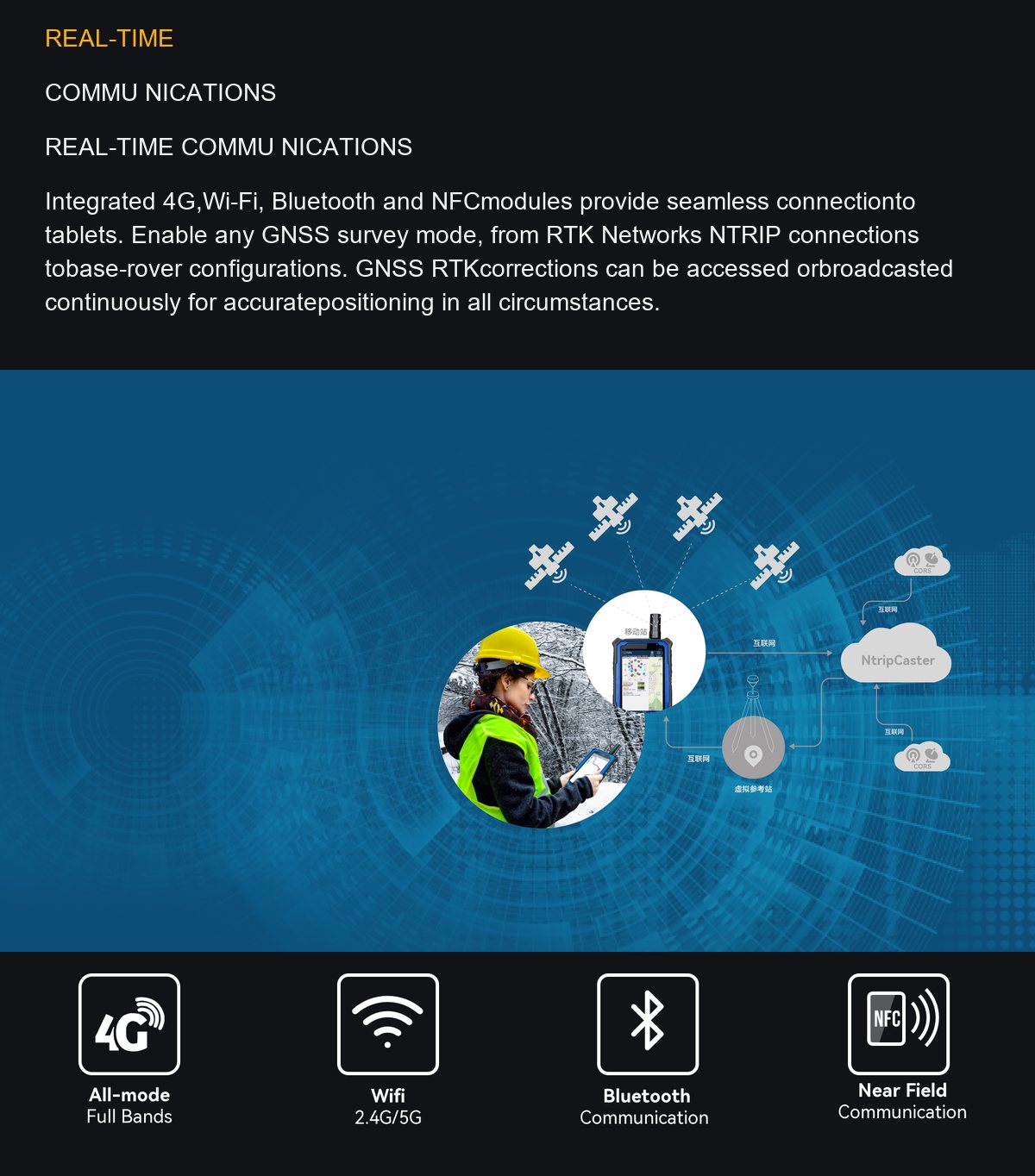

REAL-TIME
COMMU NICATIONS
REAL-TIME COMMU NICATIONS
Integrated 4G,Wi-Fi, Bluetooth and NFCmodules provide seamless connectionto tablets. Enable any GNSS survey mode, from RTK Networks NTRIP connections tobase-rover configurations. GNSS RTKcorrections can be accessed orbroadcasted continuously for accuratepositioning in all circumstances.
CUSRTOM
NO MOQ
CUSRTOM NO MOQ
We work closely with our partners to providea variety of customized solutions, includingpersonalized customization of boot screen, SDK, function modules, product packaging, promotional materials, etc.

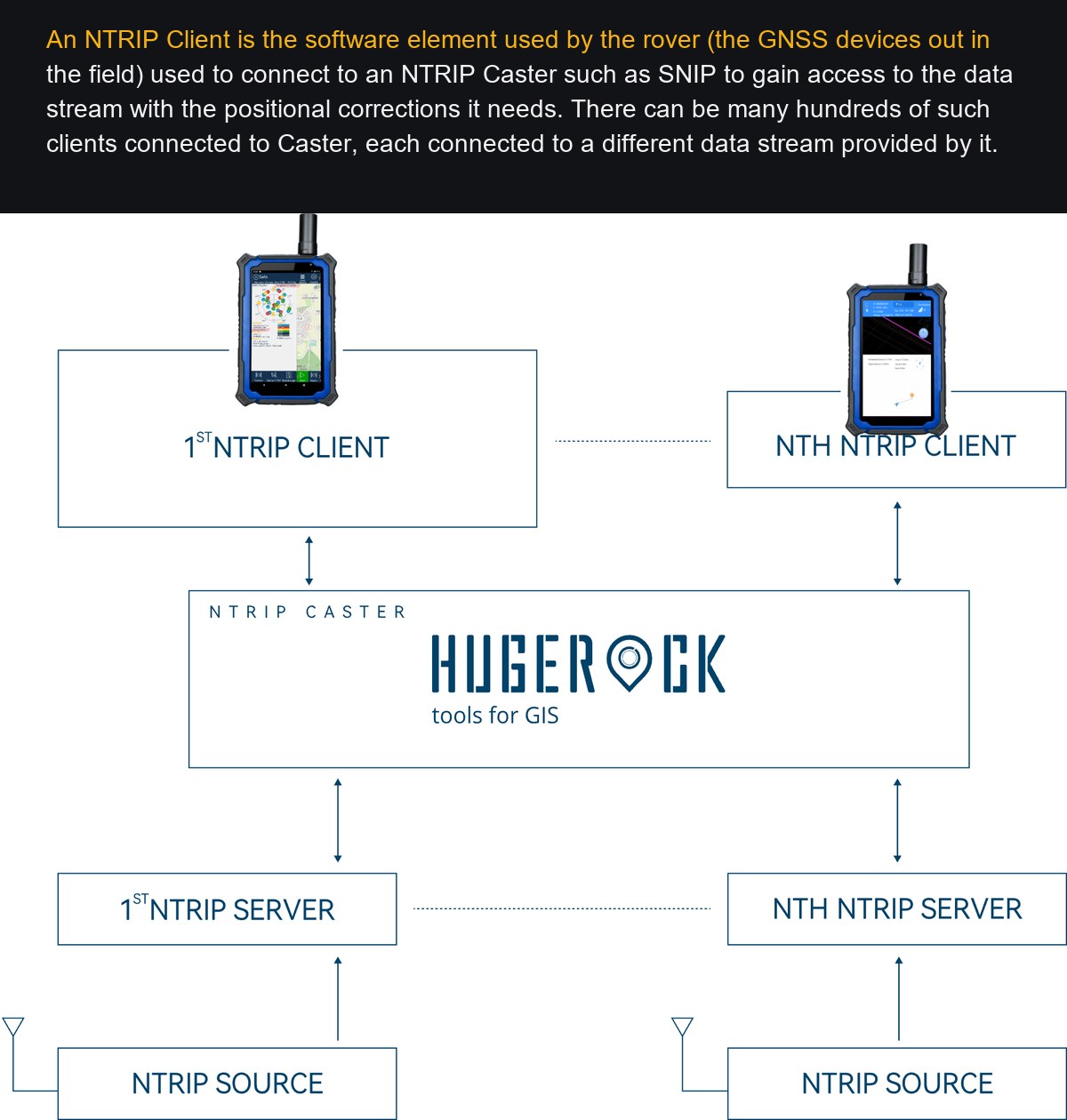

An NTRIP Client is the software element used by the rover (the GNSS devices out in the field) used to connect to an NTRIP Caster such as SNIP to gain access to the data stream with the positional corrections it needs. There can be many hundreds of such clients connected to Caster, each connected to a different data stream provided by it.
Product photos and specifications
The HUGEROCK G71L gallery shows the product itself. Review the Specs tab for all listed technical fields, appearance diagrams, comparison tables and module information. Browse our GNSS RTK Rugged Tablets collection to compare more models.
Product attributes
| Screen Size | 7" |
|---|---|
| Memory Capacity | 8GB |
| Display resolution | 1080*1920 |
| Operating System | Android 9/10/11/13 (Continuous Update) |
| Type | Tablet PC |
| Drive Interface | USB Type C |
| Processor Manufacture | MTK |
| Use | Industrial |
| Network | wifi, GSM, 4g |
| Warranty(Year) | 2-Year |
| Scenarios | For Professional |
| Feature | Waterproof , Shockproof, Drop resistance, Anti-Dust, Soft, Hard, SDK available |
| charging interface | USB Type C |
| Processor Type | Octa Core |
| Processor Main Frequency | 2.0GHZ |
| Touch Screen Type | Capacitive Screen |
| Weight | 700g |
| Place of Origin | Guangdong, China |
| Brand Name | HUGEROCK |
| Model Number | G71N |
| CPU | ARM Cortex A73 Octa-core(2.0GHz) |
| GPU | Arm Mali--G72 MP3 |
| Operating System | Android 9/10/11/13 (Continuous Update) |
| RAM | 8GB |
| ROM | 128GB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 10000mAh |
| Touch screen type | Capacitive |
| Display resolution | 1080*1920 |
| Single package size: | 39X27X10 cm |
| Single gross weight: | 3.000 kg |
TECHNICAL SPECIFICATIONS
| Hardware | |
| CPU | ARM A73 2.0GHz Octa-core |
| GPU | ARM Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card (T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF)with flash led |
| Sub Camera | 5.0MP |
| Battery | 10000mAh |
| Display | 7 inch IPS/AFFS 1200*1920 FHD industrial 1000nit Sunlight Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | 1.8/3.3V SIM card |
| TF Card | Micro SD card (T-FLASH card); max 256GB |
| Headphone | 3.5mm CTIA |
| Charging interface | Type-C |
| Data interface | USB Type-C(OTG)*1 |
| Direction Sensor | support |
| Gravity sensor | support |
| Magnetic Field Sensor | support |
| Motion sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS(EPO 2.5m) |
| Appearance | |

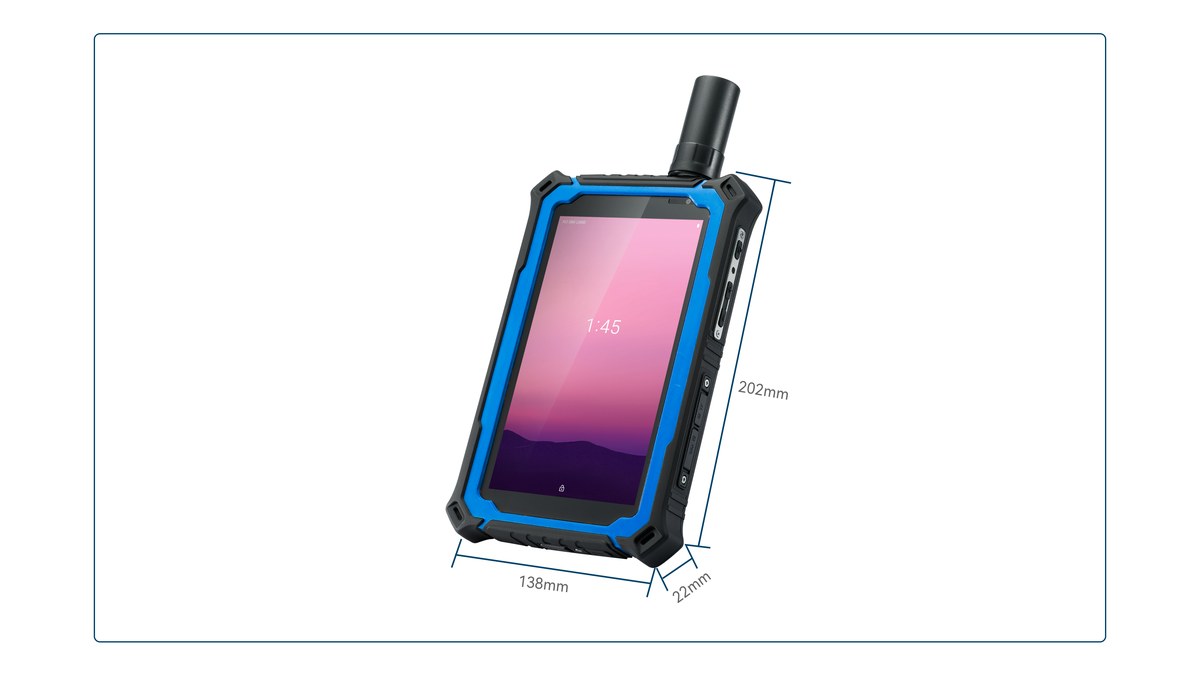

| Size | 202*138*22mm(L×W×H) |
| Weight | 700g |
| Color & Material | Blue(PC+ABS)+black(TPU) |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA 3.75G (HSDPA+42.2Mbps, HSUPA+11.5Mbps), EVDO |
| 3G Band | WCDMA(B1/2/5/8), Evdo: BC0/BC1 CDMA: BC0/BC1 |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE(B38/39/40/41) ; FDD LTE(B1/2/3/4/5/7/8/12/17/20/28) |
| WI-FI | Dual-band WIFI(2.4GHz/5GHz)single stream 802.11 a/b/g/n/ac |
| Bluetooth | 4.2 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 7 (IEC 60529) |
| Dustproof | Class 6 (IEC 60529) |
| Reliability | MTBF>5000h ; MTTR<0.5h |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500 m (15,000 feet) |
| Certification/OS/Software | |
| Certification | 3C/FCC/CE/ROHS/IP67(IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese,Chinese Traditional,etc |
| OS | Android 10 / 11 |
| Package/Warranty terms/OEM | |
| Warranty | 24 months |
| OEM/ODM | Support |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box(Can be customized logo)/Aircraft box/Toolkit(optional) |
EXTERNAL

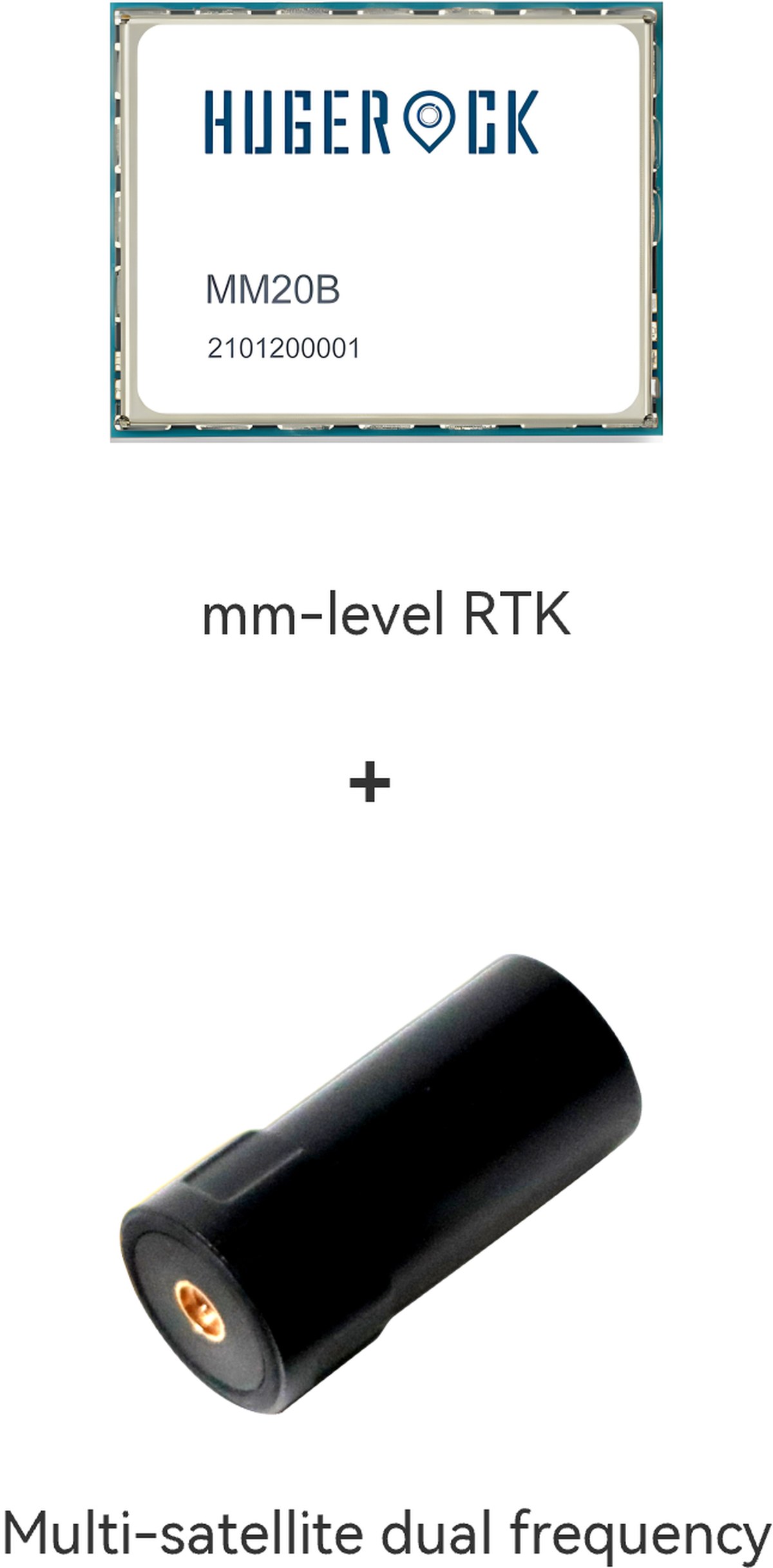

| EXTERNAL HELIX ATENNA ITEMS | |
| Antenna | Multi-satellite dual frequency |
| Antenna frequency band | BDS B1+B2; GPS L1+L5; GLONASS G1; GALILEO E1+E5a |
| Antenna size | Φ27.5mm*55.5mm |
| Installation method | SMA |
| Horizontal coverage | 360° |
| Impedance matching | 50 Ω |
| Polarization mode | Right-handed circular polarization (RHCP) |
| spindle ratio | ≤3dB |
| Gain | 30±2dBi |
| Maximum gain | 2.5dBi |
| Noise factor | ≤1.5 dB |
| FEATURES OF THE POSITIONING RECEIVER | |
| Module | High-precision multi-mode dual-frequency module (mm-level RTK) |
| Signal (tracking frequency) | GPS/QZSS: L1/L5; BeiDou : B1I/B2a; GALILEO: E1/E5a; GLONASS: G1; SBAS: WAAS, EGNOS, GAGAN, MSAS |
| Channel | 135-channel |
| Single-point positioning accuracy | 1.5 m CEP |
| RTK accuracy | ≤ 8mm + 1ppm CEP |
| Nav. update rate | 1~10Hz |
| Cold start | 27 s |
| Hot start | 2 s |
| Aided start | ≤ 10s |
| Cors data | RTCM 3.x |
| Data Format | NMEA 0183 |
| Inertial navigation | none |
