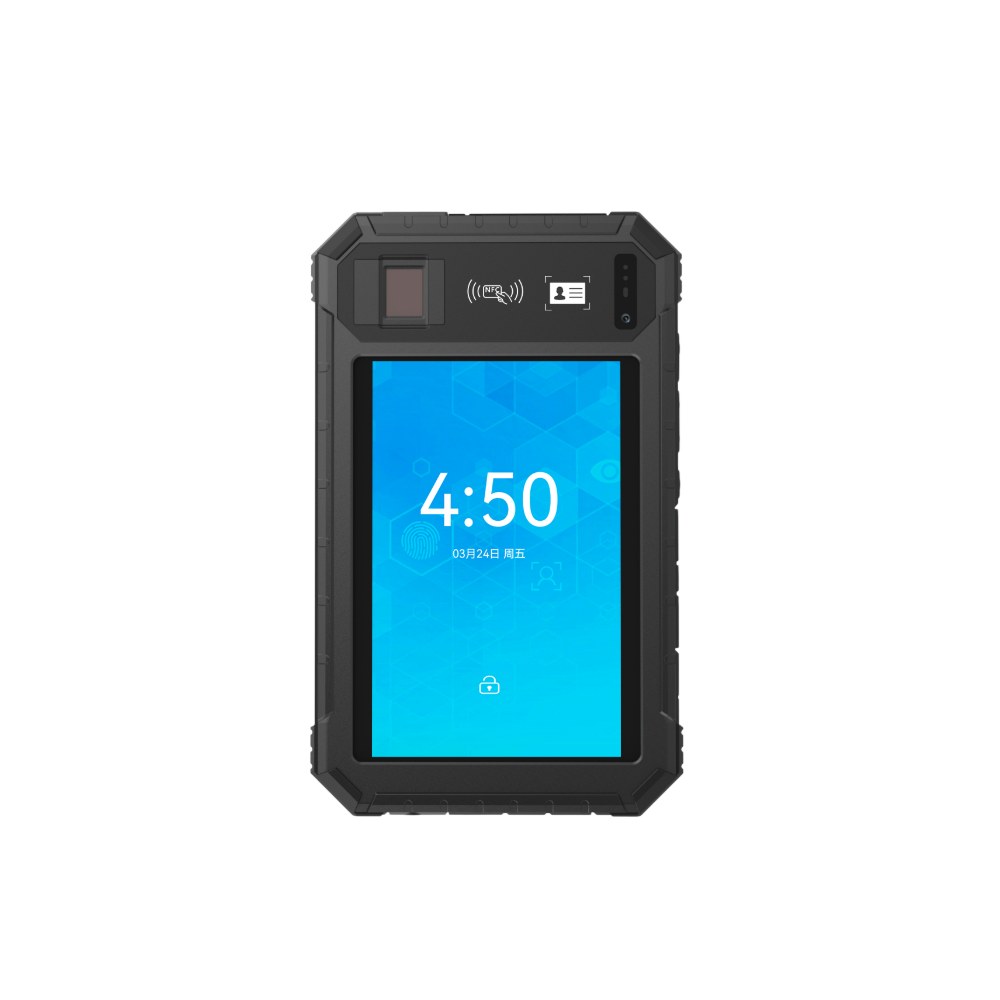

HUGEROCK B81 Rugged Tablets
8 inch IPS/AFFS FHD 1200*1920 industrial 1000nit Sunlight – Readable, 8G + 128G, 10000mAh, Android 11, ARM Cortex A73 Octa-core (2.0GHz)
HUGEROCK B81 is a rugged tablet in the Rugged Biometric Tablets collection. Can be applied to security, justice, inspection, entry-exit,notarization, banking, securities, hotels, social security, education, transportation, place registration, personnel recruitment, and other application environments that need toverify the biological characteristics of personnel.
Display: 8 inch IPS/AFFS FHD 1200*1920 industrial 1000nit Sunlight – Readable
Memory: 8G; Storage: 128G
Battery: 10000mAh
System: Android 11
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

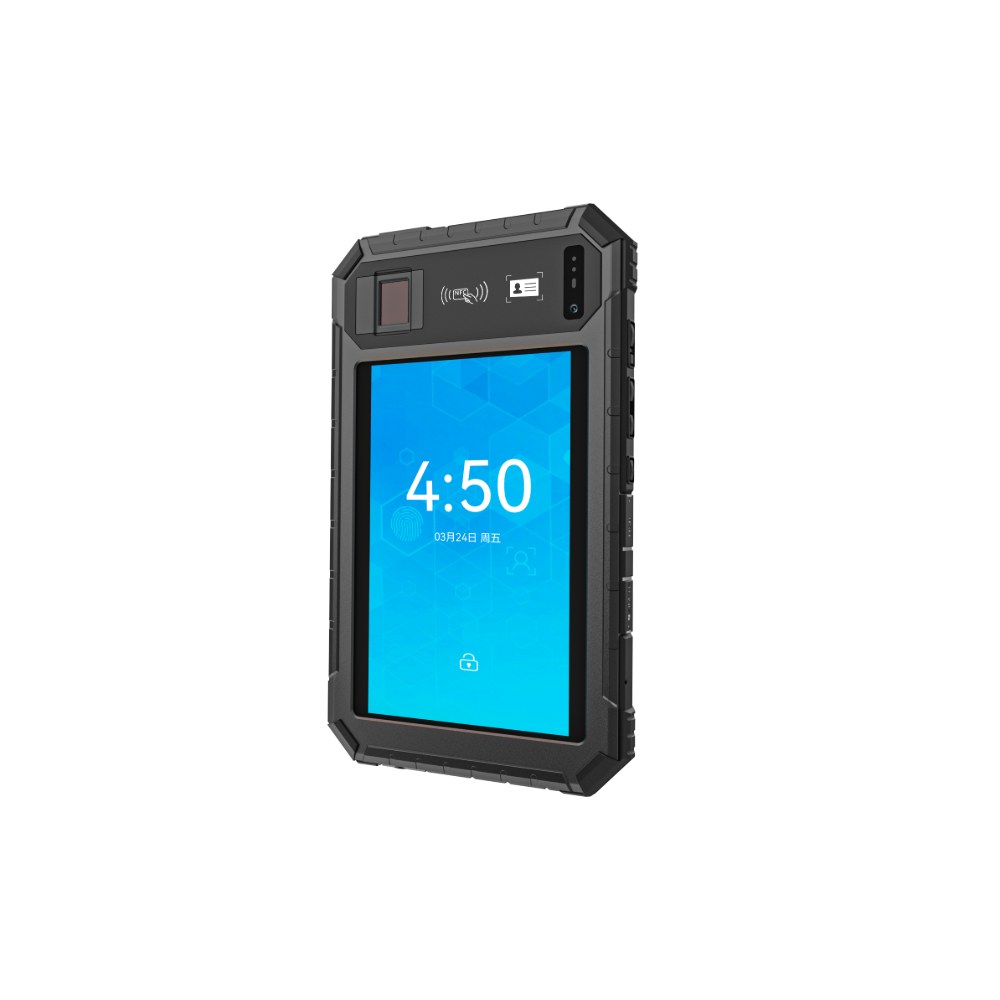

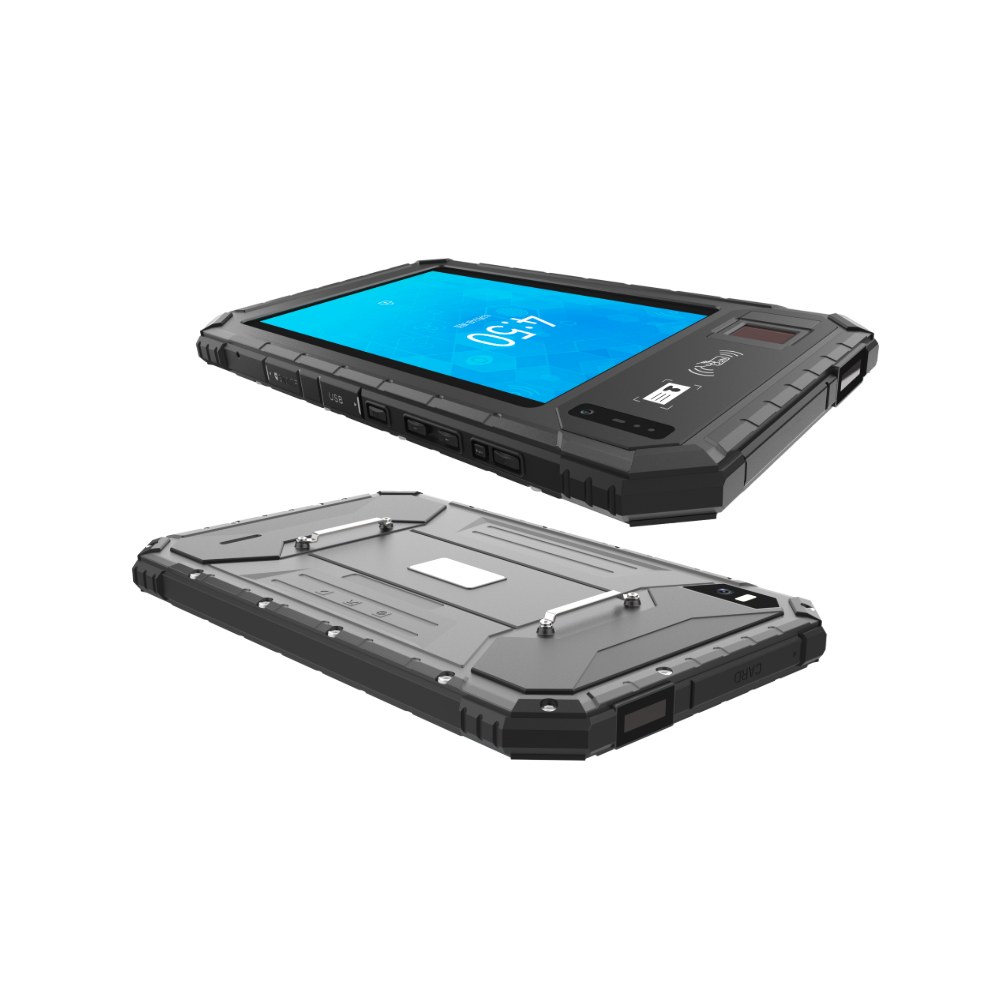

HUGEROCK B81 Rugged Tablets
HUGEROCK B81 is a rugged tablet in the Rugged Biometric Tablets collection. Can be applied to security, justice, inspection, entry-exit,notarization, banking, securities, hotels, social security, education, transportation, place registration, personnel recruitment, and other application environments that need toverify the biological characteristics of personnel.
HUGEROCK B81 hardware and system
HUGEROCK B81 brings together the hardware and operating-system specifications below. CPU: ARM Cortex A73 Octa-core (2.0GHz). OS: Android 11. Memory: 8G. Storage: 128G. The Specs tab lists the configuration details, optional modules and version differences. Those tables should be checked against the configuration required for each order.
Display, battery and physical design
Battery: 10000mAh. Display: 8 inch IPS/AFFS FHD 1200*1920 industrial 1000nit Sunlight – Readable. Dimensions: 267*164.6*20.6mm (L×W×H). Weight: 1015g. Touch: Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen. Screen size, resolution and brightness are useful points when comparing a device for indoor and outdoor work. The battery, dimensions and weight provide additional information for deciding how the terminal will be carried or mounted. Any removable battery, mounting hardware or optional module should be selected according to the corresponding specification table.
Connectivity and data collection
Network: wifi, GSM, 4g, 3G. Navigation: GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m). Camera: 13.0MP(AF) with flash led. Front Camera: 5.0MP. Data ports: USB Type-A(Host)*1, Type-C*1. The available interfaces and communication specifications help assess compatibility with the intended workflow. Check the full network bands and module parameters before choosing a configuration. Listed optional functions describe configuration possibilities; they do not mean every module is installed on every unit.
HUGEROCK B81 product features

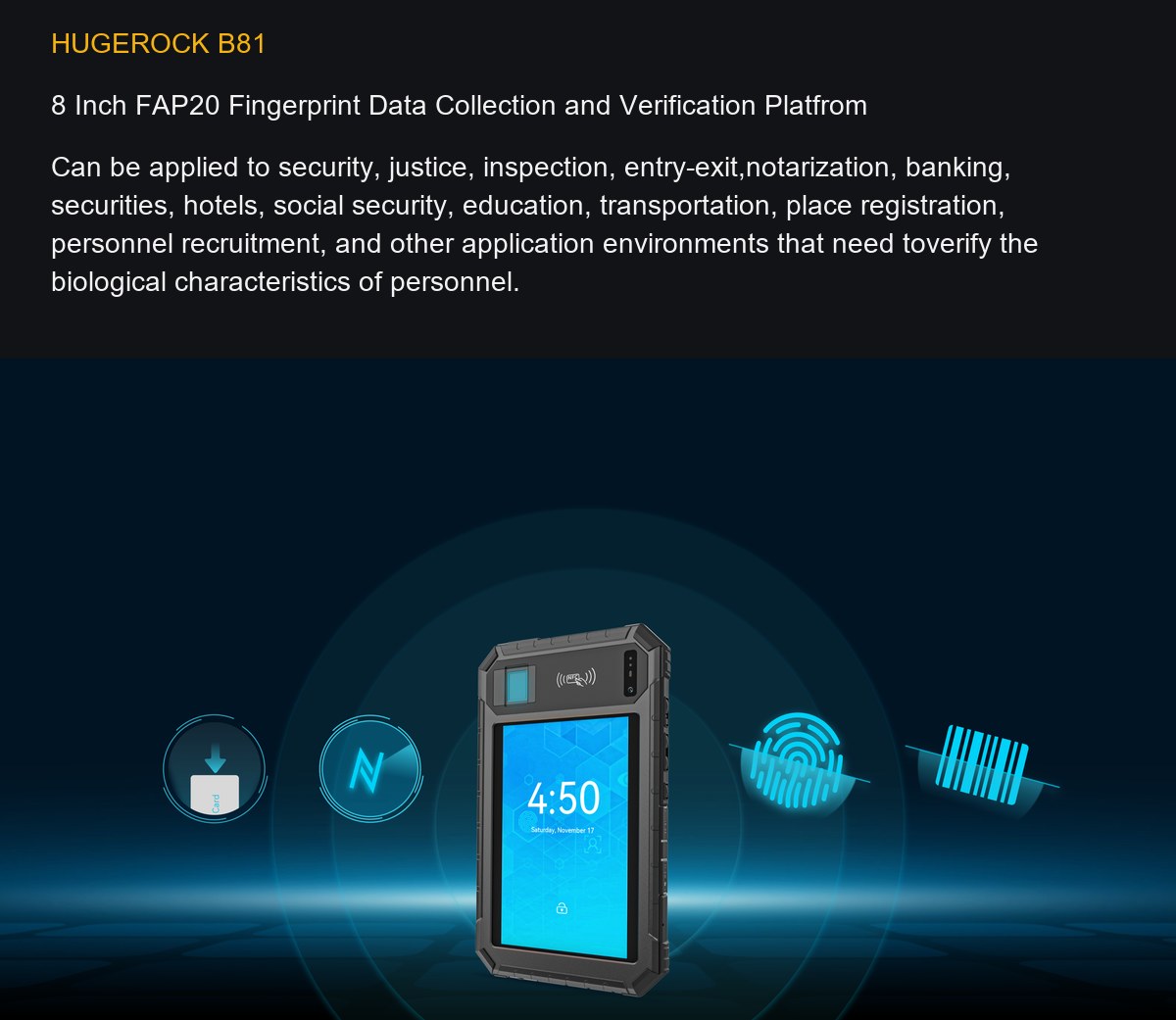

HUGEROCK B81
8 Inch FAP20 Fingerprint Data Collection and Verification Platfrom
Can be applied to security, justice, inspection, entry-exit,notarization, banking, securities, hotels, social security, education, transportation, place registration, personnel recruitment, and other application environments that need toverify the biological characteristics of personnel.
FAP20
FAP20 MODULE
ACCURATELY
IDENTIFY

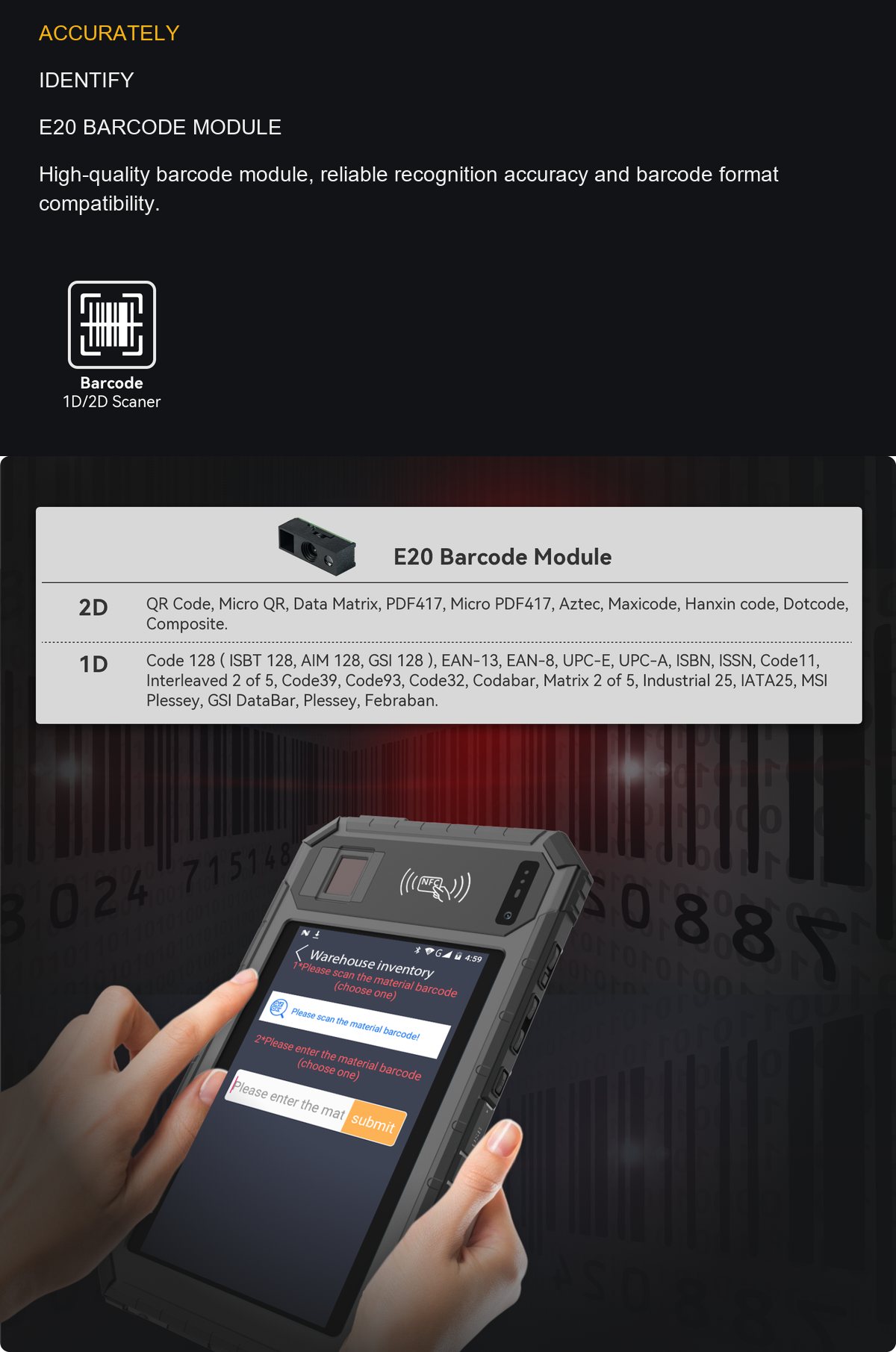

E20 BARCODE MODULE
High-quality barcode module, reliable recognition accuracy and barcode format compatibility.
NFC
Can integrate NFC, barcode and other industrial data collection modules.
ISO7816
ISO7816 contact reader module can be integrated.
1000NIT
1000nit FHD display，combined with anti-glare reflective film technology，can clearly display in any strong light environment.
POWERFUL
10000mAh battery，can work continuously for 12 hours.

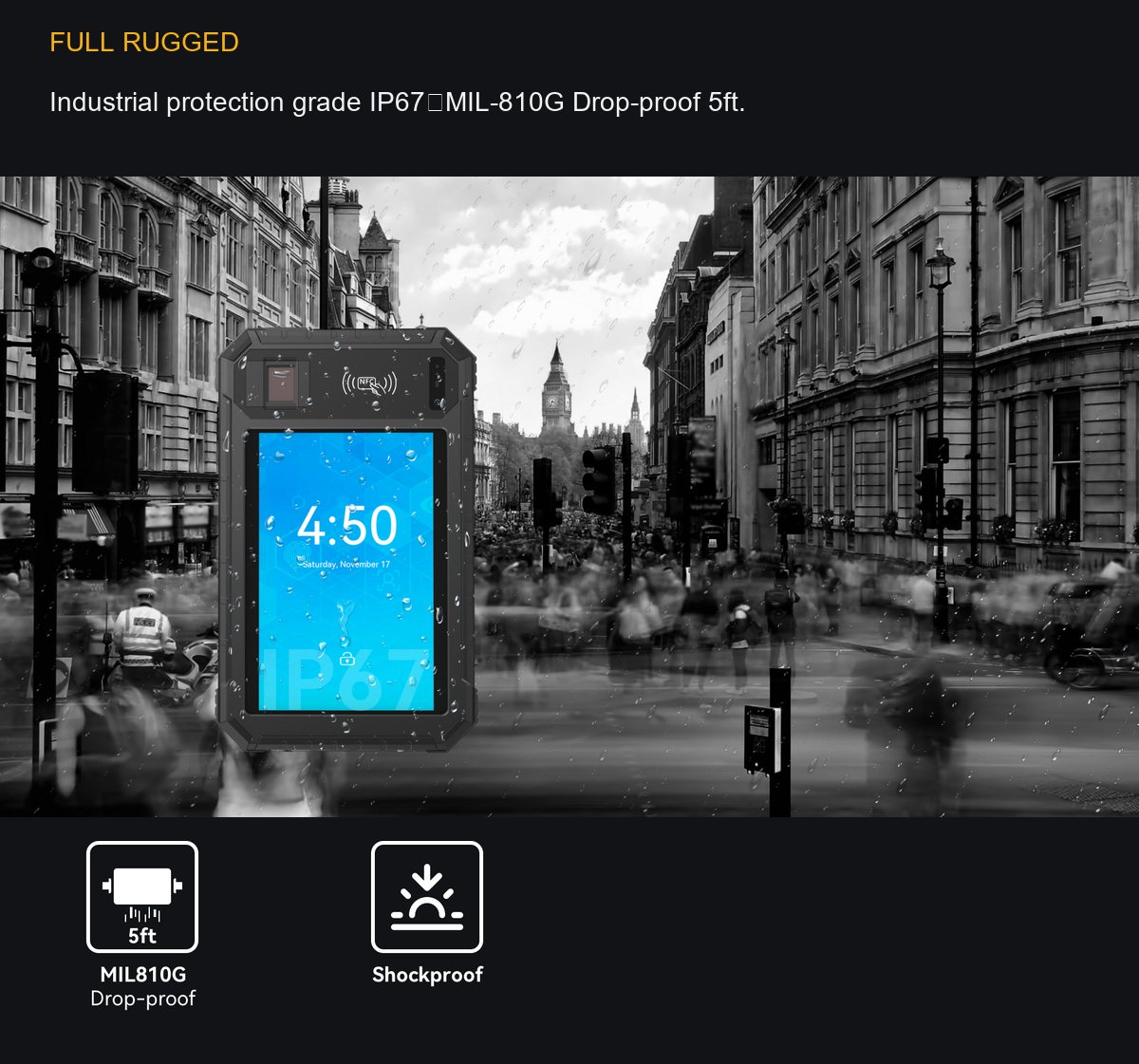

FULL RUGGED
Industrial protection grade IP67，MIL-810G Drop-proof 5ft.

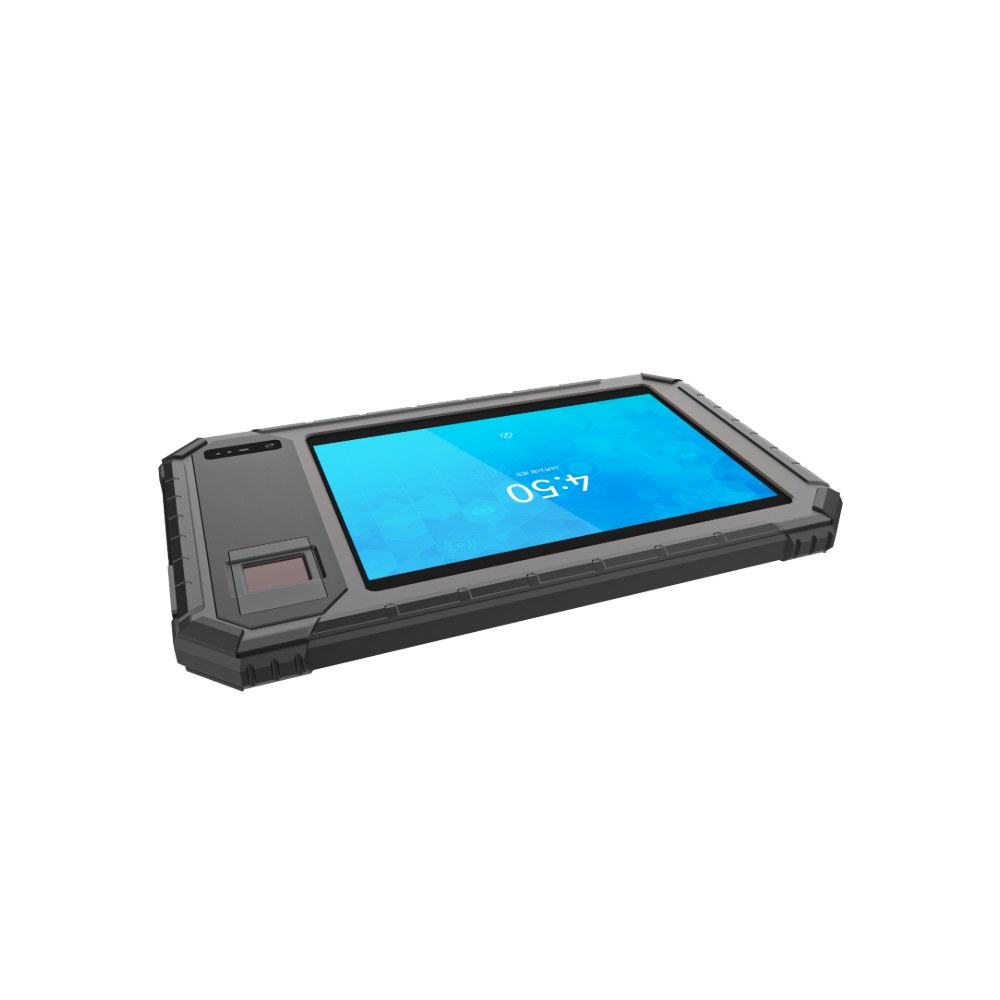

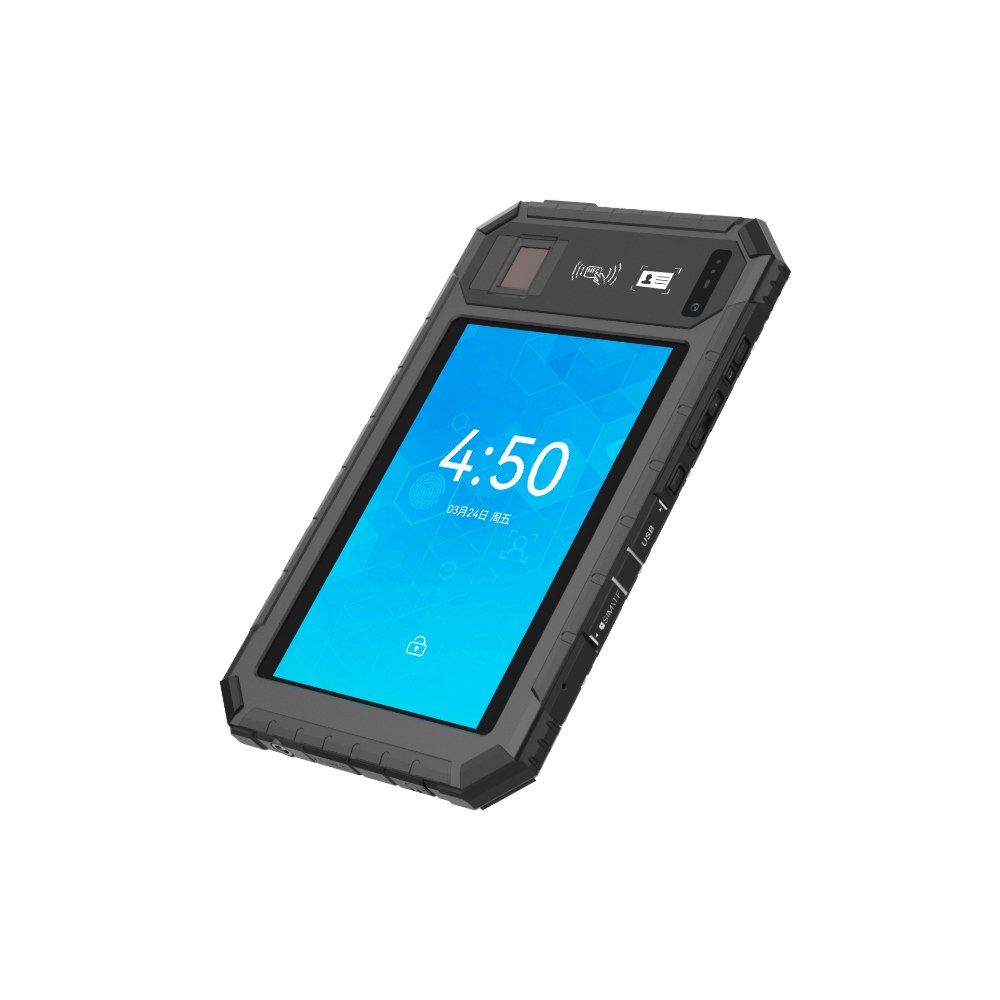

Product photos and specifications

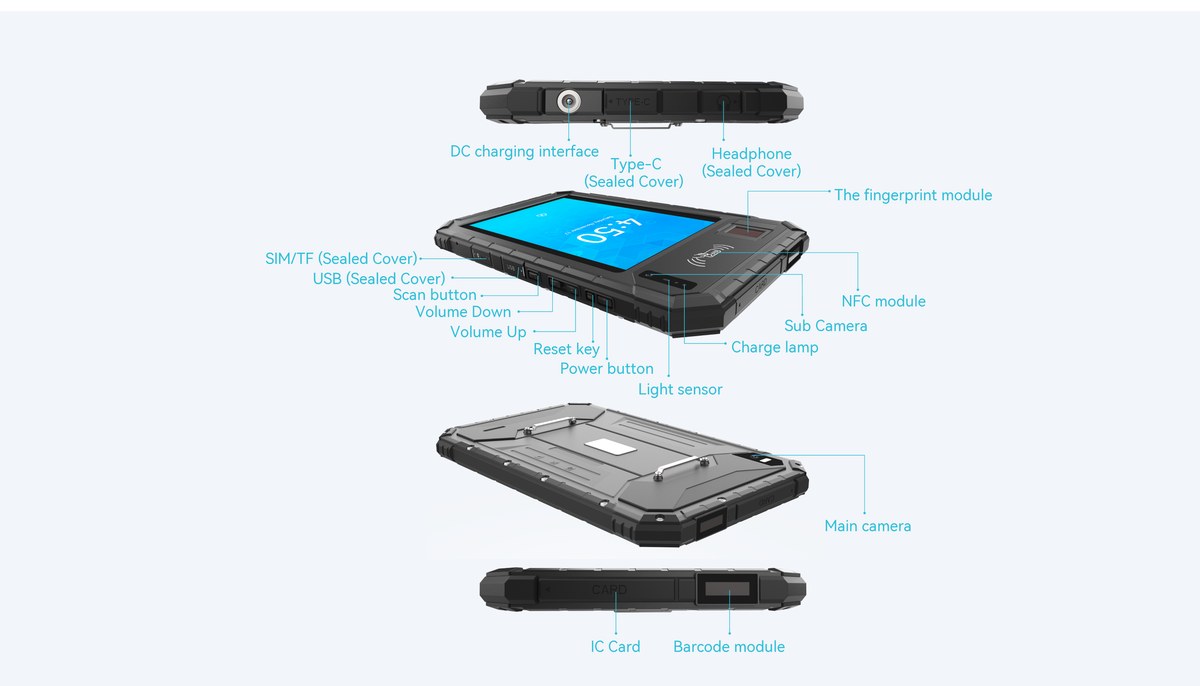

The HUGEROCK B81 gallery shows the product itself. Review the Specs tab for all listed technical fields, appearance diagrams, comparison tables and module information. Browse our Rugged Biometric Tablets collection to compare more models.
Product attributes
| Screen Size | 8" |
|---|---|
| Memory Capacity | 8G |
| Display resolution | 1200*1920 |
| Operating System | Andriod 11.0/13.0 |
| Type | Tablet PC |
| Drive Interface | USB Type C |
| Processor Manufacture | MTK |
| Use | election, administration, finance, public security, etc |
| Network | wifi, GSM, 4g, 3G |
| Warranty(Year) | 2-Year |
| Scenarios | For Professional |
| Feature | Waterproof , Shockproof, Drop resistance, Anti-Dust, Soft, Hard, SDK available |
| charging interface | USB Type C |
| Processor Type | Octa Core |
| Processor Main Frequency | 2.0GHZ |
| Touch Screen Type | Capacitive Screen |
| Weight | 850g |
| Place of Origin | Guangdong, China |
| Brand Name | HUGEROCK |
| Model Number | B81(061) |
| CPU | ARM Cortex A73 Octa-core ( 2.0GHz) |
| GPU | Arm Mali--G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| Display | 8 inch IPS/AFFS FHD 1200*1920 industrial 1000nit Sunlight -Readable |
| Battery | 10000mAh |
| SIM Card | Nano sim card*2 |
| Charging Port | DC5521 5.0V 2A-10W |
| Data interface | USB Type-A(Host)*1, Type-C*1 |
| OEM/ODM | Support |
| Single package size: | 29X23X5 cm |
| Single gross weight: | 3.000 kg |
TECHNICAL SPECIFICATIONS
| Hardware | |
| CPU | ARM Cortex A73 Octa-core (2.0GHz) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card (T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 10000mAh |
| Display | 8 inch IPS/AFFS FHD 1200*1920 industrial 1000nit Sunlight - Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | Nano sim card*2 |
| TF Card | Micro SD card (T-FLASH card); max 256GB |
| Headphone | 3.5mm (CTIA) |
| DC charging interface | DC5521 5.0V 2A~10W |
| Data interface | USB Type-A(Host)*1, Type-C*1 |
| Direction Sensor | support |
| Gravity sensor | support |
| Magnetic Field Sensor | support |
| Motion sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Charger | 5.0V 2A~10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |

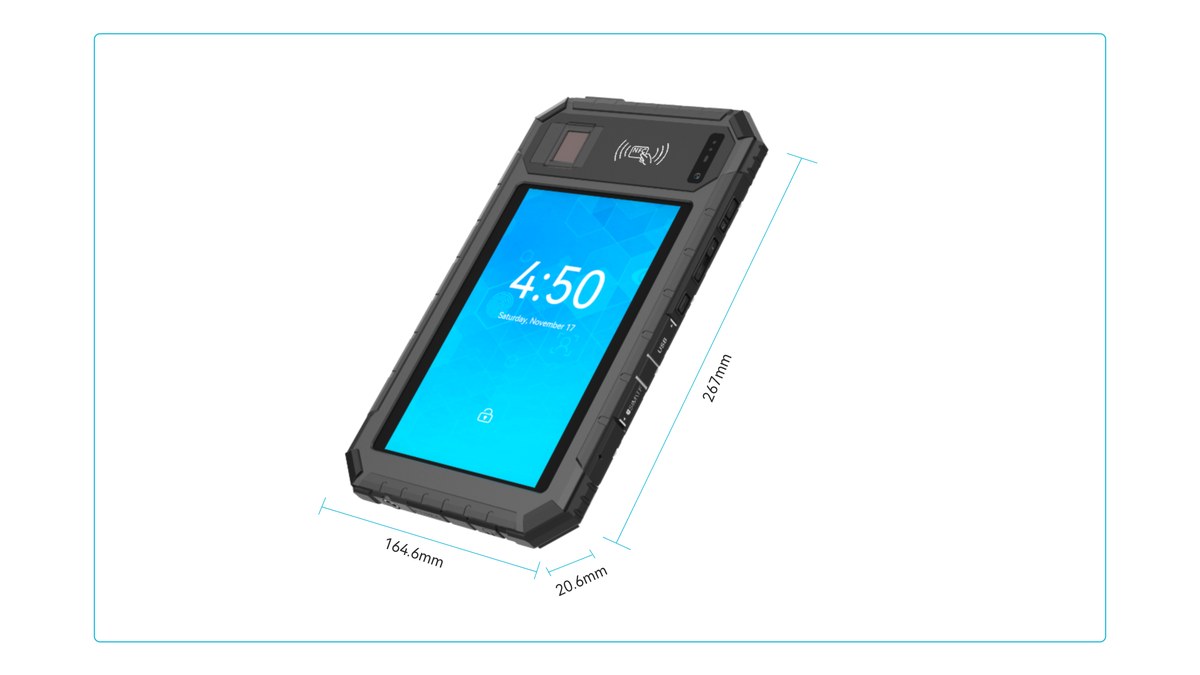

| Size | 267*164.6*20.6mm (L×W×H) |
| Weight | 1015g |
| Color & Material | Black (PC+ABS) |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA 3.75G (HSDPA + 42.2Mbps, HSUPA + 11.5Mbps), EVDO |
| 3G Band | WCDMA (B1/2/5/8), Evdo: BCO/BC1 CDMA: BCO/BC1 |
| 4G | FDD: 150Mbps down, 50Mbps up TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE (?B38/39/40/4); FDD LTE (B1/2/3/4/5/7/8/12/17/20/28) |
| Wi-Fi | Dual-band WiFi (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| BT | 5.0 Low Energy (LE) |
| Industrial & Reliability Design | |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| Reliability | MTBF>5000h; MTTR<0.5h |
| Certification/OS/Software | |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese,Chinese Traditional, etc. |
| OS | Android 11 |
| Package/Warranty terms | |
| Warranty | 24 months |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box/Aircraft box/Toolkit (optional)/SIM Card Ejector |
FUNCTION MODULES
| NFC | ||
|---|---|---|
| NFC | Frequency | 13.56MHz |
| Protocol standard | ISO14443A/B, ISO15693, NFC | |
| Label standard | M1(S50, S70), CPU, NFC | |
| Read-write distance | 2-5cm | |
| Data Collection | ||

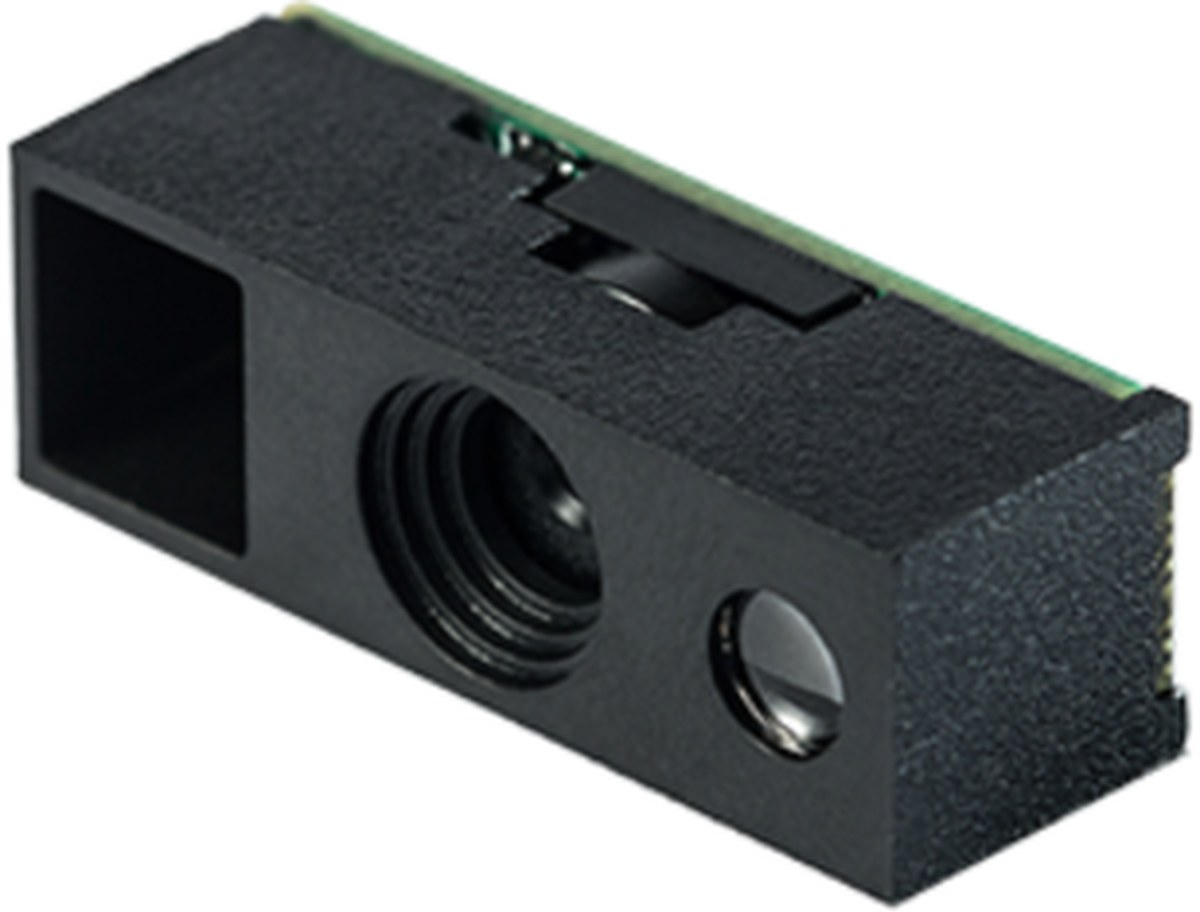

| E20 | Scanning engine | E20 Barcode Module |
| 2D | QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code, Dotcode, Composite. | |
| 1D | Code 128 (ISBT 128, AIM 128, GSI 128), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban. | |
| Verification and collection | ||

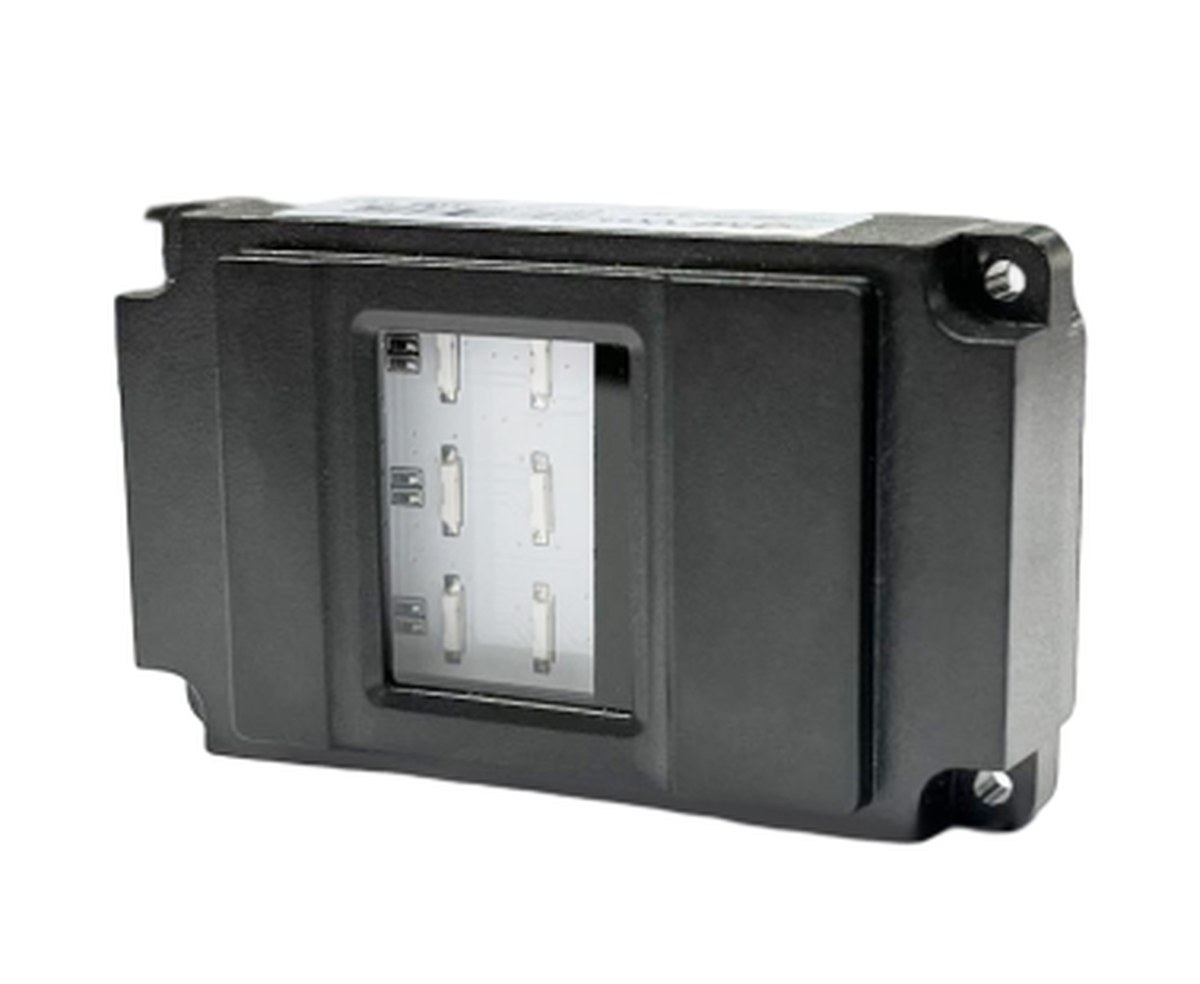

| Thin film opticalfingerprint sensor | FAP20 SM-92M | |
| Sensor Type: Optical CMOS | ||
| Live Detection: support | ||
| Image Resolution: 500DPI | ||
| Image size: 300X400 pixel (W*H) | ||
| Image grayscale leve: 256 | ||
| Compliant with ISO 19749: 2021 certification standard FBI-PIV&FAP20 standard | ||

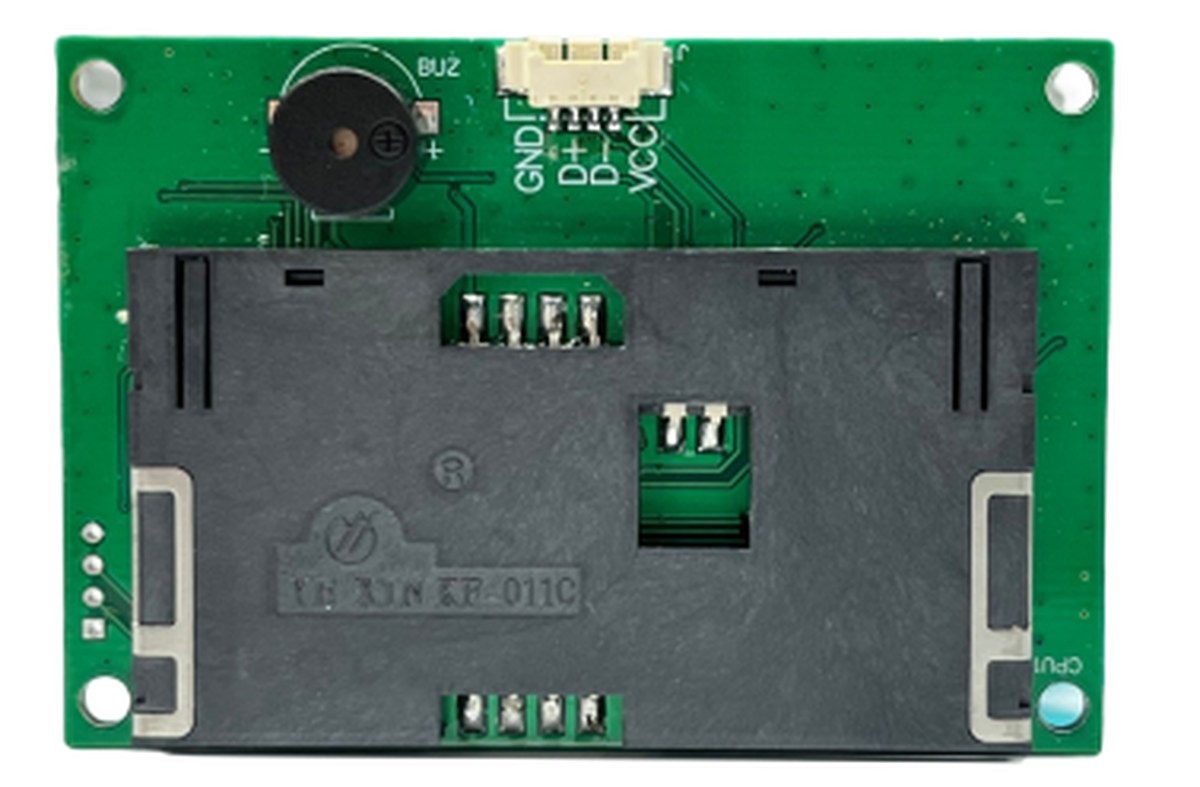

| C1 contact read/write module | ||
| Card reading time | Common logic encryption IC card and T=0, 1 protocol CPU card | |
| Reading distance | Support for 1 SAM card according to GSM 11.11 (optional) | |
