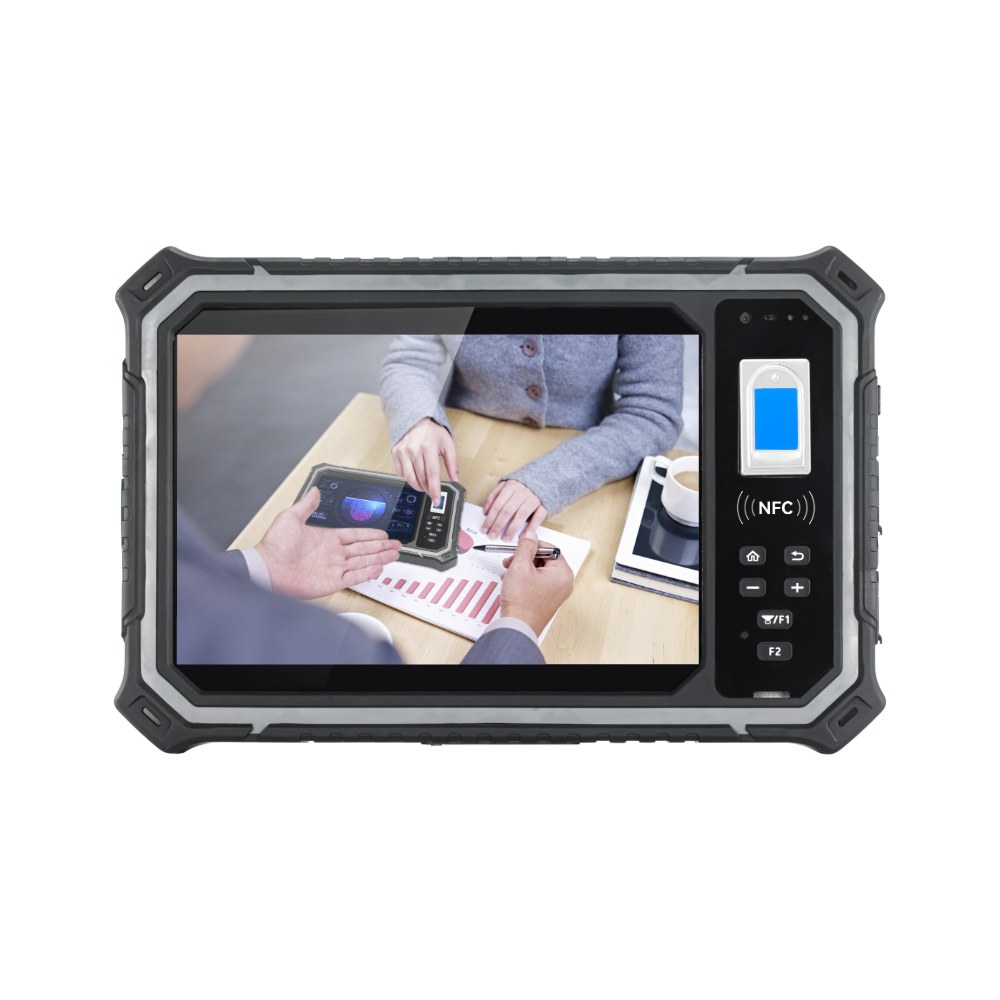

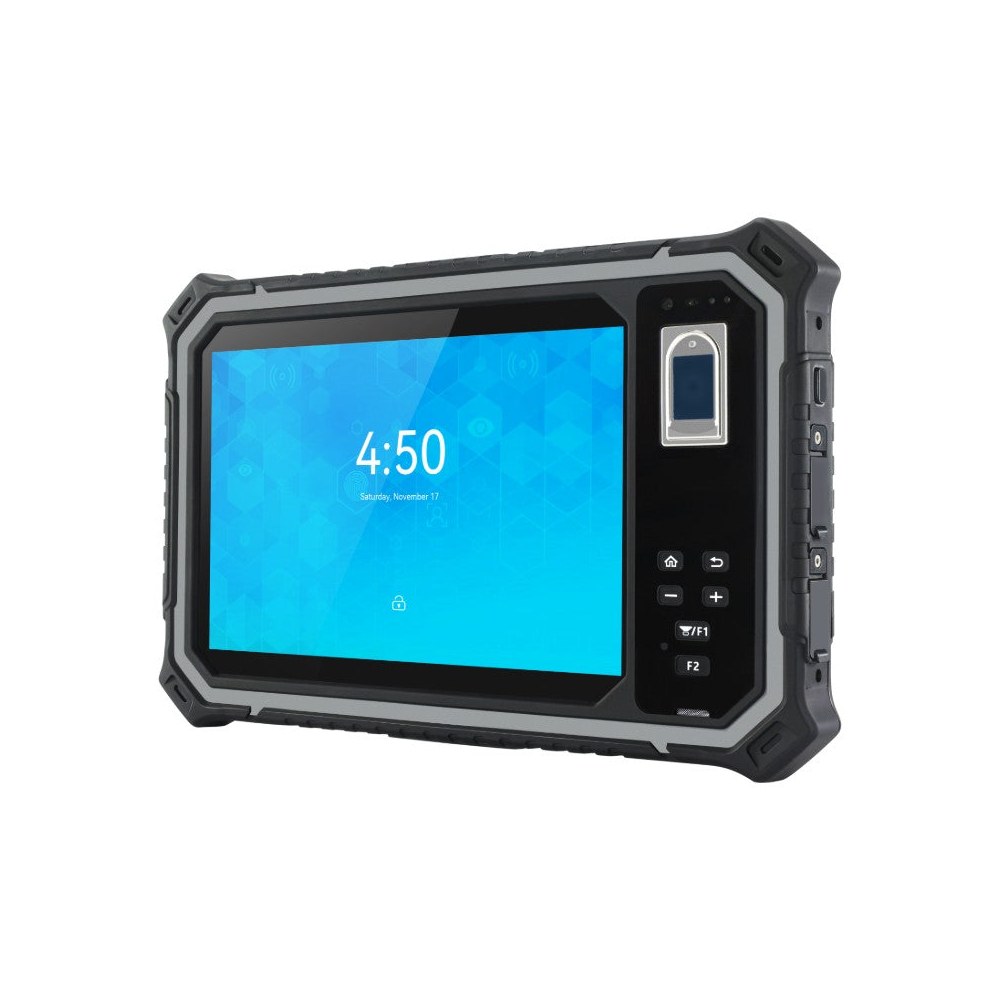

HUGEROCK B80 Rugged Tablets
8 inch IPS/AFFS FHD 1920*1200 industrial 1000nit Sunlight -Readable, 8G + 128G, 18900mAh, Android 10 / 11, ARM Cortex A73 Octa-core (2.0GHz)
HUGEROCK B80 is a rugged tablet in the Rugged Biometric Tablets collection. 1000nit FHD display，combined with anti-glare reflective film technology，can clearly display in any strong light environment.
Display: 8 inch IPS/AFFS FHD 1920*1200 industrial 1000nit Sunlight -Readable
Memory: 8G; Storage: 128G
Battery: 18900mAh
System: Android 10 / 11
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

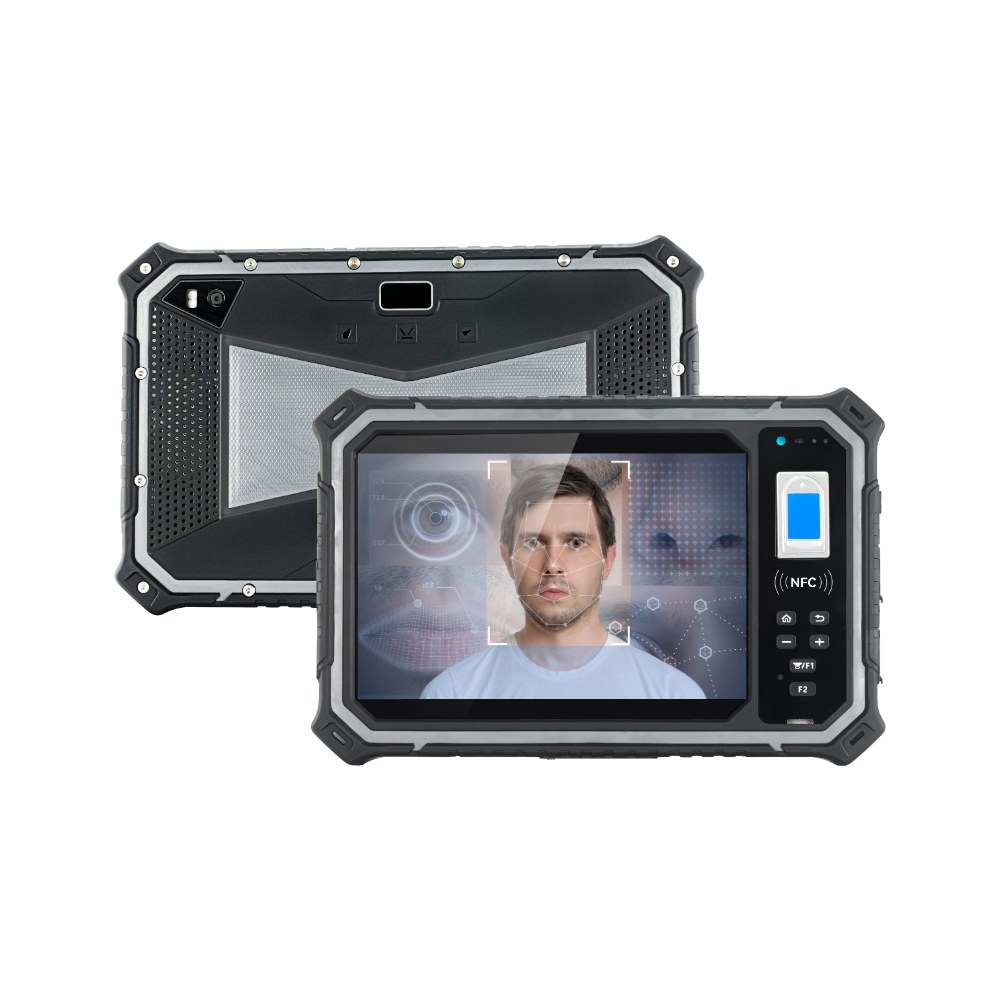

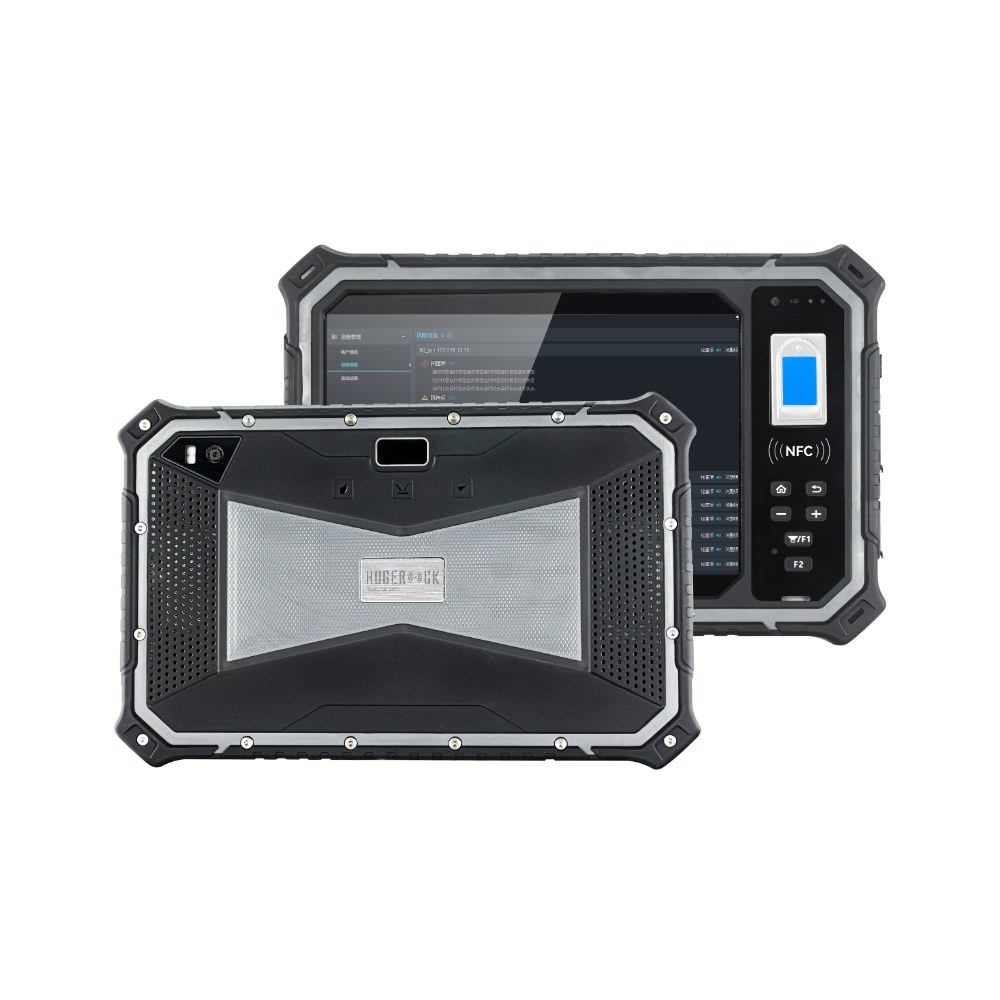

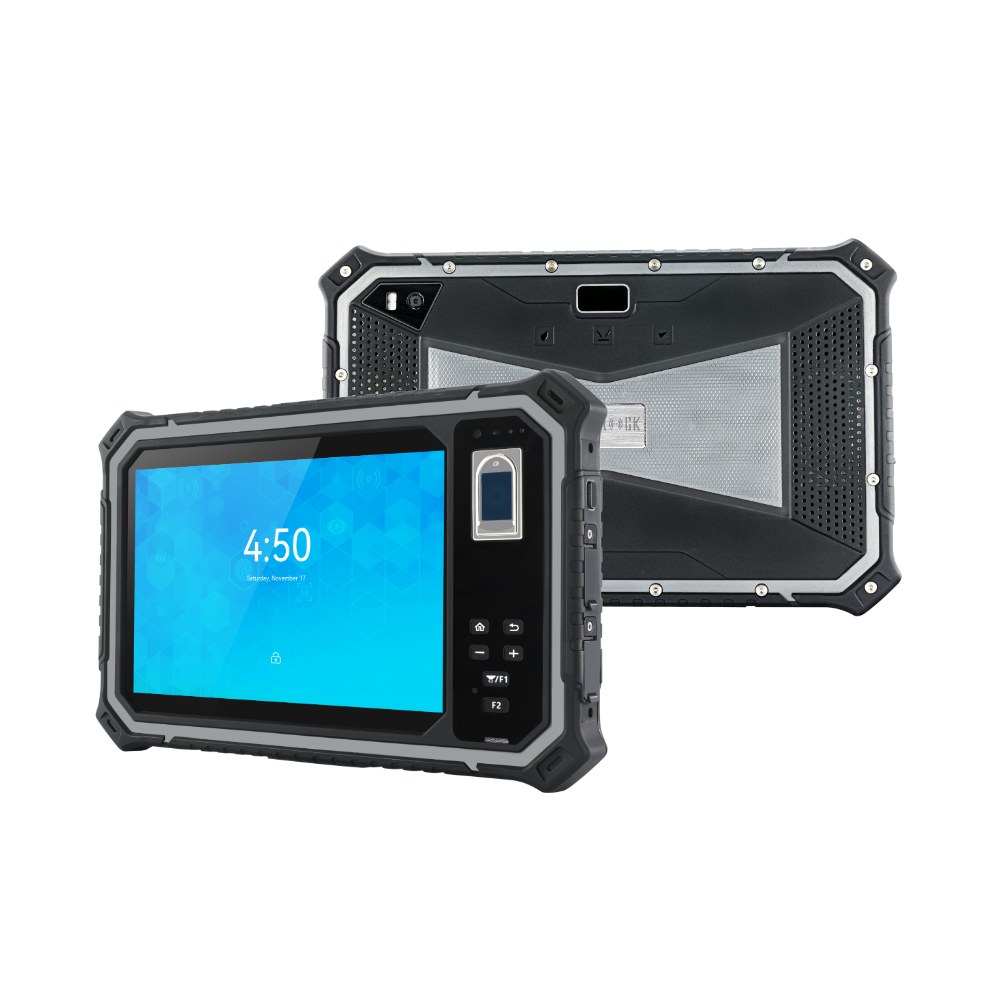

HUGEROCK B80 Rugged Tablets
HUGEROCK B80 is a rugged tablet in the Rugged Biometric Tablets collection. 1000nit FHD display，combined with anti-glare reflective film technology，can clearly display in any strong light environment.
HUGEROCK B80 hardware and system
HUGEROCK B80 brings together the hardware and operating-system specifications below. CPU: ARM Cortex A73 Octa-core (2.0GHz). OS: Android 10 / 11. Memory: 8G. Storage: 128G. The Specs tab lists the configuration details, optional modules and version differences. Those tables should be checked against the configuration required for each order.
Display, battery and physical design

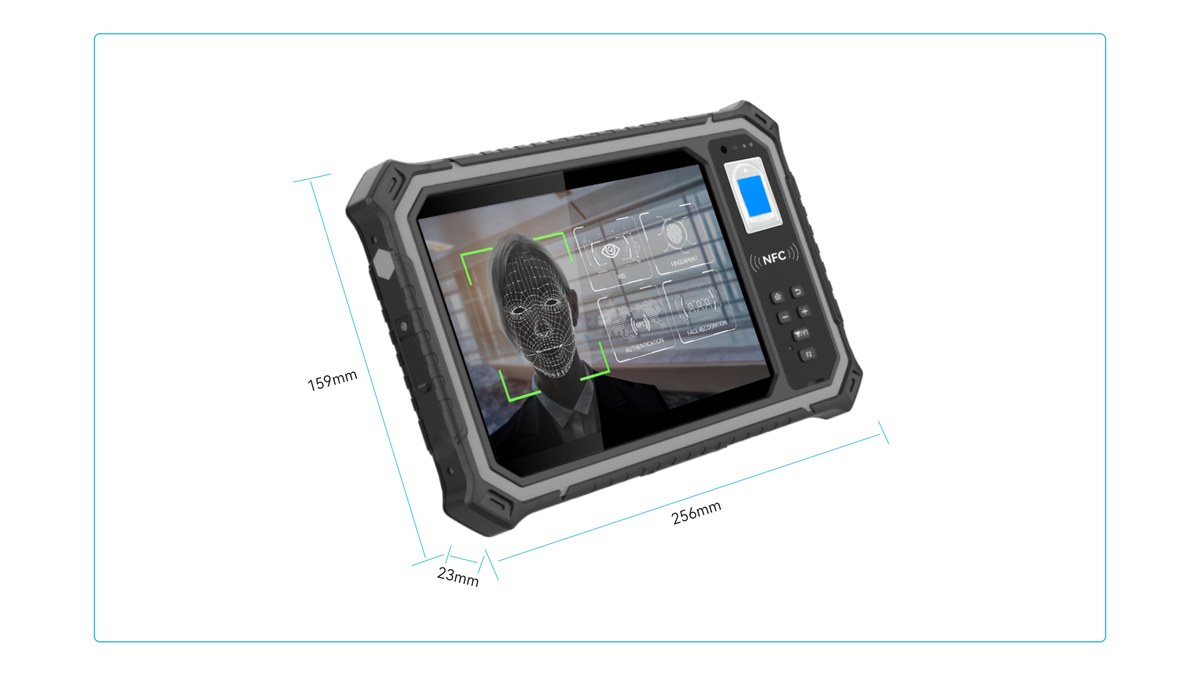

Battery: 18900mAh. Display: 8 inch IPS/AFFS FHD 1920*1200 industrial 1000nit Sunlight -Readable. Dimensions: 256*159*23mm (LxWxH). Weight: 1015g. Touch: Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen. Screen size, resolution and brightness are useful points when comparing a device for indoor and outdoor work. The battery, dimensions and weight provide additional information for deciding how the terminal will be carried or mounted. Any removable battery, mounting hardware or optional module should be selected according to the corresponding specification table.
Connectivity and data collection
Network: wifi, GSM, 4g, 3G. Navigation: GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m). Camera: 13.0MP(AF) with flash led. Front Camera: 5.0MP. Data ports: USB Type-A(Host)*1, Type-C*1. The available interfaces and communication specifications help assess compatibility with the intended workflow. Check the full network bands and module parameters before choosing a configuration. Listed optional functions describe configuration possibilities; they do not mean every module is installed on every unit.
HUGEROCK B80 product features
1000 NIT
1000nit FHD display，combined with anti-glare reflective film technology，can clearly display in any strong light environment.
FULL RUGGED
Industrial protection grade IP67，MIL-810G Drop-proof 5ft.
MORE FAST
Adopt Helio P60 A73 12nm FinFET 8-core proccessor solution and 8G RAM.
PROFESSIONAL
Certified by FBI and ROHS.
DURABLE
Thanks to the new extremely hard cover glass,It is protected against ESD well above 15 KV,as well as scratches,impacts and everyday wear-and-tear.
CONVENIENT
It can acquire a full fingerprint image at one touch.
ACCURATELY
IDENTIFY
ACCURATELY IDENTIFY
It deliveries superior quality image which has effectively more than 32768 grayscale resolutions in every pixel.

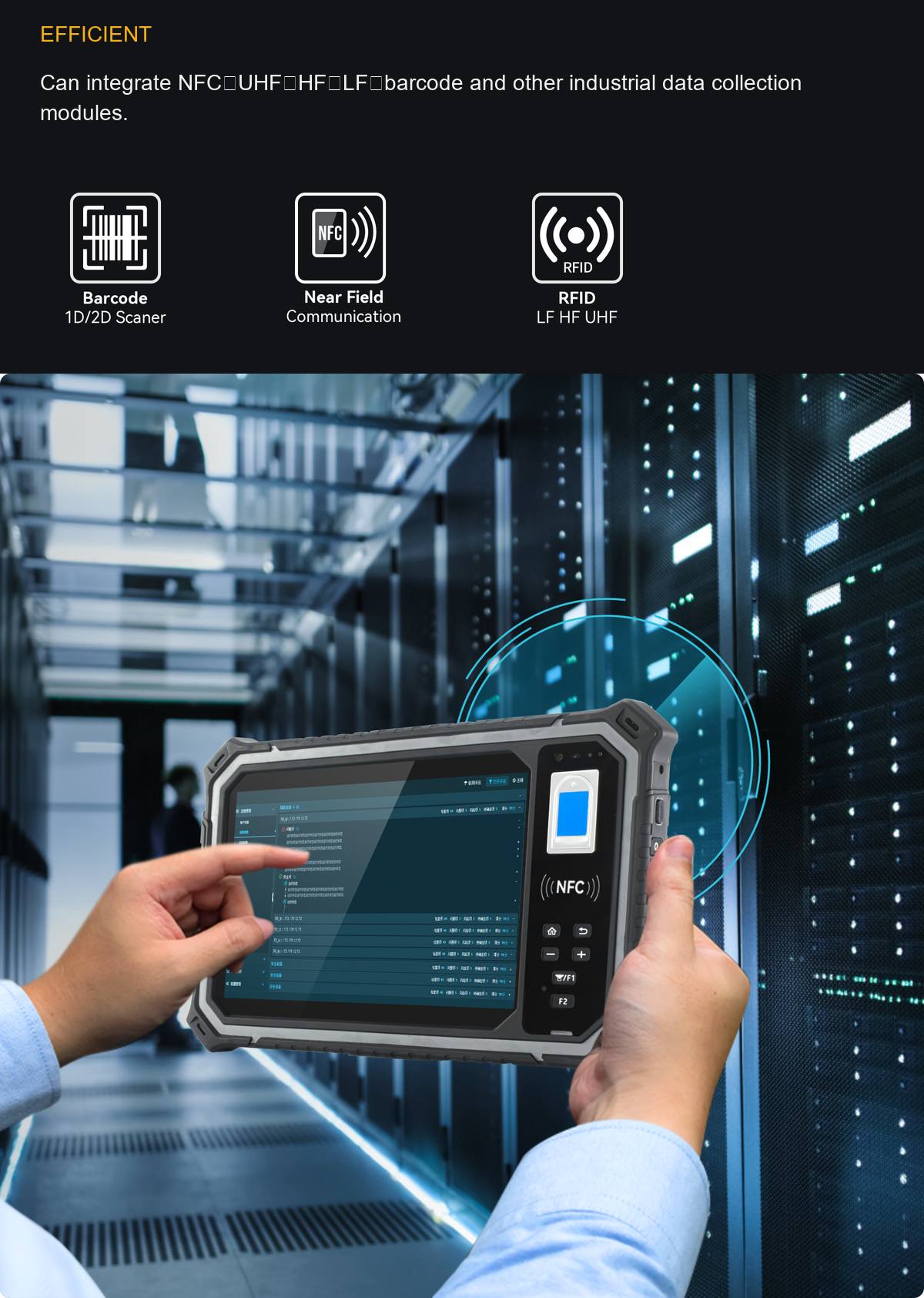

EFFICIENT
Can integrate NFC，UHF，HF，LF，barcode and other industrial data collection modules.
POWERFUL
18900mAh battery，can work continuously for 12 hours.
Product photos and specifications
The HUGEROCK B80 gallery shows the product itself. Review the Specs tab for all listed technical fields, appearance diagrams, comparison tables and module information. Browse our Rugged Biometric Tablets collection to compare more models.
Product attributes
| Screen Size | 8" |
|---|---|
| Memory Capacity | 8GB |
| Display resolution | 1920x1200 |
| Operating System | Android 13 |
| Type | Tablet PC |
| Drive Interface | USB Type C |
| Processor Manufacture | MTK |
| Use | Industrial |
| Network | wifi, GSM, 4g, 3G |
| Warranty(Year) | 2-Year |
| Scenarios | For Professional |
| Feature | Waterproof , Shockproof, Drop resistance, Anti-Dust, Soft, Hard, SDK available |
| charging interface | Type-C & 4PIN magnetic charging |
| Processor Type | Octa Core |
| Processor Main Frequency | 2.0GHZ |
| Touch Screen Type | Capacitive Screen |
| Weight | 1015g |
| Place of Origin | Guangdong, China |
| Brand Name | HUGEROCK |
| Model Number | B80(058) |
| CPU | ARM Cortex A73 octa-core(2.0GHz ) |
| GPU | Arm Mali--G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| Display | 8 inch IPS/AFFS FHD 1920*1200 industrial 1000nit Sunlight -Readable |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 18900mAh |
| SIM Card | Nano sim card*2 |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Single package size: | 39X27X10 cm |
| Single gross weight: | 3.000 kg |

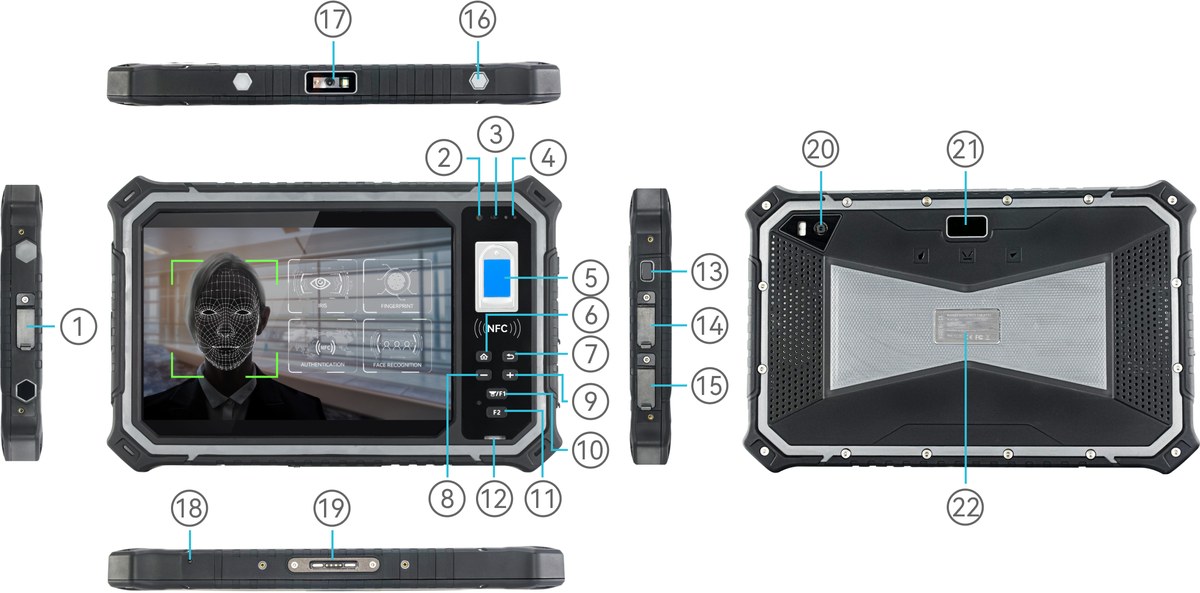

APPEARANCE
| 1: | Type-A(Sealed Cover) |
| 2: | Sub Camera |
| 3: | Light sensor |
| 4: | Charge lamp |
| 5: | The fingerprint module |
| 6: | Home button |
| 7: | Back button |
| 8: | Volume Down |
| 9: | Volume Up |
| 10: | Scan button |
| 11: | Defined button |
| 12: | Speaker |
| 13: | Power button |
| 14: | SIM/TF card slot(Sealed Cover) |
| 15: | Type-c(Sealed Cover) |
| 16: | SMA interface(Optional) |
| 17: | Barcode module(Optional) |
| 18: | Mic |
| 19: | 4PIN magnetic charging interface(Optional) |
| 20: | Main camera |
| 21: | 10PIN expansion interface |
| 22: | Nameplate |
TECHNICAL SPECIFICATIONS
| Hardware | |
| CPU | ARM Cortex A73 Octa-core (2.0GHz) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card (T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 18900mAh |
| Display | 8 inch IPS/AFFS FHD 1920*1200 industrial 1000nit Sunlight -Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | Nano sim card*2 |
| TF Card | Micro SD card (T-FLASH card); max 256GB |
| Headphone | 3.5mm (CTIA) |
| Charging interface | Type-C & 4PIN magnetic charging |
| Data interface | USB Type-A(Host)*1, Type-C*1 |
| Direction Sensor | support |
| Gravity sensor | support |
| Magnetic Field Sensor | support |
| Motion sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |
| Size | 256*159*23mm (LxWxH) |
| Weight | 1015g |
| Color & Material | Gray (PC+ABS) |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA |
| 3G Band | WCDMA 3.75G (HSDPA + 42.2Mbps, HSUPA + 11.5Mbps), EVDO |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE (B38/39/40/4); FDD LTE (B1/2/3/4/5/7/8/12/17/20/28) |
| WI- FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 4.2 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/ 0.10mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 7 (IEC 60529) |
| Dustproof | Class 6 (IEC 60529) |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| Reliability | MTBF=50000h; MTTR=0.5h |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500m (15,000 feet) |
| Certification/OS/Software | |
| Certification | 3C/FCC/CE/ROHS/IP67 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hebrew, Simplified, Chinese,Chinese Traditional, etc. |
| OS | Android 10 / 11 |
| Package/Warranty terms/OEM | |
| Warranty | 24 months |
| OEM/ODM | Support |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box (Can be customized logo)/Aircraft box/Toolkit (optional)/SIM Card Ejector |
FUNCTION MODULES
| NFC | ||
|---|---|---|
| NFC Module | Frequency | 13.56MHz |
| Protocol standard | ISO14443A/B, ISO15693, NFC | |
| Label standard | M1(S50, S70), CPU, NFC | |
| Read-write distance | 2-5cm | |
| Data Collection | ||

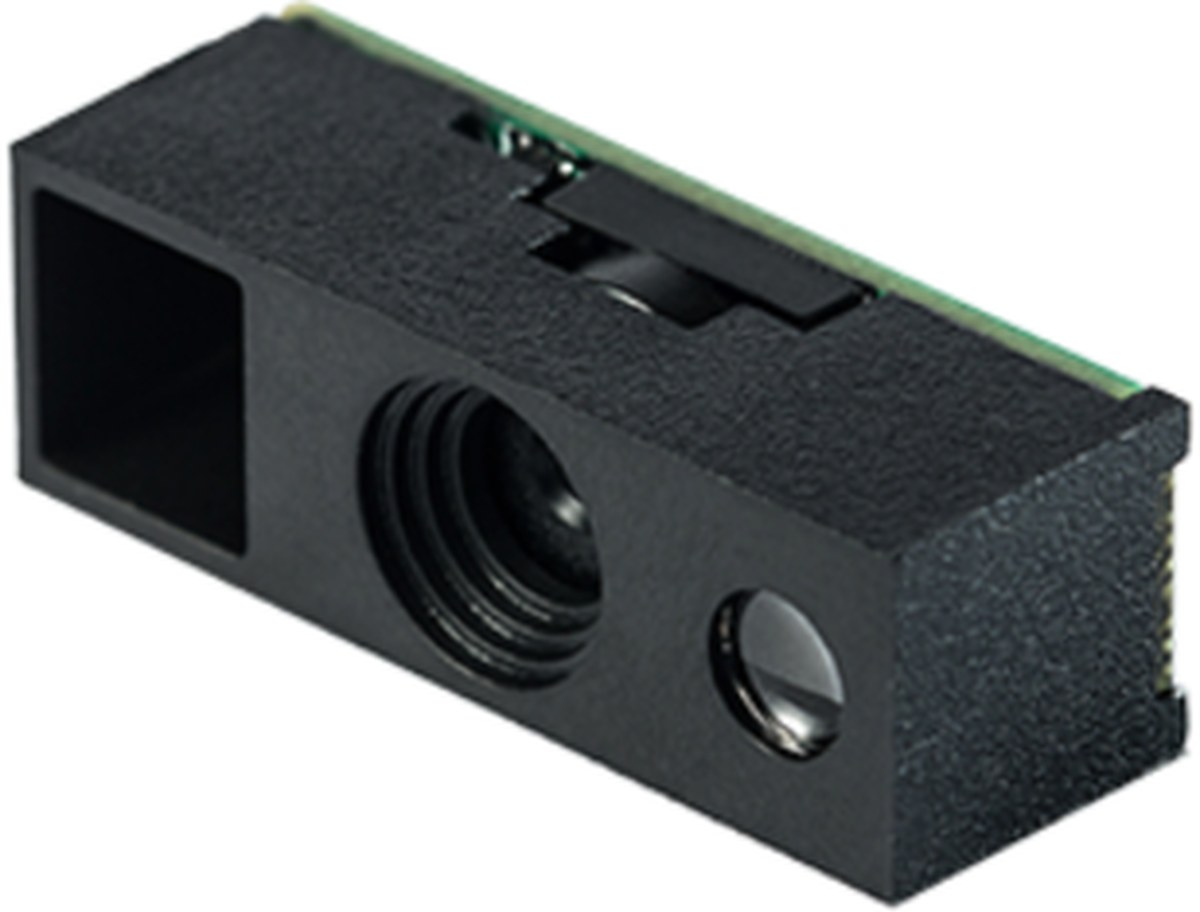

| N1 | Scanning engine | Newland N1 |
| 1D | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, ETC. | |
| 2D | Code39, Code128, PDF417, MicroPDF417, DataMatrix, Composite, RSS,TLC-39, QR code, Micro QR code, Aztec, Maxicode, Postal Code; US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, etc. | |
| Verification and collection | ||

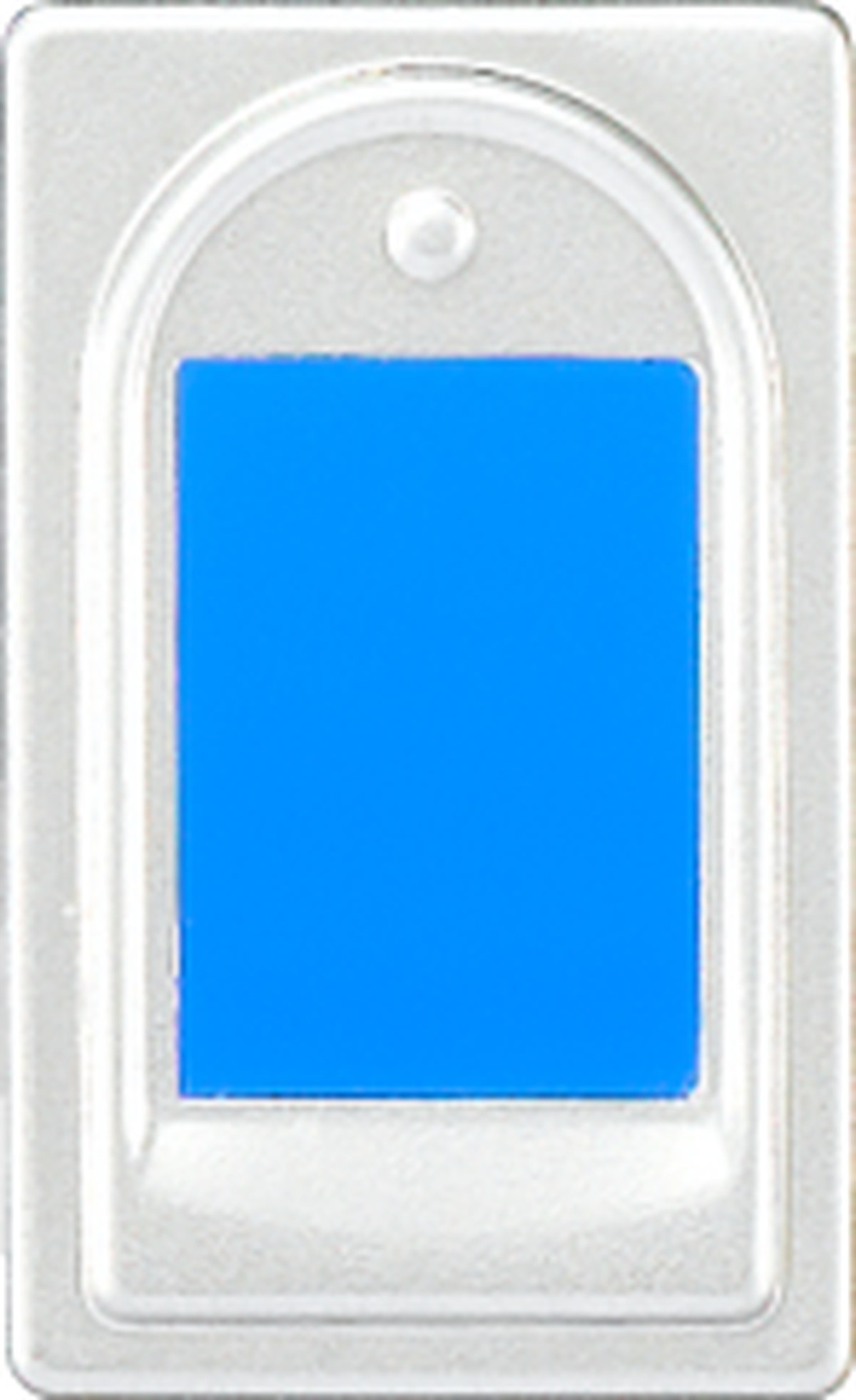

| Thin film optical fingerprint module | Thin film optical fingerprint sensor | Grayscale 32768 |
| FAP10, 500 dpi, 8 bit, 256X360. | ||
| FBI MINEX III (NIST Certification) | ||
| RoHS Certification | ||
