HUGEROCK B70 Rugged Tablets
7 inch IPS, 8G + 128G, 10000mAh, Android 10 / 11, ARM Cortex A73 Octa-core (2.0GHz)
HUGEROCK B70 is a rugged tablet in the Rugged Biometric Tablets collection. It deliveries superior quality image which has effectively more than 32768 grayscale resolutions in every pixel.
Display: 7 inch IPS
Memory: 8G; Storage: 128G
Battery: 10000mAh
System: Android 10 / 11
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
HUGEROCK B70 Rugged Tablets
HUGEROCK B70 is a rugged tablet in the Rugged Biometric Tablets collection. It deliveries superior quality image which has effectively more than 32768 grayscale resolutions in every pixel.
HUGEROCK B70 hardware and system
HUGEROCK B70 brings together the hardware and operating-system specifications below. CPU: ARM Cortex A73 Octa-core (2.0GHz). OS: Android 10 / 11. Memory: 8G. Storage: 128G. The Specs tab lists the configuration details, optional modules and version differences. Those tables should be checked against the configuration required for each order.
Display, battery and physical design

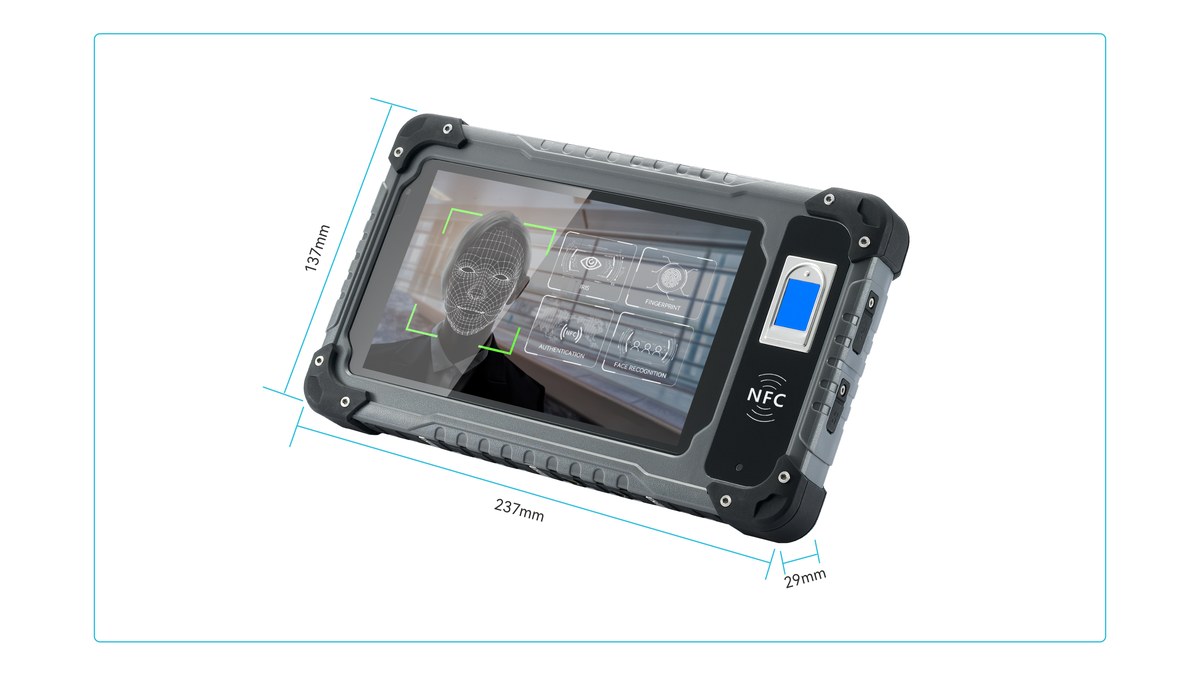

Battery: 10000mAh. Display: 7 inch IPS. Dimensions: 237*137*29mm (LxWxH). Weight: 780g. Touch: Capacitive Screen. Screen size, resolution and brightness are useful points when comparing a device for indoor and outdoor work. The battery, dimensions and weight provide additional information for deciding how the terminal will be carried or mounted. Any removable battery, mounting hardware or optional module should be selected according to the corresponding specification table.
Connectivity and data collection
Network: wifi, GSM, 4g, 3G. Navigation: GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m). Camera: 13.0MP(AF) with flash led. Front Camera: 5.0MP. Data ports: USB Type-A(Host)*1, Type-C(OTG)*1. The available interfaces and communication specifications help assess compatibility with the intended workflow. Check the full network bands and module parameters before choosing a configuration. Listed optional functions describe configuration possibilities; they do not mean every module is installed on every unit.
HUGEROCK B70 product features
MORE
FAST
MORE FAST
AdoptHelio P60 A73 12nm FinFET 8-core processor solution and 8G RAM/128G storage.
CONVENIENT
It can acquire a full fingerprint image at one touch.

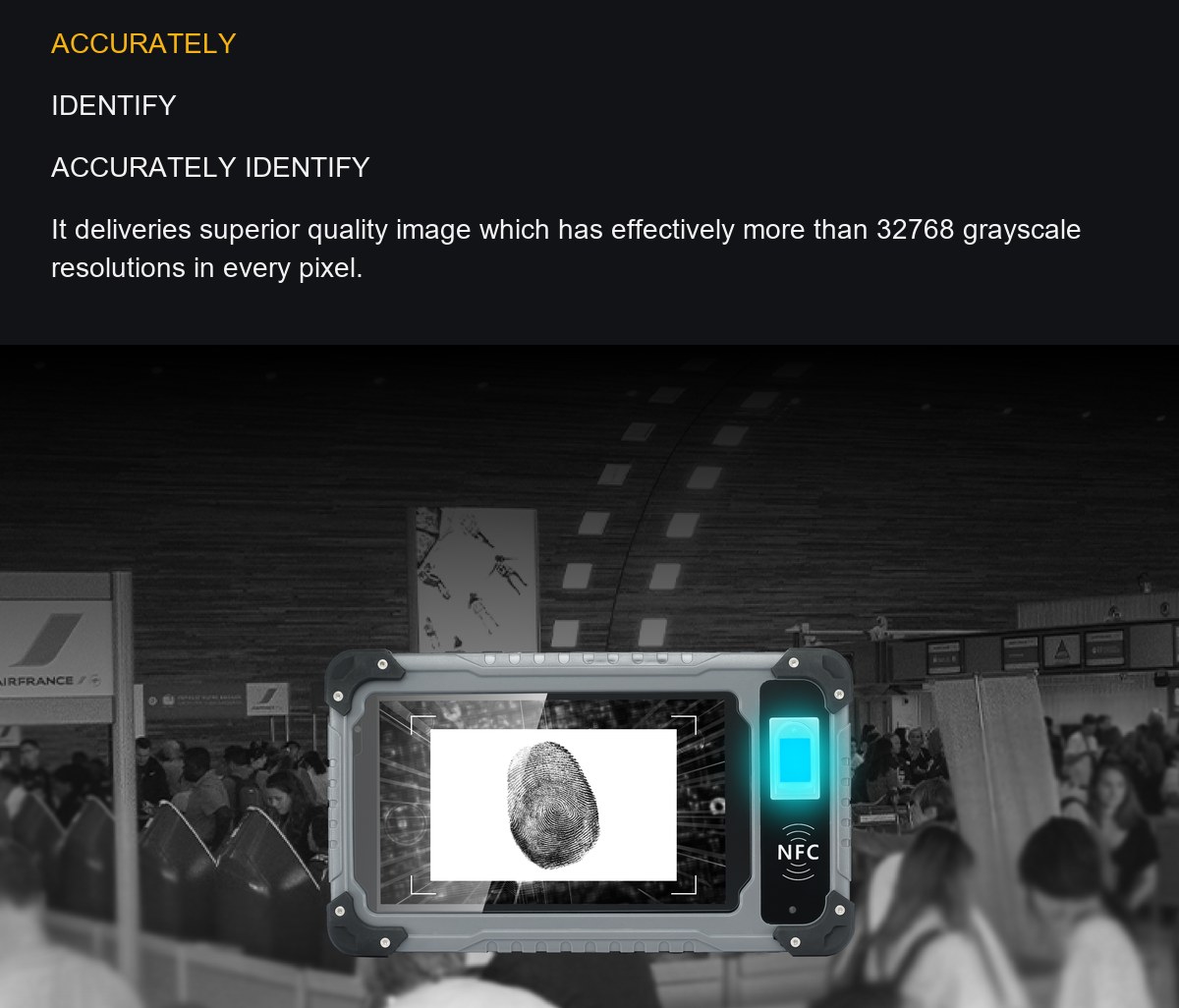

ACCURATELY
IDENTIFY
ACCURATELY IDENTIFY
It deliveries superior quality image which has effectively more than 32768 grayscale resolutions in every pixel.
PROFESSIONAL
Certified by FBI and ROHS.
FULL
RUGGED
FULL RUGGED
Industrial protection grade IP65,MIL-810G Drop-proof 5ft.
DURABLE
Thanks to the new extremely hard cover glass, It is protected against ESD well above 15 KV, as well as scratches, impacts and everyday wear-and-tear.
EFFICIENT
Standard NFC module for fast and efficient identity information verification.

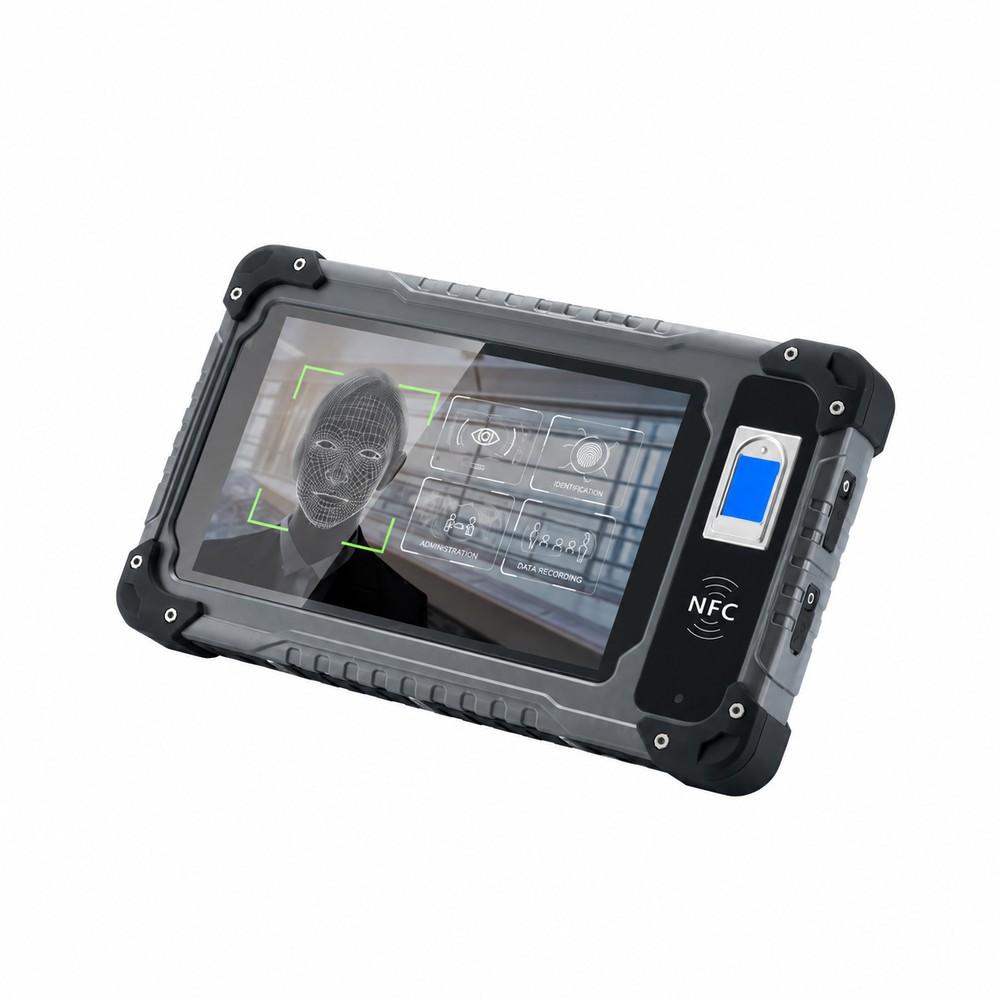

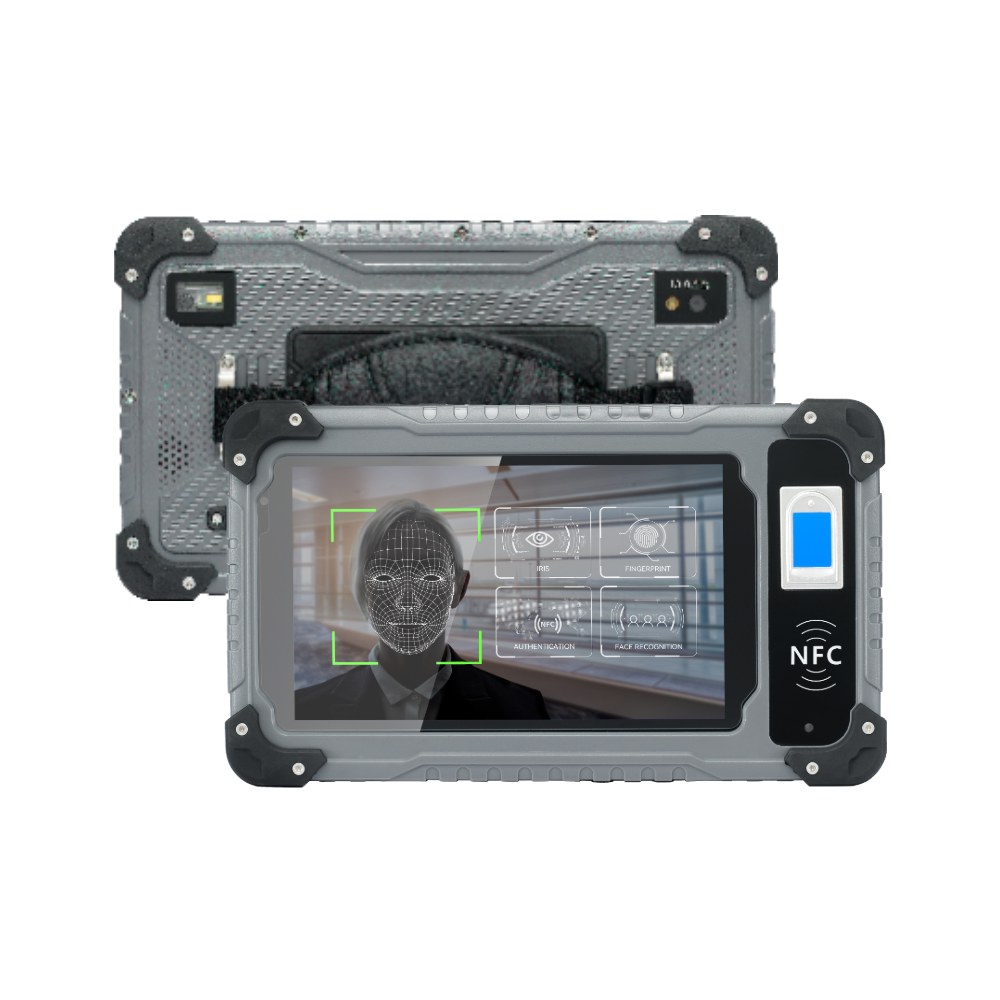

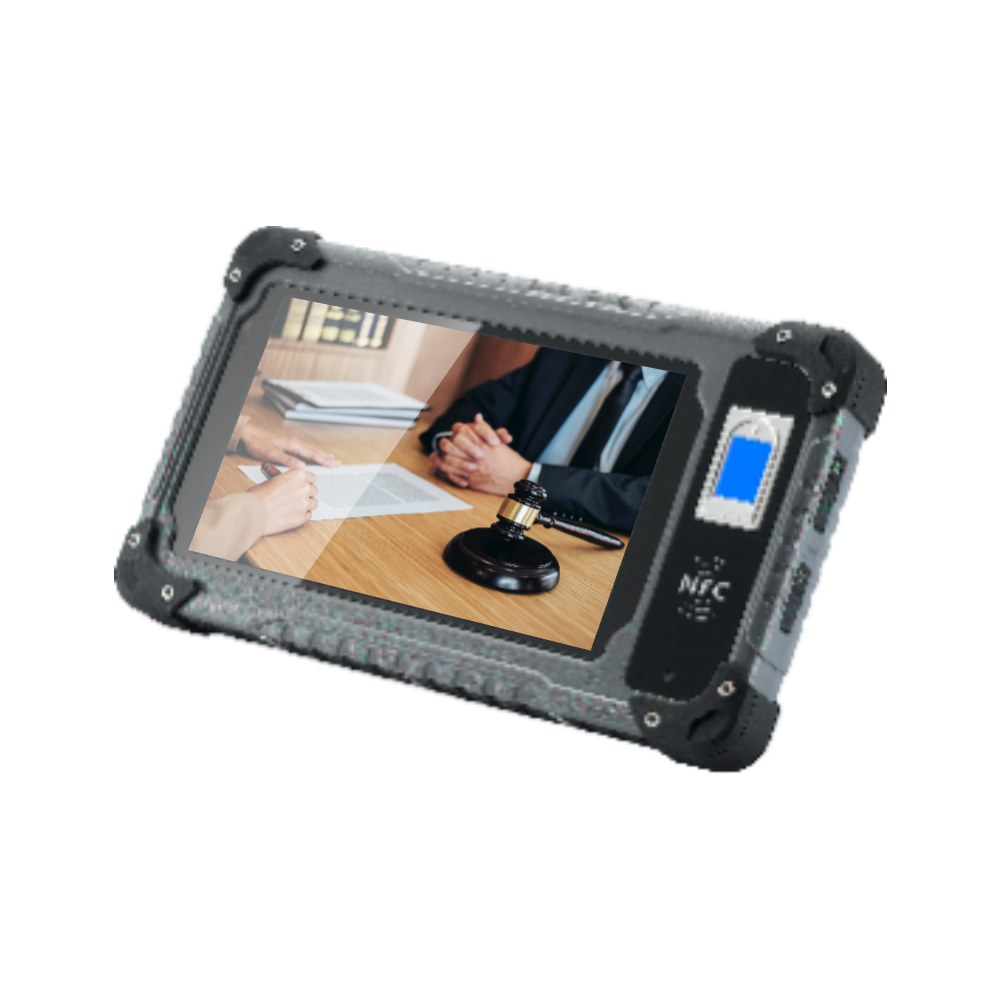

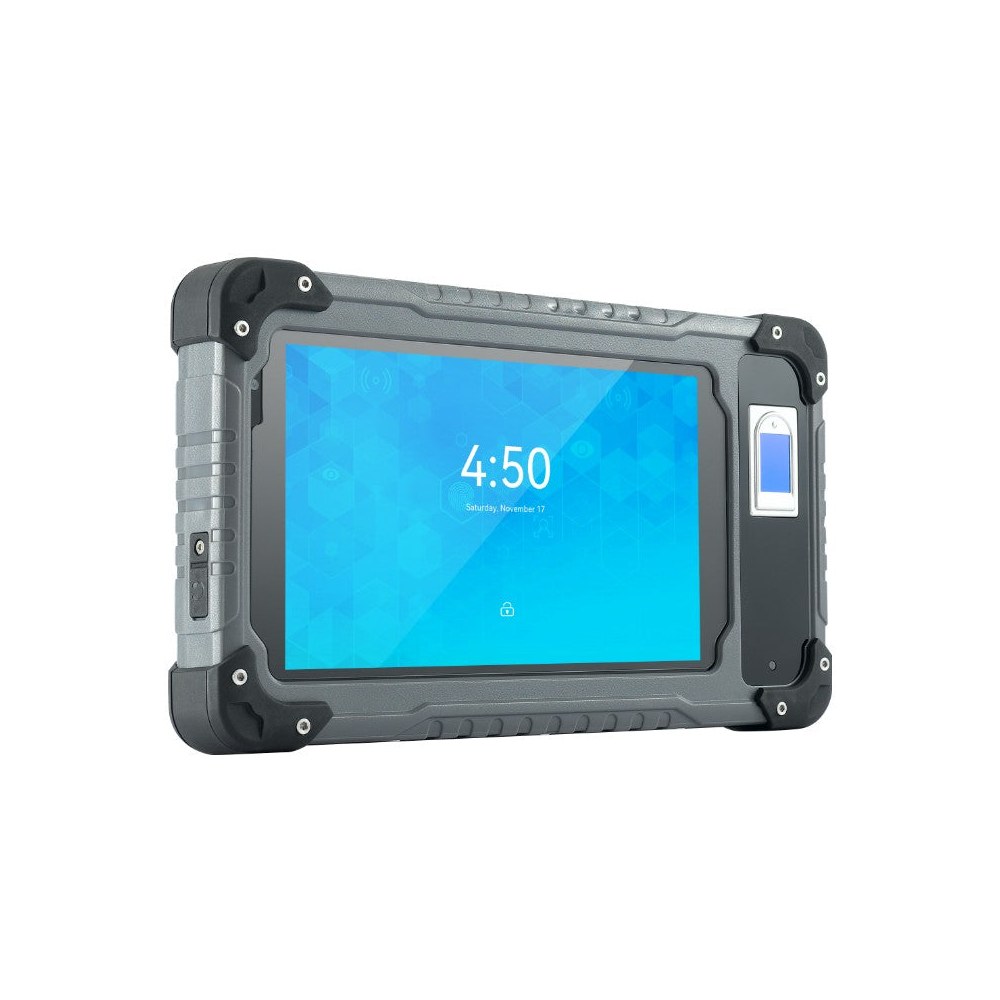

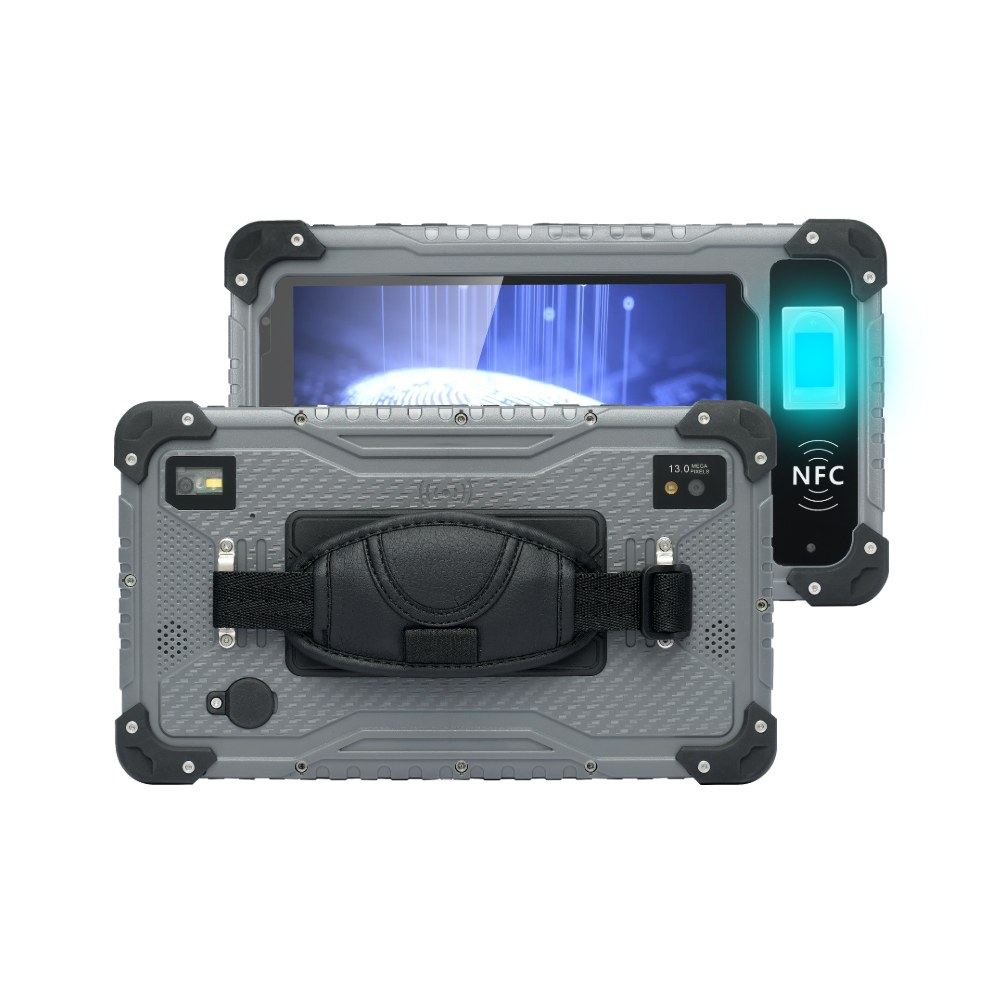

Product photos and specifications
The HUGEROCK B70 gallery shows the product itself. Review the Specs tab for all listed technical fields, appearance diagrams, comparison tables and module information. Browse our Rugged Biometric Tablets collection to compare more models.
Product attributes
| Screen Size | 7" |
|---|---|
| Memory Capacity | 8GB |
| Display resolution | 1280*720 |
| Operating System | Android 11/13 (Continuous Update) |
| Type | Tablet PC |
| Drive Interface | USB Type C |
| Processor Manufacture | MTK |
| Use | Industrial |
| Network | wifi, GSM, 4g, 3G |
| Warranty(Year) | 2-Year |
| Scenarios | For Professional |
| Feature | Waterproof , Shockproof, Drop resistance, Anti-Dust, Soft, Hard, SDK available |
| charging interface | Type-C+2pin pogo pin: DC 5V(direct battery charging) |
| Processor Type | Octa Core |
| Processor Main Frequency | 2.0GHZ |
| Touch Screen Type | Capacitive Screen |
| Weight | 780g |
| Place of Origin | Guangdong, China |
| Brand Name | HUGEROCK |
| Model Number | B70(1056) |
| Display | 7 inch IPS/AFFS 1280*720 HD industrial 1000nit Sunlight Readable |
| CPU | ARM Cortex A73 Octa --core ( 2.0GHz) |
| GPU | Arm Mali--G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 10000mAh |
| SIM Card | 1.8/3.3V SIM card |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Single package size: | 27X25X8 cm |
| Single gross weight: | 2.000 kg |

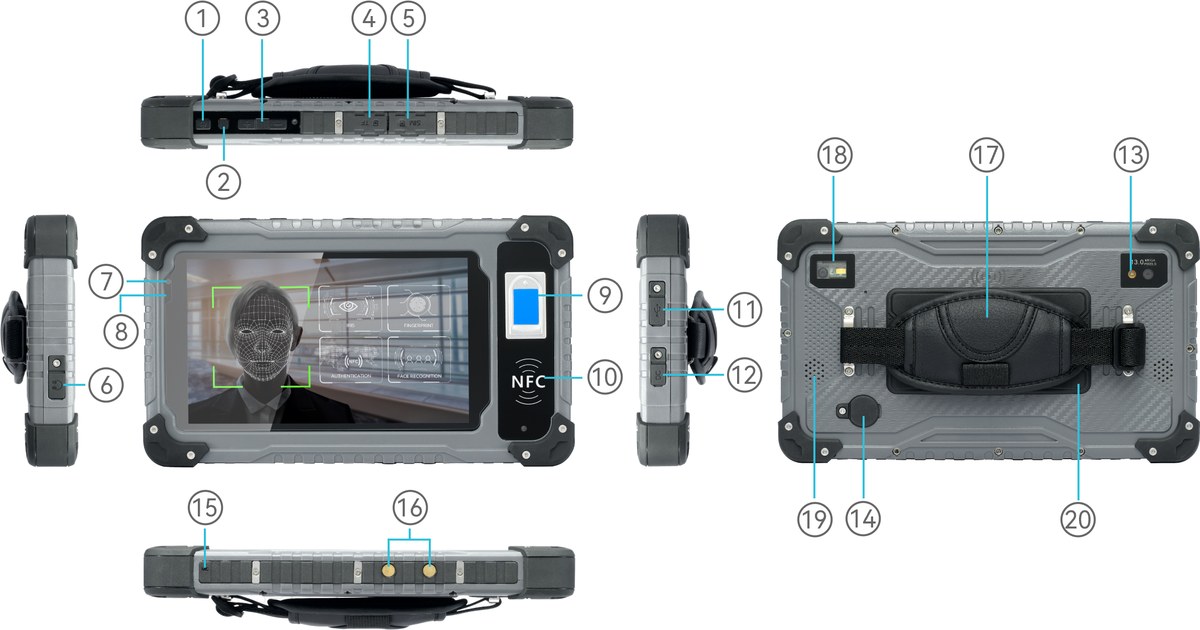

APPEARANCE
| 1: | Power button |
| 2: | Reset button |
| 3: | Volumn up and down |
| 4: | TF-card (Sealed Cover) |
| 5: | SIM -card (Sealed Cover) |
| 6: | Handset Jack (Sealed Cover) |
| 7: | Sub camera |
| 8: | Light sensor |
| 9: | Fingerprint |
| 10: | NFC |
| 11: | Type-c (Sealed Cover) |
| 12: | DC-Type (Sealed Cover) |
| 13: | Main camera |
| 14: | Type-A (Sealed Cover) |
| 15: | MIC |
| 16: | Pogo in |
| 17: | Hand bandage |
| 18: | Barcode Scaner (optional) |
| 19: | Speaker |
| 20: | Nameplate |
TECHNICAL SPECIFICATIONS
| Hardware | |
| CPU | ARM Cortex A73 Octa-core (2.0GHz) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card (T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 10000mAh |
| Display | 7 inch IPS |
| Display Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | 1.8/3.3V SIM card |
| TF Card | Micro SD card (T-FLASH card); max 256GB |
| Headphone | 3.5mm (CTIA) |
| Data interface | USB Type-A(Host)*1, Type-C(OTG)*1 |
| Charging interface | Type-C 2pin pogo pin: DC 5V (direct battery charging) |
| Direction Sensor | support |
| Gravity sensor | support |
| Magnetic Field Sensor | support |
| Motion sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |
| Size | 237*137*29mm (LxWxH) |
| Weight | 780g |
| Color & Material | Gray (PC+ABS) |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (2B/3/5/8) |
| 3G | WCDMA |
| 3G Band | WCDMA 3.75G (HSDPA + 42.2Mbps, HSUPA + 11.5Mbps), EVDO |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE (B38/39/40/41); FDD LTE (B1/2/3/4/5/7/8/12/17/20/28) |
| WI- FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 4.2 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/ 0.10mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 5 (IEC 60529) |
| Dustproof | Class 6 (IEC 60529) |
| Storage Temperature | -40℃ to 80℃ |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500m (15,000 feet) |
| Certification/OS/Software | |
| Certification | 3C/FCC/CE/ROHS/IP65 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hebrew, Simplified, Chinese,Chinese Traditional, etc. |
| OS | Android 10 / 11 |
| Package/Warranty terms/OEM | |
| Warranty | 24 months |
| OEM/ODM | Support |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box/Toolkit (optional) /Aircraft box(optional) |
FUNCTION MODULES
| HF RFID/NFC | ||
|---|---|---|
| NFC Module | Frequency | 13.56MHz |
| Protocol standard | ISO14443A/B, ISO15693, NFC | |
| Label standard | M1(S50, S70), CPU, NFC | |
| Read-write distance | 2-5cm | |

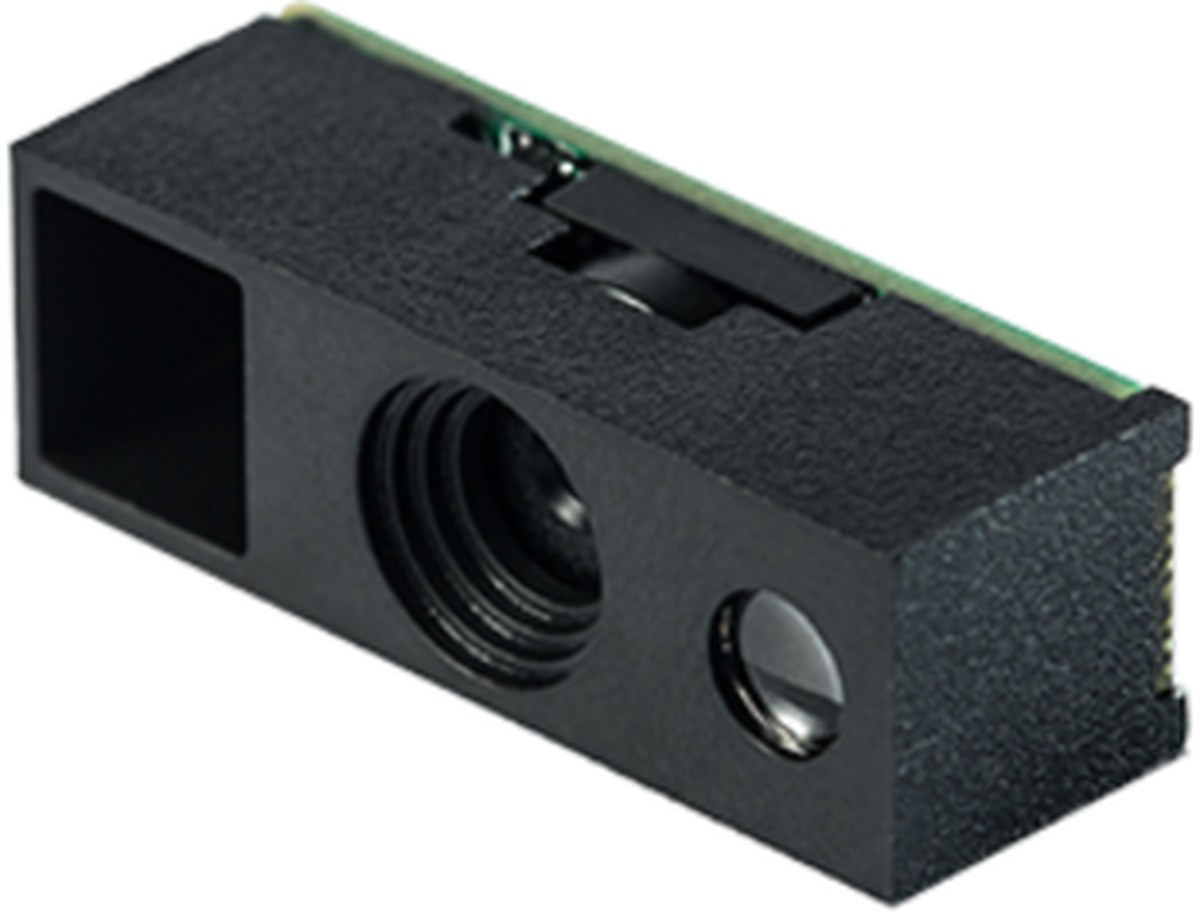

| Data Collection | ||
| N1 | Scanning engine | Newland N1 |
| 1D | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, ETC. | |
| 2D | Code39, Code128, PDF417, MicroPDF417, DataMatrix, Composite, RSS,TLC-39, QR code, Micro QR code, Aztec, Maxicode, Postal Code; US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, etc. | |

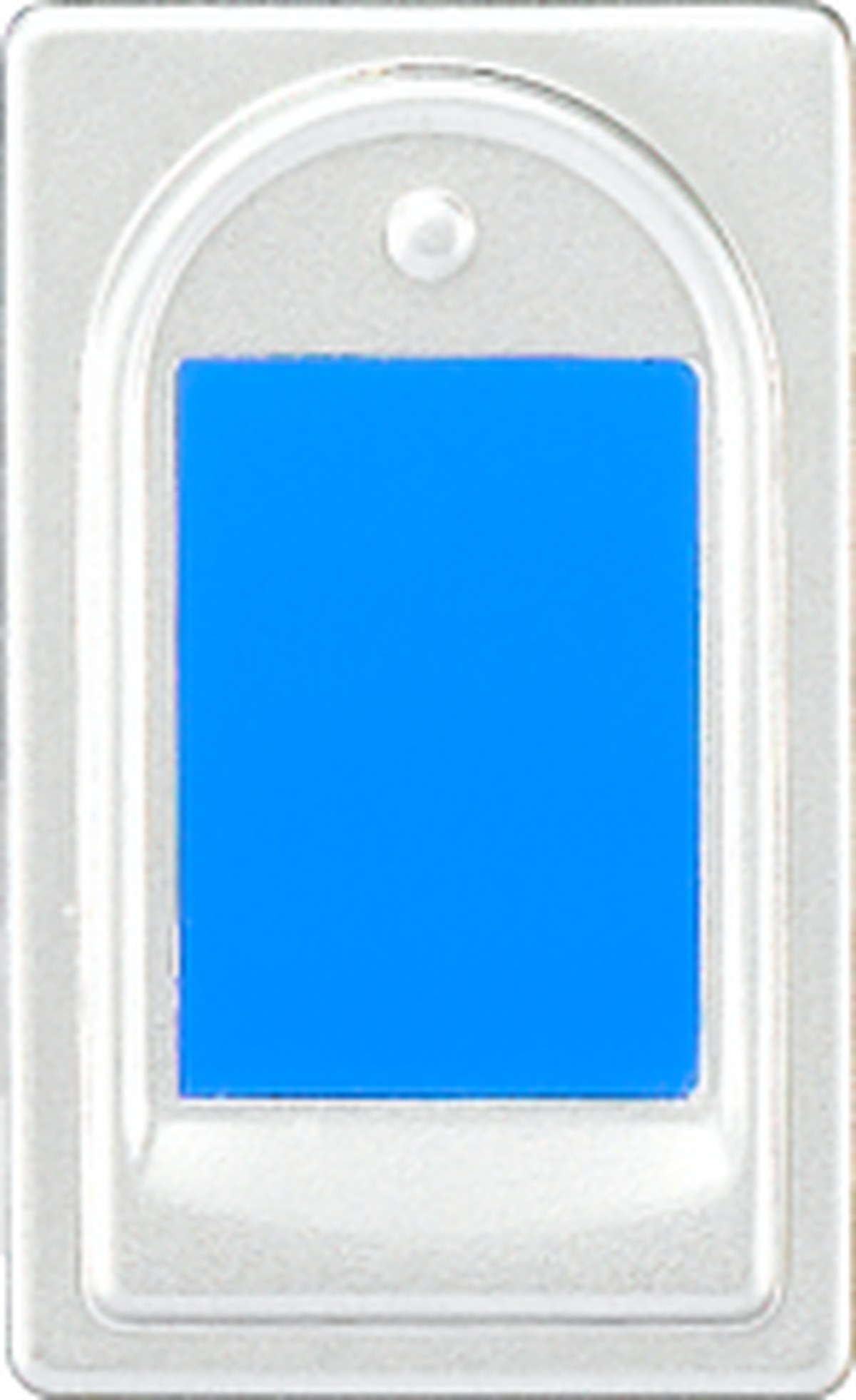

| The fingerprint module | ||
| Thin film optical fingerprint module | Thin film optical fingerprint sensor | Grayscale 32768 |
| FAP10, 500 dpi, 8 bit, 256X360. | ||
| FBI MINEX III (NIST Certification) | ||
| RoHS Certification | ||
