HUGEROCK B102 Rugged Tablets
10.1 inch IPS/AFFS 1920*1200 FHD industrial 450nit Sunlight Readable, 8G + 128G, 14600mAh, Android 10 / 11, ARM Cortex A73 Octa-core (2.0GHz)
HUGEROCK B102 is a rugged tablet in the Rugged Biometric Tablets collection. Thanks to the new extremely hard cover glass, It is protected against ESD well above 15 KV, as well as scratches, impacts and everyday wear-and-tear.
Display: 10.1 inch IPS/AFFS 1920*1200 FHD industrial 450nit Sunlight Readable
Memory: 8G; Storage: 128G
Battery: 14600mAh
System: Android 10 / 11
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
HUGEROCK B102 Rugged Tablets
HUGEROCK B102 is a rugged tablet in the Rugged Biometric Tablets collection. Thanks to the new extremely hard cover glass, It is protected against ESD well above 15 KV, as well as scratches, impacts and everyday wear-and-tear.
HUGEROCK B102 hardware and system
HUGEROCK B102 brings together the hardware and operating-system specifications below. CPU: ARM Cortex A73 Octa-core (2.0GHz). OS: Android 10 / 11. Memory: 8G. Storage: 128G. The Specs tab lists the configuration details, optional modules and version differences. Those tables should be checked against the configuration required for each order.
Display, battery and physical design
Battery: 14600mAh. Display: 10.1 inch IPS/AFFS 1920*1200 FHD industrial 450nit Sunlight Readable. Dimensions: 320*228*12mm (LxWxH). Weight: 975g. Touch: Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen. Screen size, resolution and brightness are useful points when comparing a device for indoor and outdoor work. The battery, dimensions and weight provide additional information for deciding how the terminal will be carried or mounted. Any removable battery, mounting hardware or optional module should be selected according to the corresponding specification table.
Connectivity and data collection
Network: wifi, GSM, 4g, 3G. Navigation: GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m). Camera: 13.0MP(AF) with flash led. Front Camera: 5.0MP. Data ports: USB Type-A(Host)*2, Type-C(OTG)*1. The available interfaces and communication specifications help assess compatibility with the intended workflow. Check the full network bands and module parameters before choosing a configuration. Listed optional functions describe configuration possibilities; they do not mean every module is installed on every unit.
HUGEROCK B102 product features

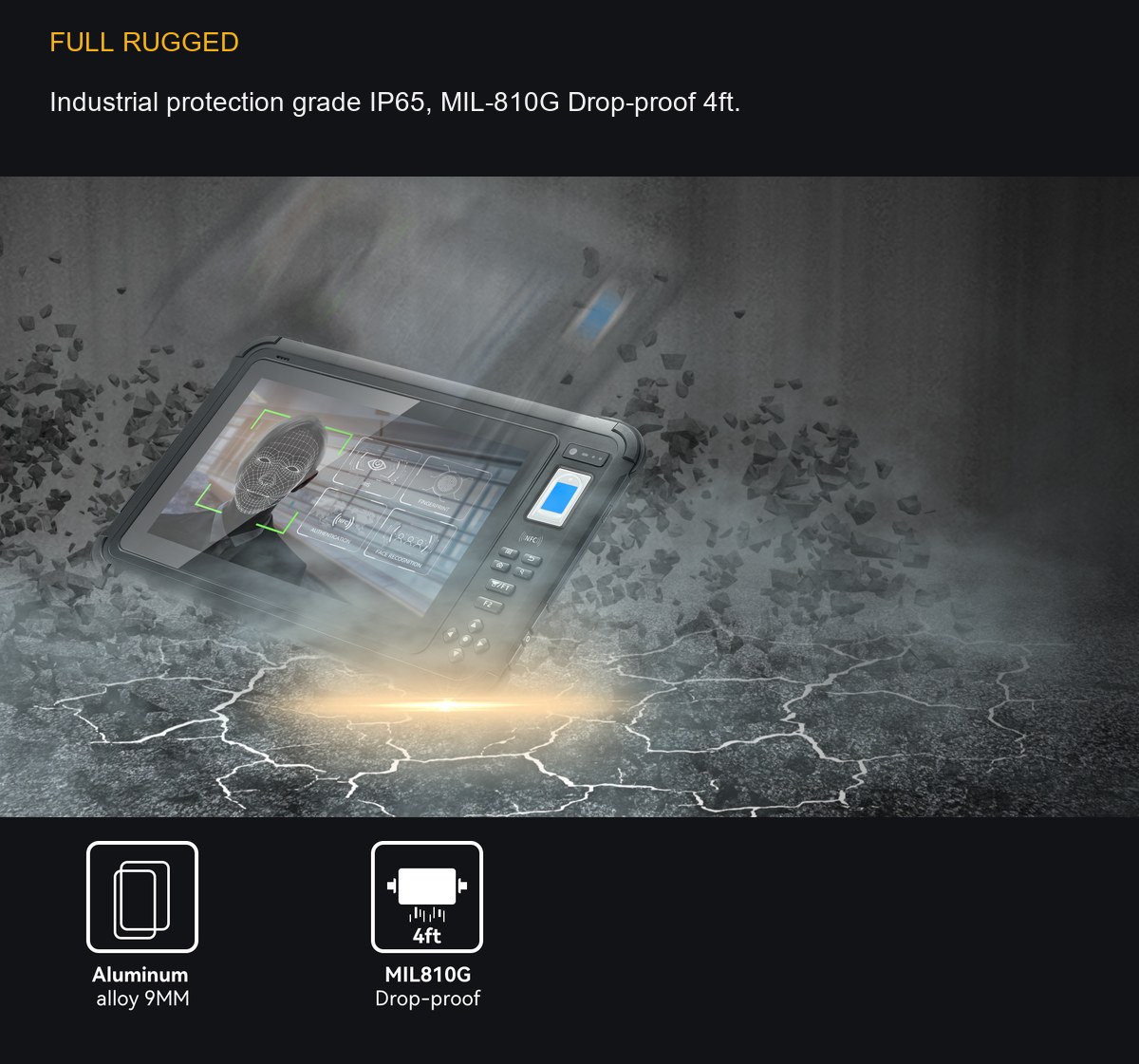

FULL RUGGED
Industrial protection grade IP65, MIL-810G Drop-proof 4ft.
MORE FAST
AdoptHelio P60 A73 12nm FinFET 8-core processor solution and 8G RAM.
EFFICIENT
Can integrate NFC, RS232 , Data link with professional equipment.

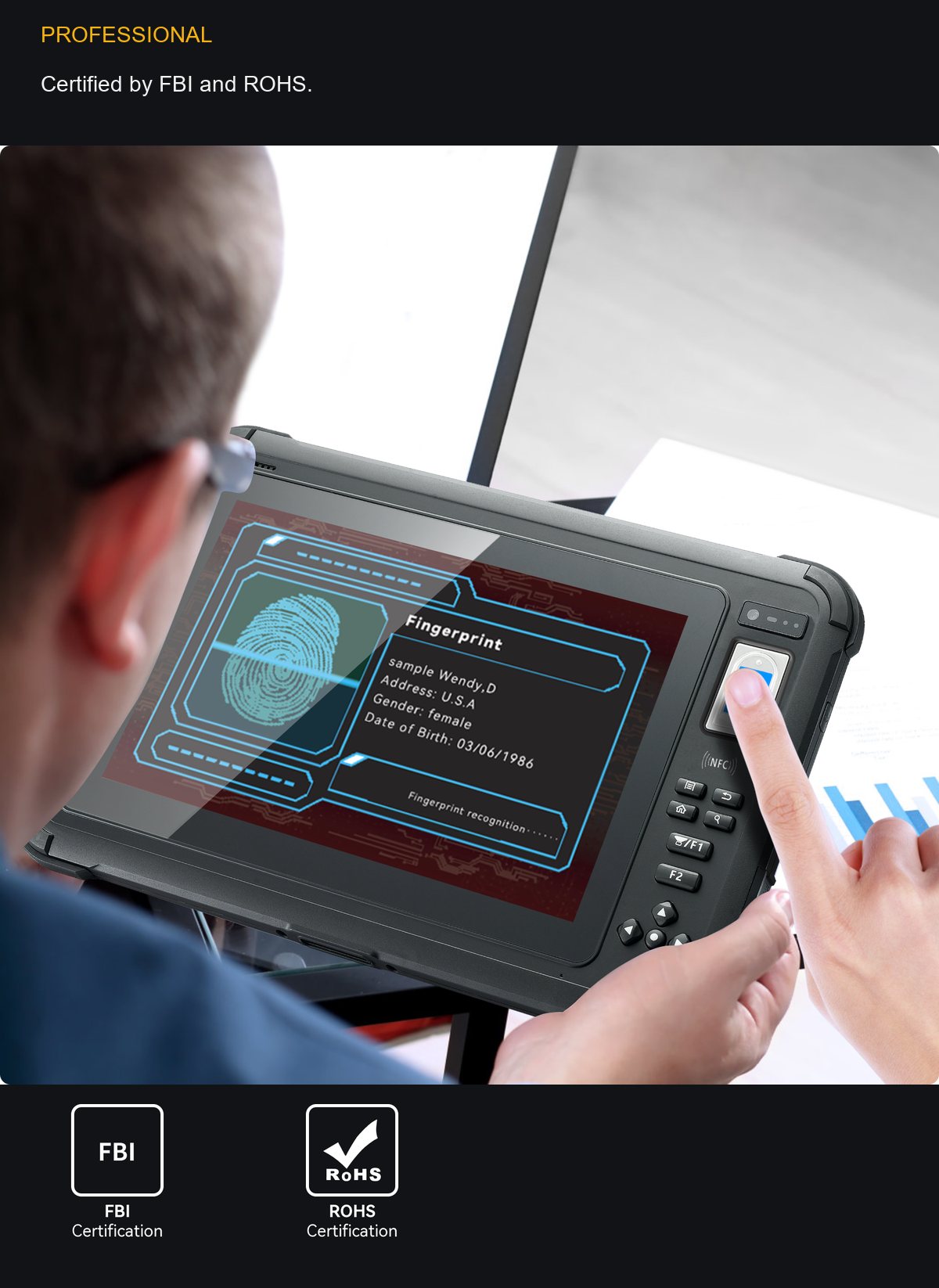

PROFESSIONAL
Certified by FBI and ROHS.

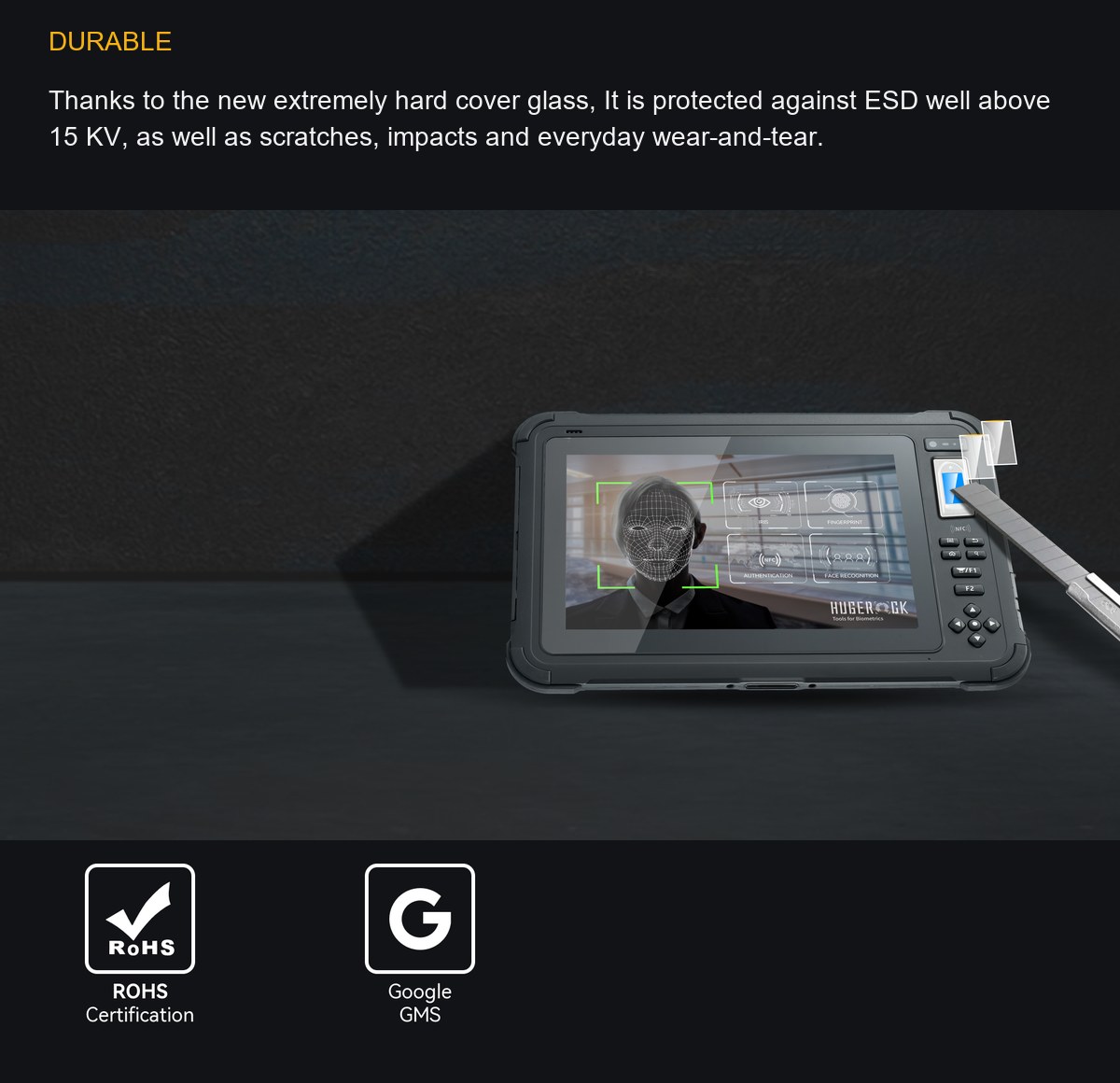

DURABLE
Thanks to the new extremely hard cover glass, It is protected against ESD well above 15 KV, as well as scratches, impacts and everyday wear-and-tear.

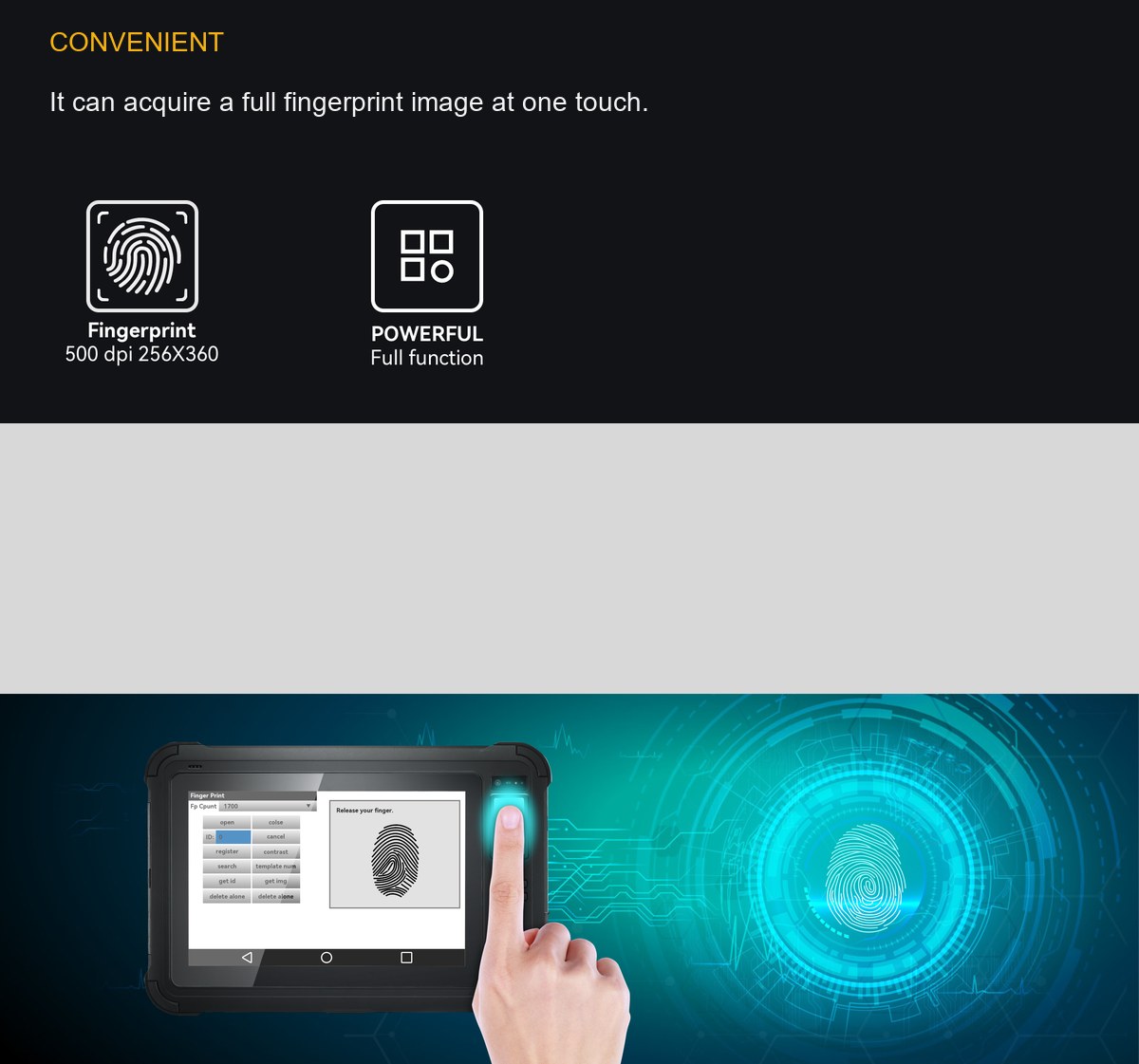

CONVENIENT
It can acquire a full fingerprint image at one touch.

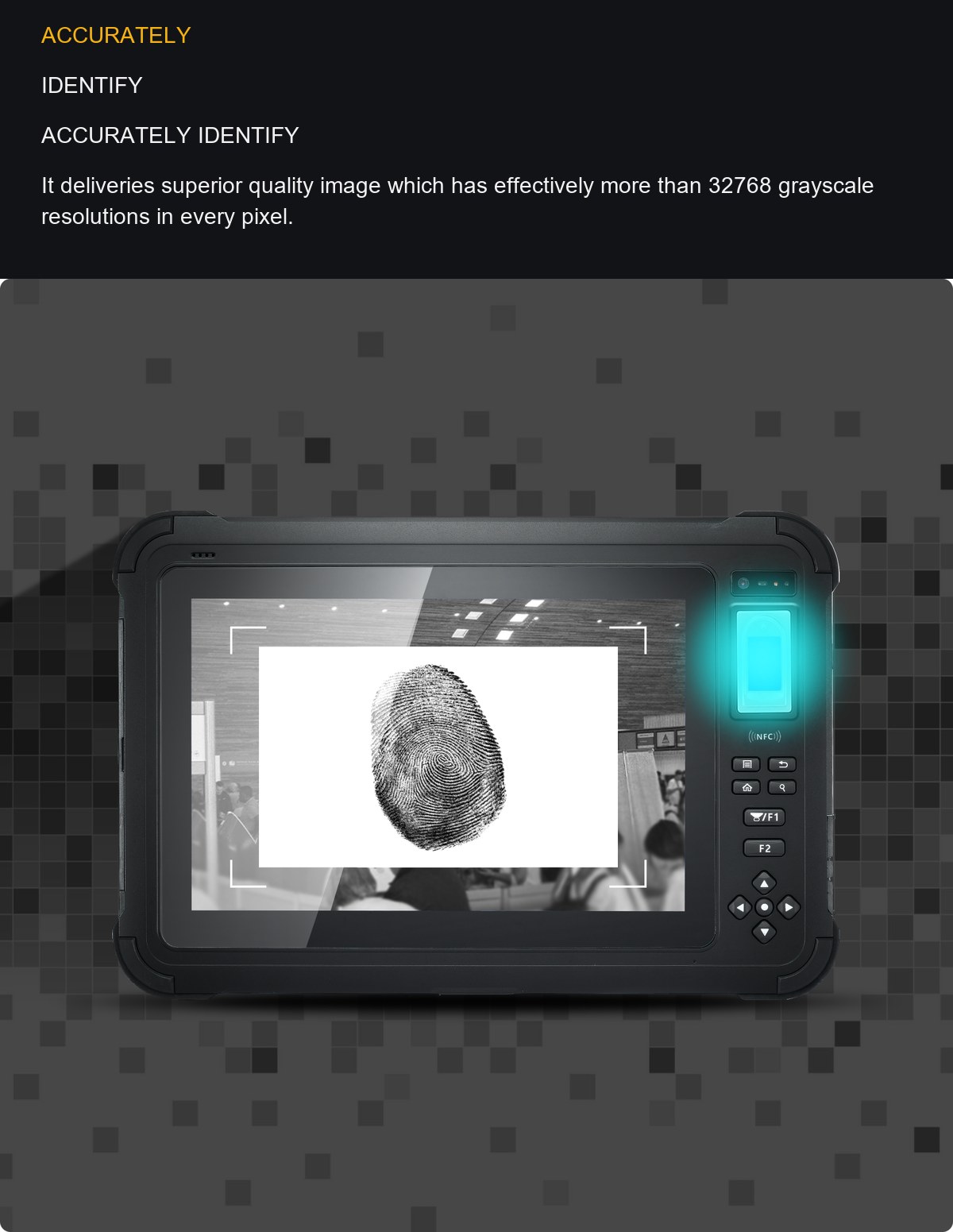

ACCURATELY
IDENTIFY
ACCURATELY IDENTIFY
It deliveries superior quality image which has effectively more than 32768 grayscale resolutions in every pixel.

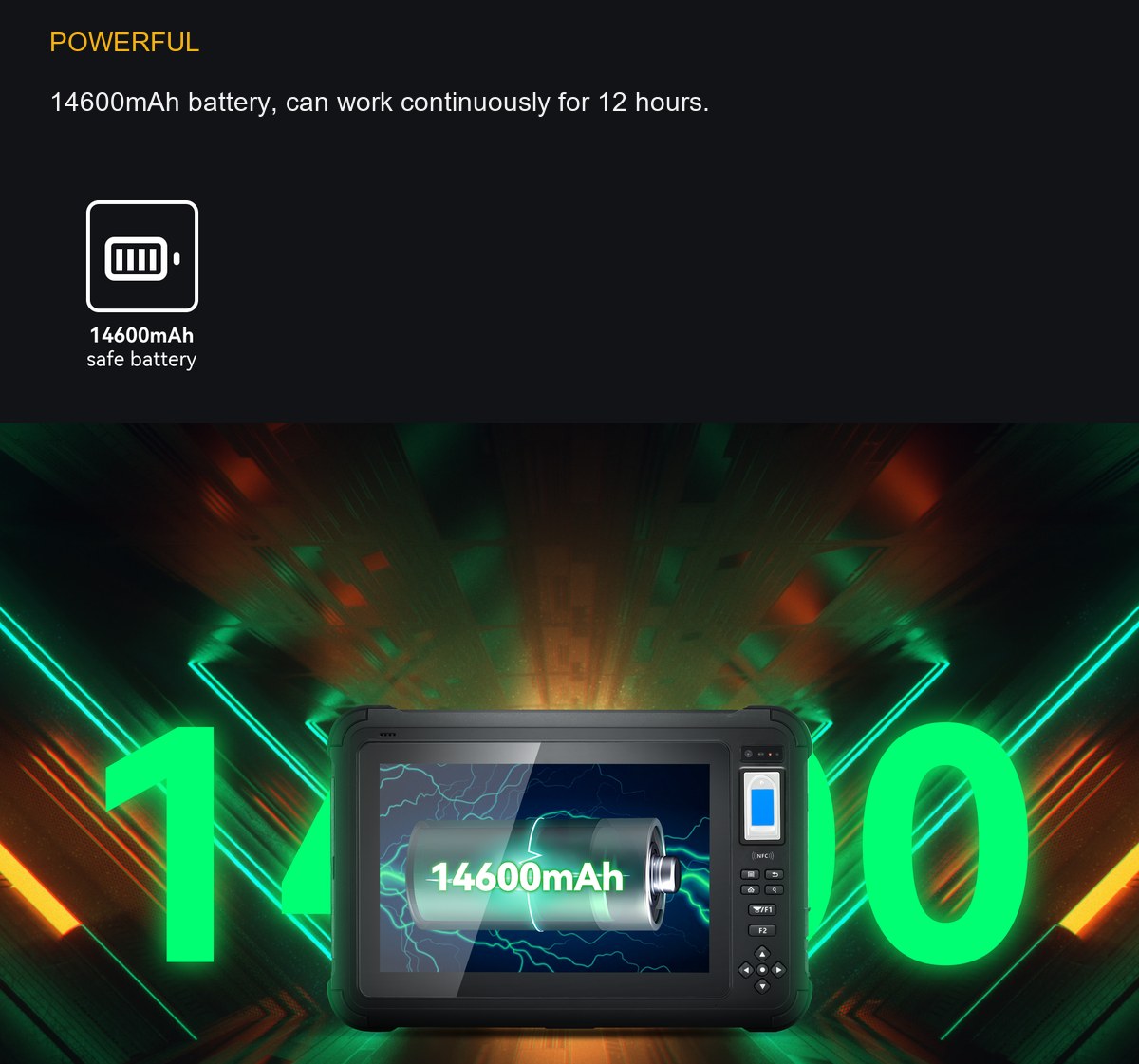

POWERFUL
14600mAh battery, can work continuously for 12 hours.

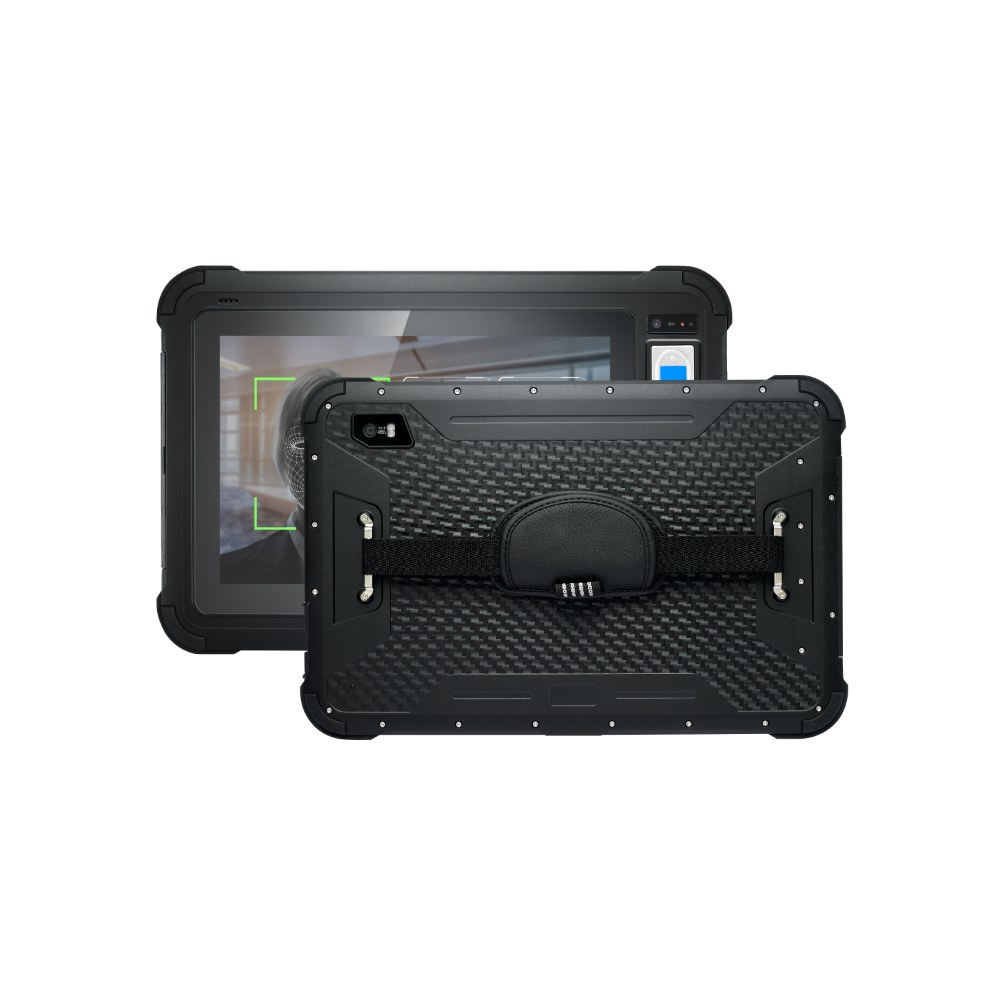

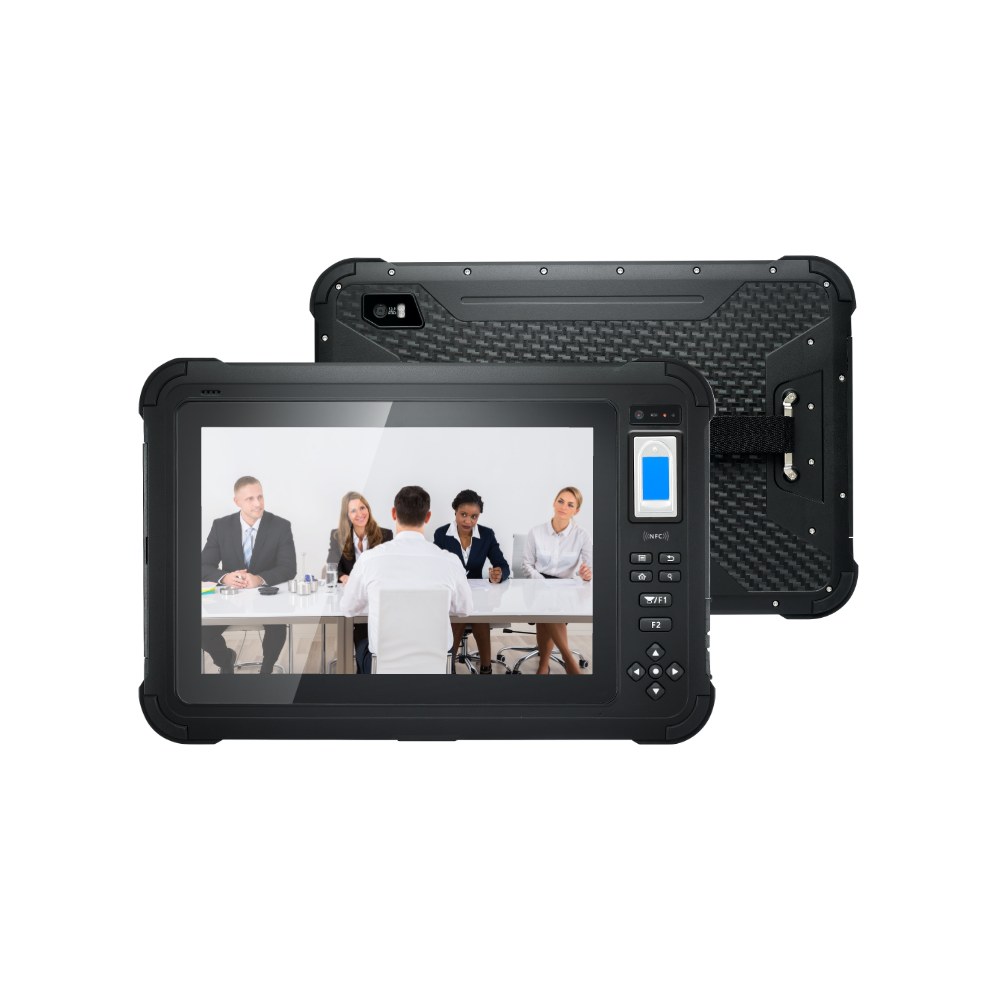

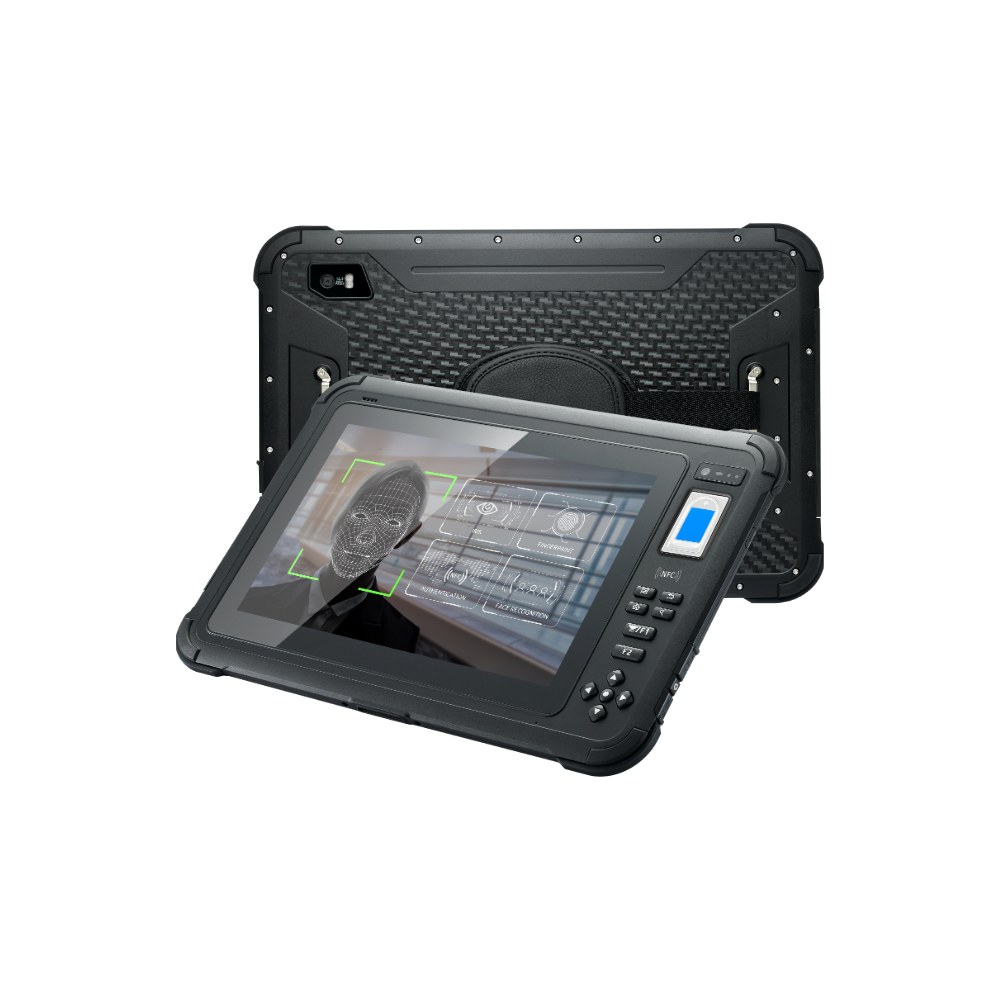

Product photos and specifications
The HUGEROCK B102 gallery shows the product itself. Review the Specs tab for all listed technical fields, appearance diagrams, comparison tables and module information. Browse our Rugged Biometric Tablets collection to compare more models.
Product attributes
| Screen Size | 10.1" |
|---|---|
| Memory Capacity | 8GB |
| Display resolution | 1920x1200 |
| Operating System | Android 13 |
| Type | Tablet PC |
| Drive Interface | USB Type C |
| Processor Manufacture | MTK |
| Use | Industrial |
| Network | wifi, GSM, 4g, 3G |
| Warranty(Year) | 2-Year |
| Scenarios | For Professional |
| Feature | Waterproof , Shockproof, Drop resistance, Anti-Dust, Soft, Hard, SDK available |
| charging interface | Type-C+8pin pogo pin(magnetic); DC 5V (direct battery charging) |
| Processor Type | Octa Core |
| Processor Main Frequency | 2.0GHZ |
| Touch Screen Type | Capacitive Screen |
| Weight | 975g |
| Place of Origin | Guangdong, China |
| Brand Name | HUGEROCK |
| Model Number | B102 |
| CPU | ARM Cortex A73 octa-core(2.0GHz ) |
| GPU | Arm Mali--G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| Display | 10.1 inch IPS/AFFS 1920*1200 FHD Industrial 500nit Sunlight Readable |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 14600mAh |
| SIM Card | 1.8/3.3V SIM card |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Single package size: | 39X27X11 cm |
| Single gross weight: | 3.000 kg |

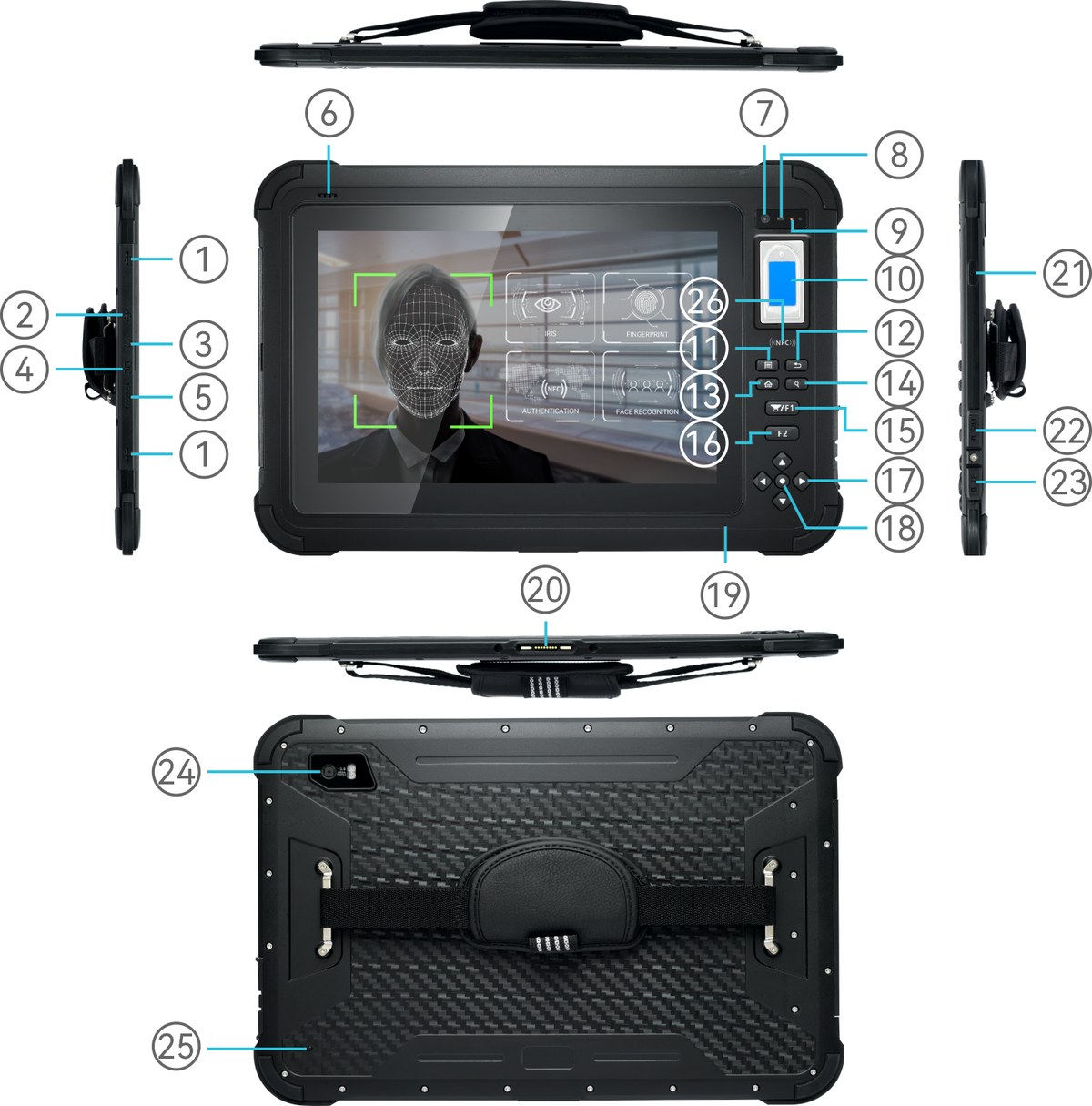

APPEARANCE
| 1: | Type-A (Sealed Cover) |
| 2: | Type-C (Sealed Cover) |
| 3: | Handset Jack (Sealed Cover) |
| 4: | DC-type (Sealed Cover) |
| 5: | RS232 (Sealed Cover) |
| 6: | Speaker |
| 7: | Sub Camera |
| 8: | Ambient light sensor |
| 9: | Status indicator and charging indicator |
| 10: | Fingerpri |
| 11: | Menu button |
| 12: | Back button |
| 13: | HOME button |
| 14: | Search button |
| 15: | Defined button (Optional) |
| 16: | Defined button |
| 17: | Direction button |
| 18: | Confirm button |
| 19: | MIC |
| 20: | 8pin pogo pin (magnetic) |
| 21: | Power button |
| 22: | SIM card port (Sealed Cover) |
| 23: | TF card port (Sealed Cover) |
| 24: | Main camera |
| 25: | Temperature pressure sensor (Optional) |
| 26: | NFC |
TECHNICAL SPECIFICATIONS
| Hardware | |
| CPU | ARM Cortex A73 Octa-core (2.0GHz) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card (T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 14600mAh |
| Display | 10.1 inch IPS/AFFS 1920*1200 FHD industrial 450nit Sunlight Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | 1.8/3.3V SIM card |
| TF Card | Micro SD card (T-FLASH card); max 256GB |
| Headphone | 3.5mm (CTIA) |
| Data interface | USB Type-A(Host)*2, Type-C(OTG)*1 |
| Charging interface | Type-C+ 8pin pogo pin(magnetic); DC 5V (direct battery charging) |
| RS232 | RS232 (5pin micro GPIO) *1 |
| Gravity sensor | support |
| Motion sensor | support |
| Direction Sensor | support |
| Magnetic Field | support |
| Gyro sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |

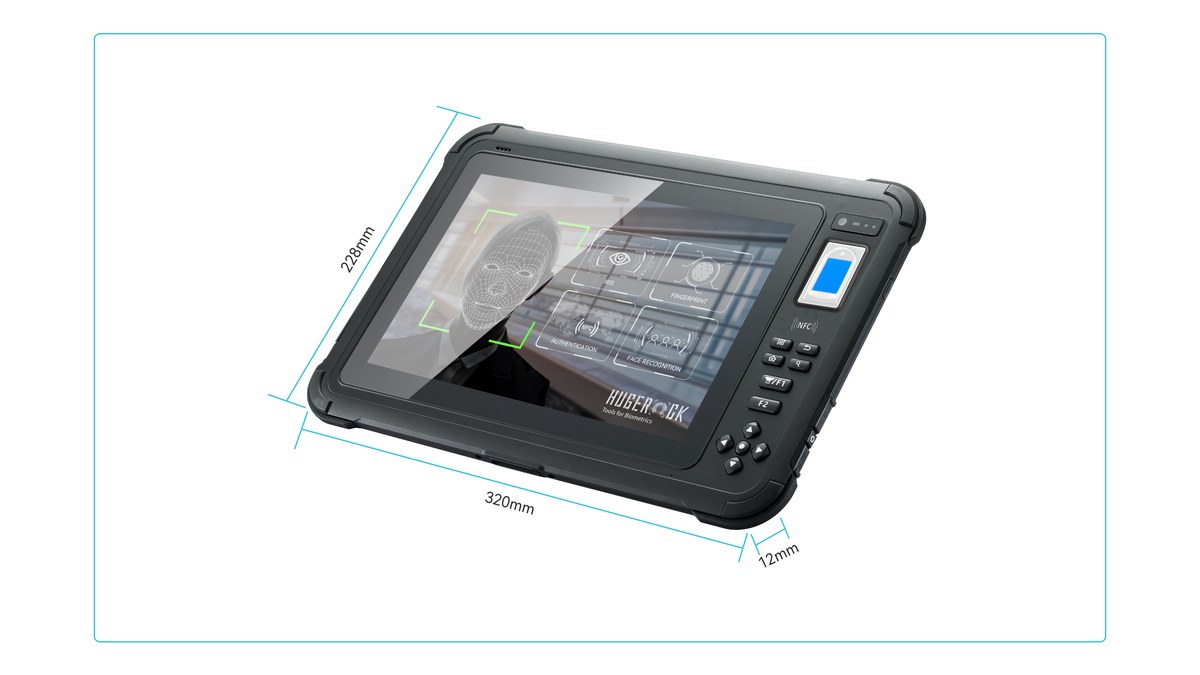

| Size | 320*228*12mm (LxWxH) |
| Weight | 975g |
| Color & Material | Black (ABS+PC+TPU) |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA |
| 3G Band | WCDMA 3.75G (HSDPA + 42.2Mbps, HSUPA + 11.5Mbps), EVDO |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE (B38/39/40/41); FDD LTE (B1/2/3/4/5/7/8/12/17/20/28) |
| WI- FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 4.2 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/ 0.10mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 5 (IEC 60529) |
| Dustproof | Class 6 (IEC 60529) |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| Reliability | MTBF=50000h; MTTR=0.5h |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500m (15,000 feet) |
| Certification/OS/Software | |
| Certification | 3C/FCC/CE/ROHS/IP65 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hebrew, Simplified, Chinese,Chinese Traditional, etc. |
| OS | Android 10 / 11 |
| Package/Warranty terms/OEM | |
| Warranty | 24 months |
| OEM/ODM | Support |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box (Can be customized logo)/Aircraft box/Toolkit (optional) |
FUNCTION MODULES
| HF RFID/NFC | ||
|---|---|---|
| NFC Module | Frequency | 13.56MHz |
| Protocol standard | ISO14443A/B, ISO15693, NFC | |
| Label standard | M1(S50, S70), CPU, NFC | |
| Read-write distance | 2-5cm | |

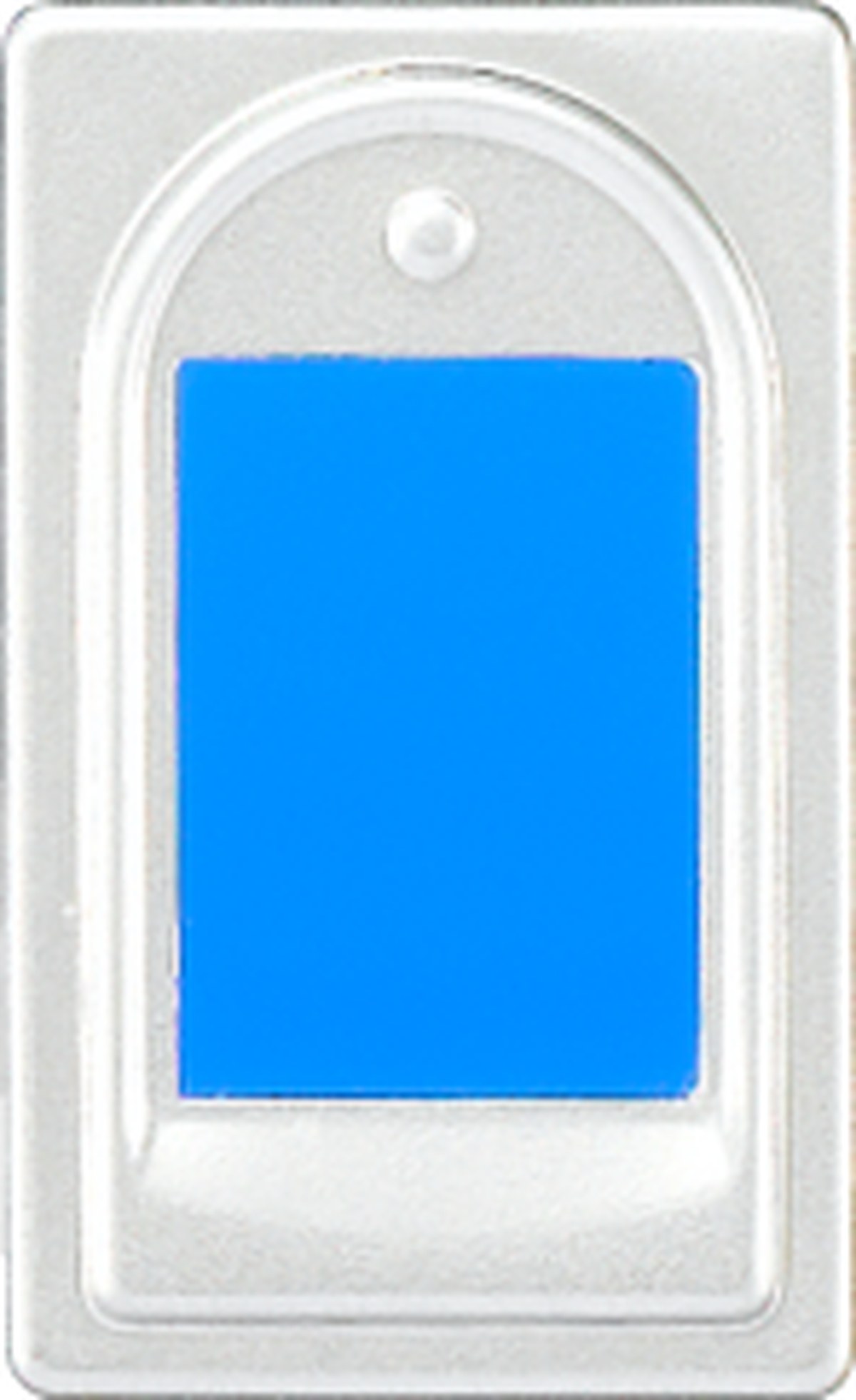

| The fingerprint module | ||
| Thin film optical fingerprint module | Thin film optical fingerprint sensor | Grayscale 32768 |
| FAP10, 500 dpi, 8 bit, 256X360. | ||
| FBI MINEX III (NIST Certification) | ||
| RoHS Certification | ||
