HiDON HC1001F Rugged Tablets

HiDON HC1001F product details

HiDON HC1001F rugged tablets. 10 Inch Android12 800cd/m2 Brightness Car Vehicle Rugged Tablet PC Computer with LAN Port CAN Port Optional NFC.

HiDON HC1001F key features

• Operating system: Android 12.0;
• CPU: Rockchips RK3568J Quad core 2.0GHz;
• Display screen: 10.1 inch IPS full view capacitive touch screen HD high-definition 1280 * 800 resolution, 800cd/m2 brightness;
• Memory&Storage: 4GB ram + 32GB ROM;
• 4G network: Supports GSM: B3/B8, CDMA:BC0,3G WCDMA: B1/B8, TD-SCDMA:B34/B39,4G TDD LTE:B38/B39/B40/B41, 4G FDD LTE:B1/B3/B5/B8;optional;
• Wireless network: WIFI: 802.11 b/g/n/ac 2.4G+5.0G dual band wireless network and Bluetooth 5.0;
• I/O interface: 1 * DC interface; 1*TYPE-C interface, 1 * HDMI interface, 1 * headphone interface, 1*TF card slot, 1*Sim card slot, 1 * CAN interface, 2*RS232 interface, 1*RS485 interface, 1* USB 2.0 interface. 1* Gigabit RJ45 interface, optional;
• NFC: Supports 13.56MHz, ISO/IEC 14443A, optional;

Model NO : HC1001F

Specifications:

1. CPU: Rockchips  RK3568J Quad core 2.0GHz;

2. Operating system: Android 12.0;

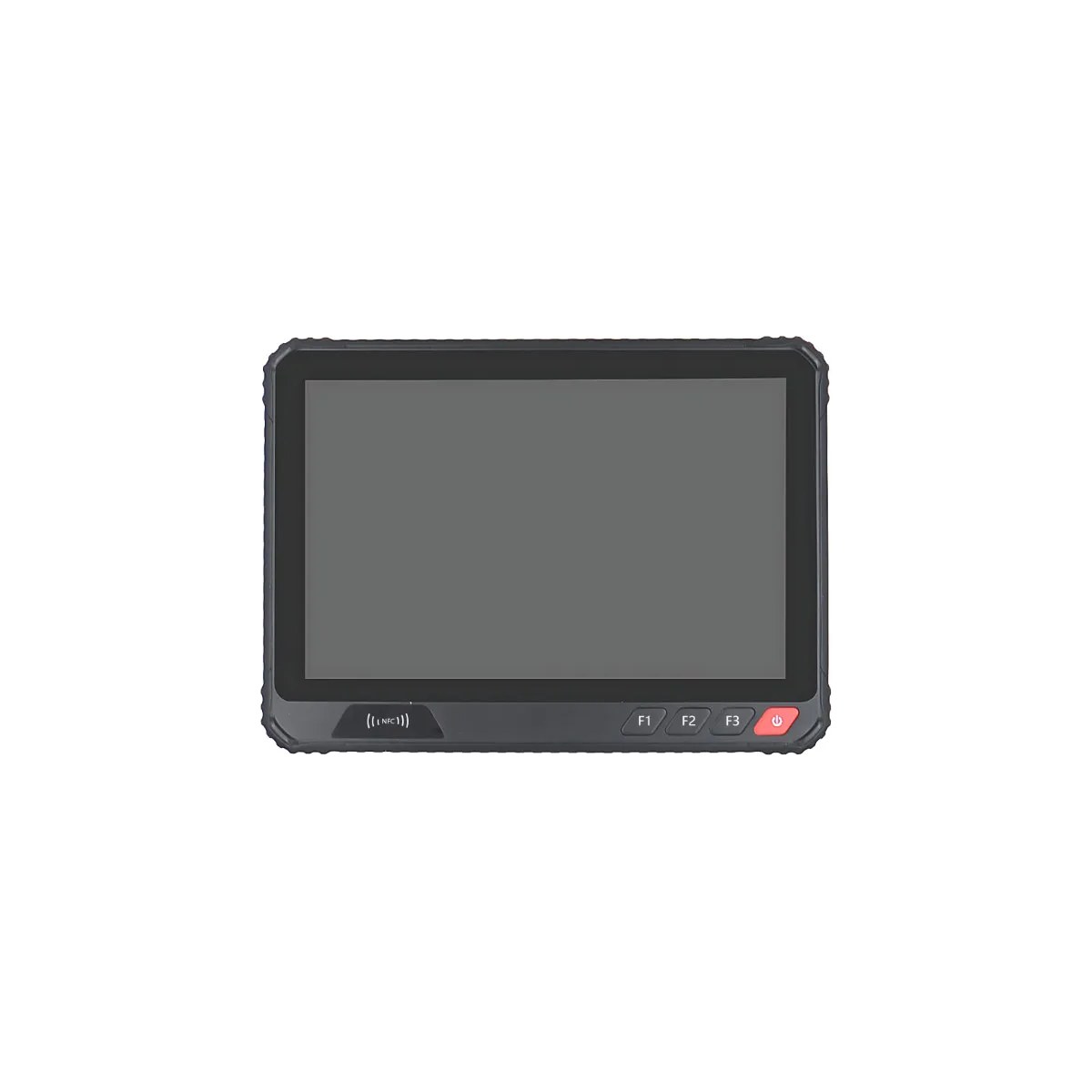

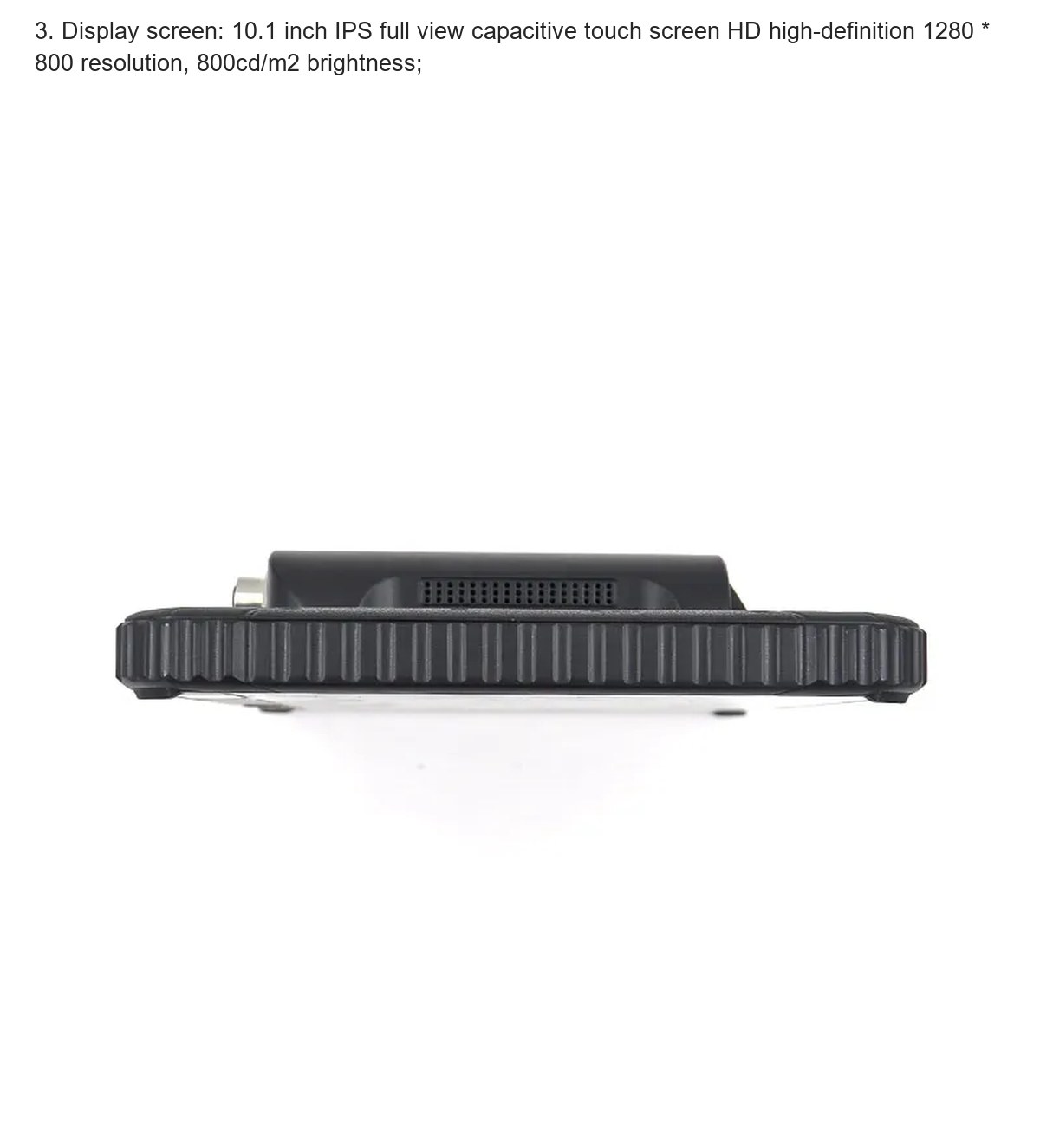

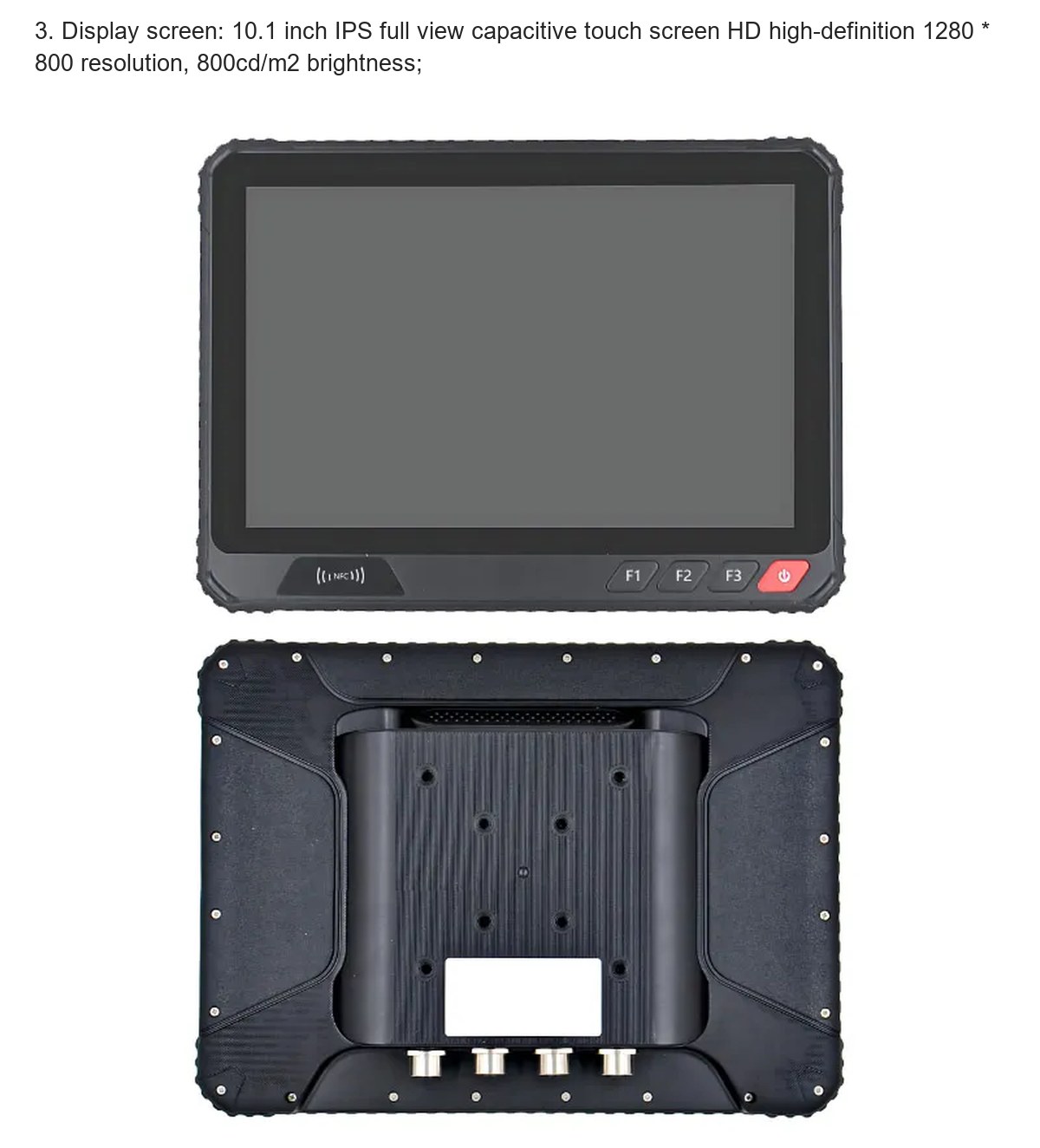

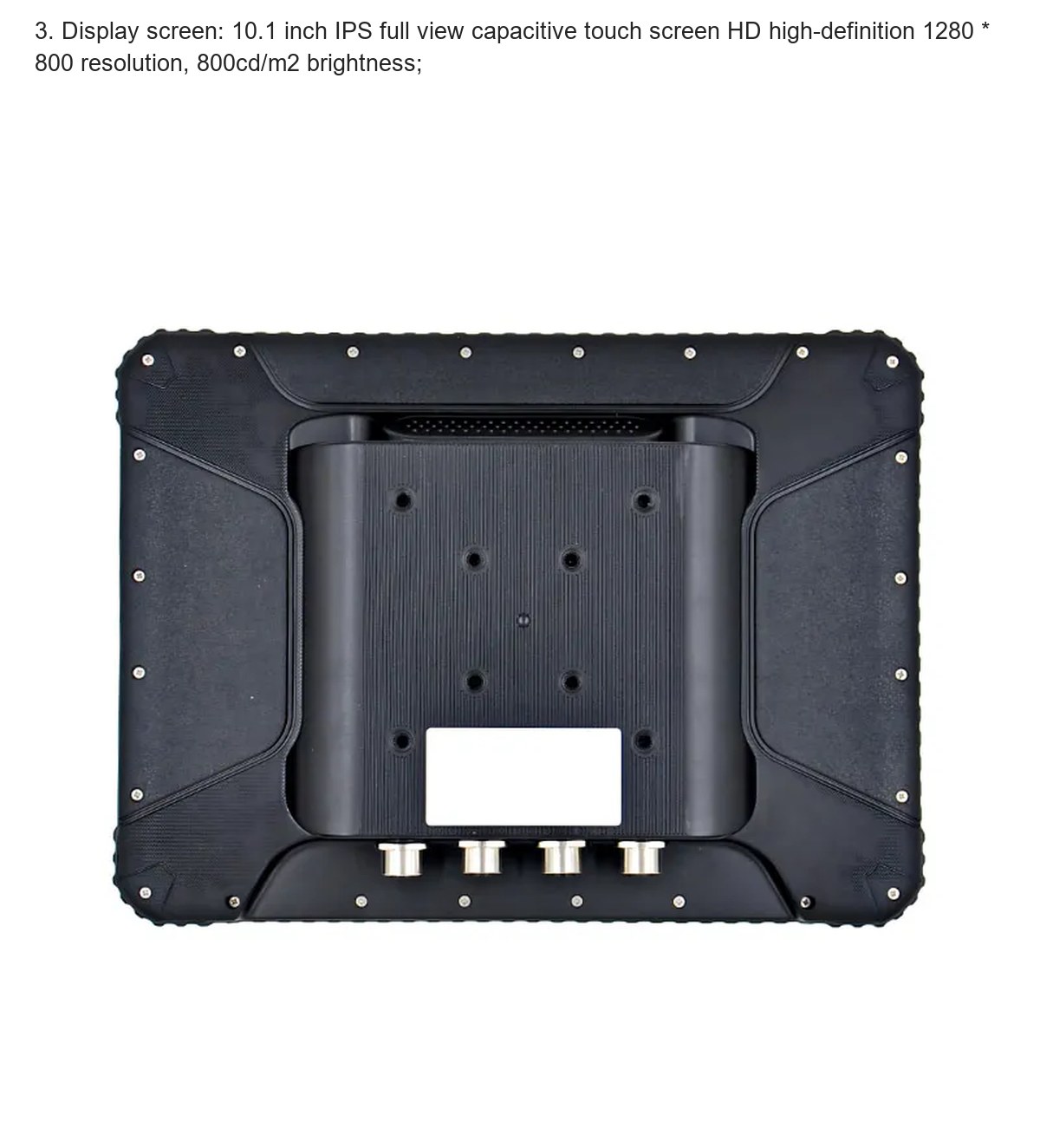

3. Display screen: 10.1 inch IPS full view capacitive touch screen HD high-definition 1280 * 800 resolution, 800cd/m2 brightness;

4. Front camera: Front camera with 2 million pixels, optional;

5. Car AHD camera: The resolution of the car AHD camera is 1080P, optional;

6. Memory&Storage:  4GB ram + 32GB ROM;

7.4G network : Supports GSM: B3/B8, CDMA:BC0,3G WCDMA: B1/B8, TD-SCDMA:B34/B39,4G TDD LTE:B38/B39/B40/B41, 4G FDD LTE:B1/B3/B5/B8;optional;

8. Wireless network: WIFI: 802.11 b/g/n/ac 2.4G+5.0G dual band wireless network and Bluetooth 5.0;

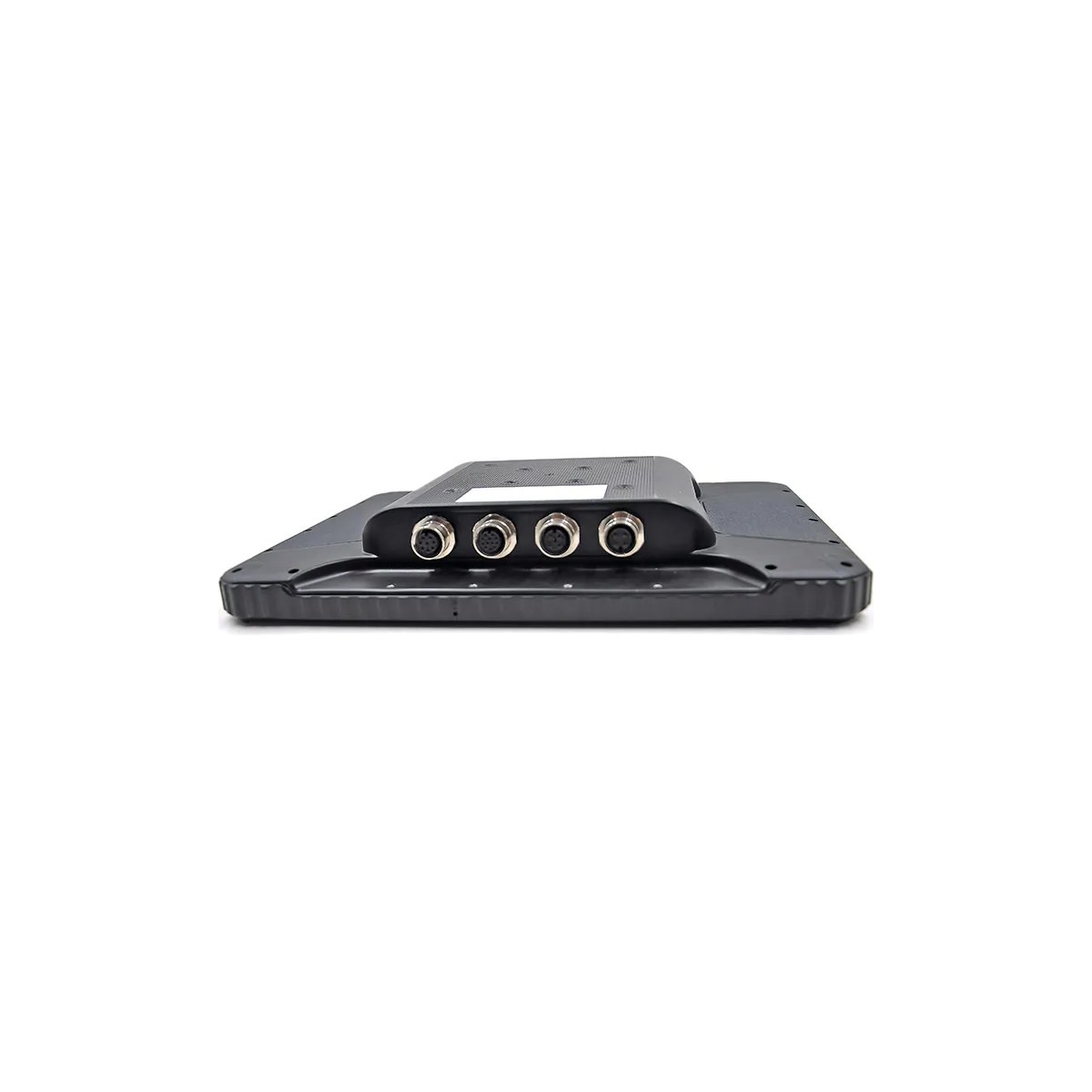

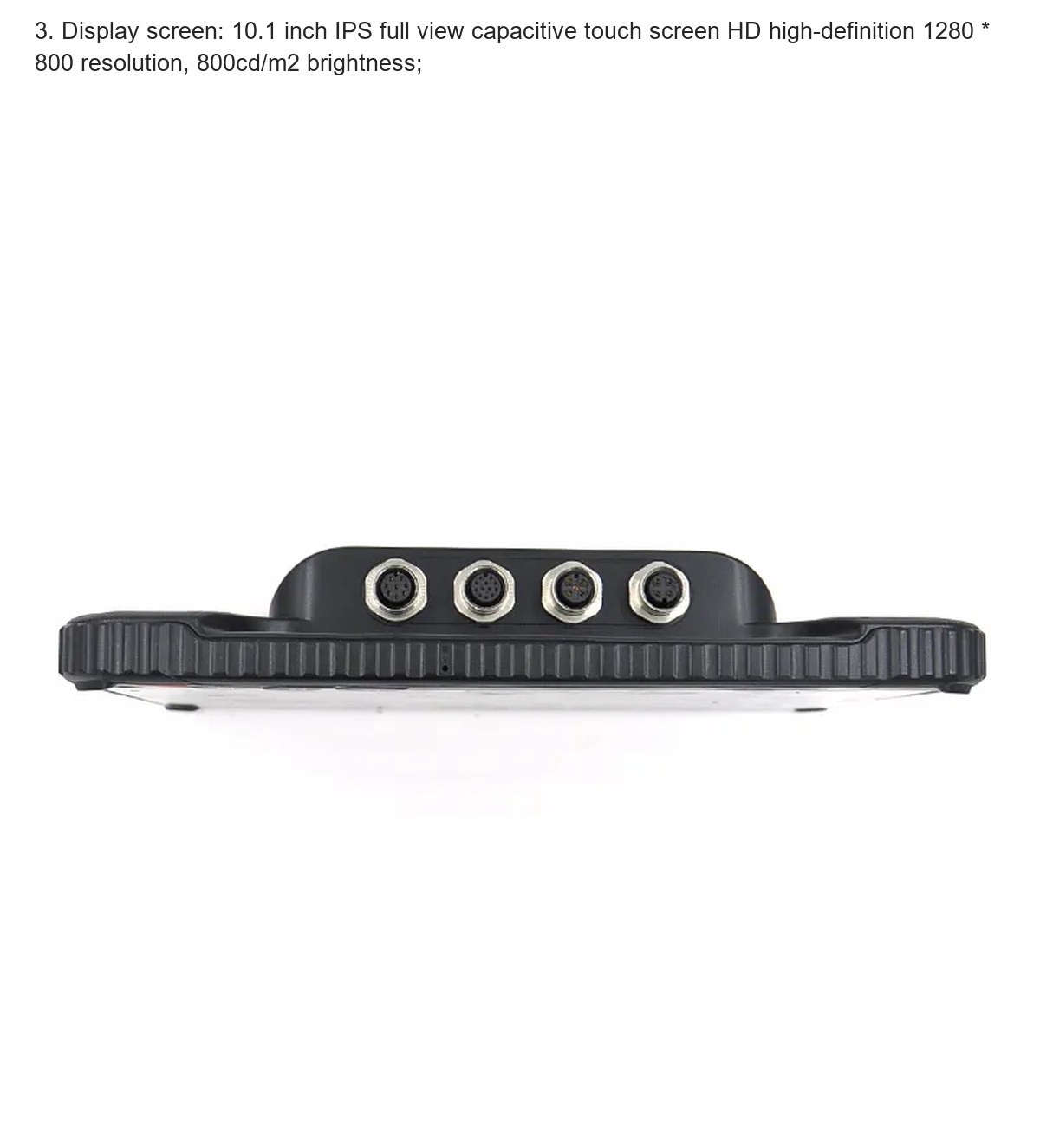

9. I/O interface:  1 * DC interface; 1*TYPE-C interface, 1 * HDMI interface, 1 * headphone interface, 1*TF card slot, 1*Sim card slot, 1 * CAN interface, 2*RS232  interface, 1*RS485 interface, 1* USB 2.0 interface. 1* Gigabit RJ45 interface, optional;

10. Rugged Durability: Waterproof and dustproof rate:IP65; Ruggedness:comply with 1.0 Meter dropproof;

11. Navigation & Position: Supports GPS+GLONASS+Galileo+Beidou;

12. GNSS: Supports GPS/QZSS: L1 C/A, L5; GLONASS:L1,Galileo:E1,E5a; BDS:B1I,B2a;  Autonomous positioning: 1m,  RTK: 1cm+1 ppm; number According to update rate: 1Hz/1 Hz, first cold start positioning time: 26s,optional;

13. NFC: Supports 13.56MHz, ISO/IEC 14443A, optional;

14. Input power supply: DC9~36V2A. Built in battery: 500MAH/7.4V, optional;

15. Product size: 260 * 193 * 43mm; weight: approximately 1kg;

16. Color: Black.
