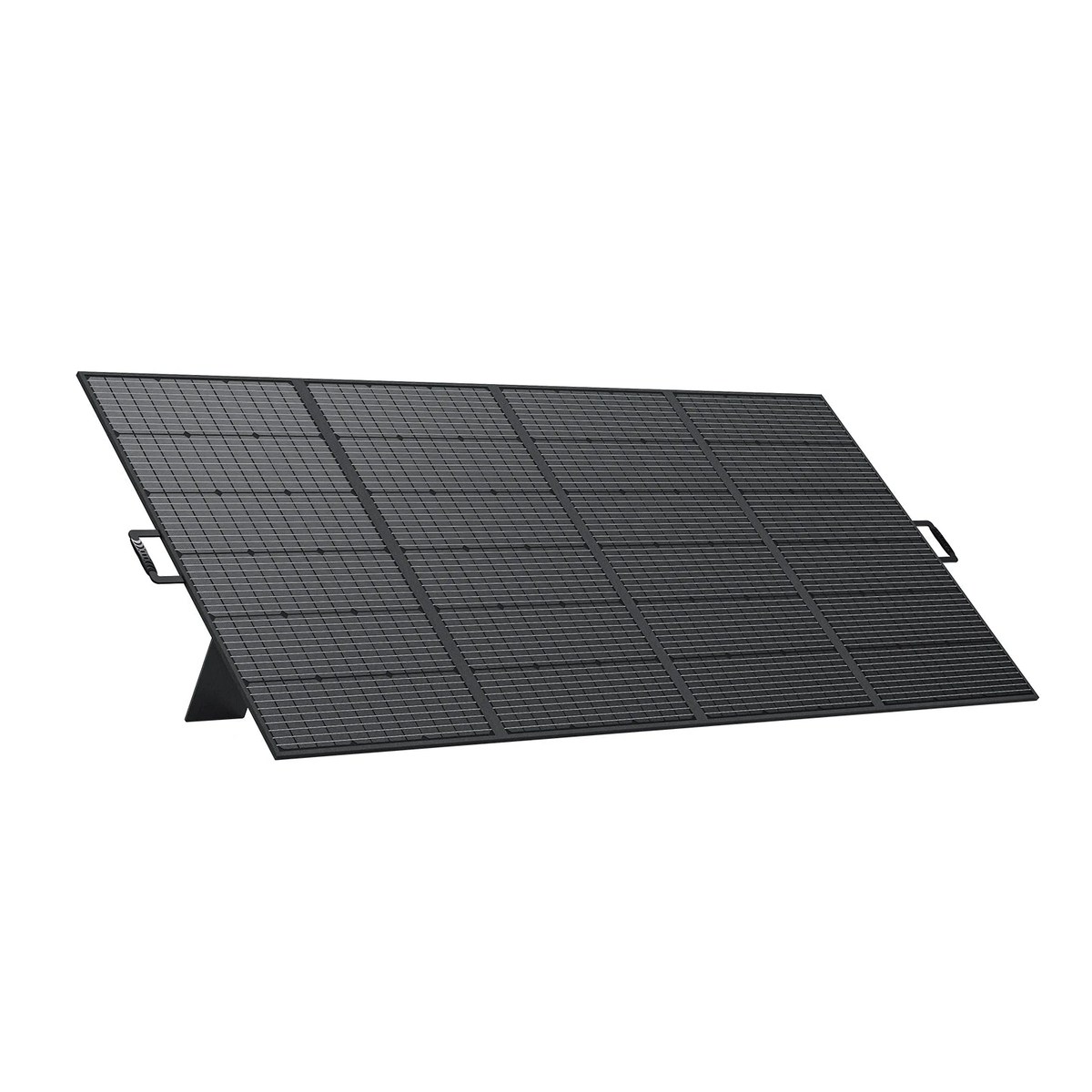

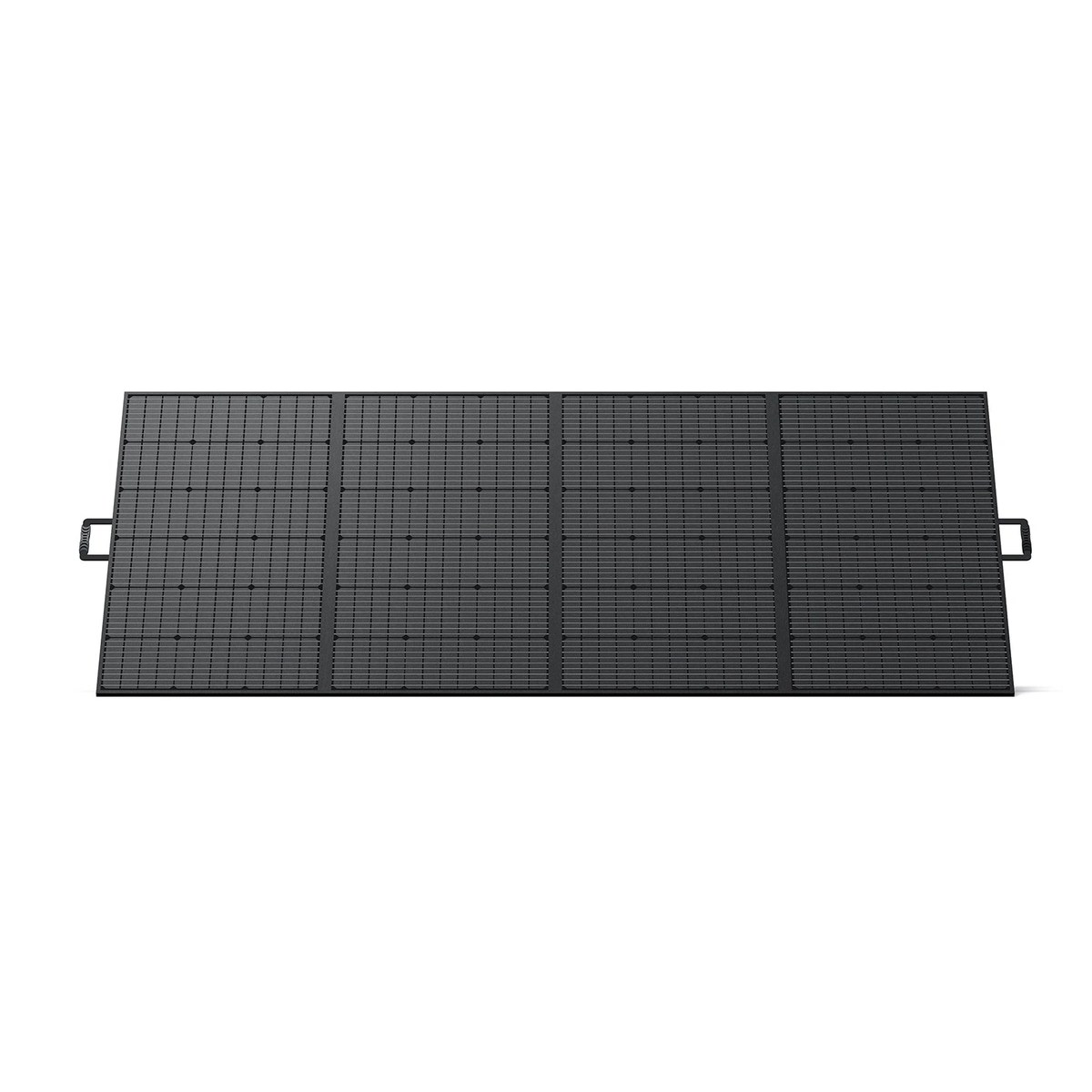

FOSSiBOT SP420 Solar Panels

Wholesale FOSSiBOT SP420 Solar Panels for bulk orders at RuggedMaster. Higher Energy Conversion Rate – Covered by monocrystalline silicon solar cells, the solar panel adopts multi-layered cell technology to generate energy from the sunlight and perform better with higher conversion efficiency that up to 23.4% than other conventional panels. Great Portability – An innovative foldable design delivers easy storage and operation

FOSSiBOT SP420 Features and Configuration

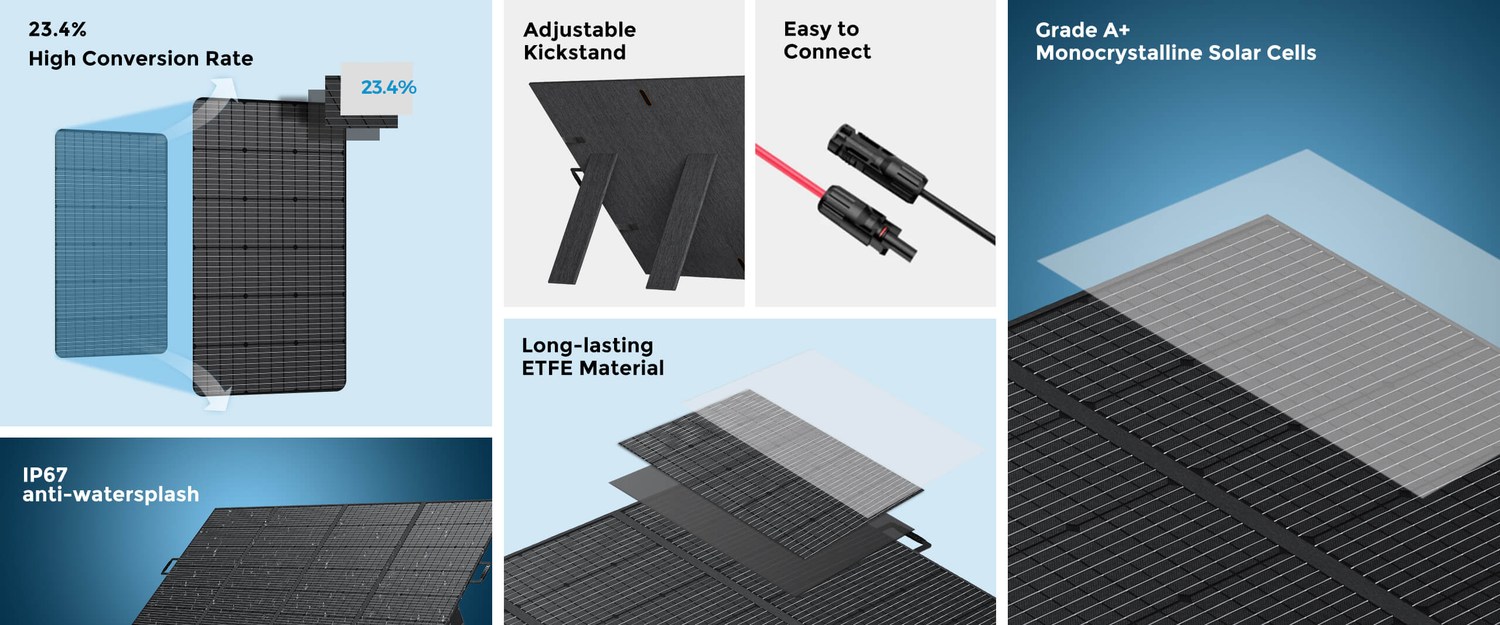

Higher Energy Conversion Rate – Covered by monocrystalline silicon solar cells, the solar panel adopts multi-layered cell technology to generate energy from the sunlight and perform better with higher conversion efficiency that up to 23.4% than other conventional panels.

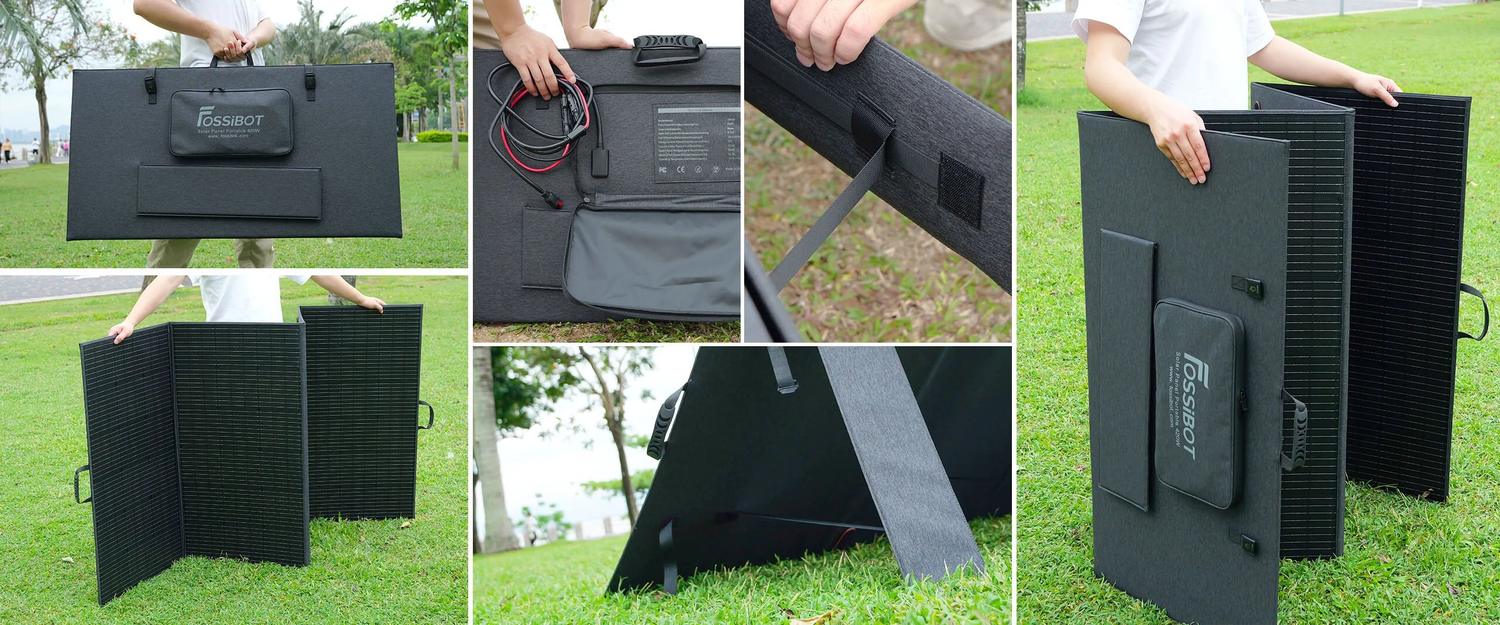

Great Portability – An innovative foldable design delivers easy storage and operation

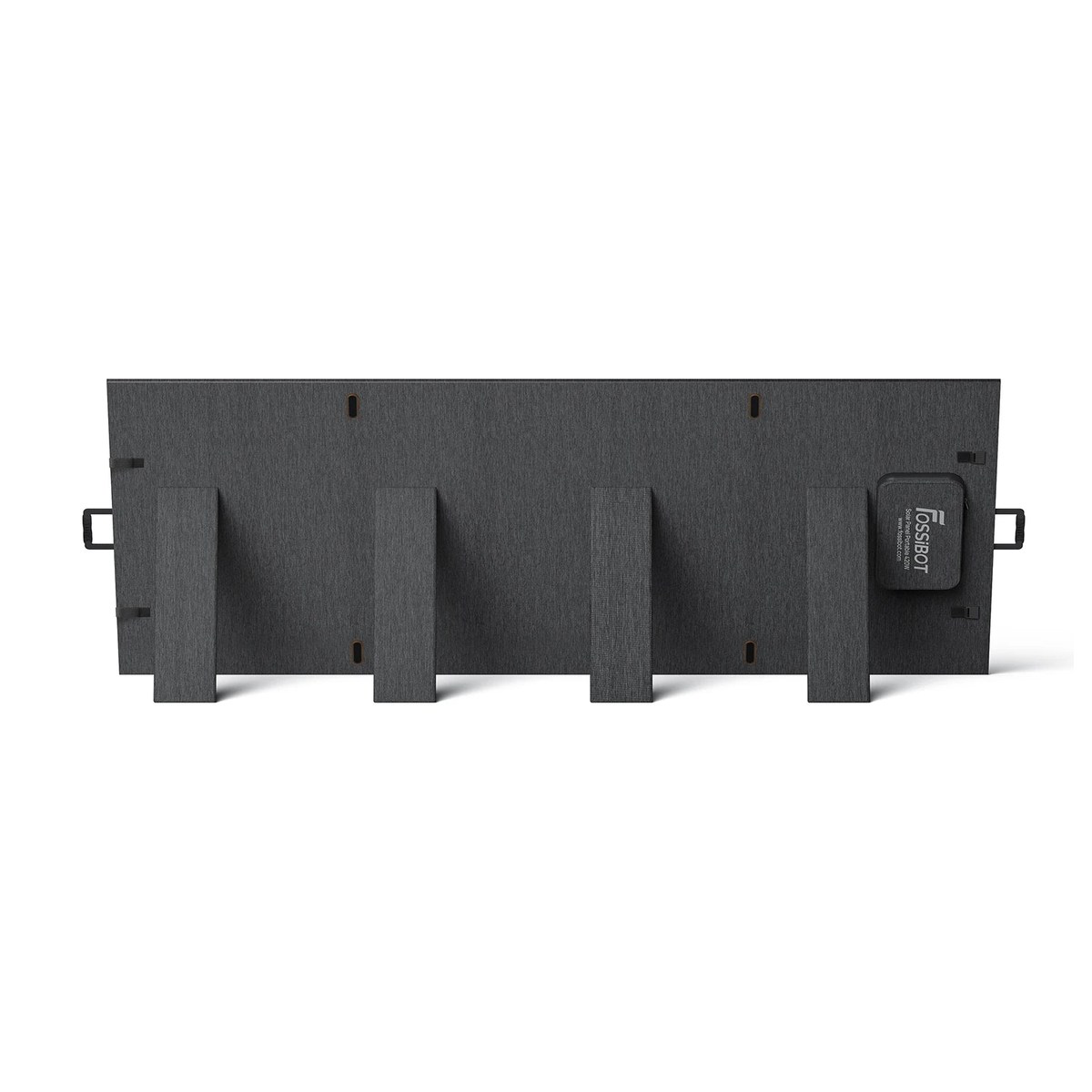

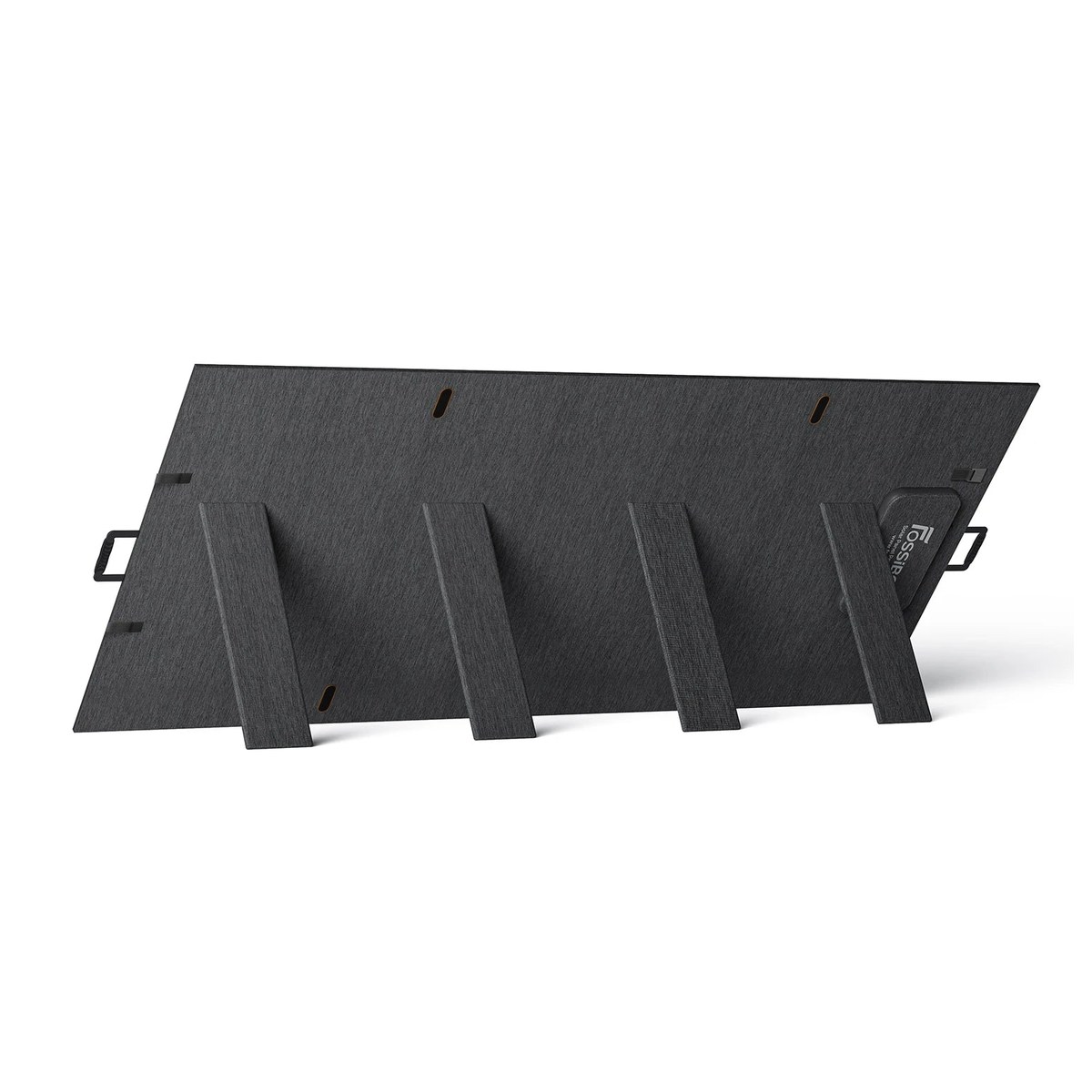

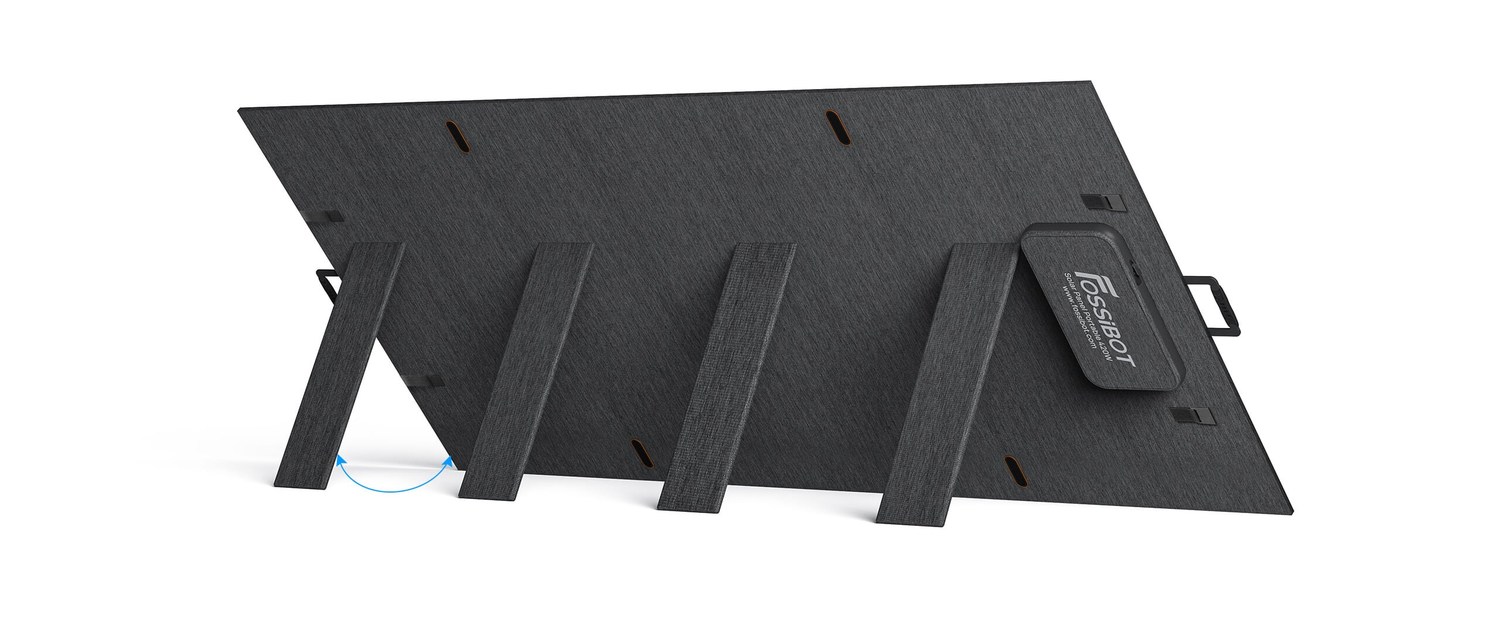

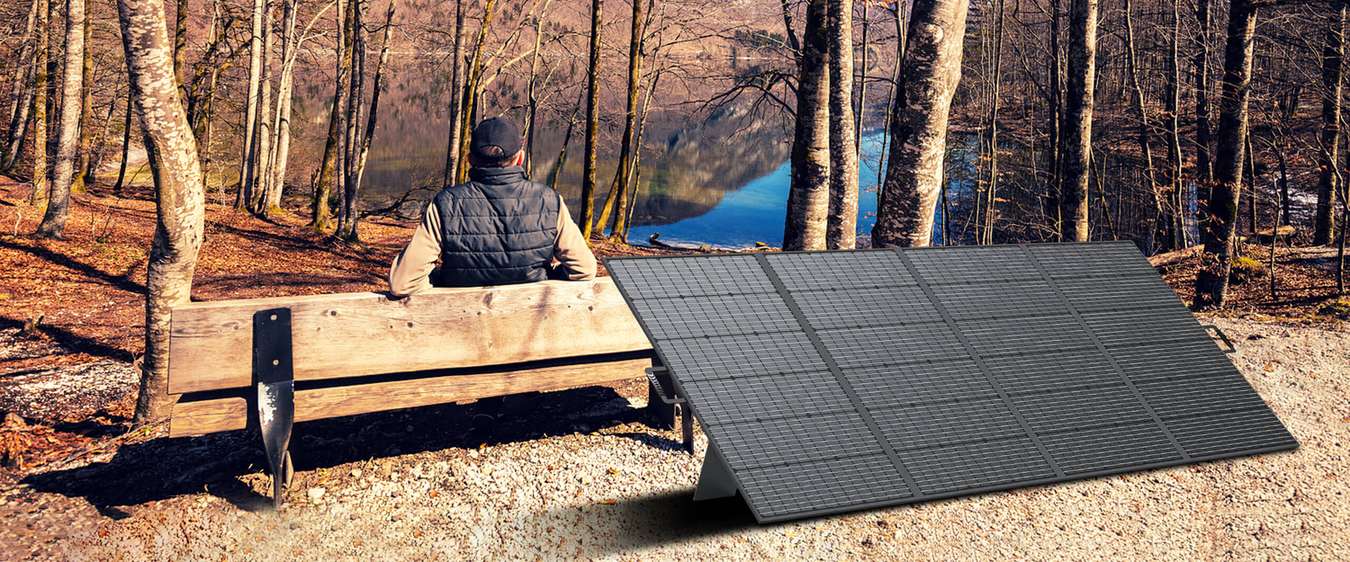

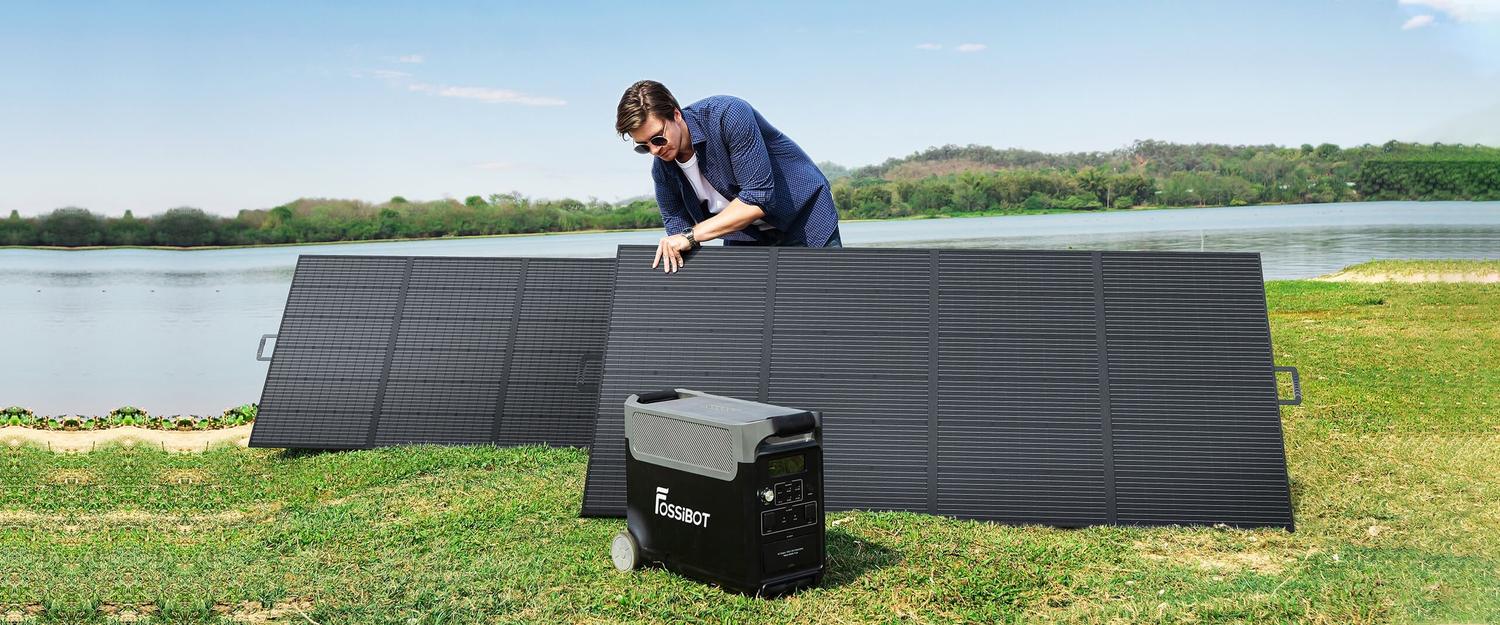

Easy Setup & Kickstand Included – The SP420 features 4 kickstands that can be placed firmly on any surface ground. With just a few seconds of setup, you can start soaking energy from the sun for your FOSSiBOT power station.

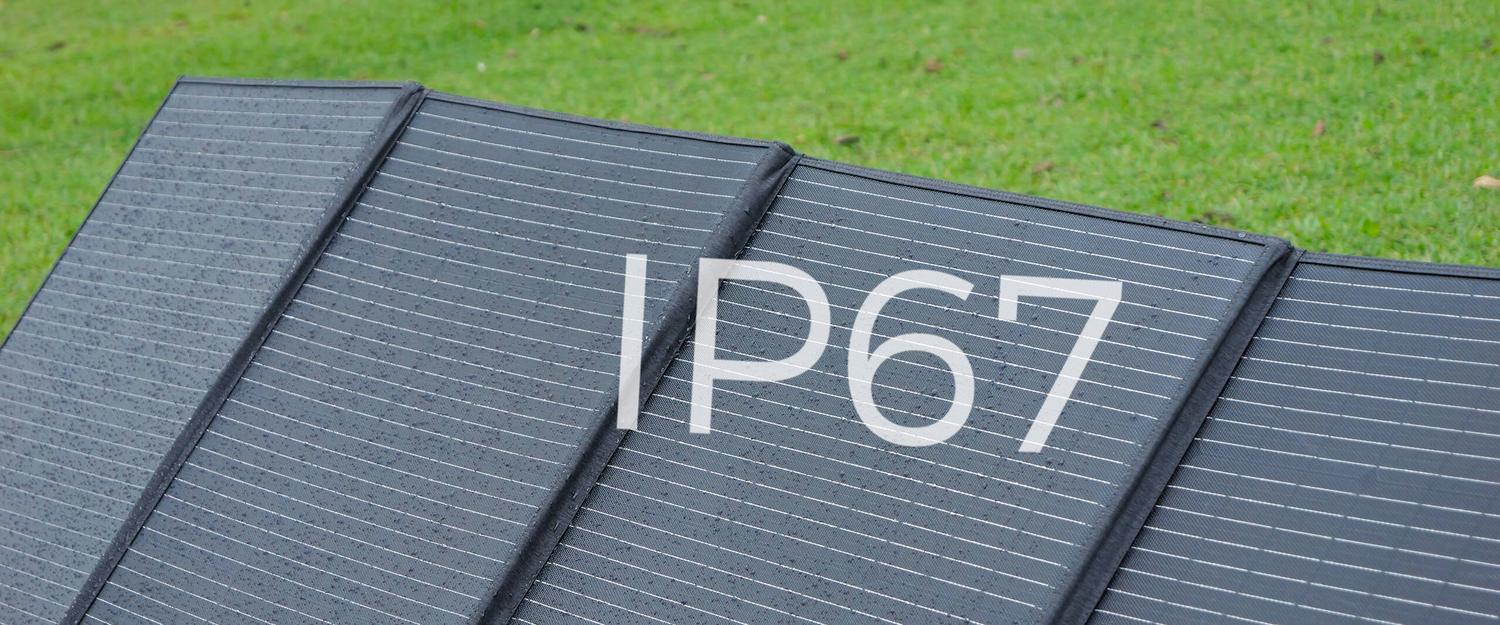

Durable & Splash-Proof – The ETFE-laminated case is durable enough to extend the lifespan of the solar panel. It is IP67 water-resistant that will protect from water splashing (Do not place it under the rain, or to soak in water). The zippers on the pocket can hold the power cords, and cover the power port.

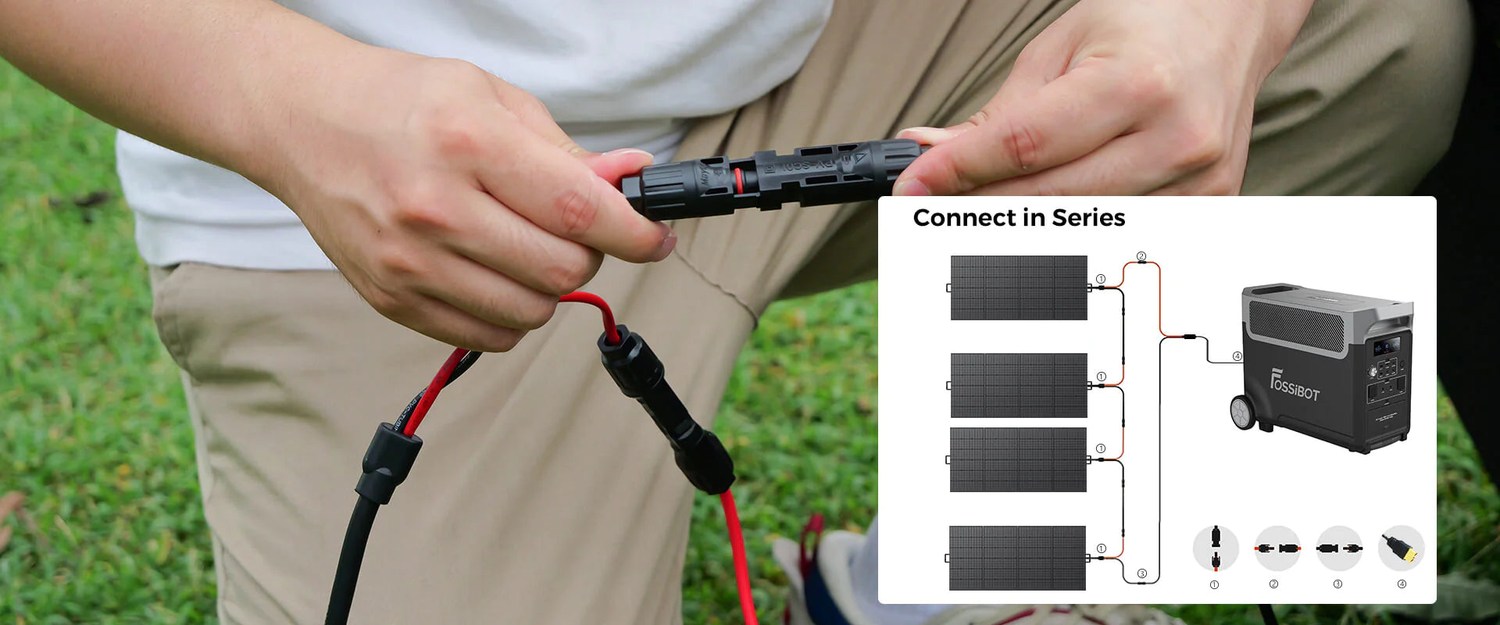

MC4 Connector – Works with most third-party devices.

FOSSiBOT SP420 Technical Overview

Model: SP420

Peak Power(Pm): 420W

Lamination: ETFE (Ethylene tetrafluoroethylene)

Cell Type: MonoCell

Cell Efficiency: Up to 23.4%

Voltage at Max Power(Vmp): 32V

Current at Max Power(Imp): 13.1A

Open Circuit Voltage(VOC): 38.4V

Short Circuit Current(Isc): 15.7A

Connector: Standard MC4 Connector

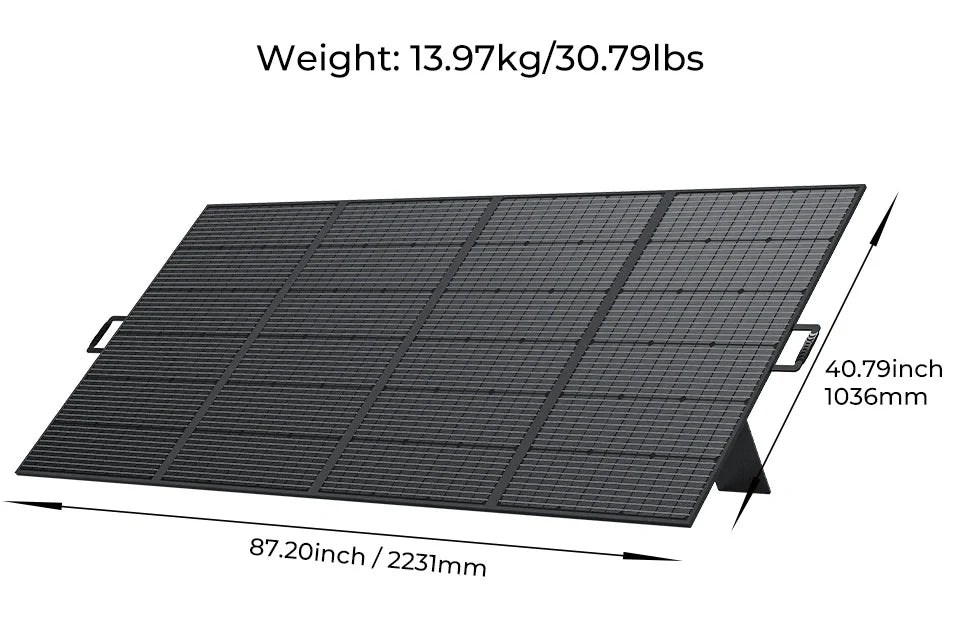

Weight: 30.79lbs (13.97kg)

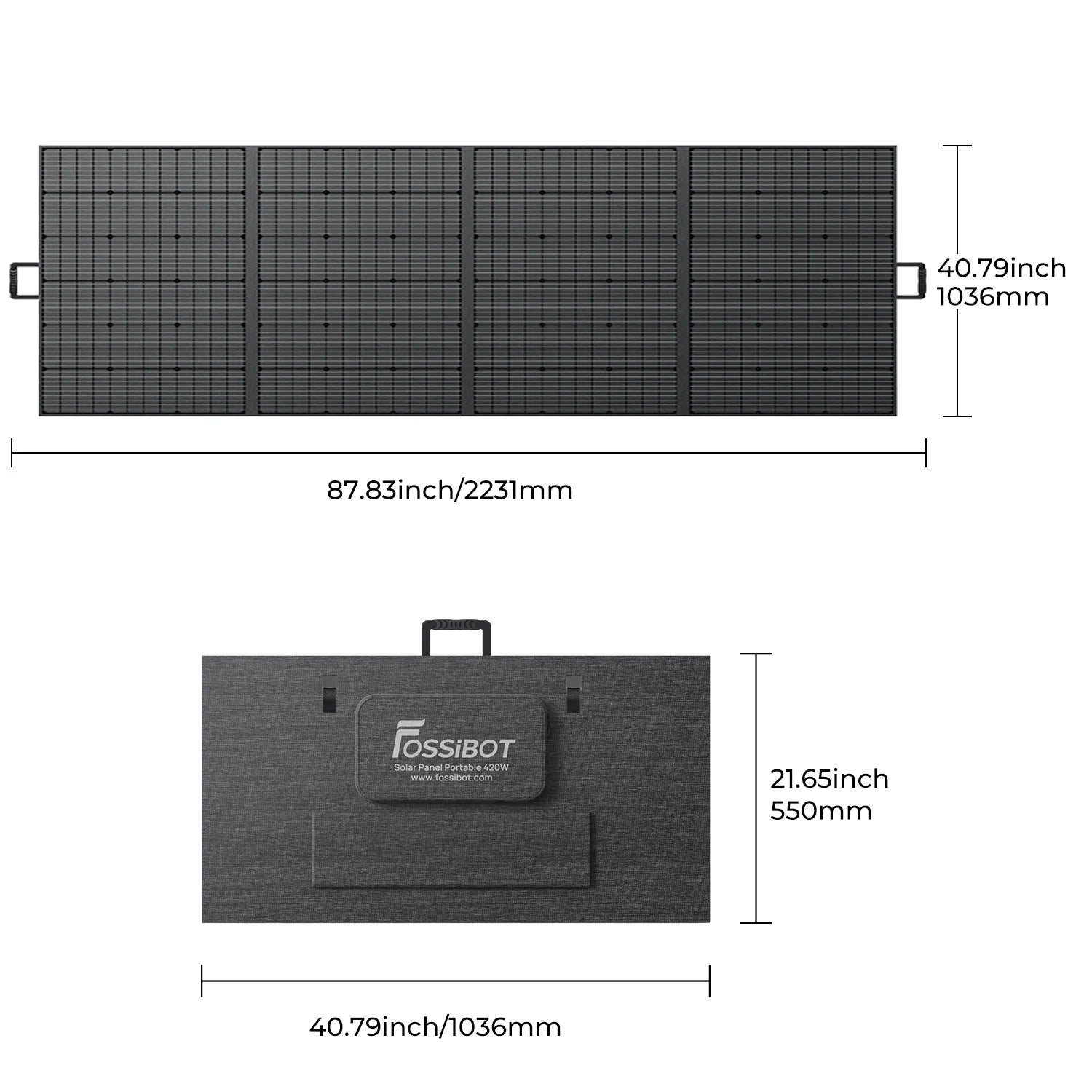

Dimensions (Unfolded): 87.83*40.79inch (2231*1036mm)

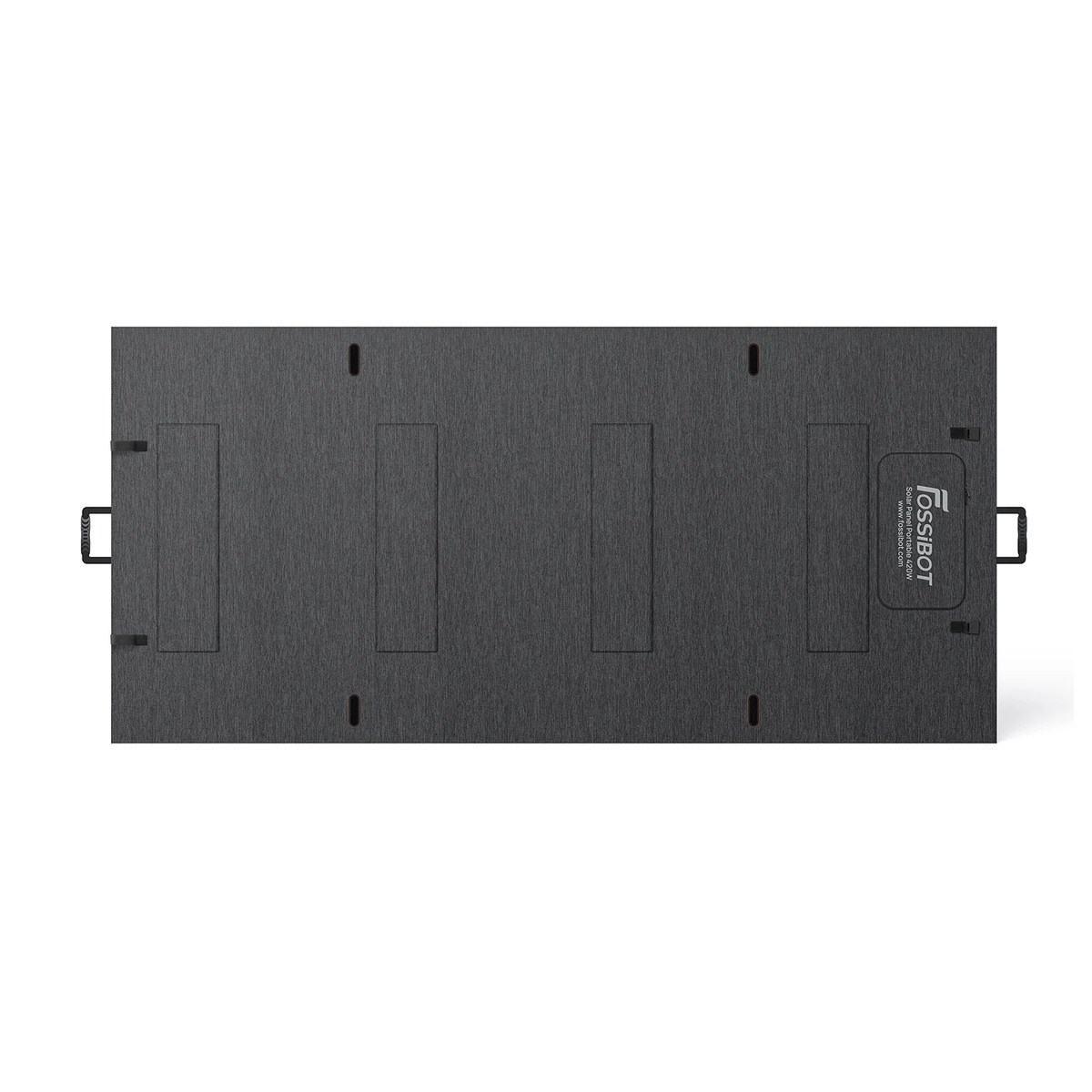

Dimensions (Folded): 21.65*40.79inch(550*1036mm)

Operating Temperature: －10℃～+65℃

Best Working Temperature: +25℃

Folding Number: 4

Certifications: FCC, CE, ROHS

Warranty: 12 Months

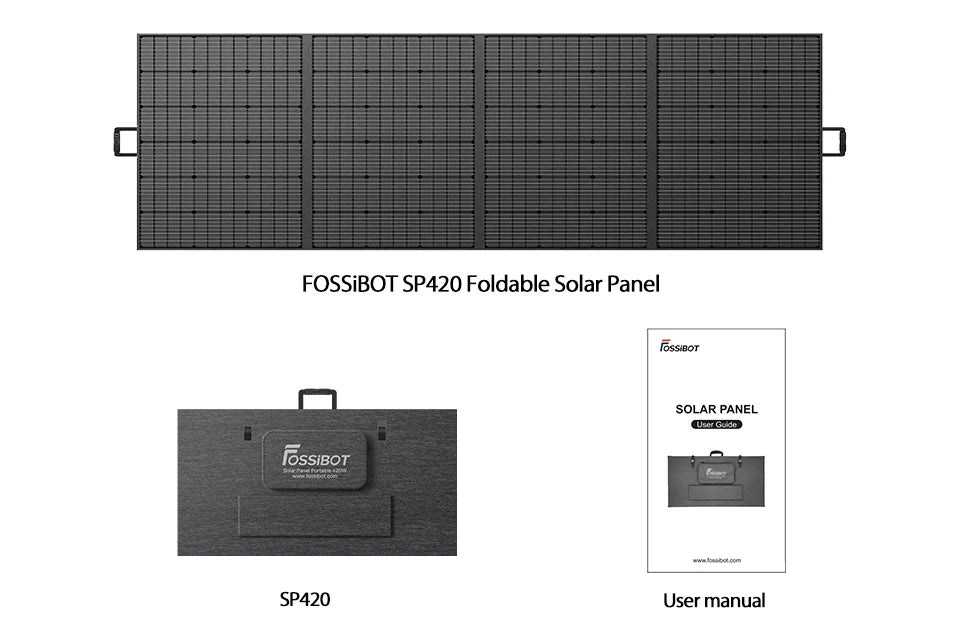

User Manual: FOSSiBOT SP420 Solar Panel User Manual Download Now

FOSSiBOT SP420 Frequently Asked Questions

Faq

Q1: Is it water proof? A: Yes. It’s IP67 splash-resistant. But do NOT expose the solar panel to rain or snow.

Q2: Can I install it on the roof? A: No.

Q3: Can I use FOSSiBOT Portable Solar Panel to charge the third-party power station? A: Yes, as long as they (1) have MC4 connectors; (2) support the output specifications of FOSSiBOT solar panels.

Q4: Can I use different kinds of solar panels? A: No. Multiple solar panels involved in a power system should be totally the same. For example, charging FOSSiBOT F2400 with 2*SP200 is acceptable, while with 1*SP200 + 1*SP300 is unacceptable.

Q5: Does the panel have any USB ports you can directly plug into? A: No. FOSSiBOT Solar Panel has MC4 connectors ONLY.

Q6: How to maximize the efficiency of solar panel? A: 1.Set up correctly: Adjust the angle to ensure it directly faces the sun. 2.Avoid shadow: Any amount of shadow will affect solar panel productivity. 3.Keep clean: Dirt or debris may reduce the panel’s efficiency. 4.Keep cool: Place in somewhere with good air circulation.

Q7: Is the solar charge controller mode MPPT or PWM? A: MPPT.

FOSSiBOT SP420 Bulk Orders

Choose FOSSiBOT SP420 by comparing the confirmed configuration above with your purchasing requirements. The product photos show the available finishes and different views of the product. Check the operating system, connection requirements, battery and charging information where listed, and the dimensions in the Specs tab before arranging a bulk order.

For a wholesale inquiry, specify the model, requested quantity, preferred color and delivery destination. Confirm the required charging equipment and package contents for your market before ordering. Compare the rated output, connector, operating voltage and folded dimensions with your charging system. Solar charging depends on the sunlight available and the connected power station. Position the panel to receive direct sunlight and follow the manufacturer instructions for connections and handling.
