FOSSiBOT SP200 Solar Panels

Wholesale FOSSiBOT SP200 Solar Panels for bulk orders at RuggedMaster. Great Portability – Light weight and foldable, easy to carry with portable protective case. Easy Setup with Kickstand – Sturdy stand for an easy solar charging setup outdoors.

FOSSiBOT SP200 Features and Configuration

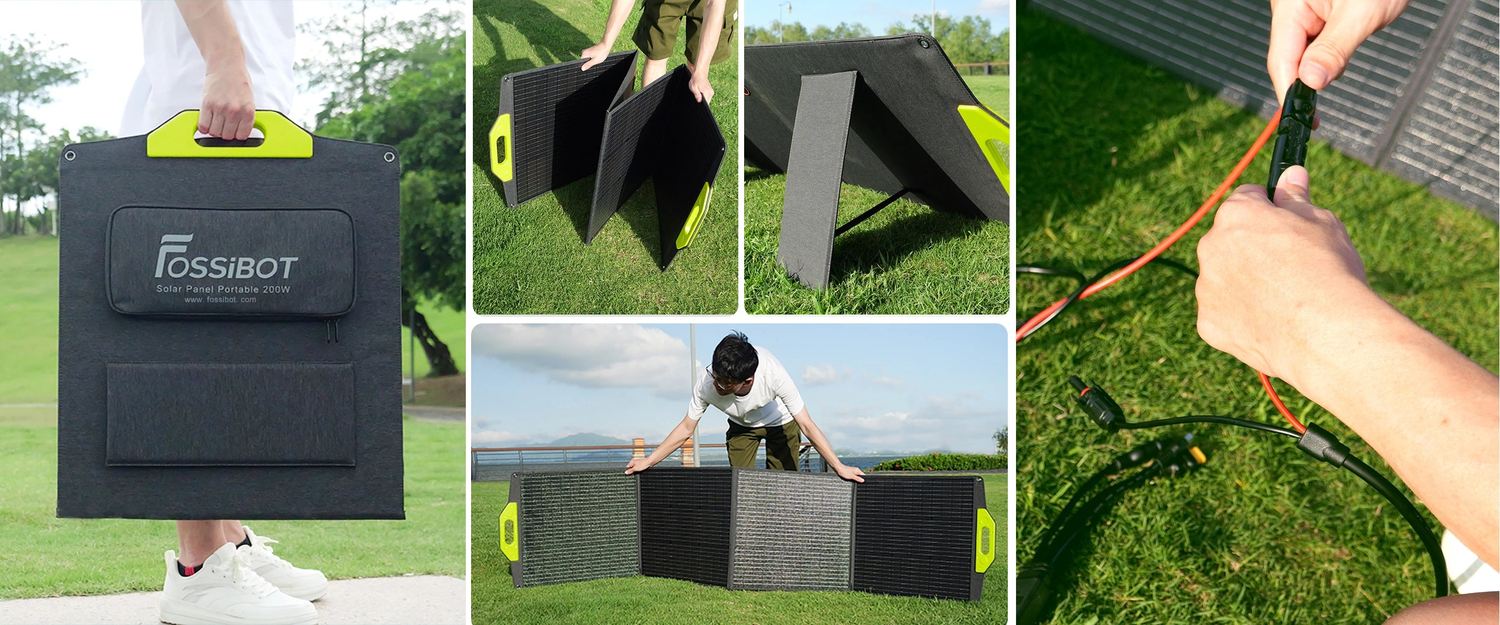

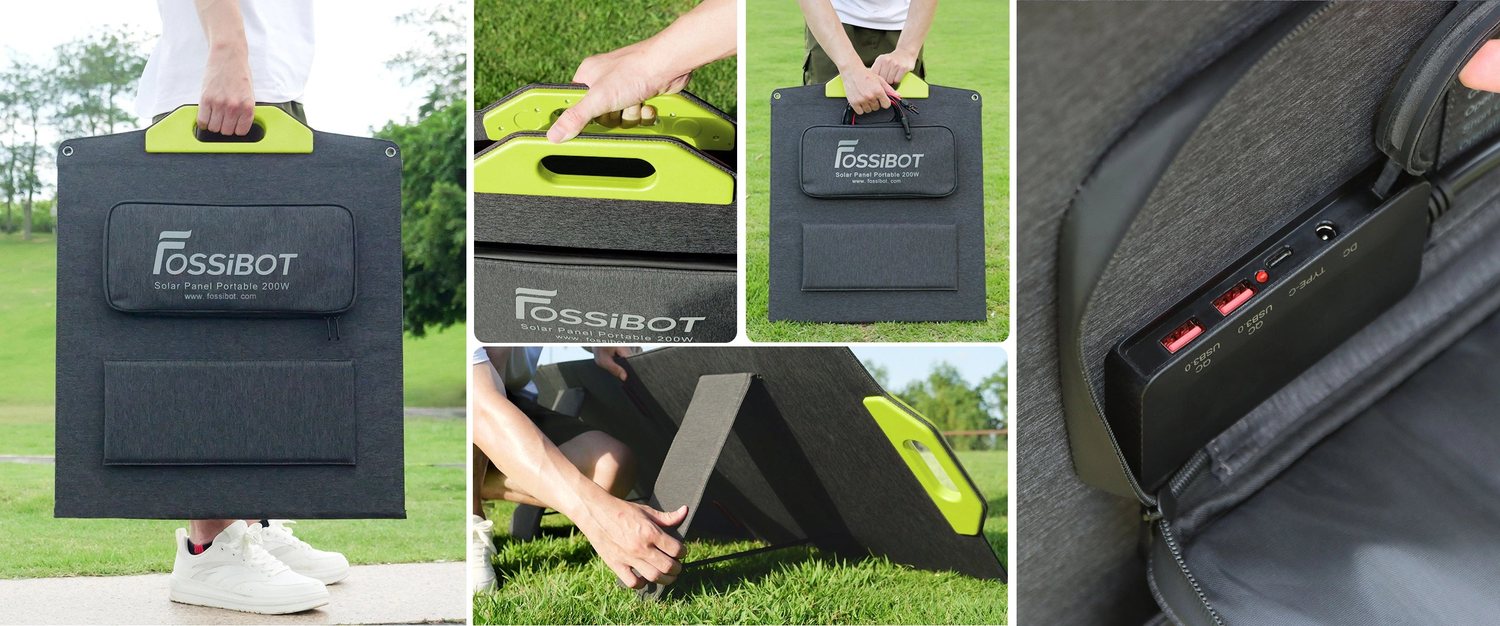

Great Portability – Light weight and foldable, easy to carry with portable protective case.

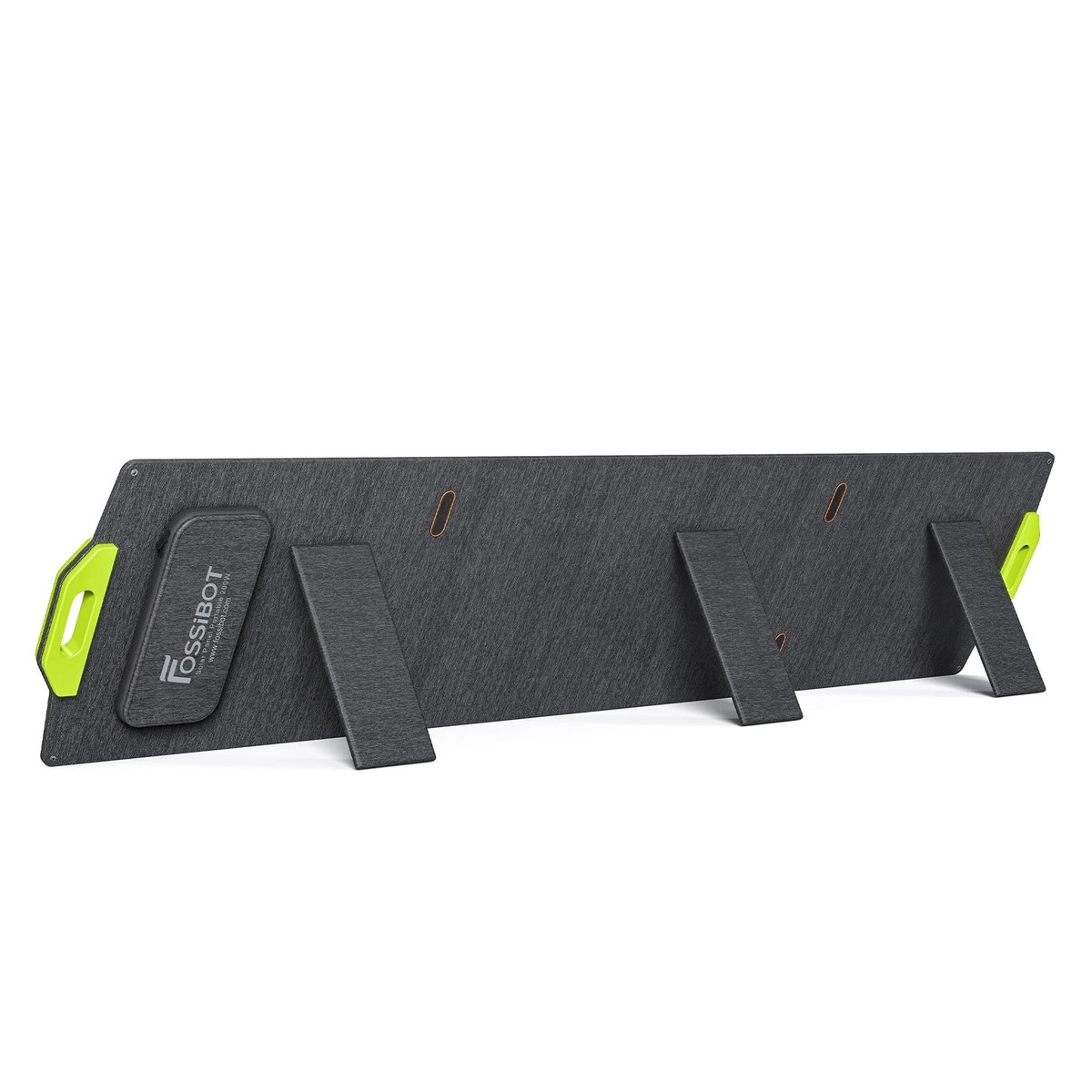

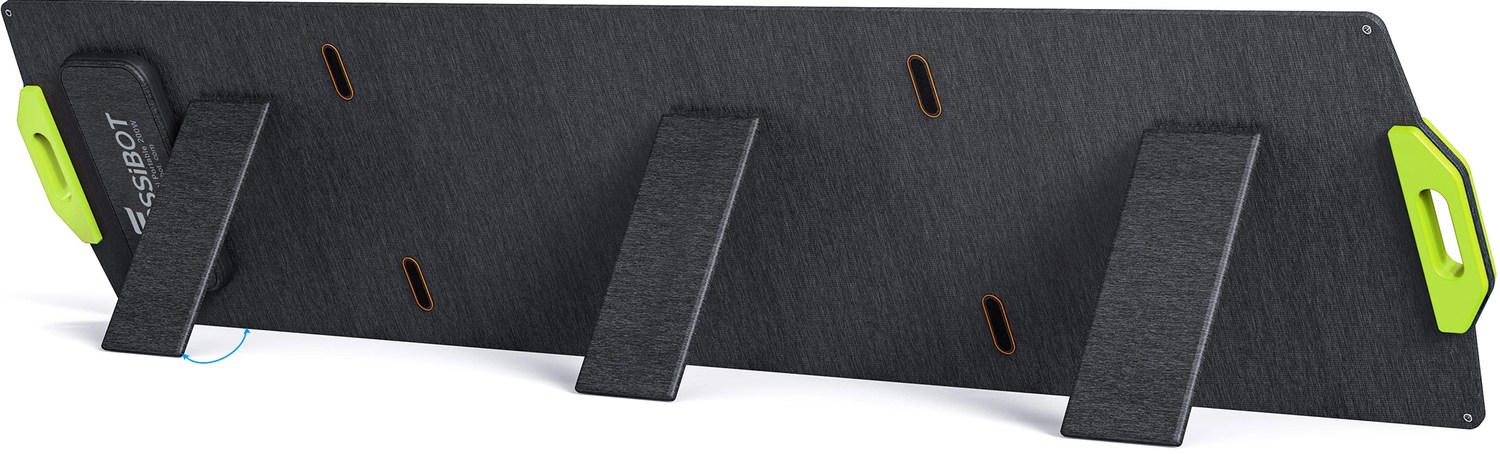

Easy Setup with Kickstand – Sturdy stand for an easy solar charging setup outdoors.

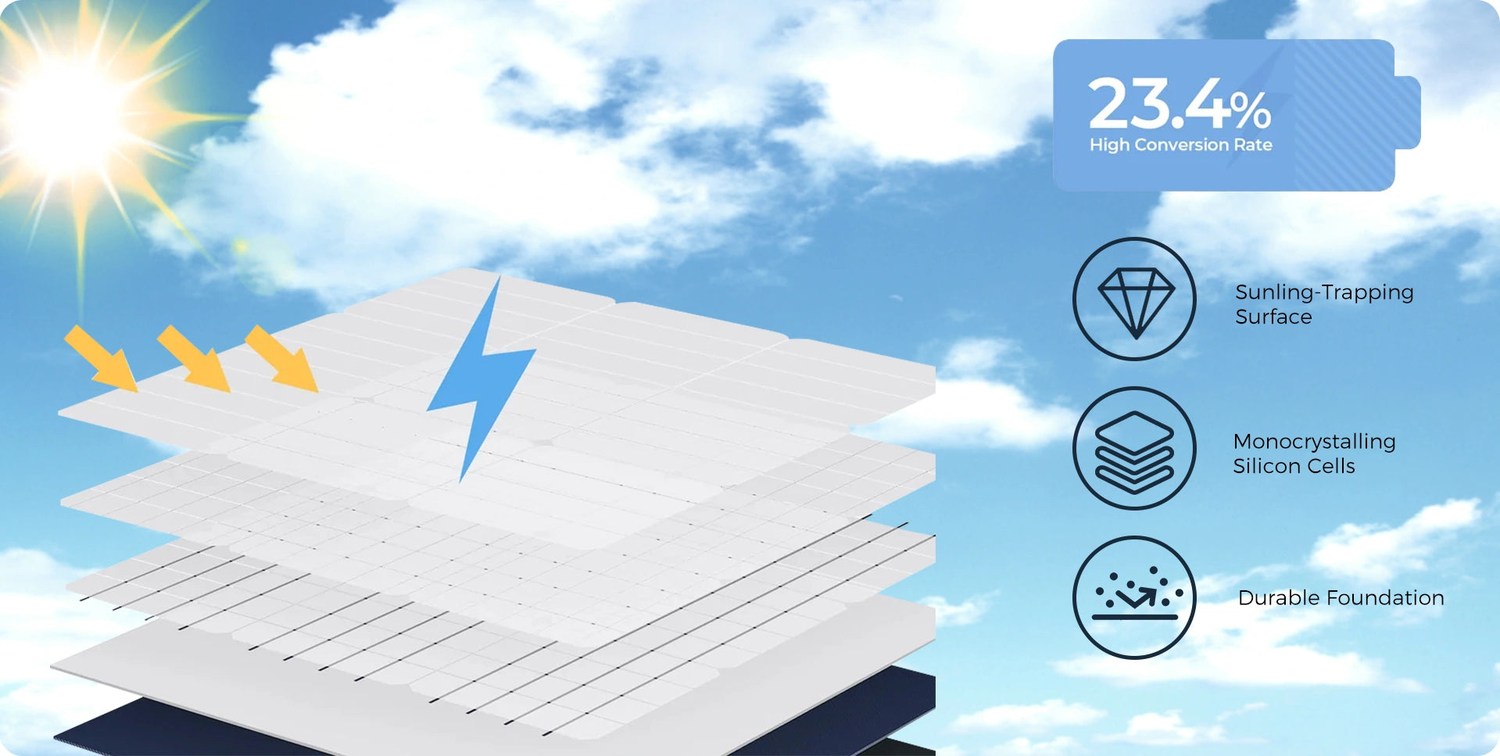

23.4% Conversion Efficiency – High solar conversion efficiency help you capture more sun and charge faster.

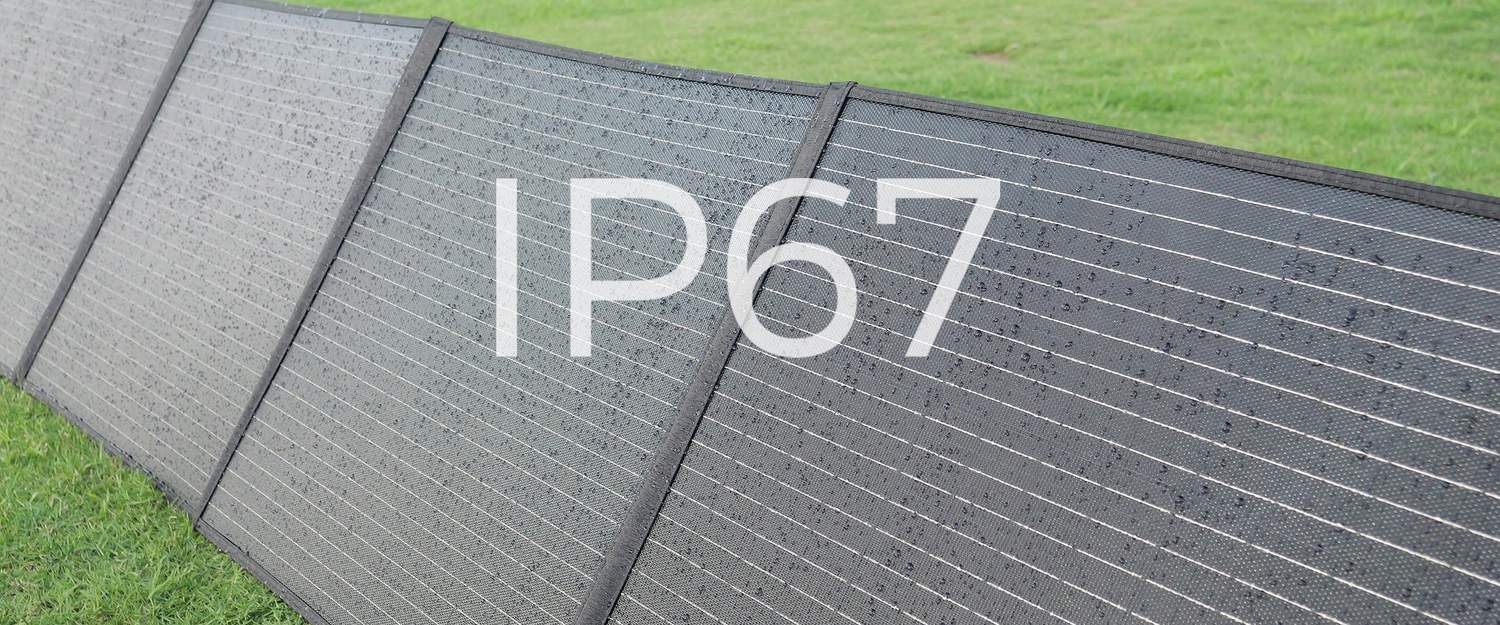

Durable & IP67 Waterproof – EFTE coating and IP67 water resistance rating make the panel more durable.

MC4 Connector – Works with most third-party devices.

12-month Warranty

FOSSiBOT SP200 Technical Overview

Model: SP200

Peak Power(Pm): 200W

Solar Cell Lamination: ETFE (Ethylene tetrafluoroethylene)

Cell Type: Monocrystalline Silicon

Cell Efficiency: Up to 23.4%

Voltage at Max Power(Vmp): 18V

Current at Max Power(Imp): 11.1A

Open Circuit Voltage(VOC): 21.6V

Short Circuit Current(Isc): 13.3A

Connector: Standard MC4 Connector

Weight: 17.73lbs (8.02kg)

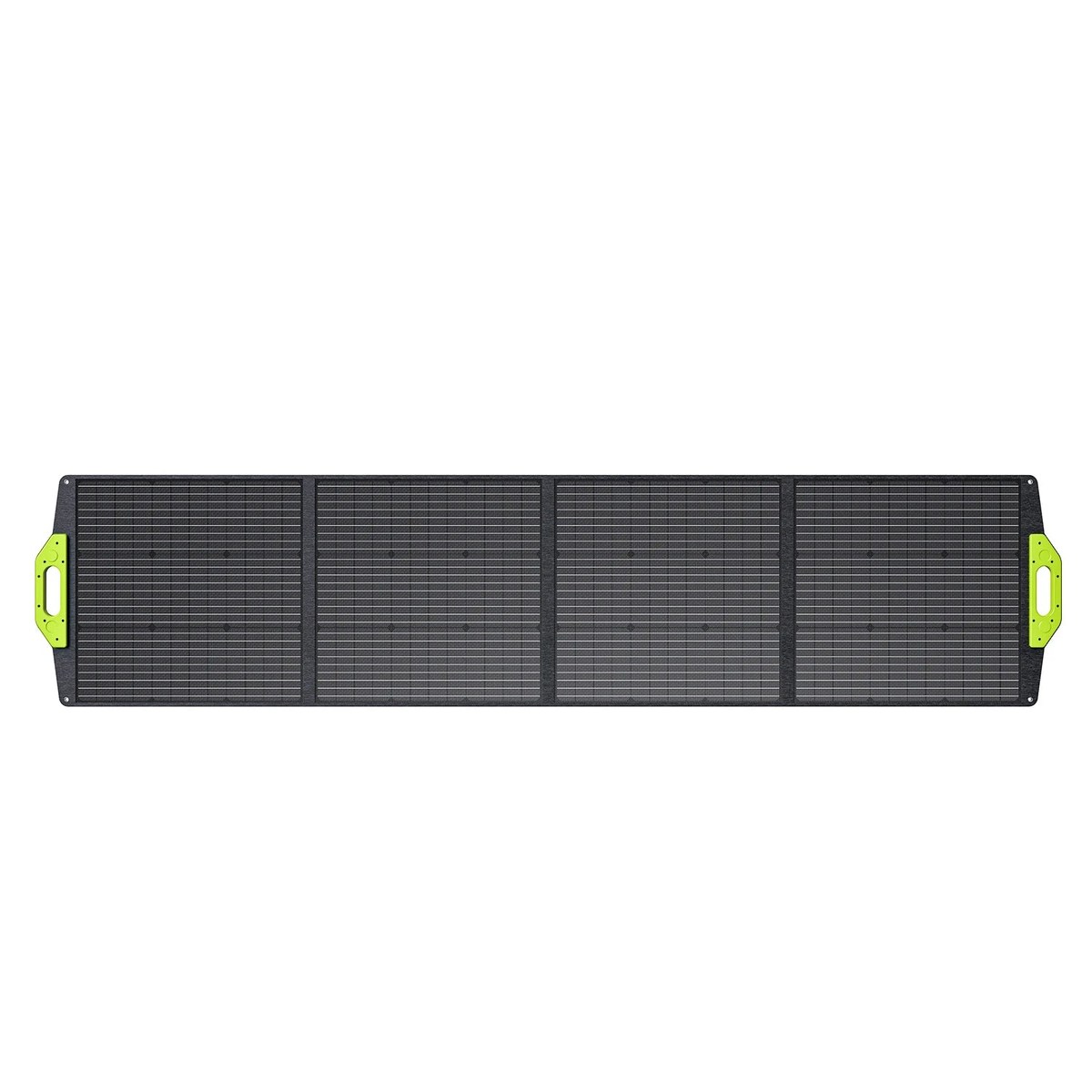

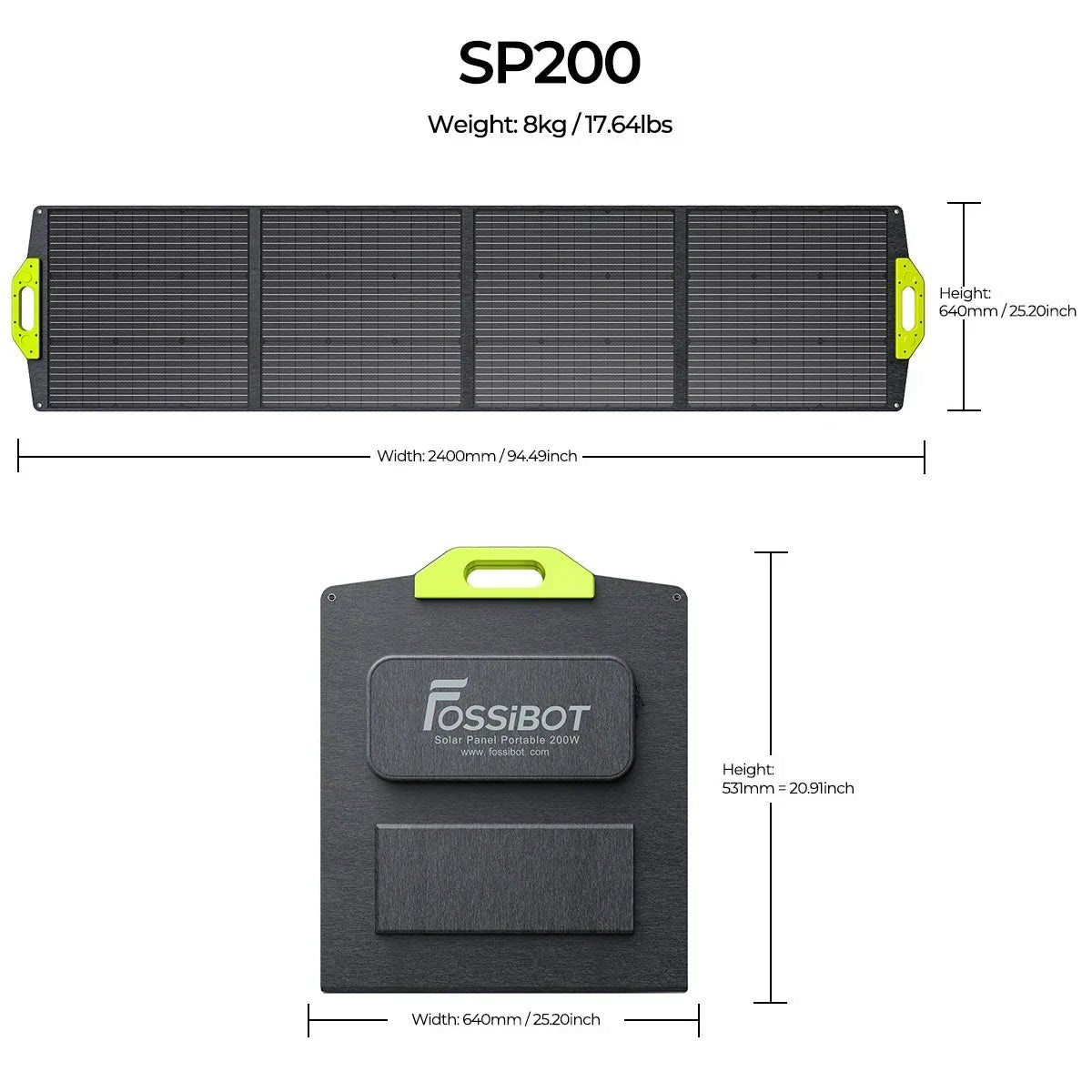

Dimensions (Unfolded): 20.91*94.49inch(531*2400mm)

Dimensions (Folded): 20.9*25.20inch(531*640mm)

Operating Temperature: 14-149℉ (-10-+65℃)

Best Working Temperature: 77℉ (+25℃)

Cable Length: 59.06inch (1.5m)

Folding Number: 4

Certifications: FCC, CE, ROHS

Warranty: 12 Months

User Manual: FOSSiBOT SP200 Solar Panel User Manual Download Now

FOSSiBOT SP200 Frequently Asked Questions

Faq

Q1: Is it water proof? A: Yes. It’s IP67 splash-resistant. But do NOT expose the solar panel to rain or snow.

Q2: Can I install it on the roof? A: No.

Q3: Can I use FOSSiBOT Portable Solar Panel to charge the third-party power station? A: Yes, as long as they (1) have MC4 connectors; (2) support the output specifications of FOSSiBOT solar panels.

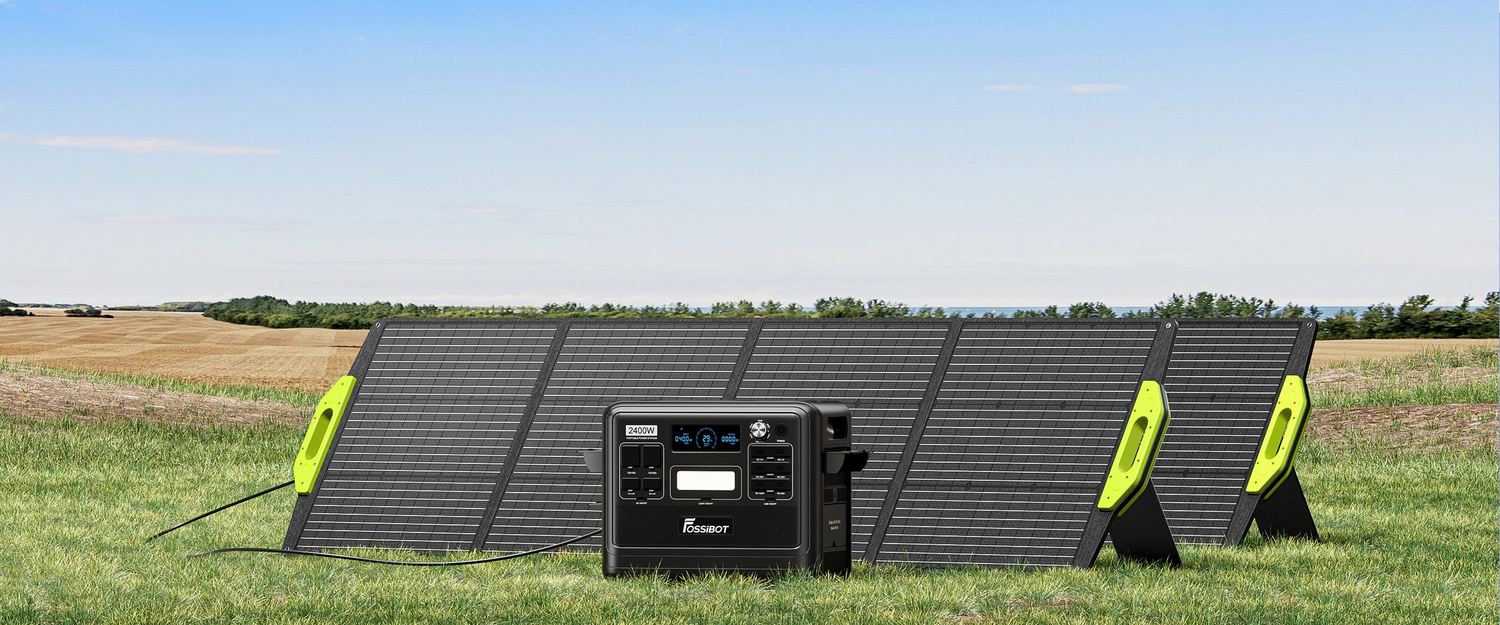

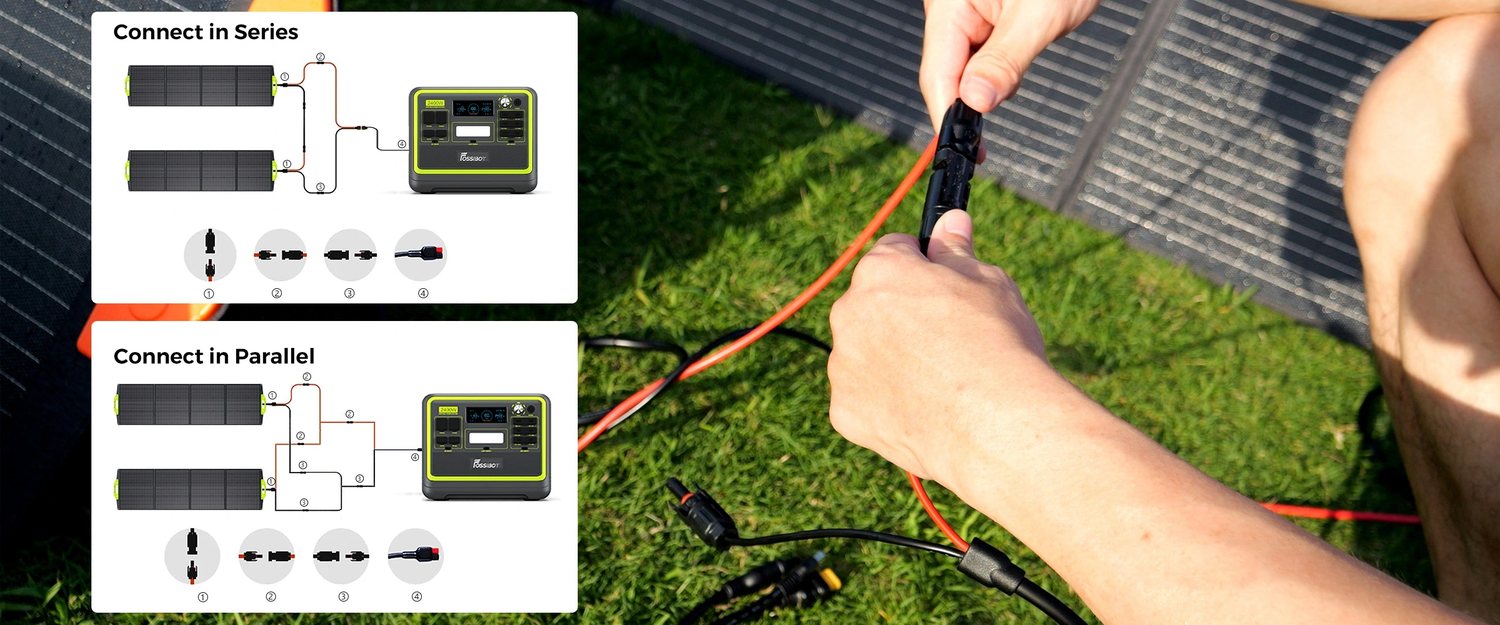

Q4: Can I use different kinds of solar panels? A: No. Multiple solar panels involved in a power system should be totally the same. For example, charging FOSSiBOT F2400 with 2*SP200 is acceptable, while with 1*SP200 + 1*SP300 is unacceptable.

Q5: Does the panel have any USB ports you can directly plug into? A: No. FOSSiBOT Solar Panel has MC4 connectors ONLY.

Q6: How to maximize the efficiency of solar panel? A: 1.Set up correctly: Adjust the angle to ensure it directly faces the sun. 2.Avoid shadow: Any amount of shadow will affect solar panel productivity. 3.Keep clean: Dirt or debris may reduce the panel’s efficiency. 4.Keep cool: Place in somewhere with good air circulation.

Q7: Is the solar charge controller mode MPPT or PWM? A: MPPT.

FOSSiBOT SP200 Bulk Orders

Choose FOSSiBOT SP200 by comparing the confirmed configuration above with your purchasing requirements. The product photos show the available finishes and different views of the product. Check the operating system, connection requirements, battery and charging information where listed, and the dimensions in the Specs tab before arranging a bulk order.

For a wholesale inquiry, specify the model, requested quantity, preferred color and delivery destination. Confirm the required charging equipment and package contents for your market before ordering. Compare the rated output, connector, operating voltage and folded dimensions with your charging system. Solar charging depends on the sunlight available and the connected power station. Position the panel to receive direct sunlight and follow the manufacturer instructions for connections and handling.
