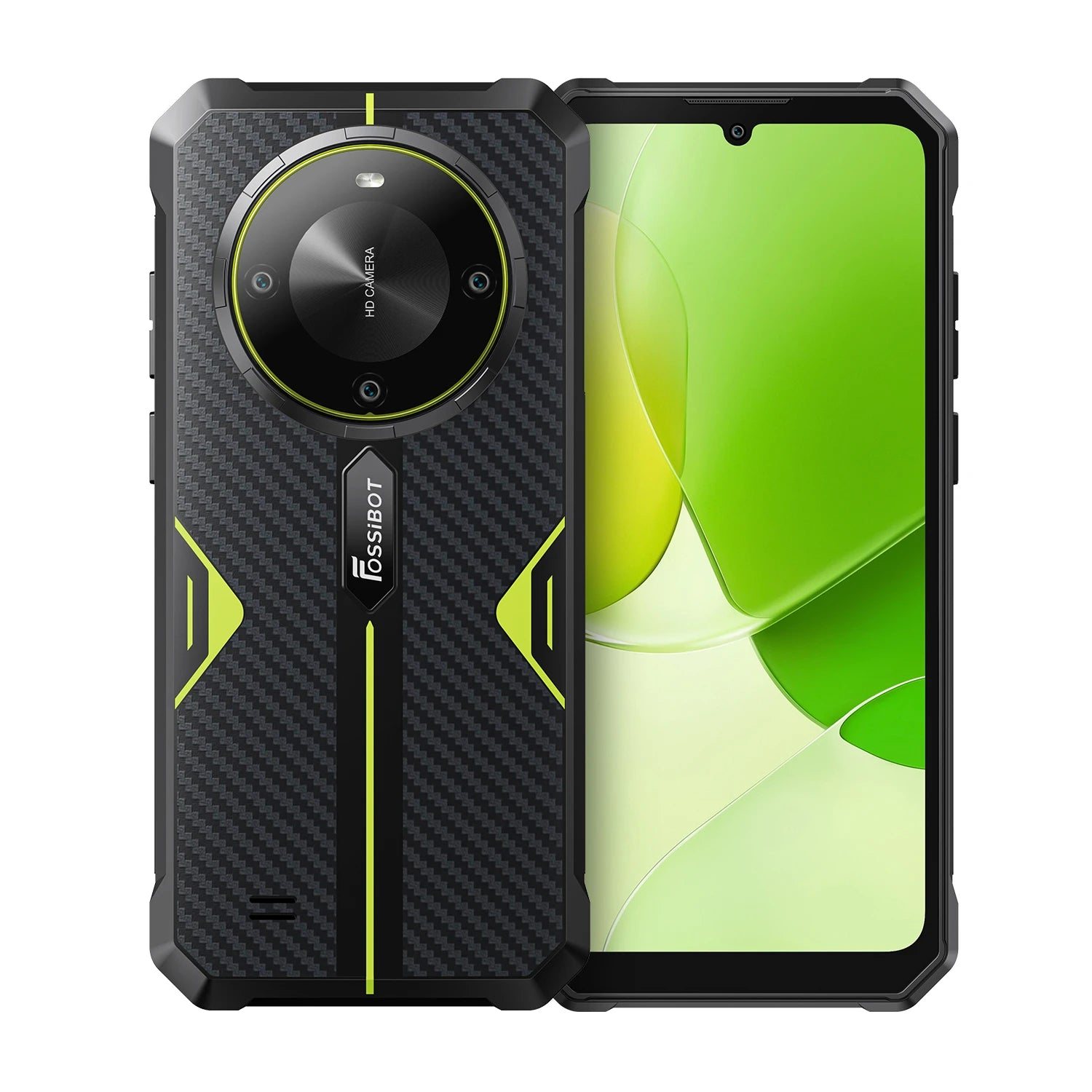

FOSSiBOT F105 Rugged Phones

Wholesale FOSSiBOT F105 Rugged Phones for bulk orders at RuggedMaster. MT8768 Octa-Core Processor 12nm 6.745”HD+ IPS Waterdrop screen

FOSSiBOT F105 Features and Configuration

MT8768 Octa-Core Processor 12nm

6.745”HD+ IPS Waterdrop screen

10300mAh Large battery/ Support 10W fast charging

20MP Rear Camera + 8MP Front Camera

12GB RAM (4GB+Up to 8GB Extended RAM)

64GB ROM (Up to 128GB TF Card Expanded Memory)

The Latest Android 14 OS System

FOSSiBOT F105 Technical Overview

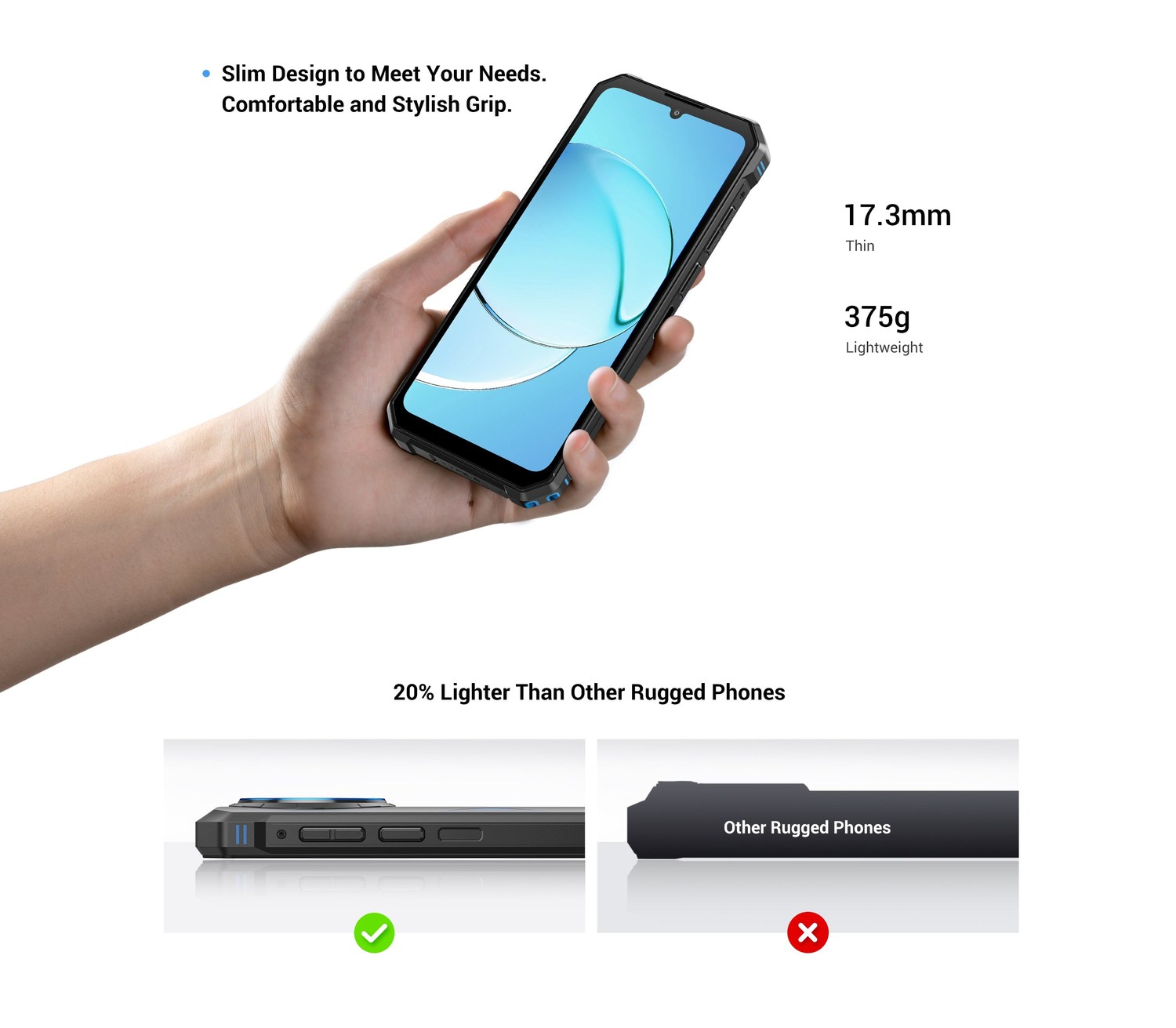

Dimensions: Height: 177.7mmWidth: 84mmThickness: 17.3mmWeight:≈ 375g

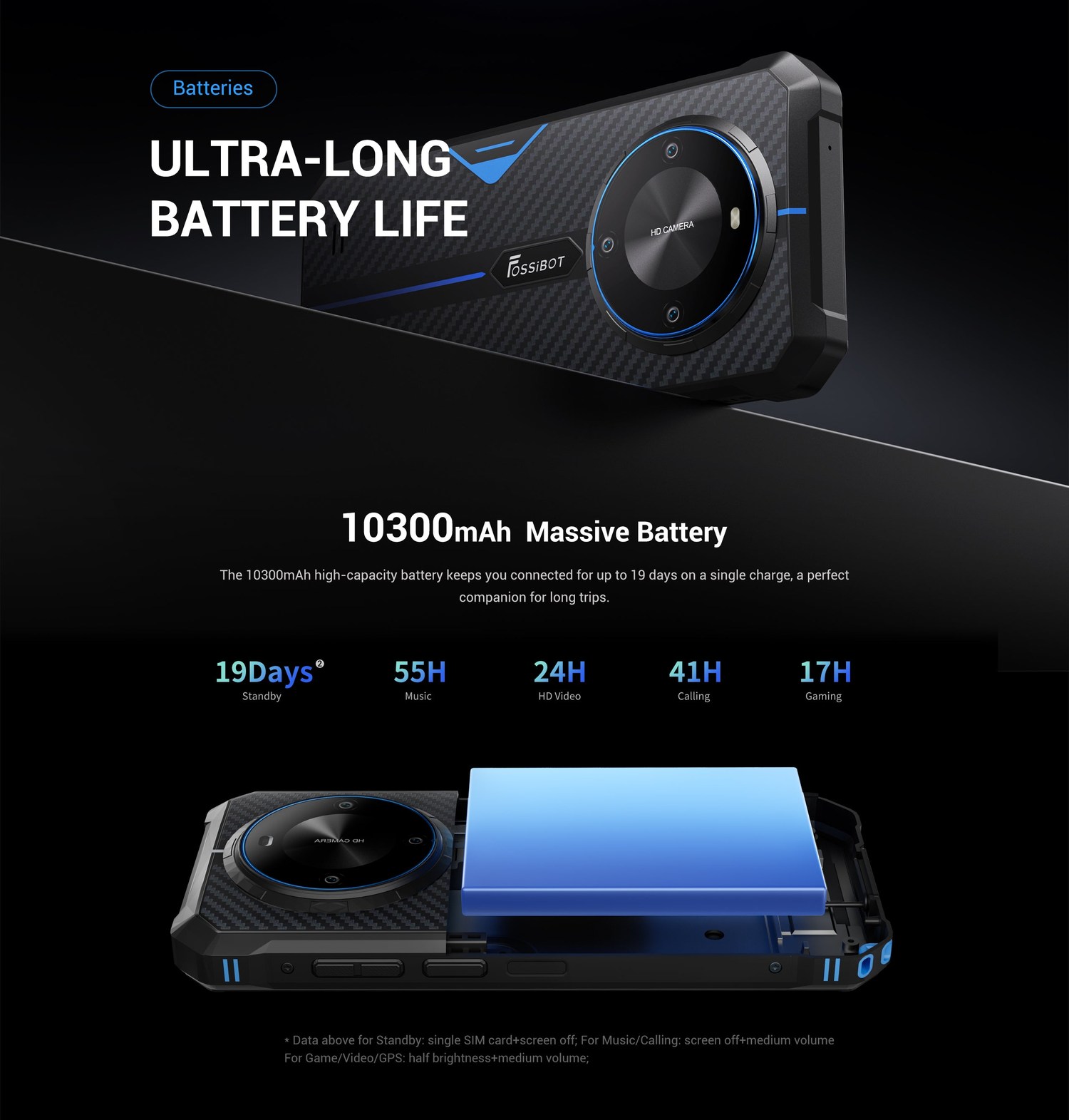

Battery & charging: Capacity: 10300mAh
Fast Charging: 10W
Material: Built-in lithium-ion polymer
Voltage: 4.45V
Standby Time:
Single card standby: 462hours
Dual card standby: 387 hours
Calling: 41H
(screen off, half VOL, by earphone)
* The endurance data comes from the FOSSiBOT laboratory

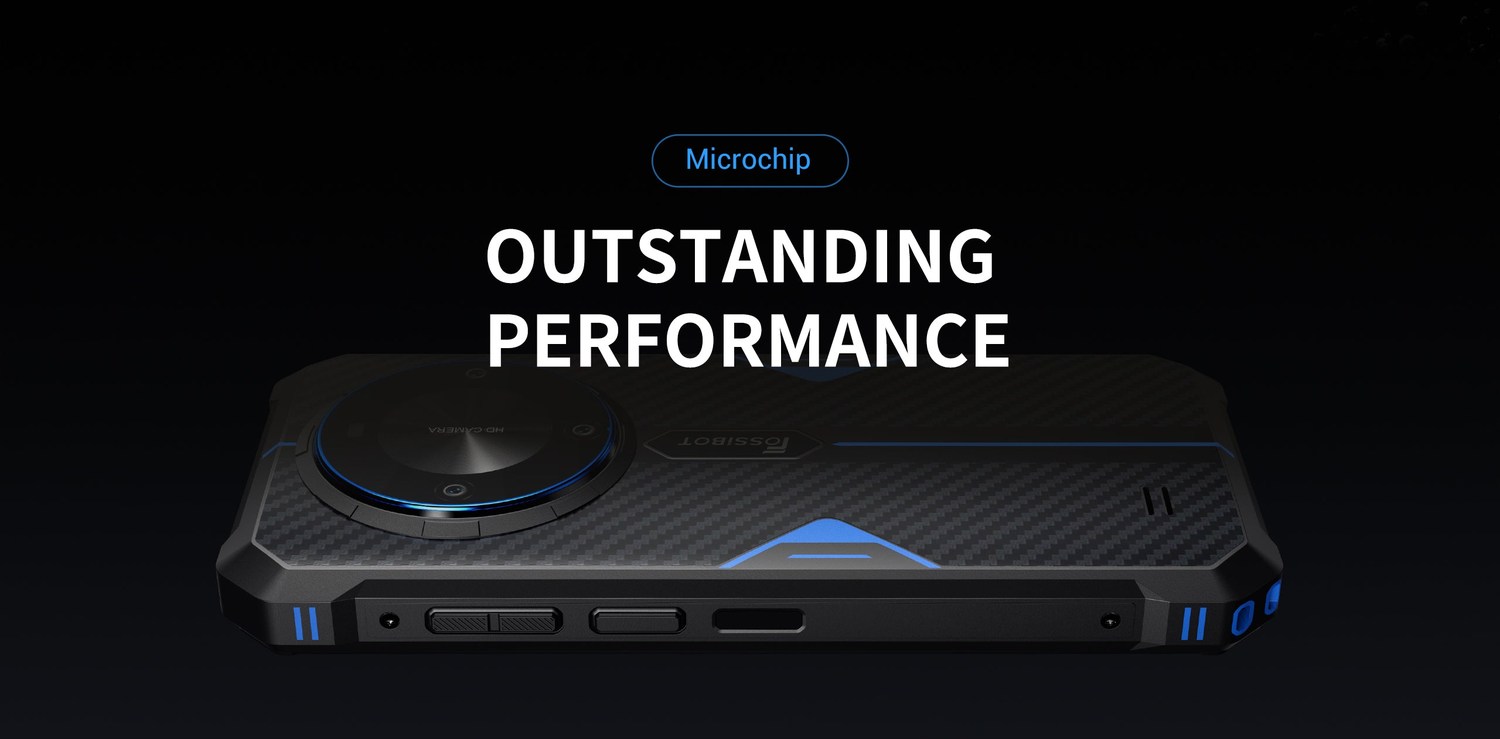

Platform: CPU: MT8768
CPU Core Count: Octa-core
Process Node: 12 nm
CPU Framework: 8*Cortex-A53 2.0GHz+1.5GHz
GPU: IMG GE8320 650MH

Storage: RAM & ROM：4GB + 64GB
RAM Type: LPDDR4X
ROM Type: UFS
Expandable RAM Capacity: 8GB
Expandable ROM Capacity: Up to 128GB
Memory card type: T-flash card

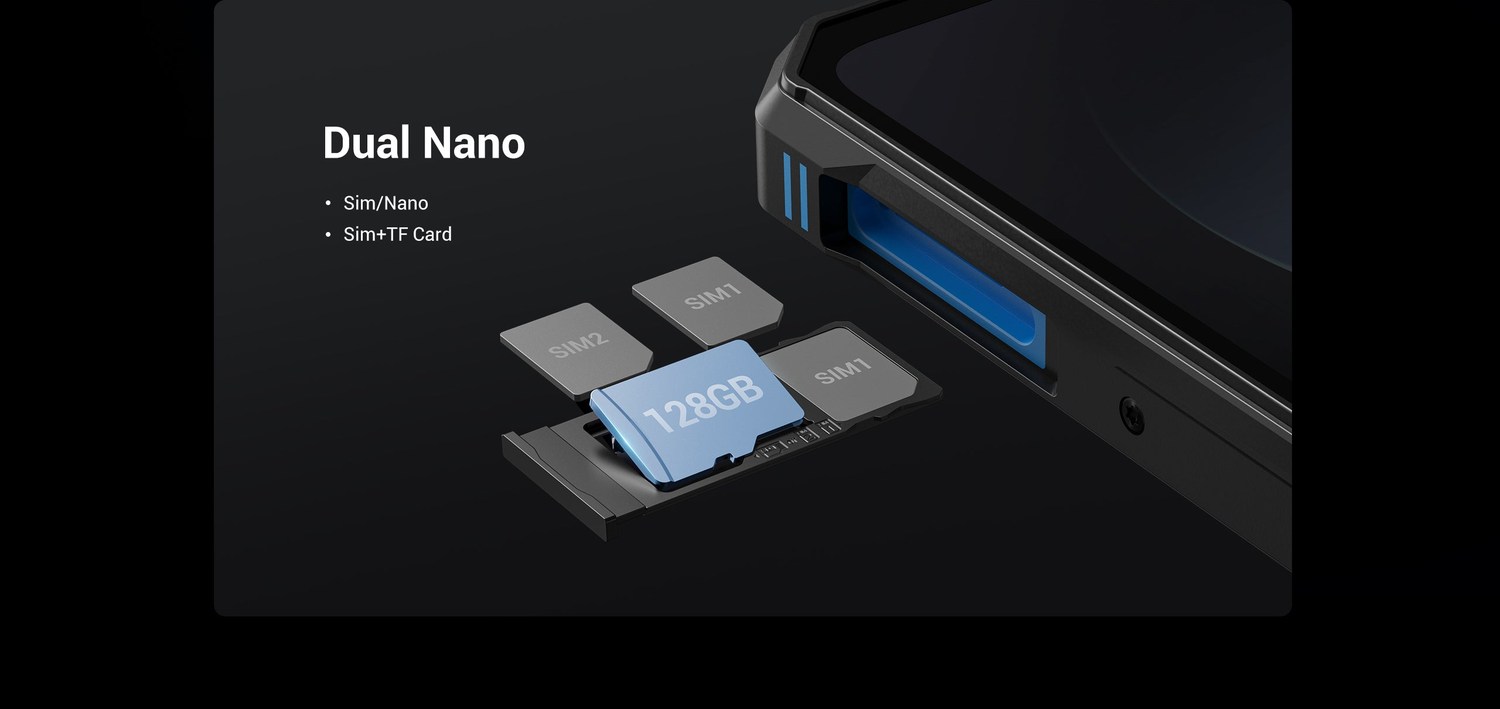

Card Slot: 2 nano SIMs (SIM1 + SIM2) or 1 nano SIM+TF Card
*Available storage and RAM are less than the total memory due to storage of the operating system and software pre-installed in the device.*The Virtual Memory Expansion can be activated in Settings and adds up to 7GB of RAM.
*T-flash card needs to be purchased separately.

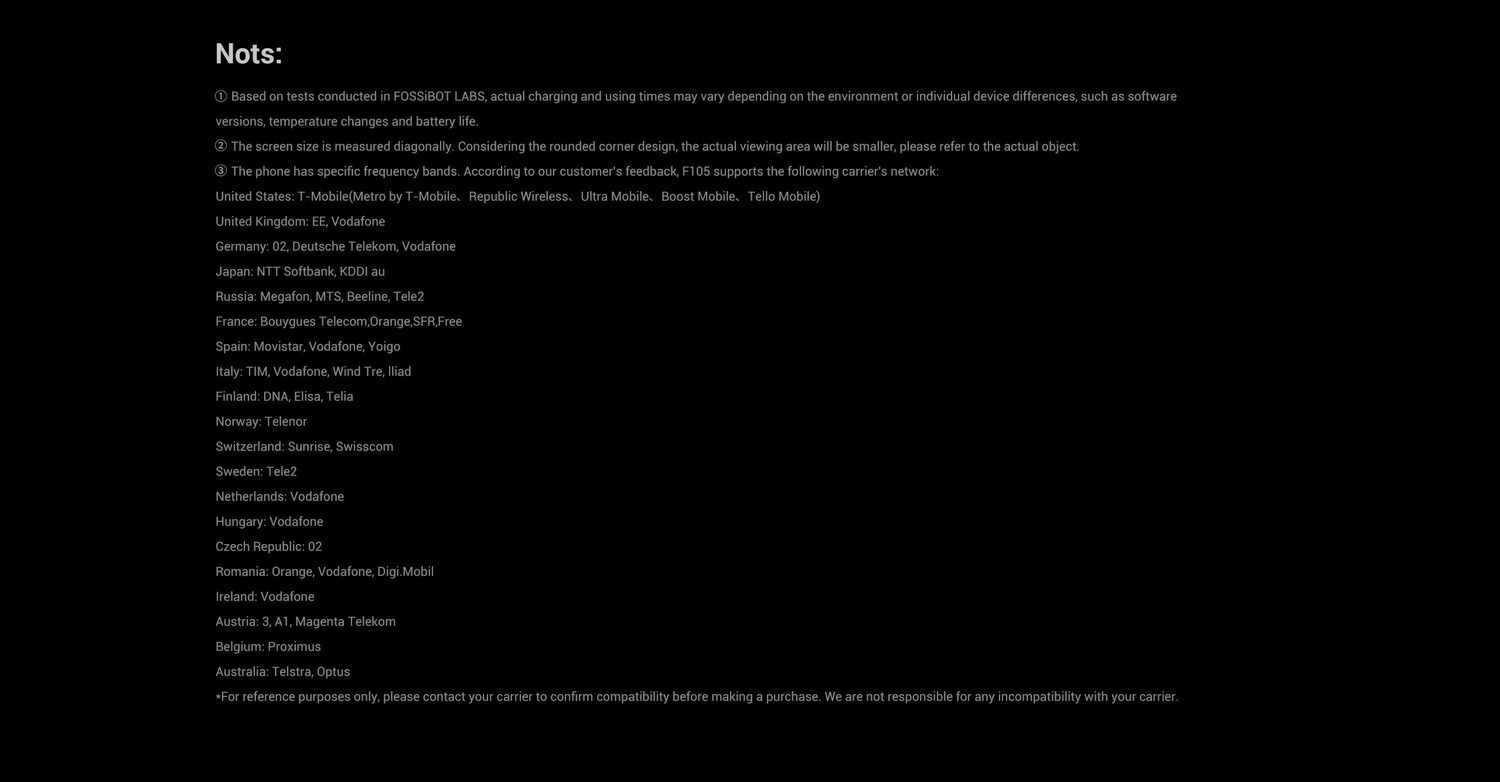

Networks &connectivity: *Please Confrim Your SIM Bands Compatibility Before Purchasing!

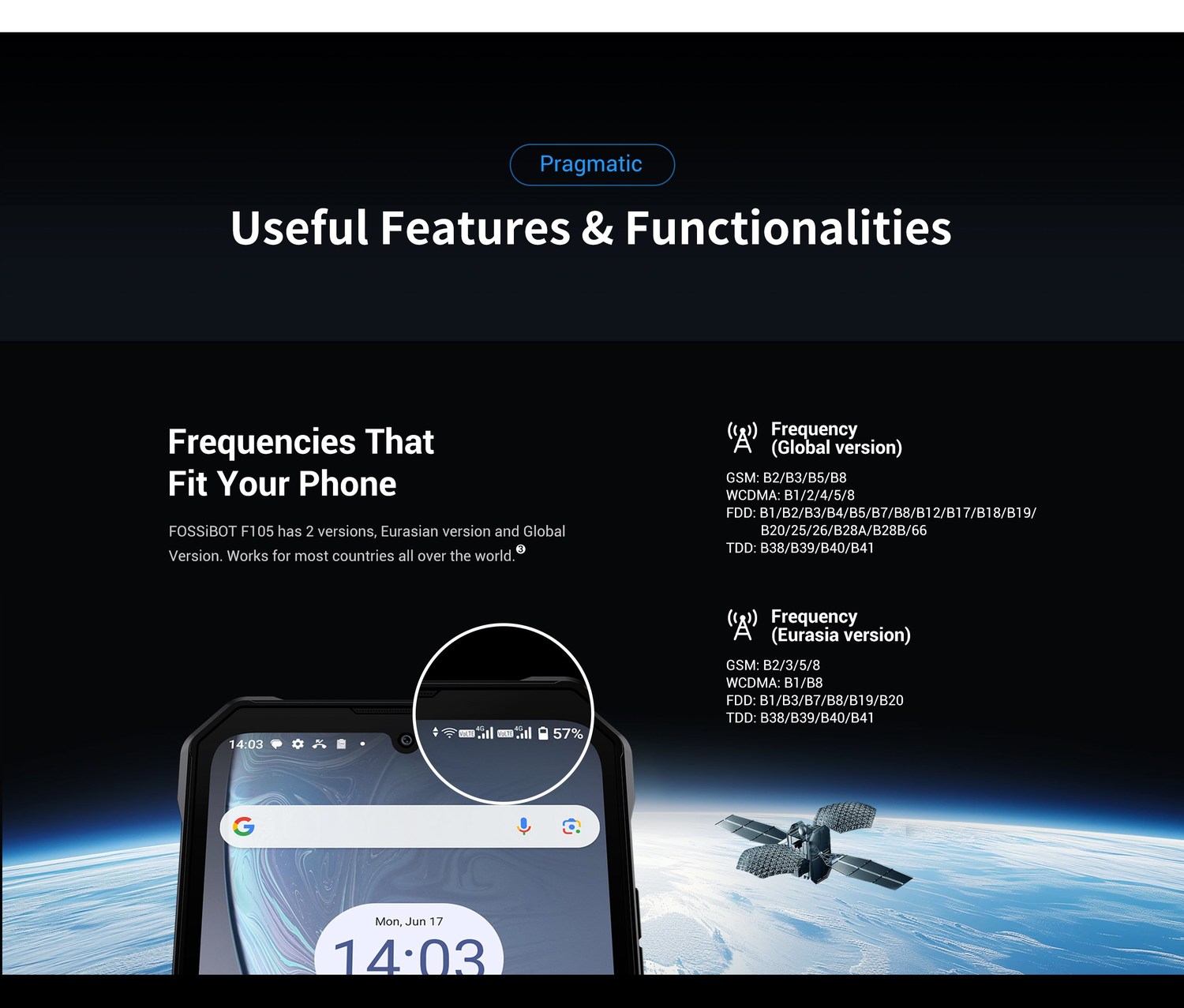

Supported network bands
Cellular :4G/3G/2G(Not compatible with AT&T or Cricket activations or withCDMA Networks like Verizon, Sprint)
Global Pass Band
GSM: 850/900/1800/1900MHz
3G: B1/B2/B4/B5/B8
4G: B38/B39/B40/B41/B1/B2/B3/B4/B5
B7/B8/B12B17/B18/B19/B20/B25/B26/B28A
B28B/B66
Supports EDGE/GPRS

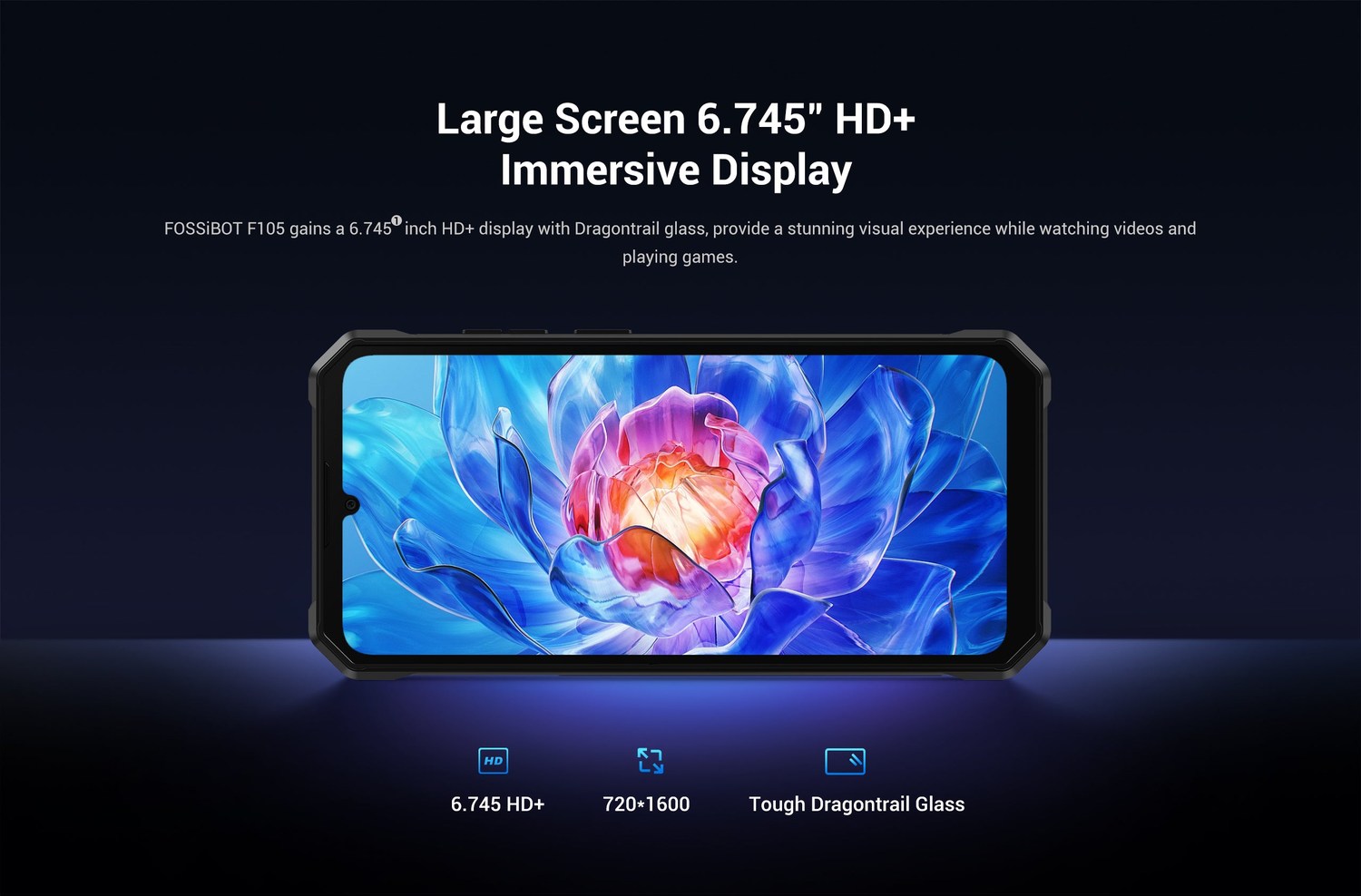

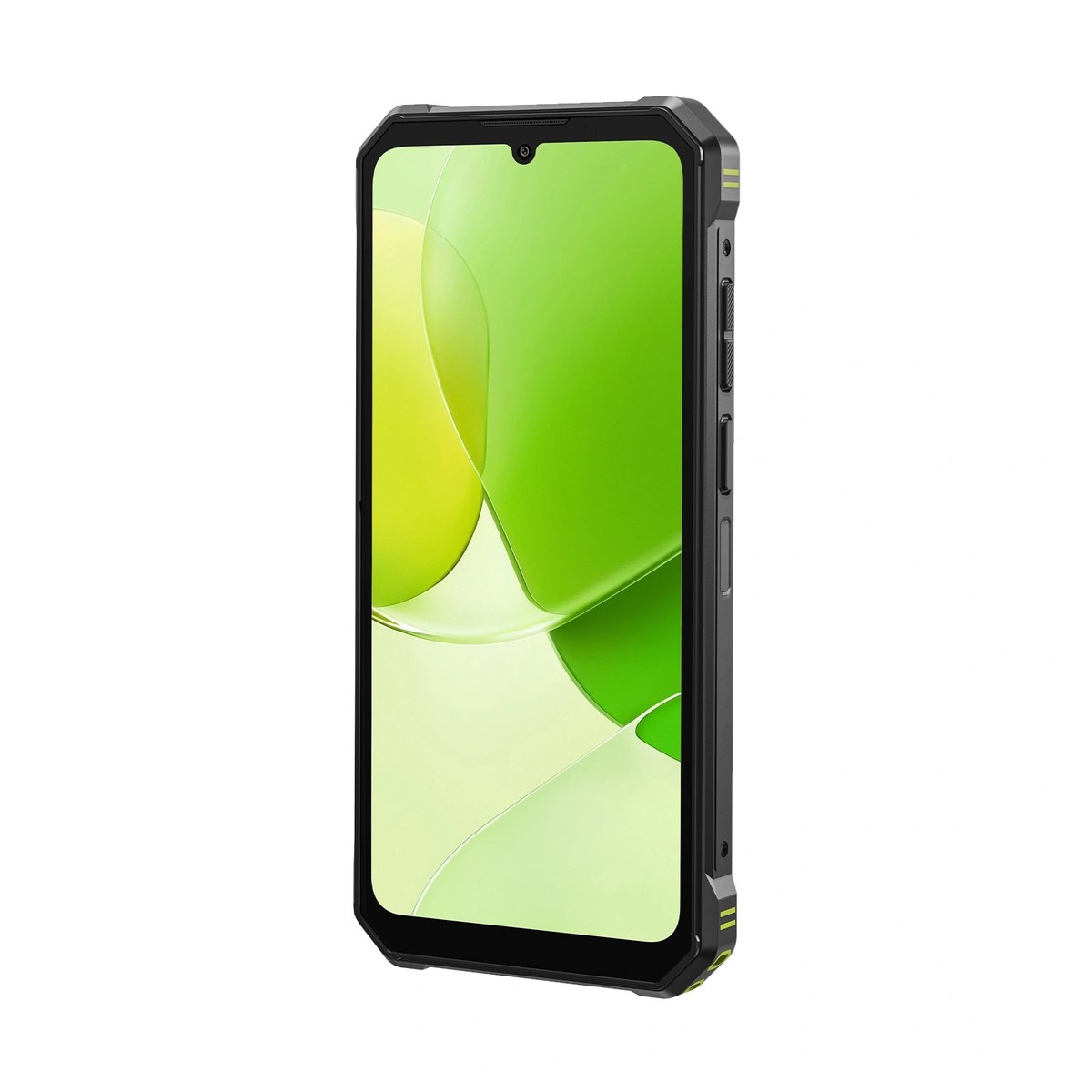

Display: Size: 6.745” inches
Resolution: 720*1600(FHD+)
Aspect ratio: 19:9
Pixel density: 260PPI
Screen-to-body ratio: 74%
Type: TFT-in-cell LCD

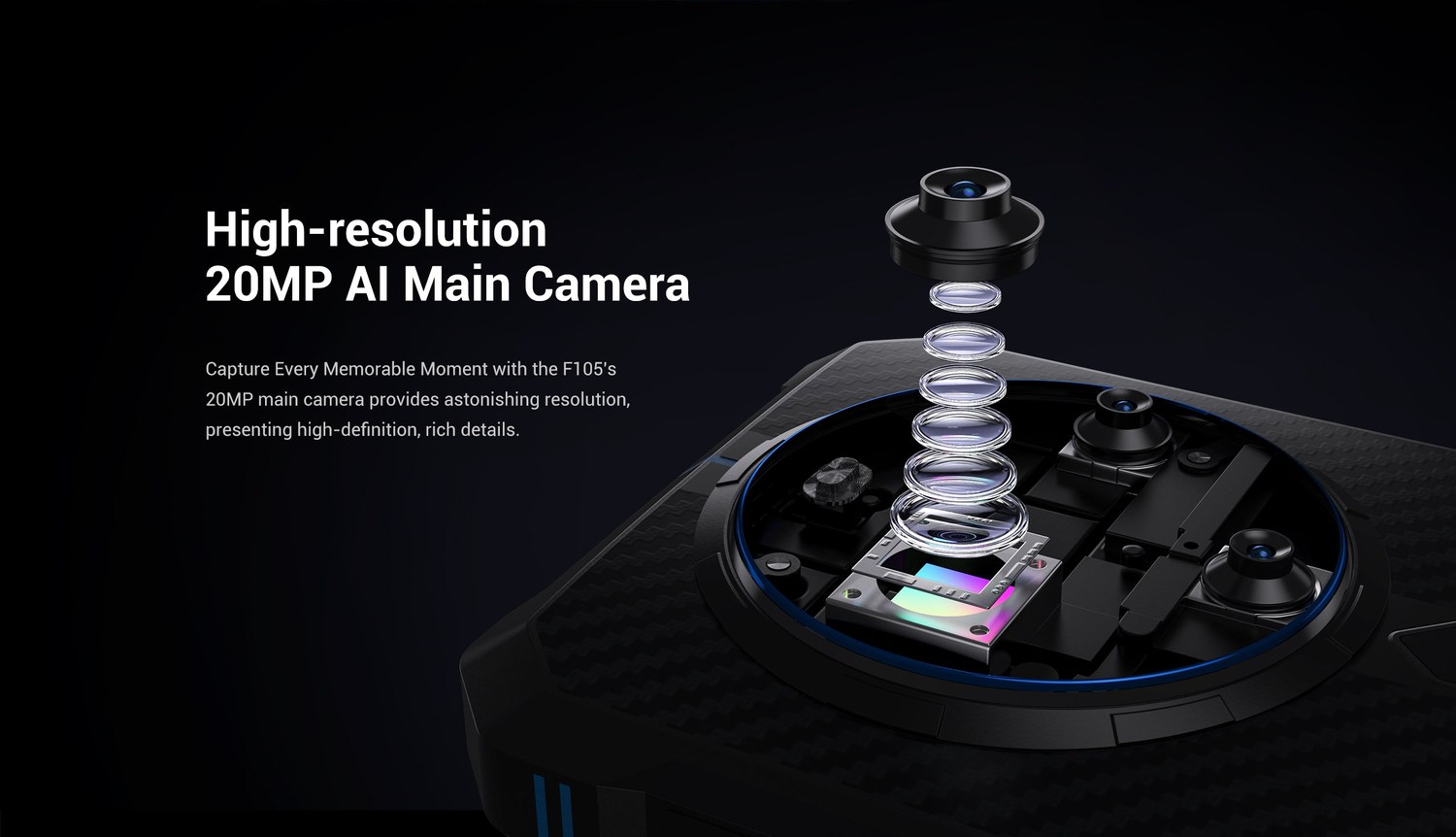

Camera& video: Rear Cameras
20MP
Sensor: HI1333
Sensing area: 1 / 3.06 inch 5P
Pixel size: 4224*3200
Aperture: F2.2+/- 5%
Wide Angle: 78°
Function: Video, Photo, Night Vision (Super Night View), HDR, Single Shot Bokeh, Panorama Stitching, Scanning
Front Camera
8MP
Sensor: HI556
Optical dimension: 1/5inch
Pixel size: 2592*1944
Aperture: F2.4±5%
Wide Angle: 77°
Function: Video, Photo, HDR, Face Beautification, Single Shot Bokeh

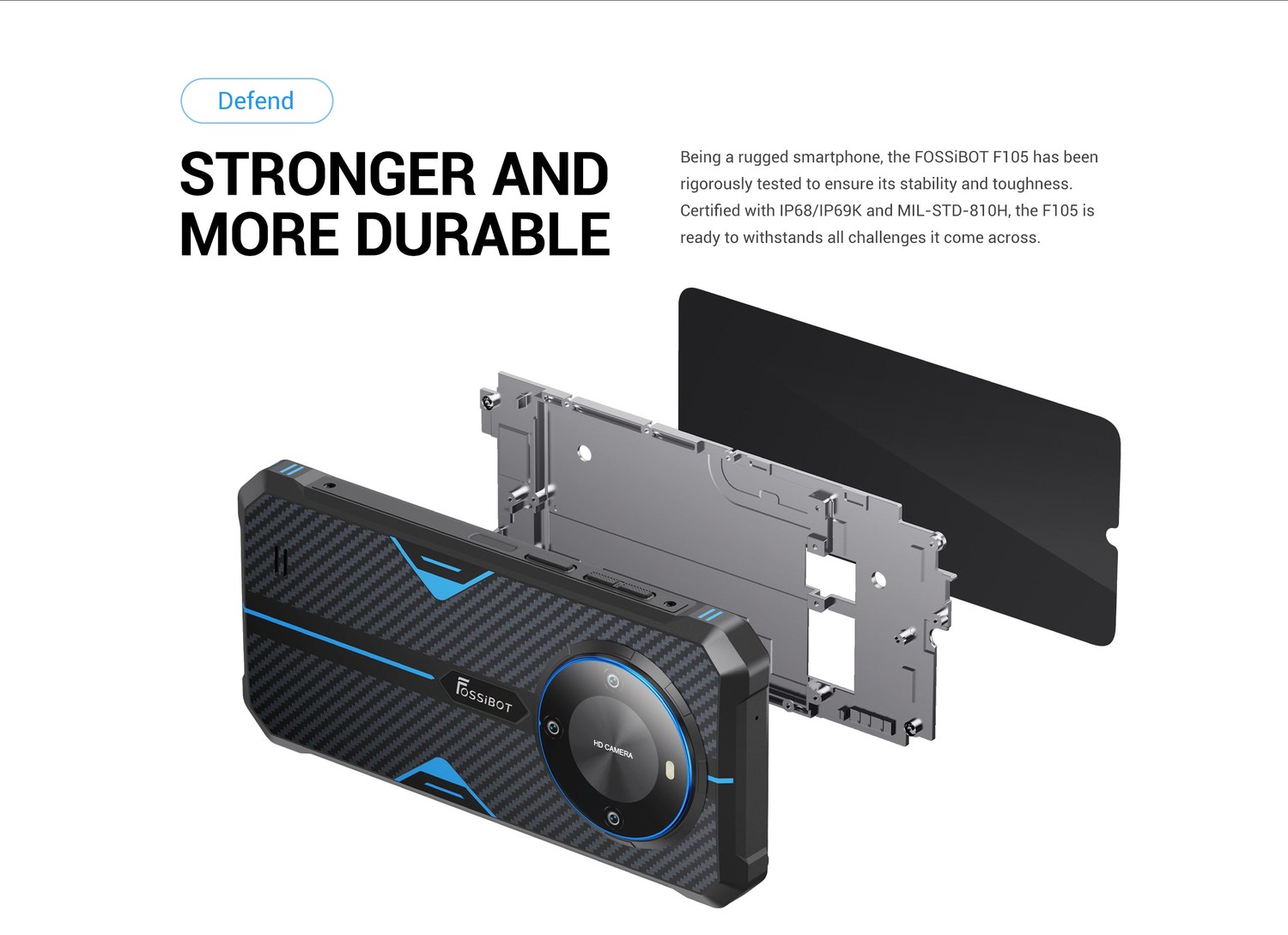

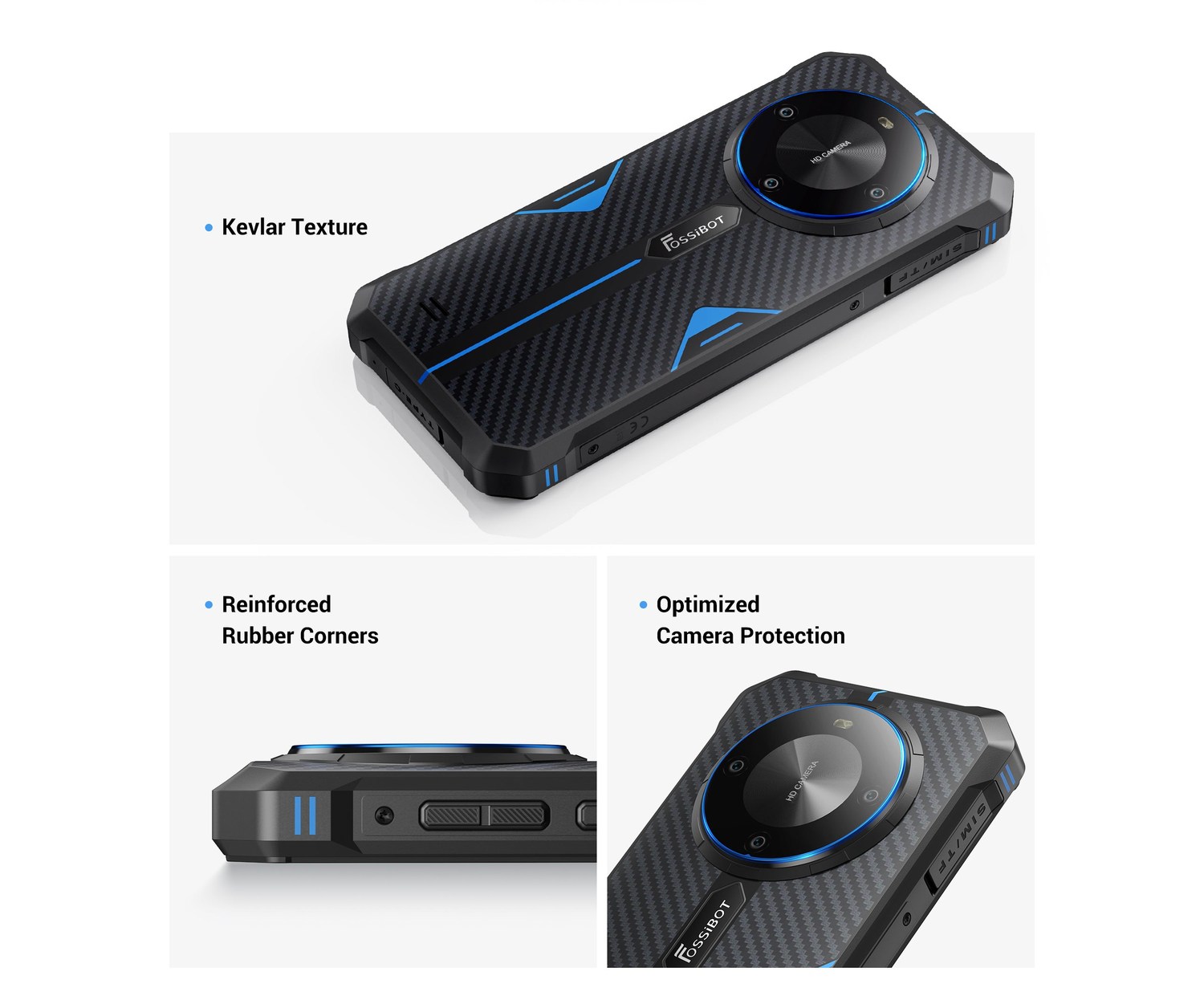

Rugged: Water，Dust，And Shock-resistant

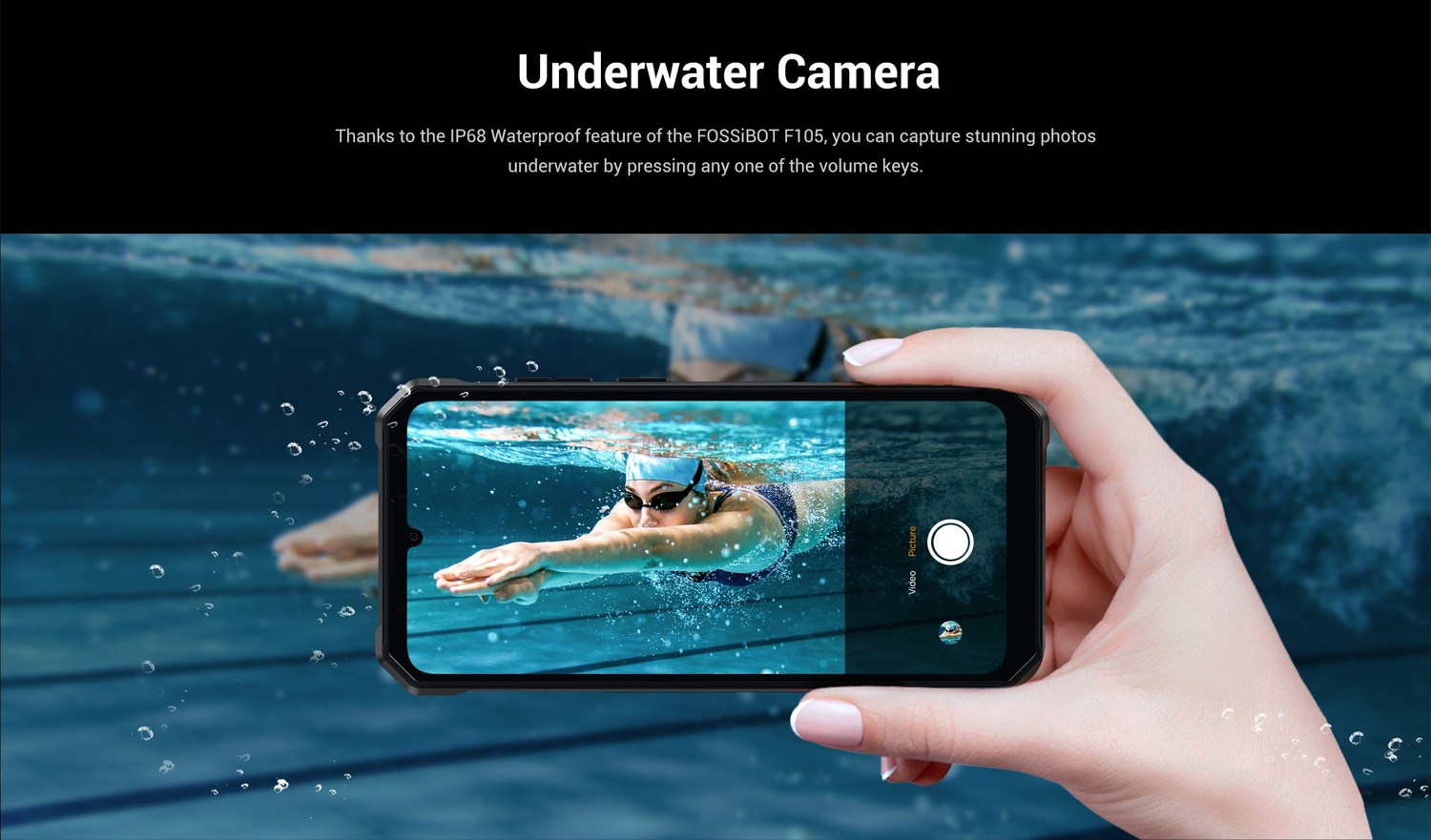

IP68,IP69K,MIL-STD-810H
*This device has been tested in a controlled environment and certified to bewater, dust,and shock resistant in specific situations.

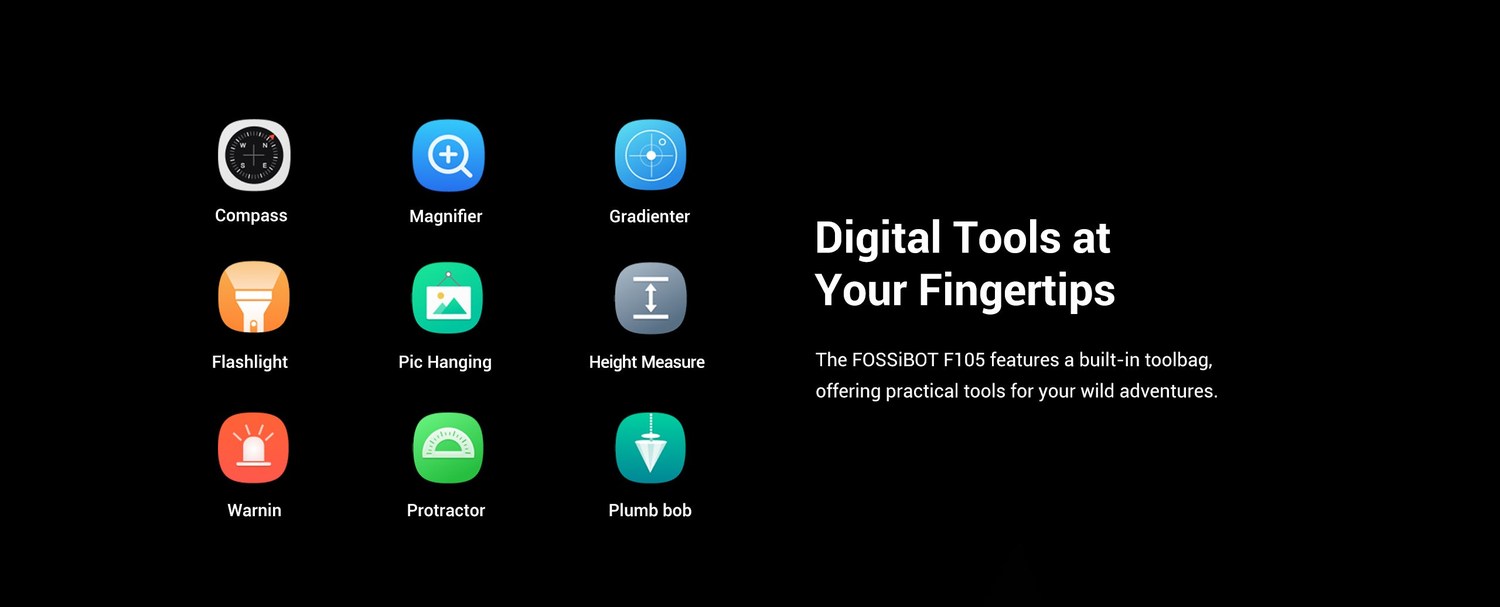

Software toolbox: Compass | Magnifier| Gradienter| Flashlight | Pic Hanging | Height Measure | Warning | Protractor | Plumb bob

Wireless network: Wi-Fi:
WLAN Protocol: 2.4G 802.11b/g/n , 5G 802.11a/n
Bluetooth: BT5.0
FM: Support
OTG: Support
*NFC: It depends on whether the local country supports it
*FM: Plug in headphones to support external playback
*To use the FM function on your smartphone, a virtual headset is required as an antenna. Please purchase a virtual headset separately.

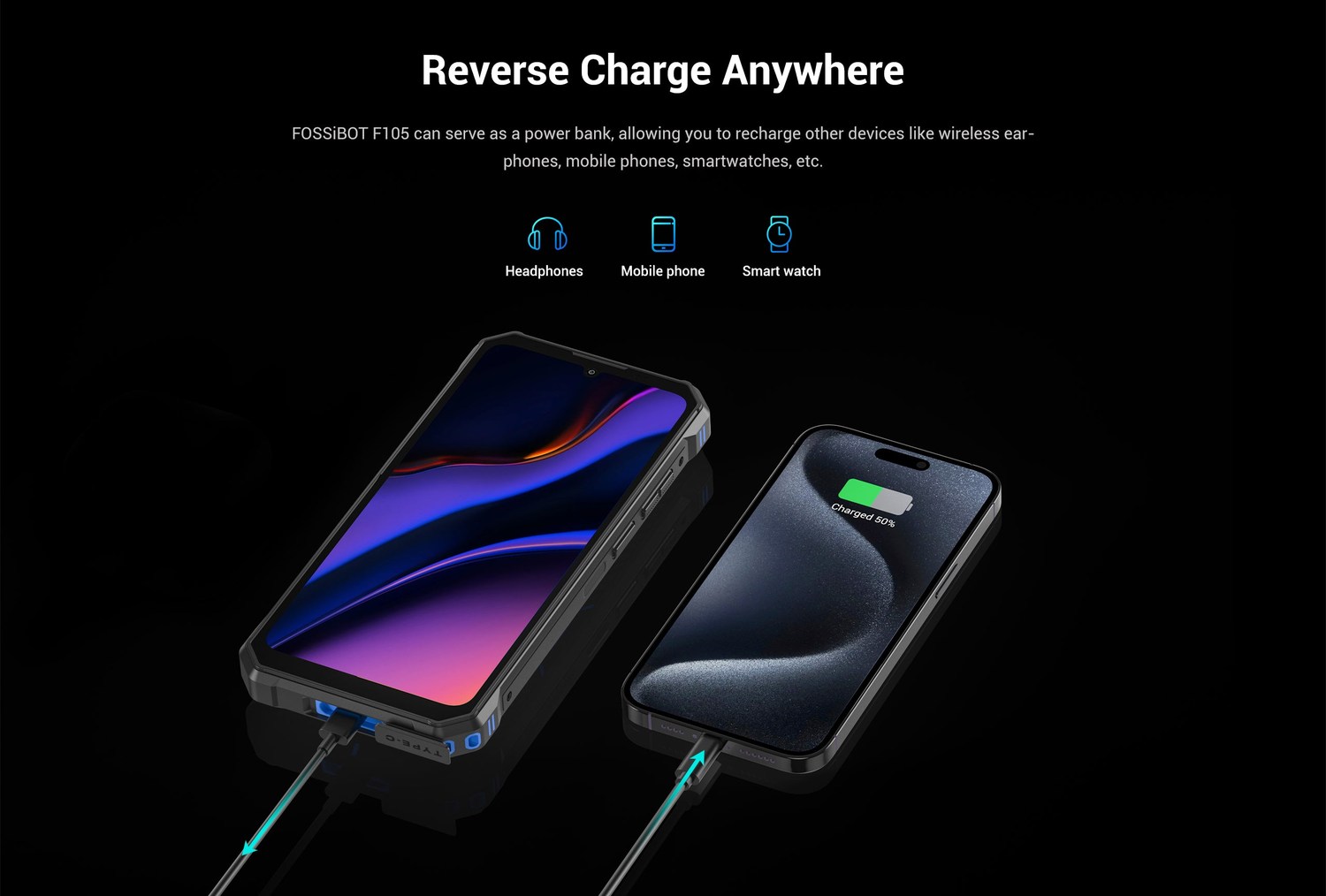

*OTG: Supports reverse charging

Navigation: GPS | GLONASS | Galileo | Beidou

Sensor: G-Sensor;
Geomagnetism;
Compass sensor;
Proximity Sensor;
Ambient Light Sensor;
Gyroscope;

Multimedia: Video
AVI,MP4,WMV,RMVB,MKV,MOV,ASFRM,FLV
Audio
MP3,AAC.WAV.FLAC,WMA,OGG
GIF,JPEG,PNG,BMP
Ebook
TXT,HTML

Unlock options: Supports Fingerprint Unlock
Supports Face Unlock

Ports: USB interface type: Type-CUSB version: USB 2.0
Headphone jack type: Type-C
SIM card type: Nano-SIM cardWhether to support dual SIM card: support
*Nano SIM+Nano SIM OR Nano SIM+TF Card

Supported languages: English, Spanish, Portuguese (Brazil), Portuguese (Portugal), ltalian, German,
French, Russian,Arabic, Malay, Thai, Greek, Ukrainian, Croatian, Czech,
Simplified Chinese, Traditional Chinese,Japanese.(lt has updated 48 languages)

Operatinng system: Android 14.0

Certification: Battery certification:
UN38.3 / MSDS / Air Freight / Maritime Transport
Hardware certification:
CE( IEC62133 / ROHS / SAR ) IP68
Software certification:
GMS

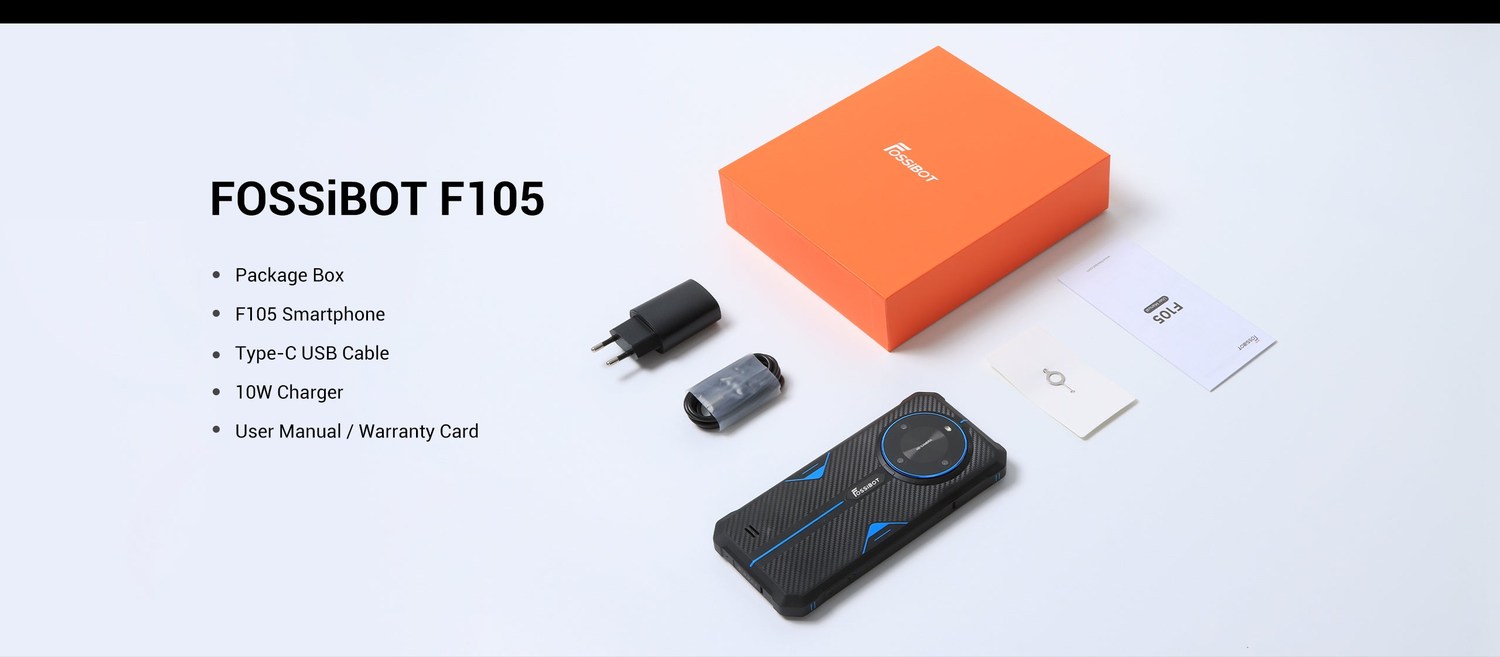

Package contents: 1x F105
1x SIM Card Pin
1x Type-C Cable
1x Quick Charger (10W)
1x Packing Box
1x Quick Guide
1x Warranty Card

FOSSiBOT F105 Bulk Orders

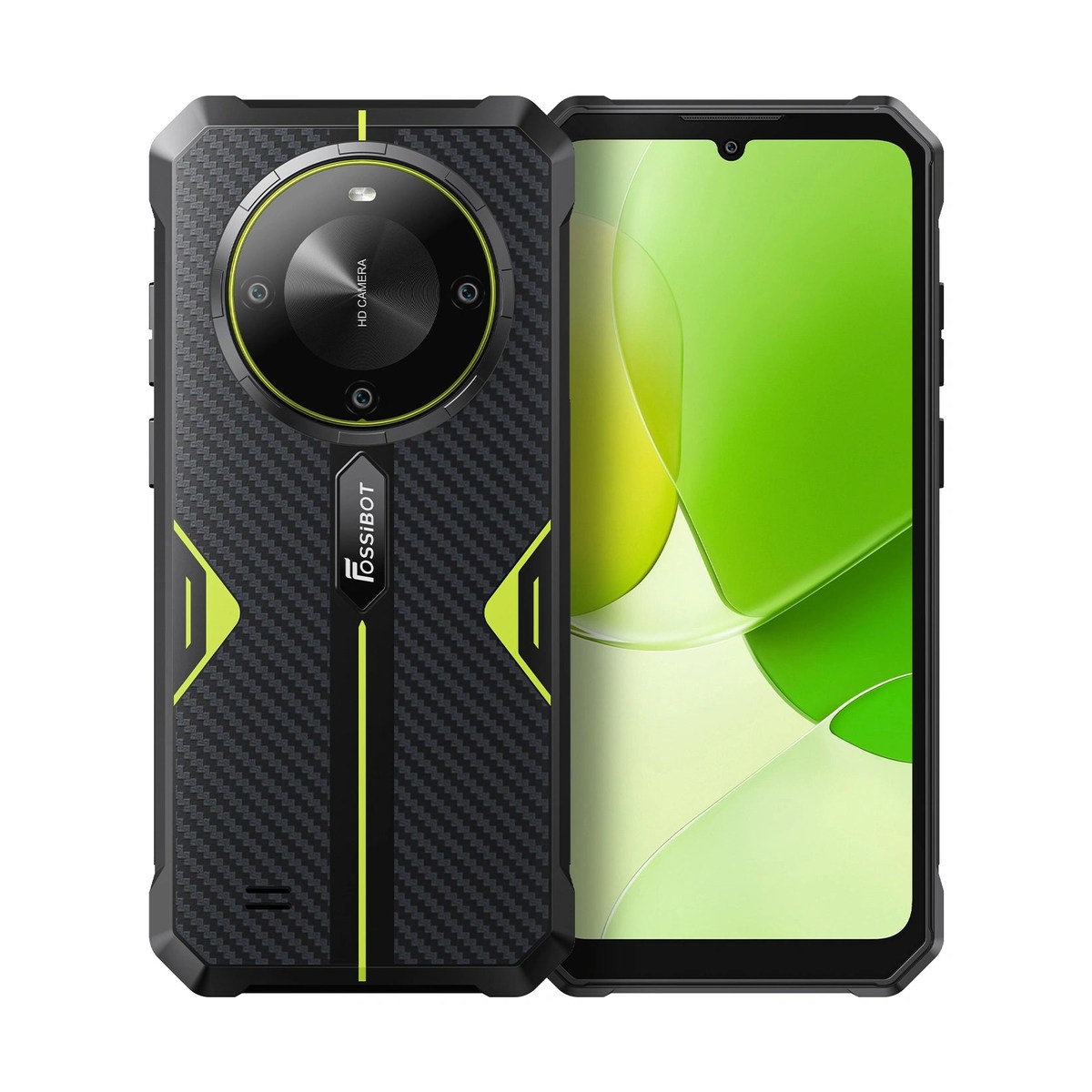

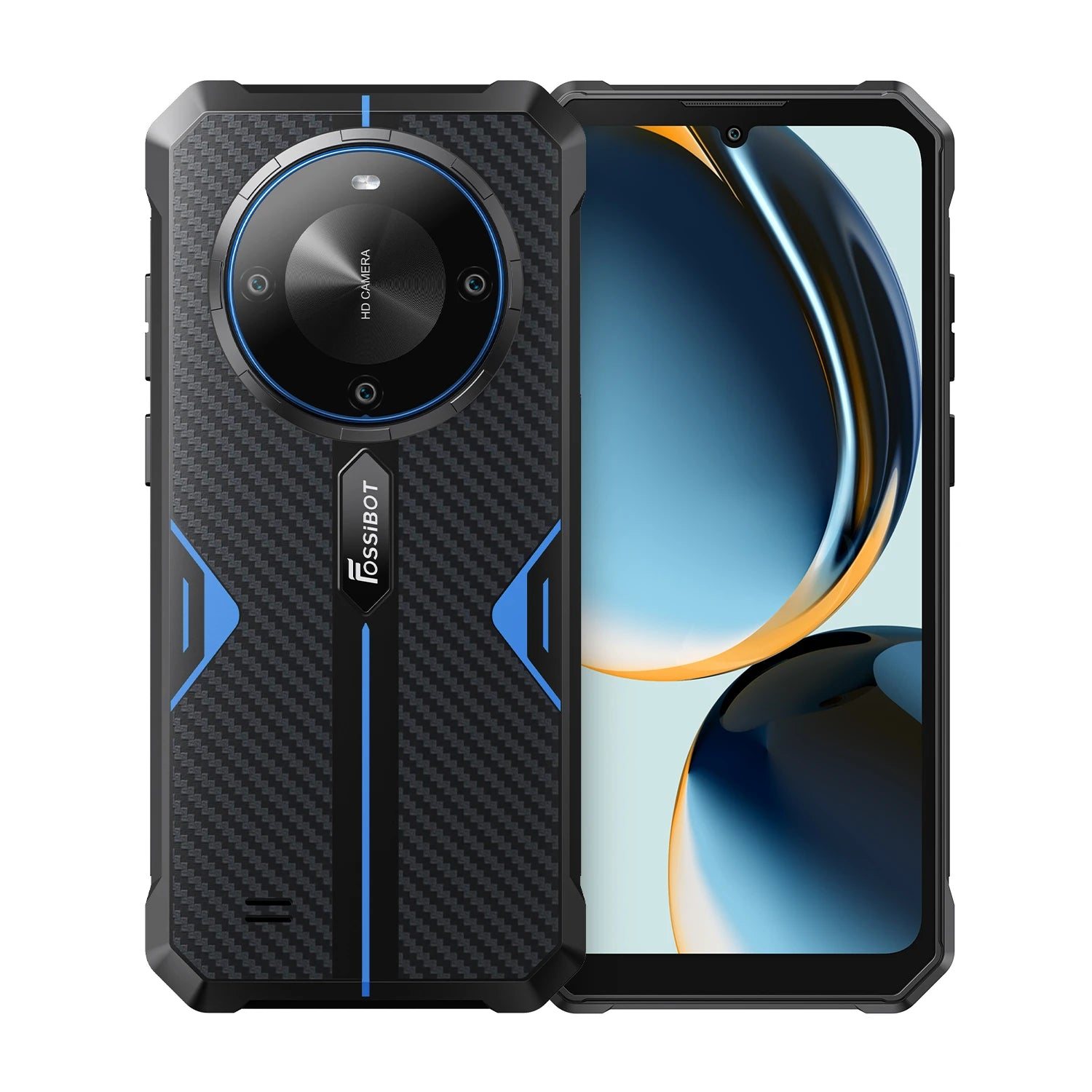

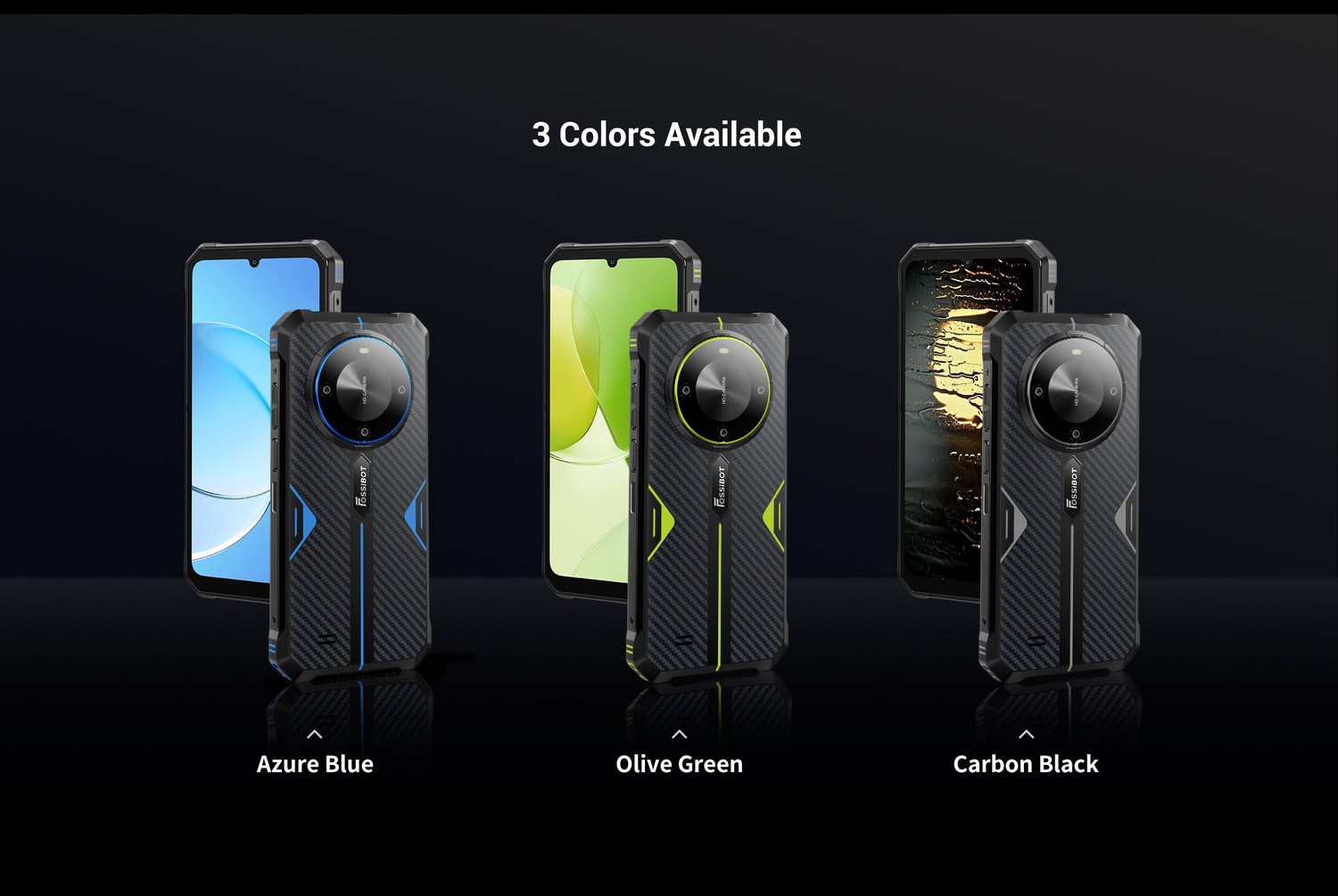

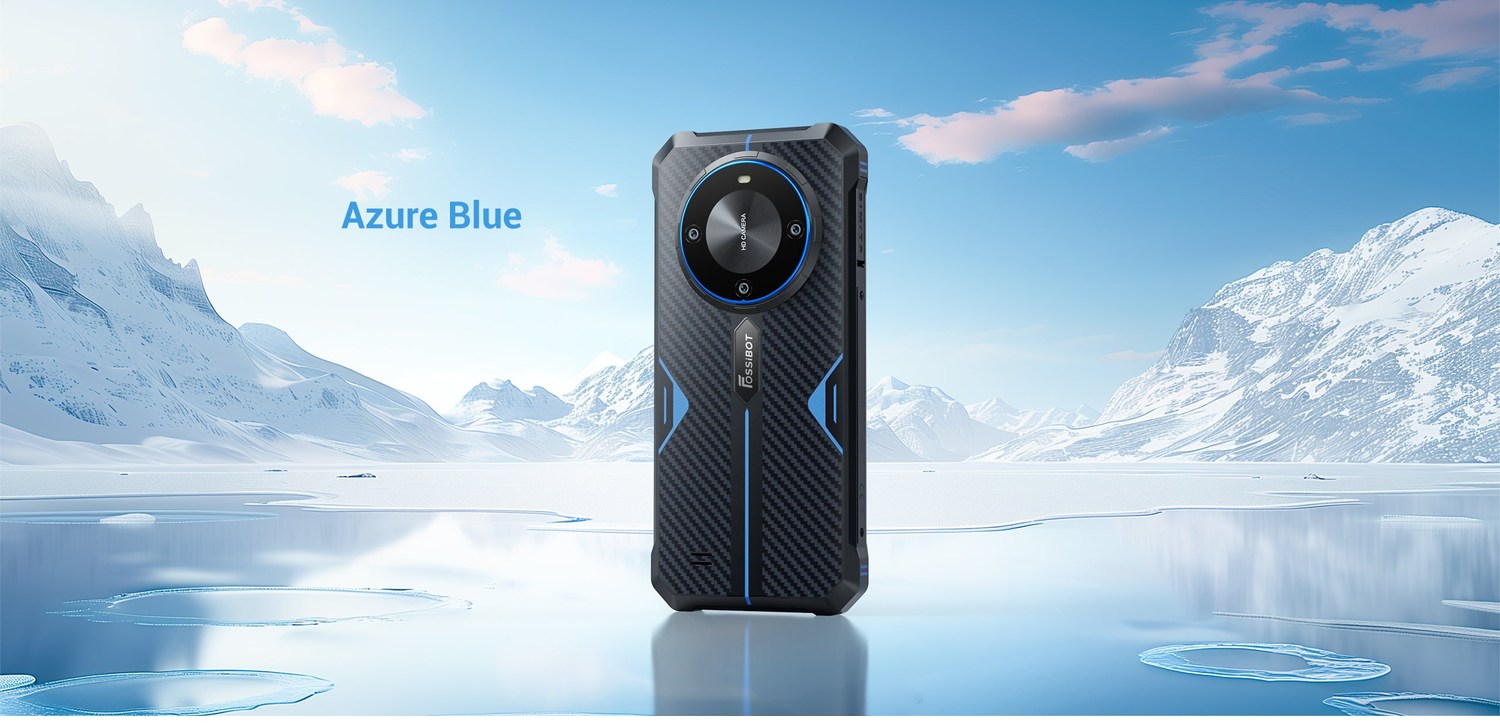

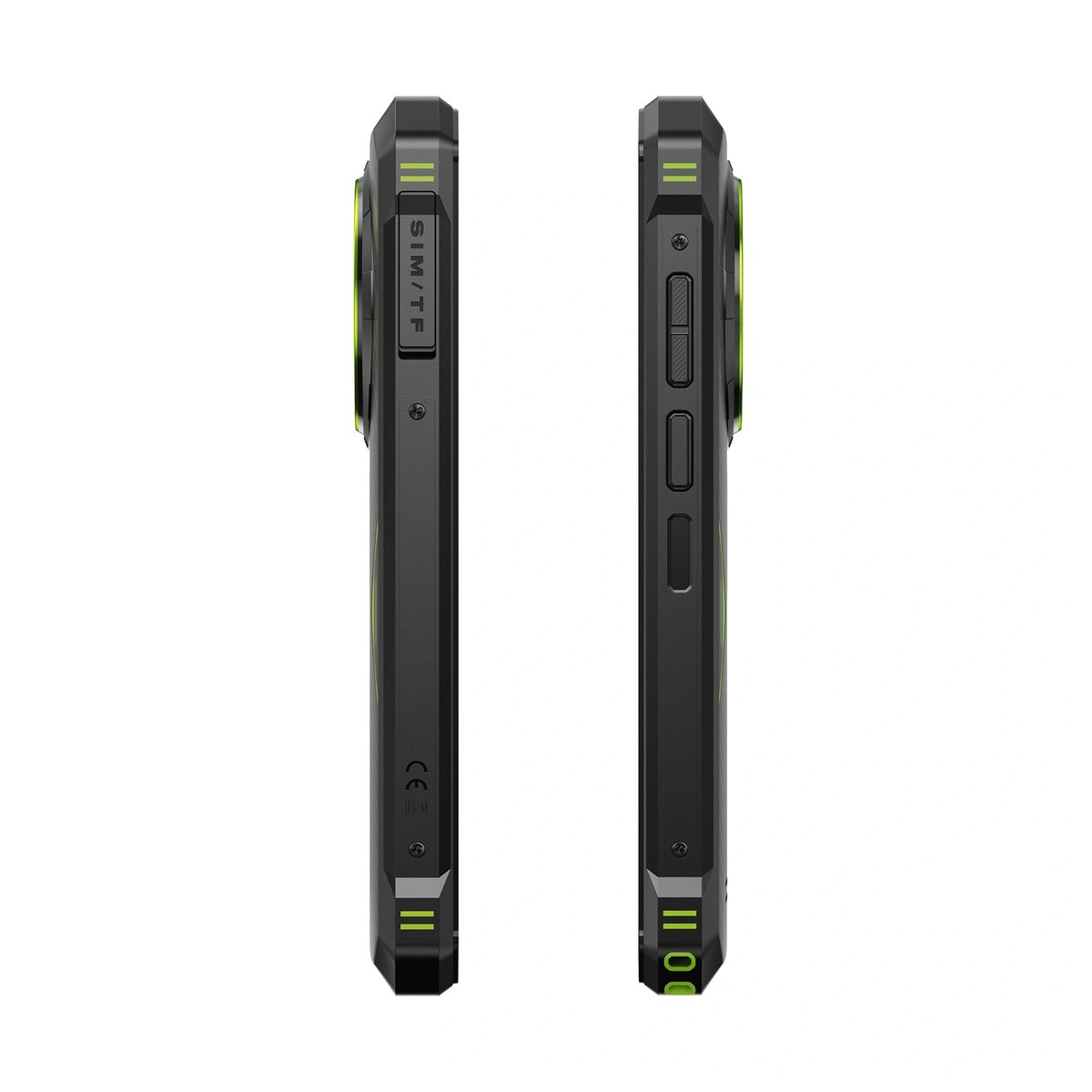

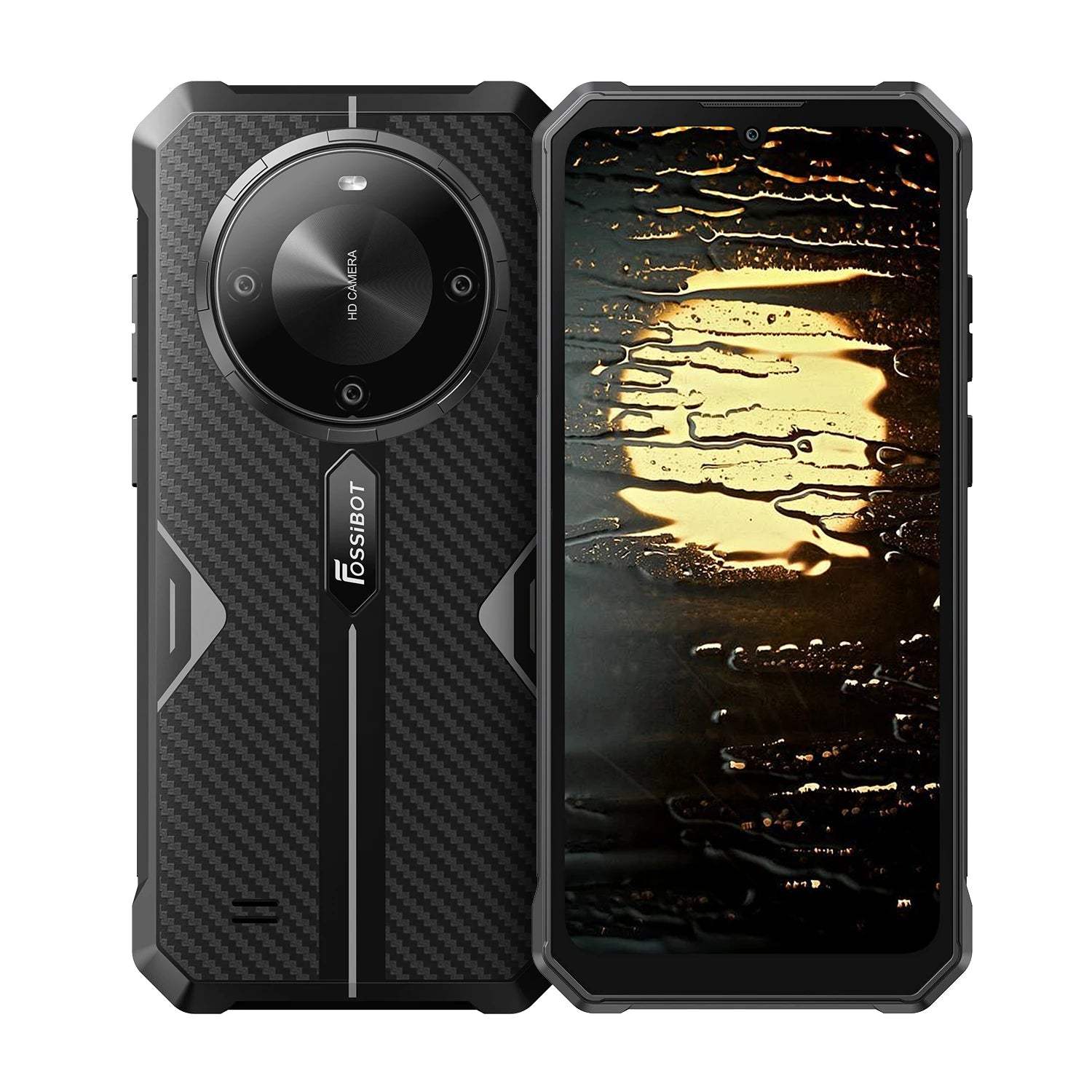

Choose FOSSiBOT F105 by comparing the confirmed configuration above with your purchasing requirements. The product photos show the available finishes and different views of the product. Check the operating system, connection requirements, battery and charging information where listed, and the dimensions in the Specs tab before arranging a bulk order.

For a wholesale inquiry, specify the model, requested quantity, preferred color and delivery destination. Confirm the required charging equipment and package contents for your market before ordering. Check network support and the storage configuration against your intended applications. Extended RAM, when listed, uses storage as virtual memory; the physical RAM and storage figures are identified separately in the configuration. The display and camera specifications help compare how the product fits everyday communication, viewing documents and capturing images.
