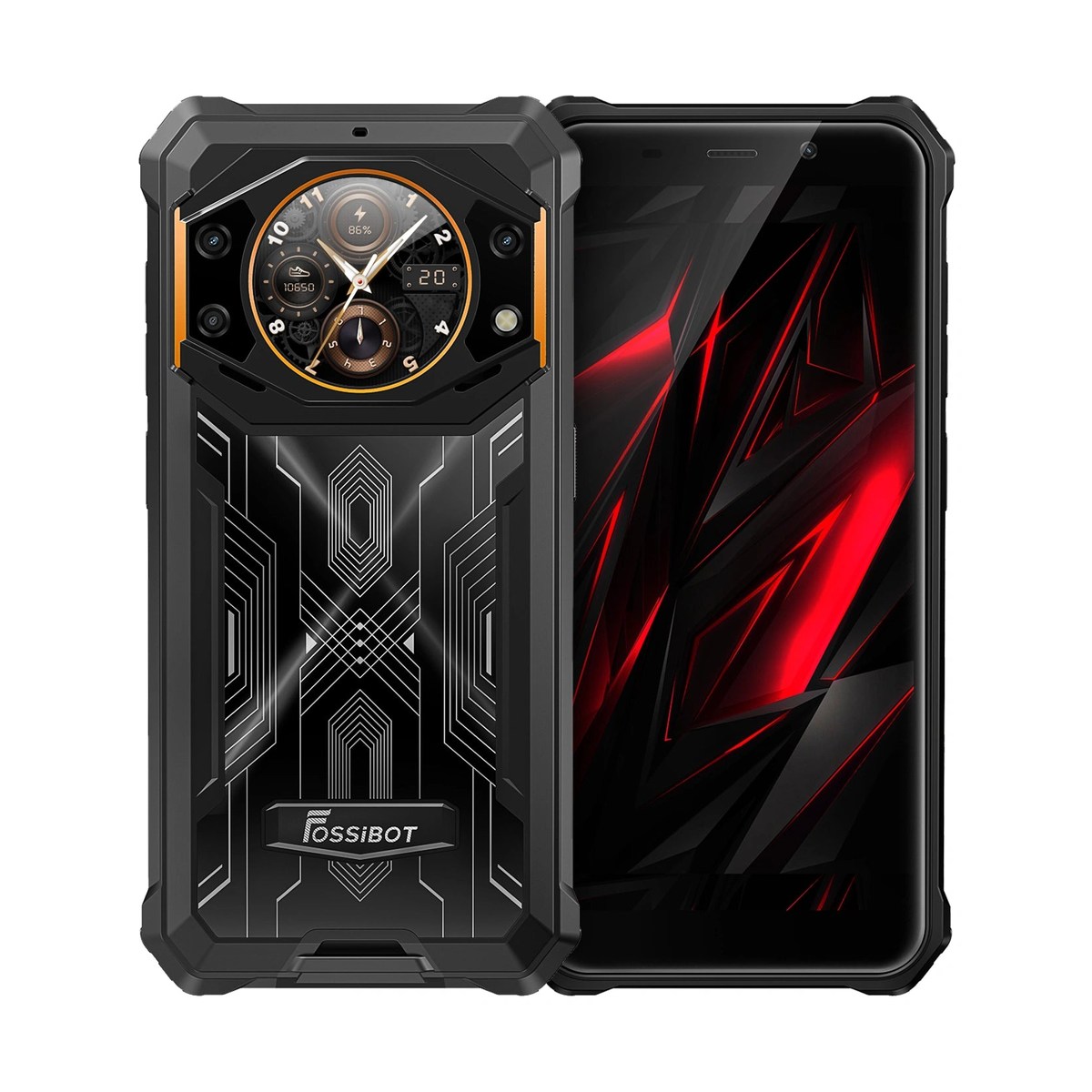

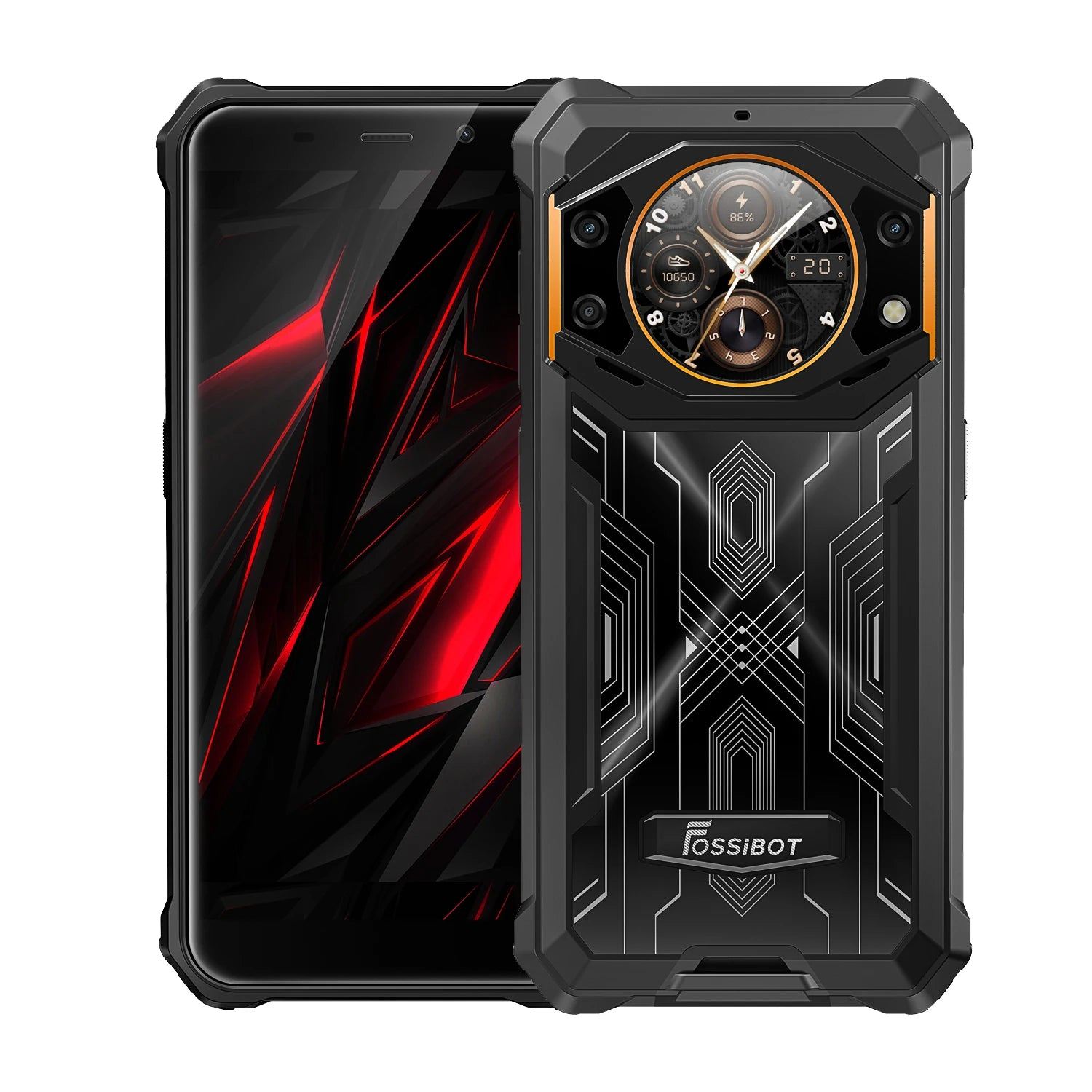

FOSSiBOT F101 Pro Rugged Phones

Wholesale FOSSiBOT F101 Pro Rugged Phones for bulk orders at RuggedMaster. MT8788 Octa Core Processor Innovative Rear Display

FOSSiBOT F101 Pro Features and Configuration

MT8788 Octa Core Processor

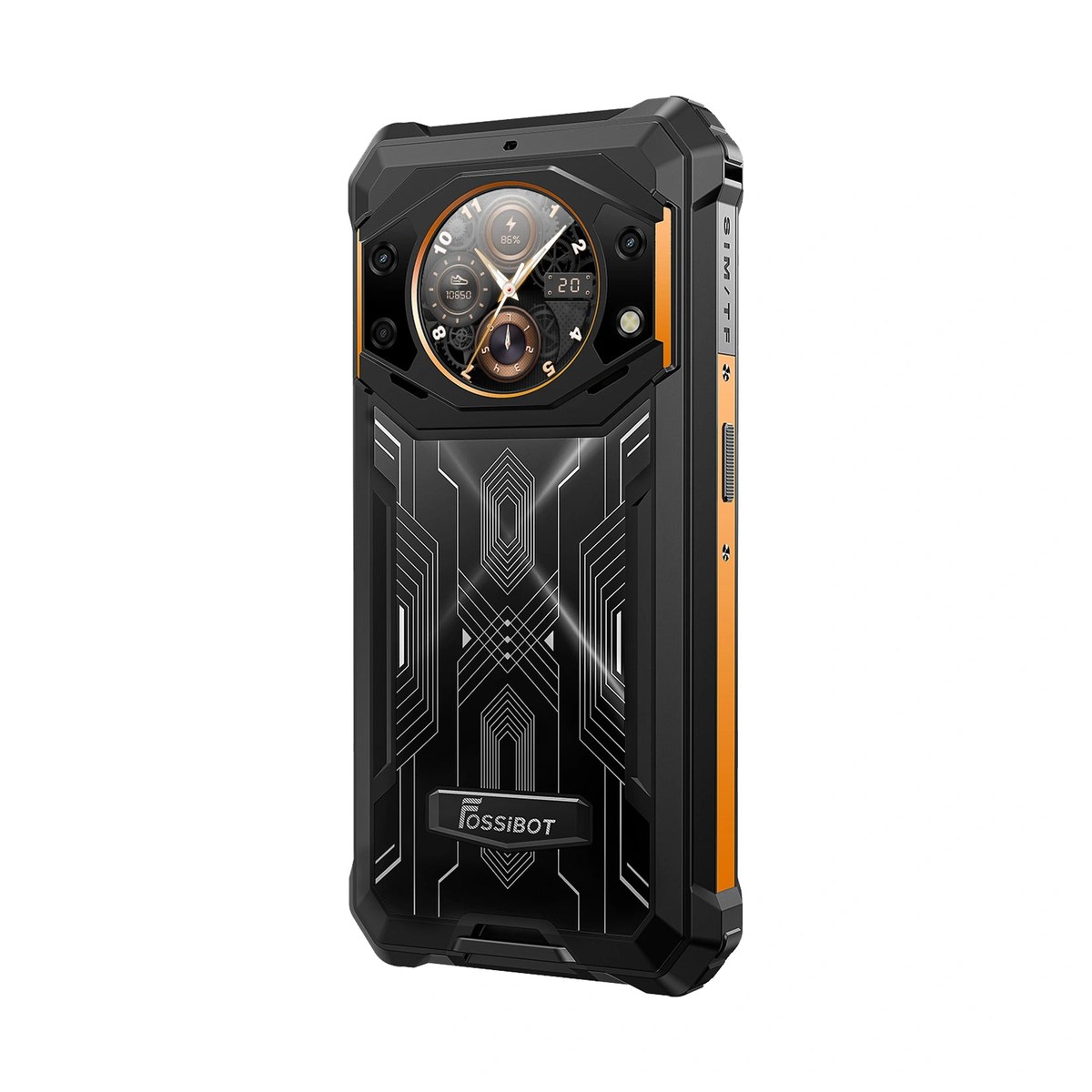

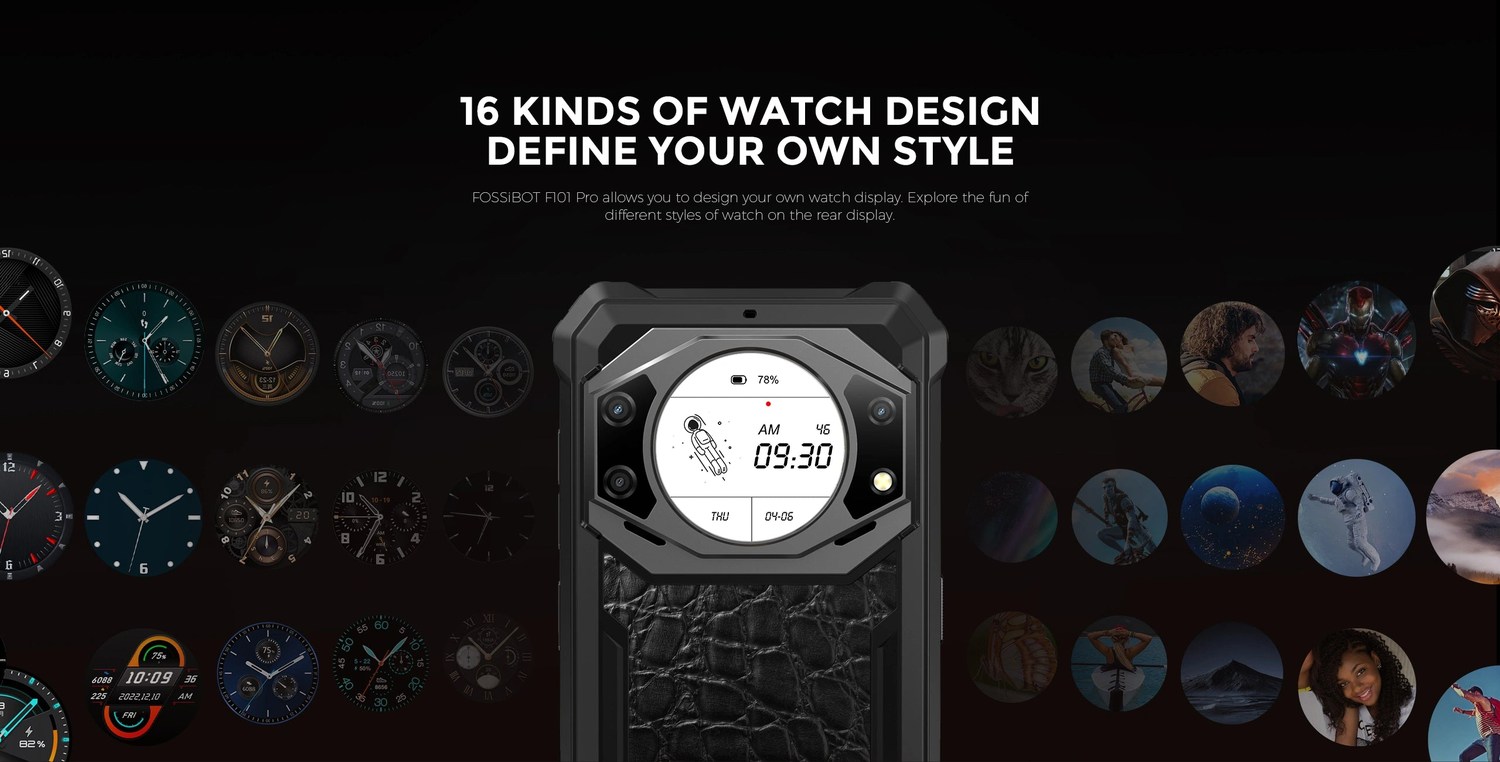

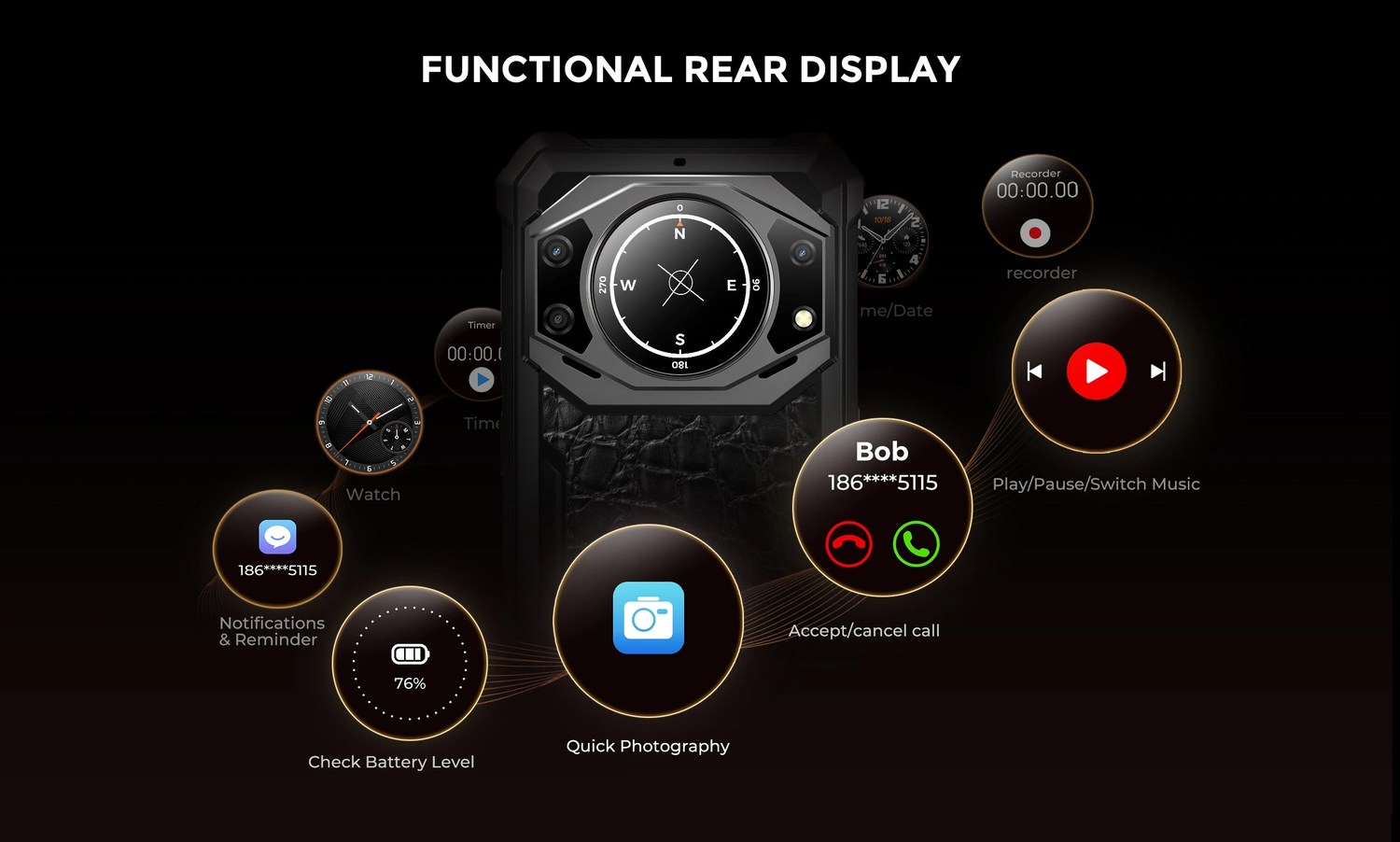

Innovative Rear Display

5.45”HD+ IPS screen

10600mAh Large battery / Support 18W fast charging

AI Triple camera (24MP+5MP+0.3MP)

8MP Front Camera

15GB RAM (8GB+Up to 7GB Extended RAM)

128GB ROM (UP to 1TB TF Card)

Waterproof/ Dustproof/Shock-resistance

Android 13

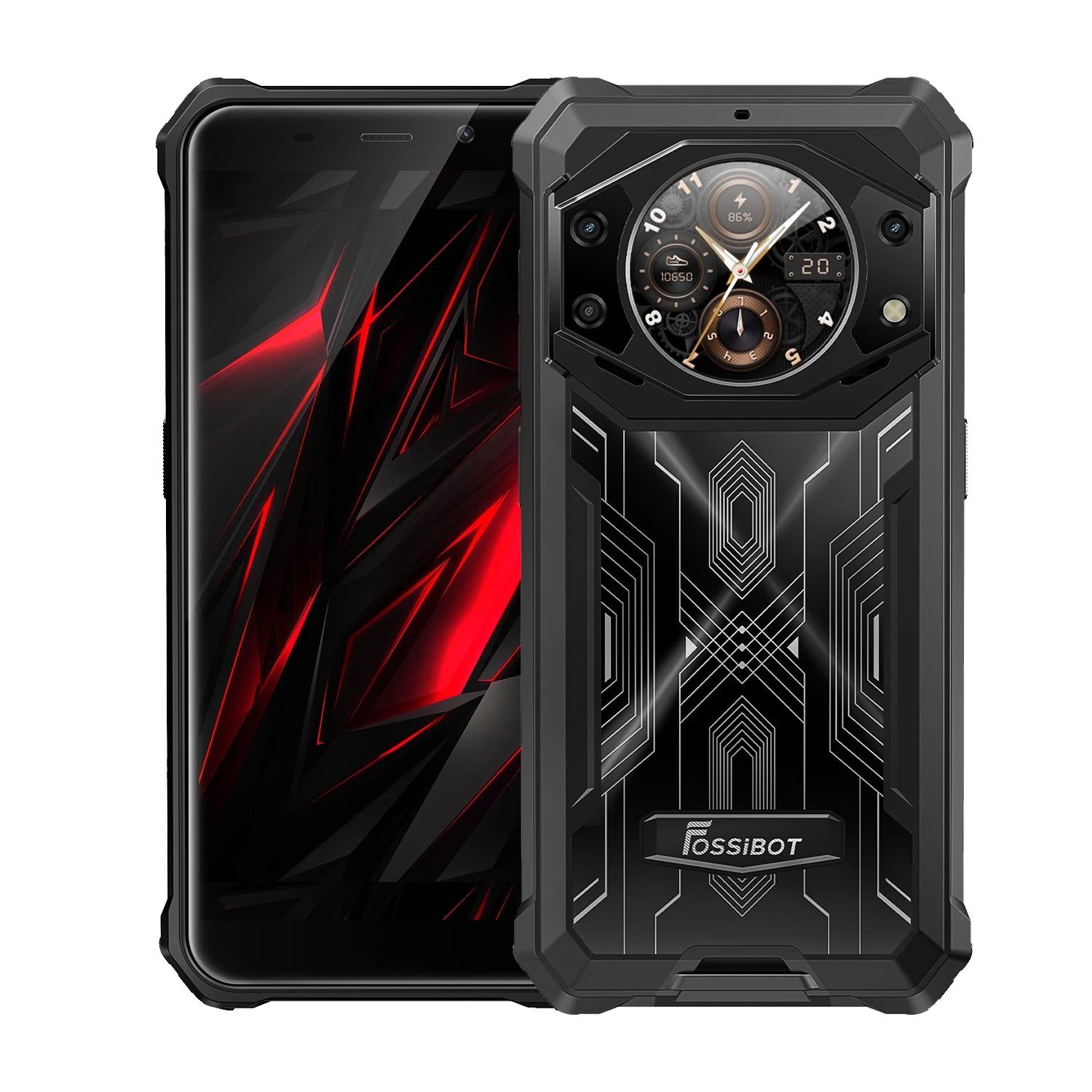

FOSSiBOT F101 Pro Technical Overview

Dimensions: Height:155.7mmWidth:76.2mmThickness:20.35mmWeight:≈ 350g

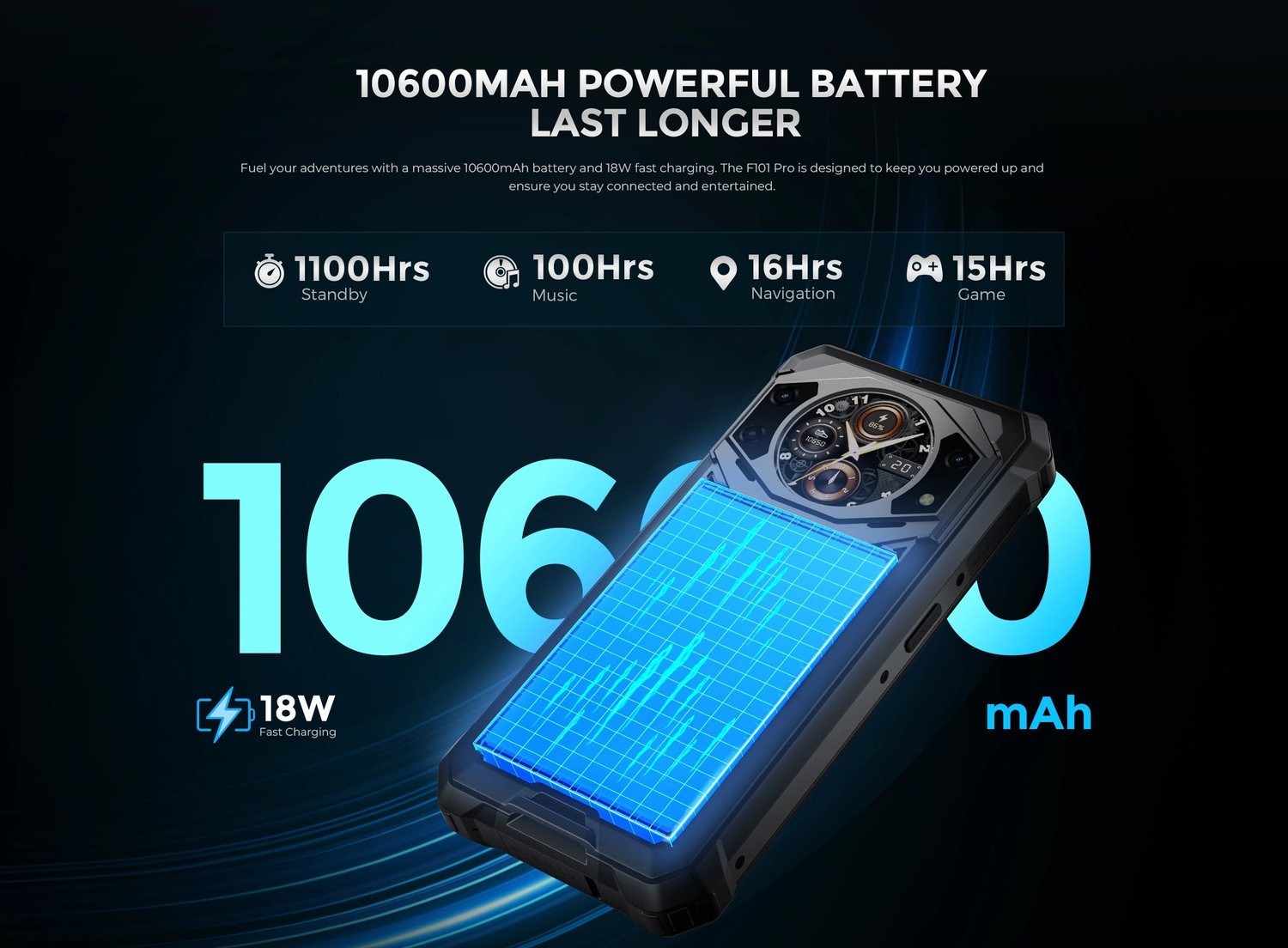

Battery & charging: Capacity: 10600mAh
Fast Charging: 18W(9V/2A)
Material: Built-in lithium-ion polymer
Voltage: 3.85V-404V
Standby Time: 1050H
Calling: 94H
* The endurance data comes from the FOSSiBOT laboratory

Platform: MediaTek Helio P60
CPU: MT8788
CPU Core Count: Octa-core
Process Node: 12 nm
CPU Framework: 4*Cortex -A73 2.0GHz+4*Cortex -A53 2.0GHz
GPU: ARM Mali-G72 MP3 700MHZ

Storage: RAM & ROM：8GB + 128GB
RAM Type: LPDDR4X
ROM Type: UFS
Expandable RAM Capacity: 7GB
Expandable ROM Capacity: Up to 1TB
Memory card type: T-flash card
Card Slot: 2 nano SIMs (SIM1 + SIM2) or 1 nano SIM+TF Card
*Available storage and RAM are less than the total memory due to storage of the operating system and software pre-installed in the device.*The Virtual Memory Expansion can be activated in Settings and adds up to 7GB of RAM.
*T-flash card needs to be purchased separately.

Networks &connectivity: *Please Confrim Your SIM Bands Compatibility Before Purchasing!
Supported network bands
Cellular :4G/3G/2G(Not compatible with AT&T or Cricket activations or withCDMA Networks like Verizon, Sprint)
Global Pass Band
GSM: 850/900/1800/1900MHz
WCDMA: B1/B2/B4/B5/B8
FDD: B38/B39/B40/B41/B1/B2/B3/B4/B5
B7/B8/B12B17/B18/B19/B20/B25/B26/B28A
B28B/B66
Supports EDGE/GPRS

Display: Size: 5.45” inches
Screen color : 16.7M
Resolution: 720*1440(HD+)
Aspect ratio: 18:9
Pixel density: 295PPI
Screen brightness: 400cd/m²(MIN),440cd/m²(TYP)
Screen-to-body ratio: 77%
Type: TFT-TP LCD

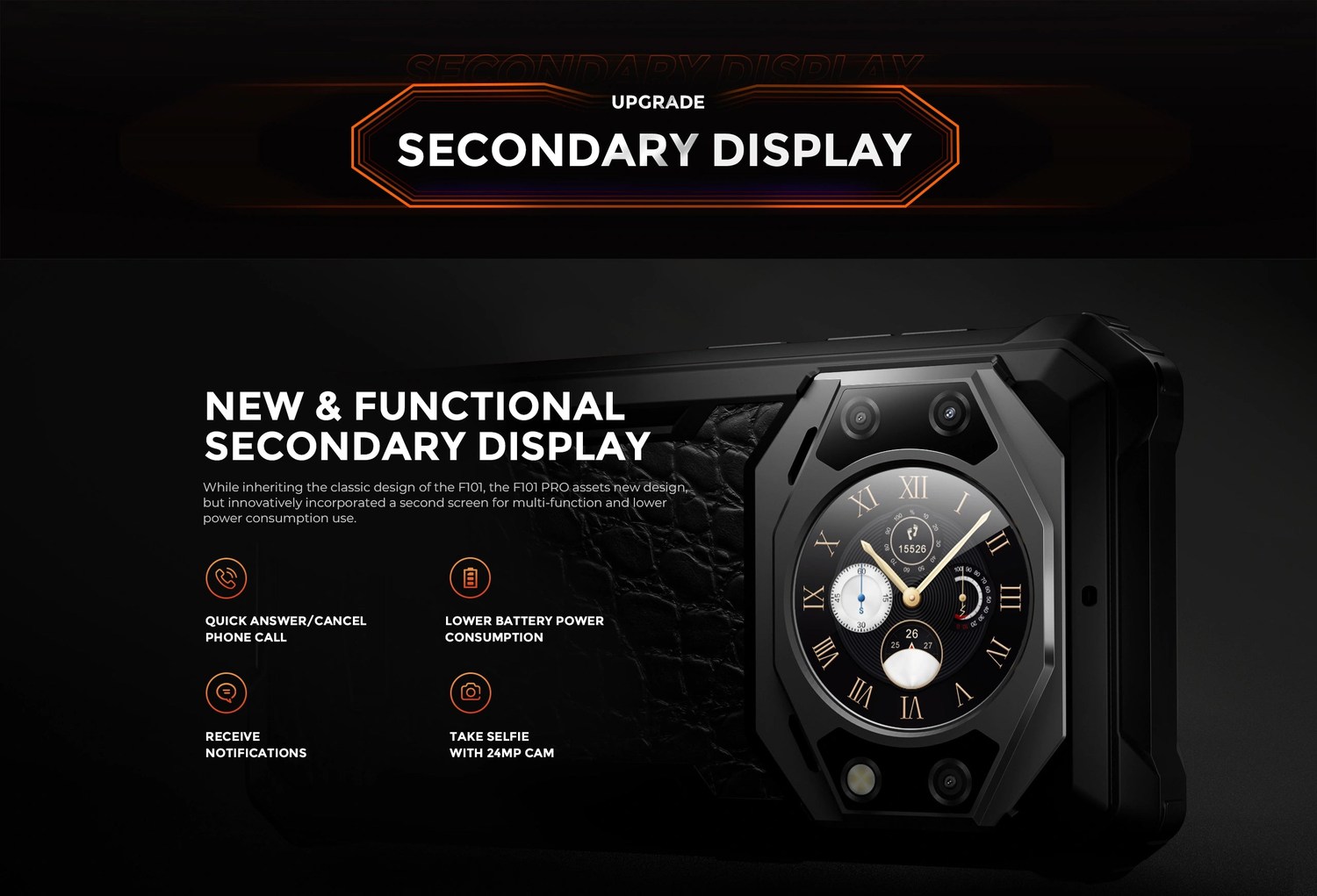

Display²: Size: 1.32” inches
Screen color : 262,144 color
Resolution: 360*360
Aspect ratio: 18:9
Pixel density: 385PPI
Screen contrast: 1000typ
Screen brightness: 300cd/m²(MIN),350cd/m²(TYP)
Screen-to-body ratio: 77%
Type: TFT-TP LCD

Camera& video: Rear Cameras
24MP Samsung S5K2L8 24MP
Optical dimension: 1/3.2inch
Pixel size:3024*4032
Aperture: F2.2+/- 5%
Wide Angle: 82°
Function: Video / Picture/Beauty/HDR/ Mono/ Bokeh/ Pro/ Night
Rear camera video features
24MP full resolution at 24 fps,720p at 60 fps
Front Camera
8MP
Optical dimension:1/3.2inch
Pixel size: 2448*3264
Aperture: F2.2±5%
Wide Angle: 78°
Function: Video /Picture/ Beauty/Mono/FaceID
5MP Macro
AI Beautification

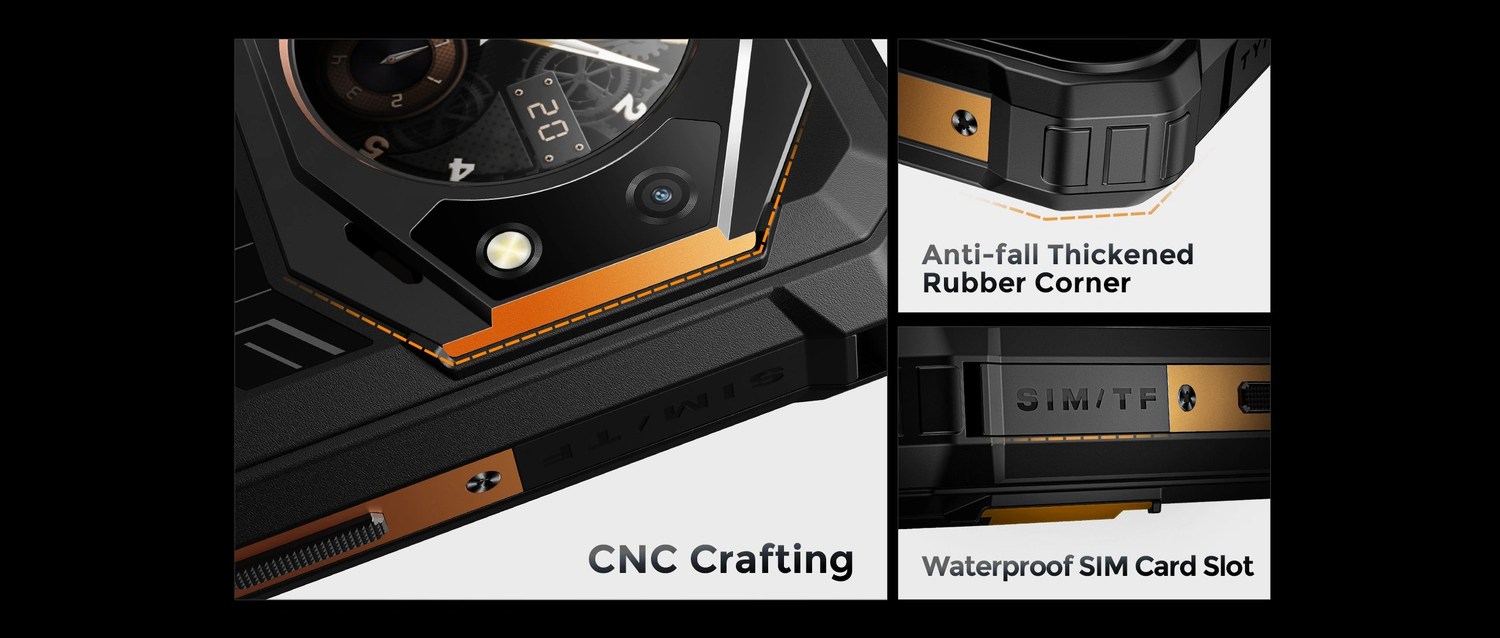

Rugged: Water，Dust，And Shockresistant
IP68,IP69K,MIL-STD-810H
*This device has been tested in a controlled environment and certified to bewater, dust,and shock resistant in specific situations.

Dedicated: Customizable Key X 1

Software toolbox: G-Sensor; Geomagnetism; Compass sensor; Proximity Sensor;Ambient Light Sensor; Gyroscope

Wireless network: Wi-Fi:
WLAN Protocol: IEEE802.11 a/b/g/n/ac/2.4G Wi-Fi/5G Wi-Fi
Wi-Fi Direct/Wi-Fi Display
Bluetooth: BT5.0
NFC: Support
HAC: Support
FM: Support
OTG: Support
*FM: Plug in headphones to support external playback*OTG: Supports reverse charging
*To use the FM function on your smartphone, a virtual headset is required as an antenna. Please purchase a virtual headset separately.

Navigation: GPS | GLONASS | Galileo | Beidou

Sensor: G-Sensor;
Geomagnetism;
Compass sensor;
Proximity Sensor;
Ambient Light Sensor;
Gyroscope;

Multimedia: Video
AVI,MP4,WMV,RMVB,MKV,MOV,ASFRM,FLV
Audio
MP3,AAC.WAV.FLAC,WMA,OGG
GIF,JPEG,PNG,BMP
Ebook
TXT,HTML

Other software: Software Toolbox
Compass, Gradienter, Pic Hangin, SoundMeter, Magnifier, HeightMeasure,Warning, Protractor, Plumb Bob

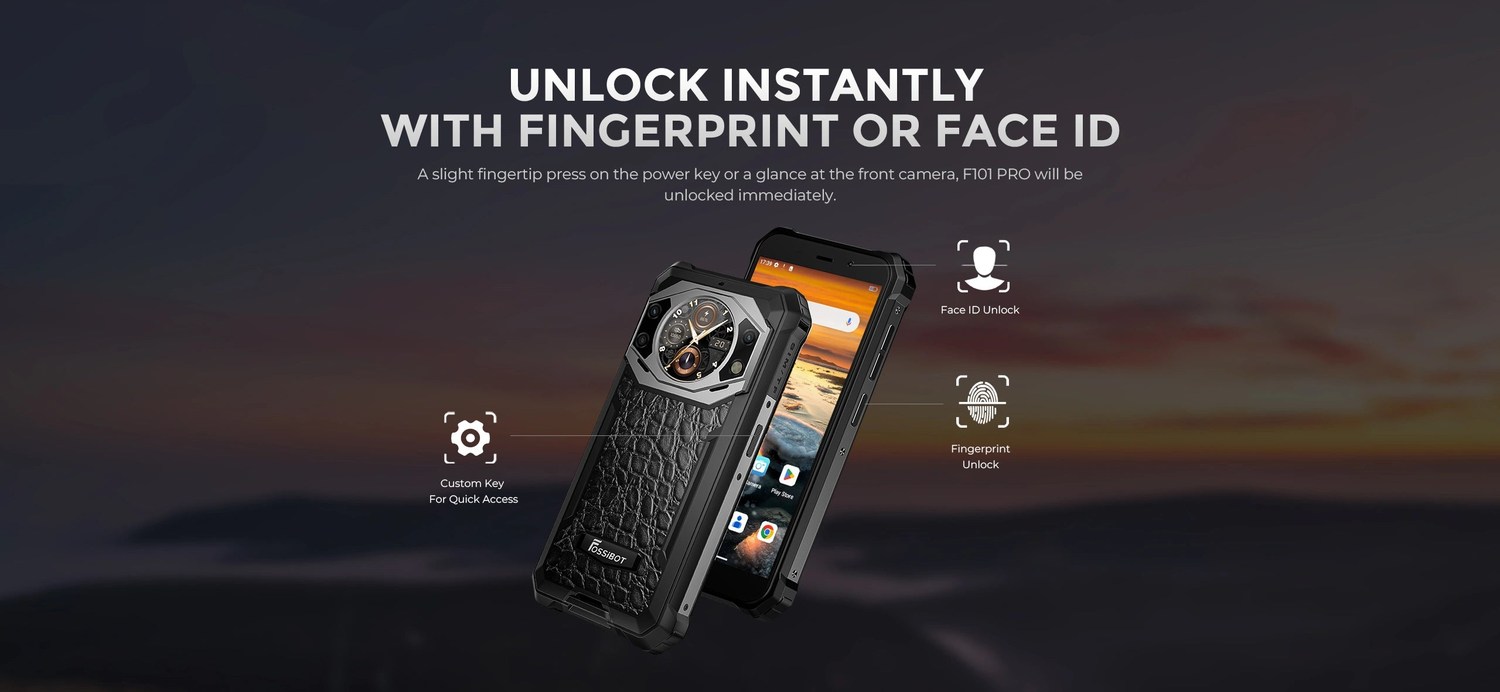

Unlock options: Supports Fingerprint Unlock
Supports Face Unlock

Ports: USB interface type: Type-CUSB version: USB 2.0
Headphone jack type: Type-C
SIM card type: Nano-SIM cardWhether to support dual SIM card: support
*Nano SIM+Nano SIM OR Nano SIM+TF Card

Supported languages: English, Spanish, Portuguese (Brazil), Portuguese (Portugal), ltalian, German,
French, Russian,Arabic, Malay, Thai, Greek, Ukrainian, Croatian, Czech,
Simplified Chinese, Traditional Chinese,Japanese.(lt has updated 48 languages)

Operatinng system: Android 13

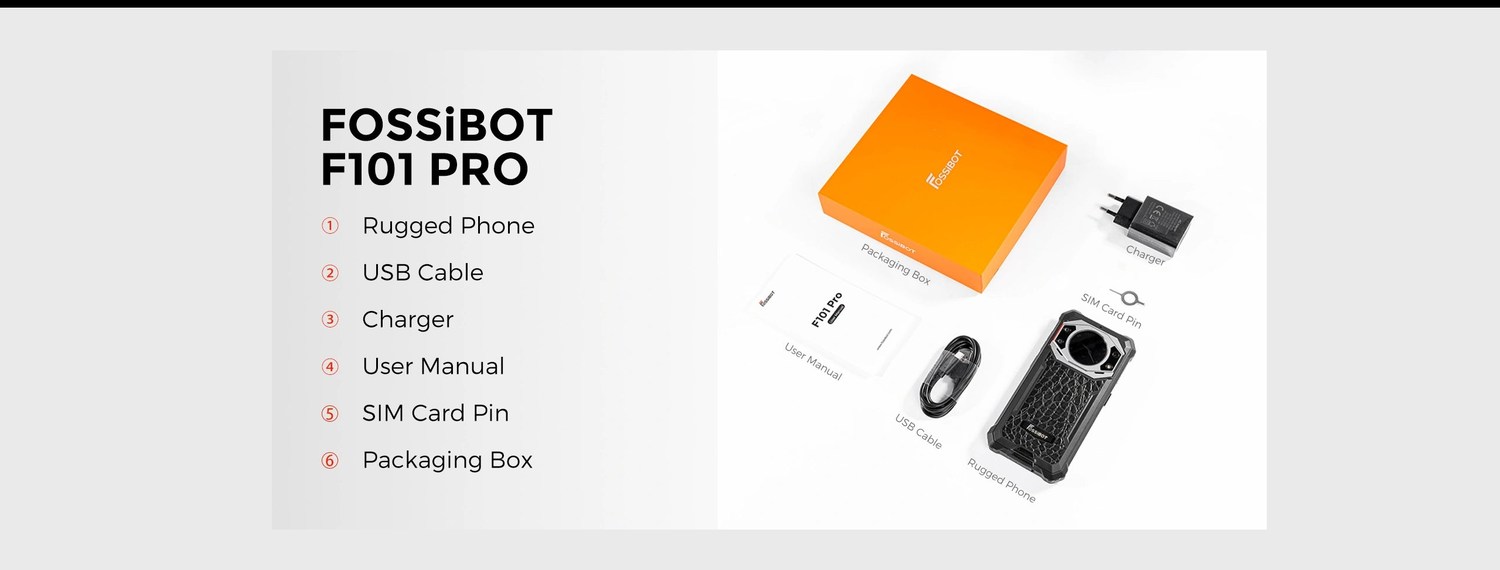

Package contents: 1x F101 Pro
1x SIM Card Pin
1x Type-C Cable
1x Quick Charger (18W)
1x Quick Guide
1x Warranty Card

Note: 1. Available storage and RAM are less than the total memory due to the storage of the operating system and software pre-installed in the device. FOSSiBOT FOSSiBOT F101 Pro supports expansion T-flash card.
2. Charging rates are based upon the use of the included charger. Actual results may vary.
3. Size and weight vary by configuration and manufacturing process.
4. The camera software functions are subject to actual presence, some functions and names may vary depending on the software version.
5. FOSSiBOT F101 Pro is shockproof, water, and dust resistant and was tested under controlled laboratory conditions with a rating of lP68under EC standard 60529 (maximum depth of 1.5 meters up to 30 minutes, Charaer and accessories are not water-resistant. Shockproof,water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wetFOSSiBOT DT2 Liduid damage is not covered under warranty.
6.The support for 4G depends on the local carriers’ network: when using two 4G SIM cards, only one of them supports 4G network standbv which can be selected at Network Settings.
7. Dual 4G SIM requires the support of local telecom operator services, and may not be available in all regions.
8. Only certain regions and telecom operators support VoLTE.
9. Download speed data are theoretical values under laboratory test, data sources: MediaTek.
10. Even if a device supports some or all of the requiredtreduenciestorthis carrierwilnotoeaoeto connectunless the deviceis approved for this network.
11. Supported by Google Pay, you should download Google Pay to use it. Google Pay available countries and regions please refer tohttps://pay.google.com/about.
12. The standard charaer is EU/US type, if vou need other chargers please purchase them separately.
13. Unless otherwise indicated on the FOSSiBOT F101 Pro product page, all data come from FOSSiBOT Laboratories, productcations, and supplier data. The testing data may vary slichtly between different test versions and testing environmentsshown on the procuct page are for reference onlv and mav not ref ect the actua product.
* The Android@ word mark and logos are registered trademarks owned by Google.
* The Bluetooth@ word mark and logos are registered trademarks owned by Bluetooth SIC, Inc.
*USB-Type CTM and USB-CTM are trademarks of USB Implementers Forum.

FOSSiBOT F101 Pro Bulk Orders

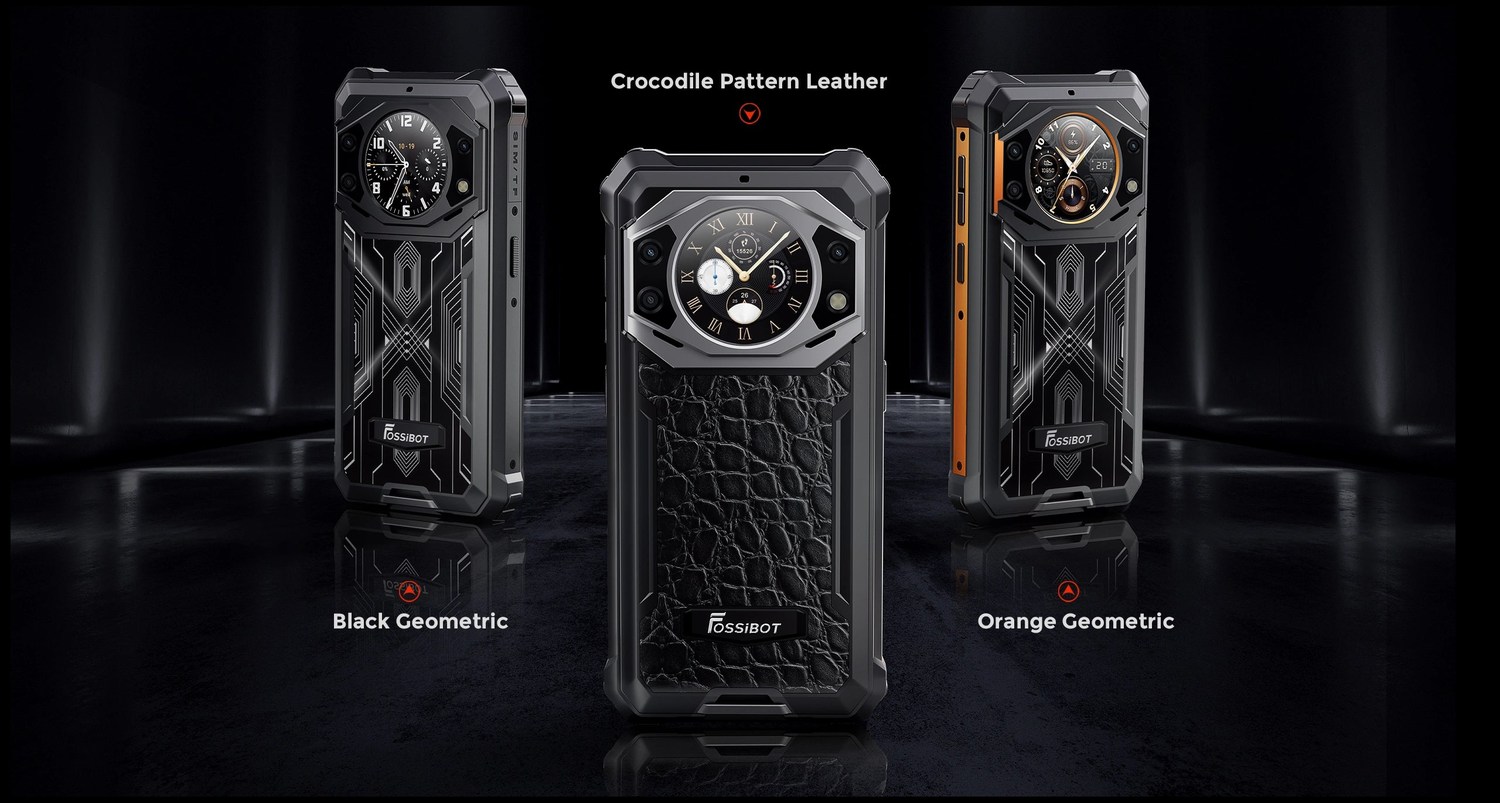

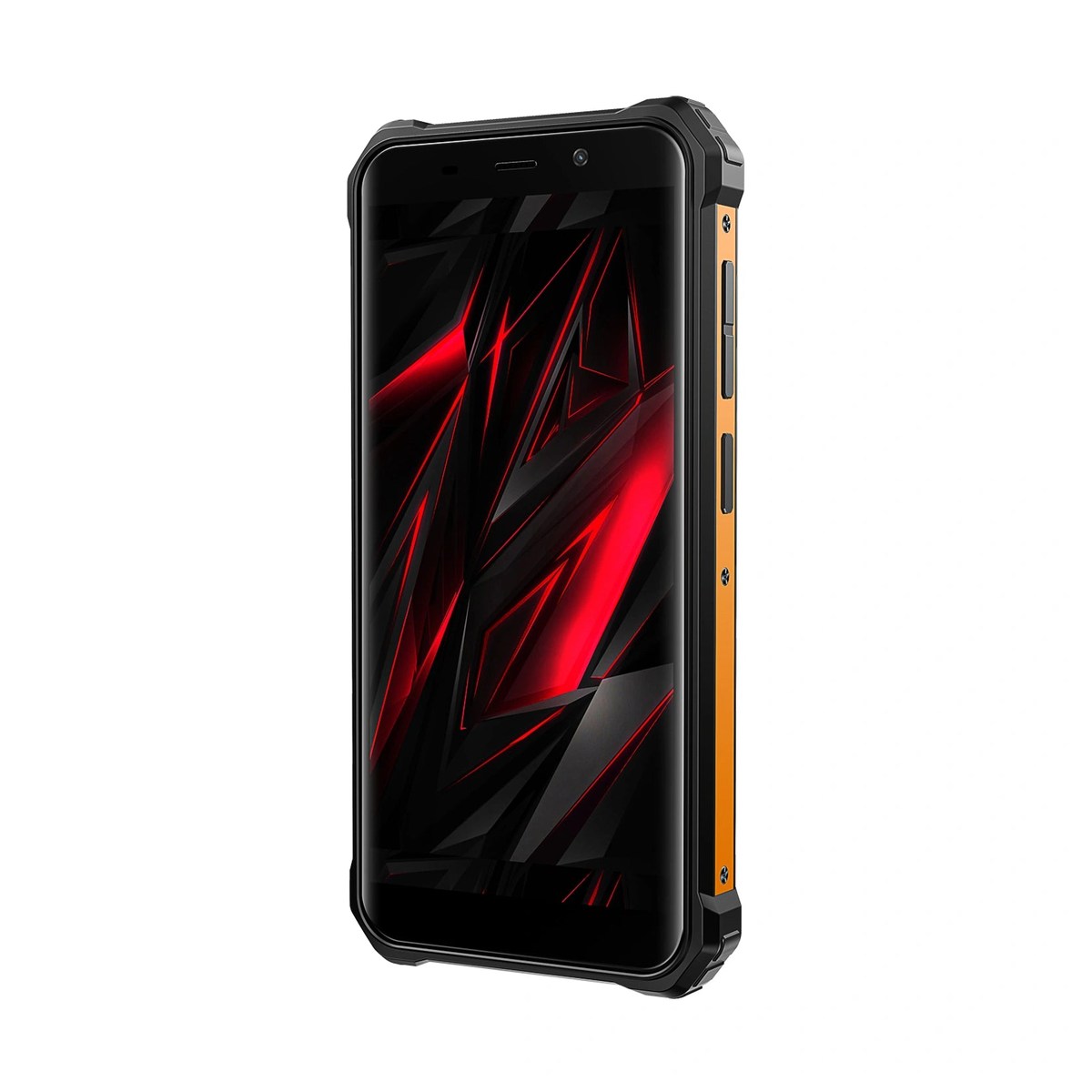

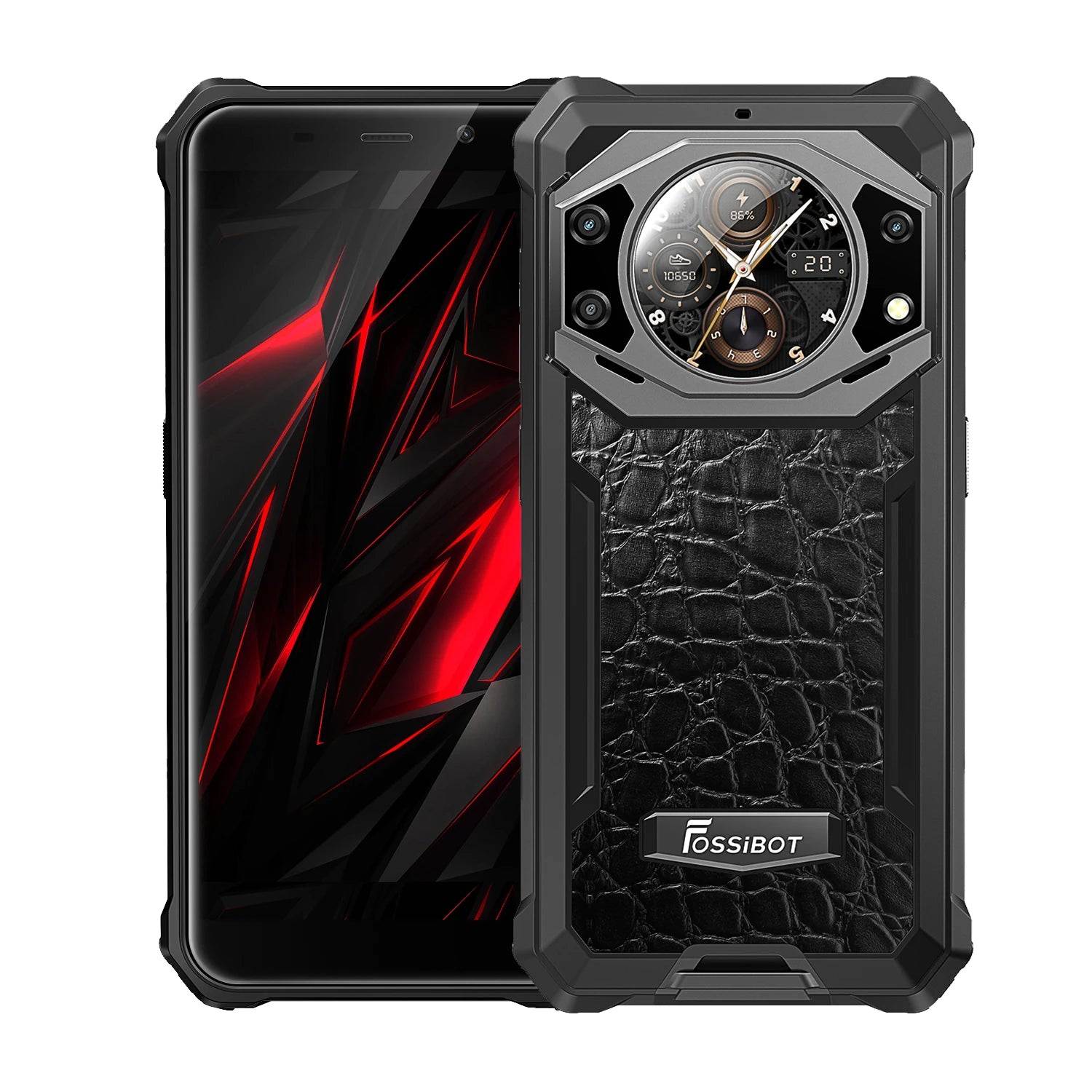

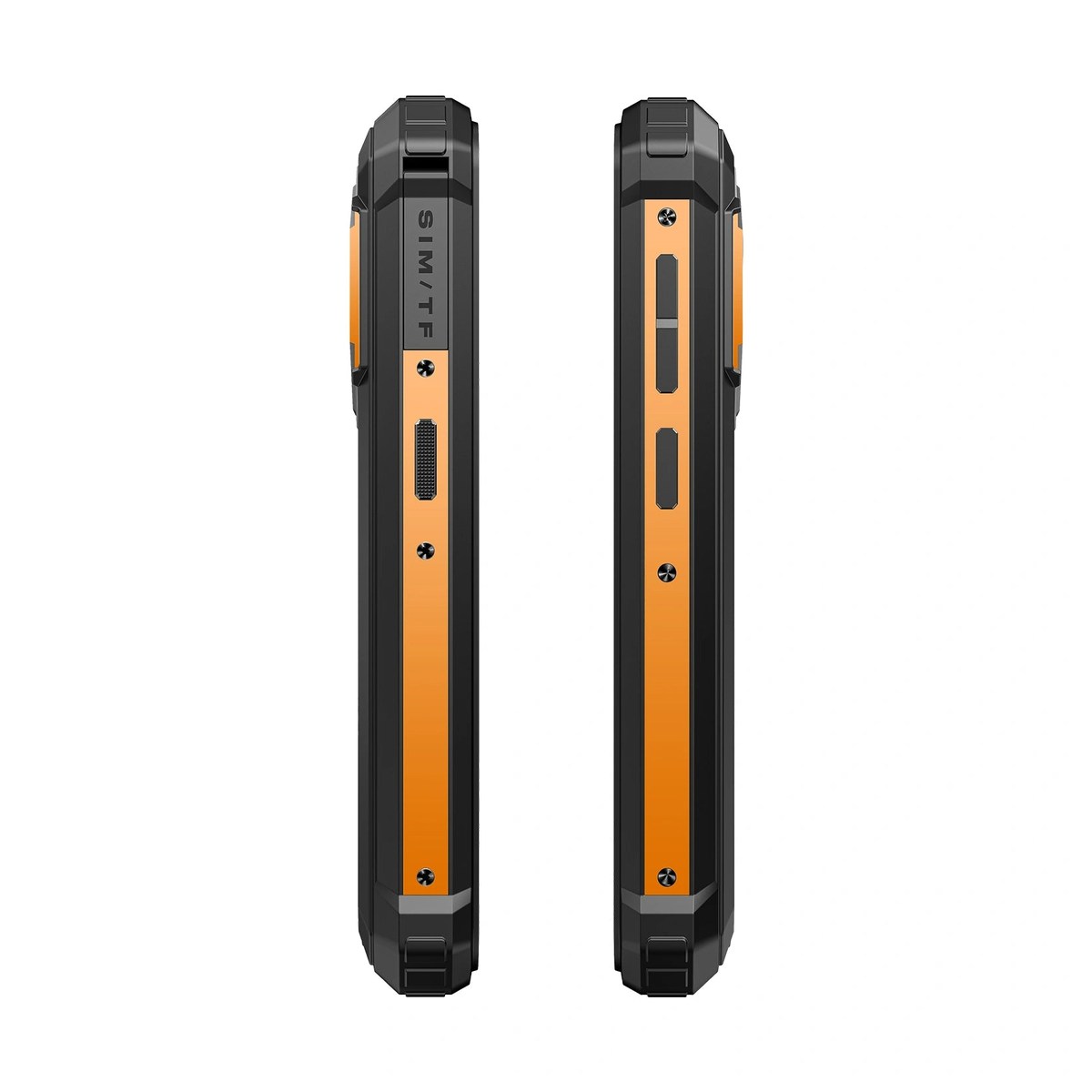

Choose FOSSiBOT F101 Pro by comparing the confirmed configuration above with your purchasing requirements. The product photos show the available finishes and different views of the product. Check the operating system, connection requirements, battery and charging information where listed, and the dimensions in the Specs tab before arranging a bulk order.

For a wholesale inquiry, specify the model, requested quantity, preferred color and delivery destination. Confirm the required charging equipment and package contents for your market before ordering. Check network support and the storage configuration against your intended applications. Extended RAM, when listed, uses storage as virtual memory; the physical RAM and storage figures are identified separately in the configuration. The display and camera specifications help compare how the product fits everyday communication, viewing documents and capturing images.
