DOOGEE S300 Plus Rugged Phones

DOOGEE S300 Plus Rugged Phones

DOOGEE S300 Plus Rugged Phones is available for wholesale and bulk order enquiries through RuggedMaster. Review the manufacturer specifications below to compare this model with the needs of your business.

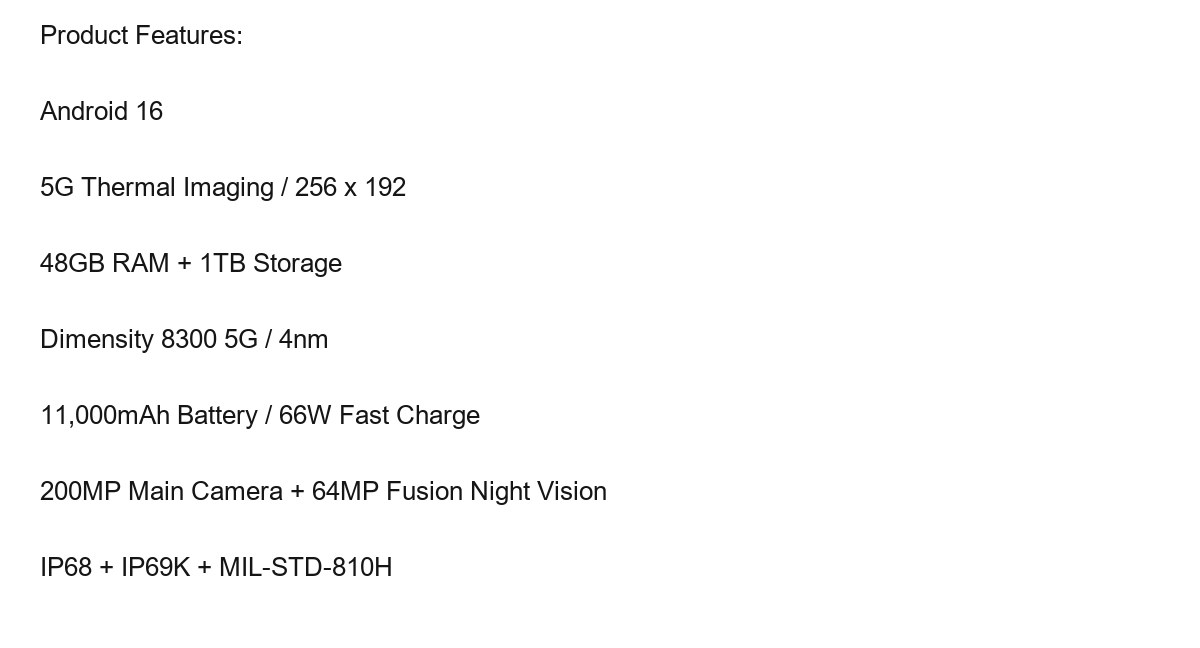

Product Features:

Android 16

5G Thermal Imaging / 256 x 192

48GB RAM + 1TB Storage

Dimensity 8300 5G / 4nm

11,000mAh Battery / 66W Fast Charge

200MP Main Camera + 64MP Fusion Night Vision

IP68 + IP69K + MIL-STD-810H

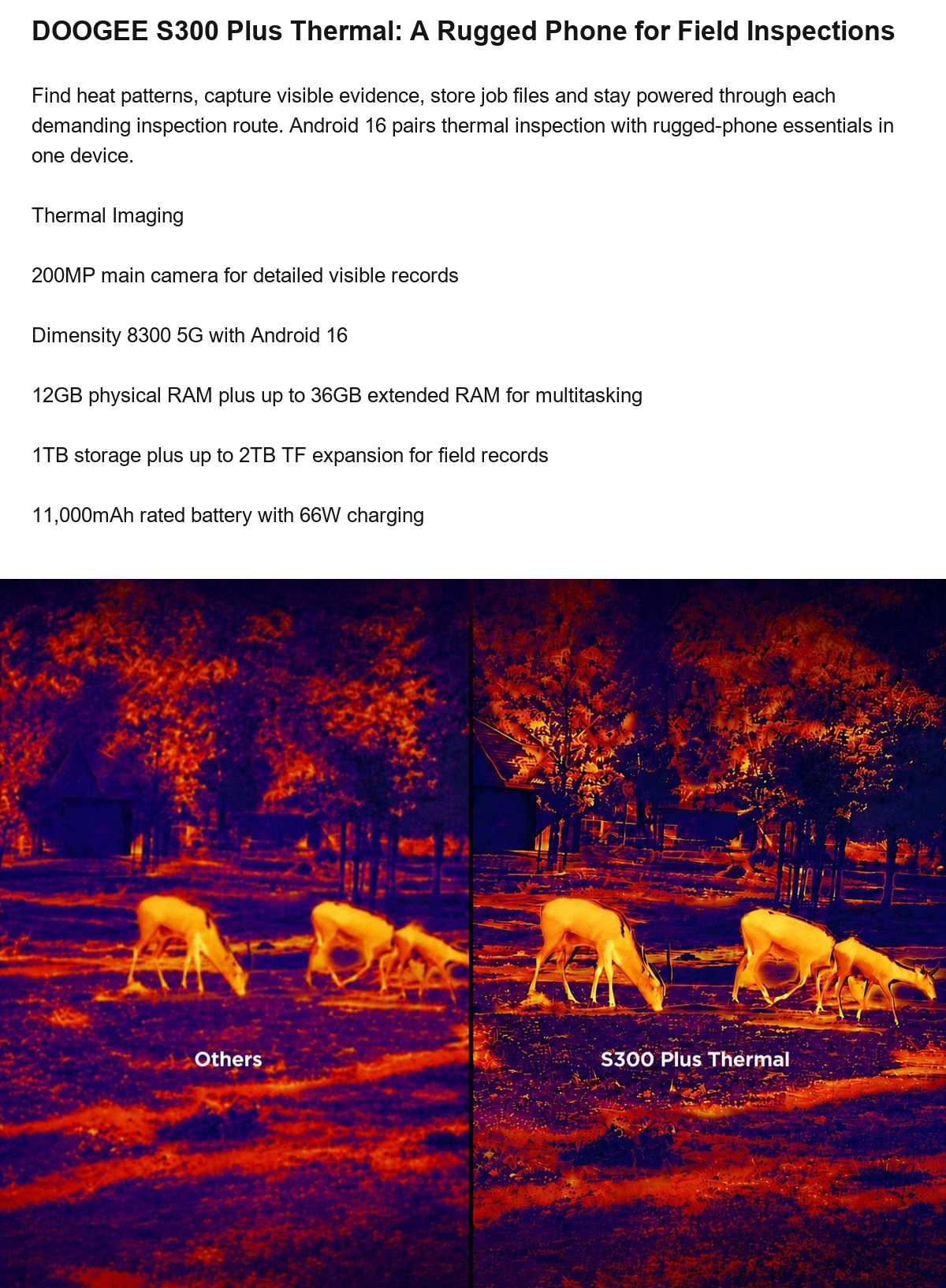

DOOGEE S300 Plus Thermal: A Rugged Phone for Field Inspections

Find heat patterns, capture visible evidence, store job files and stay powered through each demanding inspection route. Android 16 pairs thermal inspection with rugged-phone essentials in one device.

Thermal Imaging

200MP main camera for detailed visible records

Dimensity 8300 5G with Android 16

12GB physical RAM plus up to 36GB extended RAM for multitasking

1TB storage plus up to 2TB TF expansion for field records

11,000mAh rated battery with 66W charging

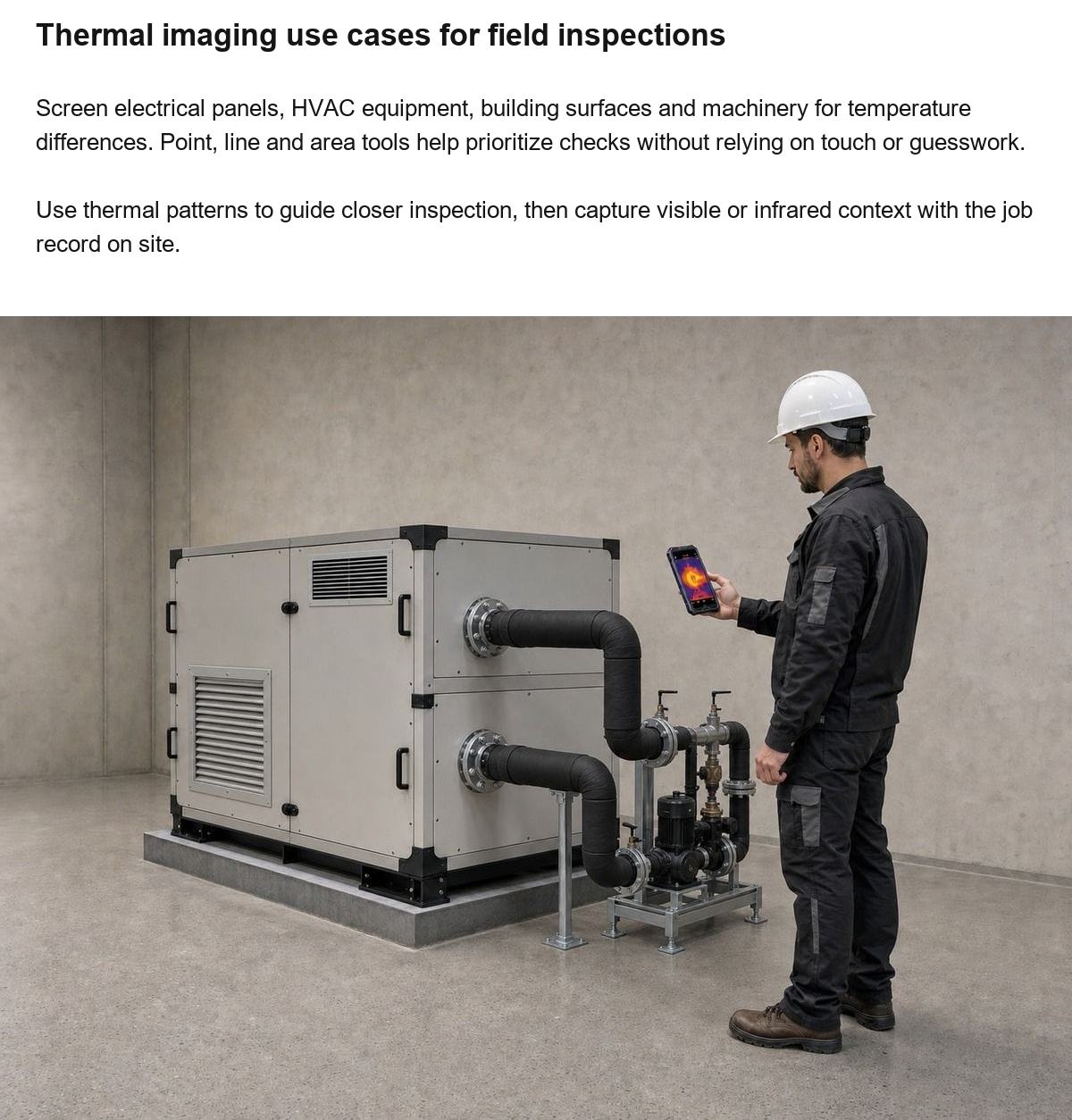

Thermal imaging use cases for field inspections

Screen electrical panels, HVAC equipment, building surfaces and machinery for temperature differences. Point, line and area tools help prioritize checks without relying on touch or guesswork.

Use thermal patterns to guide closer inspection, then capture visible or infrared context with the job record on site.

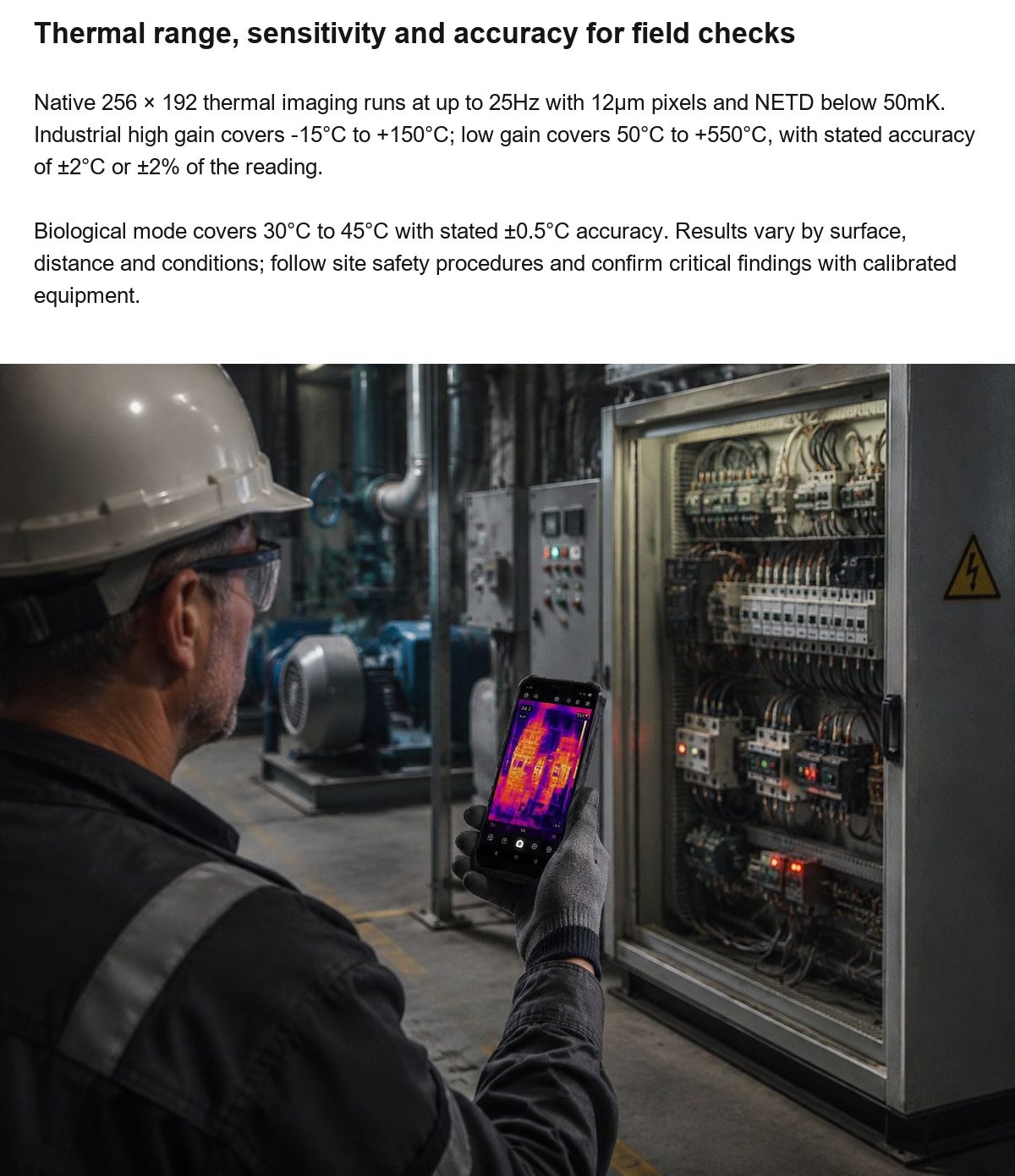

Thermal range, sensitivity and accuracy for field checks

Native 256 × 192 thermal imaging runs at up to 25Hz with 12µm pixels and NETD below 50mK. Industrial high gain covers -15°C to +150°C; low gain covers 50°C to +550°C, with stated accuracy of ±2°C or ±2% of the reading.

Biological mode covers 30°C to 45°C with stated ±0.5°C accuracy. Results vary by surface, distance and conditions; follow site safety procedures and confirm critical findings with calibrated equipment.

Document the issue with the right camera after the thermal screen

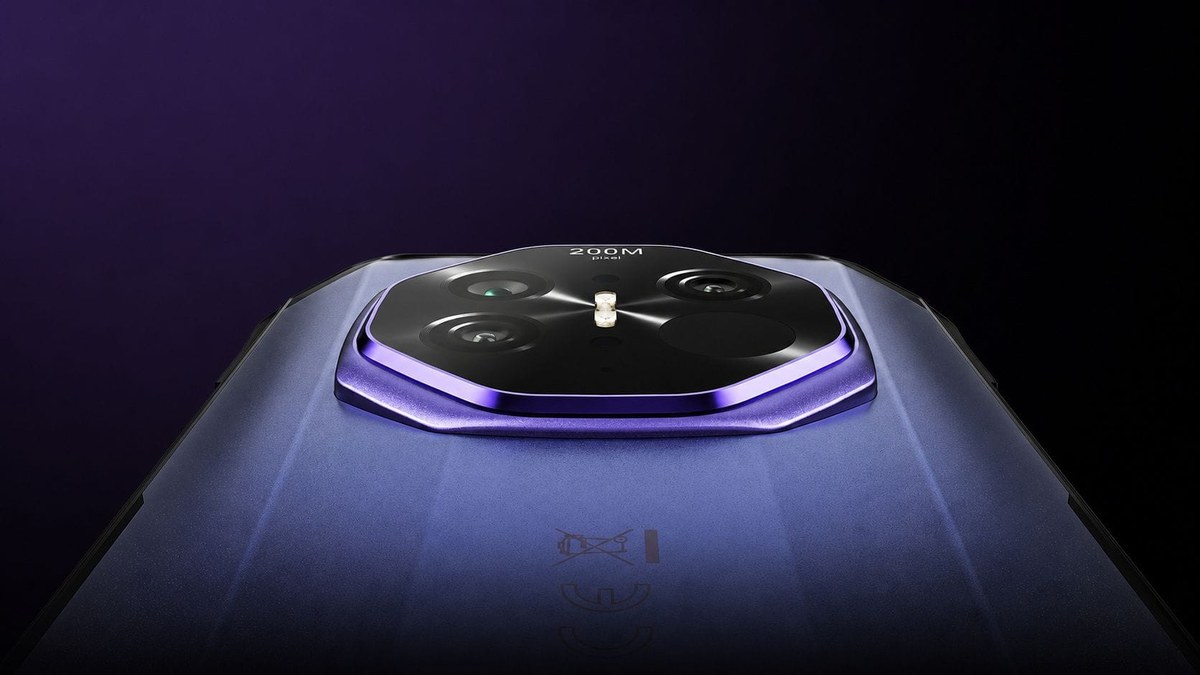

The 200MP F/1.8 main camera documents equipment, labels and site evidence. Separate 64MP infrared night vision records reflected infrared detail after dark; it is not thermal.

The 8MP telephoto provides 3x optical and up to 50x digital zoom for distant visible subjects. The 32MP front camera supports calls and check-ins, helping turn heat patterns into a service record.

5G performance and connectivity for large field records

Wi-Fi 6E, Bluetooth 5.4, NFC, L1+L5 positioning and a triple card slot support connected workflows. POC requires compatible software, an account and cellular coverage.

The 11,000mAh rated silicon-carbon battery supports thermal checks, cameras, maps and calls. Compatible 66W wired charging helps between jobs; OTG reverse charging up to 5W can support a small accessory.

The 6.78-inch 1080 x 2460 display runs up to 120Hz for thermal views and records. Runtime, refresh rate and charging speed vary by use and conditions.

11,000mAh rated capacity | 66W wired charging

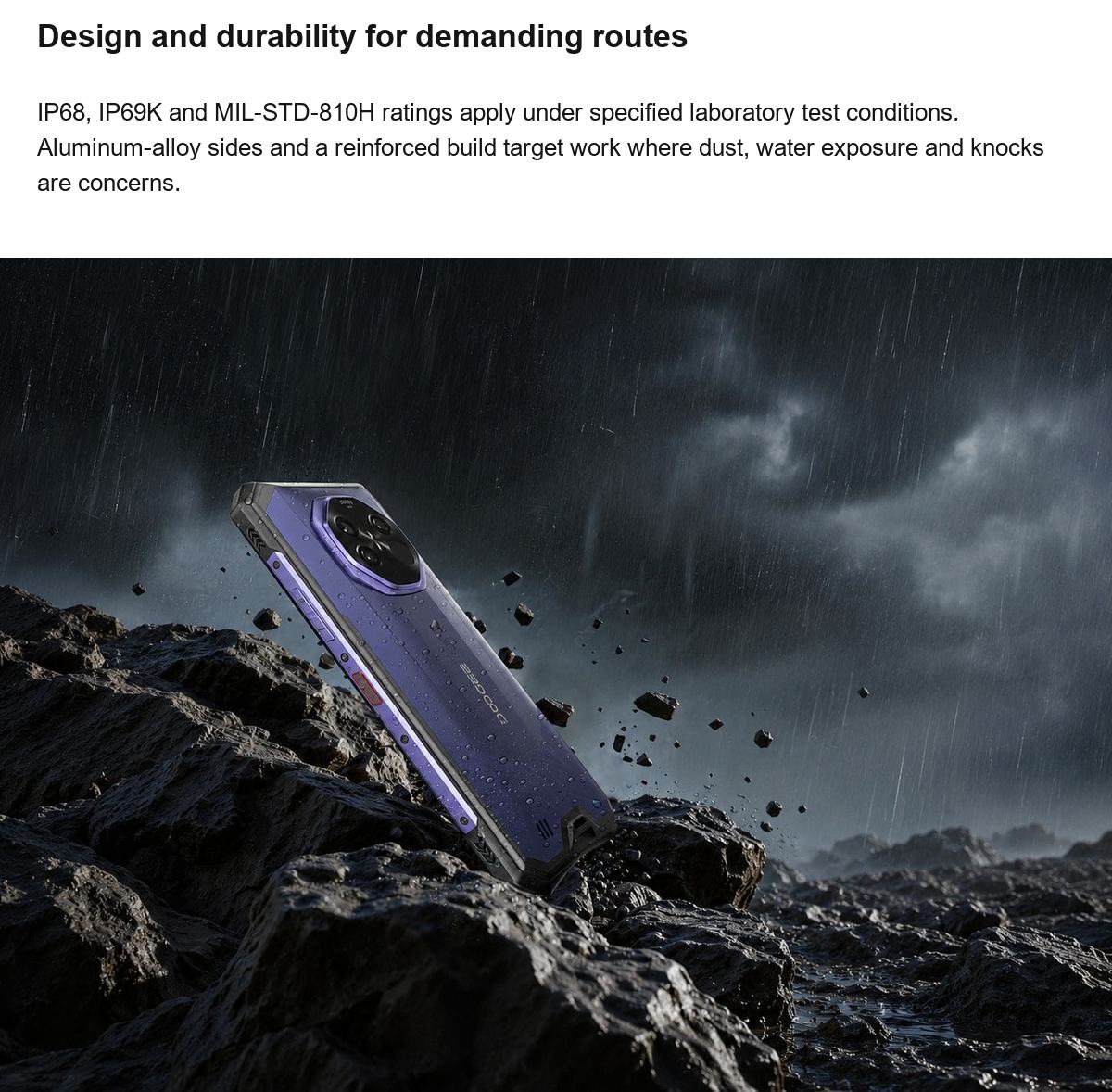

Design and durability for demanding routes

IP68, IP69K and MIL-STD-810H ratings apply under specified laboratory test conditions. Aluminum-alloy sides and a reinforced build target work where dust, water exposure and knocks are concerns.

Supporting features, ready to explore.

Super-Loud Speaker

Hear calls, notifications, and media clearly even in challenging environments. The SmartPA amplifier keeps audio loud, crisp, and consistent.

POC Walkie Talkie for Seamless Connectivity

Stay connected with one-press team communication on-site or outdoors. Requires compatible software, an account, and cellular coverage.

Smarter Android 16

Experience More Control, More Convenience

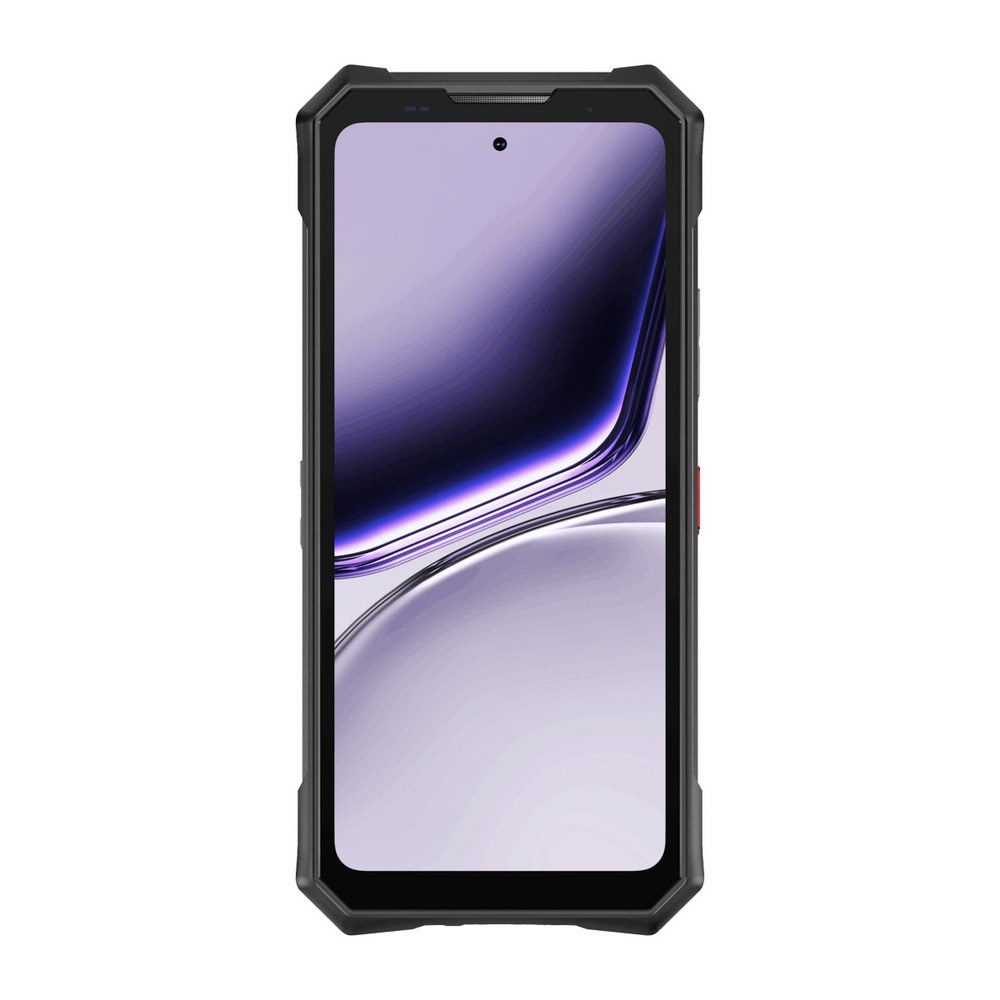

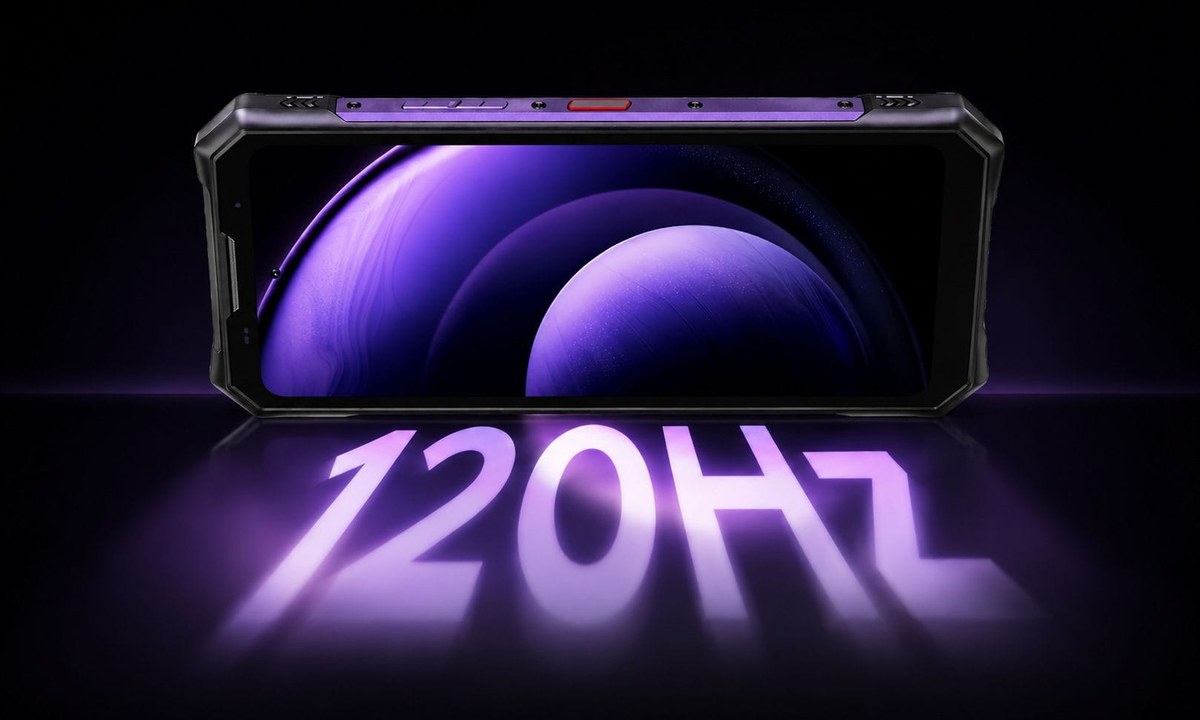

6.78" FHD+ 120Hz IPS Display

A large, smooth display for maps, thermal views, records and everyday navigation.

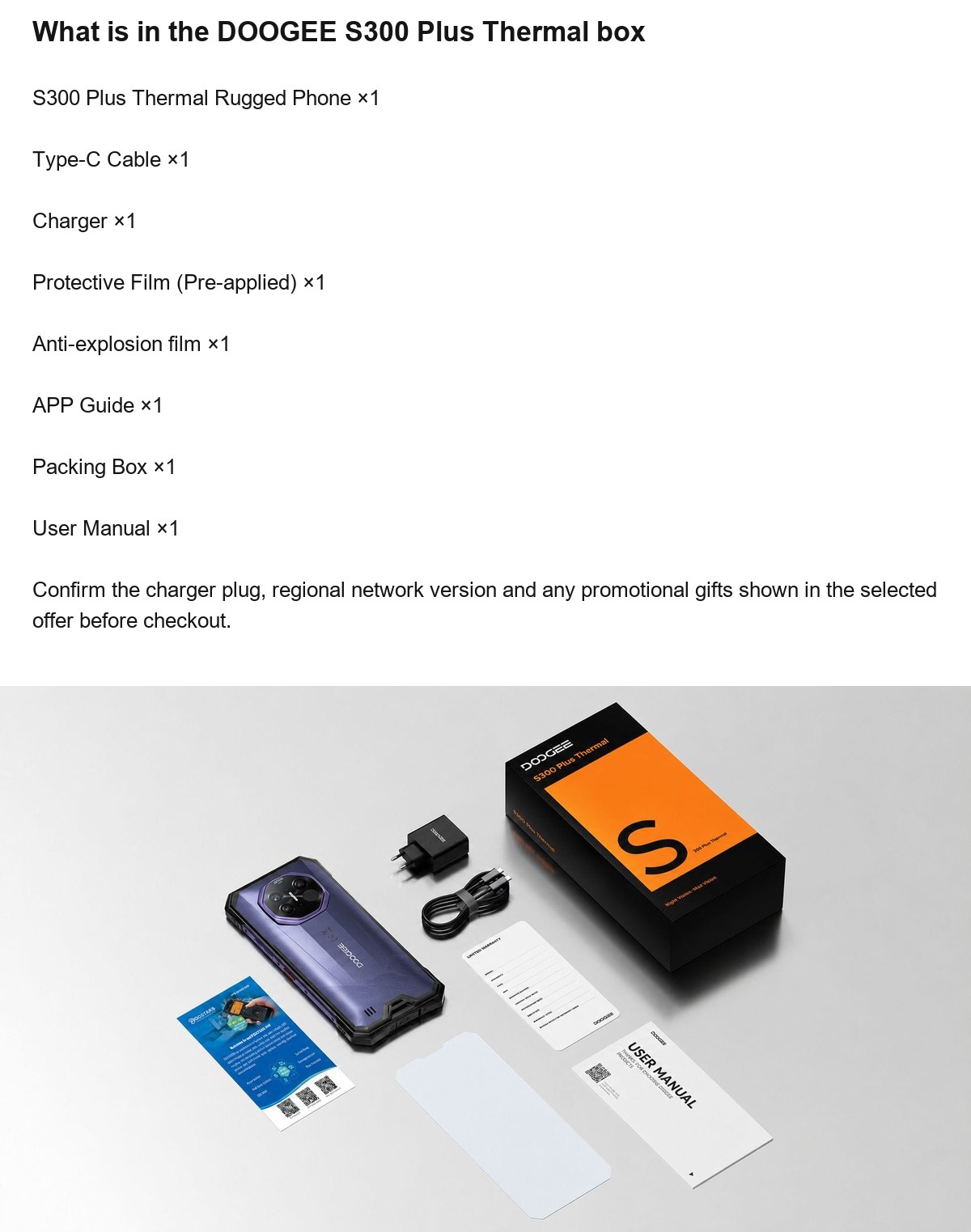

What is in the DOOGEE S300 Plus Thermal box

S300 Plus Thermal Rugged Phone ×1

Type-C Cable ×1

Charger ×1

Protective Film (Pre-applied) ×1

Anti-explosion film ×1

APP Guide ×1

Packing Box ×1

User Manual ×1

Confirm the charger plug, regional network version and any promotional gifts shown in the selected offer before checkout.

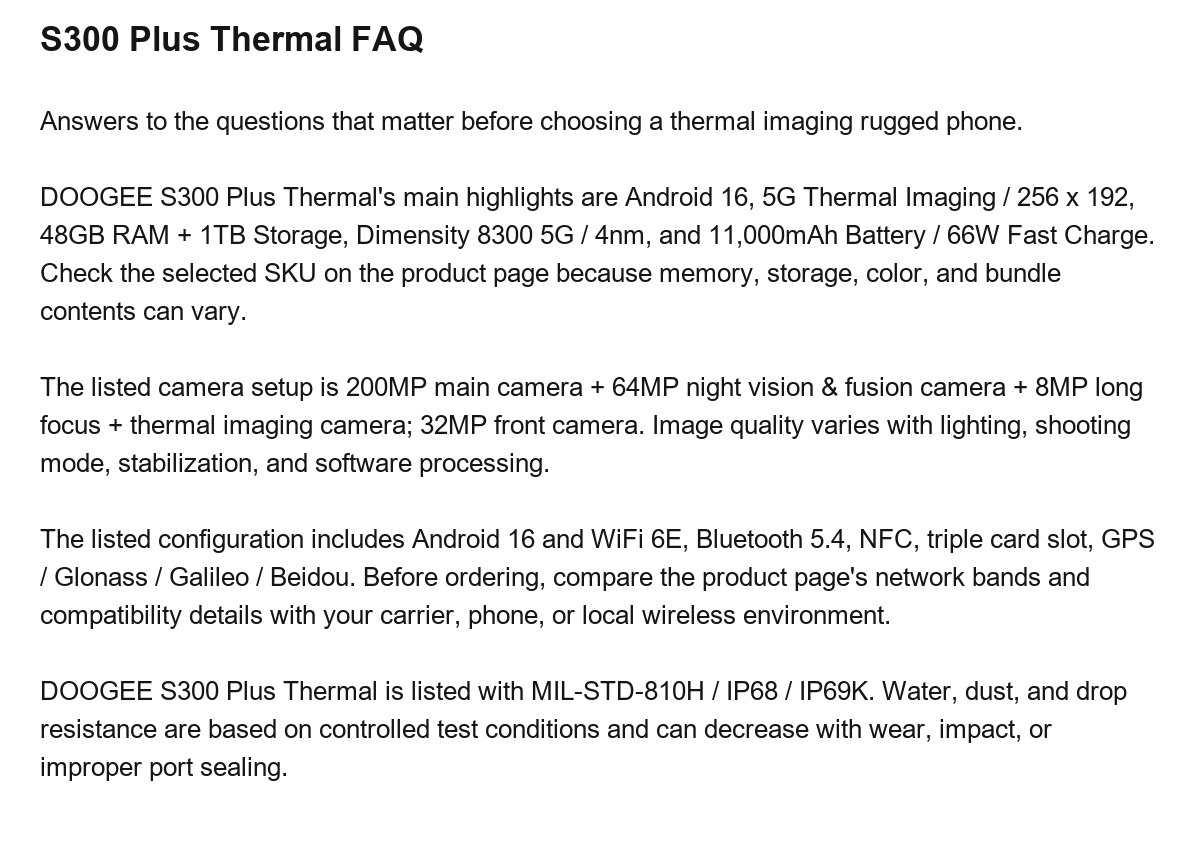

S300 Plus Thermal FAQ

Answers to the questions that matter before choosing a thermal imaging rugged phone.

DOOGEE S300 Plus Thermal's main highlights are Android 16, 5G Thermal Imaging / 256 x 192, 48GB RAM + 1TB Storage, Dimensity 8300 5G / 4nm, and 11,000mAh Battery / 66W Fast Charge. Check the selected SKU on the product page because memory, storage, color, and bundle contents can vary.

The listed camera setup is 200MP main camera + 64MP night vision & fusion camera + 8MP long focus + thermal imaging camera; 32MP front camera. Image quality varies with lighting, shooting mode, stabilization, and software processing.

The listed configuration includes Android 16 and WiFi 6E, Bluetooth 5.4, NFC, triple card slot, GPS / Glonass / Galileo / Beidou. Before ordering, compare the product page's network bands and compatibility details with your carrier, phone, or local wireless environment.

DOOGEE S300 Plus Thermal is listed with MIL-STD-810H / IP68 / IP69K. Water, dust, and drop resistance are based on controlled test conditions and can decrease with wear, impact, or improper port sealing.

DOOGEE S300 Plus configuration and features

Operating System: Android 16.

Processor: MediaTek Dimensity 8300, Octa Core, 4nm, up to 3.35GHz.

Memory: 48GB RAM (12GB + up to 36GB extended RAM).

Storage: 1TB ROM, supports up to 2TB TF card expansion.

Battery: 11,000mAh large battery.

Charging: 66W Type-C fast charging.

Dimensions: 184.9 x 84.0 x 18.0 mm.

Display: 6.78" FHD+ 120Hz IPS Notch-less Punch display, 1080 x 2460.

Rear / Outdoor Design: Standard rugged design.

Camera: 200MP main camera + 64MP night vision & fusion camera + 8MP long focus + thermal imaging camera; 32MP front camera.

Connectivity: WiFi 6E, Bluetooth 5.4, NFC, triple card slot, GPS / Glonass / Galileo / Beidou.

Protection: MIL-STD-810H / IP68 / IP69K.

Wholesale and bulk enquiries

For a bulk enquiry, identify the model and the configuration you need. Compare the processor, display, memory and storage details listed here before selecting a device. The specifications describe the manufacturer listing. Use the colour photos to compare the appearance of this model.

Share your intended order quantity and preferred colour when you contact RuggedMaster. This helps us discuss the relevant product configuration for your purchase. Review the Specs tab for the technical details, and use the gallery to view the product from different angles.

When comparing products, review each feature separately. Look at the screen for everyday use, the memory and storage specifications for your applications, and the battery details for your routine. Use the manufacturer configuration as your reference. Confirm the required model and colour in your enquiry before making a bulk purchase.
