Conquest S21 Rugged Phones
Dimensity 700, Android 11, 5.7-inch FHD, 8GB+128GB, 4500mAh, 5G, IR Thermometer, NFC
The S21 uses a Dimensity 700 octa-core processor with Android 11 and a 5.7-inch 1080 × 2160 IPS screen. The source lists 8GB+128GB and 4GB+64GB configurations, a 4500mAh battery and a 290g weight. Infrared temperature measurement, NFC and a PTT button support field tasks. Cameras include a 32MP front sensor, a 48MP main rear sensor and an 8MP wide-angle rear sensor.
8GB RAM+128RAM
120DB Loudspeaker
Global 5G Rugged Phone, IP68 & IP69K & MIL-STD-810
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

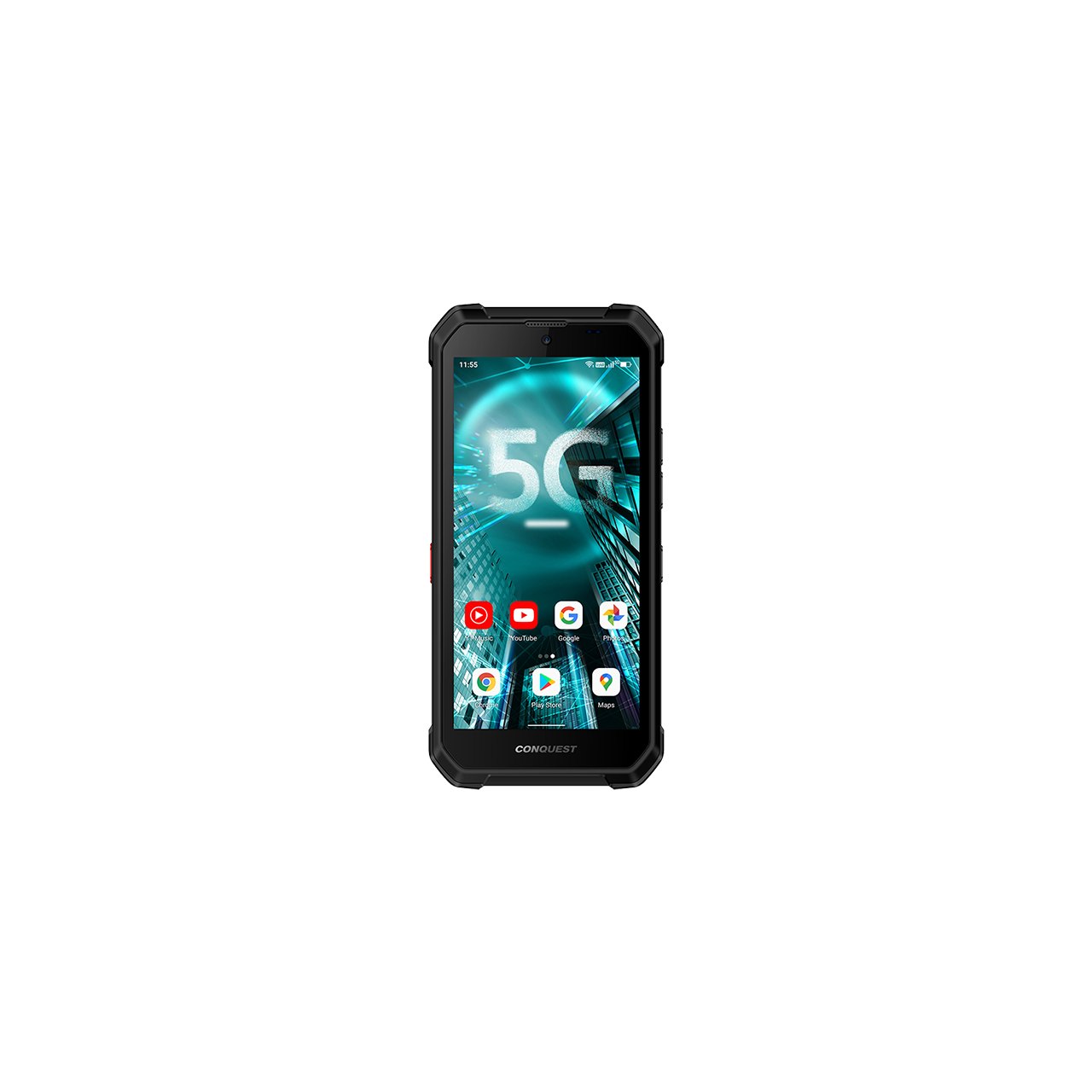

Conquest S21 Rugged Phones overview
Conquest S21 Rugged Phones — The S21 uses a Dimensity 700 octa-core processor with Android 11 and a 5.7-inch 1080 × 2160 IPS screen. The source lists 8GB+128GB and 4GB+64GB configurations, a 4500mAh battery and a 290g weight. Infrared temperature measurement, NFC and a PTT button support field tasks. Cameras include a 32MP front sensor, a 48MP main rear sensor and an 8MP wide-angle rear sensor.
S21 published features
- 8GB RAM+128RAM
- 120DB Loudspeaker
- Global 5G Rugged Phone, IP68 & IP69K & MIL-STD-810
Hardware and connectivity
- Product Features — Android 11 IP68 SMART PA 5G Network
- Platform — MTK_6833（Dimensity 700） 8+128GB Smart baseband chip 5G-C； 2.0 GHz Octa core
- SW version — Android 11
- Band — 2G：GSM(B2/3/5/8) CDMA (BC0/BC1) 3G：WCDMA（B1/2/4/5/6/8/19） TD-S(B34/B39) 4G：TDD（B34/38//39/40/41）FDD（B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66） 5G：NR（n1、n3、n28,n38, n41、n77、n78）
- Data UL/DL rate — GPRS:53.6Kbps WCDMA:Uplink5.76Mbps,Downlink 14.4Mbps TD-SCDMA:Uplink2.6Mbps,Downlink 3.1Mbps FDD:Uplink 50Mbps,Downlink150Mbps TDD: Uplink50Mbps, Downlink150Mbps
- Screen Type/Size/Pixel — 5.7inch IPS 1080×2160 FHD incell；
- Camera — 32MP Front Camera(f/2.2) 48MP Main Camera (f/1.8)+8MP ultra wide-angle rear camera
- Target Internal Memory — 8G+128GB/4+64GB
- SIM card/TF card — Dual Nano Sim card / Single Nano Sim+TF card
- Target Battery Capacity — 4500mAh
- Standby Time — 500h
- Talk Time — 10h
- Charging Time — 2.5h (9V/2A）
- Size(mm) — 167.5×79.8×15.6mm
- Weight(with battery) — 290g
- Color — Black
- Water resistance — IP68
- Touch Lens — YES
Selection and deployment
Conquest S21 Rugged Phones should be selected for the equipment and workflow described above. Review the Specs tab and the source photographs when preparing an enquiry. Optional components require the matching hardware configuration; a feature marked optional should not be assumed to be installed in every unit.
For a wholesale enquiry, provide the required quantity, destination market and exact memory, connectivity and module configuration. Confirm compatibility with existing applications, networks and peripherals before deployment. The photographs document the source product, while the specification records the available published details.
Explore related rugged phones or request a wholesale quote. See the manufacturer product reference for the source information.
Conquest S21 Rugged Phones Specs
| Item | Description |
| Product Features | Android 11 IP68 SMART PA 5G Network |
| Platform | MTK_6833（Dimensity 700） 8+128GB Smart baseband chip 5G-C； 2.0 GHz Octa core |
| SW version | Android 11 |
| Band | 2G：GSM(B2/3/5/8) CDMA (BC0/BC1) 3G：WCDMA（B1/2/4/5/6/8/19） TD-S(B34/B39) 4G：TDD（B34/38//39/40/41）FDD（B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66） 5G：NR（n1、n3、n28,n38, n41、n77、n78） |
| Data UL/DL rate | GPRS:53.6Kbps WCDMA:Uplink5.76Mbps,Downlink 14.4Mbps TD-SCDMA:Uplink2.6Mbps,Downlink 3.1Mbps FDD:Uplink 50Mbps,Downlink150Mbps TDD: Uplink50Mbps, Downlink150Mbps |
| Screen Type/Size/Pixel | 5.7inch IPS 1080x2160 FHD incell； |
| Camera | 32MP Front Camera(f/2.2) 48MP Main Camera (f/1.8)+8MP ultra wide-angle rear camera |
| Target Internal Memory | 8G+128GB/4+64GB |
| SIM card/TF card | Dual Nano Sim card / Single Nano Sim+TF card |
| Target Battery Capacity | 4500mAh |
| Standby Time | 500h |
| Talk Time | 10h |
| Charging Time | 2.5h (9V/2A） |
| Size(mm) | 167.5x79.8x15.6mm |
| Weight(with battery) | 290g |
| Color | Black |
| Water resistance | IP68 |
| Touch Lens | YES |
| Antenna | Embedded |
| Vibrator | Welding type, diameter 0827mm |
| Speaker | 2035 rated input power 2W waterproof speaker |
| Receiver | 1206 shrapnel waterproof receiver |
| Microphone | Double silicon wheat(Noise Reduction Mic) |
| Charger Jack | TYPE-C |
| I/O Connector | TYPE-C to 3.5mm |
| SIM Type | Nano sim |
| Flash Lighting | YES |
| G-Sensor | YES |
| Bluetooth | BT5.1 |
| WIFI | 2.4G/5G（802.11ac/a/b/g/n） |
| FM | FM (No headphones needed) |
| GPS+Beidou+Glonass+Galileo | BT/WIFI/GPS(3IN1 Antenna) （GPS+Beidou+Glonass+Galileo） |
| Proximity Sensor | YES |
| Light Sensor | YES |
| Power breathing indicator | 3 Colors |
| E-Compass | YES |
| Gyro | YES |
| Atmospheric altitude | YES |
| Temperature measurement | YES |
| USB OTG | YES |
| Dock Charger | YES |
| Waist clip | YES |
| Lanyard | YES |
| Magnetic charging | YES |
| Fingerprint recognition | YES |
| NFC | 13.56MHZ (antenna placed in the battery area); support ISO15693, ISO1443A/B two protocols, support read and write mode, card mode, and near field communication (point-to-point file transfer) |
| PoC Walkie Talkie | YES |
| Input | 10 Point Touch,incell |
| External Keys | Power key (Physical button) |
| Volume+/- Key (Physical button) | |
| /PTT Key (Physical button) |
