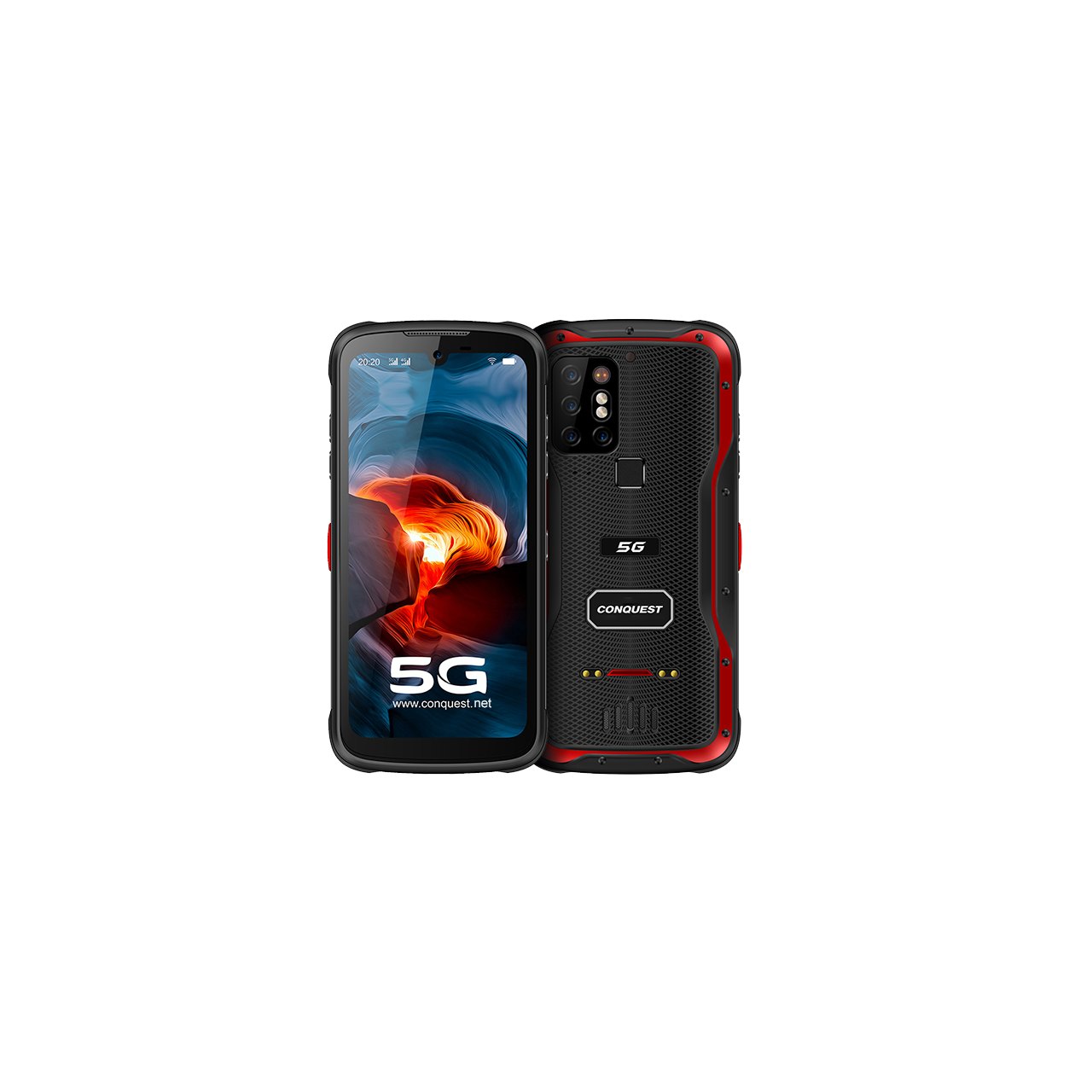

Conquest S20 Rugged Phones
Dimensity 800, Android 11, 6.3-inch FHD+, 8GB+128GB / 256GB, 8000mAh, 5G, Night Vision, NFC
The S20 combines a Dimensity 800 platform with Android 11 and a 6.3-inch Full HD+ screen. The specification lists 8GB RAM, 128GB or 256GB storage and an 8000mAh battery. Its cameras include a 48MP main camera, 13MP wide-angle camera, 20MP night-vision camera and 2MP macro camera. NFC, dual Nano-SIM support, Bluetooth 5.0 and a loudspeaker support field communication.
8GB RAM+256RAM
2W 120DB Loudspeaker
Global 5G Rugged Phone, IP68 & IP69K & MIL-STD-810
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
Conquest S20 Rugged Phones overview
Conquest S20 Rugged Phones — The S20 combines a Dimensity 800 platform with Android 11 and a 6.3-inch Full HD+ screen. The specification lists 8GB RAM, 128GB or 256GB storage and an 8000mAh battery. Its cameras include a 48MP main camera, 13MP wide-angle camera, 20MP night-vision camera and 2MP macro camera. NFC, dual Nano-SIM support, Bluetooth 5.0 and a loudspeaker support field communication.
S20 published features
- 8GB RAM+256RAM
- 2W 120DB Loudspeaker
- Global 5G Rugged Phone, IP68 & IP69K & MIL-STD-810
Hardware and connectivity
- Color — Black/Yellow/Red
- RAM/ROM — 8GB+128GB/256GB
- Product Features — Android 11 Golbal 5G Network IP68/IP69K（MIL-STD-810H） SMART PA WIFI Display PoC Walkie Talkie (Cellular intercom) Magnetic Charging NFC Infrared remote
- Certificate — IP68/IP69K/MIL-STD-810H
- Platform — MT6873,Dimensity 800 2GHz八核(Eight-Core
- Software Version — Android 11
- Language — Global language
- Band — GSM/WCDMA/TD-SCDMA/TDD-LTE/FDD-LTE GSM：B2/3/5/8 WCDMA：B1/2/4/5/6/8/19 TDS：B34/39 CDMA：BC0/BC1/BC10 TDD：B34/38/39/40/41 FDD:B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66 5G:N1/3/5/8/20/28/38/41/77/78/79
- Data UL/DL rate — GPRS:53.6Kbps WCDMA:Uplink5.76Mbps,Downlink 14.4Mbps TD-SCDMA:Uplink2.6Mbps,Downlink 3.1Mbps FDD:Uplink 50Mbps,Downlink150Mbps TDD: Uplink50Mbps, Downlink150Mbps
- Resolution/Screen Type/Size/Pixel — TFT 6.3 FHD+ IPS 1080*2340

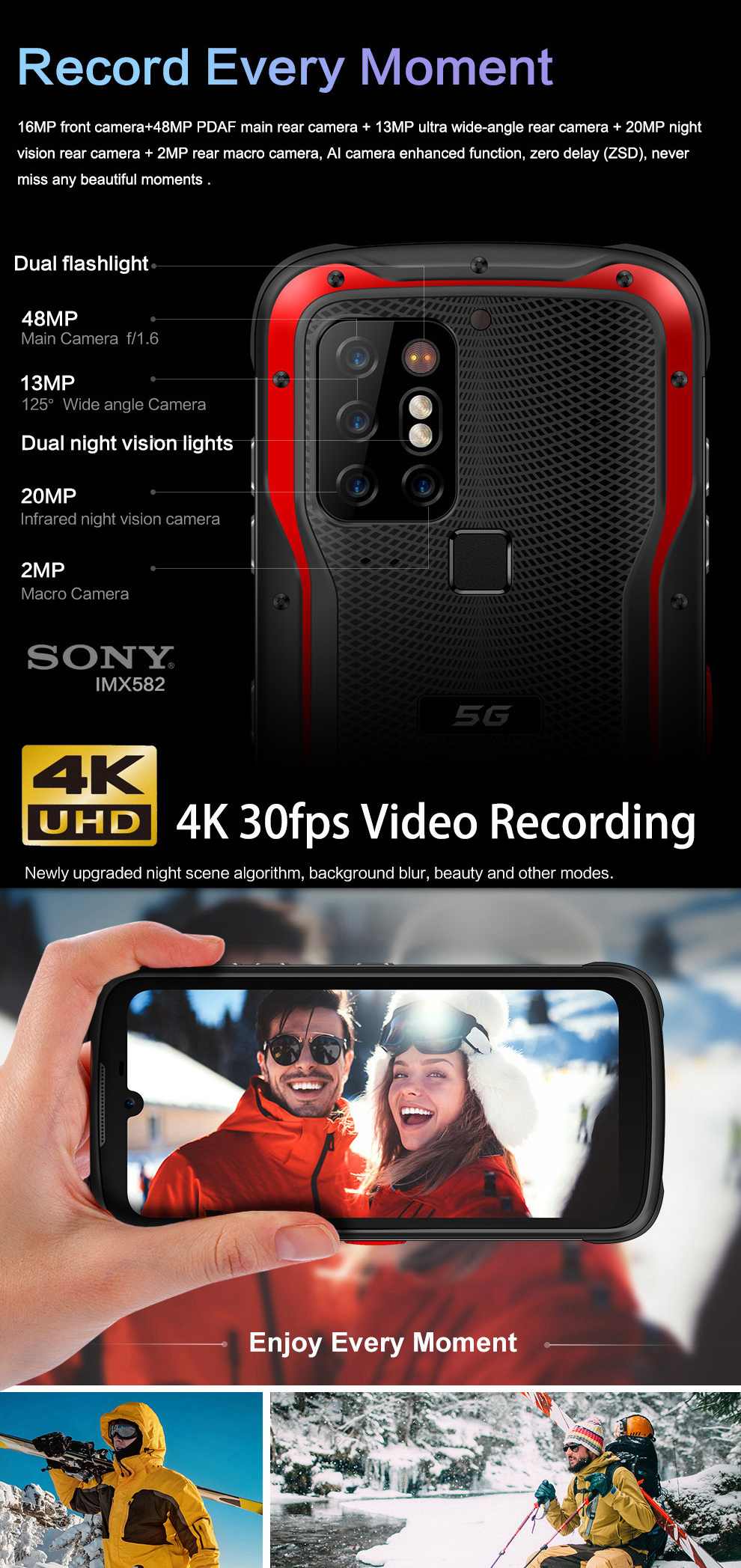

- Camera — Front Camera： 16MP, Rear Camera： Main Camera 48MP/ Wide angle 13MP/ Night vision 20MP /Macro 2MP
- Dual card/single card — Dual Nano sim
- Target Battery Capacity — 8000mAh （4.4V）
- Standby Time — 900H
- Talk Time — 18H
- Charging Time — 4H （PE+ 9V/2A）

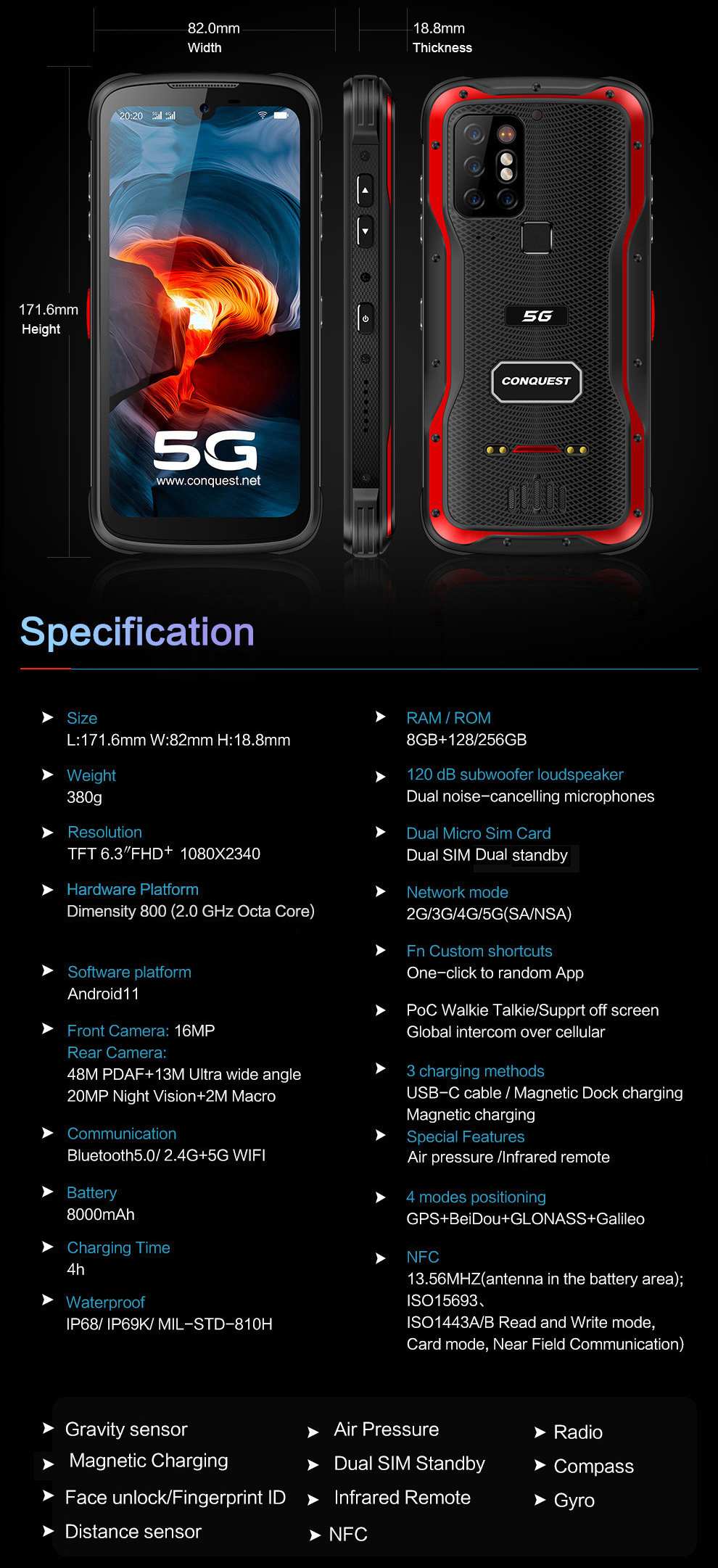

- Size(mm) — L170.5*W81.6*H18.4MM
- Weight(with battery) — 380g
Selection and deployment
Conquest S20 Rugged Phones should be selected for the equipment and workflow described above. Review the Specs tab and the source photographs when preparing an enquiry. Optional components require the matching hardware configuration; a feature marked optional should not be assumed to be installed in every unit.
For a wholesale enquiry, provide the required quantity, destination market and exact memory, connectivity and module configuration. Confirm compatibility with existing applications, networks and peripherals before deployment. The photographs document the source product, while the specification records the available published details.
Explore related rugged phones or request a wholesale quote. See the manufacturer product reference for the source information.
Conquest S20 Rugged Phones Specs
| Item | Description |
| Color | Black/Yellow/Red |
| RAM/ROM | 8GB+128GB/256GB |
| Product Features | Android 11 Golbal 5G Network IP68/IP69K（MIL-STD-810H） SMART PA WIFI Display PoC Walkie Talkie (Cellular intercom) Magnetic Charging NFC Infrared remote |
| Certificate | IP68/IP69K/MIL-STD-810H |
| Platform | MT6873,Dimensity 800 2GHz八核(Eight-Core |
| Software Version | Android 11 |
| Language | Global language |
| Band | GSM/WCDMA/TD-SCDMA/TDD-LTE/FDD-LTE GSM：B2/3/5/8 WCDMA：B1/2/4/5/6/8/19 TDS：B34/39 CDMA：BC0/BC1/BC10 TDD：B34/38/39/40/41 FDD:B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66 5G:N1/3/5/8/20/28/38/41/77/78/79 |
| Data UL/DL rate | GPRS:53.6Kbps WCDMA:Uplink5.76Mbps,Downlink 14.4Mbps TD-SCDMA:Uplink2.6Mbps,Downlink 3.1Mbps FDD:Uplink 50Mbps,Downlink150Mbps TDD: Uplink50Mbps, Downlink150Mbps |
| Resolution/Screen Type/Size/Pixel | TFT 6.3 FHD+ IPS 1080*2340 |
| Camera | Front Camera： 16MP, Rear Camera： Main Camera 48MP/ Wide angle 13MP/ Night vision 20MP /Macro 2MP |
| Dual card/single card | Dual Nano sim |
| Target Battery Capacity | 8000mAh （4.4V） |
| Standby Time | 900H |
| Talk Time | 18H |
| Charging Time | 4H （PE+ 9V/2A） |
| Size(mm) | L170.5*W81.6*H18.4MM |
| Weight(with battery) | 380g |

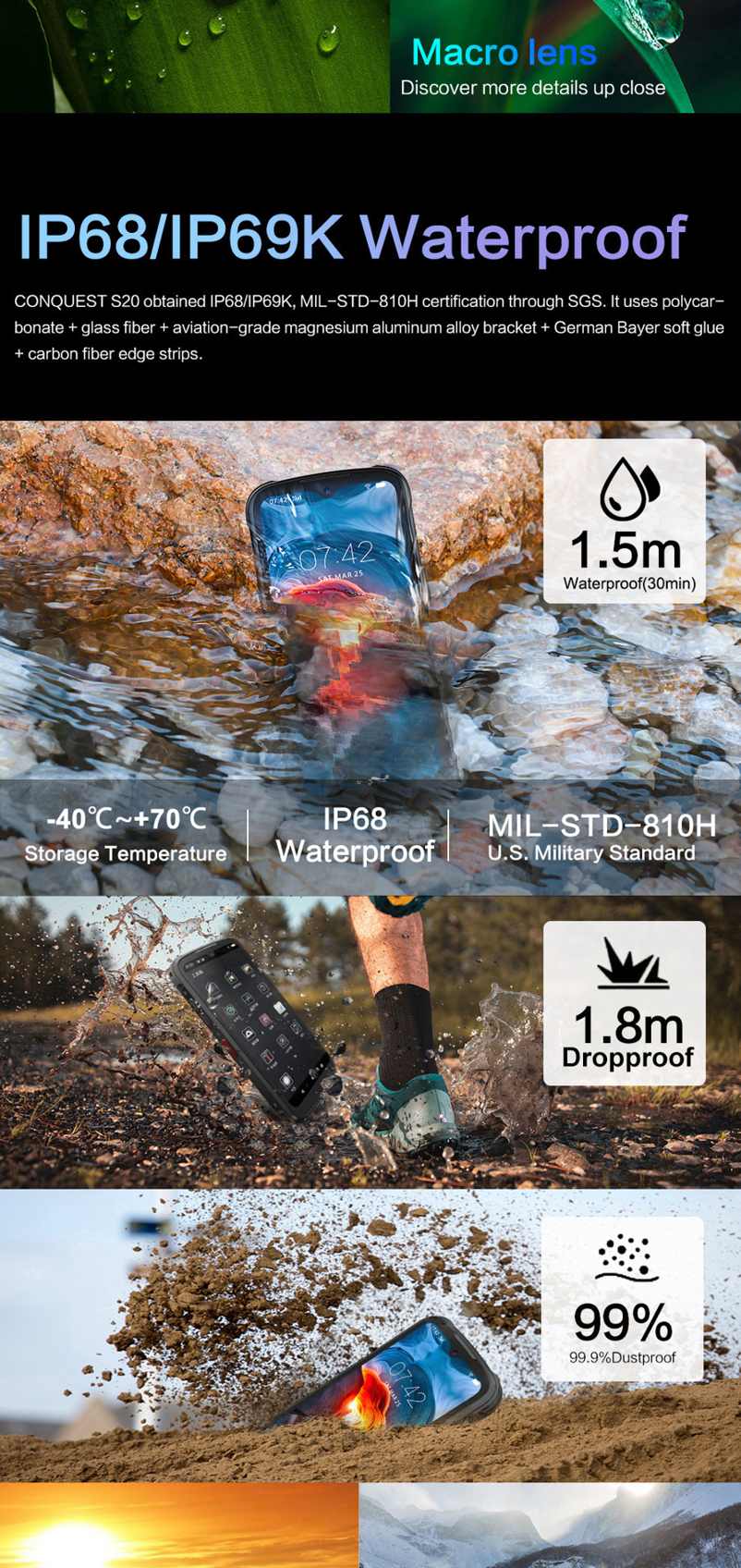

| Water resistance | IP68（SGS） |
| Touch Lens | 10 Point touch,incell |
| Antenna | Embedded |
| Vibrator | Linear motor |

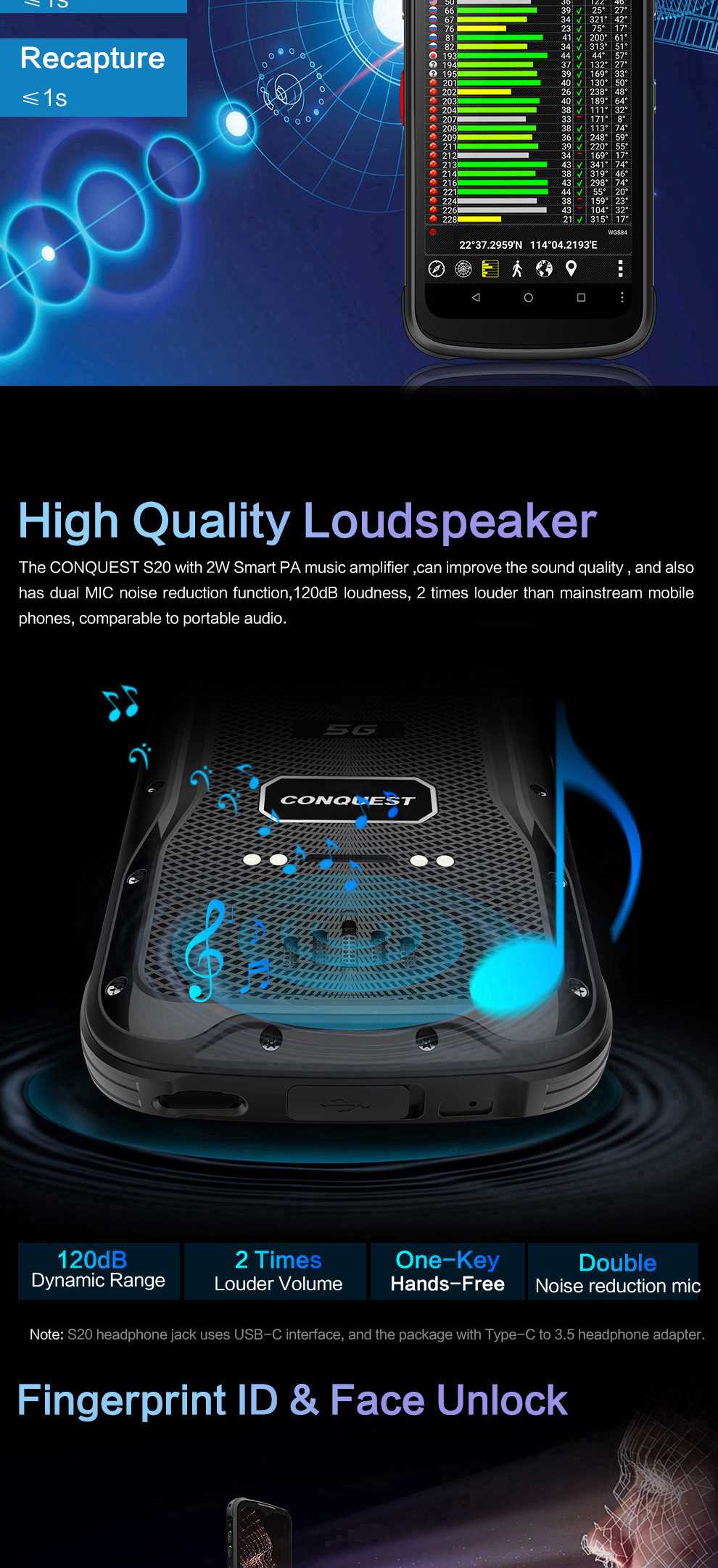

| Speaker | 2035 （>120db） |
| Receive | 809 |
| Microphone | Double silicon wheat(Noise Reduction Mic) |
| Charger Jack | Type-c |
| I/O Connector | Type-C |
| SIM Type | Nano Sim |
| Flash Lighting | YES |
| G-Sensor | YES |
| Bluetooth | BT5.0 |
| WIFI | 2.4G&5.8G/Hot spot(2.0) |
| FM | FM (No headphones needed) |
| GPS+Beidou+Glonass+Galileo | BT/WIFI/GPS(3IN1 Antenna) （GPS+Beidou+Glonass+Galileo） |
| Proximity Sensor | YES |
| Light Sensor | YES |
| Power Indicator | YES |
| E-Compass | YES |
| Gyro | YES |
| Geomagnetic sensor | YES |
| Air pressure/altitude | YES |
| Infrared remote control | YES |
| Heart rate | YES |
| USB OTG | YES |
| Dock Charger | YES |
| Suction ferromagnetic charge | YES |
| Waist clip, lanyard | YES |
| Fingerprint ID | YES |
| Face Unlock | YES |
| NFC | 13.56MHZ (antenna placed in the battery area); support ISO15693, ISO1443A/B two protocols, support read and write mode, card mode, and near field communication (point-to-point file transfer) |
| PoC (Push-to-Talk Over Cellular) | YES |
| Input | 10 Point,incell |

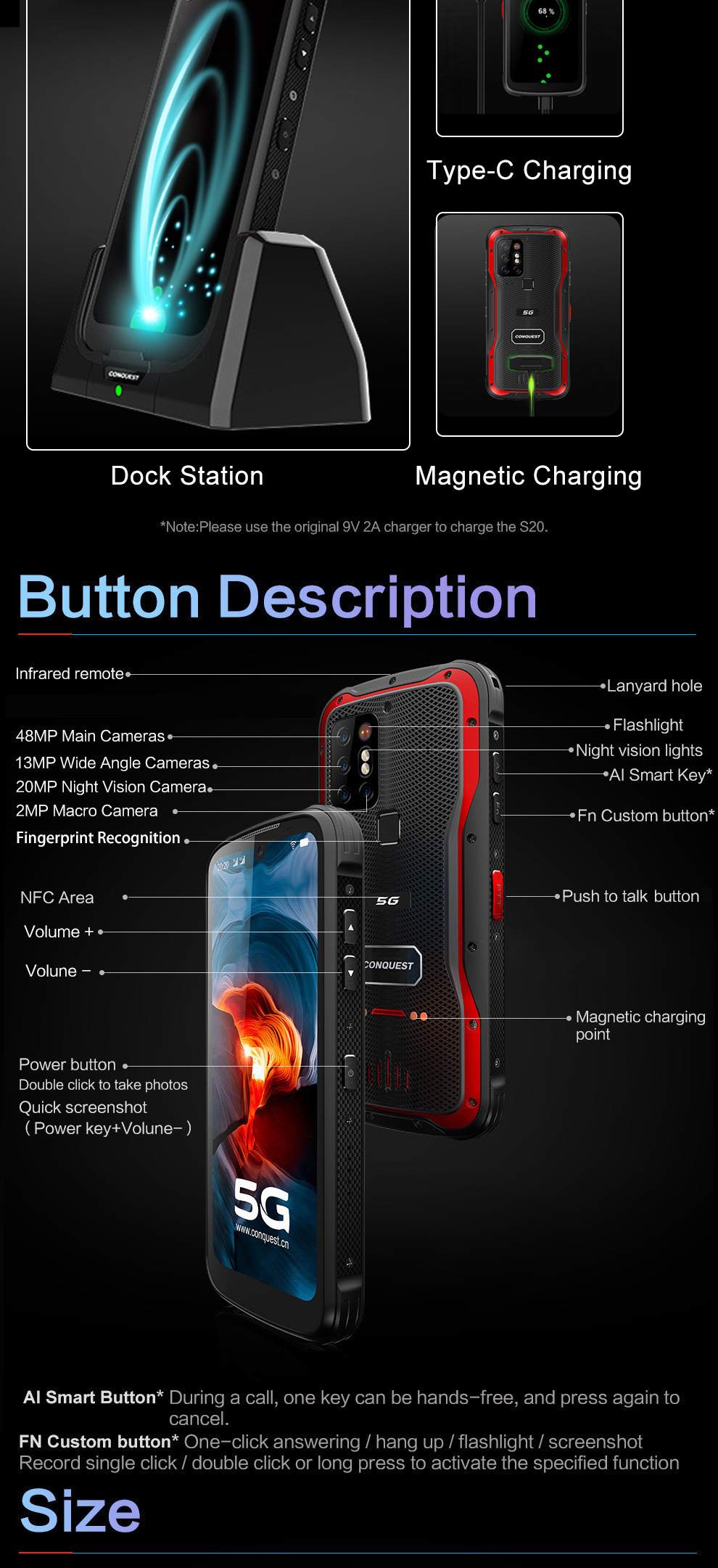

| External Keys | Power key (Physical button) |
| Volume+/Volume- (Physical button) | |
| PTT Key (Physical button) | |
| AI/Camera key (Physical button) | |
| Fn key (Physical button) | |
| Home Key （Touch） | |
| Menu key （Touch） | |
| Back key （Touch） |
