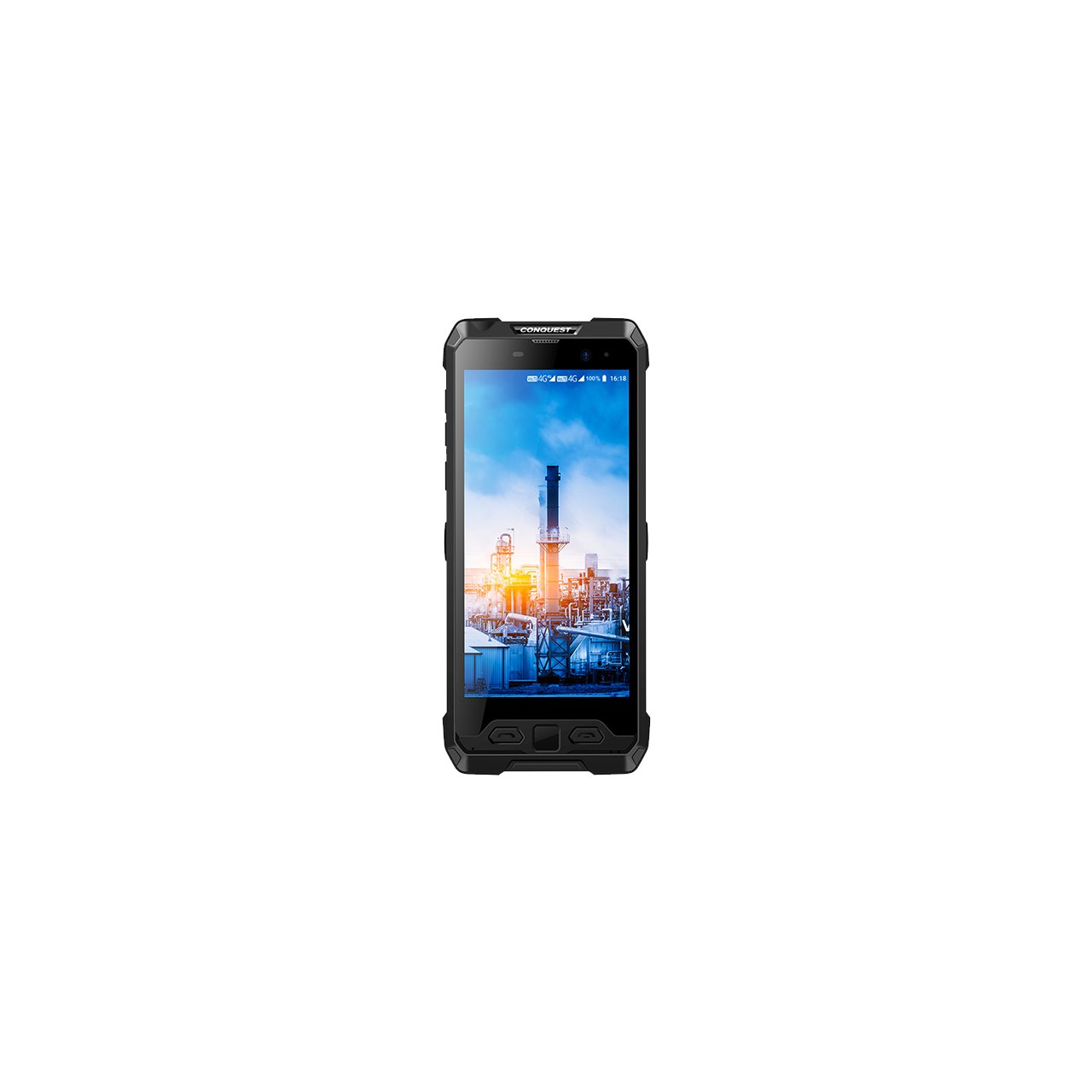

Conquest S19 Rugged Phones
Helio P35, 5.7-inch FHD+, 9000mAh, 4G, NFC, Optional DMR, Thermal Imaging and Barcode Scanning
The S19 combines a 5.7-inch 1080 × 2160 display with a Helio P35 platform and a 9000mAh battery. The source lists Android 8.1/Android 11 configurations and multiple optional industrial modules. Radio, thermal imaging, barcode scanning and RFID functions require the corresponding selected hardware. A 48MP rear camera and a 13MP front camera are listed. The source notes that the specified version does not support Google Play.
Optional：Strong Flashlight/1D and 2D Scanner/Infra
Function Optional：PoC/PoC and UHF/UHF VHF Poc/DMR
5.7 inch Display
Battery：9000mAh
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
Conquest S19 Rugged Phones overview
Conquest S19 Rugged Phones — The S19 combines a 5.7-inch 1080 × 2160 display with a Helio P35 platform and a 9000mAh battery. The source lists Android 8.1/Android 11 configurations and multiple optional industrial modules. Radio, thermal imaging, barcode scanning and RFID functions require the corresponding selected hardware. A 48MP rear camera and a 13MP front camera are listed. The source notes that the specified version does not support Google Play.
S19 published features
- Optional：Strong Flashlight/1D and 2D Scanner/Infra
- Function Optional：PoC/PoC and UHF/UHF VHF Poc/DMR
- 5.7 inch Display
- Battery：9000mAh
- IP68 Waterproof/MIL-STD-810H
- 2/3/4G Network
Hardware and connectivity
- Product Features — Android8.1/Android11 IP68/IP69K Infrared thermal imaging DMR digital to analog intercom Single analog intercom UV single analog intercom One and two-dimensional scanning head Strong Flashlight Polymer 9000mAh large battery Rear camera 4800W + Front camera 1300W
- Customization — ①Explosion-proof Version ②Various Frequency RFID ③1D & 2D Barcode Scanner ④Infrared Thermal Imaging ⑤DMR+UHF/UHF+VHF ⑥Infrared Temperature Measurement ⑦1.4Ghz，1.8Ghz，400Mhz， 600Mhz，700Mhz，230Mhz LTE Private Network Terminal
- Standard version optional — Optional： ①Strong Flashlight ②1D 2D Barcode Scanner ③Infrared Thermometer Can add options： ①Thermal Imaging+PoC ②UHF + PoC ③UHF+VHF+PoC ④DMR+UHF+PoC ⑤PoC Note： DMR:Digital walkie talkie UHF:Analog walkie talkie（400-170Mhz） VHF:Analog walkie talkie（140-170Mhz） Poc：Push-to-Talk Over Cellular
- Platform — MT6765,P35 2.3GHz(Eight-Core)
- Language — Global language
- Software version — Android8.1/Android11(Upgrade to Android 11 by the end of 2020)
- Band — GSM/WCDMA/TD-SCDMA/TDD-LTE/FDD-LTE GSM:B8/B3/B2/B5 BCO WCDMA:1/2/5/8 EVDO TD-SCDMA:34/39 TDD-LTE:34/38/39/40/41 FDD-LTE:1/2/3/4/5/7/8/12/17/19/20/28A/28B/18/25/26/66/13
- Data UL/DL rate — GPRS:53.6Kbps WCDMA:Uplink5.76Mbps,Downlink 14.4Mbps TD-SCDMA:Uplink2.6Mbps,Downlink 3.1Mbps FDD:Uplink 50Mbps,Downlink150Mbps TDD: Uplink50Mbps, Downlink150Mbps
- LCD Screen Type/Size/Pixel — TFT 5.7 FHD+ IPS 1080*2160
- Camera — Rear camera 4800W,Front camera 1300W （Rear 1.6 / Front 1.8 large aperture）
- Target Internal Memory — 6+128GB
- Dual card/single card — Dual SIM (small card)/Nano sim
- Target Battery Capacity — 9000mAh （Polymer built-in battery (4.4V high voltage)）
- Standby Time — 900H
- Talk Time — 18H
- Charging Time — 5H （Support fast charging PE+ 9V/2A）
- Size(mm) — L178.2*W79*H19.2mm
- Weight(with battery) — 398g
Selection and deployment
Conquest S19 Rugged Phones should be selected for the equipment and workflow described above. Review the Specs tab and the source photographs when preparing an enquiry. Optional components require the matching hardware configuration; a feature marked optional should not be assumed to be installed in every unit.
For a wholesale enquiry, provide the required quantity, destination market and exact memory, connectivity and module configuration. Confirm compatibility with existing applications, networks and peripherals before deployment. The photographs document the source product, while the specification records the available published details.
Explore related rugged phones or request a wholesale quote. See the manufacturer product reference for the source information.
Conquest S19 Rugged Phones Specs
| Item | Description |
| Product Features | Android8.1/Android11 IP68/IP69K Infrared thermal imaging DMR digital to analog intercom Single analog intercom UV single analog intercom One and two-dimensional scanning head Strong Flashlight Polymer 9000mAh large battery Rear camera 4800W + Front camera 1300W |
| Customization | ①Explosion-proof Version ②Various Frequency RFID ③1D & 2D Barcode Scanner ④Infrared Thermal Imaging ⑤DMR+UHF/UHF+VHF ⑥Infrared Temperature Measurement ⑦1.4Ghz，1.8Ghz，400Mhz， 600Mhz，700Mhz，230Mhz LTE Private Network Terminal |
| Standard version optional | Optional： ①Strong Flashlight ②1D 2D Barcode Scanner ③Infrared Thermometer Can add options： |
| Platform | MT6765,P35 2.3GHz(Eight-Core) |
| Language | Global language |
| Software version | Android8.1/Android11(Upgrade to Android 11 by the end of 2020) |
| Band | GSM/WCDMA/TD-SCDMA/TDD-LTE/FDD-LTE GSM:B8/B3/B2/B5 BCO WCDMA:1/2/5/8 EVDO TD-SCDMA:34/39 TDD-LTE:34/38/39/40/41 FDD-LTE:1/2/3/4/5/7/8/12/17/19/20/28A/28B/18/25/26/66/13 |
| Data UL/DL rate | GPRS:53.6Kbps WCDMA:Uplink5.76Mbps,Downlink 14.4Mbps TD-SCDMA:Uplink2.6Mbps,Downlink 3.1Mbps FDD:Uplink 50Mbps,Downlink150Mbps TDD: Uplink50Mbps, Downlink150Mbps |
| LCD Screen Type/Size/Pixel | TFT 5.7 FHD+ IPS 1080*2160 |
| Camera | Rear camera 4800W,Front camera 1300W （Rear 1.6 / Front 1.8 large aperture） |
| Target Internal Memory | 6+128GB |
| Dual card/single card | Dual SIM (small card)/Nano sim |
| Target Battery Capacity | 9000mAh （Polymer built-in battery (4.4V high voltage)） |
| Standby Time | 900H |
| Talk Time | 18H |
| Charging Time | 5H （Support fast charging PE+ 9V/2A） |
| Size(mm) | L178.2*W79*H19.2mm |
| Weight(with battery) | 398g |
| Color | Black |
| Water resistance | IP68(SGS certification) |
| Touch Lens | 5-point touch, incell |
| Antenna | Embedded(Built-in) |
| Vibrator | Cylindrical motor |
| Speaker | 2035 speaker(>120db) |
| Receive | 1506 shrapnel |
| Microphone | Silicon wheat（Dual silicon microphone (support noise reduction MIC)） |
| Charger Jack | USB-C ,Support fast charging |
| I/O Connector | 3.5 earphone/M6 interface earphone |
| SIM Type | Nano sim |
| TF Card | YES,Up to 2TB |
| Flash light | YES |
| Flash Lighting | Yes |
| G-Sensor | Yes |
| Bluetooth | BT5.0 |
| WIFI | 2.4G&5.8G；Support WIFI hotspot(2.0) |
| FM | FM (No headphones needed) |

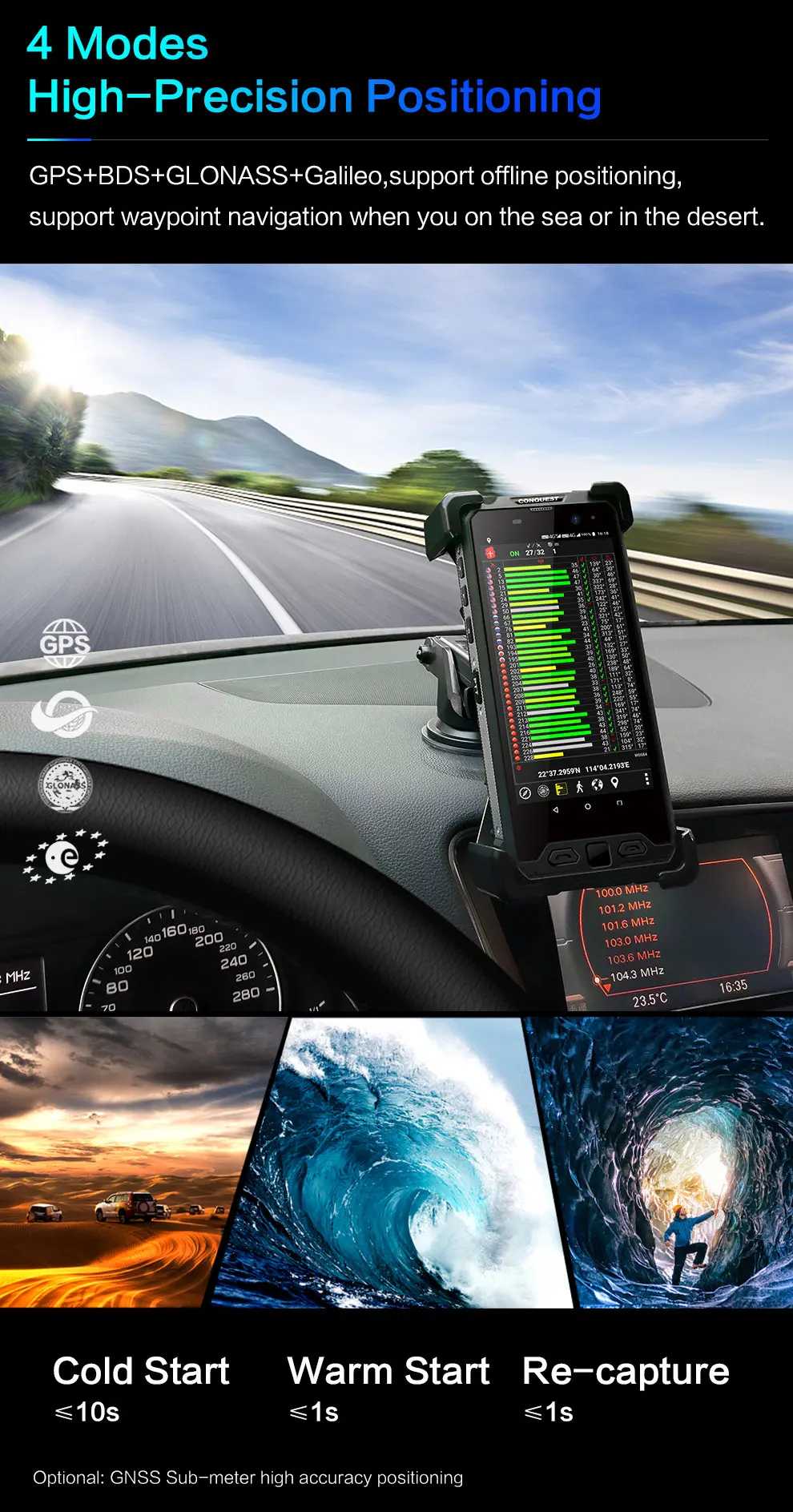

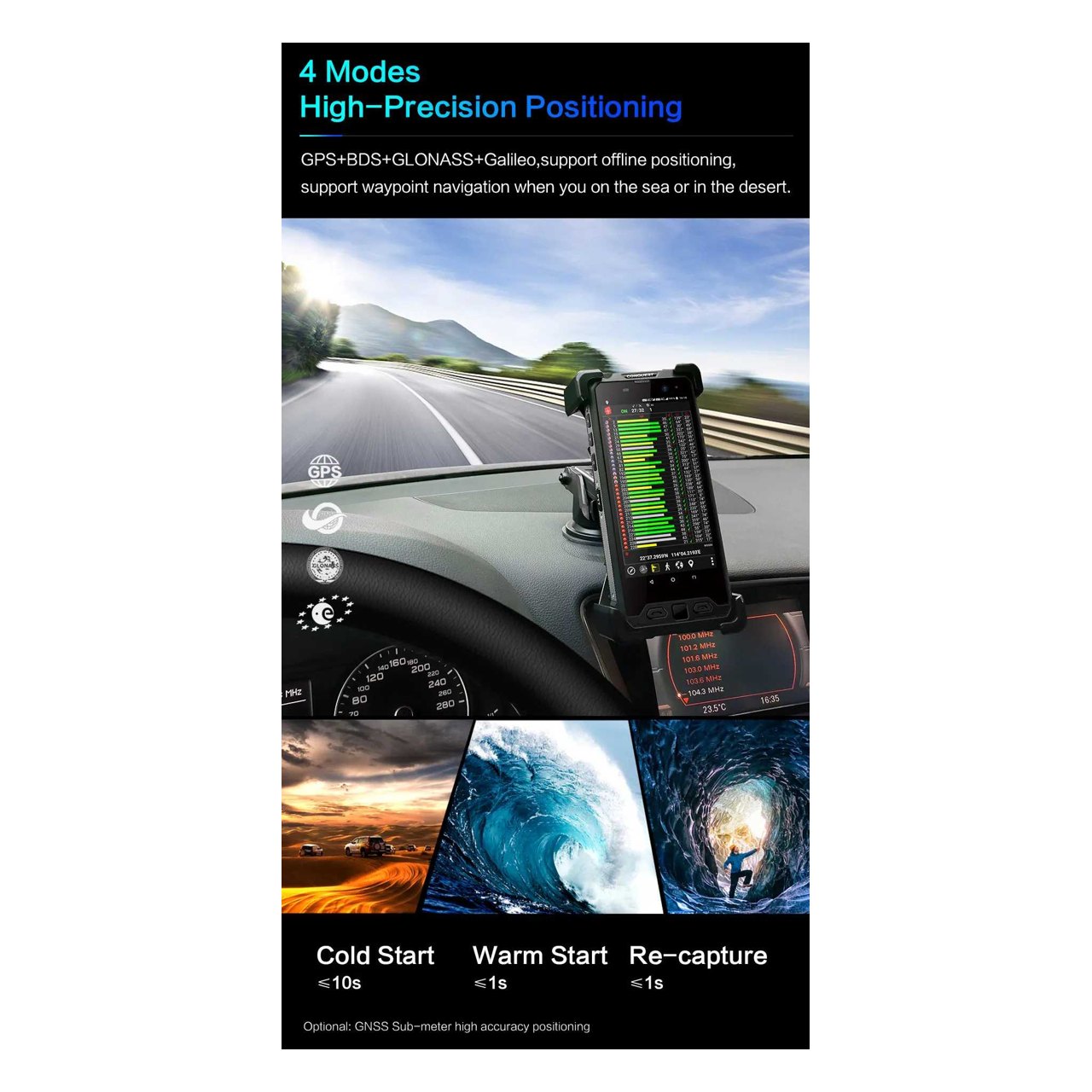

| GPS Positioning | BT/WIFI/GPS(3IN1 Antenna) （GPS+Beidou+Glonass+Galileo） |
| Proximity Sensor | Yes |
| Light Sensor | Yes |
| Power breathing indicator | Yes |
| E-Compass | Yes |
| Gyro | Yes |
| Atmospheric altitude | Yes |
| Infrared remote control | Yes |
| USB OTG | Yes |
| Dock Charging | Yes |
| Magnetic charging | Yes |
| Waist clip/lanyard | Yes |
| Fingerprint recognition | YES |
| NFC | 13.56MHZ (antenna placed in the battery area); support ISO15693, ISO1443A/B two protocols, support read and write mode, card mode, and near field communication (point-to-point file transfer) |
| POC Intercome | Broadcast tuned APK method |
| Input | 5 Point Touch ,incell |
| External camera | External accessories via M6 interface |

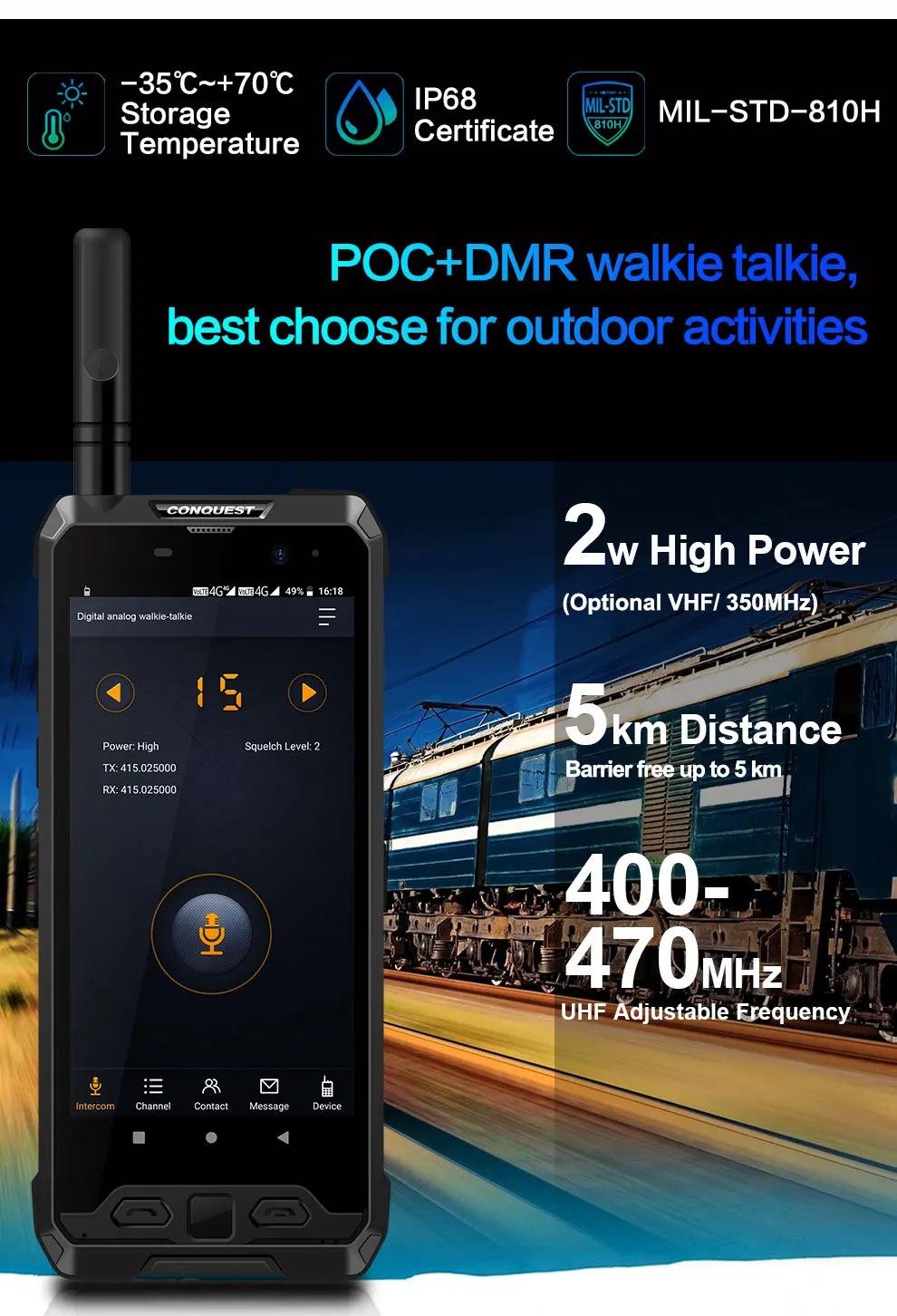

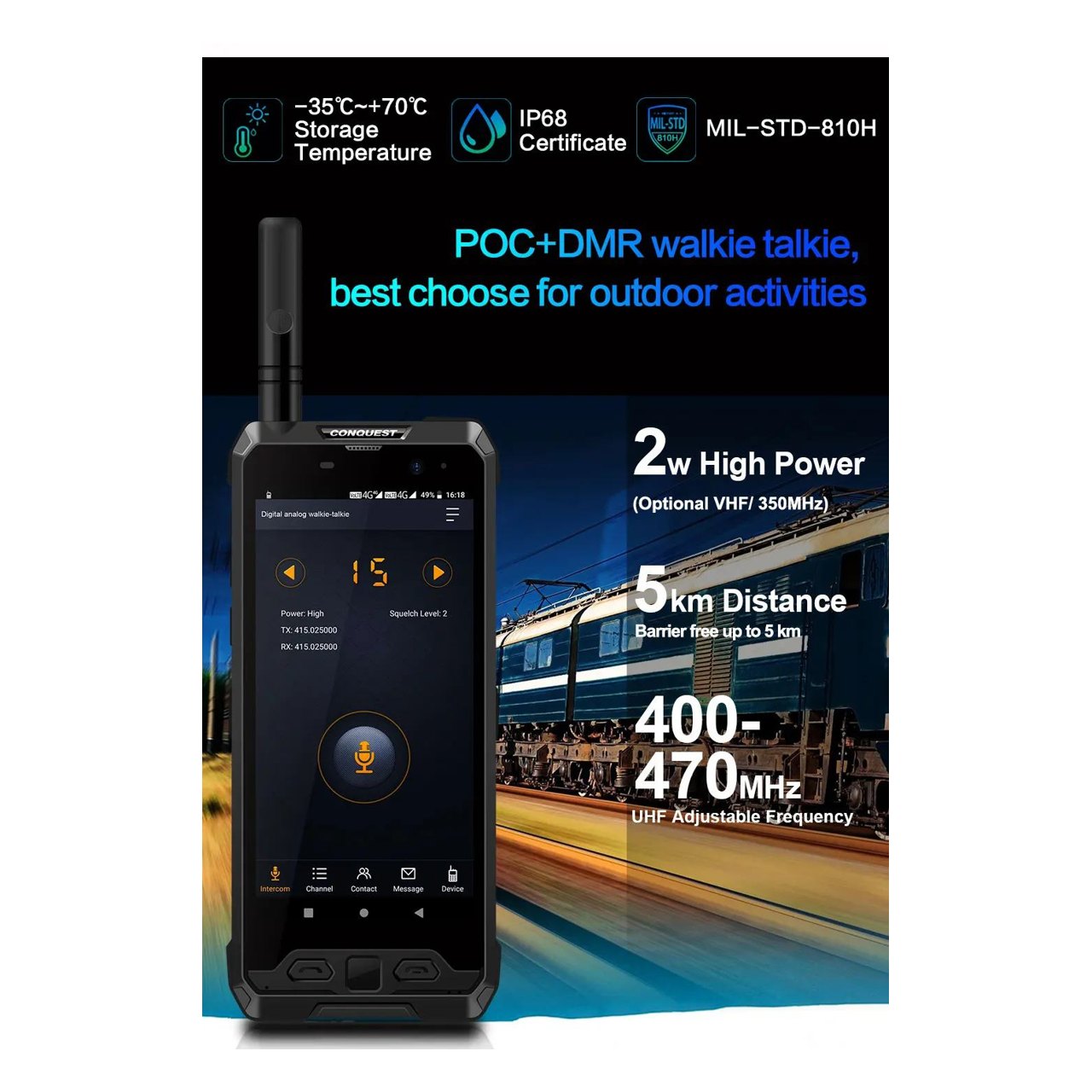

| PTT Intercome | "Dual slot DMR digital-analog intercom/analog intercom is optional, Compatible with U/V band/350 frequency band, and also supports SMS function" |
| RFID（Optional） | （Low frequency 125KHZ, high frequency 13.56KHZ, ultra high frequency 915MHZ, microwave 2.45GHZ, 5.8GHZ） |
| Thermal imaging | Optional |
| 1D/2D Barcode Scanner （Optional） |
2D Code: PDF417, QR Code, Data Matrix and so on 1D Code: Code128, UCC / EAN-128, AIM128, EAN-8, ISBN / ISSN and so on (Differential Depth> 5mil ") |
| External Keys | Power Key （Side button (Physical button)） |
| Volume+/Volume- (Side button (Physical button)) |
|
| PTT Key Side button (Physical button) |
|
| Flashlight Key Side button (Physical button) |
|
| Fn key Side button (Physical button) |
|
| Menu Key (Touch button) |
|
| Back Key (Touch button) |
|
| Home Key (Touch button) |
|
| Answer Key Front (Physical buttons) |
|
| Hang Up Key Front (Physical buttons) |
