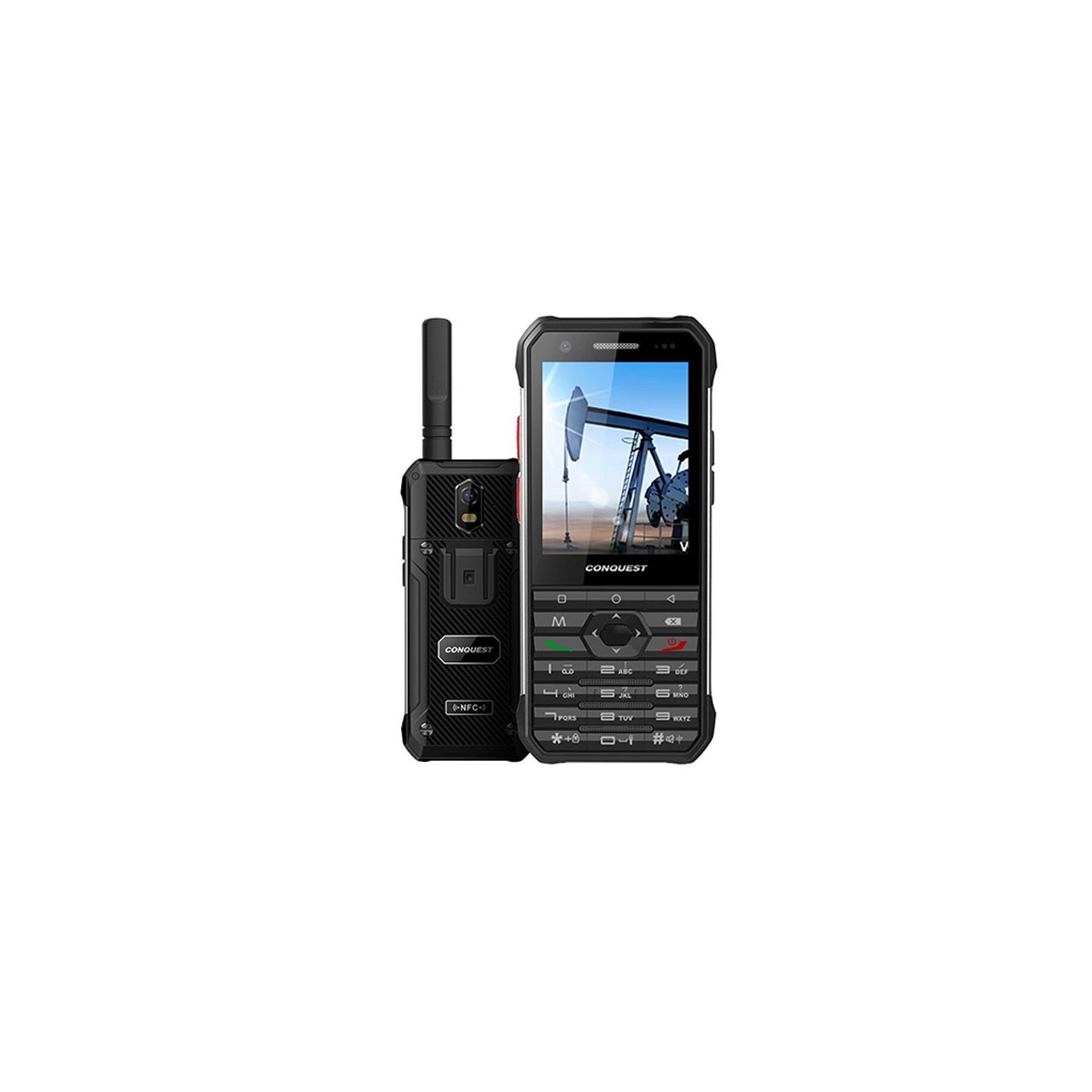

Conquest F3 Rugged Phones
2.83-inch Touchscreen, Physical Keyboard, MT6762, Android 12, 4GB+64GB / 6GB+128GB, Removable 4000mAh Battery
The F3 combines a physical keyboard with a 2.83-inch 480 × 640 touchscreen. Its MT6762 octa-core processor runs Android 12 with 4GB+64GB or 6GB+128GB configurations. A removable 4000mAh battery supports portable use. The camera specification lists an 8MP front camera and a 16MP rear camera. PoC communication, optional DMR hardware and dedicated function keys support industrial voice and data workflows.
Android 12
Dual SIM
Keyboard
4000mAh Removable Battery
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
Conquest F3 Rugged Phones overview
Conquest F3 Rugged Phones — The F3 combines a physical keyboard with a 2.83-inch 480 × 640 touchscreen. Its MT6762 octa-core processor runs Android 12 with 4GB+64GB or 6GB+128GB configurations. A removable 4000mAh battery supports portable use. The camera specification lists an 8MP front camera and a 16MP rear camera. PoC communication, optional DMR hardware and dedicated function keys support industrial voice and data workflows.
F3 published features
- Android 12
- Dual SIM
- Keyboard
- 4000mAh Removable Battery
- Touch Screen
- 8MP Front Camera+16MP Rear Main Camera
Hardware and connectivity
- Color — Black/Yellow/Red
- RAM/ROM — 4GB+64GB/6GB+128GB

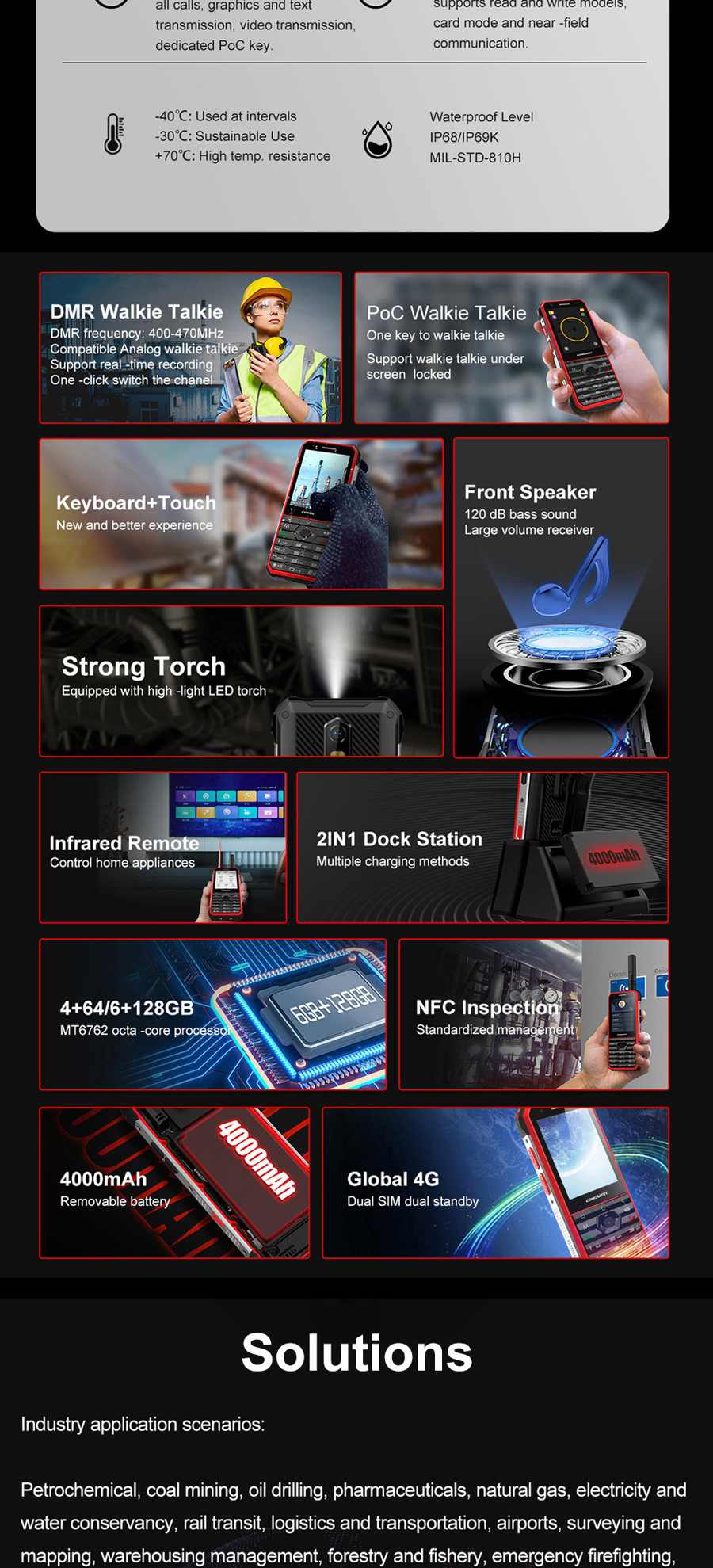

- Product Features — Android 12 Golbal 4G Network IP68/IP69K（MIL-STD-810H） SMART PA WIFI Display PoC/DMR Walkie Talkie (Cellular intercom) Magnetic Charging NFC Infrared remote

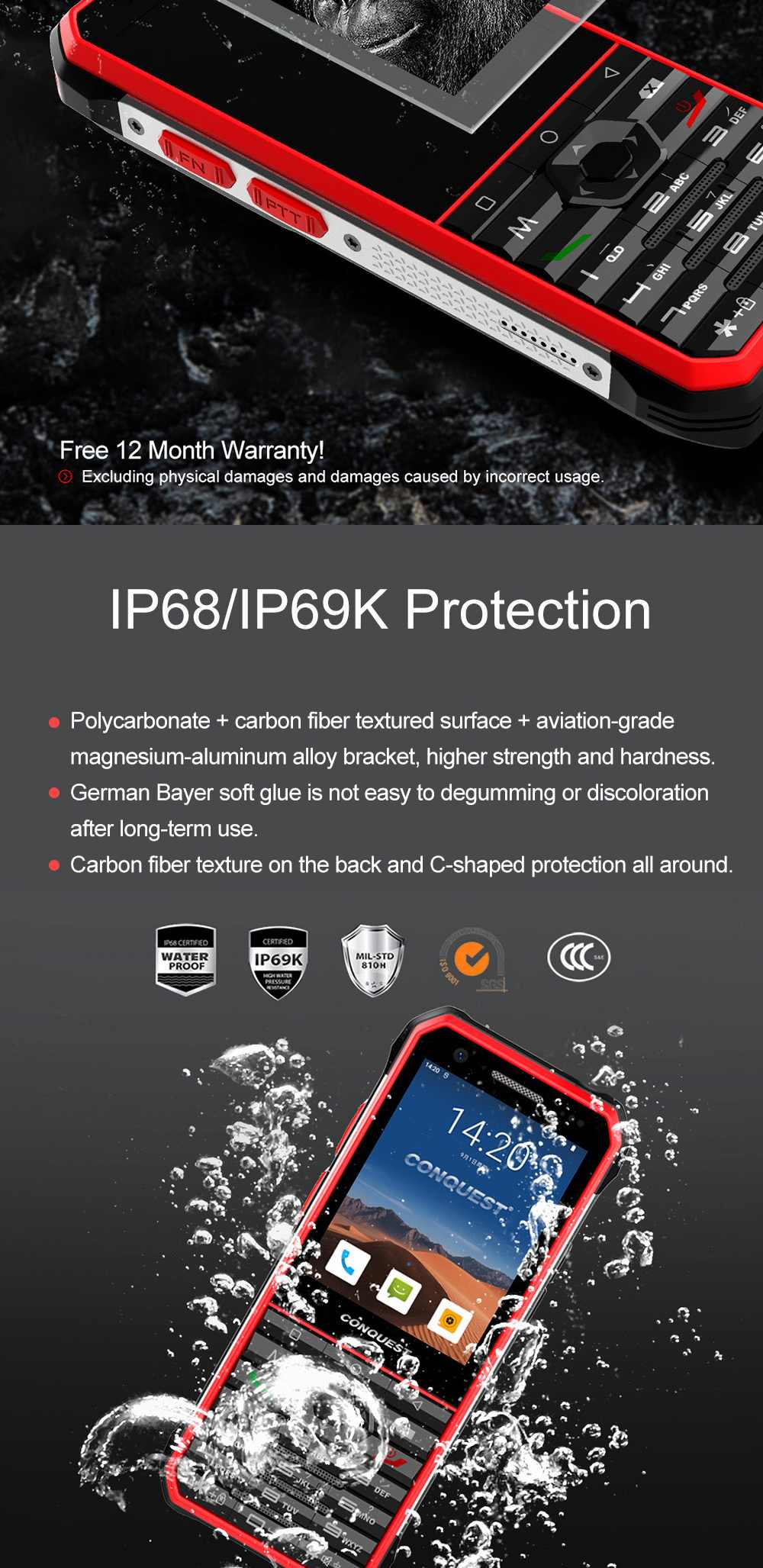

- Certificate — IP68/IP69K/MIL-STD-810H
- Platform — MT 6762 , Octa Core, Max to 2.0GHz
- Software Version — Android 12
- Language — Global language
- Band — 2G:GSM B2 / B3 / B5 / B8 3G:CDMA2000,EVDO BC0 WCDMA: B1 / B2 / B4 / B5 / B8 4G: LTE TDD: B34 / B38 / B39 / B40 / B41 LTE FDD:B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B17 / B18 / B19 / B20 / B25 / B26 / B28A / B28B / B6
- Resolution/Screen Type/Size/Pixel — TFT 2.83 + IPS 480 x 640
- Camera — Front Camera： 8MP, Rear Camera： Main Camera 16MP
- Dual card/single card — Dual Nano sim
- Target Battery Capacity — 4000mAh （4.4V）
- Standby Time — 350H
- Size(mm) — 137.3 x 59.3 x 23.3mm
- Weight(with battery) — 246g

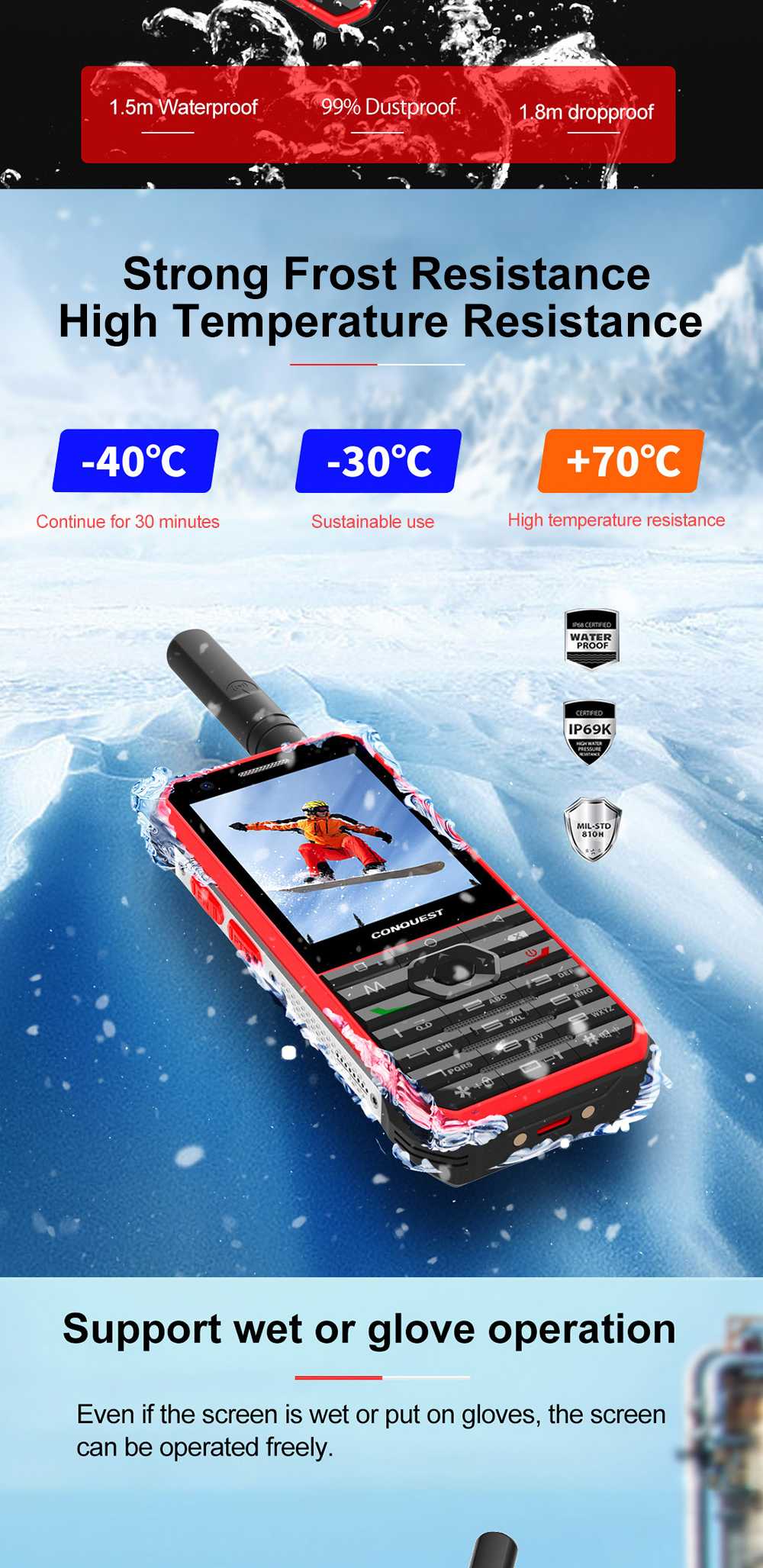

- Water resistance — IP68（SGS）
- Touch Lens — 5 Point touch,incell
- Antenna — Embedded
Selection and deployment
Conquest F3 Rugged Phones should be selected for the equipment and workflow described above. Review the Specs tab and the source photographs when preparing an enquiry. Optional components require the matching hardware configuration; a feature marked optional should not be assumed to be installed in every unit.
For a wholesale enquiry, provide the required quantity, destination market and exact memory, connectivity and module configuration. Confirm compatibility with existing applications, networks and peripherals before deployment. The photographs document the source product, while the specification records the available published details.
Explore related rugged phones or request a wholesale quote. See the manufacturer product reference for the source information.
Conquest F3 Rugged Phones Specs
| Item | Description |
| Color | Black/Yellow/Red |
| RAM/ROM | 4GB+64GB/6GB+128GB |
| Product Features | Android 12 Golbal 4G Network IP68/IP69K（MIL-STD-810H） SMART PA WIFI Display PoC/DMR Walkie Talkie (Cellular intercom) Magnetic Charging NFC Infrared remote |
| Certificate | IP68/IP69K/MIL-STD-810H |
| Platform | MT6762, Octa Core, Max to 2.0GHz |

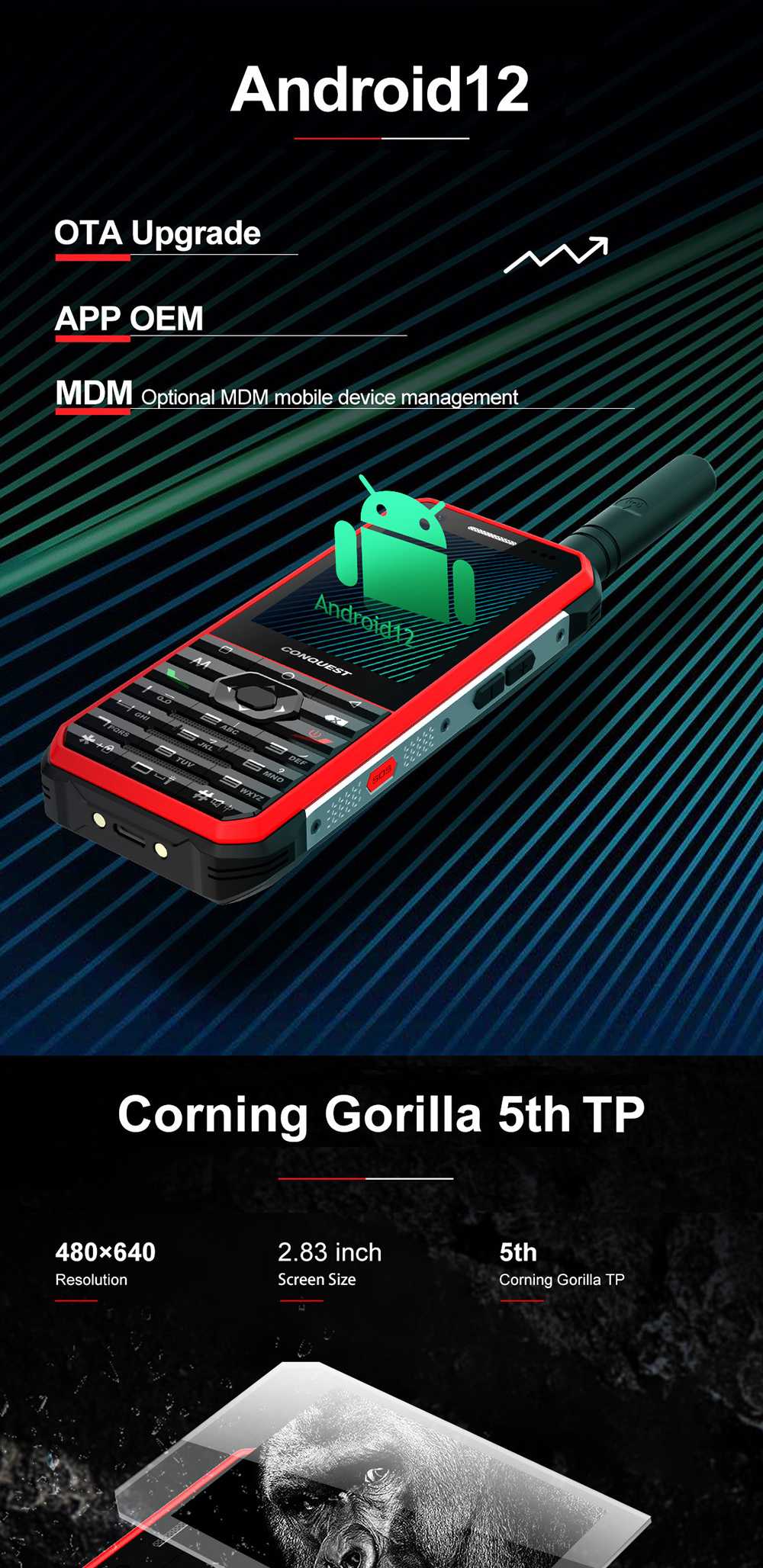

| Software Version | Android 12 |
| Language | Global language |
| Band |
2G:GSM B2 / B3 / B5 / B8 3G:CDMA2000,EVDO BC0 WCDMA: B1 / B2 / B4 / B5 / B8 4G: LTE TDD: B34 / B38 / B39 / B40 / B41 LTE FDD:B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B17 / B18 / B19 / B20 / B25 / B26 / B28A / B28B / B6 |
| Resolution/Screen Type/Size/Pixel | TFT 2.83 + IPS 480 x 640 |

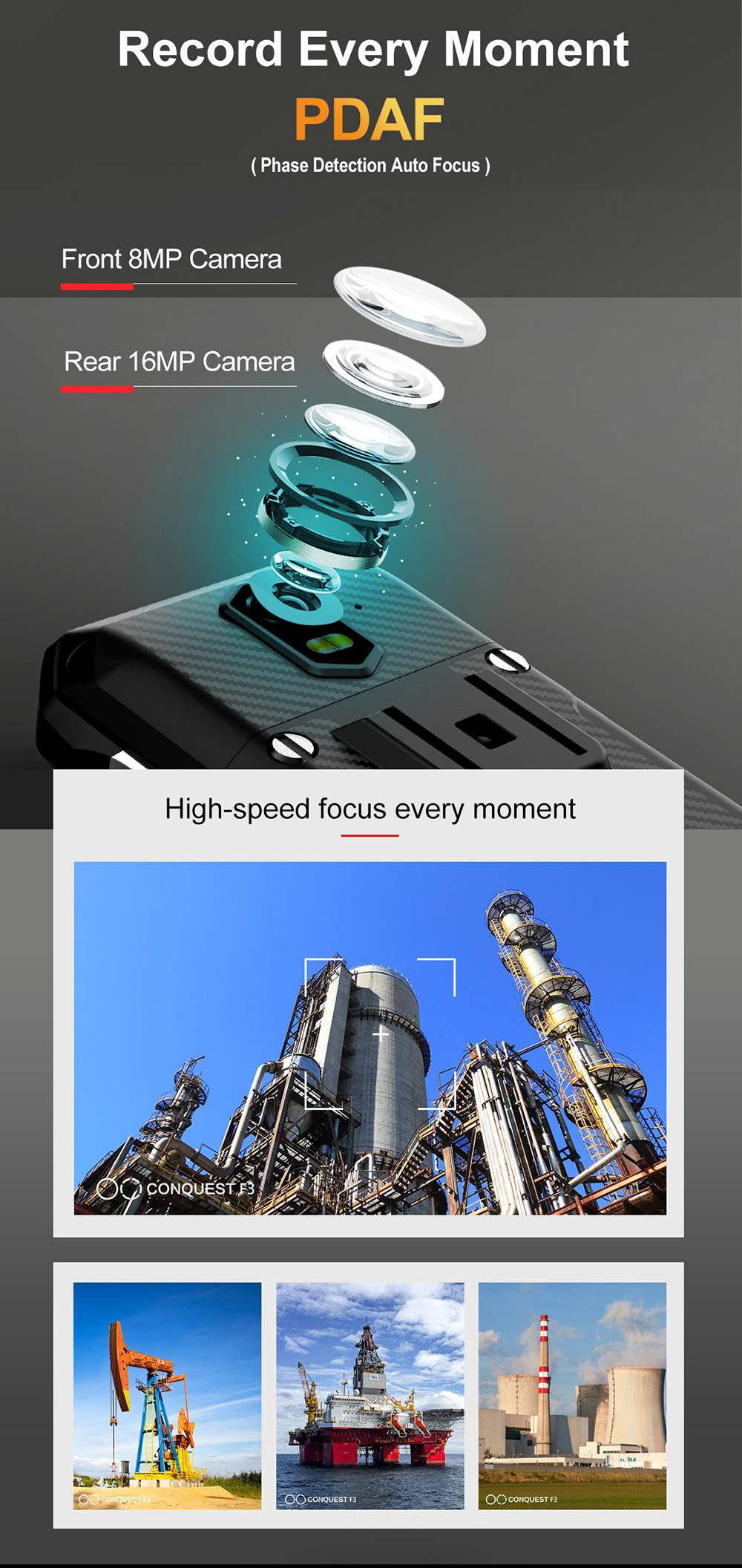

| Camera | Front Camera： 8MP, Rear Camera： Main Camera 16MP |
| Dual card/single card | Dual Nano sim |
| Target Battery Capacity | 4000mAh （4.4V） |
| Standby Time | 350H |
| Size(mm) |
137.3 x 59.3 x 23.3mm |
| Weight(with battery) | 246g |
| Water resistance | IP68（SGS） |
| Touch Lens | 5 Point touch,incell |
| Antenna | Embedded |
| Vibrator | Linear motor |
| Speaker | 2035 （>120db） |
| Receive | 809 |
| Microphone | Double silicon wheat(Noise Reduction Mic) |
| Charger Jack | Type-c |
| I/O Connector | Type-C |
| SIM Type | Nano Sim |
| Flash Lighting | YES |
| G-Sensor | YES |
| Bluetooth | BT5.0 |
| WIFI | 2.4G&5.8G/Hot spot(2.0) |
| FM | FM (No headphones needed) |
| GPS+Beidou+Glonass+Galileo | BT/WIFI/GPS(3IN1 Antenna) （GPS+Beidou+Glonass+Galileo） |
| Proximity Sensor | YES |
| Light Sensor | YES |
| Power Indicator | YES |
| E-Compass | YES |
| Gyro | YES |
| Geomagnetic sensor | YES |
| Air pressure/altitude | YES |
| Infrared remote control | YES |
| Heart rate | YES |
| USB OTG | YES |

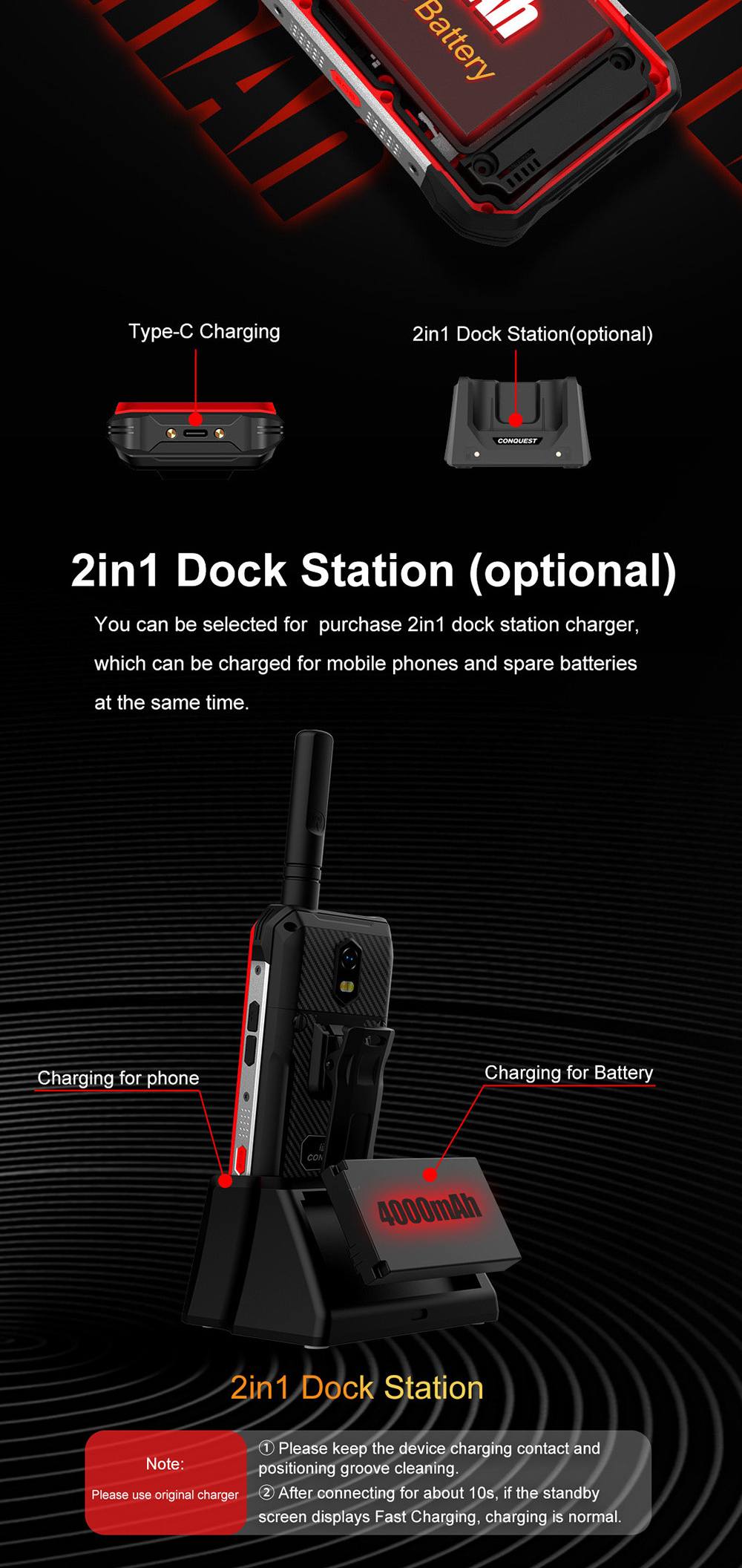

| Dock Charger | YES |
| Suction ferromagnetic charge | YES |
| Wireless charging | YES |
| Waist clip, lanyard | YES |
| Fingerprint ID | NO |
| Face Unlock | YES |
| NFC | 13.56MHZ (antenna placed in the battery area); support ISO15693, ISO1443A/B two protocols, support read and write mode, card mode, and near field communication (point-to-point file transfer) |

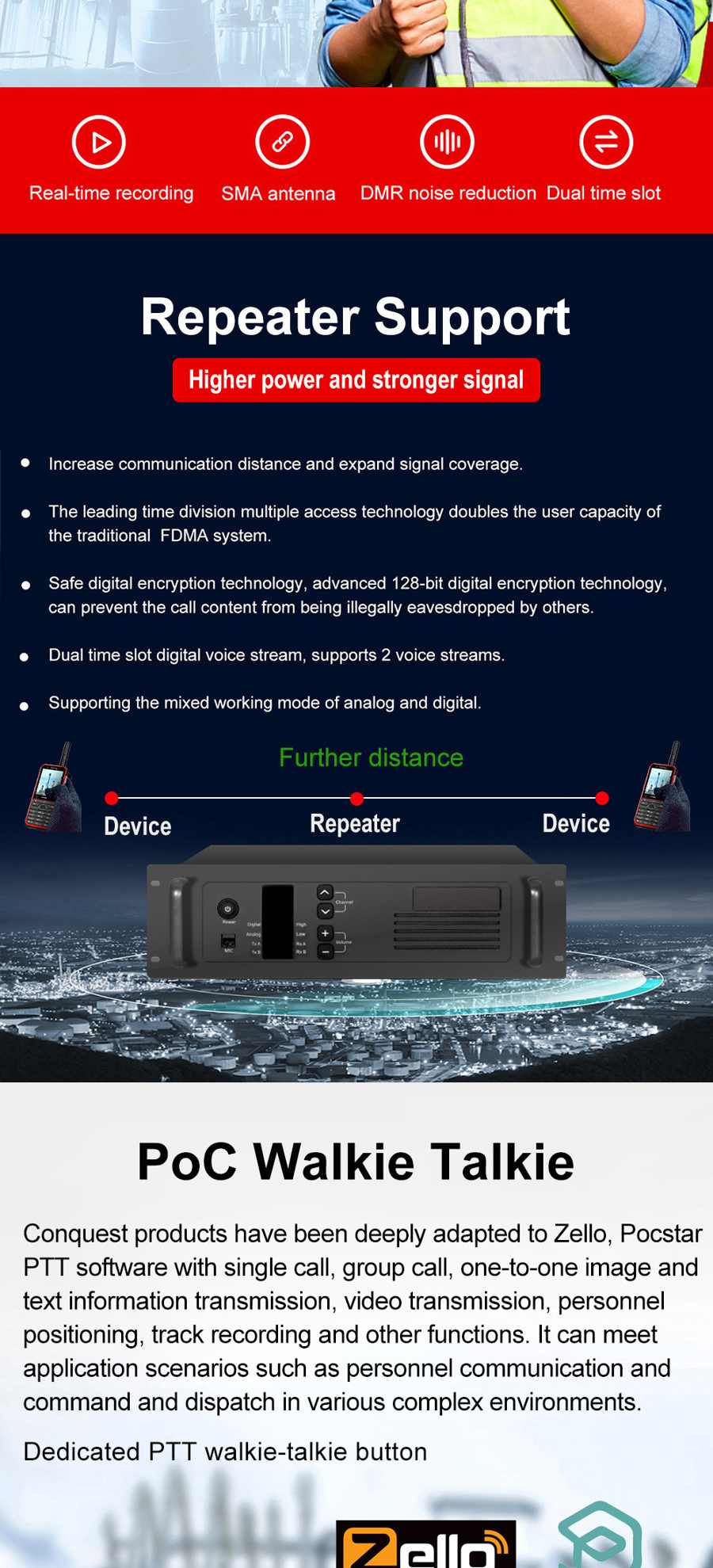

| PoC (Push-to-Talk Over Cellular) | YES |
| Input | 5 Point,incell |
| External Keys | Home Key （Touch） |
| Volume+/Volume- (Physical button) | |
| PTT Key (Physical button) | |
| AI/Camera key (Physical button) | |
| Fn key (Physical button) | |
| Menu key （Touch） | |
| Back key （Touch） |
