Conquest F2 Rugged Phones

Conquest F2 Rugged Phones overview

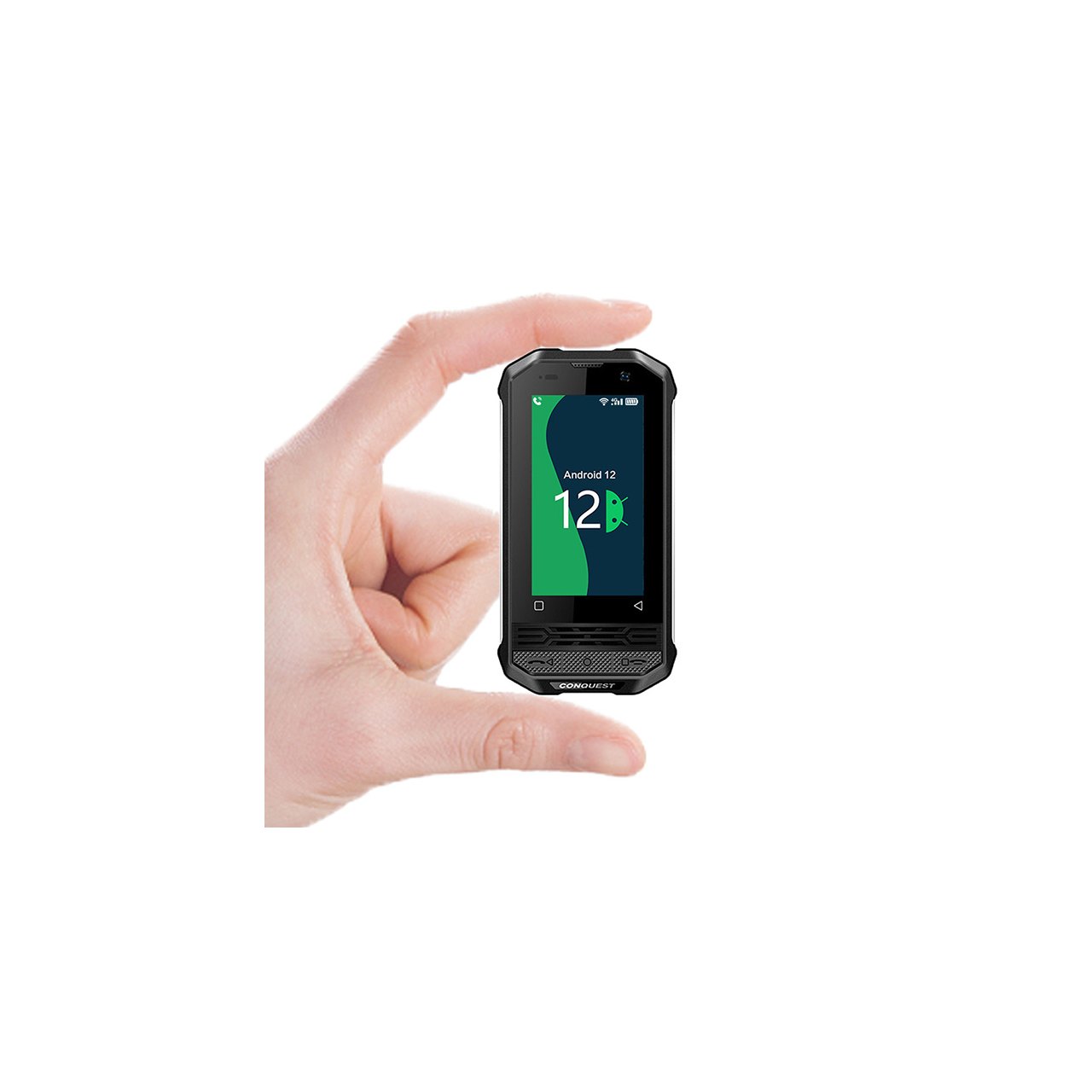

Conquest F2 Rugged Phones — The F2 is a compact 4G phone with a 3-inch 480 × 854 IPS touchscreen and an MT6762 octa-core processor. Android 12 runs with the listed 4GB+64GB or 6GB+128GB memory configurations. The 3700mAh battery powers the 198g handset. Dual Nano-SIM support, a microSD slot, NFC, GPS and a dedicated PTT key support mobile communication and data collection.

F2 published features

• 6+128GB
• Ultra Strong Flashlight
• Poc Walkie Talkie
• Dual SIM Card
• Battery: 3700mAh
• IP68 Waterproof/MIL-STD-810H

Hardware and connectivity

• Product Features — Android 12 IP68  SMART PA 4G Network
• Platform — MT6762 ,Octa Core, Max to 2.0GHz
• SW version — Android 12
• Band — 2G:GSM B2/B3/B5/B8 3G:CDMA2000,EVDO BC0 WCDMA:B1/B2/B4/B5/ B8 4G: LTE TDD: B34/B38/B39/B40/B41 LTE FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19 /B20/B25/B26/B28A/B28B/B66
• Screen Type/Size/Pixel — 3.0inch IPS  480×854  incell；
• Camera — Front 8MP Camera+Rear 1 6MP PDAF Camera
• Target Internal Memory — 4+64GB/6+128GB
• SIM card/TF card — Dual Nano Sim card+TF card
• Target Battery Capacity — 3700mAh
• Size(mm) — 118×59.5×22.5mm
• Weight(with battery) — 198g
• Color — Black
• Water resistance — IP68
• Touch Lens — YES, 5 Point Touch
• Antenna — Embedded
• Vibrator — Welding type
• Charger Jack — TYPE-C
• I/O Connector — TYPE-C to 3.5mm

Deployment planning for F2

For Conquest F2 Rugged Phones, plan the communication workflow before choosing a configuration. Identify whether daily work requires cellular data, application-based push-to-talk, or a dedicated radio module. These arrangements use different networks and infrastructure. Confirm the required software and any service subscriptions separately from the device hardware. Check the screen size, battery arrangement and connection interfaces against the way the device will be carried and charged during a shift. For an existing fleet, record the exact configuration of the current units so replacement equipment and accessories can be matched. If barcode scanning, thermal imaging or another industrial module is described as optional, include it explicitly in the enquiry and confirm that module in the supplied configuration.

Selection and deployment

Conquest F2 Rugged Phones should be selected for the equipment and workflow described above. Review the Specs tab and the source photographs when preparing an enquiry. Optional components require the matching hardware configuration; a feature marked optional should not be assumed to be installed in every unit.

For a wholesale enquiry, provide the required quantity, destination market and exact memory, connectivity and module configuration. Confirm compatibility with existing applications, networks and peripherals before deployment. The photographs document the source product, while the specification records the available published details.

Explore related rugged phones or request a wholesale quote. See the manufacturer product reference for the source information.
