Chainway R2 Handheld RFID Readers
Light and Stylish DesignFeaturesSDK: Support Android/iOS 5200mAh Powerful Battery1.77-inch Display, 128 x 160FunctionsUHF RFID (Impinj E710/R2000 Chip) Barcode Scanning (Optional)Bluetooth Low Energy (BLE) 4.0
Light and Stylish DesignFeaturesSDK: Support Android/iOS 5200mAh Powerful Battery1.77-inch Display, 128 x 160FunctionsUHF RFID (Impinj E710/R2000 Chip) Barcode Scanning (Optional)Bluetooth Low Energy (BLE) 4.0
Exact model: R2
Product group: Handheld RFID Readers
Complete manufacturer specifications in Specs

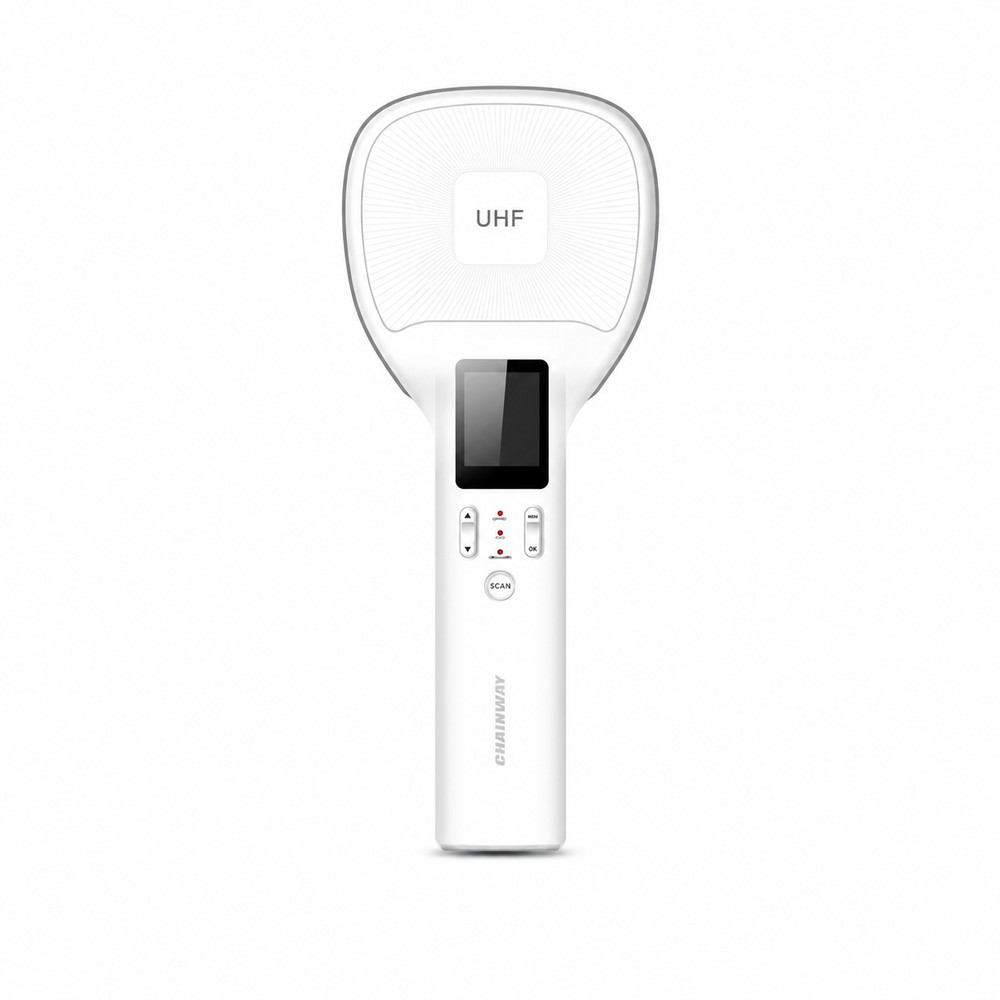

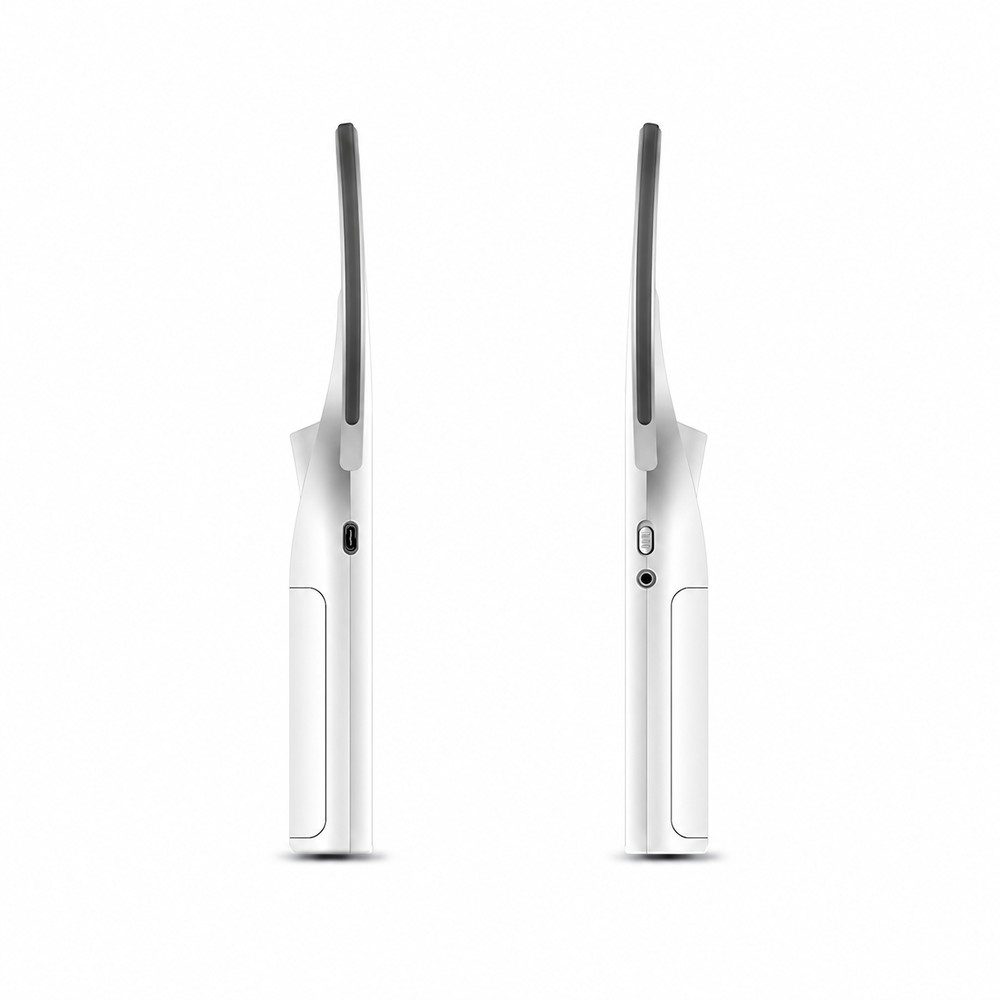

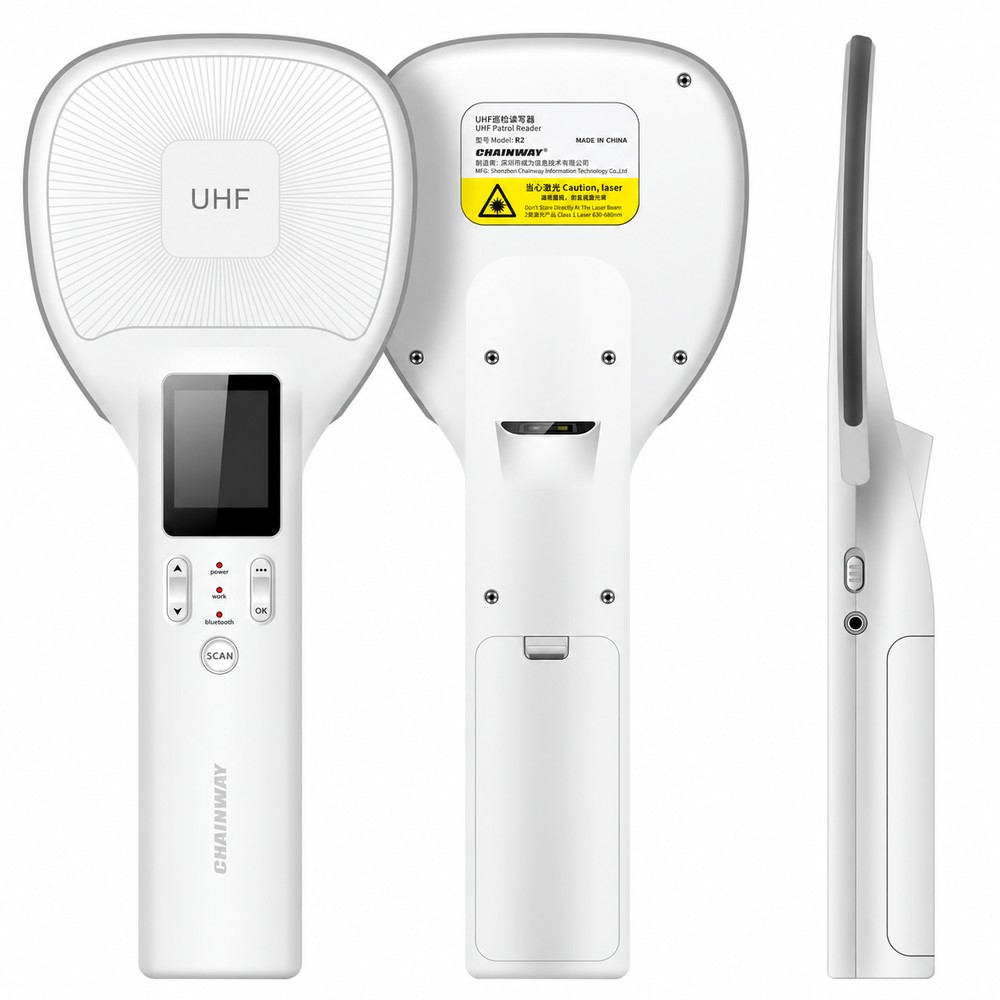

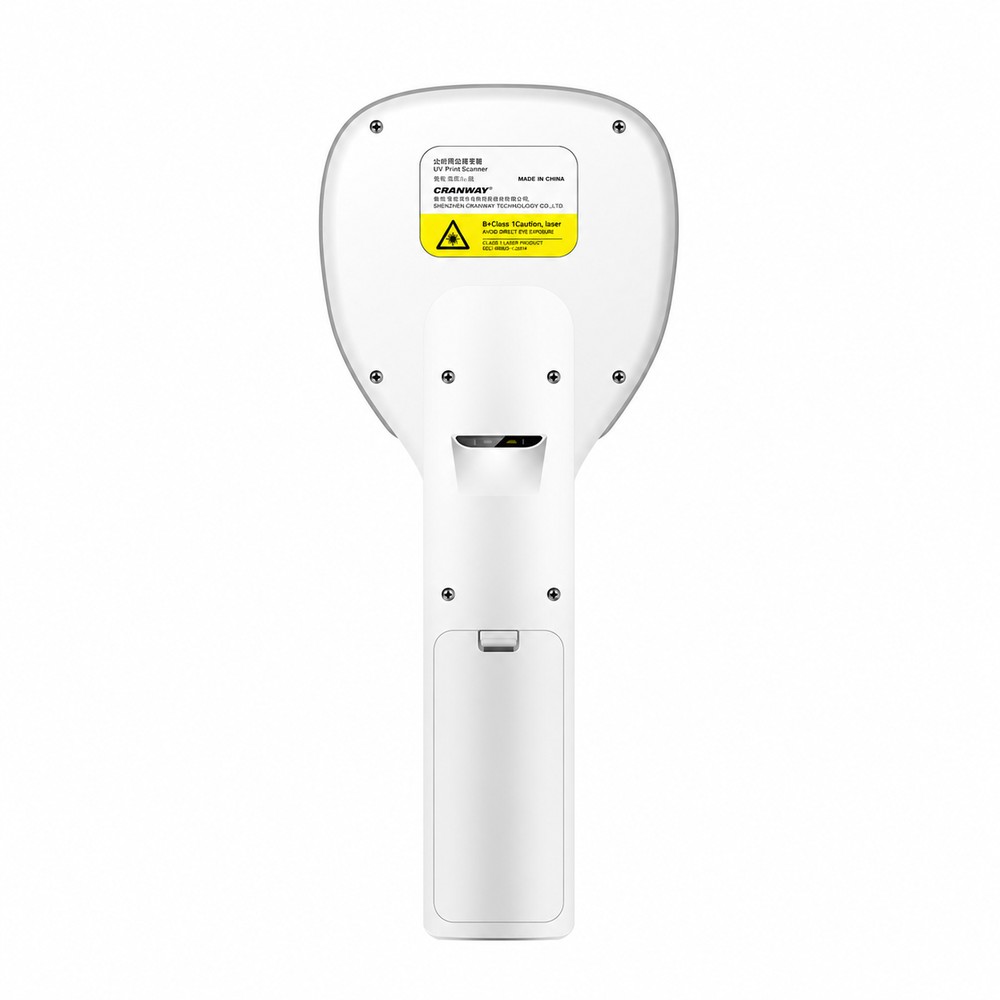

Available configurations shown in the product gallery
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

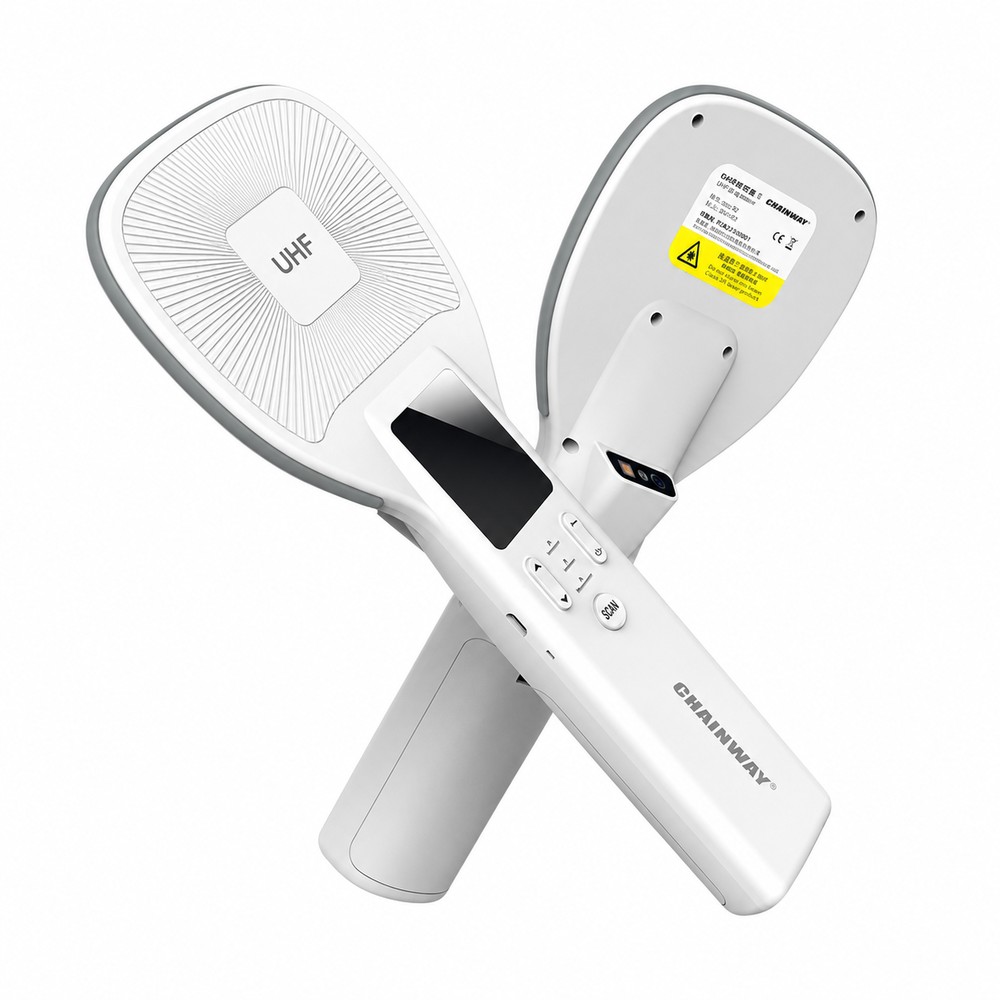

Chainway R2 Handheld RFID Readers
Chainway R2 combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.
Light and Stylish DesignFeaturesSDK: Support Android/iOS 5200mAh Powerful Battery1.77-inch Display, 128 x 160FunctionsUHF RFID (Impinj E710/R2000 Chip) Barcode Scanning (Optional)Bluetooth Low Energy (BLE) 4.0
Configuration overview
The manufacturer data sheet lists Specification Physical Characteristics Dimensions 282 x 117.5 x 32 mm / 11.10 x 4.63 x 1.26 in. Weight 334 g / 11.78 oz. (with battery) Colour White Appearance Plastic material PWR button (side), up, down, return, ok, SCAN Keypad button (front) Battery specification: 5200mAh removable battery Standby: over 70 hours (keeping bluetooth connected) Power Continuous use: up to 6 hours (UHF reading) Charging time: 3-4 hours (with standard adaptor and USB cable) Display 1.77 inch, 128 x 160 Indicator LED Power, Work, Bluetooth buzzer Support Interfaces Micro-USB Performance Cortex-M3 MCU 72MHz Storage 50000 tags User Environment Operating Temp. -4 oF to 122 oF / -20 oC to 50 oC Storage Temp. -40 oF to 158 oF / -40 oC to 70 oC Humidity 5%RH – 95%RH non condensing Drop Multiple 1.5 m / 4.9 ft. drops to concrete across the Specification operating temperature range Tumble 1000 x 0.5 m / 1.64 ft. falls at room temperature Specification ESD ±15 KV air discharge, ±8 KV conductive discharge Accessories (See details in Accessory Guide) AC Adapter USB cable Developing Environment SDK Android / IOS Tool Android Studio / Xcode Language Java / Objective-C Communication Bluetooth Bluetooth 4.0, BLE Data Collection Barcode Scanning (Optional) 2D Imager SE2707 Scanner UPC/EAN, Code128, Code39, Code93, Code11, 1D Symbologies Interleaved 2 of 5, Discrete 2 of 5,.
Wholesale purchasing information
For Chainway R2, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.

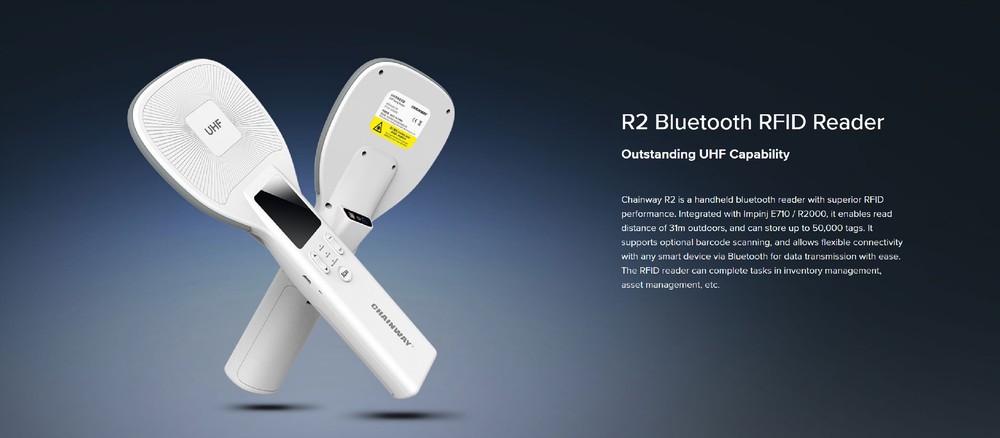

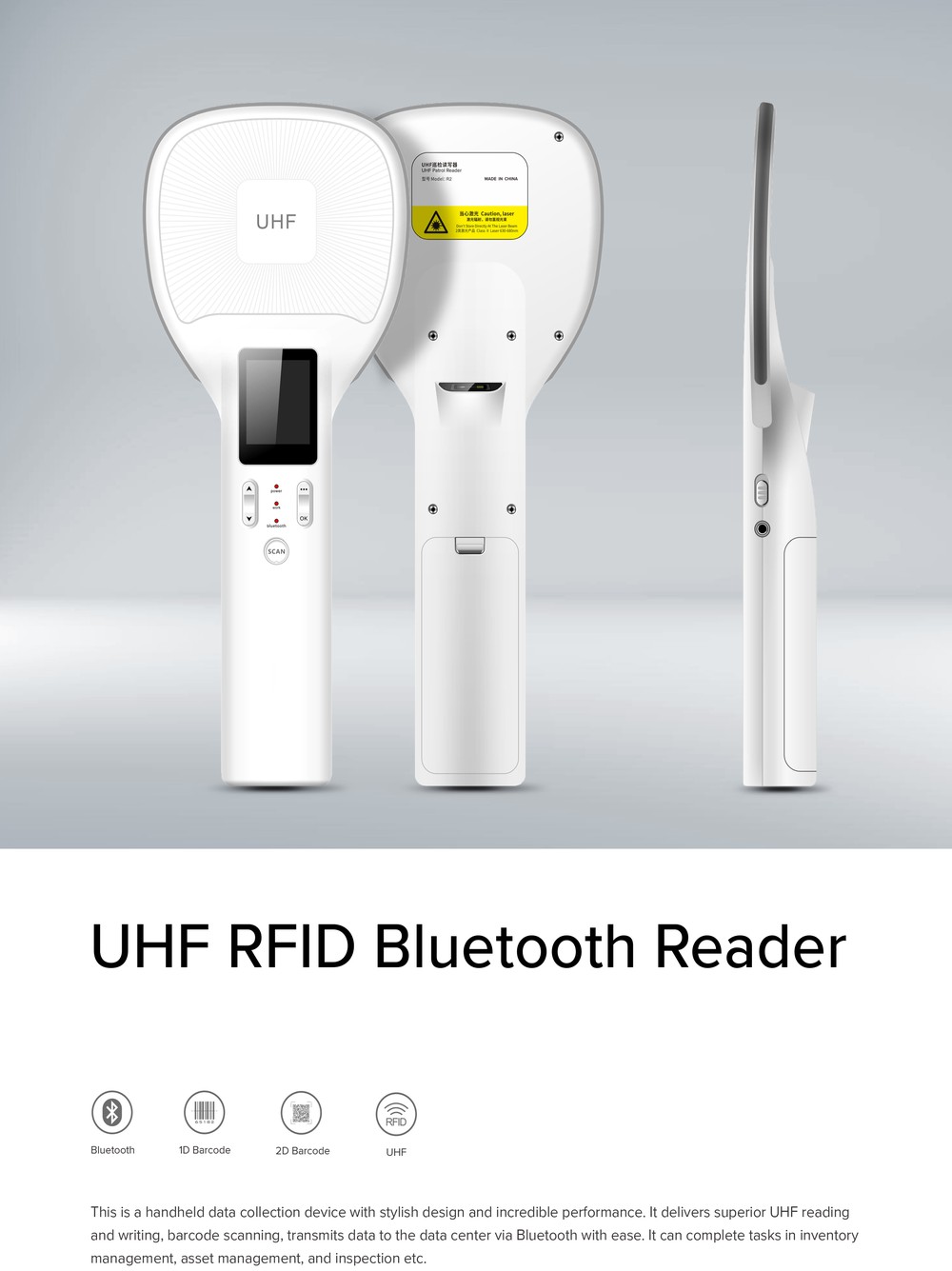

Manufacturer feature details

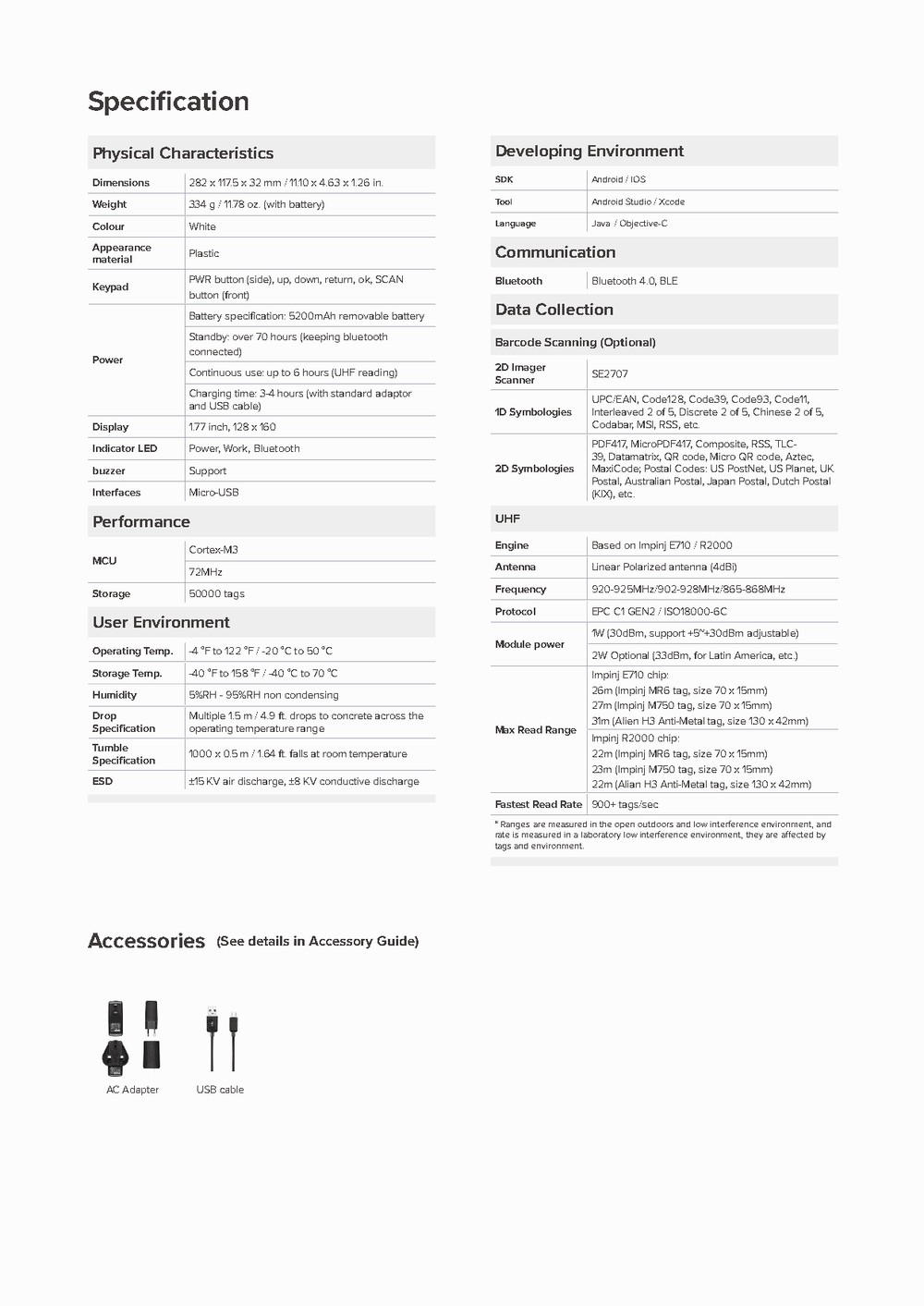

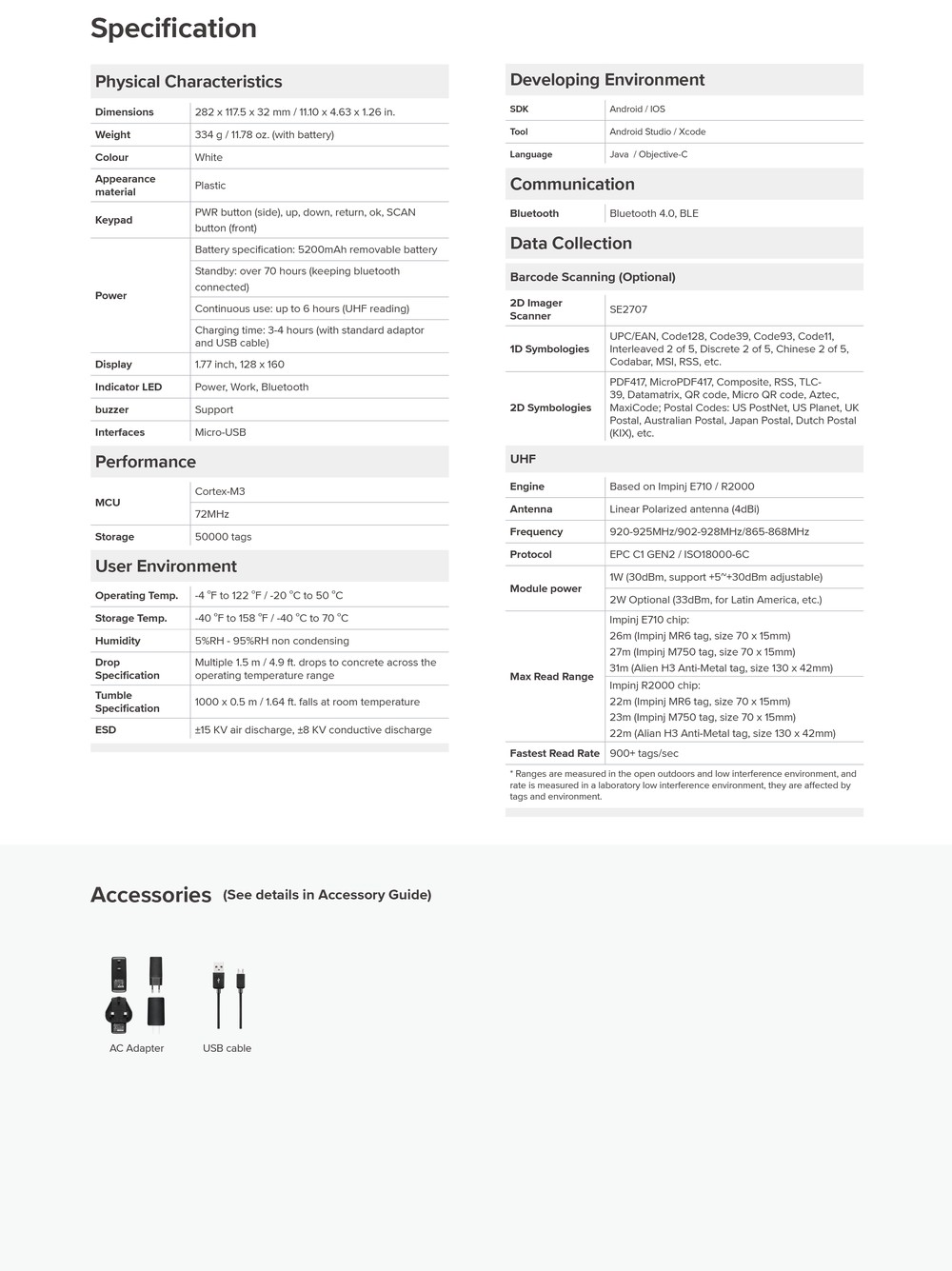

R2 DataSheet.pdf — Specifications (page 2)
Specification Physical Characteristics Dimensions 282 x 117.5 x 32 mm / 11.10 x 4.63 x 1.26 in. Weight 334 g / 11.78 oz. (with battery) Colour White Appearance Plastic material PWR button (side), up, down, return, ok, SCAN Keypad button (front) Battery specification: 5200mAh removable battery Standby: over 70 hours (keeping bluetooth connected) Power Continuous use: up to 6 hours (UHF reading) Charging time: 3-4 hours (with standard adaptor and USB cable) Display 1.77 inch, 128 x 160 Indicator LED Power, Work, Bluetooth buzzer Support Interfaces Micro-USB Performance Cortex-M3 MCU 72MHz Storage 50000 tags User Environment Operating Temp. -4 oF to 122 oF / -20 oC to 50 oC Storage Temp. -40 oF to 158 oF / -40 oC to 70 oC Humidity 5%RH - 95%RH non condensing Drop Multiple 1.5 m / 4.9 ft. drops to concrete across the Specification operating temperature range Tumble 1000 x 0.5 m / 1.64 ft. falls at room temperature Specification ESD ±15 KV air discharge, ±8 KV conductive discharge Accessories (See details in Accessory Guide) AC Adapter USB cable
Developing Environment SDK Android / IOS Tool Android Studio / Xcode Language Java / Objective-C Communication Bluetooth Bluetooth 4.0, BLE Data Collection Barcode Scanning (Optional) 2D Imager SE2707 Scanner UPC/EAN, Code128, Code39, Code93, Code11, 1D Symbologies Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. PDF417, MicroPDF417, Composite, RSS, TLC- 39, Datamatrix, QR code, Micro QR code, Aztec, 2D Symbologies MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. UHF Engine Based on Impinj E710 / R2000 Antenna Linear Polarized antenna (4dBi) Frequency 920-925MHz/902-928MHz/865-868MHz Protocol EPC C1 GEN2 / ISO18000-6C 1W (30dBm, support +5~+30dBm adjustable) Module power 2W Optional (33dBm, for Latin America, etc.) Impinj E710 chip: 26m (Impinj MR6 tag, size 70 x 15mm) 27m (Impinj M750 tag, size 70 x 15mm) 31m (Alien H3 Anti-Metal tag, size 130 x 42mm) Max Read Range Impinj R2000 chip: 22m (Impinj MR6 tag, size 70 x 15mm) 23m (Impinj M750 tag, size 70 x 15mm) 22m (Alian H3 Anti-Metal tag, size 130 x 42mm) Fastest Read Rate 900+ tags/sec * Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.
