Chainway MC62 Mobile Computers
More Advanced Android OS, More Flexible Keyboard Design, Stronger Protection Level and Battery LifeFeaturesAndroid 13 Octa-core 2.0GHzRAM+ROM: 3+32GB 5000mAh Removable BatteryOptional Trigger Handle IP67FunctionsBarcode Scanning (Optional) NFCFront & Rear Dual Camera Bluetooth 5.0
More Advanced Android OS, More Flexible Keyboard Design, Stronger Protection Level and Battery LifeFeaturesAndroid 13 Octa-core 2.0GHzRAM+ROM: 3+32GB 5000mAh Removable BatteryOptional Trigger Handle IP67FunctionsBarcode Scanning (Optional) NFCFront & Rear Dual Camera Bluetooth 5.0
Exact model: MC62
Product group: Mobile Computers
Complete manufacturer specifications in Specs

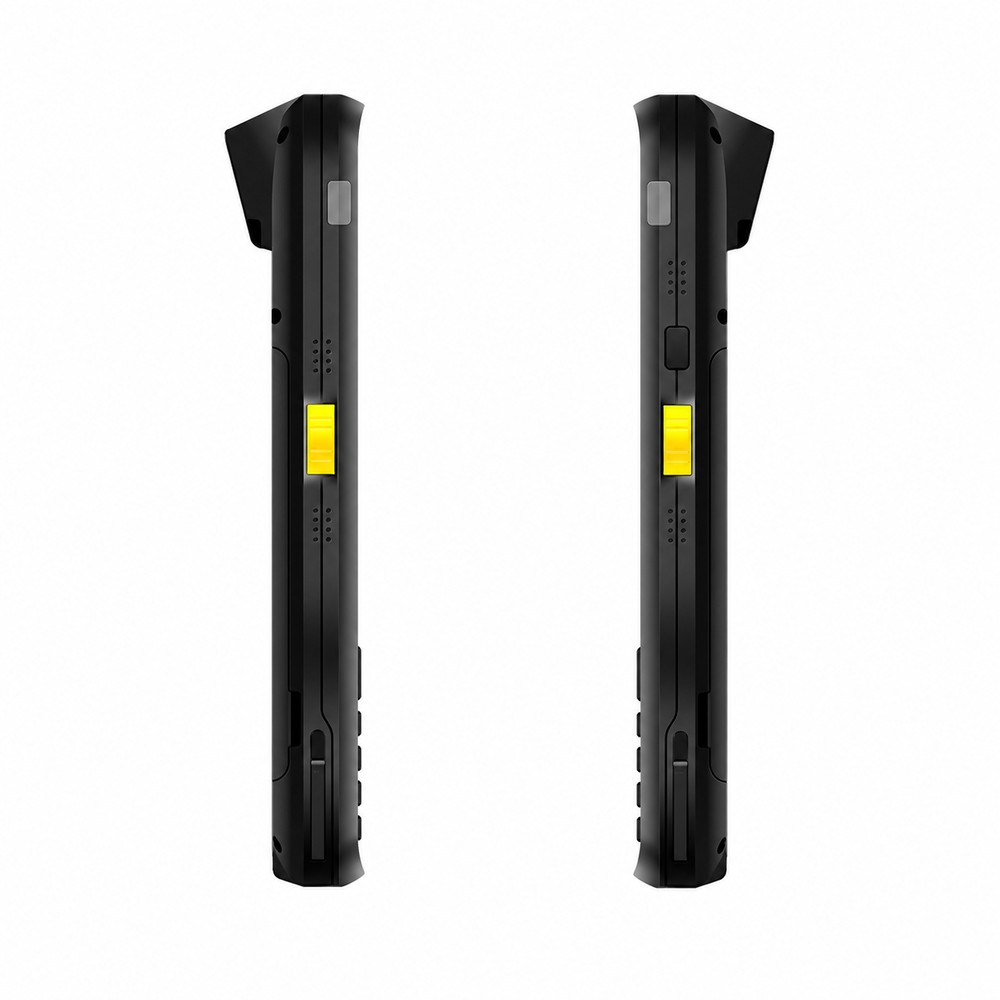

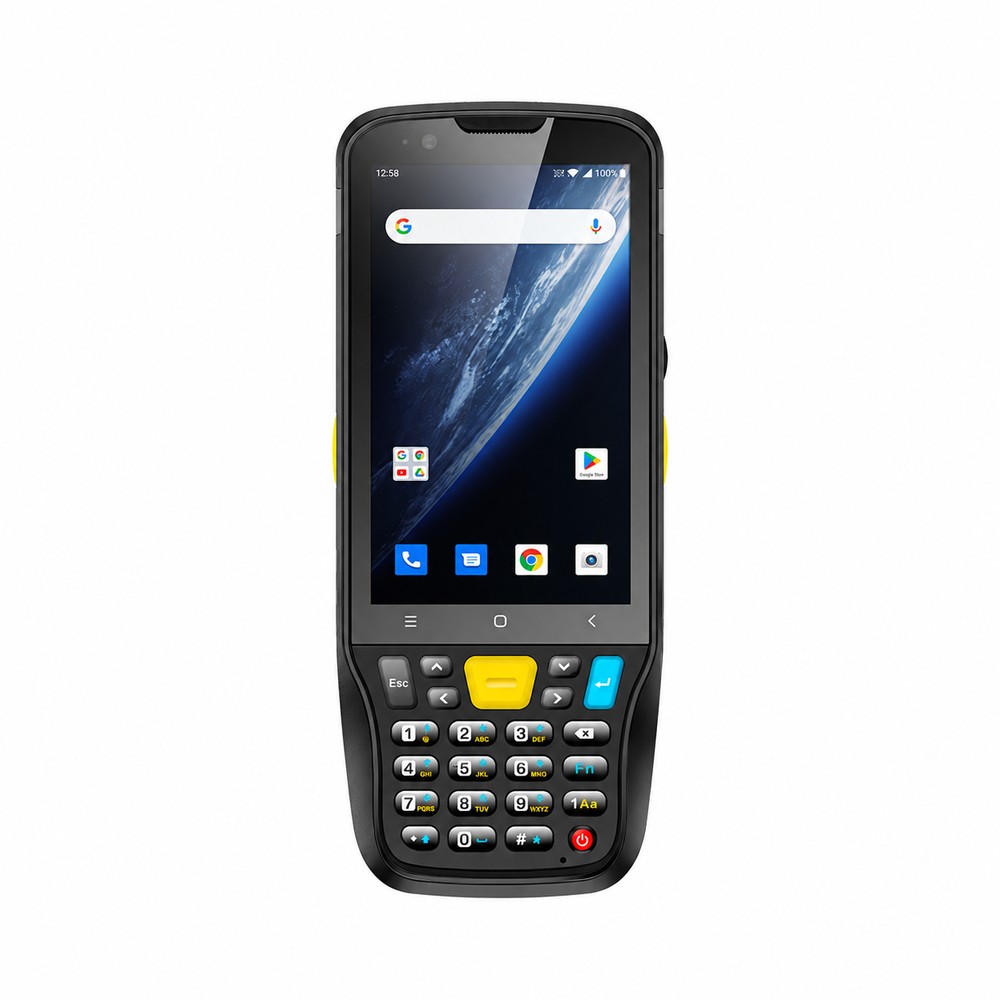

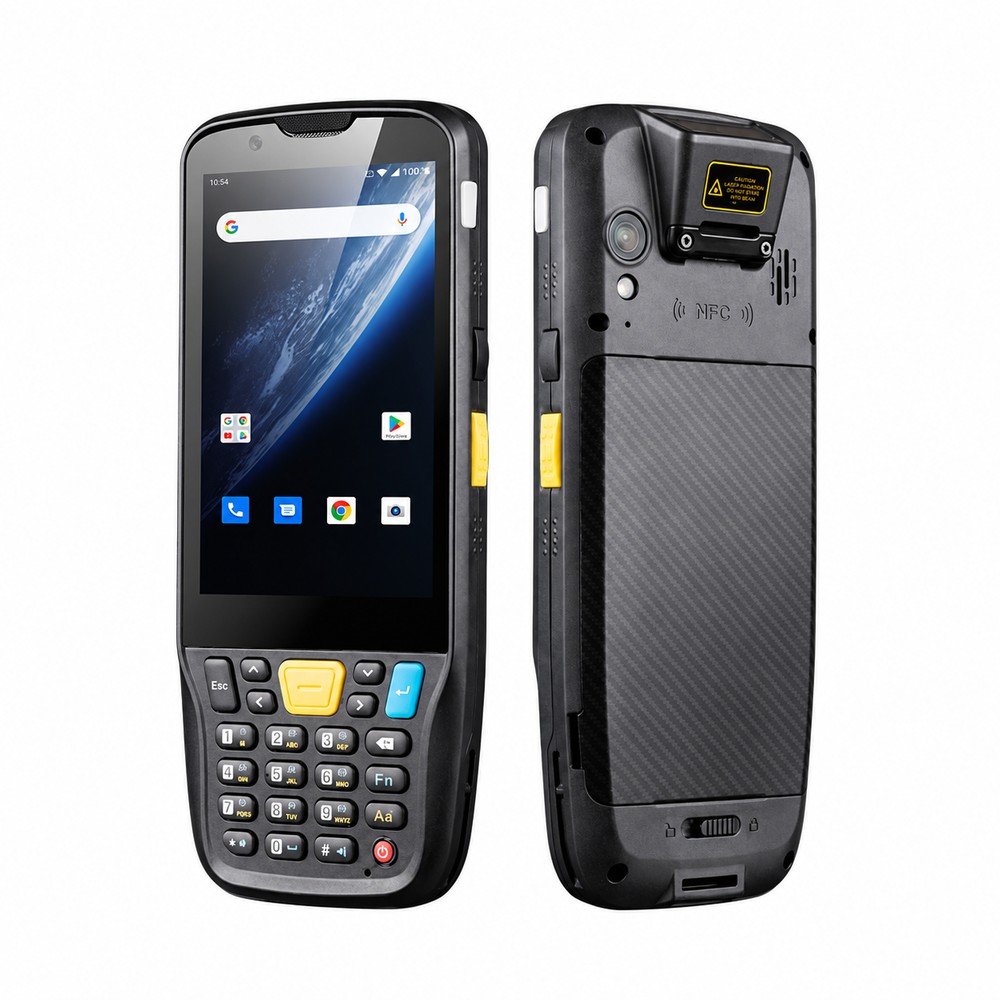

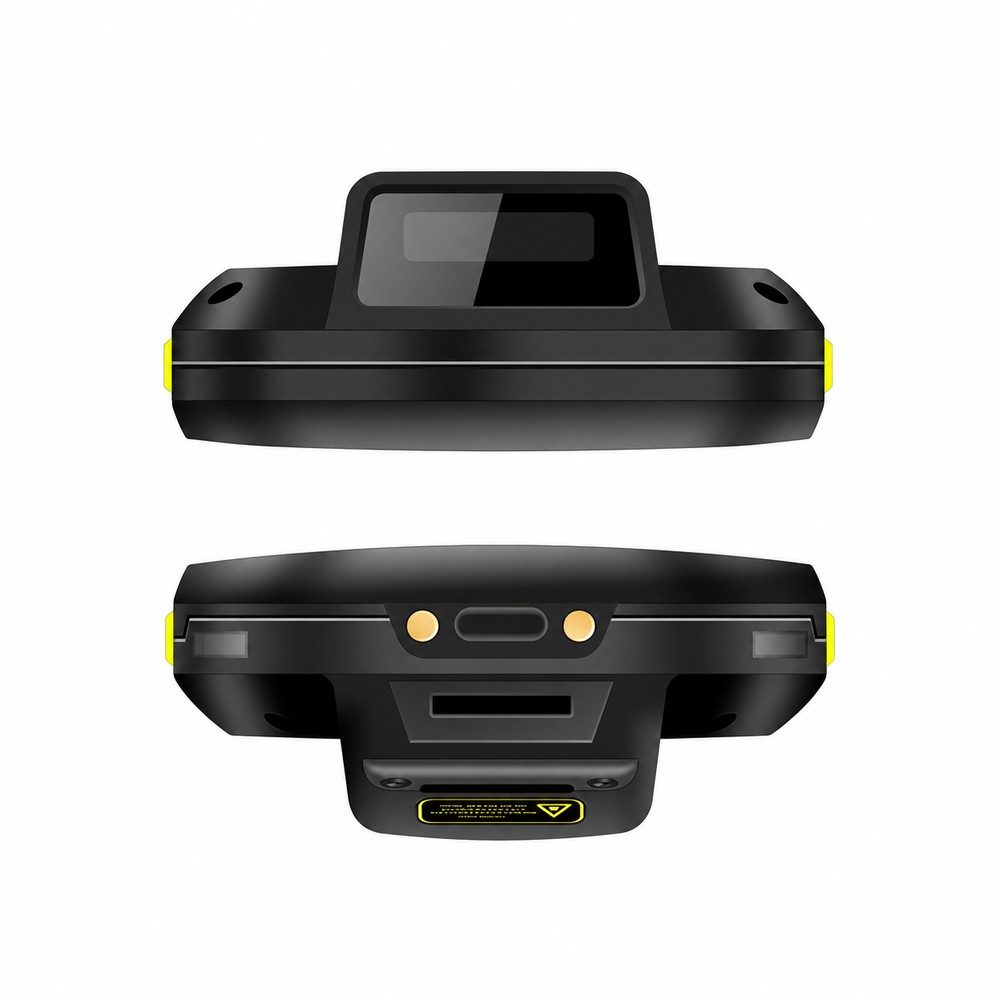

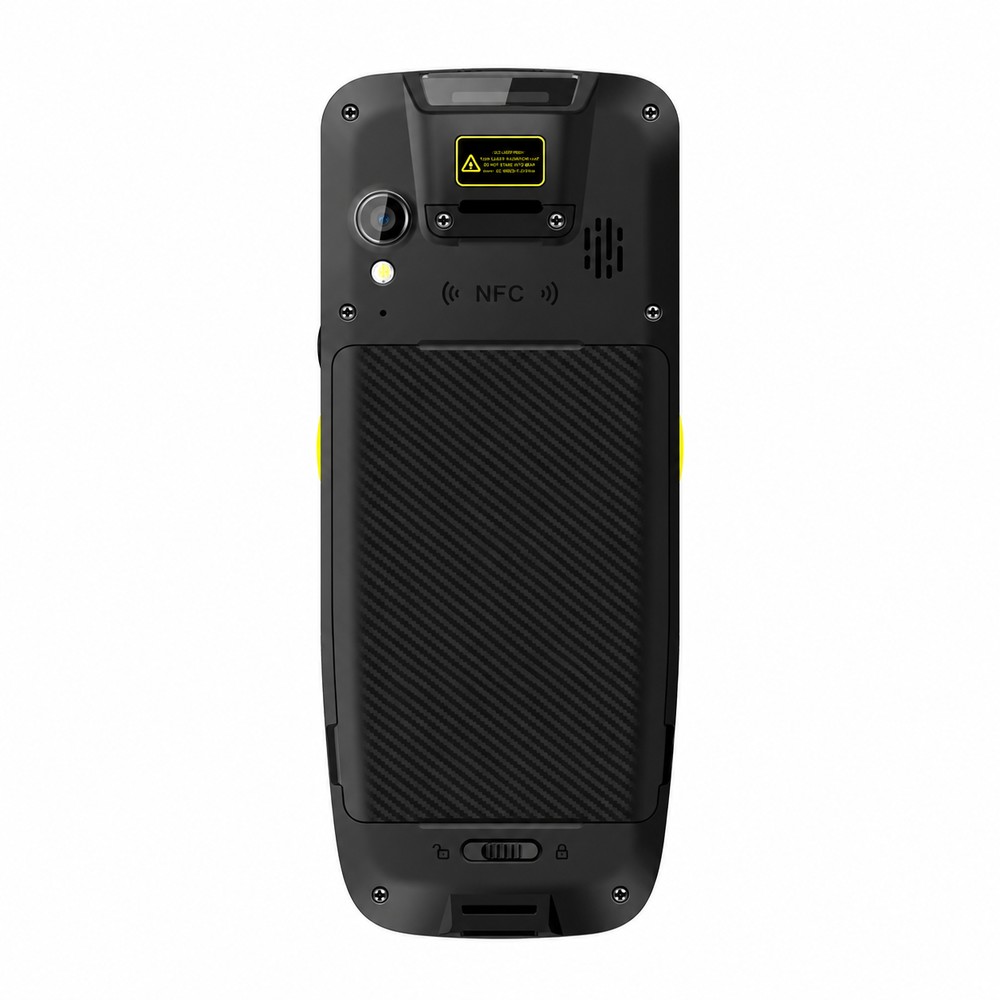

Available configurations shown in the product gallery
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
Chainway MC62 Mobile Computers
Chainway MC62 combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.
More Advanced Android OS, More Flexible Keyboard Design, Stronger Protection Level and Battery LifeFeaturesAndroid 13 Octa-core 2.0GHzRAM+ROM: 3+32GB 5000mAh Removable BatteryOptional Trigger Handle IP67FunctionsBarcode Scanning (Optional) NFCFront & Rear Dual Camera Bluetooth 5.0
Configuration overview
The manufacturer data sheet lists Specification Physical Characteristics Dimensions 163.5 x 67.0 x 17.1mm/6.44 x 2.64 x 0.67in Weight 256g / 9.03oz (device with battery) Display 4-inch, 480 x 800 Touch Panel Multi-touch panel, gloves and wet hands supported Power 5000mAh removable battery, support quick charge Expansion Slot 1 slot for SIM card, 1 slot for SIM or TF card Interfaces USB Type-C, USB 2.0, OTG Gravity sensor, distance sensor, light sensor; Gyroscope Sensors (optional), geomagnetism (optional) Notification Sound, LED indicator, vibrator 2 microphones, 1 for noise reduction, back; 1 speaker; Audio receiver Keypad Main keypad , 2 scan keys, multi-function keys Performance Operating System Android 13 CPU Octa-core, 2.0 GHz RAM+ROM 3 GB + 32 GB Expansion Supports up to 128 GB Micro SD card Communication WLAN IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, 5G PA 2G: GSM (B2 / B3 / B5 / B8) 3G: WCDMA (B1 / B2 / B4 / B5 / B8) TD-SCDMA (B34 / B39) WWAN 4G: FDD-LTE (B1 / B2 / B3 / B4 / B5 / B7 /B8 / B12 / B17 / B20 / B28A / B28B) TDD-LTE (B34 / B38 / B39 / B40 / B41) Bluetooth Bluetooth 5.0 GNSS GPS/AGPS, GLONASS, BeiDou, Galileo Vo-LTE Support User Environment Operating Temp. -4 oF to 122 oF / -20 oC to 50 oC Storage Temp. -40 oF to 158 oF.
Wholesale purchasing information
For Chainway MC62, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.

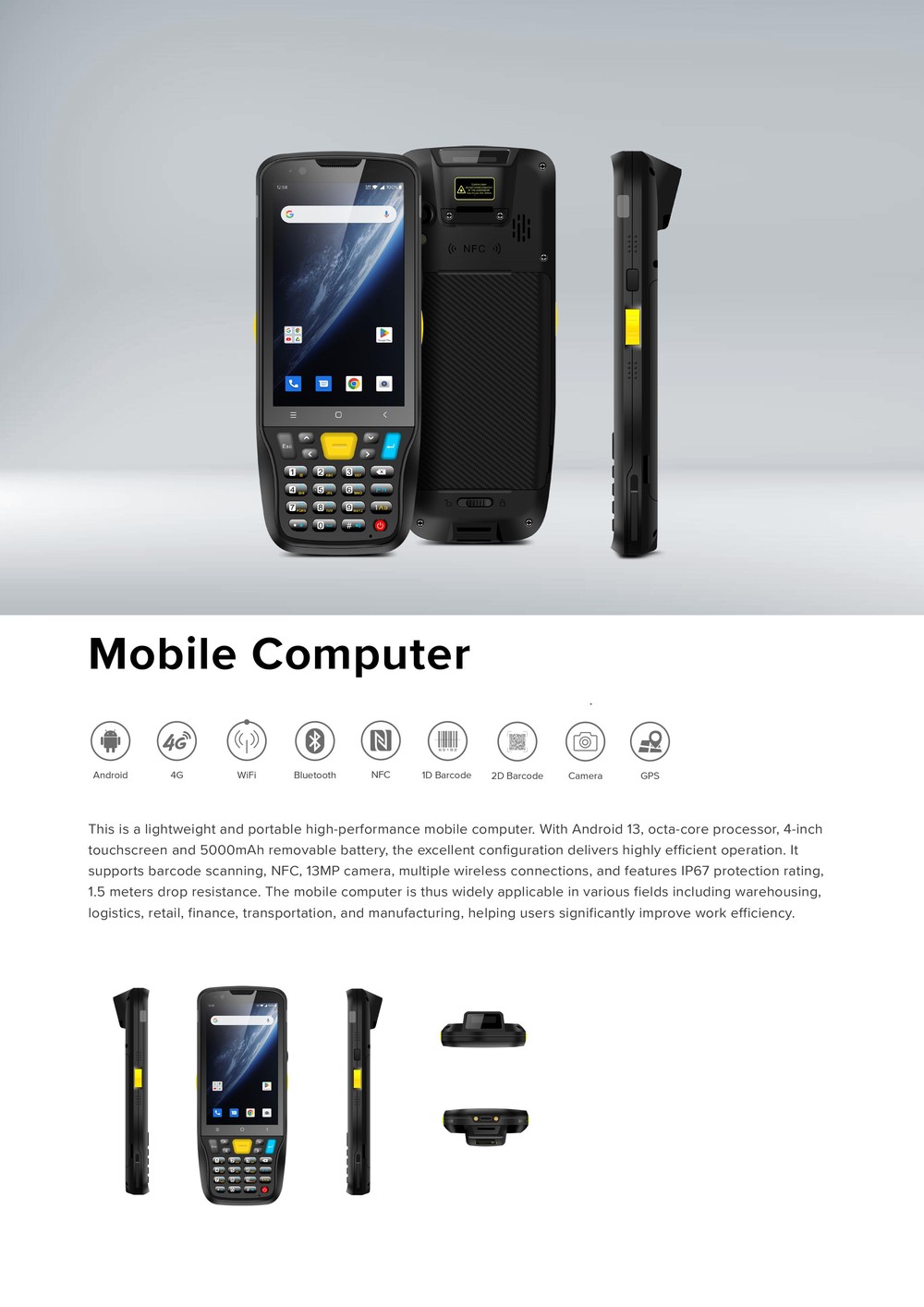

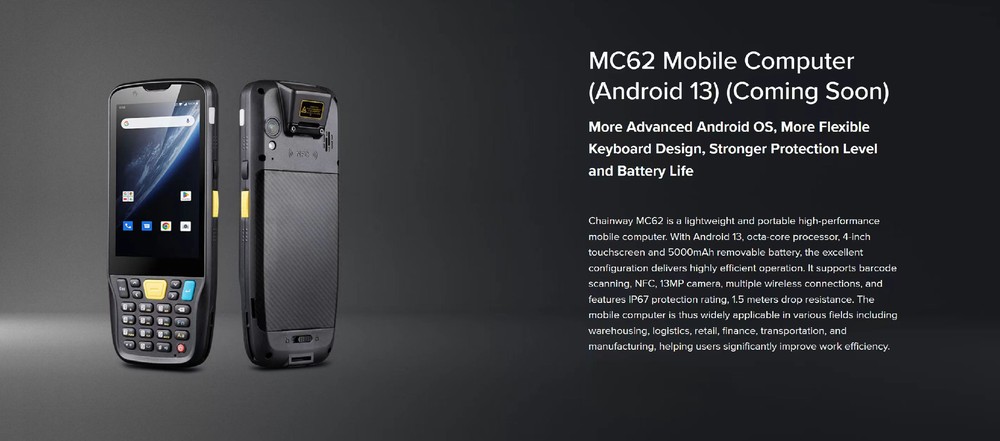

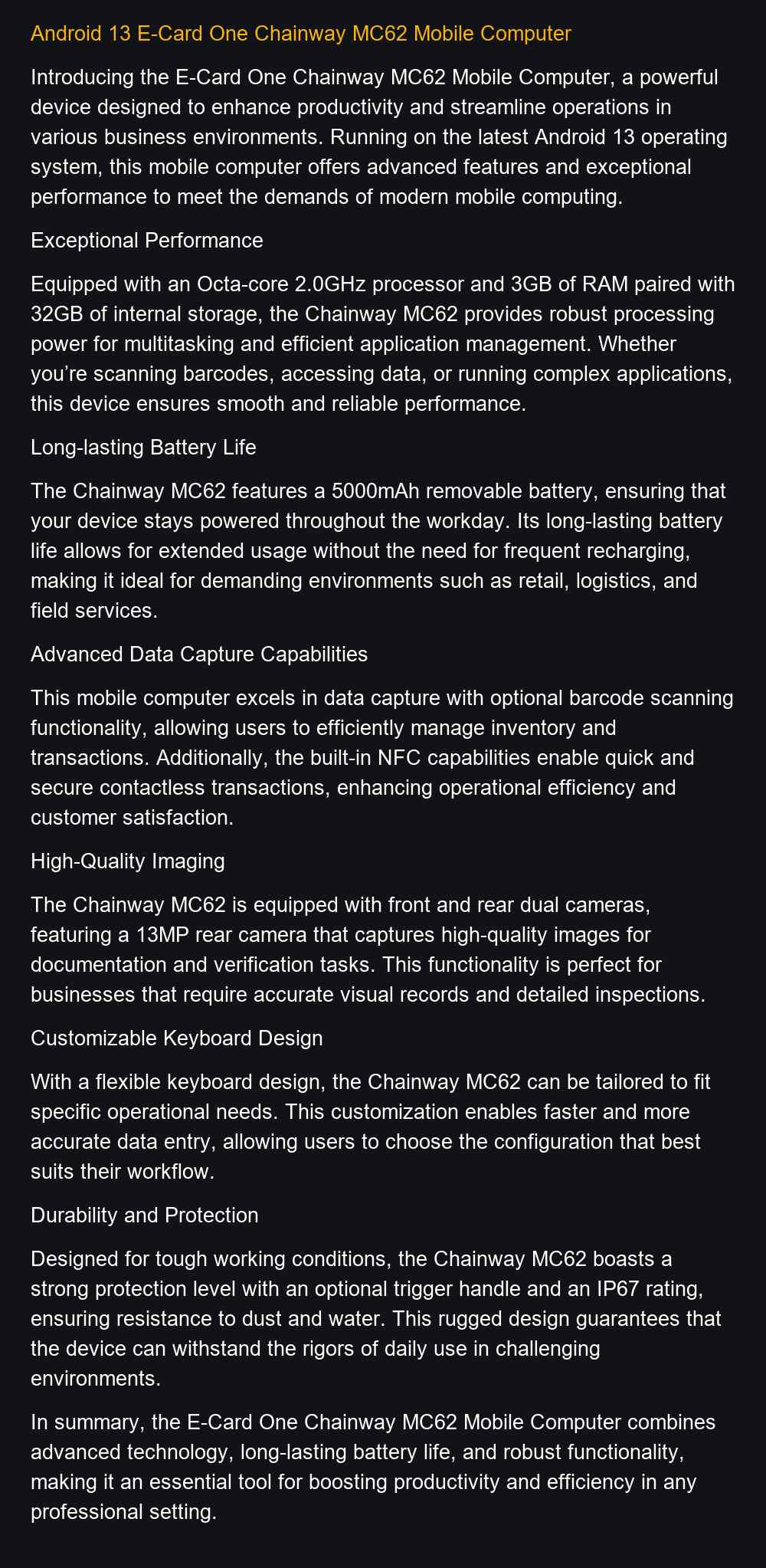

Manufacturer feature details

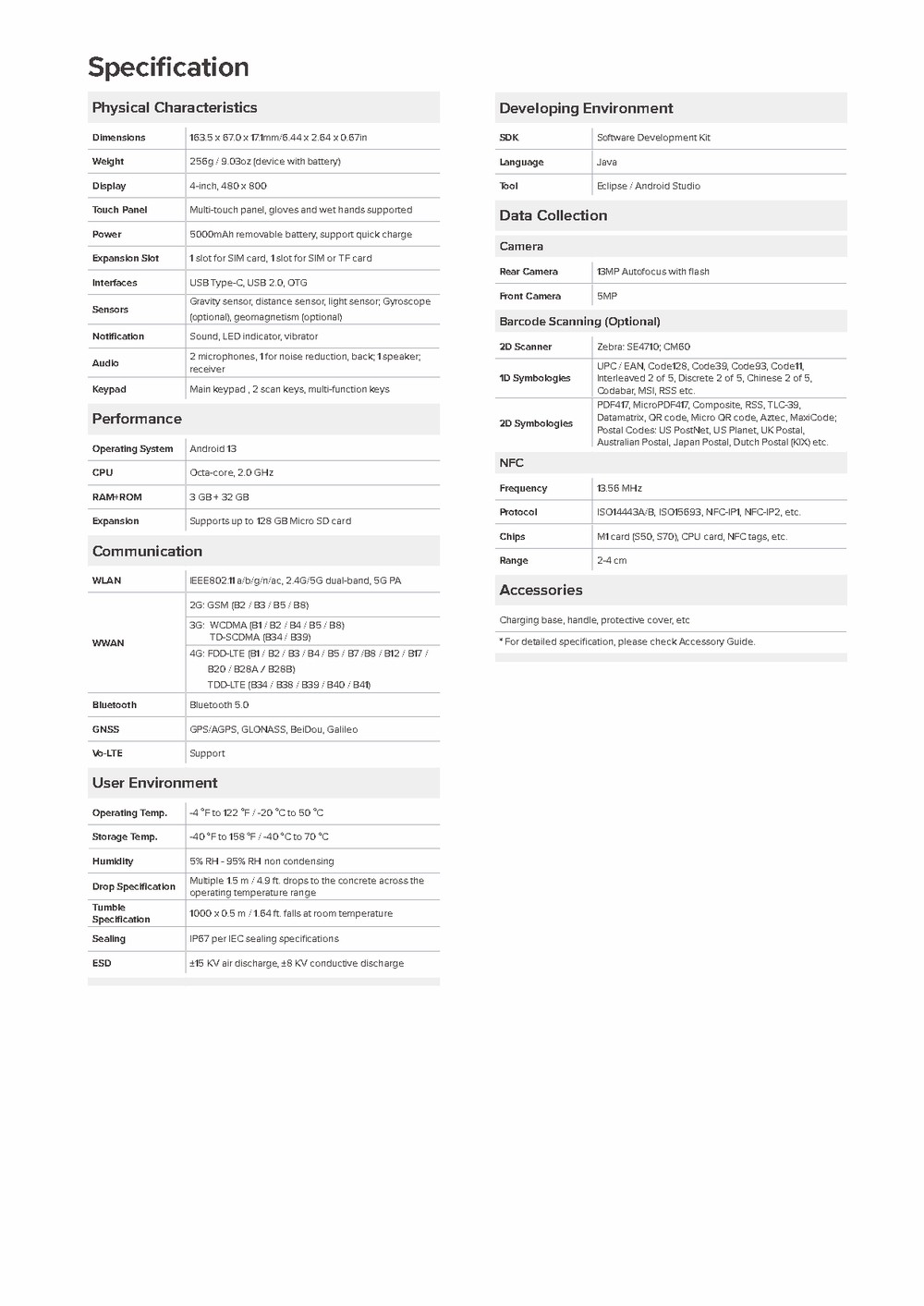

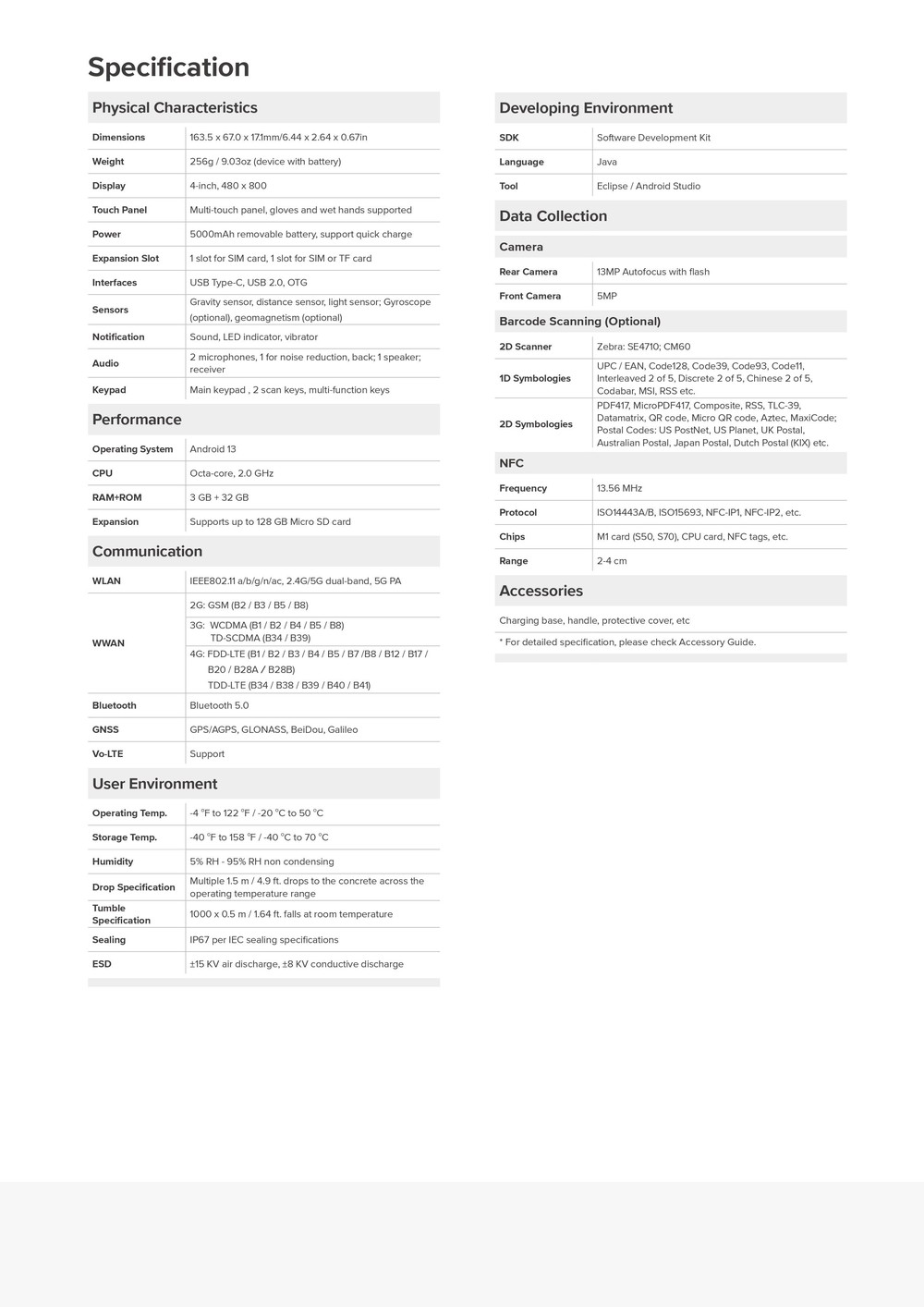

MC62 Datasheet.pdf — Specifications (page 2)
Specification Physical Characteristics Dimensions 163.5 x 67.0 x 17.1mm/6.44 x 2.64 x 0.67in Weight 256g / 9.03oz (device with battery) Display 4-inch, 480 x 800 Touch Panel Multi-touch panel, gloves and wet hands supported Power 5000mAh removable battery, support quick charge Expansion Slot 1 slot for SIM card, 1 slot for SIM or TF card Interfaces USB Type-C, USB 2.0, OTG Gravity sensor, distance sensor, light sensor; Gyroscope Sensors (optional), geomagnetism (optional) Notification Sound, LED indicator, vibrator 2 microphones, 1 for noise reduction, back; 1 speaker; Audio receiver Keypad Main keypad , 2 scan keys, multi-function keys Performance Operating System Android 13 CPU Octa-core, 2.0 GHz RAM+ROM 3 GB + 32 GB Expansion Supports up to 128 GB Micro SD card Communication WLAN IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, 5G PA 2G: GSM (B2 / B3 / B5 / B8) 3G: WCDMA (B1 / B2 / B4 / B5 / B8) TD-SCDMA (B34 / B39) WWAN 4G: FDD-LTE (B1 / B2 / B3 / B4 / B5 / B7 /B8 / B12 / B17 / B20 / B28A / B28B) TDD-LTE (B34 / B38 / B39 / B40 / B41) Bluetooth Bluetooth 5.0 GNSS GPS/AGPS, GLONASS, BeiDou, Galileo Vo-LTE Support User Environment Operating Temp. -4 oF to 122 oF / -20 oC to 50 oC Storage Temp. -40 oF to 158 oF / -40 oC to 70 oC Humidity 5% RH - 95% RH non condensing Multiple 1.5 m / 4.9 ft. drops to the concrete across the Drop Specification operating temperature range Tumble 1000 x 0.5 m / 1.64 ft. falls at room temperature Specification Sealing IP67 per IEC sealing specifications ESD ±15 KV air discharge, ±8 KV conductive discharge
Developing Environment SDK Software Development Kit Language Java Tool Eclipse / Android Studio Data Collection Camera Rear Camera 13MP Autofocus with flash Front Camera 5MP Barcode Scanning (Optional) 2D Scanner Zebra: SE4710; CM60 UPC / EAN, Code128, Code39, Code93, Code11, 1D Symbologies Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS etc. PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; 2D Symbologies Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) etc. NFC Frequency 13.56 MHz Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. Chips M1 card (S50, S70), CPU card, NFC tags, etc. Range 2-4 cm Accessories Charging base, handle, protective cover, etc * For detailed specification, please check Accessory Guide.
