Chainway MC50 Mobile Computers
5G · Android 12 · IP67FeaturesAndroid 12 5GQualcomm Octa-core 2.0GHz 6" Display5000mAh Removable Battery IP67 Sealing FunctionsBarcode Scanning (Optional) NFC Bluetooth 5.1Support UHF Sled (Optional) Front & Rear Dual Camera
5G · Android 12 · IP67FeaturesAndroid 12 5GQualcomm Octa-core 2.0GHz 6" Display5000mAh Removable Battery IP67 Sealing FunctionsBarcode Scanning (Optional) NFC Bluetooth 5.1Support UHF Sled (Optional) Front & Rear Dual Camera
Exact model: MC50
Product group: Mobile Computers
Complete manufacturer specifications in Specs
Available configurations shown in the product gallery
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
Chainway MC50 Mobile Computers
Chainway MC50 combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.
5G · Android 12 · IP67FeaturesAndroid 12 5GQualcomm Octa-core 2.0GHz 6" Display5000mAh Removable Battery IP67 Sealing FunctionsBarcode Scanning (Optional) NFC Bluetooth 5.1Support UHF Sled (Optional) Front & Rear Dual Camera
Configuration overview
The manufacturer data sheet lists Specification Physical Characteristics Dimensions 161.0 x 77.8 x 15.5mm / 6.34 x 3.06 x 0.61in. Weight 269g / 9.49oz. (device with battery) Keypad Power key, 2 scan keys, volume (+/-) keys Battery 5000mAh removable main battery, support QC3.0 and RTC Display 6-inch high definition display (18:9), 1440 x 720 Corning Gorilla Glass, multi-touch panel, gloves and wet Touch Panel hands supported G_sensor, proximity sensor, light sensor, geomagnetic Sensor sensor, gyroscope Notification Sound, LED indicator, vibrator Audio 2 microphones, 1 for noise cancellation; 1 speaker; 1 receiver Card slot 1 for SIM card, 1 for SIM or TF card Interfaces USB Type-C, USB 3.1, OTG Performance CPU Qualcomm Snapdragon™ 480 Octa-core, 2.0GHz RAM+ROM 4GB + 64GB Expansion Supports up to 256GB TF card Developing Environment Operating Android 12; System SDK Software Development Kit Language Java Tool Eclipse / Android Studio User Environment Operating -4°F to 122°F / -20oC to +50oC Temp. Storage Temp. -40oF to 158oF / -40oC to +70oC Humidity 5%RH – 95%RH non condensing Drop Multiple 1.5m / 4.92ft. drops (at least 28 times) to the Specification concrete across the operating temperature range Tumble 1000 x 0.5m / 1.64ft. falls at room temperature Specification Sealing IP67 per IEC sealing specifications ESD ±15KV air discharge, ±8KV conductive discharge Notice: Product specifications are subject to change without prior notice / Update.
Wholesale purchasing information
For Chainway MC50, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.

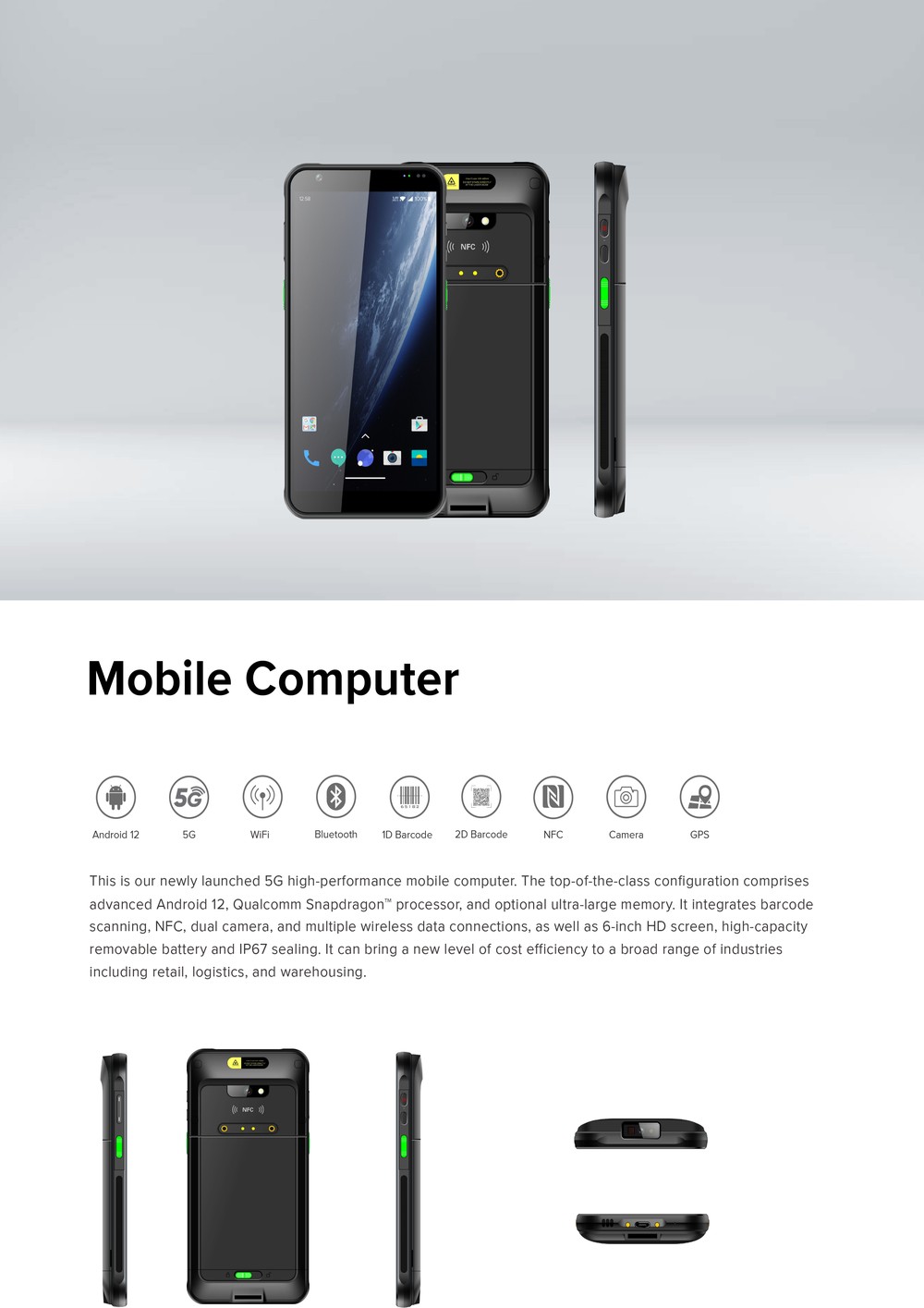

Manufacturer feature details

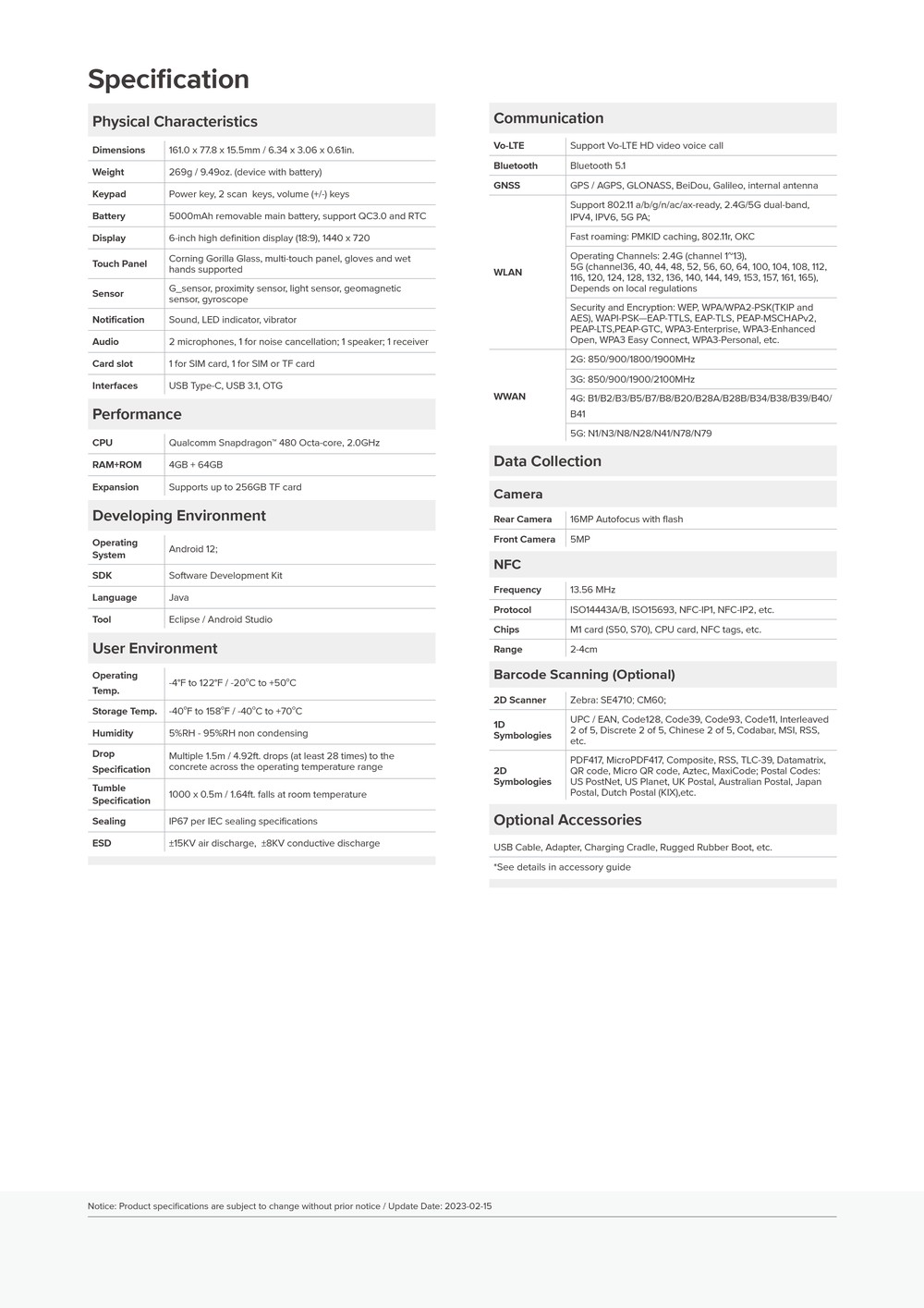

MC50 DataSheet.pdf — Specifications (page 2)
Specification Physical Characteristics Dimensions 161.0 x 77.8 x 15.5mm / 6.34 x 3.06 x 0.61in. Weight 269g / 9.49oz. (device with battery) Keypad Power key, 2 scan keys, volume (+/-) keys Battery 5000mAh removable main battery, support QC3.0 and RTC Display 6-inch high definition display (18:9), 1440 x 720 Corning Gorilla Glass, multi-touch panel, gloves and wet Touch Panel hands supported G_sensor, proximity sensor, light sensor, geomagnetic Sensor sensor, gyroscope Notification Sound, LED indicator, vibrator Audio 2 microphones, 1 for noise cancellation; 1 speaker; 1 receiver Card slot 1 for SIM card, 1 for SIM or TF card Interfaces USB Type-C, USB 3.1, OTG Performance CPU Qualcomm Snapdragon™ 480 Octa-core, 2.0GHz RAM+ROM 4GB + 64GB Expansion Supports up to 256GB TF card Developing Environment Operating Android 12; System SDK Software Development Kit Language Java Tool Eclipse / Android Studio User Environment Operating -4°F to 122°F / -20oC to +50oC Temp. Storage Temp. -40oF to 158oF / -40oC to +70oC Humidity 5%RH - 95%RH non condensing Drop Multiple 1.5m / 4.92ft. drops (at least 28 times) to the Specification concrete across the operating temperature range Tumble 1000 x 0.5m / 1.64ft. falls at room temperature Specification Sealing IP67 per IEC sealing specifications ESD ±15KV air discharge, ±8KV conductive discharge Notice: Product specifications are subject to change without prior notice / Update Date: 2023
Communication Vo-LTE Support Vo-LTE HD video voice call Bluetooth Bluetooth 5.1 GNSS GPS / AGPS, GLONASS, BeiDou, Galileo, internal antenna Support 802.11 a/b/g/n/ac/ax-ready, 2.4G/5G dual-band, IPV4, IPV6, 5G PA; Fast roaming: PMKID caching, 802.11r, OKC Operating Channels: 2.4G (channel 1~13), 5G (channel36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, WLAN 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165), Depends on local regulations Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC, WPA3-Enterprise, WPA3-Enhanced Open, WPA3 Easy Connect, WPA3-Personal, etc. 2G: 850/900/1800/1900MHz 3G: 850/900/1900/2100MHz WWAN 4G: B1/B2/B3/B5/B7/B8/B20/B28A/B28B/B34/B38/B39/B40/ B41 5G: N1/N3/N8/N28/N41/N78/N79 Data Collection Camera Rear Camera 16MP Autofocus with flash Front Camera 5MP NFC Frequency 13.56 MHz Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. Chips M1 card (S50, S70), CPU card, NFC tags, etc. Range 2-4cm Barcode Scanning (Optional) 2D Scanner Zebra: SE4710; CM60; UPC / EAN, Code128, Code39, Code93, Code11, Interleaved 1D 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, Symbologies etc. PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, 2D QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: Symbologies US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc. Optional Accessories USB Cable, Adapter, Charging Cradle, Rugged Rubber Boot, etc. *See details in accessory guide 3-02-15
