Chainway C90 Mobile Computers
Larger Display Lighter Weight Stronger PerformanceFeaturesAndroid 10 Cortex-A53 Octa-core 2.0GHz5.7 " IPS Display RAM+ROM:3+32GB/3+64GB/4+64GB (Optional)5000mAh Built-in Battery 1.5m Drop ProofFunctionsBarcode Scanning (Optional) NFCFront & Rear Dual Camera GPS, BeiDouDual-band WIFI
Larger Display Lighter Weight Stronger PerformanceFeaturesAndroid 10 Cortex-A53 Octa-core 2.0GHz5.7 " IPS Display RAM+ROM:3+32GB/3+64GB/4+64GB (Optional)5000mAh Built-in Battery 1.5m Drop ProofFunctionsBarcode Scanning (Optional) NFCFront & Rear Dual Camera GPS, BeiDouDual-band WIFI
Exact model: C90
Product group: Mobile Computers
Complete manufacturer specifications in Specs

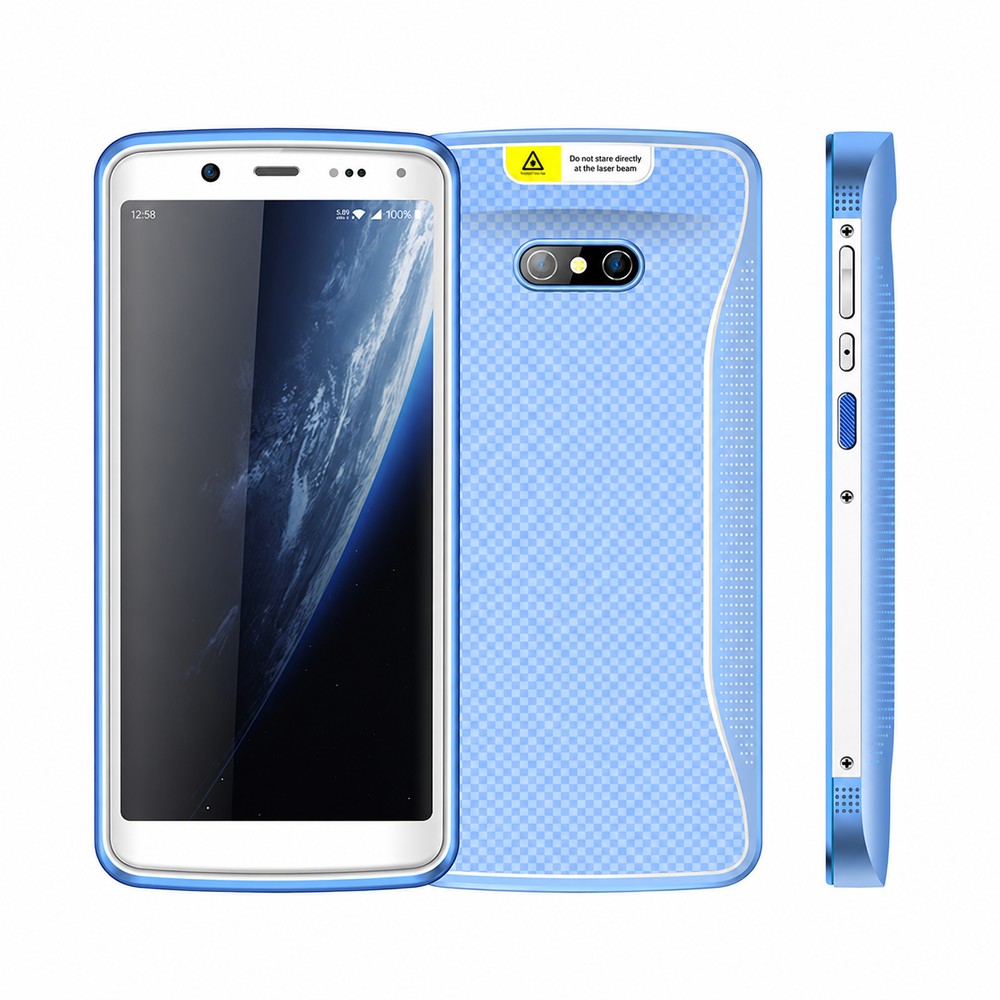

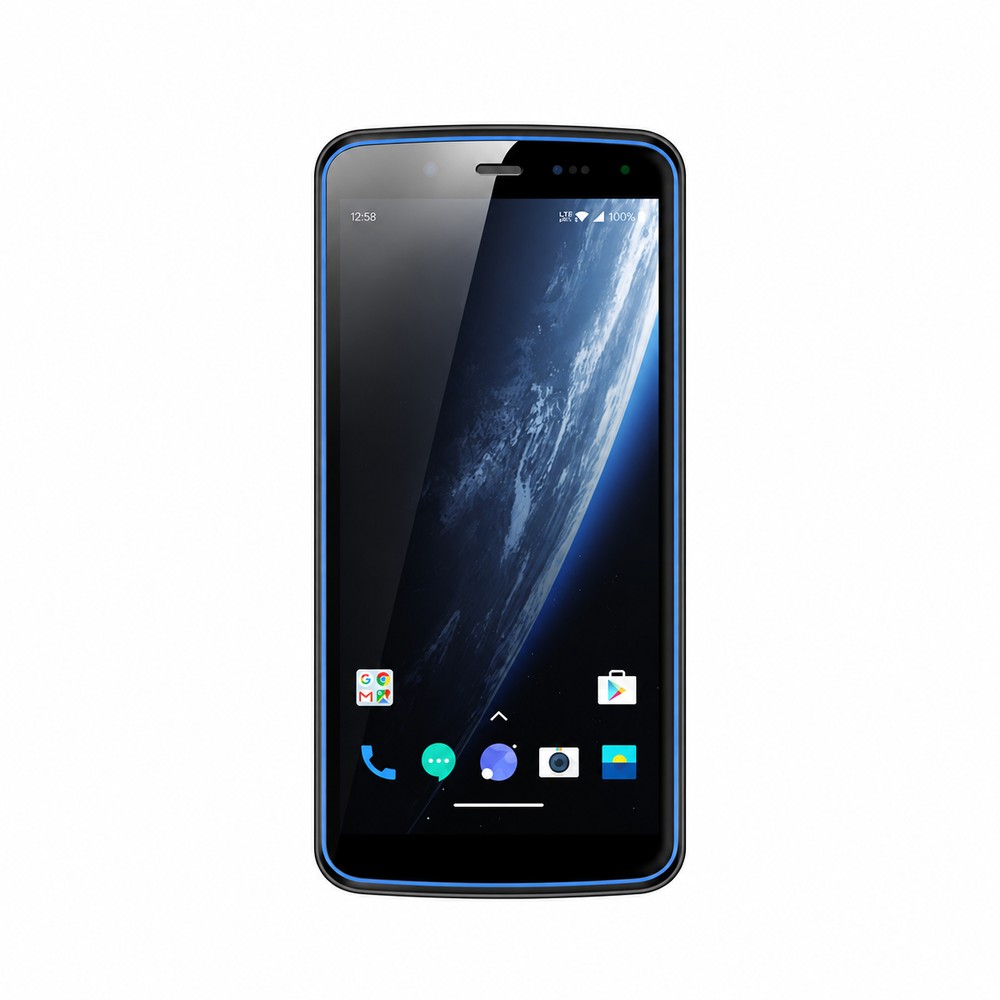

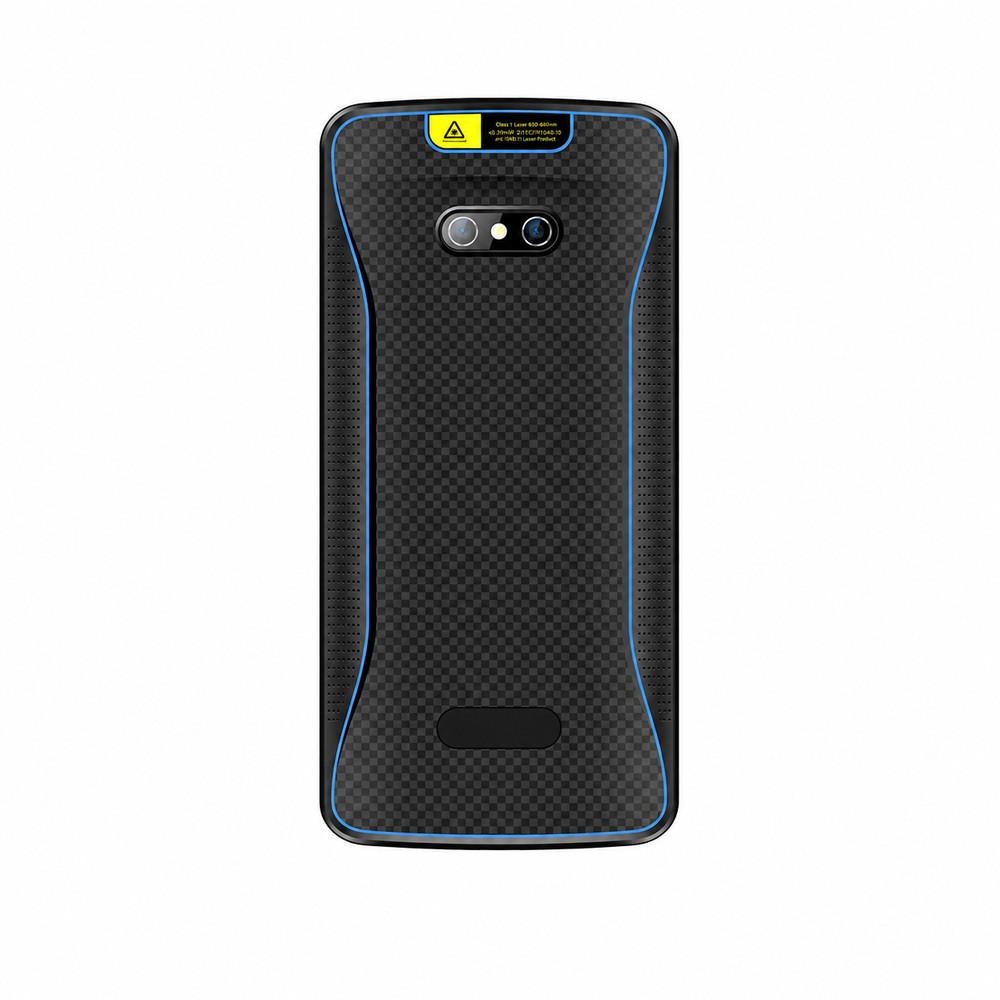

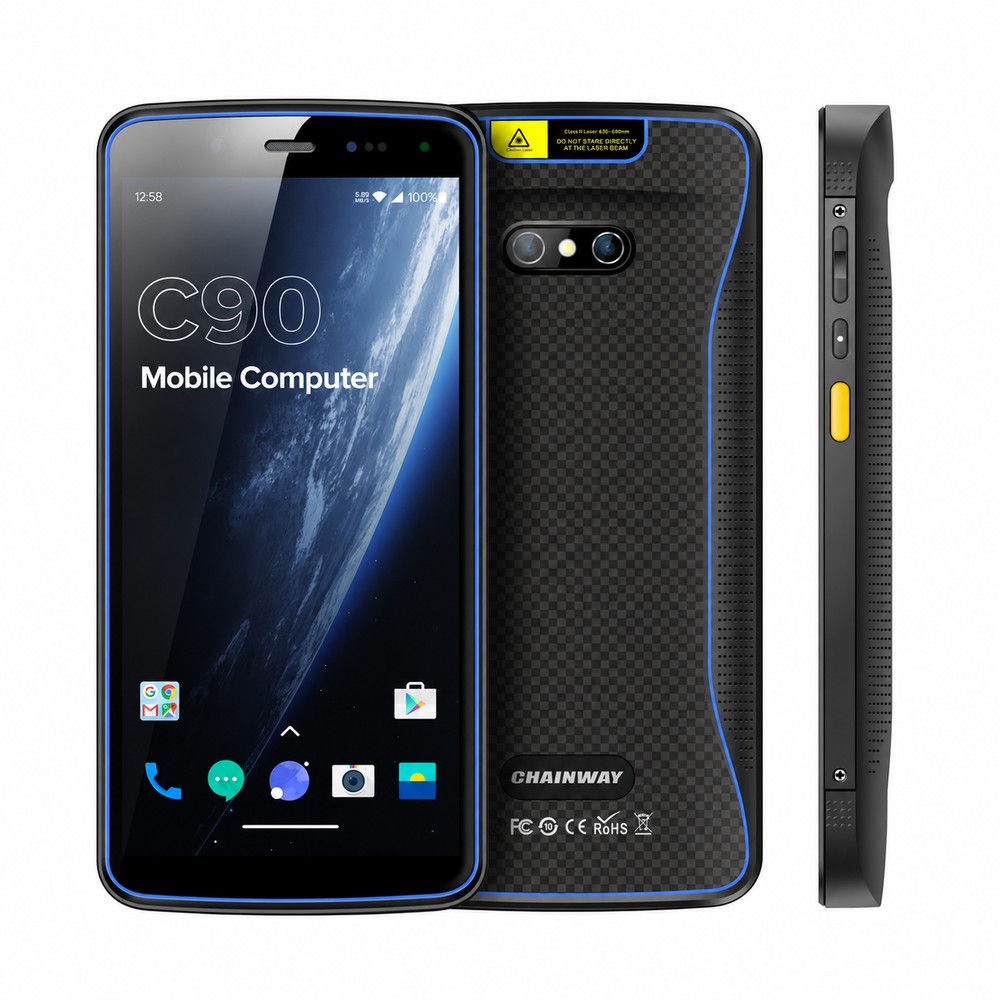

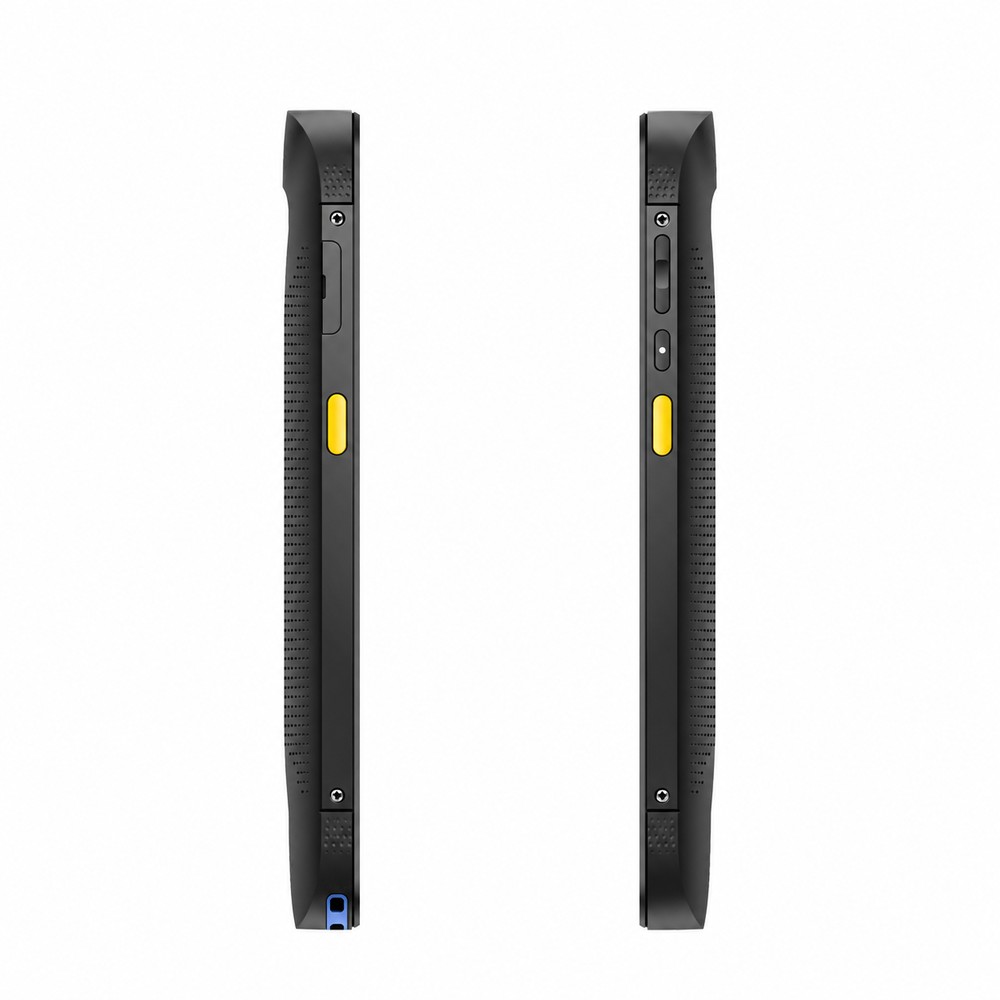

Available configurations shown in the product gallery
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
Chainway C90 Mobile Computers
Chainway C90 combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.
Larger Display Lighter Weight Stronger PerformanceFeaturesAndroid 10 Cortex-A53 Octa-core 2.0GHz5.7 " IPS Display RAM+ROM:3+32GB/3+64GB/4+64GB (Optional)5000mAh Built-in Battery 1.5m Drop ProofFunctionsBarcode Scanning (Optional) NFCFront & Rear Dual Camera GPS, BeiDouDual-band WIFI
Configuration overview
The manufacturer data sheet lists Specification Physical Characteristics Dimensions 158.5 x 76.0 x 13.1 mm / 6.24 x 2.99 x 0.52 in. Weight 230g / 8.11 oz. (device with battery) Keypad Power, 2 scan keys, volume +/- Main battery: built-in 5000 mAh Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h) Battery Continuous use: over 12 hours (depending on user environment) Charging time: 2.5 hours (charge device by standard adaptor and USB cable) Display 5.7-inch (18:9), IPS LTPS 1440 x 720 Corning Gorilla Glass, multi-touch panel, gloves and wet hands Touch Panel supported Sensor Light sensor, proximity sensor, gravity sensor Notification Sound, LED indicator, vibrator Audio 2 microphones, 1 for noise cancellation; 1 speaker; receiver Card slot 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card Interfaces USB Type-C, USB 2.0, OTGX Performance CPU Cortex-A53 2.0 GHz Octa-core RAM+ROM 3GB+32GB / 3GB+64GB / 4GB+64GB Expansion Supports up to 128 GB Micro SD card Developing Environment Android 10, GMS, FOTA, Soti MobiControl, Android Enterprise Recommended, Zero-Touch, 90-day security updates, SafeUEM Operating System supported; Built-in support for a future upgrade through Android 11 / 12 which complies with GMS and Android Enterprise Recommended SDK Software Development Kit Language Java Tool Eclipse / Android Studio User Environment Operating Temp. -20 ~+50 ℃ ℃ Storage Temp..
Wholesale purchasing information
For Chainway C90, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.

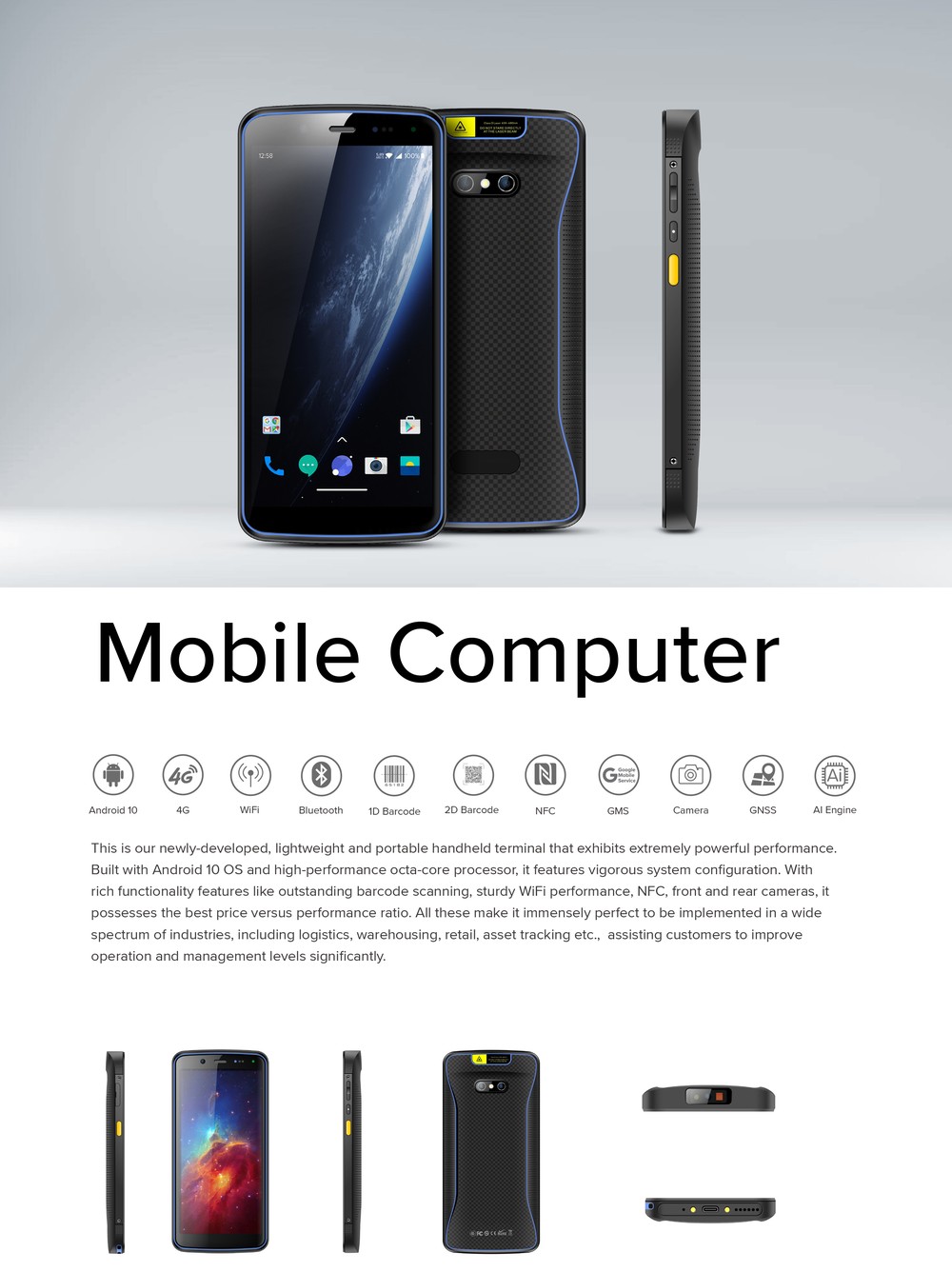

Manufacturer feature details

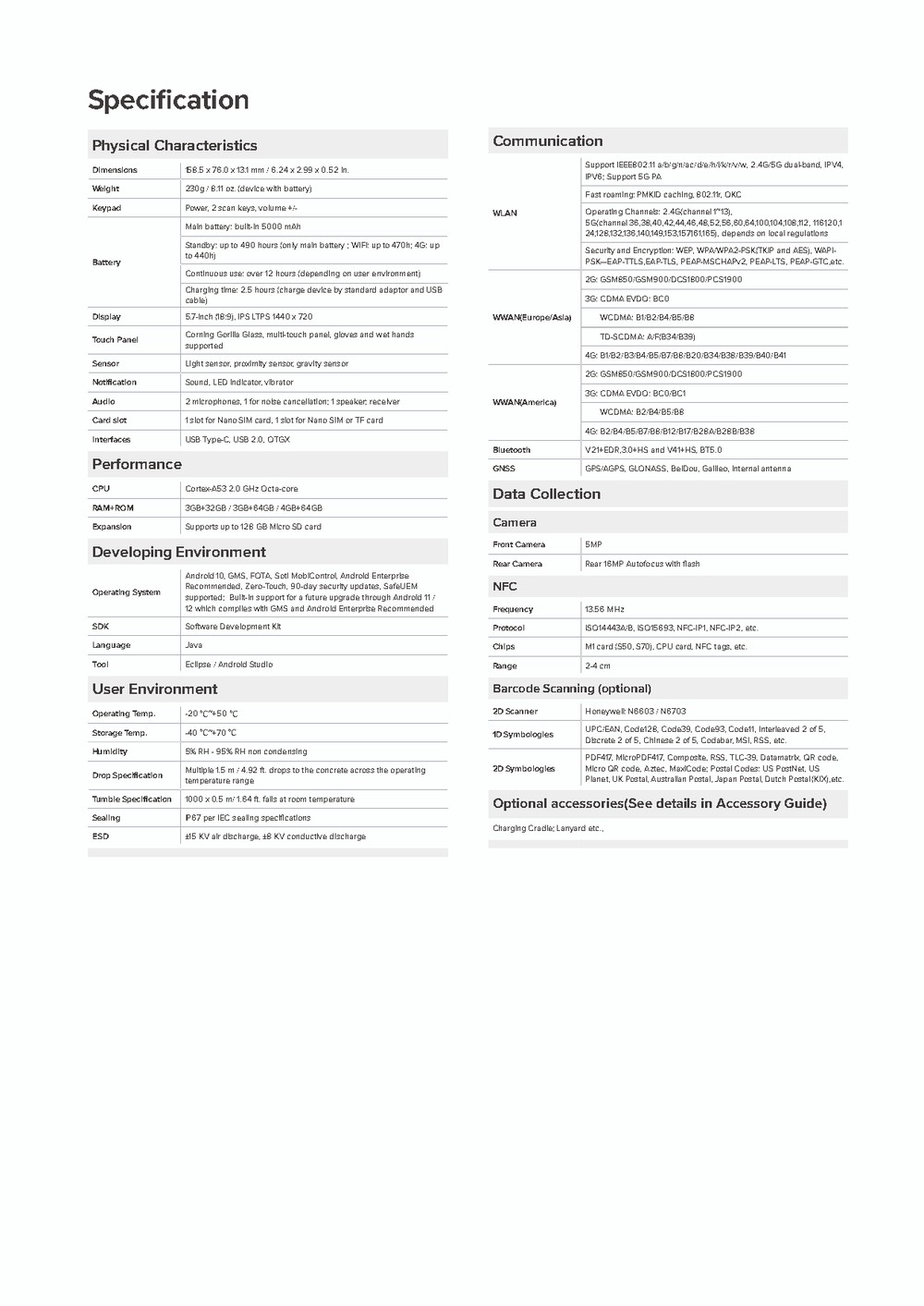

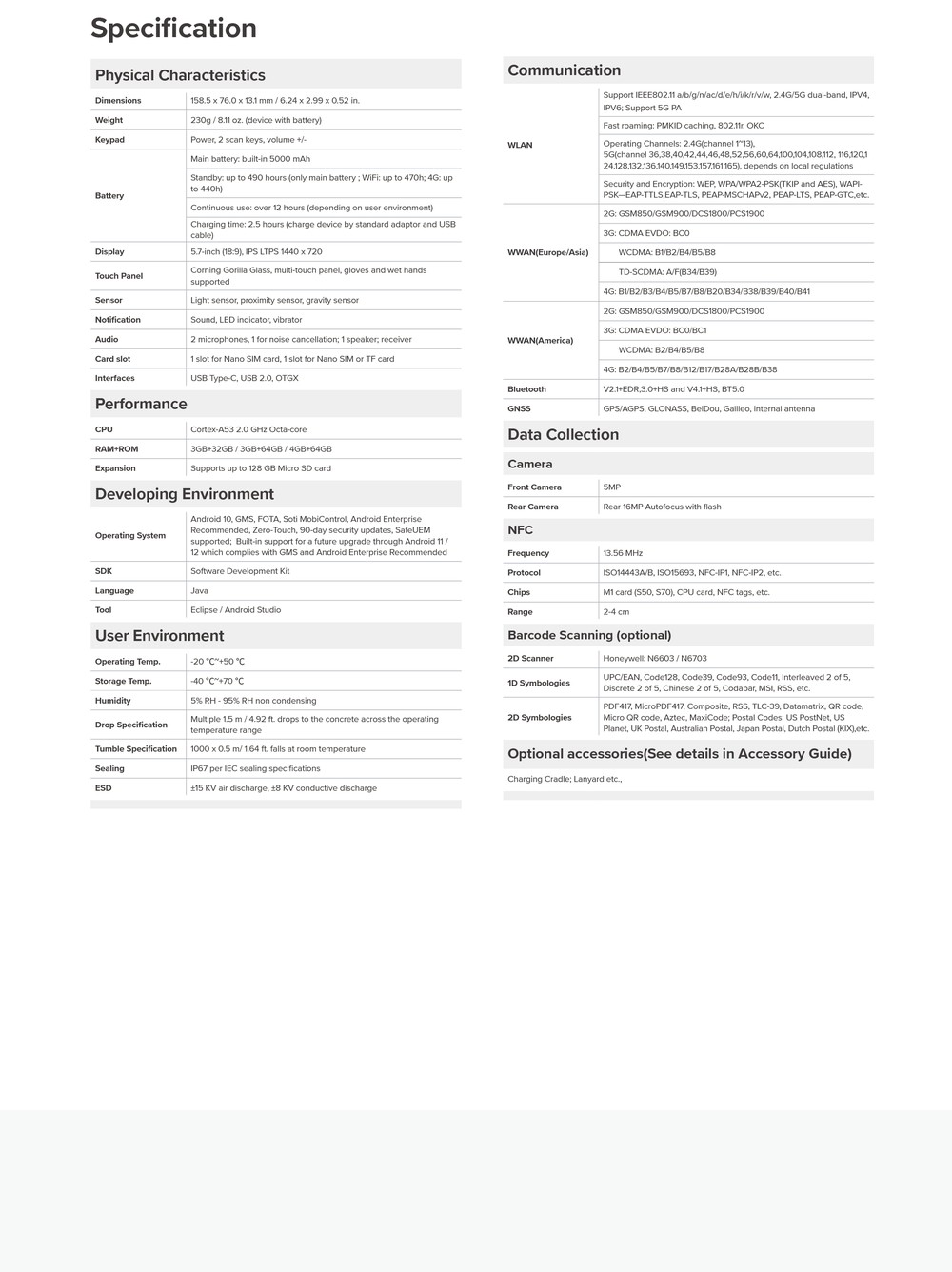

C90 DATASHEET.pdf — Specifications (page 2)
Specification Physical Characteristics Dimensions 158.5 x 76.0 x 13.1 mm / 6.24 x 2.99 x 0.52 in. Weight 230g / 8.11 oz. (device with battery) Keypad Power, 2 scan keys, volume +/- Main battery: built-in 5000 mAh Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h) Battery Continuous use: over 12 hours (depending on user environment) Charging time: 2.5 hours (charge device by standard adaptor and USB cable) Display 5.7-inch (18:9), IPS LTPS 1440 x 720 Corning Gorilla Glass, multi-touch panel, gloves and wet hands Touch Panel supported Sensor Light sensor, proximity sensor, gravity sensor Notification Sound, LED indicator, vibrator Audio 2 microphones, 1 for noise cancellation; 1 speaker; receiver Card slot 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card Interfaces USB Type-C, USB 2.0, OTGX Performance CPU Cortex-A53 2.0 GHz Octa-core RAM+ROM 3GB+32GB / 3GB+64GB / 4GB+64GB Expansion Supports up to 128 GB Micro SD card Developing Environment Android 10, GMS, FOTA, Soti MobiControl, Android Enterprise Recommended, Zero-Touch, 90-day security updates, SafeUEM Operating System supported; Built-in support for a future upgrade through Android 11 / 12 which complies with GMS and Android Enterprise Recommended SDK Software Development Kit Language Java Tool Eclipse / Android Studio User Environment Operating Temp. -20 ~+50 ℃ ℃ Storage Temp. -40 ~+70 ℃ ℃ Humidity 5% RH - 95% RH non condensing Multiple 1.5 m / 4.92 ft. drops to the concrete across the operating Drop Specification temperature range Tumble Specification 1000 x 0.5 m/ 1.64 ft. falls at room temperature Sealing IP67 per IEC sealing specifications ESD ±15 KV air discharge, ±8 KV conductive discharge
Communication Support IEEE802.11 a/b/g/n/ac/d/e/h/i/k/r/v/w, 2.4G/5G dual-band, IPV4, IPV6; Support 5G PA Fast roaming: PMKID caching, 802.11r, OKC WLAN Operating Channels: 2.4G(channel 1~13), 5G(channel 36,38,40,42,44,46,48,52,56,60,64,100,104,108,112, 116,120,1 24,128,132,136,140,149,153,157,161,165), depends on local regulations Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS, PEAP-GTC,etc. 2G: GSM850/GSM900/DCS1800/PCS1900 3G: CDMA EVDO: BC0 WWAN(Europe/Asia) WCDMA: B1/B2/B4/B5/B8 TD-SCDMA: A/F(B34/B39) 4G: B1/B2/B3/B4/B5/B7/B8/B20/B34/B38/B39/B40/B41 2G: GSM850/GSM900/DCS1800/PCS1900 3G: CDMA EVDO: BC0/BC1 WWAN(America) WCDMA: B2/B4/B5/B8 4G: B2/B4/B5/B7/B8/B12/B17/B28A/B28B/B38 Bluetooth V2.1+EDR,3.0+HS and V4.1+HS, BT5.0 GNSS GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna Data Collection Camera Front Camera 5MP Rear Camera Rear 16MP Autofocus with flash NFC Frequency 13.56 MHz Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. Chips M1 card (S50, S70), CPU card, NFC tags, etc. Range 2-4 cm Barcode Scanning (optional) 2D Scanner Honeywell: N6603 / N6703 UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, 1D Symbologies Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, 2D Symbologies Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc. Optional accessories(See details in Accessory Guide) Charging Cradle; Lanyard etc.,
