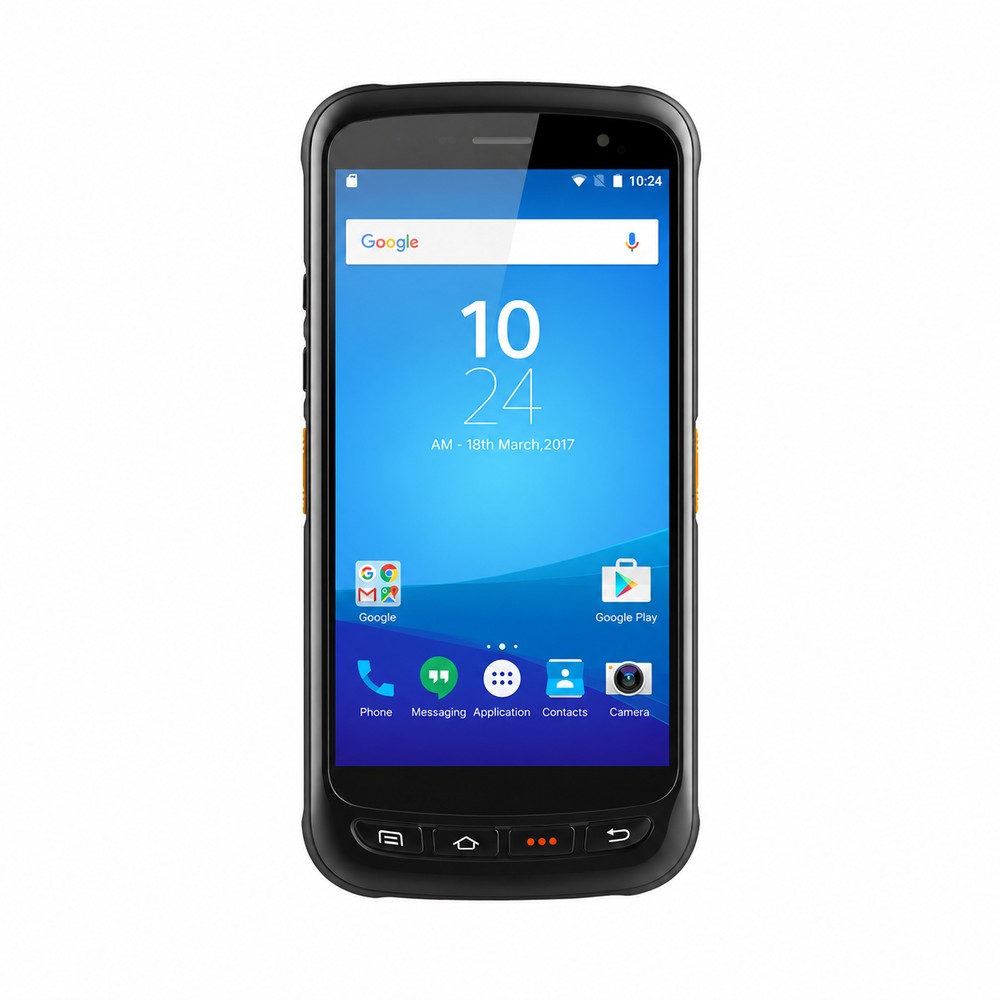

Chainway C71 Mobile Computers
Fully Upgraded PerformanceVersatile Functions EnabledFeaturesAndroid 11 Cortex-A53 Octa-core 2.3GHzRAM+ROM: 3+32GB/4+64GB (Optional) 5.2'' IPS 1080P Screen5000mAh Powerful Battery 1.8m Drop Proof IP65 Sealing FunctionsUHF RFID (Impinj E310 Chip) Barcode Scanning (Optional) Fingerprint Recognition (Optional) NFC 13MP Autofocus Camera Dual-band WIFI
Fully Upgraded PerformanceVersatile Functions EnabledFeaturesAndroid 11 Cortex-A53 Octa-core 2.3GHzRAM+ROM: 3+32GB/4+64GB (Optional) 5.2'' IPS 1080P Screen5000mAh Powerful Battery 1.8m Drop Proof IP65 Sealing FunctionsUHF RFID (Impinj E310 Chip) Barcode Scanning (Optional) Fingerprint Recognition (Optional) NFC 13MP Autofocus Camera Dual-band WIFI
Exact model: C71
Product group: Mobile Computers
Complete manufacturer specifications in Specs
Available configurations shown in the product gallery
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
Chainway C71 Mobile Computers
Chainway C71 combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.
Fully Upgraded PerformanceVersatile Functions EnabledFeaturesAndroid 11 Cortex-A53 Octa-core 2.3GHzRAM+ROM: 3+32GB/4+64GB (Optional) 5.2'' IPS 1080P Screen5000mAh Powerful Battery 1.8m Drop Proof IP65 Sealing FunctionsUHF RFID (Impinj E310 Chip) Barcode Scanning (Optional) Fingerprint Recognition (Optional) NFC 13MP Autofocus Camera Dual-band WIFI
Configuration overview
The manufacturer data sheet lists Specification Performance CPU Cortex-A53 2.3 GHz Octa-core RAM+ROM 3 GB + 32 GB / 4 GB + 64 GB (optional) Expansion Supports up to 128 GB Micro SD card Android 11; GMS, FOTA, Soti MobiControl, SafeUEM supported. Operating System Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility Communication WLAN IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna 2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA: B1/B2/B4/B5/B8 CDMA2000 EVDO: BC0 WWAN TD-SCDMA: A/F 4G: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/B28B/ B34/B38/B39/B40/B41 Bluetooth Bluetooth 5.0 GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna Physical Characteristics Dimensions 164.2 x 78.8 x 17.0 mm / 6.46 x 3.1 x 0.67 in. (for standard version) Weight <288 g / 10.15 oz. (for standard version) Display 5.2'' IPS LTPS 1920×1080 Corning Gorilla Glass, multi-touch panel, gloves and wet hands Touch Panel supported Main battery: Li-ion, rechargeable, built-in 5000 mAh Standby: over 350 hours Power Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable) Expansion Slot 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card Interfaces USB 2.0 Type-C, OTG, TypeC headphones supported Sensors Light sensor, proximity sensor, gravity sensor Notification Sound, LED indicator, vibrator Audio 2 microphones, 1 for noise cancellation; 1 speaker; receiver Keypad 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key.
Wholesale purchasing information
For Chainway C71, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.

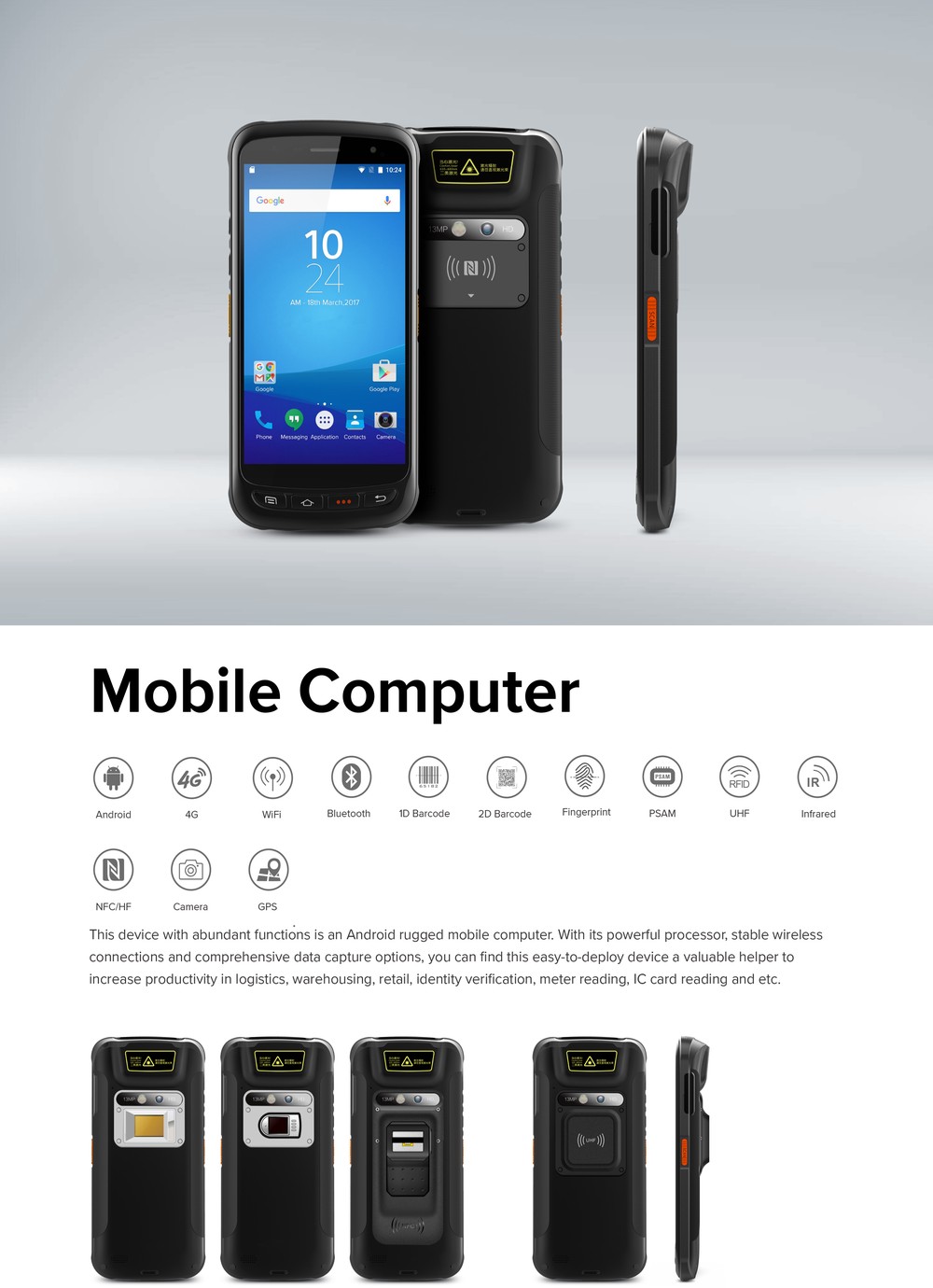

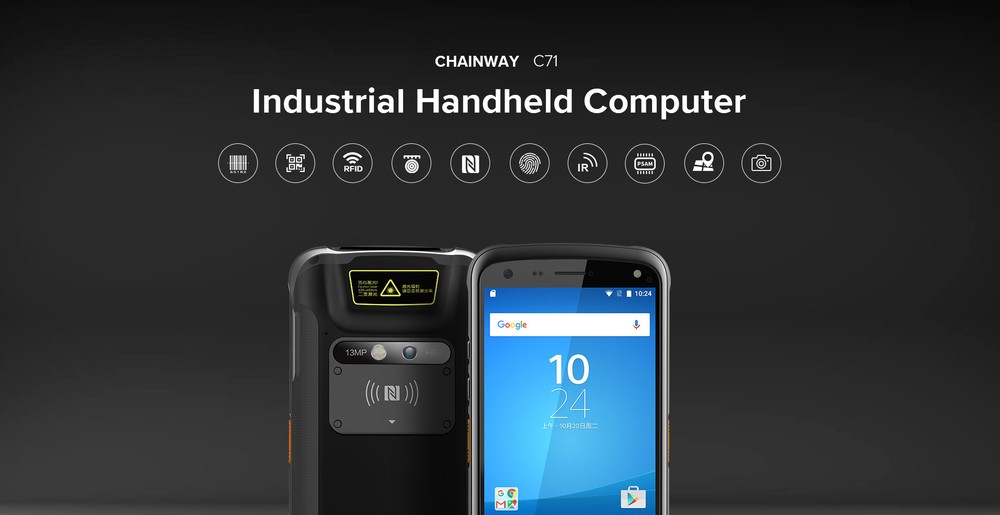

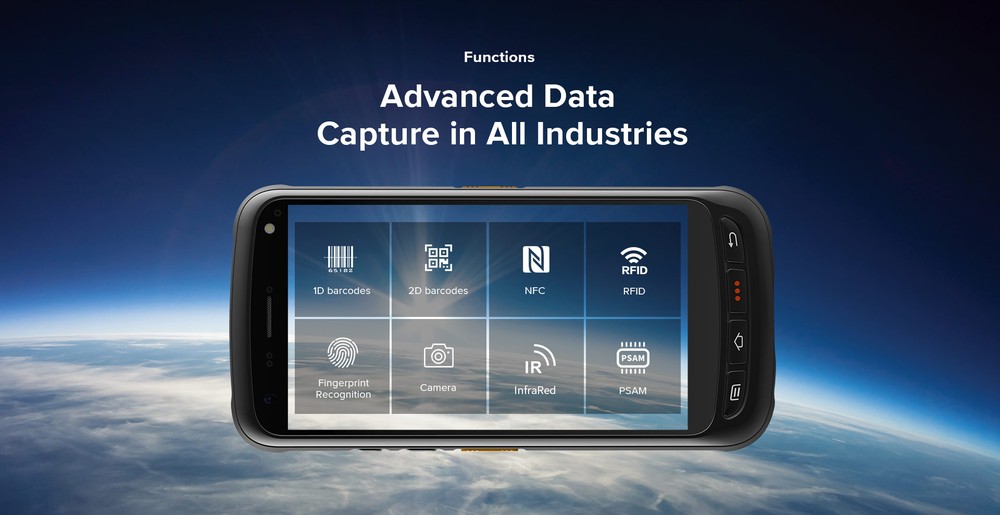

Manufacturer feature details

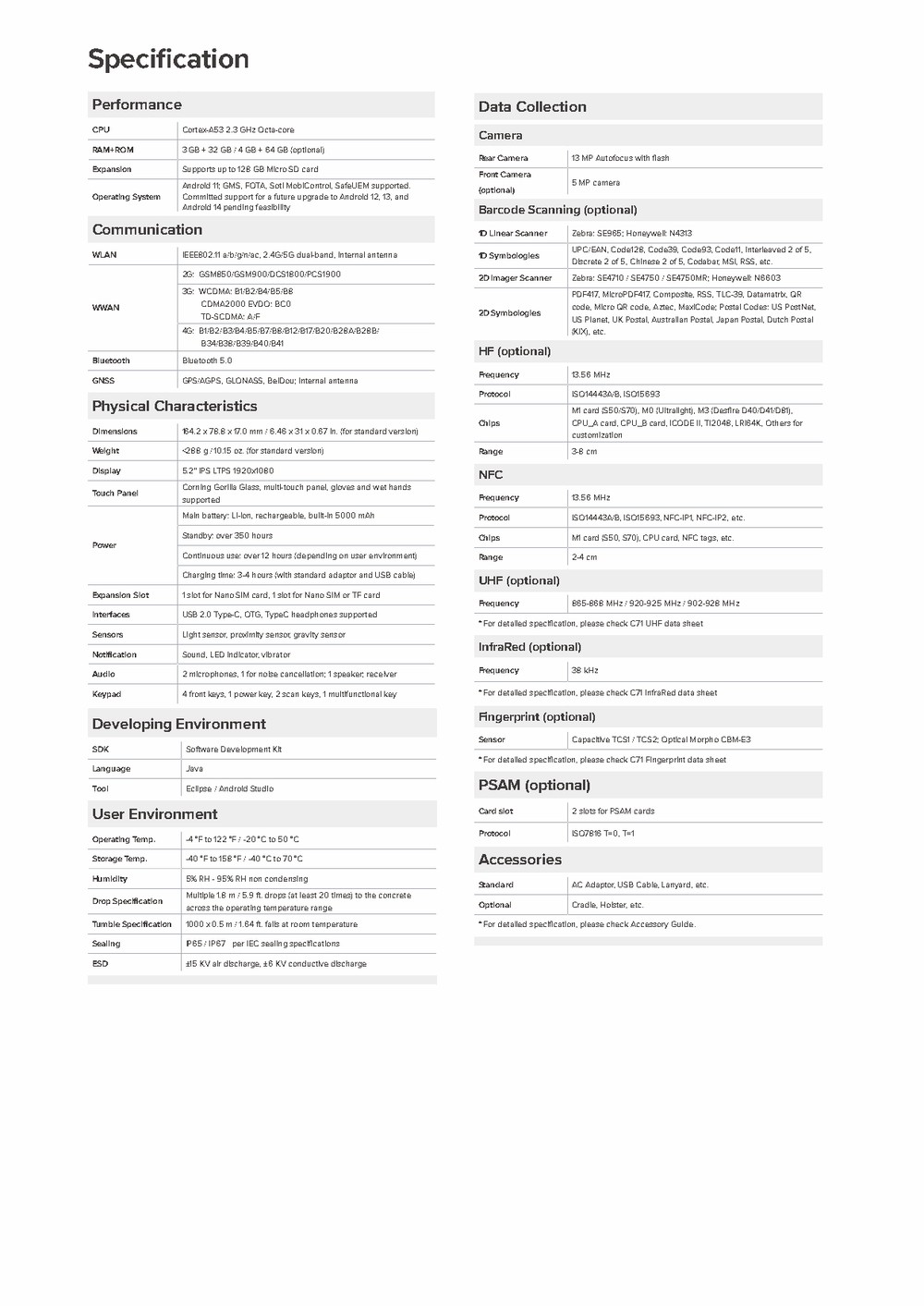

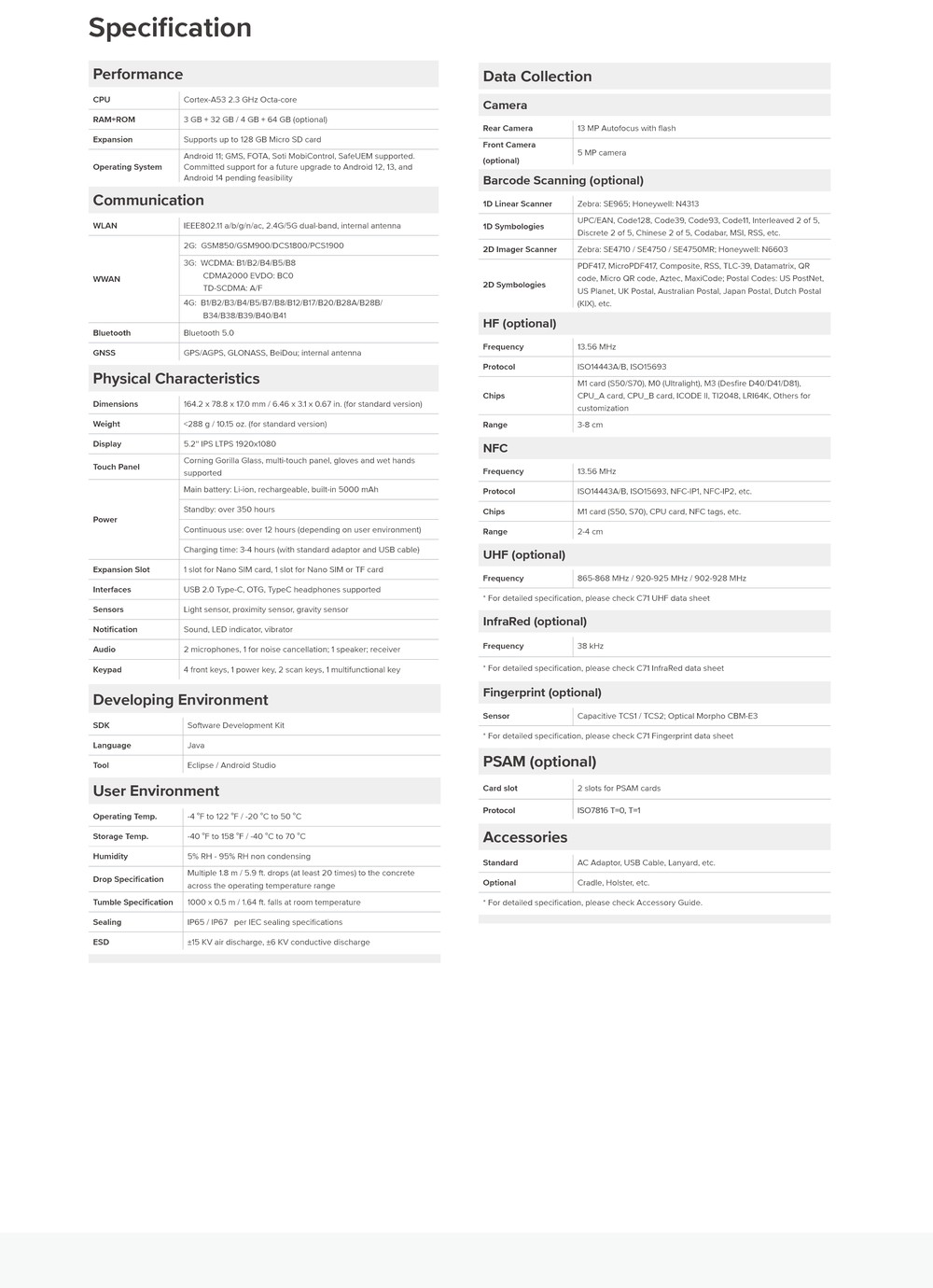

C71 DataSheet.pdf — Specifications (page 2)
Specification Performance CPU Cortex-A53 2.3 GHz Octa-core RAM+ROM 3 GB + 32 GB / 4 GB + 64 GB (optional) Expansion Supports up to 128 GB Micro SD card Android 11; GMS, FOTA, Soti MobiControl, SafeUEM supported. Operating System Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility Communication WLAN IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna 2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA: B1/B2/B4/B5/B8 CDMA2000 EVDO: BC0 WWAN TD-SCDMA: A/F 4G: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/B28B/ B34/B38/B39/B40/B41 Bluetooth Bluetooth 5.0 GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna Physical Characteristics Dimensions 164.2 x 78.8 x 17.0 mm / 6.46 x 3.1 x 0.67 in. (for standard version) Weight <288 g / 10.15 oz. (for standard version) Display 5.2'' IPS LTPS 1920x1080 Corning Gorilla Glass, multi-touch panel, gloves and wet hands Touch Panel supported Main battery: Li-ion, rechargeable, built-in 5000 mAh Standby: over 350 hours Power Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable) Expansion Slot 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card Interfaces USB 2.0 Type-C, OTG, TypeC headphones supported Sensors Light sensor, proximity sensor, gravity sensor Notification Sound, LED indicator, vibrator Audio 2 microphones, 1 for noise cancellation; 1 speaker; receiver Keypad 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key Developing Environment SDK Software Development Kit Language Java Tool Eclipse / Android Studio User Environment Operating Temp. -4 oF to 122 oF / -20 oC to 50 oC Storage Temp. -40 oF to 158 oF / -40 oC to 70 oC Humidity 5% RH - 95% RH non condensing Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete Drop Specification across the operating temperature range Tumble Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature Sealing IP65 / IP67 per IEC sealing specifications ESD ±15 KV air discharge, ±6 KV conductive discharge
Data Collection Camera Rear Camera 13 MP Autofocus with flash Front Camera 5 MP camera (optional) Barcode Scanning (optional) 1D Linear Scanner Zebra: SE965; Honeywell: N4313 UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, 1D Symbologies Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. 2D Imager Scanner Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603 PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, 2D Symbologies US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. HF (optional) Frequency 13.56 MHz Protocol ISO14443A/B, ISO15693 M1 card (S50/S70), M0 (Ultralight), M3 (Desfire D40/D41/D81), Chips CPU_A card, CPU_B card, ICODE II, TI2048, LRI64K, Others for customization Range 3-8 cm NFC Frequency 13.56 MHz Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. Chips M1 card (S50, S70), CPU card, NFC tags, etc. Range 2-4 cm UHF (optional) Frequency 865-868 MHz / 920-925 MHz / 902-928 MHz * For detailed specification, please check C71 UHF data sheet InfraRed (optional) Frequency 38 kHz * For detailed specification, please check C71 InfraRed data sheet Fingerprint (optional) Sensor Capacitive TCS1 / TCS2; Optical Morpho CBM-E3 * For detailed specification, please check C71 Fingerprint data sheet PSAM (optional) Card slot 2 slots for PSAM cards Protocol ISO7816 T=0, T=1 Accessories Standard AC Adaptor, USB Cable, Lanyard, etc. Optional Cradle, Holster, etc. * For detailed specification, please check Accessory Guide.

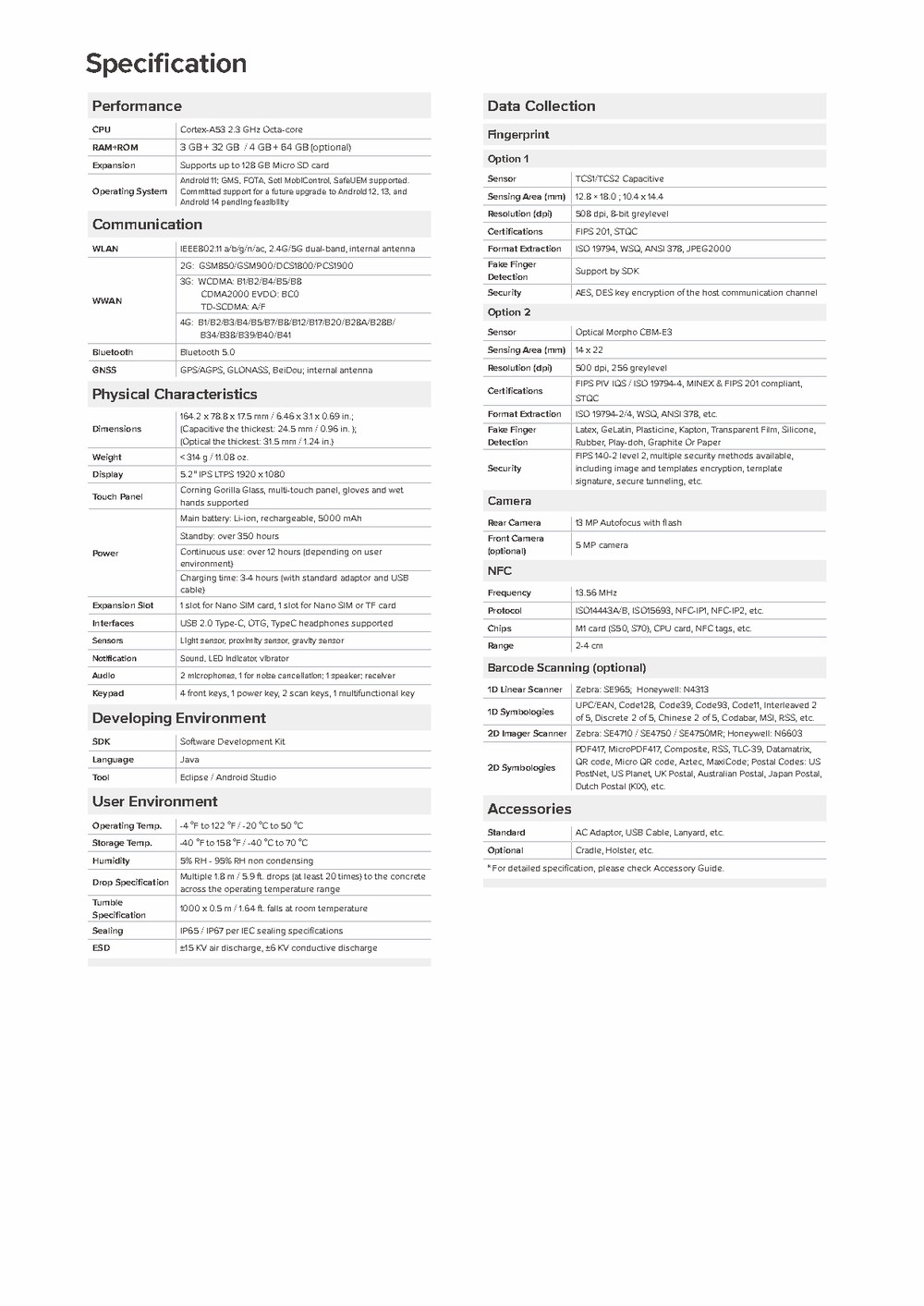

C71Fingerprint DataSheet.pdf — Specifications (page 2)
Specification Performance CPU Cortex-A53 2.3 GHz Octa-core RAM+ROM 3 GB + 32 GB / 4 GB + 64 GB (optional) Expansion Supports up to 128 GB Micro SD card Android 11; GMS, FOTA, Soti MobiControl, SafeUEM supported. Operating System Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility Communication WLAN IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna 2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA: B1/B2/B4/B5/B8 CDMA2000 EVDO: BC0 WWAN TD-SCDMA: A/F 4G: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/B28B/ B34/B38/B39/B40/B41 Bluetooth Bluetooth 5.0 GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna Physical Characteristics 164.2 x 78.8 x 17.5 mm / 6.46 x 3.1 x 0.69 in.; Dimensions (Capacitive the thickest: 24.5 mm / 0.96 in. ); (Optical the thickest: 31.5 mm / 1.24 in.) Weight < 314 g / 11.08 oz. Display 5.2'' IPS LTPS 1920 x 1080 Corning Gorilla Glass, multi-touch panel, gloves and wet Touch Panel hands supported Main battery: Li-ion, rechargeable, 5000 mAh Standby: over 350 hours Power Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable) Expansion Slot 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card Interfaces USB 2.0 Type-C, OTG, TypeC headphones supported Sensors Light sensor, proximity sensor, gravity sensor Notification Sound, LED indicator, vibrator Audio 2 microphones, 1 for noise cancellation; 1 speaker; receiver Keypad 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key Developing Environment SDK Software Development Kit Language Java Tool Eclipse / Android Studio User Environment Operating Temp. -4 oF to 122 oF / -20 oC to 50 oC Storage Temp. -40 oF to 158 oF / -40 oC to 70 oC Humidity 5% RH - 95% RH non condensing Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete Drop Specification across the operating temperature range Tumble 1000 x 0.5 m / 1.64 ft. falls at room temperature Specification Sealing IP65 / IP67 per IEC sealing specifications ESD ±15 KV air discharge, ±6 KV conductive discharge

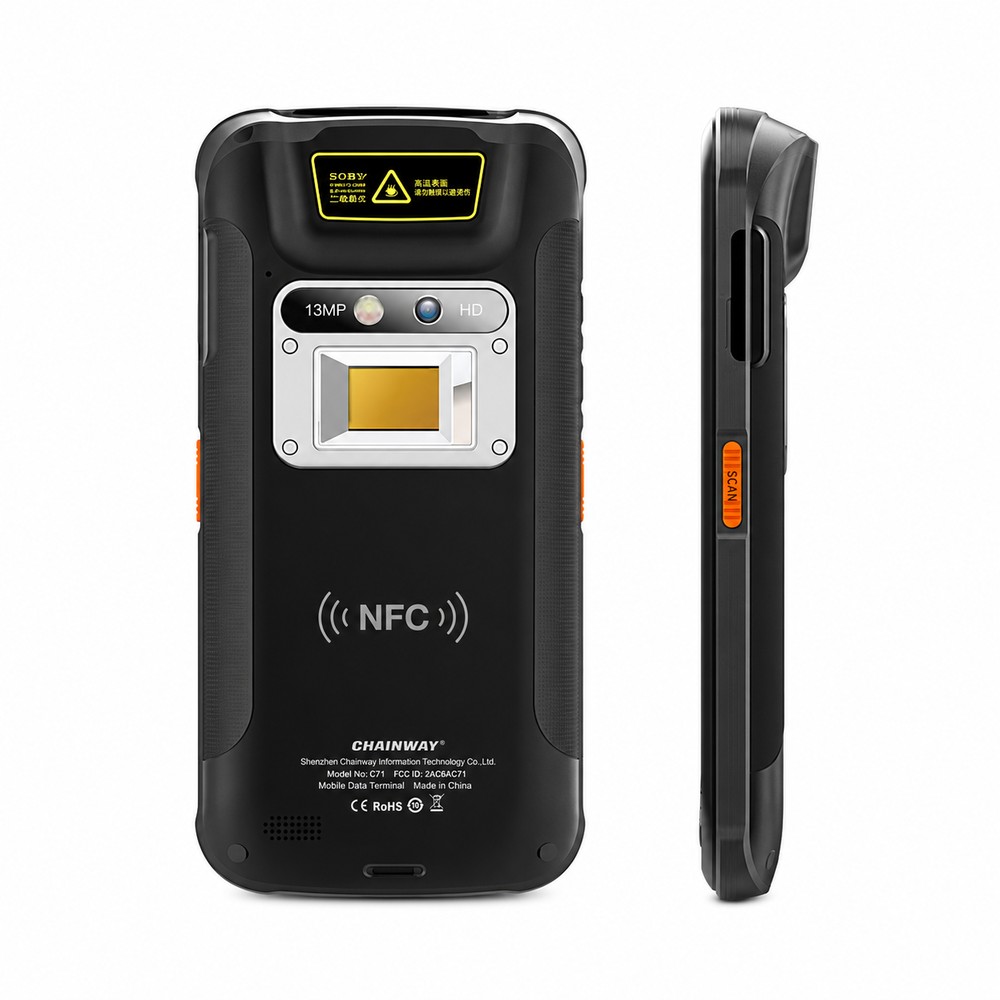

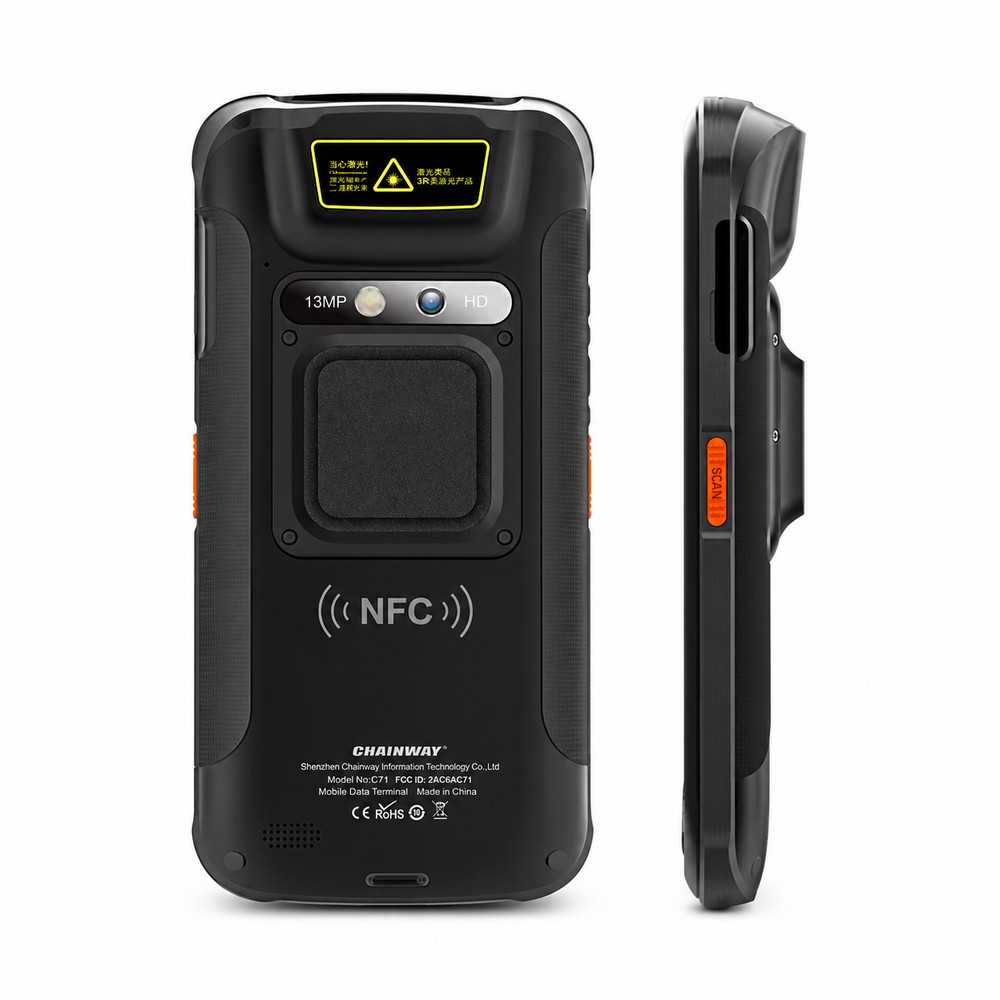

Data Collection Fingerprint Option 1 Sensor TCS1/TCS2 Capacitive Sensing Area (mm) 12.8 × 18.0 ; 10.4 x 14.4 Resolution (dpi) 508 dpi, 8-bit greylevel Certifications FIPS 201, STQC Format Extraction ISO 19794, WSQ, ANSI 378, JPEG2000 Fake Finger Support by SDK Detection Security AES, DES key encryption of the host communication channel Option 2 Sensor Optical Morpho CBM-E3 Sensing Area (mm) 14 x 22 Resolution (dpi) 500 dpi, 256 greylevel FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201 compliant, Certifications STQC Format Extraction ISO 19794-2/4, WSQ, ANSI 378, etc. Fake Finger Latex, GeLatin, Plasticine, Kapton, Transparent Film, Silicone, Detection Rubber, Play-doh, Graphite Or Paper FIPS 140-2 level 2, multiple security methods available, Security including image and templates encryption, template signature, secure tunneling, etc. Camera Rear Camera 13 MP Autofocus with flash Front Camera 5 MP camera (optional) NFC Frequency 13.56 MHz Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. Chips M1 card (S50, S70), CPU card, NFC tags, etc. Range 2-4 cm Barcode Scanning (optional) 1D Linear Scanner Zebra: SE965; Honeywell: N4313 UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 1D Symbologies of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. 2D Imager Scanner Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603 PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US 2D Symbologies PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. Accessories Standard AC Adaptor, USB Cable, Lanyard, etc. Optional Cradle, Holster, etc. * For detailed specification, please check Accessory Guide.

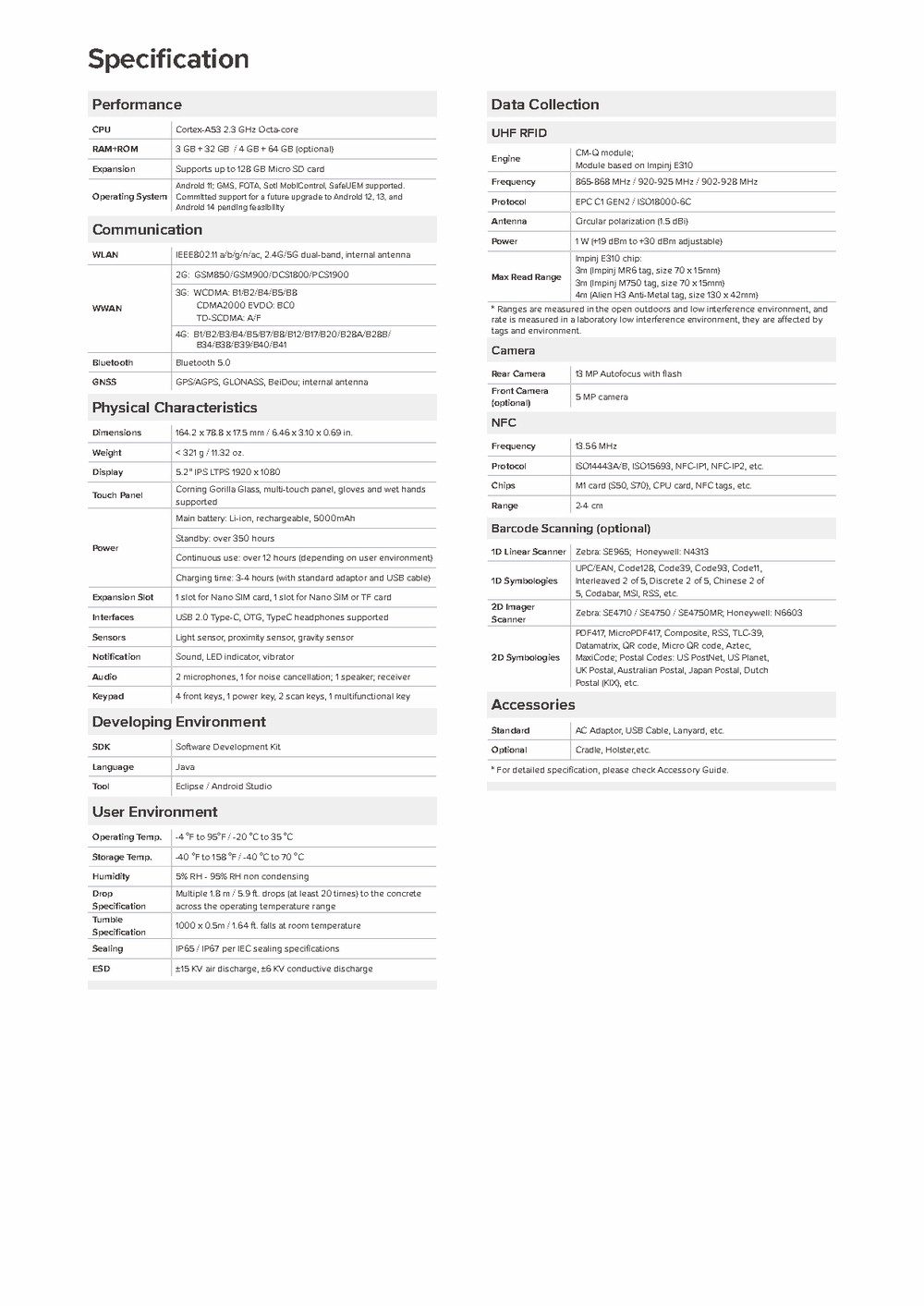

C71InternalUHF DataSheet.pdf — Specifications (page 2)
Specification Performance CPU Cortex-A53 2.3 GHz Octa-core RAM+ROM 3 GB + 32 GB / 4 GB + 64 GB (optional) Expansion Supports up to 128 GB Micro SD card Android 11; GMS, FOTA, Soti MobiControl, SafeUEM supported. Operating System Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility Communication WLAN IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna 2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA: B1/B2/B4/B5/B8 CDMA2000 EVDO: BC0 WWAN TD-SCDMA: A/F 4G: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/B28B/ B34/B38/B39/B40/B41 Bluetooth Bluetooth 5.0 GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna Physical Characteristics Dimensions 164.2 x 78.8 x 17.5 mm / 6.46 x 3.10 x 0.69 in. Weight < 321 g / 11.32 oz. Display 5.2'' IPS LTPS 1920 x 1080 Corning Gorilla Glass, multi-touch panel, gloves and wet hands Touch Panel supported Main battery: Li-ion, rechargeable, 5000mAh Standby: over 350 hours Power Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable) Expansion Slot 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card Interfaces USB 2.0 Type-C, OTG, TypeC headphones supported Sensors Light sensor, proximity sensor, gravity sensor Notification Sound, LED indicator, vibrator Audio 2 microphones, 1 for noise cancellation; 1 speaker; receiver Keypad 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key Developing Environment SDK Software Development Kit Language Java Tool Eclipse / Android Studio User Environment Operating Temp. -4 oF to 95oF / -20 oC to 35 oC Storage Temp. -40 oF to 158 oF / -40 oC to 70 oC Humidity 5% RH - 95% RH non condensing Drop Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete Specification across the operating temperature range Tumble 1000 x 0.5m / 1.64 ft. falls at room temperature Specification Sealing IP65 / IP67 per IEC sealing specifications ESD ±15 KV air discharge, ±6 KV conductive discharge
Data Collection UHF RFID CM-Q module; Engine Module based on Impinj E310 Frequency 865-868 MHz / 920-925 MHz / 902-928 MHz Protocol EPC C1 GEN2 / ISO18000-6C Antenna Circular polarization (1.5 dBi) Power 1 W (+19 dBm to +30 dBm adjustable) Impinj E310 chip: 3m (Impinj MR6 tag, size 70 x 15mm) Max Read Range 3m (Impinj M750 tag, size 70 x 15mm) 4m (Alien H3 Anti-Metal tag, size 130 x 42mm) * Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment. Camera Rear Camera 13 MP Autofocus with flash Front Camera 5 MP camera (optional) NFC Frequency 13.56 MHz Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. Chips M1 card (S50, S70), CPU card, NFC tags, etc. Range 2-4 cm Barcode Scanning (optional) 1D Linear Scanner Zebra: SE965; Honeywell: N4313 UPC/EAN, Code128, Code39, Code93, Code11, 1D Symbologies Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. 2D Imager Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603 Scanner PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, 2D Symbologies MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. Accessories Standard AC Adaptor, USB Cable, Lanyard, etc. Optional Cradle, Holster,etc. * For detailed specification, please check Accessory Guide.
