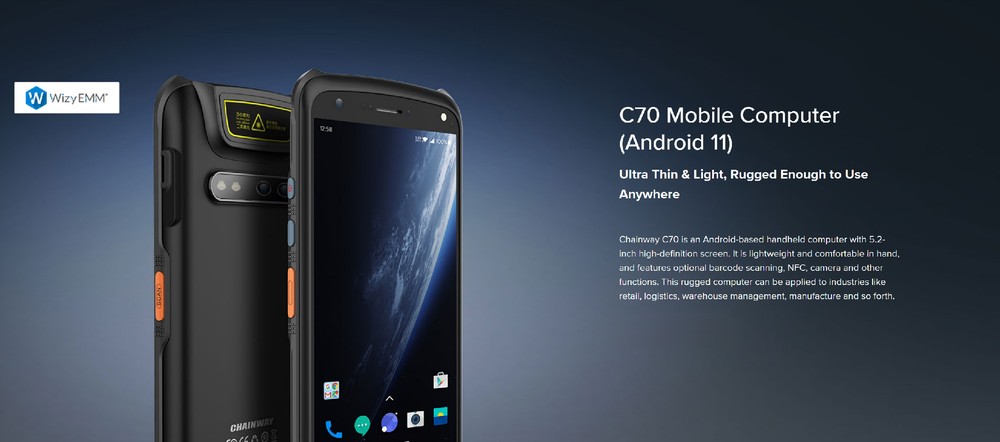

Rugged Enough to Use AnywhereFeaturesAndroid 11 5.2'' IPS 1080P Screen IP65/IP674000mAh Powerful Battery 1.8m Drop ProofFunctionsBarcode Scanning (Optional) NFC13MP Autofocus Camera Accurate GPSDual-band WIFI
Rugged Enough to Use AnywhereFeaturesAndroid 11 5.2'' IPS 1080P Screen IP65/IP674000mAh Powerful Battery 1.8m Drop ProofFunctionsBarcode Scanning (Optional) NFC13MP Autofocus Camera Accurate GPSDual-band WIFI
Exact model: C70
Product group: Mobile Computers
Complete manufacturer specifications in Specs

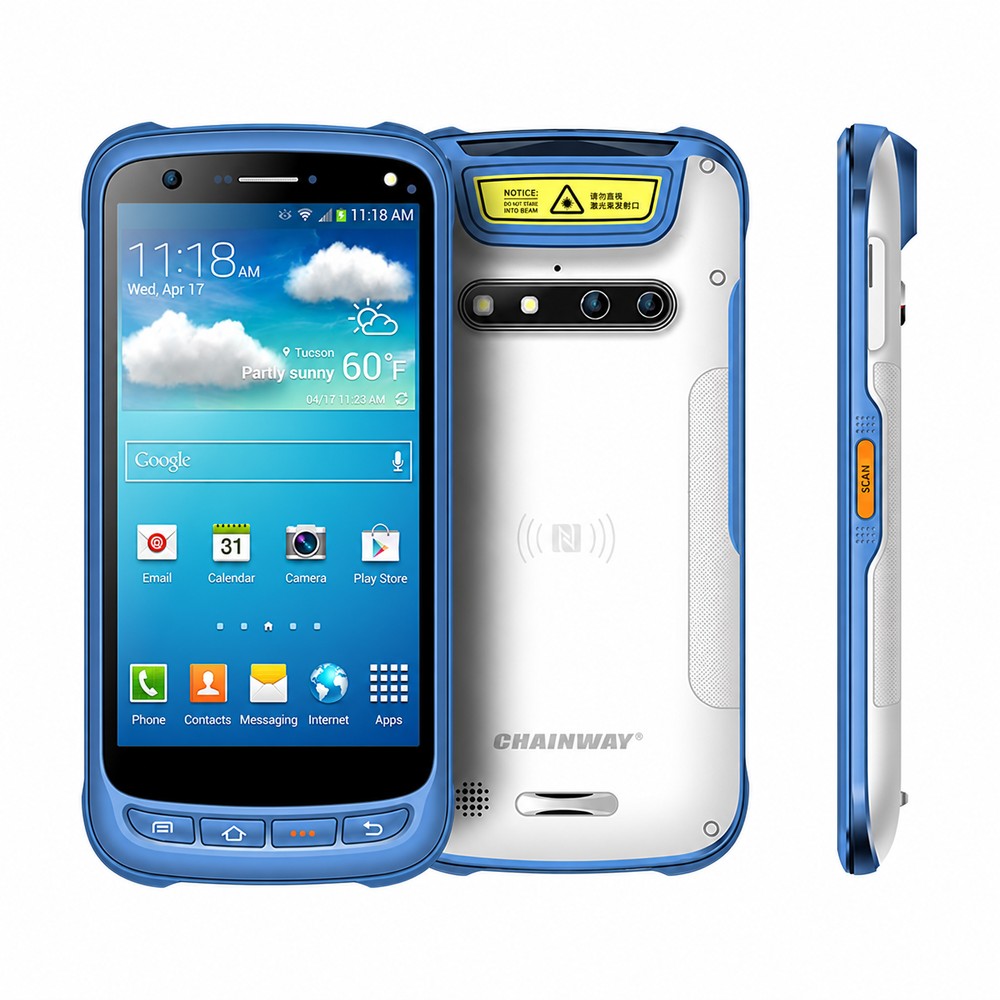

Available configurations shown in the product gallery
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

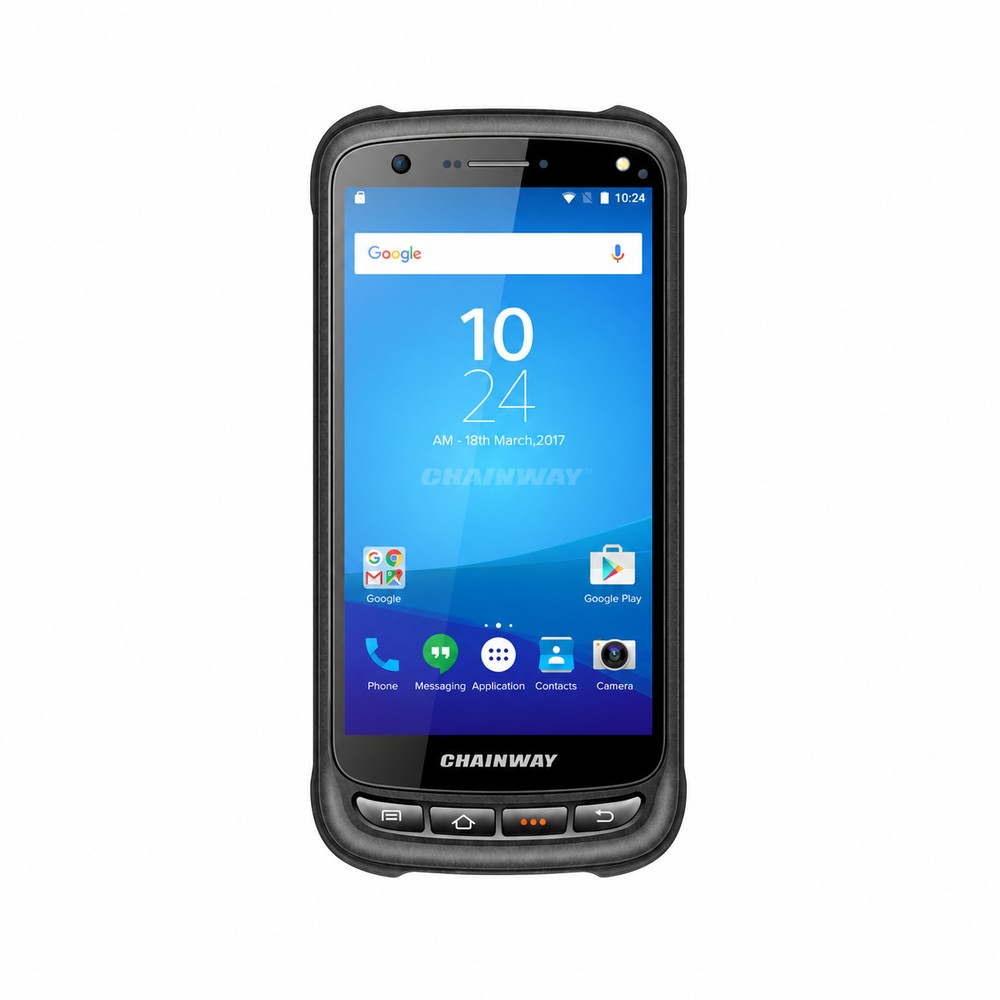

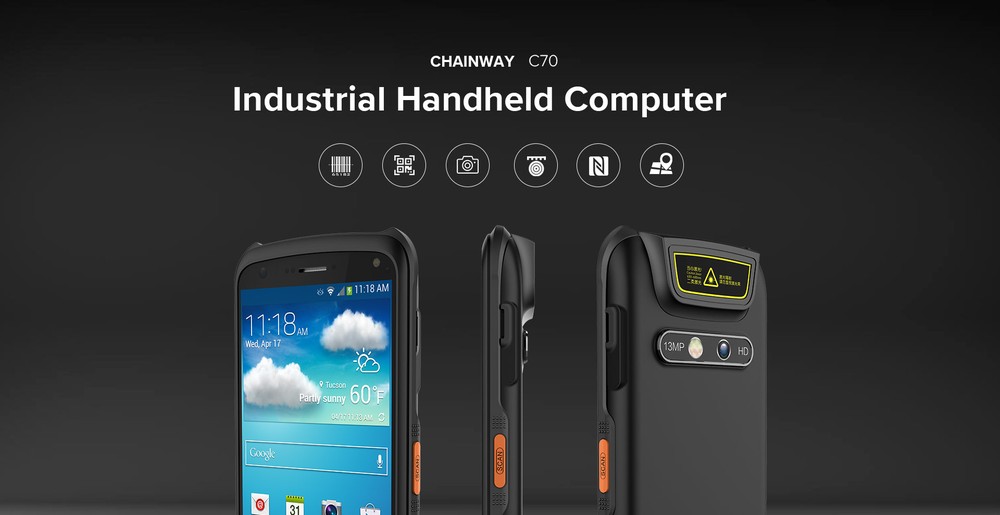

Chainway C70 Mobile Computers
Chainway C70 combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.
Rugged Enough to Use AnywhereFeaturesAndroid 11 5.2'' IPS 1080P Screen IP65/IP674000mAh Powerful Battery 1.8m Drop ProofFunctionsBarcode Scanning (Optional) NFC13MP Autofocus Camera Accurate GPSDual-band WIFI
Configuration overview

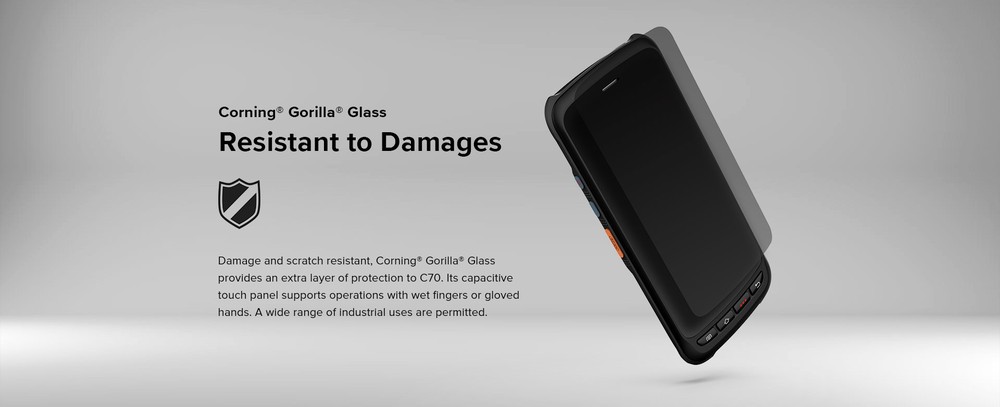

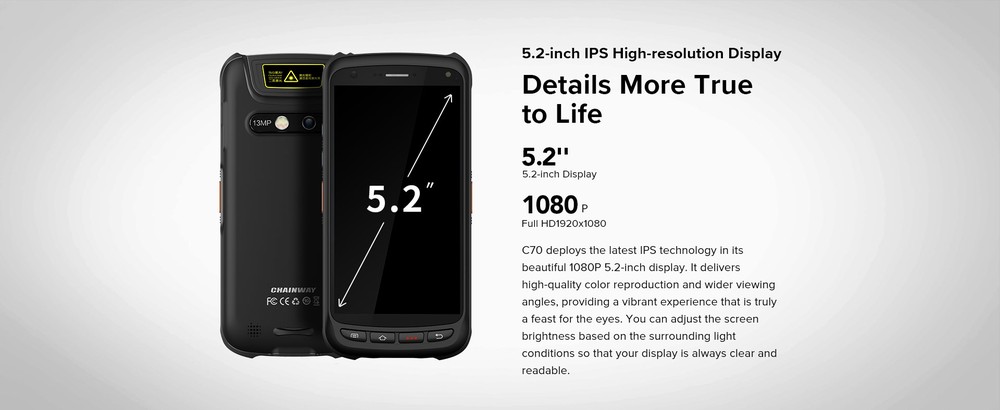

The manufacturer data sheet lists Specification Physical Characteristics Dimensions 163.8 x 79.2 x 13.8 mm / 6.45 x 3.12 x 0.54 in. Weight 242 g / 8.5 oz. Display 5.2'' IPS LTPS 1920 x 1080 Corning Gorilla Glass, multi-touch panel, gloves and wet Touch Panel hands supported Main battery: Li-ion, rechargeable, 4000mAh Standby: over 300 hours Power Continuous use: over 12 hours (depending on user environment) Charging time: 2-3 hours (with standard adaptor and USB cable) Expansion Slot 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card Interfaces USB2.0 Type-C, OTG Sensors Light sensor, proximity sensor, gravity sensor Notification Sound, LED indicator, vibrator Audio 2 microphones, 1 for noise cancellation; 1 speaker; receiver Keypad 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key Performance CPU Cortex-A53 2.3 GHz Octa-core RAM+ROM 3 GB + 32 GB / 4 GB + 64 GB Expansion Supports up to 128 GB Micro SD card Communication WLAN IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna 2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA: B1/B2/B4/B5/B8 CDMA2000 EVDO: BC0 WWAN TD-SCDMA: A/F 4G: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/ B28B/B34/B38/B39/B40/B41 Bluetooth Bluetooth 5.0 GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna Developing Environment Android 11; SafeUEM supported. Committed support Operating System for a future upgrade to Android 12, 13, and Android 14 pending feasibility SDK Software Development Kit Language Java Tool Eclipse / Android Studio Accessories(See details.
Wholesale purchasing information
For Chainway C70, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.

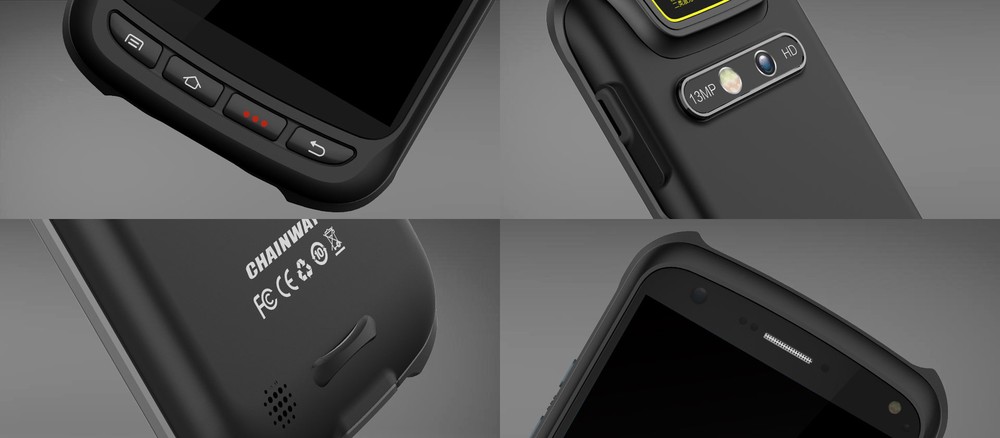

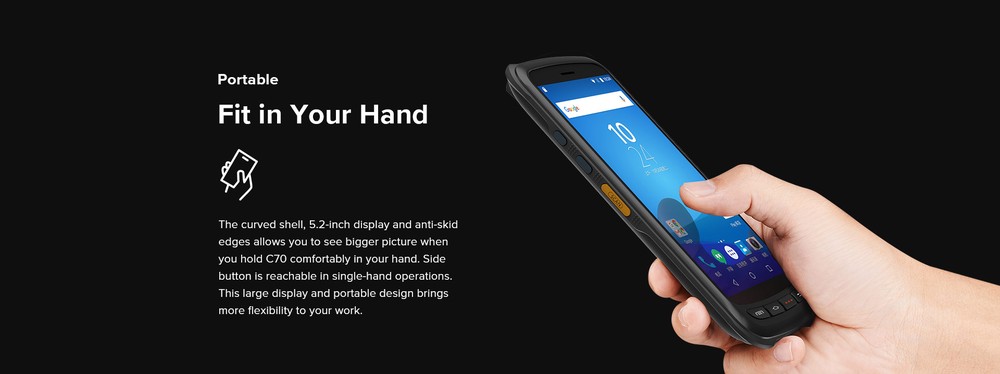

Manufacturer feature details

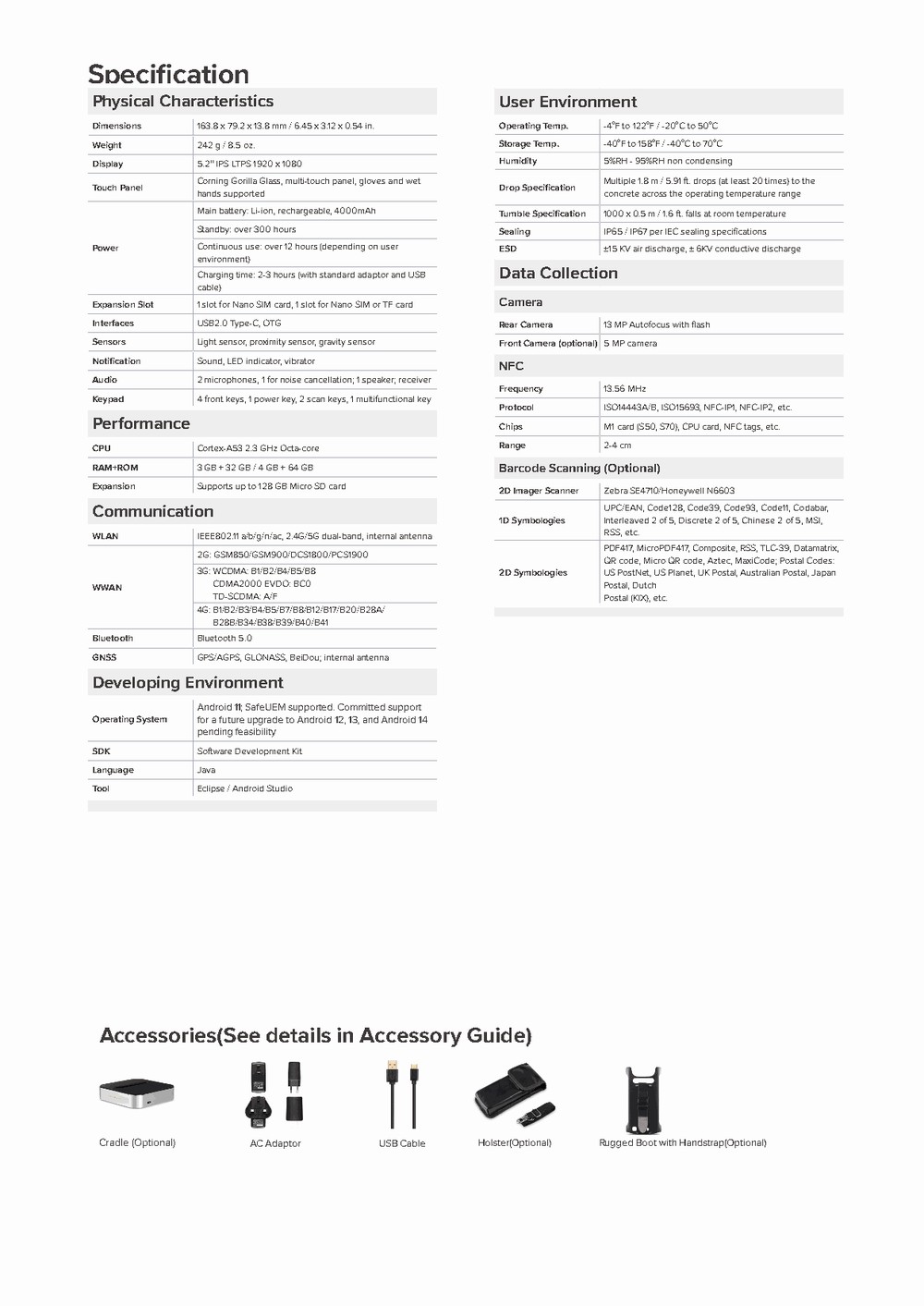

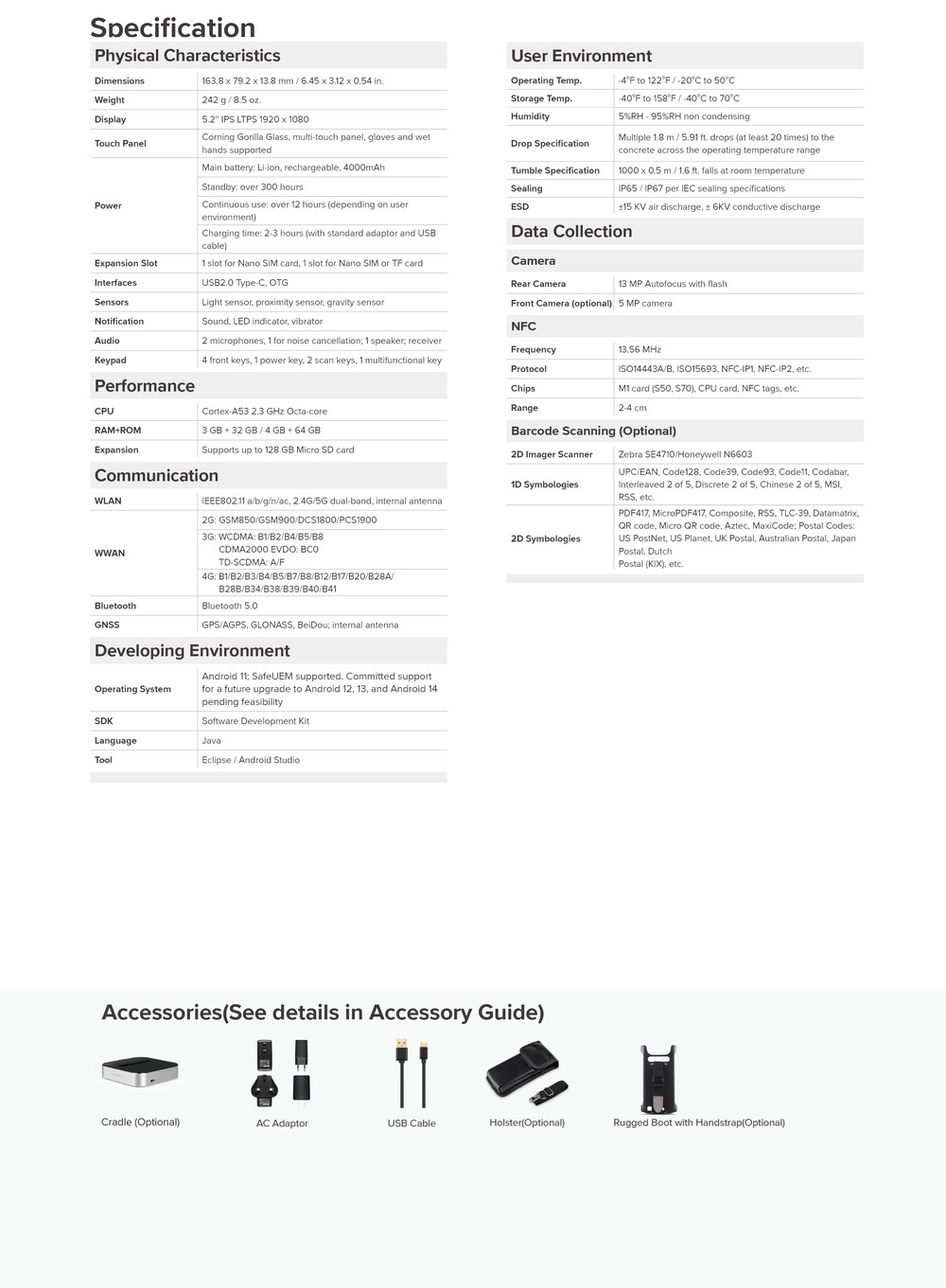

C70+(without+logo)-EN+(20221202).pdf — Specifications (page 2)
Specification Physical Characteristics Dimensions 163.8 x 79.2 x 13.8 mm / 6.45 x 3.12 x 0.54 in. Weight 242 g / 8.5 oz. Display 5.2'' IPS LTPS 1920 x 1080 Corning Gorilla Glass, multi-touch panel, gloves and wet Touch Panel hands supported Main battery: Li-ion, rechargeable, 4000mAh Standby: over 300 hours Power Continuous use: over 12 hours (depending on user environment) Charging time: 2-3 hours (with standard adaptor and USB cable) Expansion Slot 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card Interfaces USB2.0 Type-C, OTG Sensors Light sensor, proximity sensor, gravity sensor Notification Sound, LED indicator, vibrator Audio 2 microphones, 1 for noise cancellation; 1 speaker; receiver Keypad 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key Performance CPU Cortex-A53 2.3 GHz Octa-core RAM+ROM 3 GB + 32 GB / 4 GB + 64 GB Expansion Supports up to 128 GB Micro SD card Communication WLAN IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna 2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA: B1/B2/B4/B5/B8 CDMA2000 EVDO: BC0 WWAN TD-SCDMA: A/F 4G: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/ B28B/B34/B38/B39/B40/B41 Bluetooth Bluetooth 5.0 GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna Developing Environment Android 11; SafeUEM supported. Committed support Operating System for a future upgrade to Android 12, 13, and Android 14 pending feasibility SDK Software Development Kit Language Java Tool Eclipse / Android Studio Accessories(See details in Accessory Cradle (Optional) AC Adaptor USB Cable

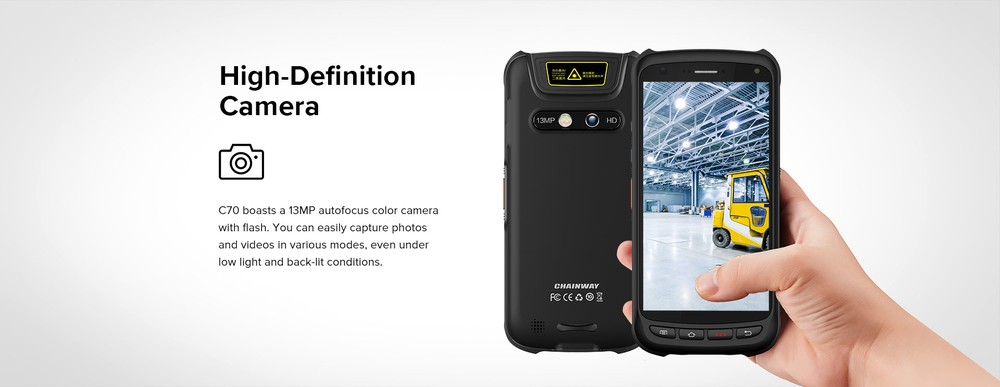

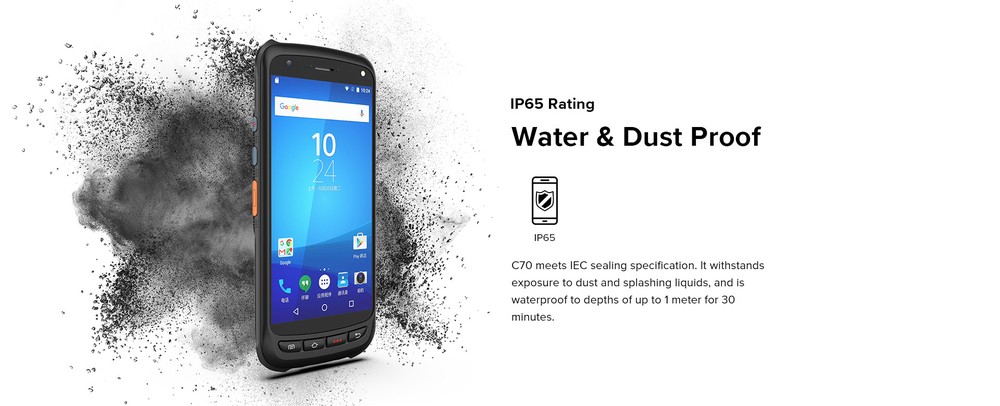

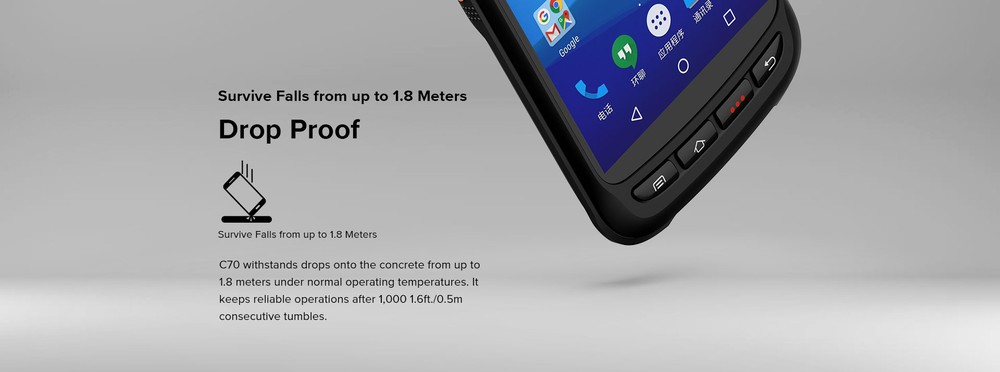

User Environment Operating Temp. -4oF to 122oF / -20oC to 50oC Storage Temp. -40oF to 158oF / -40oC to 70oC Humidity 5%RH - 95%RH non condensing Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the Drop Specification concrete across the operating temperature range Tumble Specification 1000 x 0.5 m / 1.6 ft. falls at room temperature Sealing IP65 / IP67 per IEC sealing specifications ESD ±15 KV air discharge, ± 6KV conductive discharge Data Collection Camera Rear Camera 13 MP Autofocus with flash Front Camera (optional) 5 MP camera NFC Frequency 13.56 MHz Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. Chips M1 card (S50, S70), CPU card, NFC tags, etc. Range 2-4 cm Barcode Scanning (Optional) 2D Imager Scanner Zebra SE4710/Honeywell N6603 UPC/EAN, Code128, Code39, Code93, Code11, Codabar, 1D Symbologies Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSS, etc. PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: 2D Symbologies US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. Guide) Holster(Optional) Rugged Boot with Handstrap(Optional)
