Chainway C66 Mobile Computers

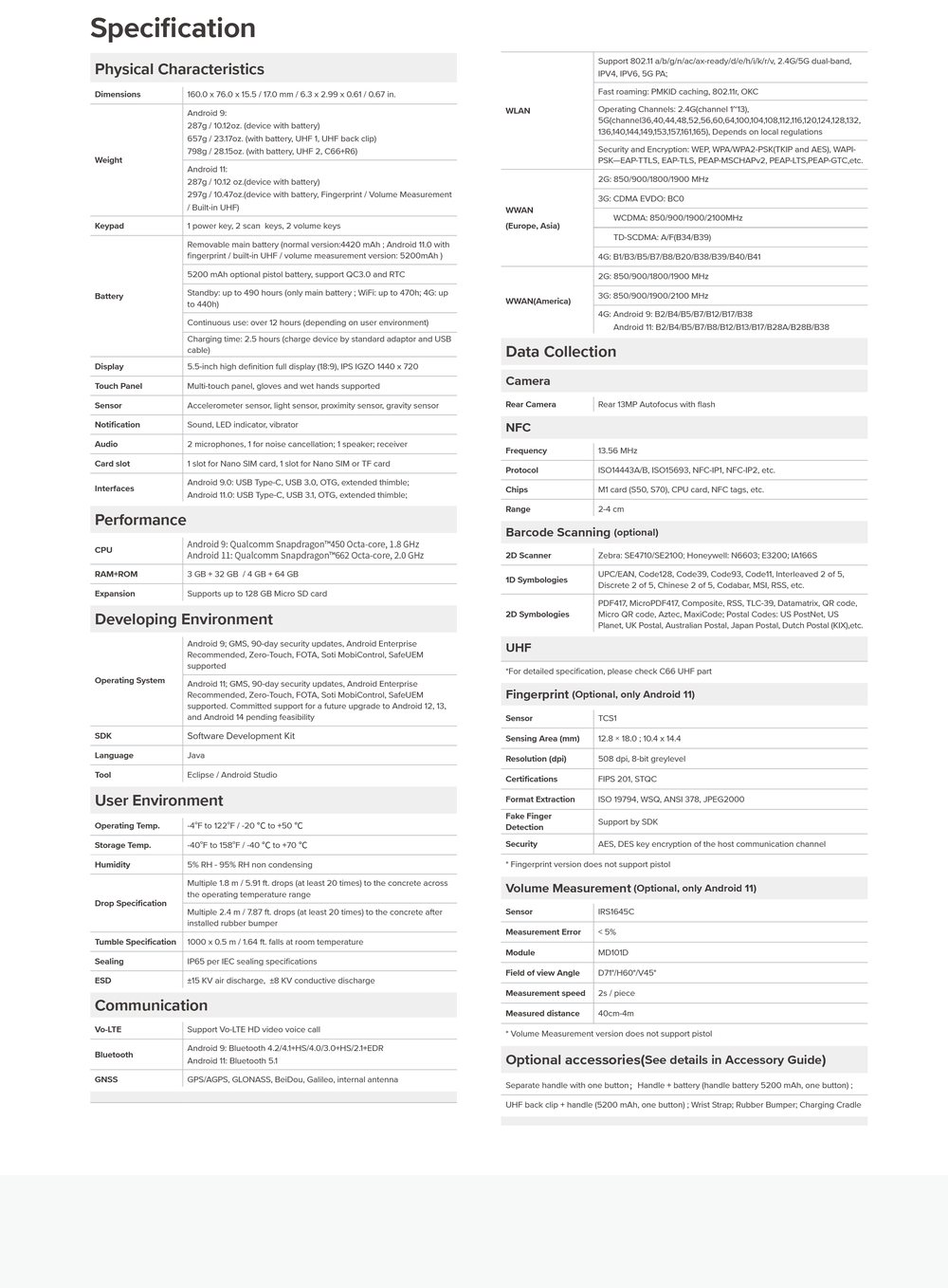

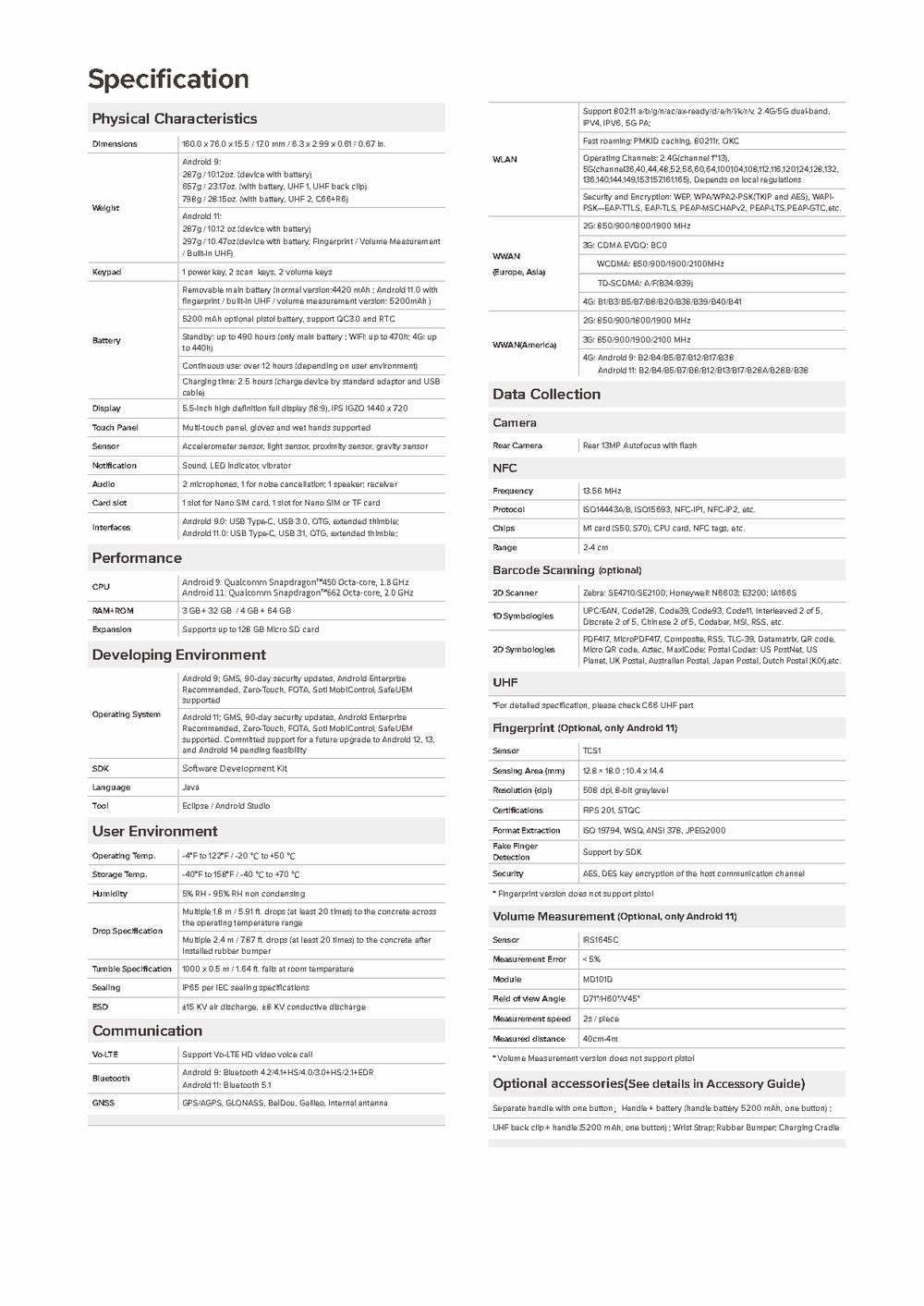

Specification
Physical Characteristics
Dimensions 160.0 x 76.0 x 15.5 / 17.0 mm / 6.3 x 2.99 x 0.61 / 0.67 in.
Android 9:
287g / 10.12oz. (device with battery)
657g / 23.17oz. (with battery, UHF 1, UHF back clip)
798g / 28.15oz. (with battery, UHF 2, C66+R6)
Weight
Android 11:
287g / 10.12 oz.(device with battery)
297g / 10.47oz.(device with battery, Fingerprint / Volume Measurement
/ Built-in UHF)

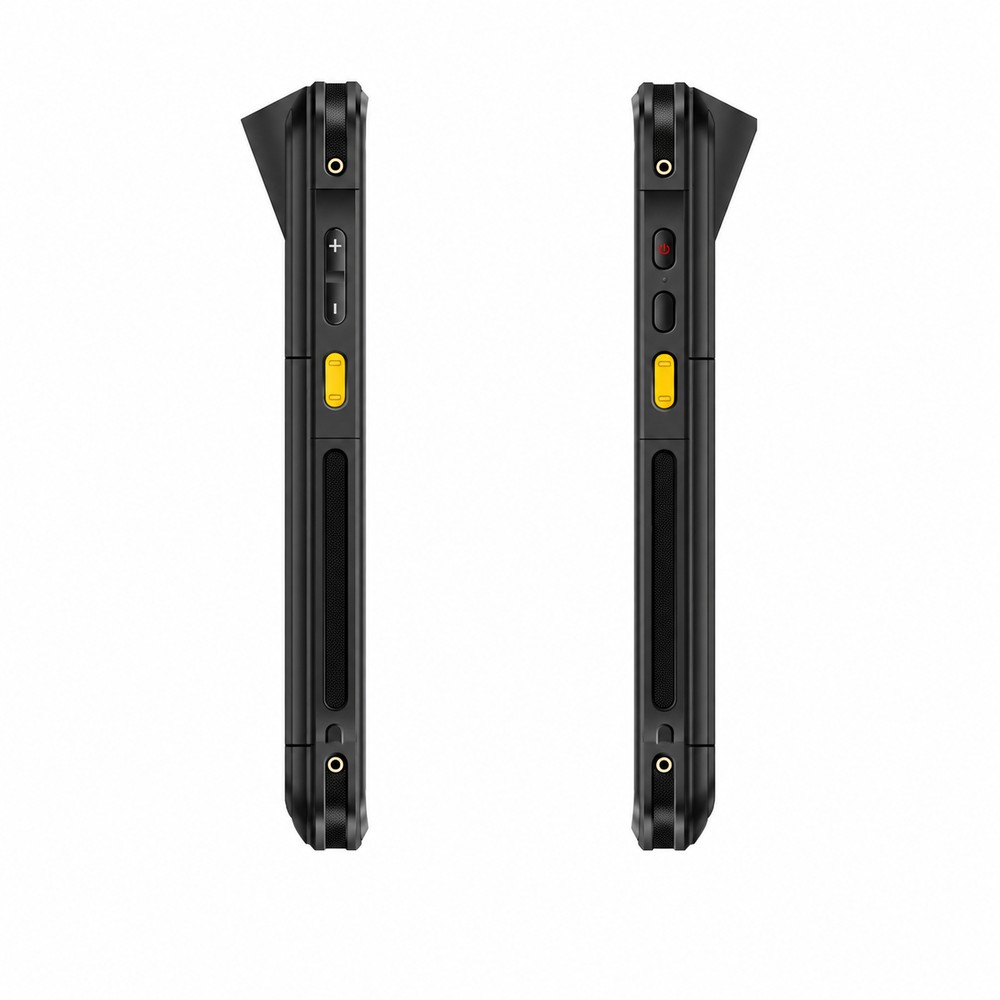

Keypad 1 power key, 2 scan keys, 2 volume keys
Removable main battery (normal version:4420 mAh ; Android 11.0 with
fingerprint / built-in UHF / volume measurement version: 5200mAh )
5200 mAh optional pistol battery, support QC3.0 and RTC
Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up
Battery
to 440h)
Continuous use: over 12 hours (depending on user environment)
Charging time: 2.5 hours (charge device by standard adaptor and USB
cable)

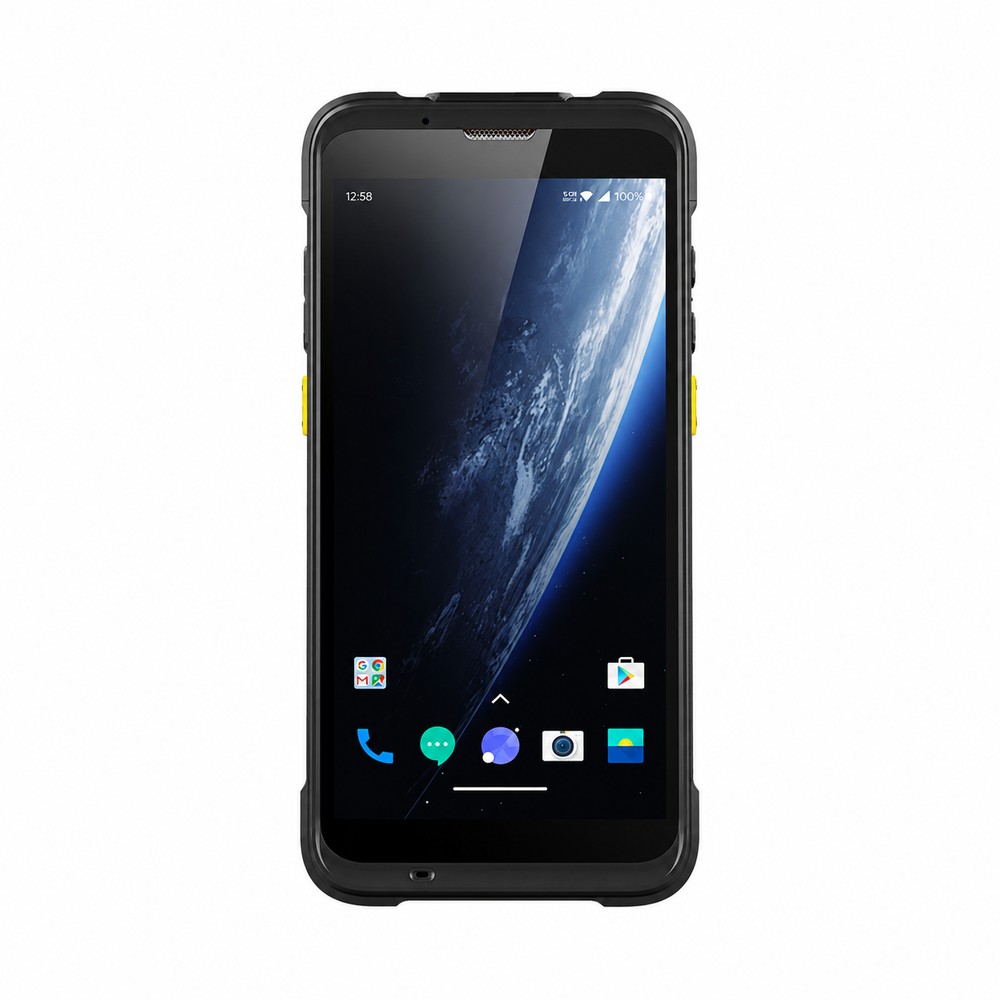

Display 5.5-inch high definition full display (18:9), IPS IGZO 1440 x 720
Touch Panel Multi-touch panel, gloves and wet hands supported
Sensor Accelerometer sensor, light sensor, proximity sensor, gravity sensor
Notification Sound, LED indicator, vibrator
Audio 2 microphones, 1 for noise cancellation; 1 speaker; receiver
Card slot 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card

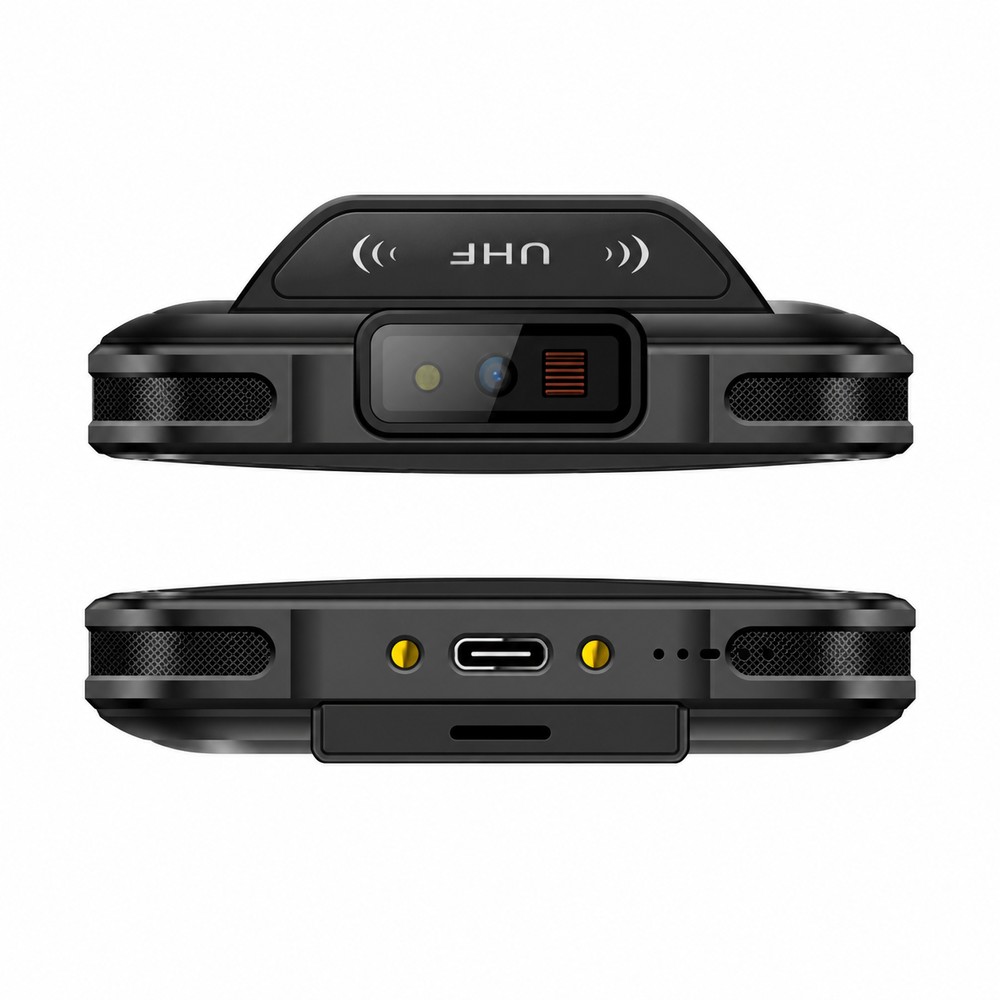

Android 9.0: USB Type-C, USB 3.0, OTG, extended thimble;
Interfaces
Android 11.0: USB Type-C, USB 3.1, OTG, extended thimble;
Performance
CPU Android 9: Qualcomm Snapdragon™450 Octa-core, 1.8 GHz
Android 11: Qualcomm Snapdragon™662 Octa-core, 2.0 GHz
RAM+ROM 3 GB + 32 GB / 4 GB + 64 GB
Expansion Supports up to 128 GB Micro SD card
Developing Environment
Android 9; GMS, 90-day security updates, Android Enterprise
Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM
supported
Operating System Android 11; GMS, 90-day security updates, Android Enterprise
Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM
supported. Committed support for a future upgrade to Android 12, 13,
and Android 14 pending feasibility
SDK Software Development Kit
Language Java
Tool Eclipse / Android Studio
User Environment
Operating Temp. -4oF to 122oF / -20 to +50
℃ ℃
Storage Temp. -40oF to 158oF / -40 to +70
℃ ℃
Humidity 5% RH - 95% RH non condensing
Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across
the operating temperature range
Drop Specification
Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after
installed rubber bumper
Tumble Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing IP65 per IEC sealing specifications
ESD ±15 KV air discharge, ±8 KV conductive discharge
Communication
Vo-LTE Support Vo-LTE HD video voice call
Android 9: Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR
Bluetooth
Android 11: Bluetooth 5.1
GNSS GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna

Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band,
IPV4, IPV6, 5G PA;
Fast roaming: PMKID caching, 802.11r, OKC
WLAN Operating Channels: 2.4G(channel 1~13),
5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132,
136,140,144,149,153,157,161,165), Depends on local regulations
Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-
PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc.
2G: 850/900/1800/1900 MHz
3G: CDMA EVDO: BC0
WWAN
WCDMA: 850/900/1900/2100MHz
(Europe, Asia)
TD-SCDMA: A/F(B34/B39)
4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41
2G: 850/900/1800/1900 MHz
3G: 850/900/1900/2100 MHz
WWAN(America)
4G: Android 9: B2/B4/B5/B7/B12/B17/B38
Android 11: B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38
Data Collection
Camera
Rear Camera Rear 13MP Autofocus with flash
NFC
Frequency 13.56 MHz
Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips M1 card (S50, S70), CPU card, NFC tags, etc.
Range 2-4 cm
Barcode Scanning (optional)
2D Scanner Zebra: SE4710/SE2100; Honeywell: N6603; E3200; IA166S
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5,
1D Symbologies
Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code,
2D Symbologies Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US
Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
UHF
*For detailed specification, please check C66 UHF part
Fingerprint (Optional, only Android 11)
Sensor TCS1
Sensing Area (mm) 12.8 × 18.0 ; 10.4 x 14.4
Resolution (dpi) 508 dpi, 8-bit greylevel
Certifications FIPS 201, STQC
Format Extraction ISO 19794, WSQ, ANSI 378, JPEG2000
Fake Finger
Support by SDK
Detection
Security AES, DES key encryption of the host communication channel
* Fingerprint version does not support pistol
Volume Measurement (Optional, only Android 11)
Sensor IRS1645C
Measurement Error < 5%
Module MD101D
Field of view Angle D71°/H60°/V45°
Measurement speed 2s / piece
Measured distance 40cm-4m
* Volume Measurement version does not support pistol
Optional accessories(See details in Accessory Guide)
Separate handle with one button；Handle + battery (handle battery 5200 mAh, one button) ;
UHF back clip + handle (5200 mAh, one button) ; Wrist Strap; Rubber Bumper; Charging Cradle

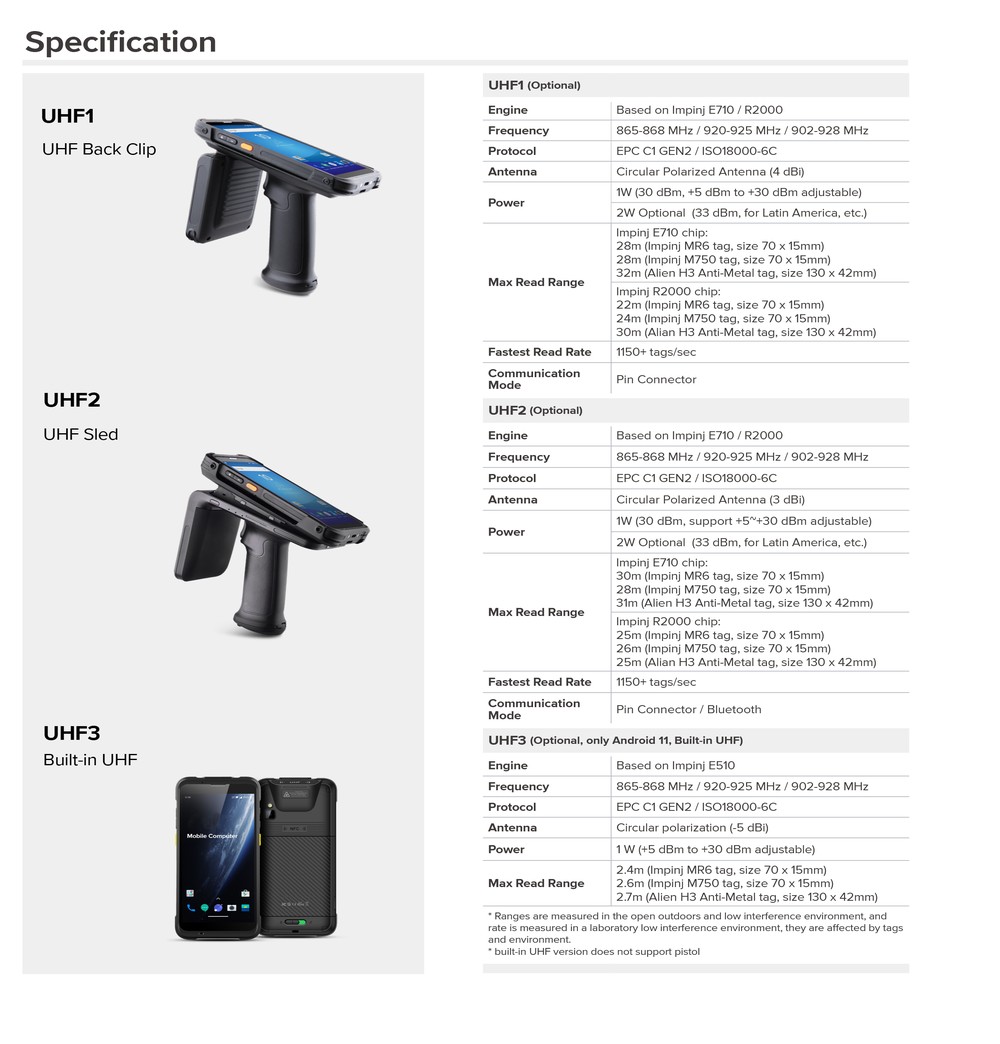

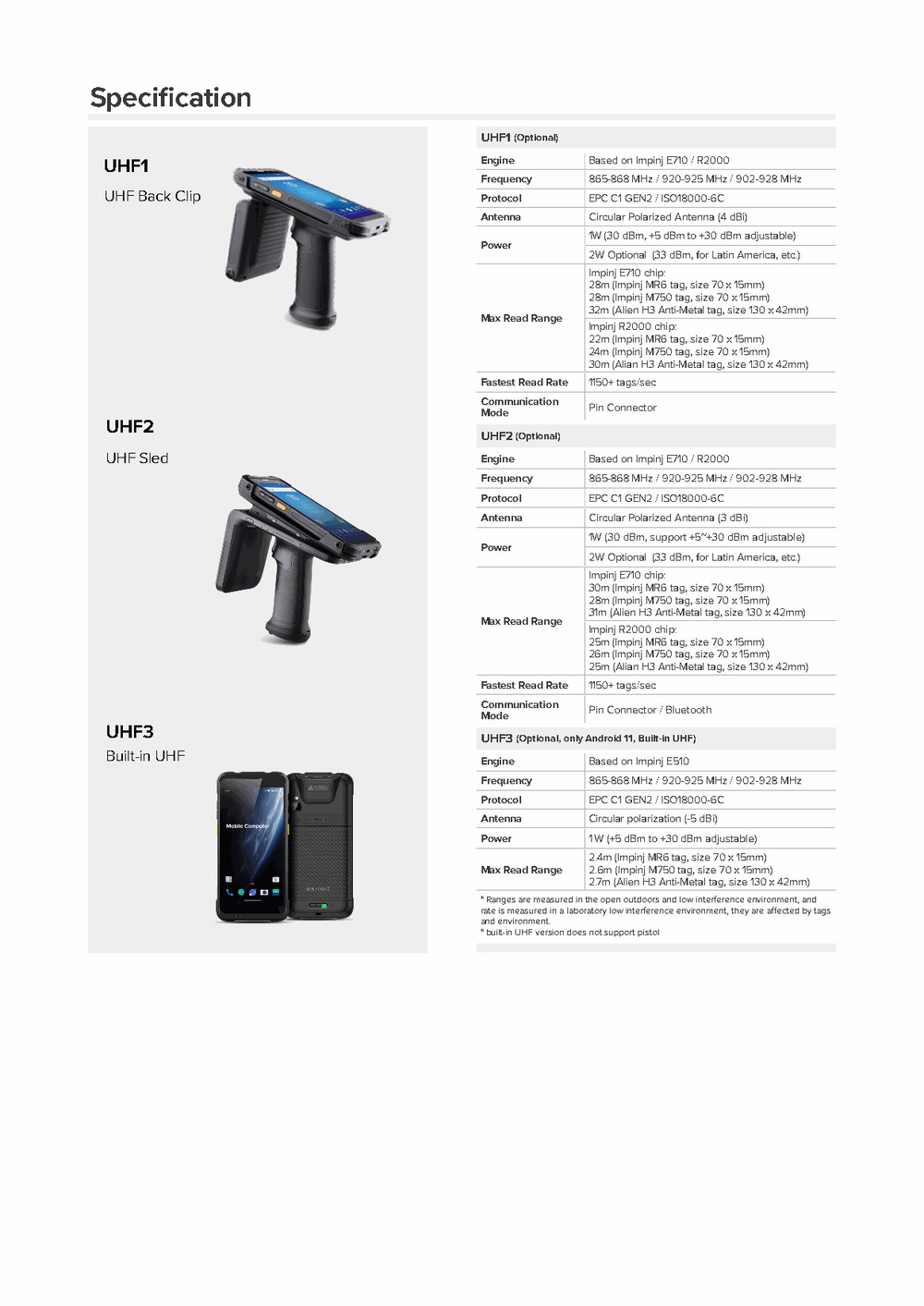

Specification
UHF1
UHF Back Clip
UHF2
UHF Sled
UHF3
Built-in UHF

UHF1 (Optional)
Engine Based on Impinj E710 / R2000
Frequency 865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol EPC C1 GEN2 / ISO18000-6C
Antenna Circular Polarized Antenna (4 dBi)
1W (30 dBm, +5 dBm to +30 dBm adjustable)
Power
2W Optional (33 dBm, for Latin America, etc.)
Impinj E710 chip:
28m (Impinj MR6 tag, size 70 x 15mm)
28m (Impinj M750 tag, size 70 x 15mm)
32m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Max Read Range
Impinj R2000 chip:
22m (Impinj MR6 tag, size 70 x 15mm)
24m (Impinj M750 tag, size 70 x 15mm)
30m (Alian H3 Anti-Metal tag, size 130 x 42mm)
Fastest Read Rate 1150+ tags/sec
Communication
Pin Connector
Mode
UHF2 (Optional)
Engine Based on Impinj E710 / R2000
Frequency 865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol EPC C1 GEN2 / ISO18000-6C
Antenna Circular Polarized Antenna (3 dBi)
1W (30 dBm, support +5~+30 dBm adjustable)
Power
2W Optional (33 dBm, for Latin America, etc.)
Impinj E710 chip:
30m (Impinj MR6 tag, size 70 x 15mm)
28m (Impinj M750 tag, size 70 x 15mm)
31m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Max Read Range
Impinj R2000 chip:
25m (Impinj MR6 tag, size 70 x 15mm)
26m (Impinj M750 tag, size 70 x 15mm)
25m (Alian H3 Anti-Metal tag, size 130 x 42mm)
Fastest Read Rate 1150+ tags/sec
Communication
Pin Connector / Bluetooth
Mode
UHF3 (Optional, only Android 11, Built-in UHF)
Engine Based on Impinj E510
Frequency 865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol EPC C1 GEN2 / ISO18000-6C
Antenna Circular polarization (-5 dBi)
Power 1 W (+5 dBm to +30 dBm adjustable)
2.4m (Impinj MR6 tag, size 70 x 15mm)
Max Read Range 2.6m (Impinj M750 tag, size 70 x 15mm)
2.7m (Alien H3 Anti-Metal tag, size 130 x 42mm)
* Ranges are measured in the open outdoors and low interference environment, and
rate is measured in a laboratory low interference environment, they are affected by tags
and environment.
* built-in UHF version does not support pistol
