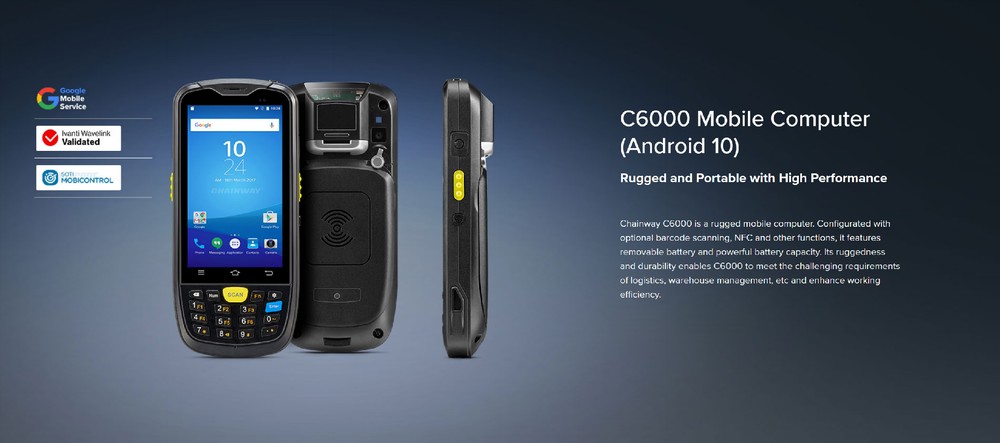

Chainway C6000 Mobile Computers

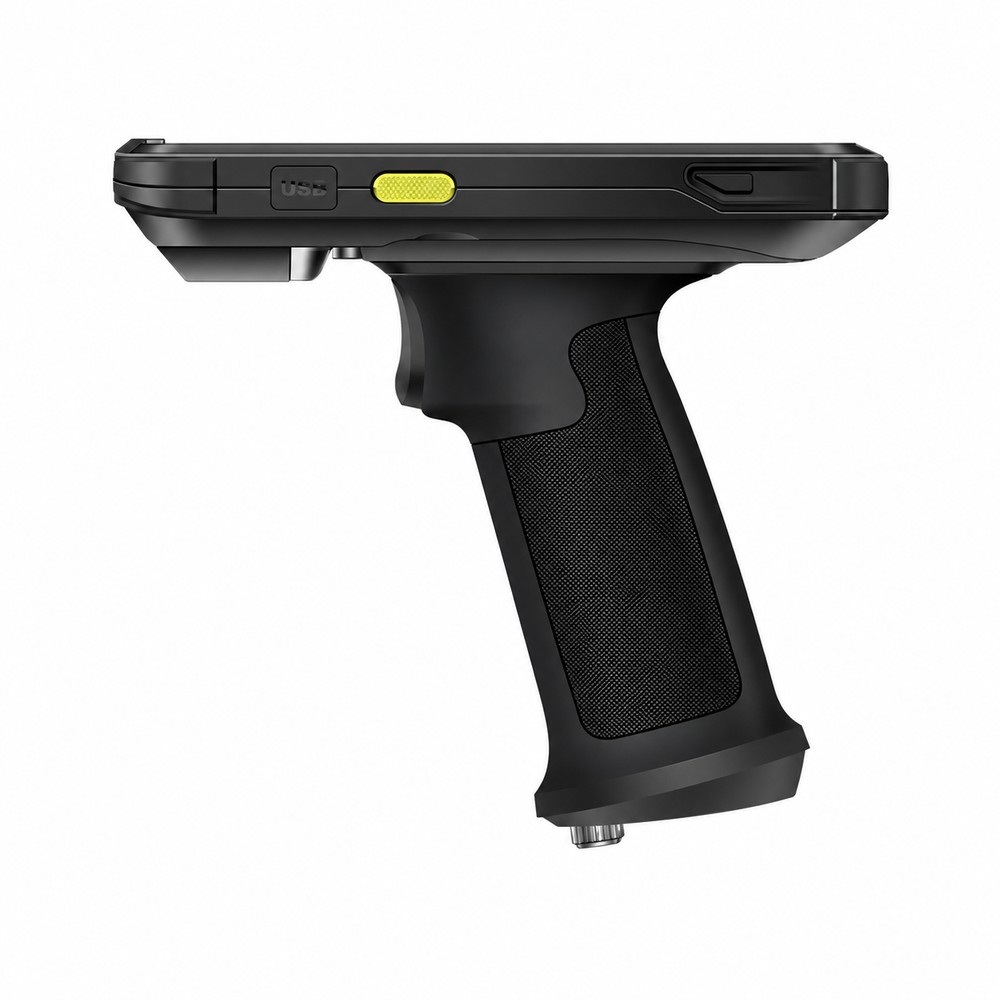

Rugged and Portable with High PerformanceFeaturesAndroid 10 4200mAh Removable BatteryIP65 Sealing 2m Drop ProofOptional Trigger HandleFunctionsBarcode Scanning (Optional) NFC (Optional)13MP Autofocus Camera Secure PSAMAccurate GPS
Rugged and Portable with High PerformanceFeaturesAndroid 10 4200mAh Removable BatteryIP65 Sealing 2m Drop ProofOptional Trigger HandleFunctionsBarcode Scanning (Optional) NFC (Optional)13MP Autofocus Camera Secure PSAMAccurate GPS
Exact model: C6000
Product group: Mobile Computers
Complete manufacturer specifications in Specs

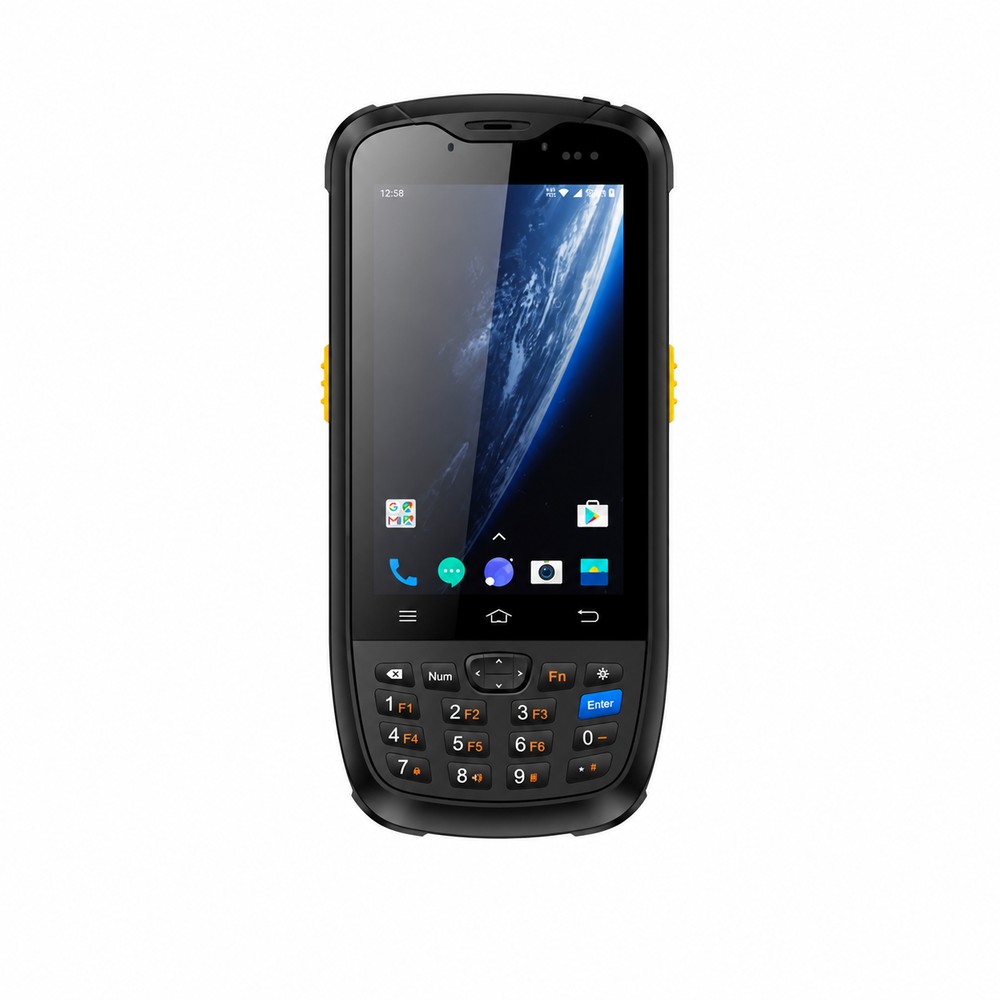

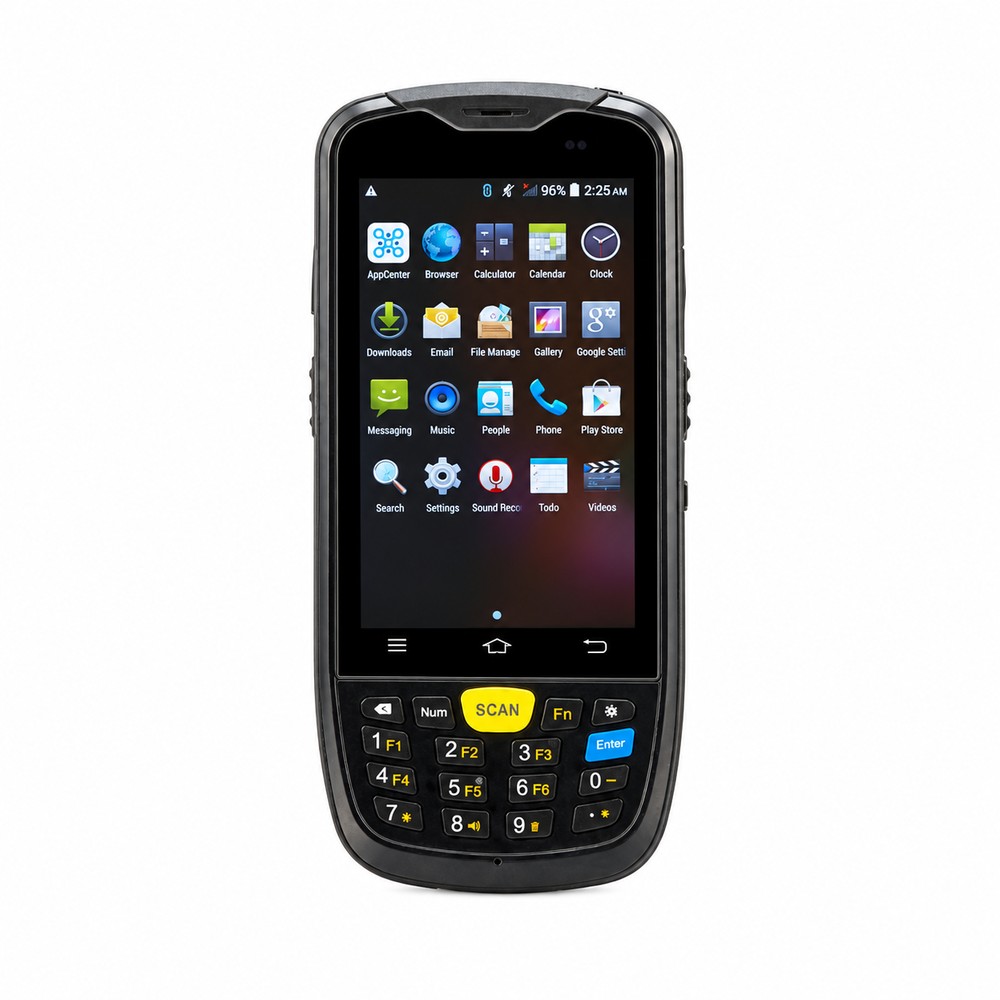

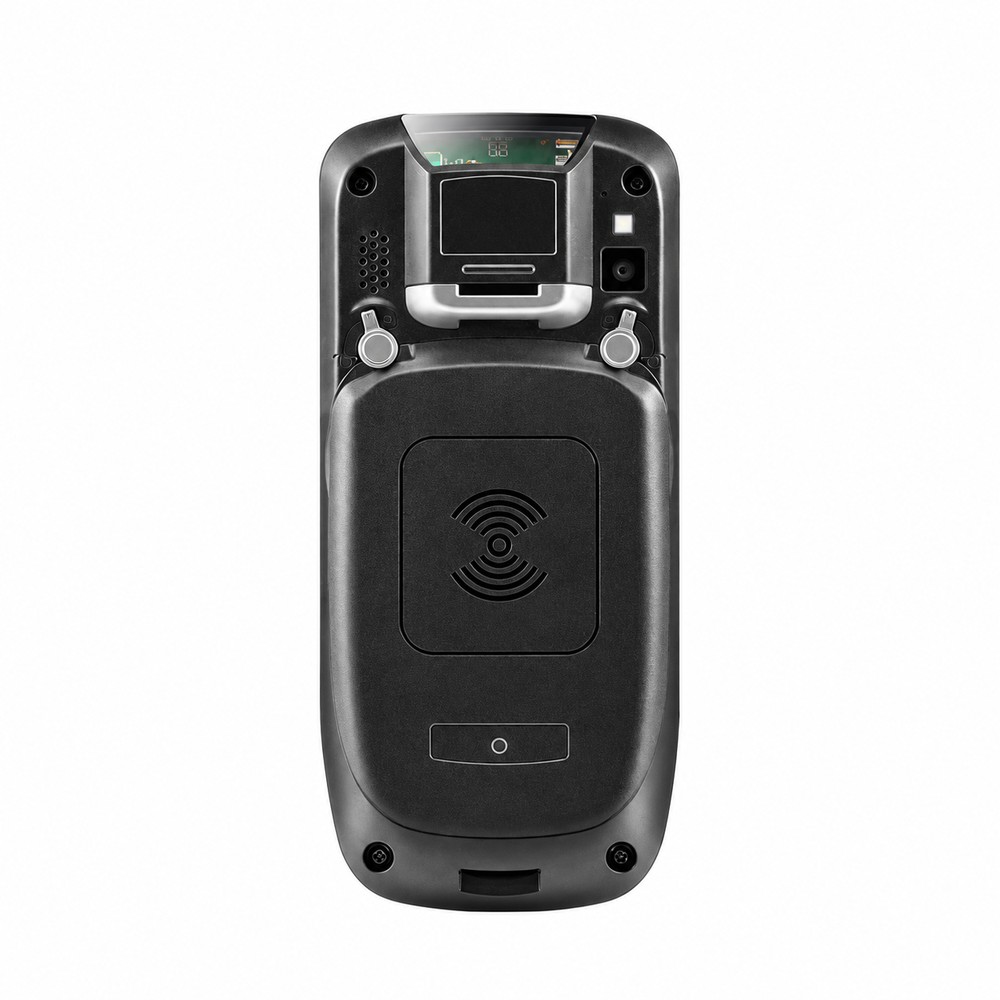

Available configurations shown in the product gallery
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
Chainway C6000 Mobile Computers
Chainway C6000 combines the features and configurations shown below. Review the product overview, original feature graphics and complete Specs when selecting units for a bulk order.

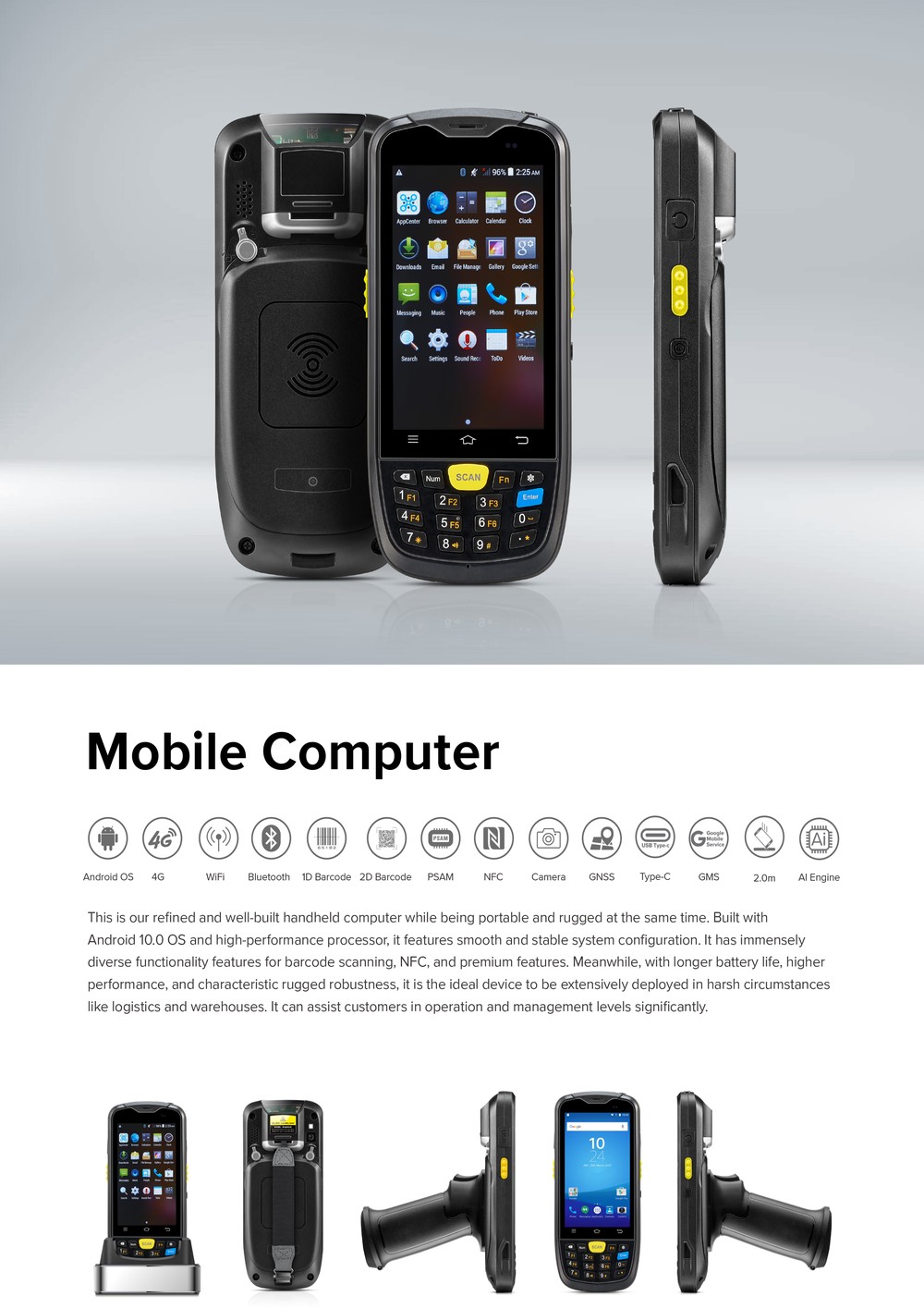

Rugged and Portable with High PerformanceFeaturesAndroid 10 4200mAh Removable BatteryIP65 Sealing 2m Drop ProofOptional Trigger HandleFunctionsBarcode Scanning (Optional) NFC (Optional)13MP Autofocus Camera Secure PSAMAccurate GPS
Configuration overview

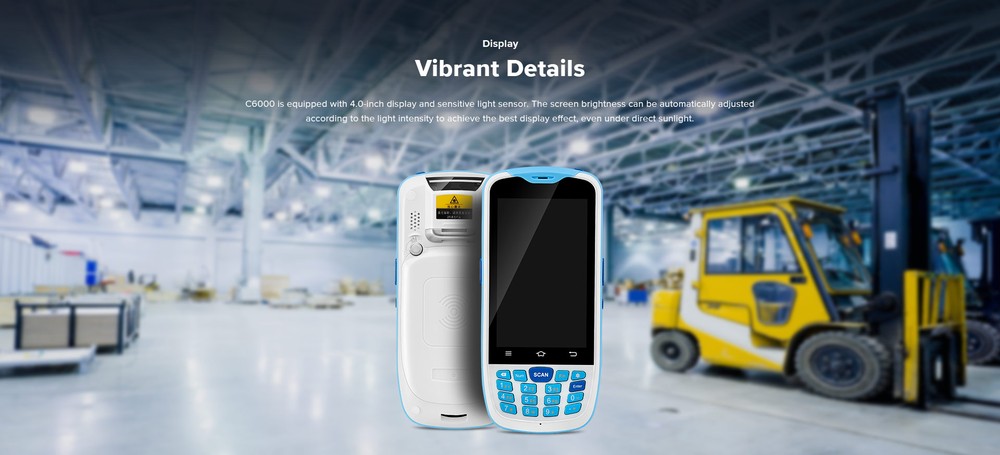

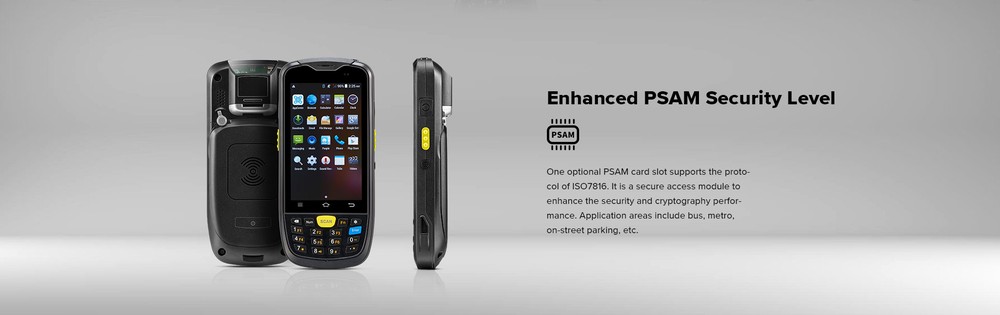

The manufacturer data sheet lists Specification Physical Characteristics Dimensions 157.6 x 73.7 x 29 mm / 6.2 x 2.9 x 1.1 in. Weight 292 g / 10.3 oz. Display 4'' TN α-Si 480*800, 16.7M colors Touch Panel Rugged dual touch capacitive touch panel Main battery: Li-ion, removable, 4200mAh Standby: over 300 hours Power Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable) 1 slot for Mirco SIM card, 1 slot for Mirco SD(TF) or PSAM card Expansion Slot (optional) Interfaces USB 2.0, Type-C, OTG Sensors Light sensor, proximity sensor, gravity sensor Notification Sound, LED indicator, vibrator Audio 1 microphone; 1 speaker; receiver Keypad 3 TP soft keys, 3 side keys, numeric keyboard Performance Android 10.0; GMS, Soti MobiControl; FOTA, SafeUEM Operating System supported. Built-in support for a future upgrade through Android 11 / 12 CPU Cortex A-53 2.0 GHz Octa-core RAM+ROM 3GB + 32GB Expansion Supports up to 128 GB Micro SD card Communication Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4,IPV6, 5G PA; Fast roaming: PMKID caching, 802.11r, OKC WLAN Operating Channels: 2.4G(channel 1~13), 5G(channel 36,38,40,42,44,46,48,52,56,60,64,100,104,108,112, 116,120,124,128,132,136,140,149,153,157,161,165, depends on local regulations Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI-PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP- LTS,PEAP-GTC,etc. 2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA: B1/B2/B4/B5/B8 WWAN TD-SCDMA: A/F(B34/B39) 4G: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/ B28B/B34/B38/B39/B40/B41 WWAN (Others) Depending on the country's ISP Bluetooth V2.1+EDR, 3.0+HS and V4.1+HS, BT5.0 GNSS GPS/AGPS,.
Wholesale purchasing information
For Chainway C6000, compare the pictured housing, connectors and controls with the configuration required by your application. The manufacturer may describe optional modules, memory configurations or regional network bands. These options are listed for reference; confirm the required configuration when requesting a quotation. Choose the interface and data-capture functions that match your existing workflow, software and installation requirements.
Review the complete Specs tab before placing a bulk order. It preserves the technical information supplied for this model, including the available operating environment and configuration details. Product pictures show the manufacturer’s existing views and available configurations. If your project needs a particular module, operating system version or connector, state that requirement in your enquiry so the configuration can be checked before ordering.
Explore related products in our RuggedMaster product catalog or send a bulk-order enquiry.

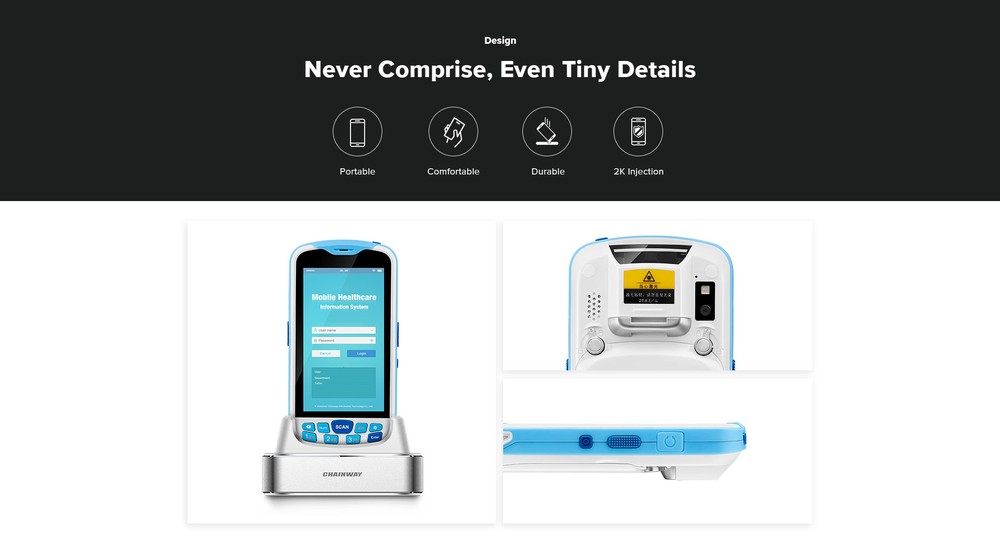

Manufacturer feature details

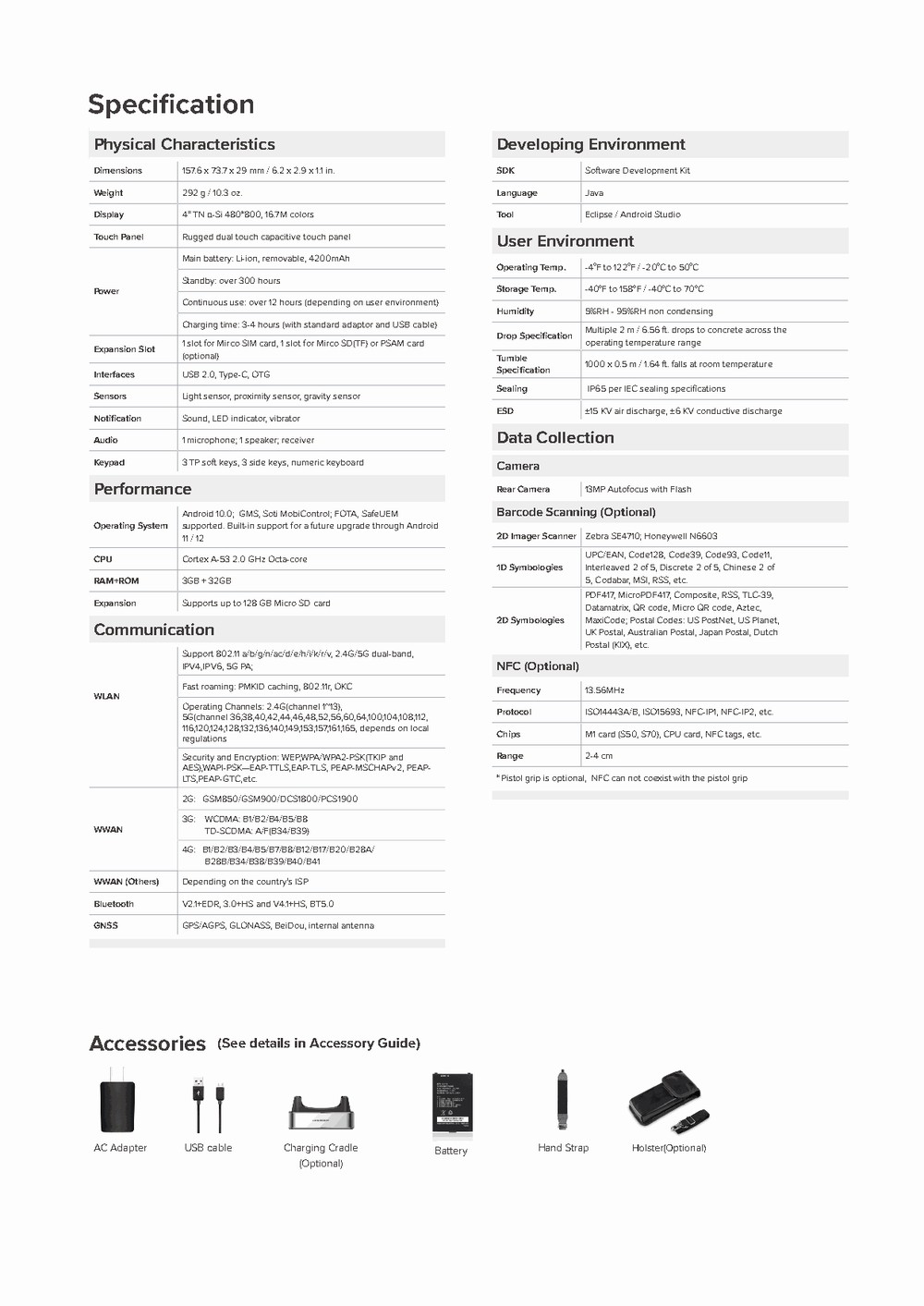

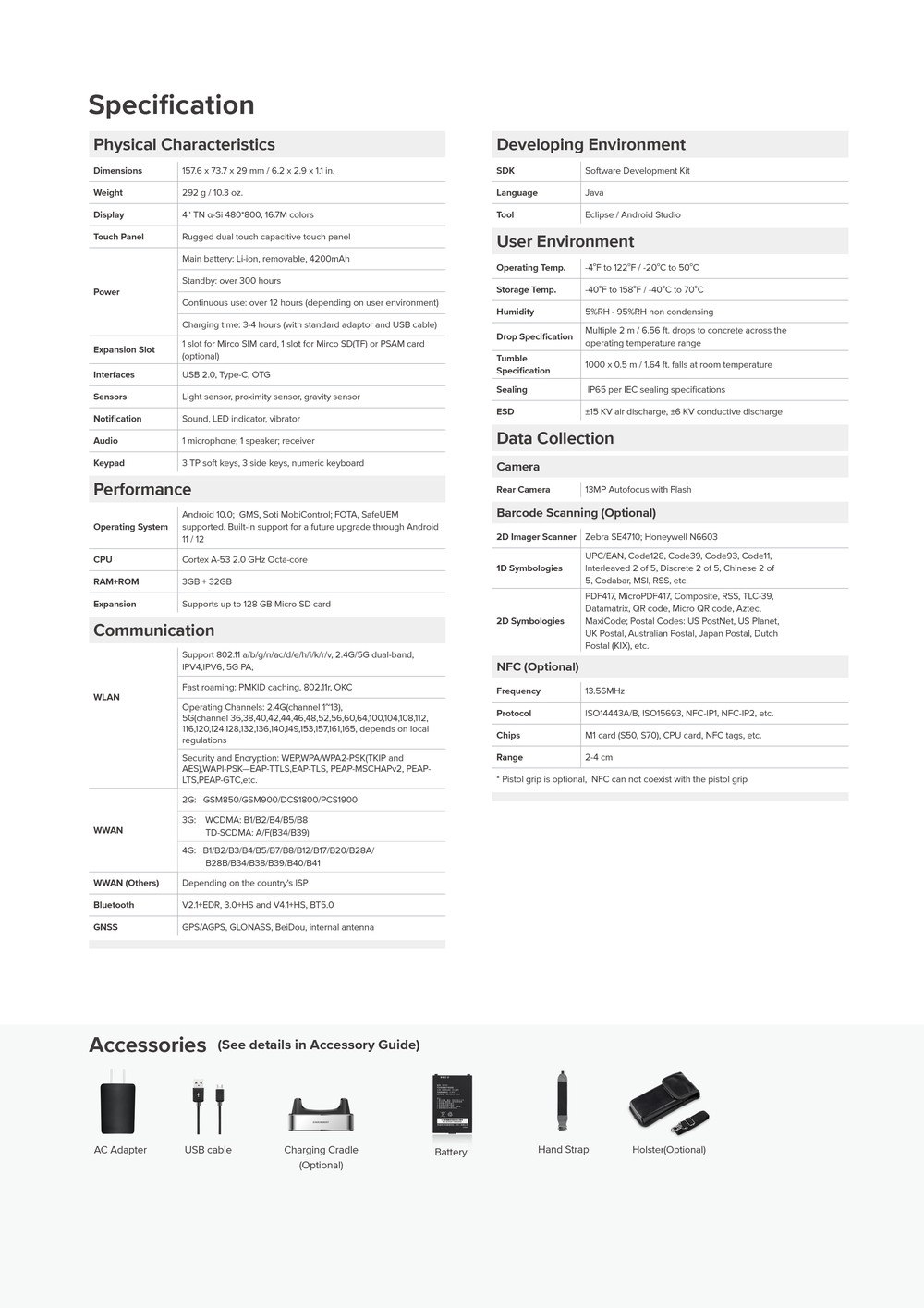

C6000 Datasheet.pdf — Specifications (page 2)
Specification Physical Characteristics Dimensions 157.6 x 73.7 x 29 mm / 6.2 x 2.9 x 1.1 in. Weight 292 g / 10.3 oz. Display 4'' TN α-Si 480*800, 16.7M colors Touch Panel Rugged dual touch capacitive touch panel Main battery: Li-ion, removable, 4200mAh Standby: over 300 hours Power Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable) 1 slot for Mirco SIM card, 1 slot for Mirco SD(TF) or PSAM card Expansion Slot (optional) Interfaces USB 2.0, Type-C, OTG Sensors Light sensor, proximity sensor, gravity sensor Notification Sound, LED indicator, vibrator Audio 1 microphone; 1 speaker; receiver Keypad 3 TP soft keys, 3 side keys, numeric keyboard Performance Android 10.0; GMS, Soti MobiControl; FOTA, SafeUEM Operating System supported. Built-in support for a future upgrade through Android 11 / 12 CPU Cortex A-53 2.0 GHz Octa-core RAM+ROM 3GB + 32GB Expansion Supports up to 128 GB Micro SD card Communication Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4,IPV6, 5G PA; Fast roaming: PMKID caching, 802.11r, OKC WLAN Operating Channels: 2.4G(channel 1~13), 5G(channel 36,38,40,42,44,46,48,52,56,60,64,100,104,108,112, 116,120,124,128,132,136,140,149,153,157,161,165, depends on local regulations Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI-PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP- LTS,PEAP-GTC,etc. 2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA: B1/B2/B4/B5/B8 WWAN TD-SCDMA: A/F(B34/B39) 4G: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/ B28B/B34/B38/B39/B40/B41 WWAN (Others) Depending on the country's ISP Bluetooth V2.1+EDR, 3.0+HS and V4.1+HS, BT5.0 GNSS GPS/AGPS, GLONASS, BeiDou, internal antenna Accessories (See details in Accessory Guide) AC Adapter USB cable Charging Cradle Batter (Optional)

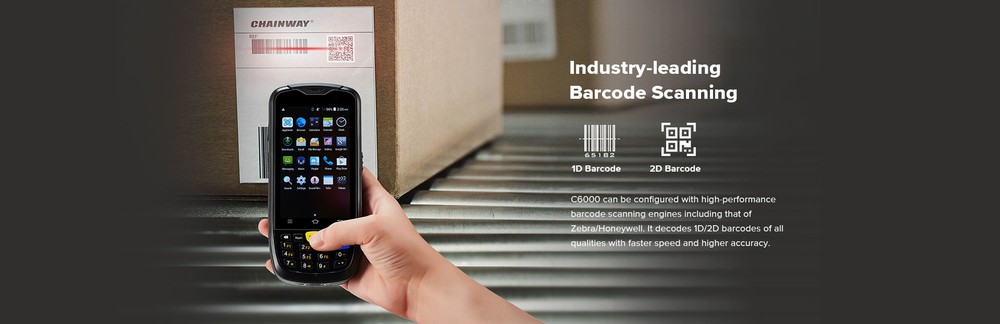

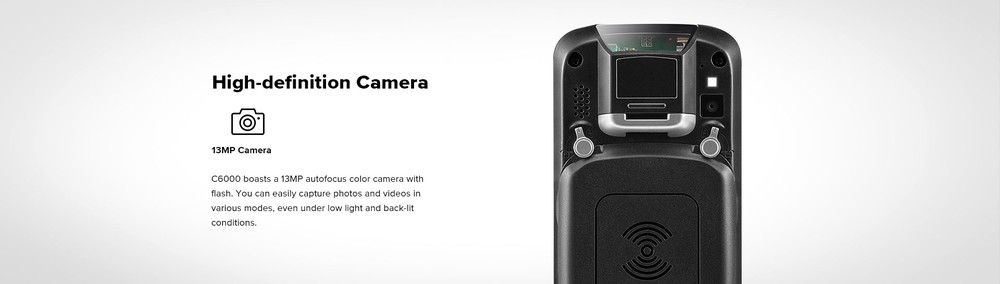

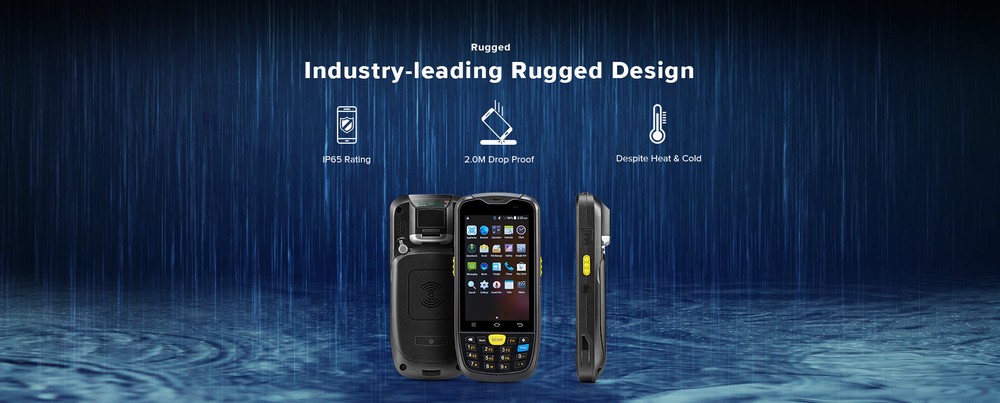

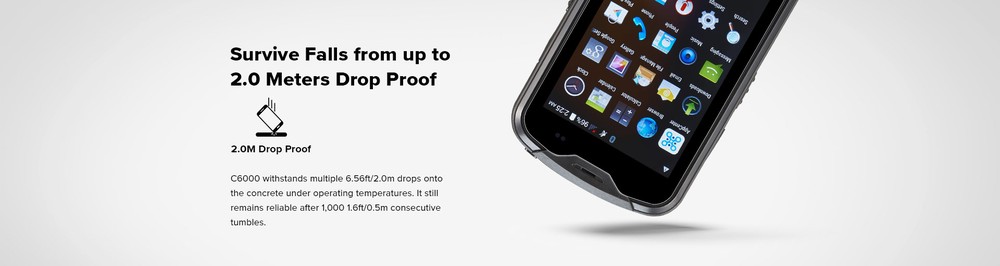

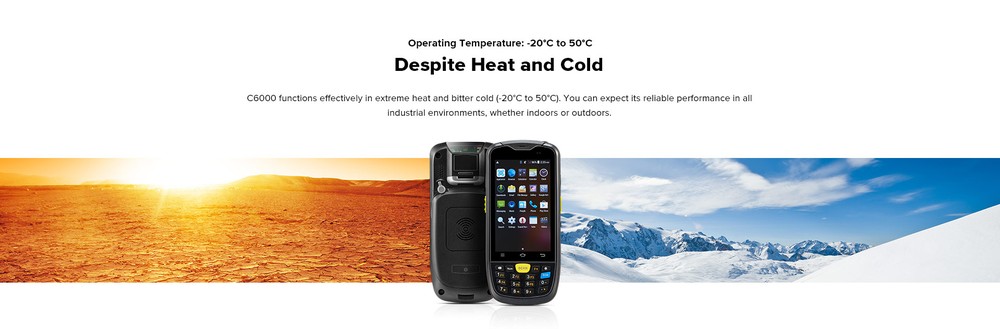

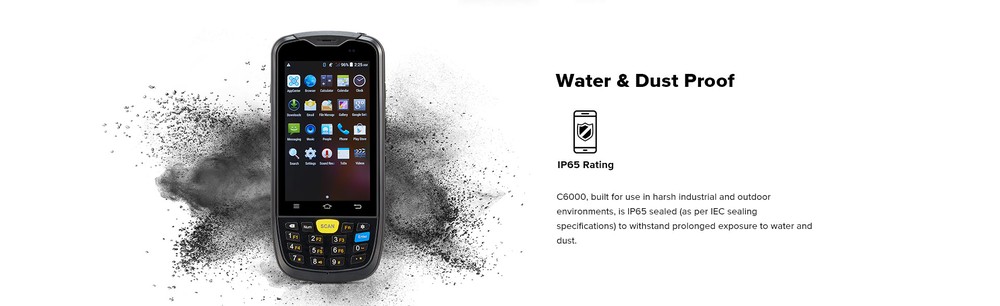

Developing Environment SDK Software Development Kit Language Java Tool Eclipse / Android Studio User Environment Operating Temp. -4oF to 122oF / -20oC to 50oC Storage Temp. -40oF to 158oF / -40oC to 70oC Humidity 5%RH - 95%RH non condensing Multiple 2 m / 6.56 ft. drops to concrete across the Drop Specification operating temperature range Tumble 1000 x 0.5 m / 1.64 ft. falls at room temperature Specification Sealing IP65 per IEC sealing specifications ESD ±15 KV air discharge, ±6 KV conductive discharge Data Collection Camera Rear Camera 13MP Autofocus with Flash Barcode Scanning (Optional) 2D Imager Scanner Zebra SE4710; Honeywell N6603 UPC/EAN, Code128, Code39, Code93, Code11, 1D Symbologies Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, 2D Symbologies MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. NFC (Optional) Frequency 13.56MHz Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. Chips M1 card (S50, S70), CPU card, NFC tags, etc. Range 2-4 cm * Pistol grip is optional, NFC can not coexist with the pistol grip ry Hand Strap Holster(Optional)
