8849 TANK X Rugged Phones

Wholesale 8849 TANK X Rugged Phones for bulk orders at RuggedMaster. 220-lumen DLP Projector, 1920x1080p, Keystone Correction, Auto-Focus Powerful MediaTek Dimensity 8200 4nm Octa-Core Processor

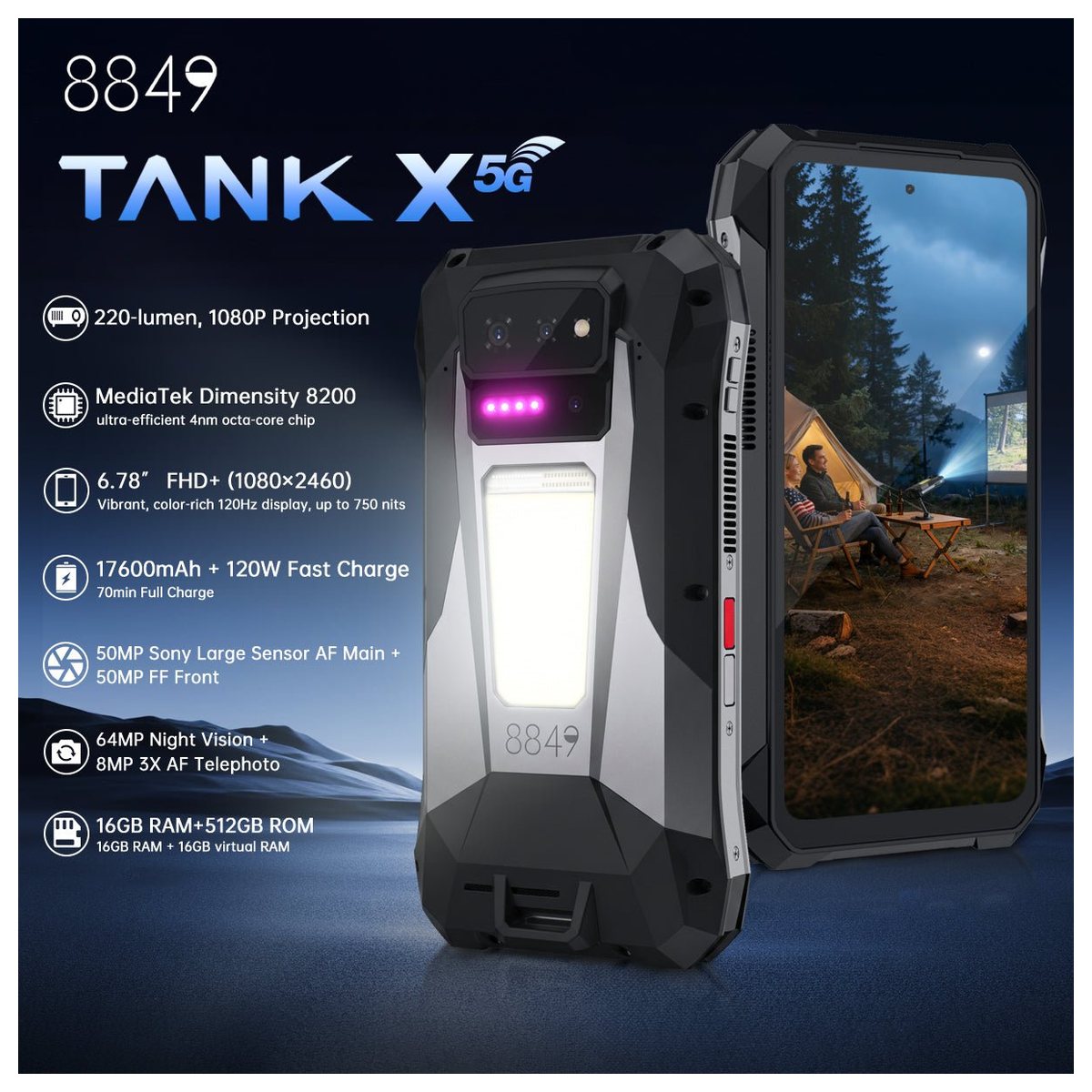

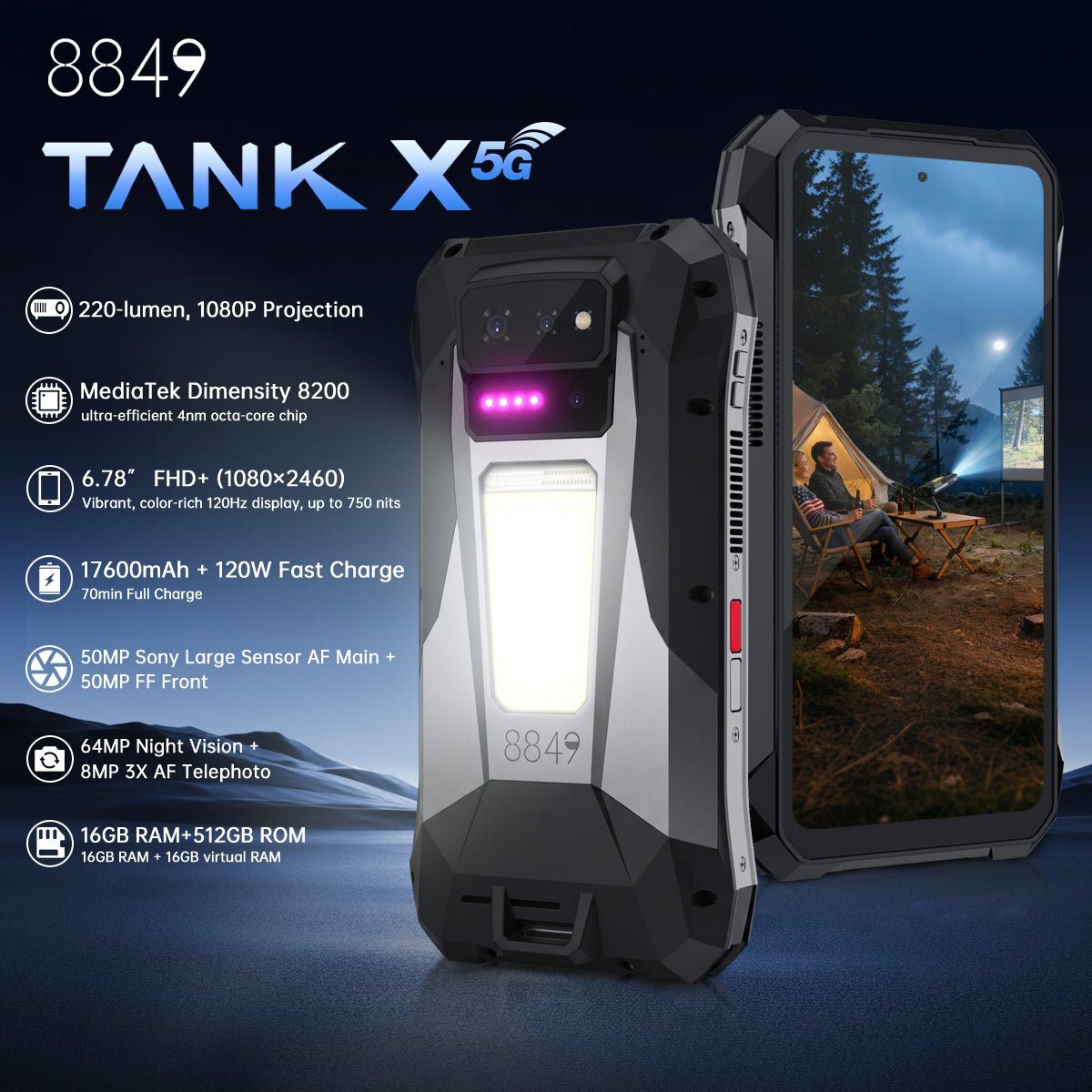

8849 TANK X Features and Configuration

220-lumen DLP Projector, 1920x1080p, Keystone Correction, Auto-Focus

Powerful MediaTek Dimensity 8200 4nm Octa-Core Processor

6.78″ FHD+ 120Hz Eye-Care Display, 750 nits brightness

50MP main + 64MP night vision + 8MP telephoto + 50MP front

17,600mAh Battery + 120W Fast Charging, full in 70 minutes.

16GB RAM + 16GB Virtual RAM + 512GB Storage

Dual-Frequency GPS (L1 + L5)

Wi-Fi 6 & Bluetooth 5.4

1200-lumen Camping Light + Emergency Warning Lights

4m Laser Rangefinder

In the Box : Tank X, fast charger, charging cable, silicone phone case, screen protector.

Want 2K projection? Check out the TANK 5 or compare specs of other models here.

The package includes: 8849 Tank X rugged phone, fast charger, phone case, triple-layer shatterproof screen protector, user manual. Note: A tempered glass screen protector (not a three-layer explosion-proof film) is already pre-applied at the factory, so you can continue using it and do not need to peel it off.

Usage & Safety Note

Projection FunctionFor optimal image quality and brightness, it is recommended to use the 8849 TANK X with a projection distance of 1.5–2 meters. Image resolution and brightness may decrease as the projection distance increases.

Drop Resistance DisclaimerAlthough 8849 rugged phones (including 8849 TANK X Projector Phone) and tablets have passed IP68/IP69K certification tests, they are still precision electronic devices. Drop resistance may vary depending on factors such as impact angle, surface hardness, and long-term wear. It is strongly recommended to use the original protective case to enhance overall and long-term protection.

Water and Dust Resistance DisclaimerThis device is rated IP68/IP69K in accordance with the IEC 60529 international standard. Testing is conducted under controlled laboratory conditions in static fresh water (up to 1.8 meters deep for a maximum of 30 minutes). In daily use, exposure to seawater, swimming pool water, soapy water, hot water, or other liquids may reduce protective performance. Do not operate buttons or ports underwater. Water and dust resistance are not permanent and may diminish over time due to normal wear and tear.

Screen and DisplayThe 120Hz adaptive refresh rate automatically adjusts according to on-screen content to balance smooth performance and power consumption. Some applications or games may be limited to specific frame rates. The display uses high-strength glass with an anti-scratch coating; however, contact with sand, gravel, or sharp objects should still be avoided.

Storage and ExpansionThe operating system and pre-installed applications occupy a portion of the total storage capacity; therefore, actual available storage is less than the nominal value. For expandable storage, it is recommended to use a UHS-I Class 10 or higher microSD card, formatted as exFAT to support large files.

Dimensions and AppearanceThe size and weight of 8849 smartphones may vary slightly due to manufacturing tolerances. Screen size is measured diagonally with rounded corners; the actual visible display area is slightly smaller.

Camera FeaturesCamera resolution and functions may be adjusted through software updates. Some shooting modes dynamically change resolution and frame rate. Camera startup and autofocus performance may be affected in extremely low or high temperature environments.

Network and ConnectivityVoLTE availability depends on local carrier support. Google services (such as Google Pay) may not be available in certain countries or regions. Please verify local compatibility in advance at: https://pay.google.com/about

Accessories and Maintenance8849 rugged phones are equipped with waterproof port covers. Before use, ensure all covers are fully inserted and free from wear or damage. If the device becomes wet, wipe it dry and allow it to rest briefly before charging. Do not charge immediately. Regularly clean ports and speaker openings to prevent dust accumulation that may affect performance.

Environmental AdaptabilityRecommended Operating Temperature: 0°C–35°C (32°F–95°F). Battery performance and screen responsiveness may decrease under extreme temperature conditions. Prolonged exposure to ultraviolet light or chemical solvents may affect the durability and color of the device housing.

Warranty CoverageDamage caused by liquid ingress, drops, crushing, unauthorized disassembly or repair, or the use of non-original accessories is not covered under warranty.

Performance DisclaimerThe dynamic memory expansion (virtual RAM) feature allocates a portion of internal storage as additional system memory. Actual performance gains depend on application load and storage performance. Sufficient available storage space is required to enable this feature.

Durability NoticeWater, dust, and drop resistance are not permanent features. Protective performance may gradually decline due to daily wear, impacts, and aging. Dust or sand may enter the internal cooling fan and cause it to stop functioning. This issue can usually be resolved by using compressed air, such as at an automotive service shop. Do not intentionally test the device beyond its rated waterproof or drop-resistant limits.

Safety Reminder8849 TANK X rugged smartphone is equipped with multiple built-in sensors and has been tested and validated by 8849 R&D laboratories. Long-term use in harsh environments—such as strong magnetic fields, high temperature and humidity, or heavy dust—may reduce sensor accuracy and shorten service life.

8849 TANK X Technical Overview

Brand: 8849

Model: TANK X

Specification: 8849 TANK X Rugged Phone Specifications

BODY / Dimensions: 180.5 x 91.8 x 31.9 mm

BODY / Weight: 750g

SIM: Dual Nano-SIM + TF card

DISPLAY / Type: 6.78-inch LCD Punch-Hole Display

DISPLAY / Resolution: 1080 x 2460 pixels

DISPLAY / Refresh Rate: 120Hz

DISPLAY / Peak Brightness: 750 nits

PLATFORM / Chipset: MediaTek MT6896 (Dimensity 8200)

PLATFORM / OS: Android 16

MEMORY / RAM: 16GB LPDDR5

MEMORY / Internal Storage: 512GB UFS 3.1

MEMORY / Expandable Storage: 16GB

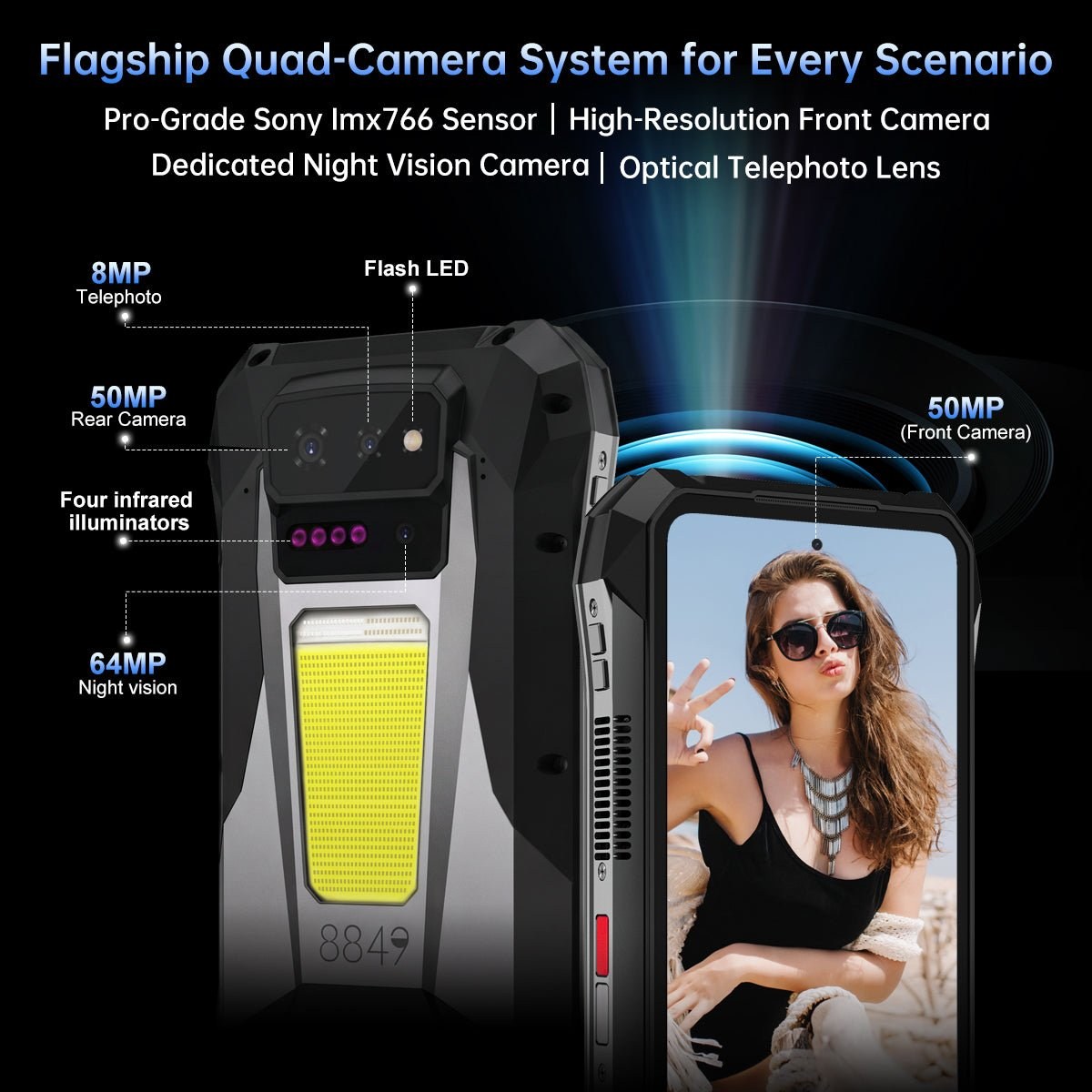

MAIN CAMERA: 50 MP, (Sony IMX766)

MAIN CAMERA: 64 MP, (Night Vision), AF (OmniVision OV64B1B)

MAIN CAMERA: 8 MP, (Telephoto), 3x optical zoom, AF (HiSilicon HI847)

MAIN CAMERA / Features: Flash-LED dual-tone, 4x IR Fill Lights for night vision

SELFIE CAMERA / 50 MP, Fixed Focus, IC: Hi5022Q

BATTERY / Capacity: 17600 mAh (Labeled Capacity: 8800mAh / 68.11Wh x 2)

BATTERY / Wired Charging: 120W Max

BATTERY / Reverse Wired Charging: Supported via USB Type-C

CONNECTIVITY / Network: GSM/WCDMA/C2K/LTE(FDD,TDD)/5G NR(FDD,TDD)

CONNECTIVITY / 5G Bands: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n66, n77, n78

CONNECTIVITY / WLAN: Wi-Fi 802.11 a/b/g/n/ac/ax (2.4GHz & 5GHz), Dual-Band, WiFi6, Wi-Fi Direct, Display, Hotspot, MIMO

CONNECTIVITY / Bluetooth: 5.4

CONNECTIVITY / GPS: Yes, with L1+L5 Dual-band, GLONASS, BDS, Galileo

CONNECTIVITY / NFC: Yes, Read/Write, Card Mode

CONNECTIVITY / FM Radio: Yes (65-108 MHz, No Tx)

CONNECTIVITY / USB: USB Type-C 2.0

PROJECTOR & SPECIAL FEATURES / Projector: DLP Technology, supports up to 1920 x 1080 resolution, 220 Lumens

PROJECTOR & SPECIAL FEATURES / Auto Focus: Laser, 4-meter range (Focus distance: 0.5m – 3.0m)

PROJECTOR & SPECIAL FEATURES / Camping Light: Yes, with multi-color (Red/Blue Warning Lights) design

PROJECTOR & SPECIAL FEATURES / Water Resistant: IP68 IP69K

PROJECTOR & SPECIAL FEATURES / Infrared Port: Yes

PROJECTOR & SPECIAL FEATURES: Side-mounted Fingerprint Sensor

MULTIMEDIA / Loudspeaker: Smart PA (Awinic),

MULTIMEDIA: 3.5cc Sound Chamber, 4Ω 2W Power, 97dB Loudness

MULTIMEDIA / 3.5mm Jack: Yes

MULTIMEDIA / Audio Features: Dual analog silicon microphone with noise reduction

SENSORS: Accelerometer, Gyroscope, Proximity, Compass, Ambient Light, Barometer

BUTTONS & PORTS / Physical Buttons: Power, Volume Up, Volume Down, 2x Programmable PTT Custom Keys

BUTTONS & PORTS / USB Port: USB Type-C 2.0

BUTTONS & PORTS / Audio Jack: 3.5mm

Projection Master

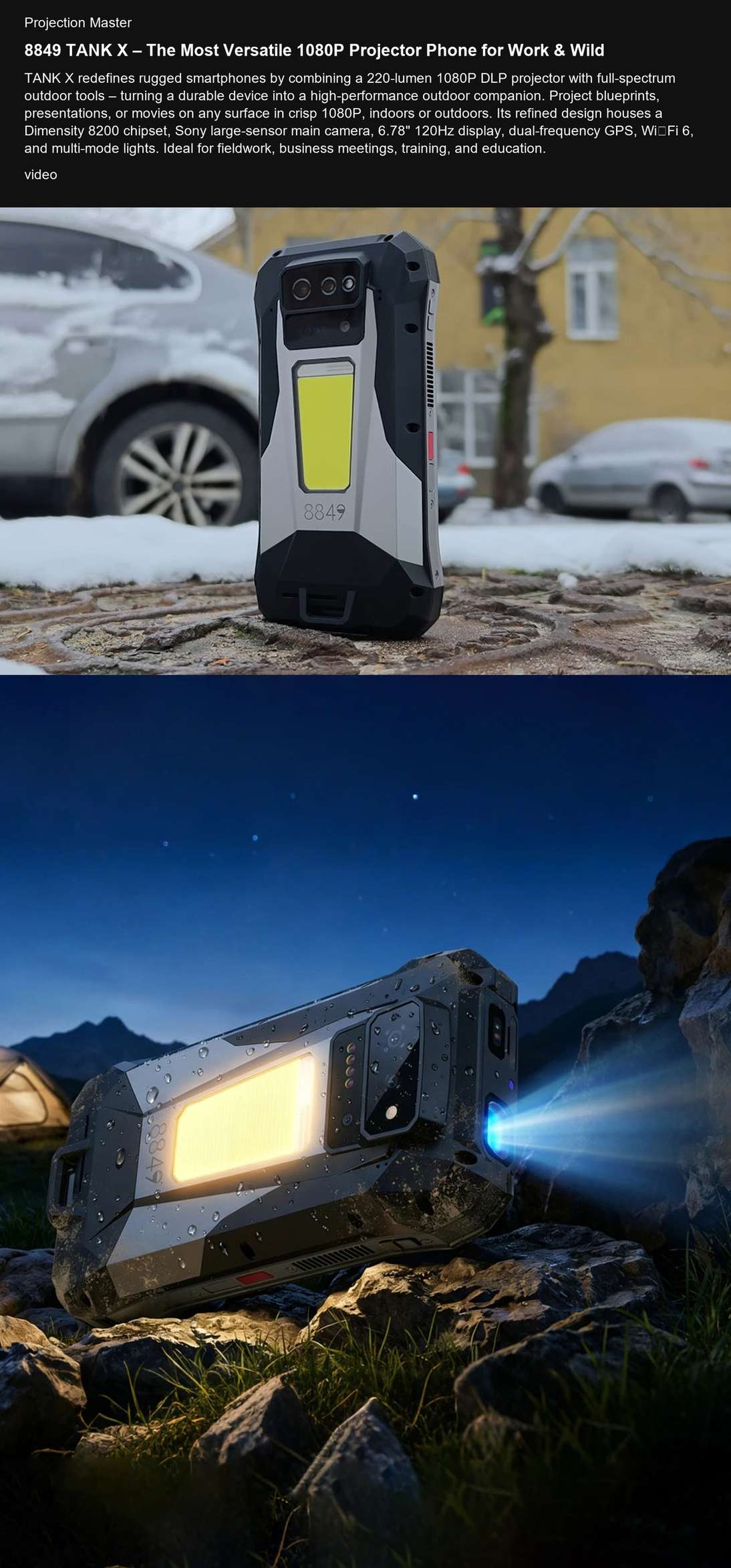

8849 TANK X – The Most Versatile 1080P Projector Phone for Work & Wild

TANK X redefines rugged smartphones by combining a 220-lumen 1080P DLP projector with full-spectrum outdoor tools – turning a durable device into a high-performance outdoor companion. Project blueprints, presentations, or movies on any surface in crisp 1080P, indoors or outdoors. Its refined design houses a Dimensity 8200 chipset, Sony large-sensor main camera, 6.78″ 120Hz display, dual-frequency GPS, Wi‑Fi 6, and multi-mode lights. Ideal for fieldwork, business meetings, training, and education.

video

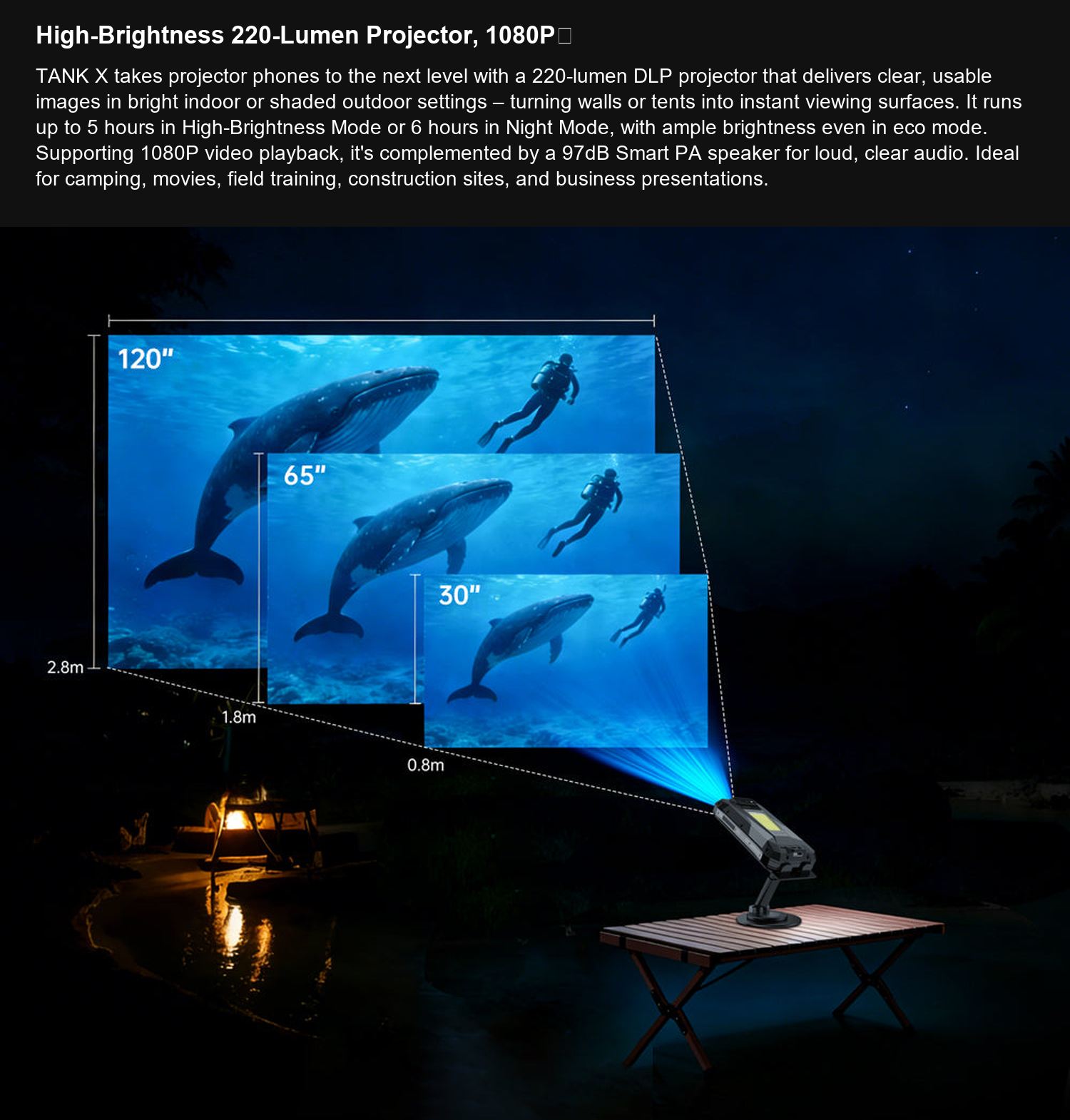

High-Brightness 220-Lumen Projector, 1080P！

TANK X takes projector phones to the next level with a 220-lumen DLP projector that delivers clear, usable images in bright indoor or shaded outdoor settings – turning walls or tents into instant viewing surfaces. It runs up to 5 hours in High-Brightness Mode or 6 hours in Night Mode, with ample brightness even in eco mode. Supporting 1080P video playback, it’s complemented by a 97dB Smart PA speaker for loud, clear audio. Ideal for camping, movies, field training, construction sites, and business presentations.

MediaTek Dimensity 8200 · 4nm Performance with AI-Ready Power

The 4nm Dimensity 8200 chipset powers TANK X with an octa-core CPU (up to 3.1GHz) and Mali-G610 GPU – delivering fast, efficient multitasking, gaming, and HD projection. Paired with up to 16GB RAM and 512GB storage, it handles any task with ease. The integrated APU 580 (5.0 TOPS) powers AI-ready features – running apps like Gemini and ChatGPT to boost productivity. Built-in 5G and Wi‑Fi 6 ensure fast, stable connectivity anywhere.

Smart Laser Autofocus and Keystone Correction

The built-in projector features laser autofocus (0.5m–3.0m) for instant sharpening and ±40° keystone correction to keep images rectangular and distortion-free even when the phone is tilted. Perfect for tents, meeting rooms, outdoor walls, or field use – quick setup, no hassle.

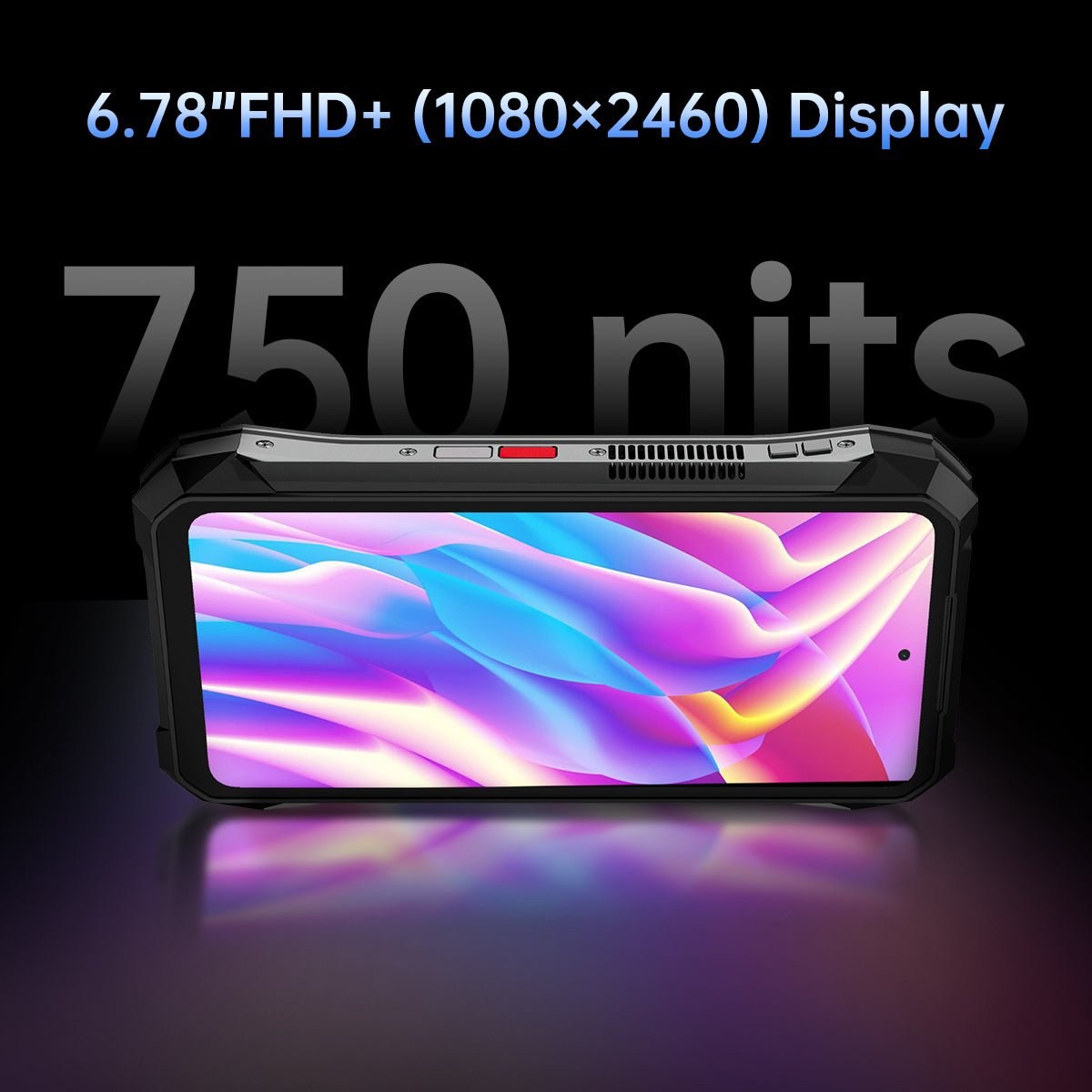

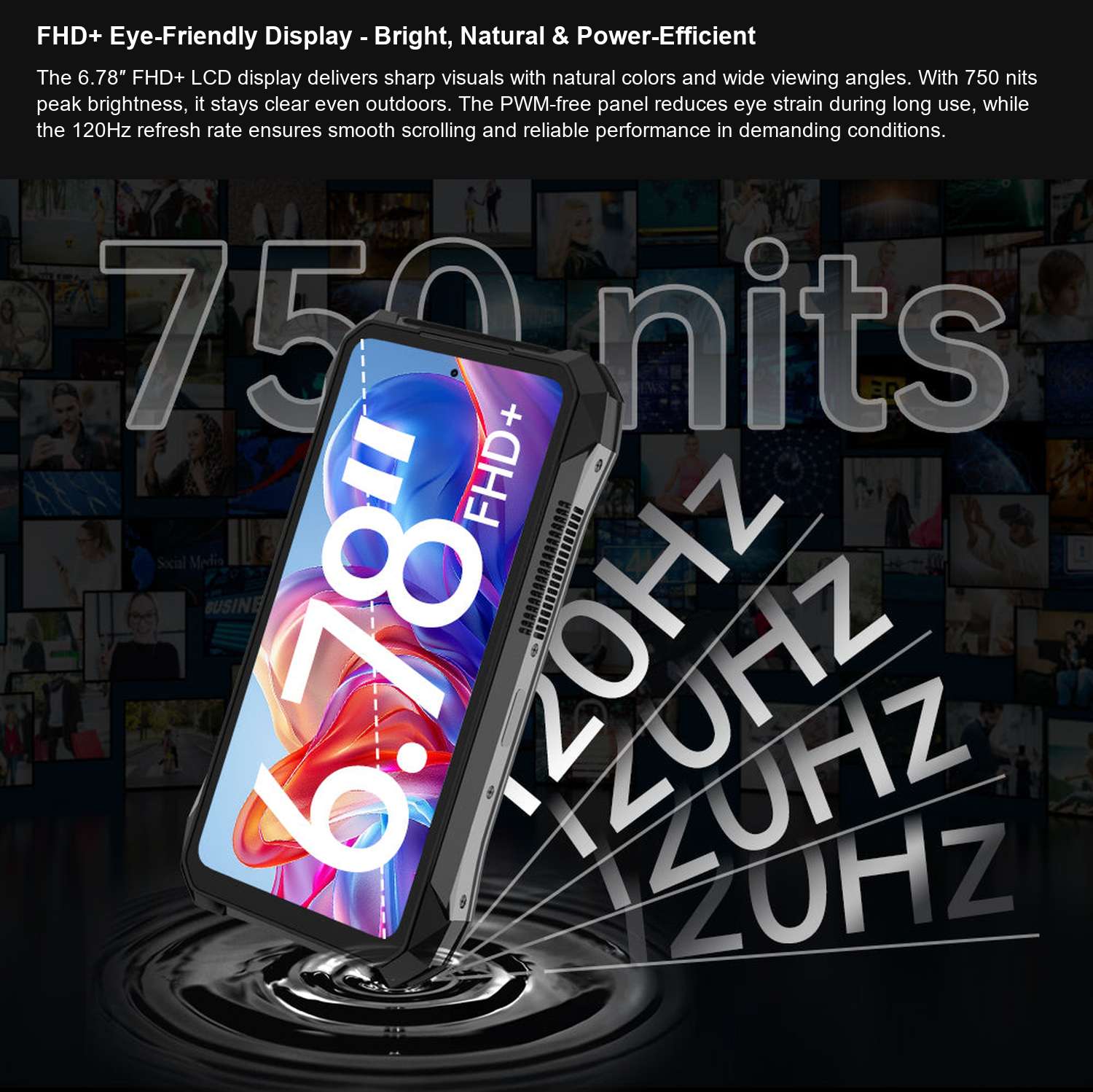

FHD+ Eye-Friendly Display – Bright, Natural & Power-Efficient

The 6.78″ FHD+ LCD display delivers sharp visuals with natural colors and wide viewing angles. With 750 nits peak brightness, it stays clear even outdoors. The PWM-free panel reduces eye strain during long use, while the 120Hz refresh rate ensures smooth scrolling and reliable performance in demanding conditions.

50MP IMX766 – Flagship-Grade Camera

Powered by a 50MP Sony IMX766 large-sensor main camera (1/1.56″), TANK X delivers flagship-grade imaging rarely seen in rugged phones. The proven sensor captures more light for brighter, cleaner low-light photos, while full-pixel autofocus locks focus quickly – even in dynamic outdoor scenes. Pixel-binning technology ensures detailed, noise-free images day or night.

50MP Front Camera + 3× Telephoto

50MP front camera delivers sharp selfies, video calls, and content creation. Paired with an 8MP rear 3× telephoto camera with autofocus, it captures clear optical zoom shots of distant subjects – ideal for outdoor activities and fieldwork. This versatile setup supports both high-quality self-capture and long-range photography for work, travel, and adventure.

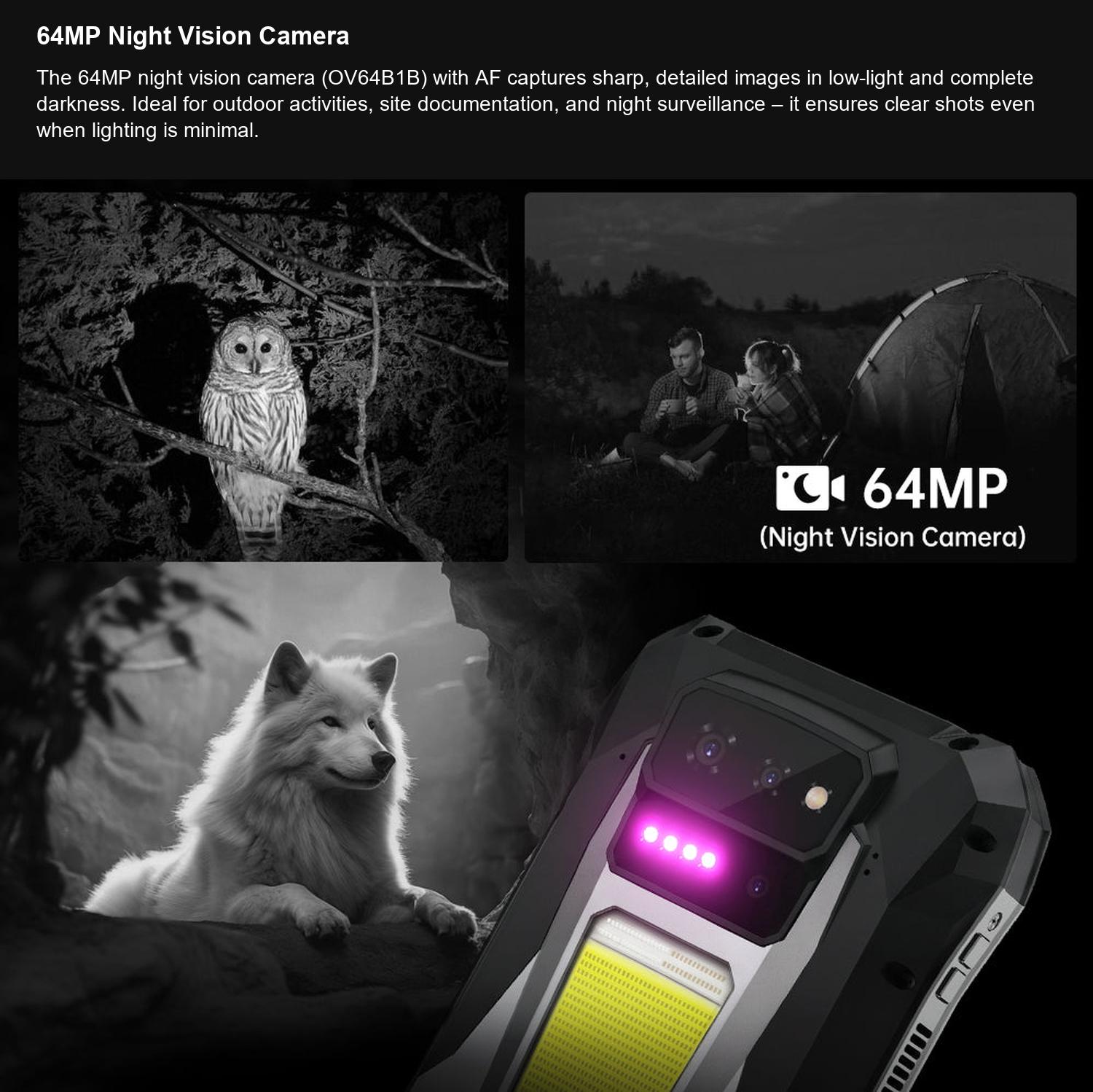

64MP Night Vision Camera

The 64MP night vision camera (OV64B1B) with AF captures sharp, detailed images in low-light and complete darkness. Ideal for outdoor activities, site documentation, and night surveillance – it ensures clear shots even when lighting is minimal.

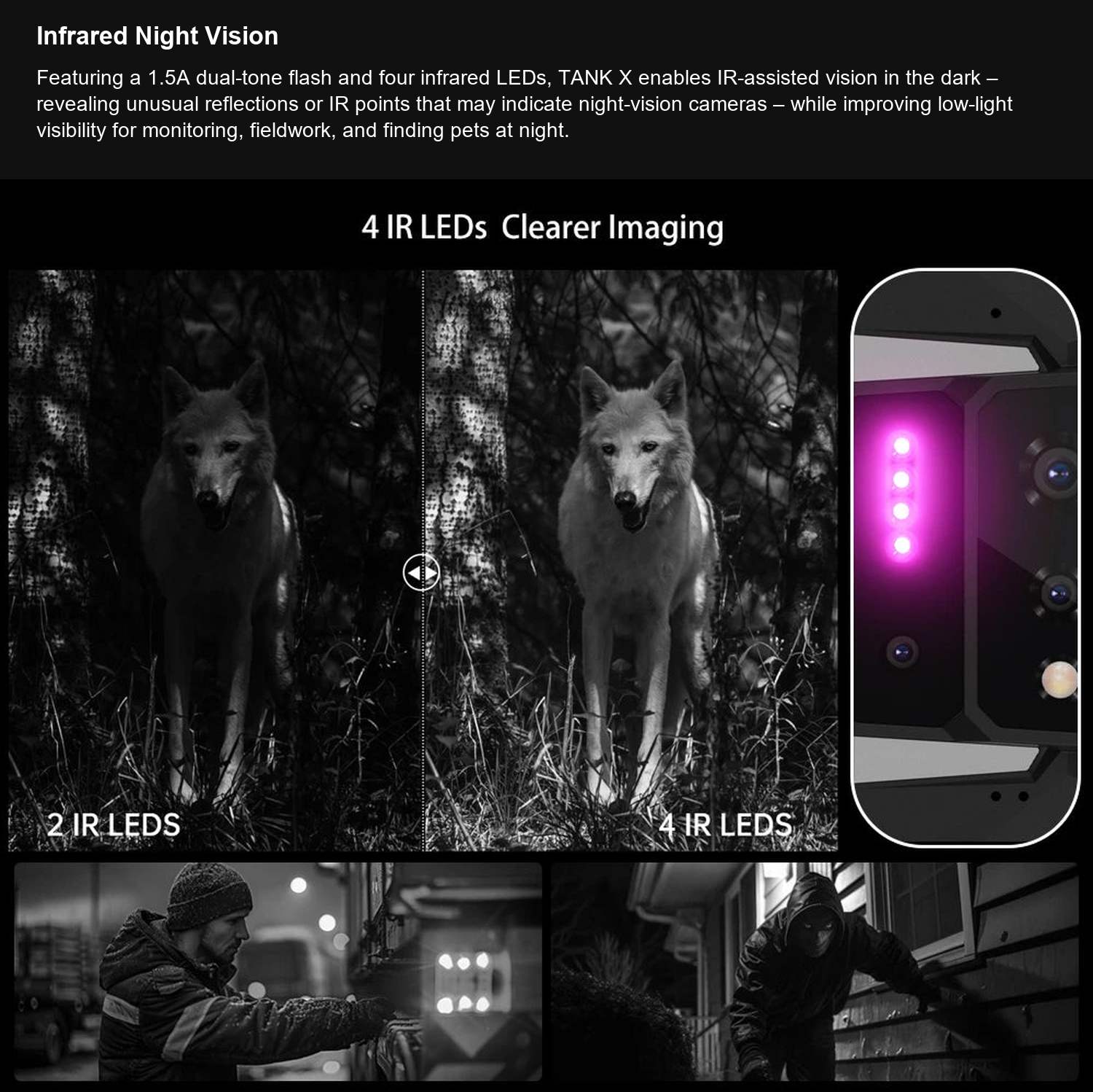

Infrared Night Vision

Featuring a 1.5A dual-tone flash and four infrared LEDs, TANK X enables IR-assisted vision in the dark – revealing unusual reflections or IR points that may indicate night-vision cameras – while improving low-light visibility for monitoring, fieldwork, and finding pets at night.

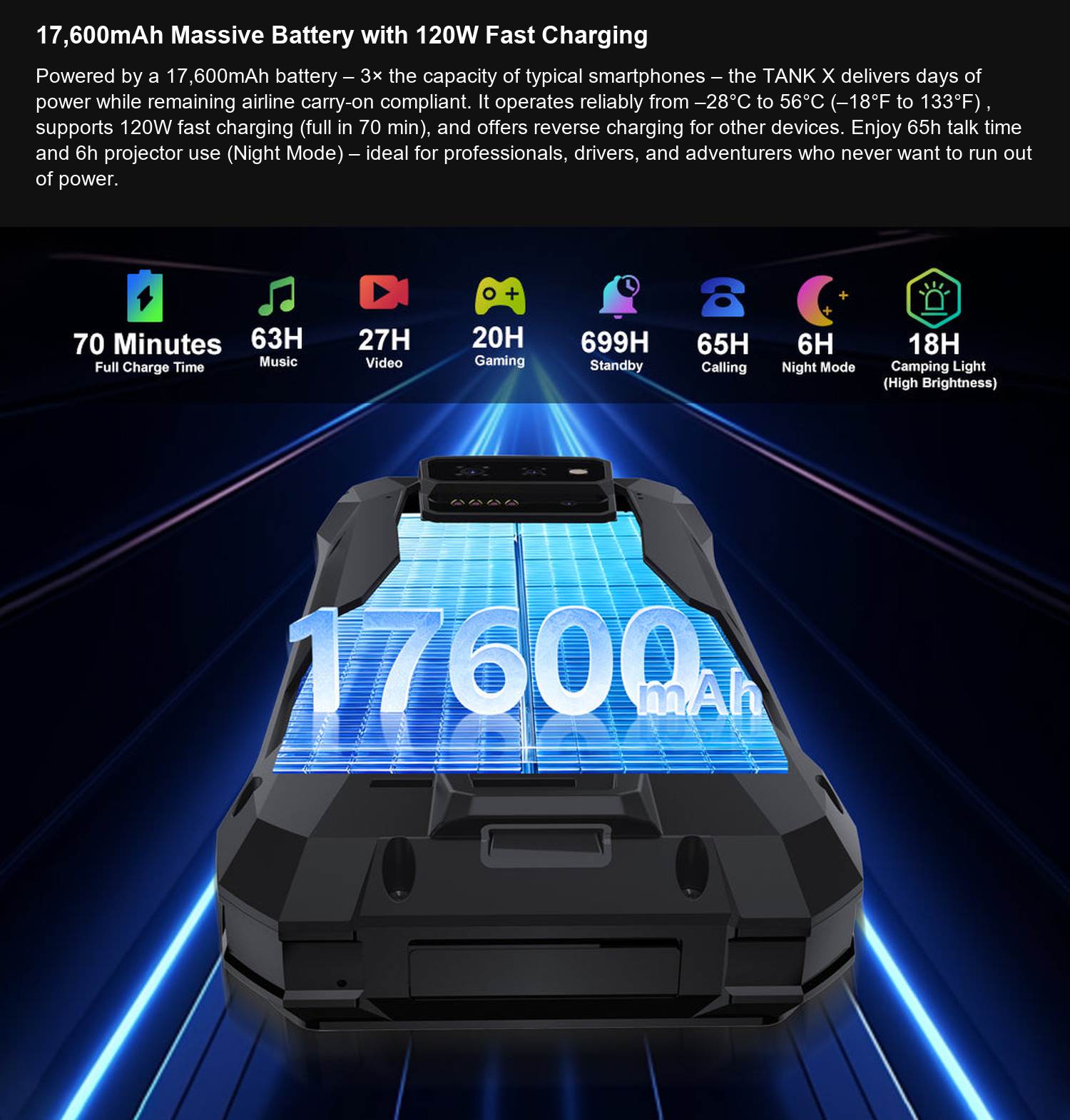

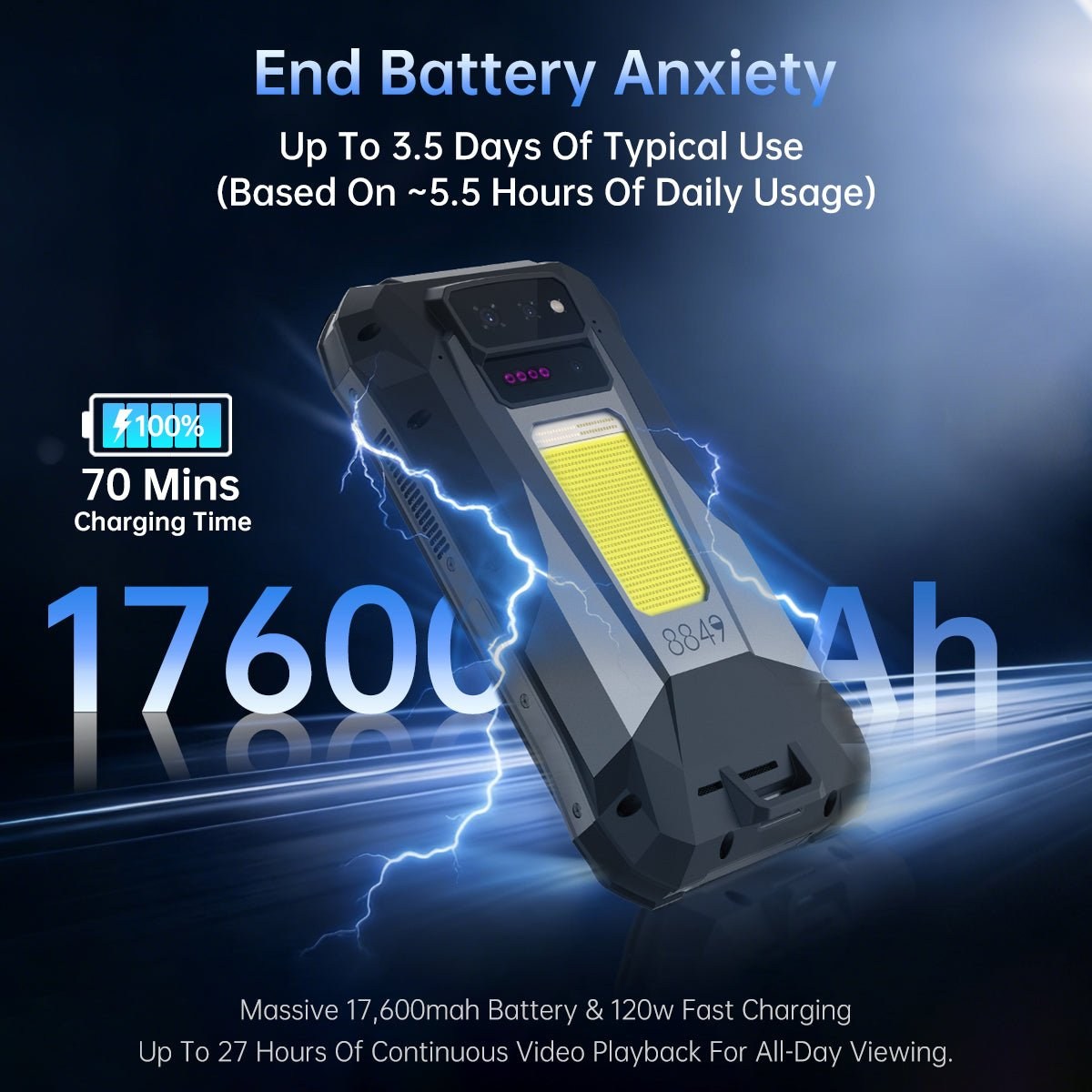

17,600mAh Massive Battery with 120W Fast Charging

Powered by a 17,600mAh battery – 3× the capacity of typical smartphones – the TANK X delivers days of power while remaining airline carry-on compliant. It operates reliably from –28°C to 56°C (–18°F to 133°F) , supports 120W fast charging (full in 70 min), and offers reverse charging for other devices. Enjoy 65h talk time and 6h projector use (Night Mode) – ideal for professionals, drivers, and adventurers who never want to run out of power.

Dual‑Band GPS + Multi‑GNSS

TANK X features multi-GNSS positioning with GPS (L1/L5), GLONASS, Galileo, and Beidou. Unlike single-band GPS (2–5m accuracy, up to 10–15m in dense urban or wooded areas), dual-band L1+L5 delivers 1–2m accuracy with faster signal lock and stable tracking – even in complex, signal-challenged environments.

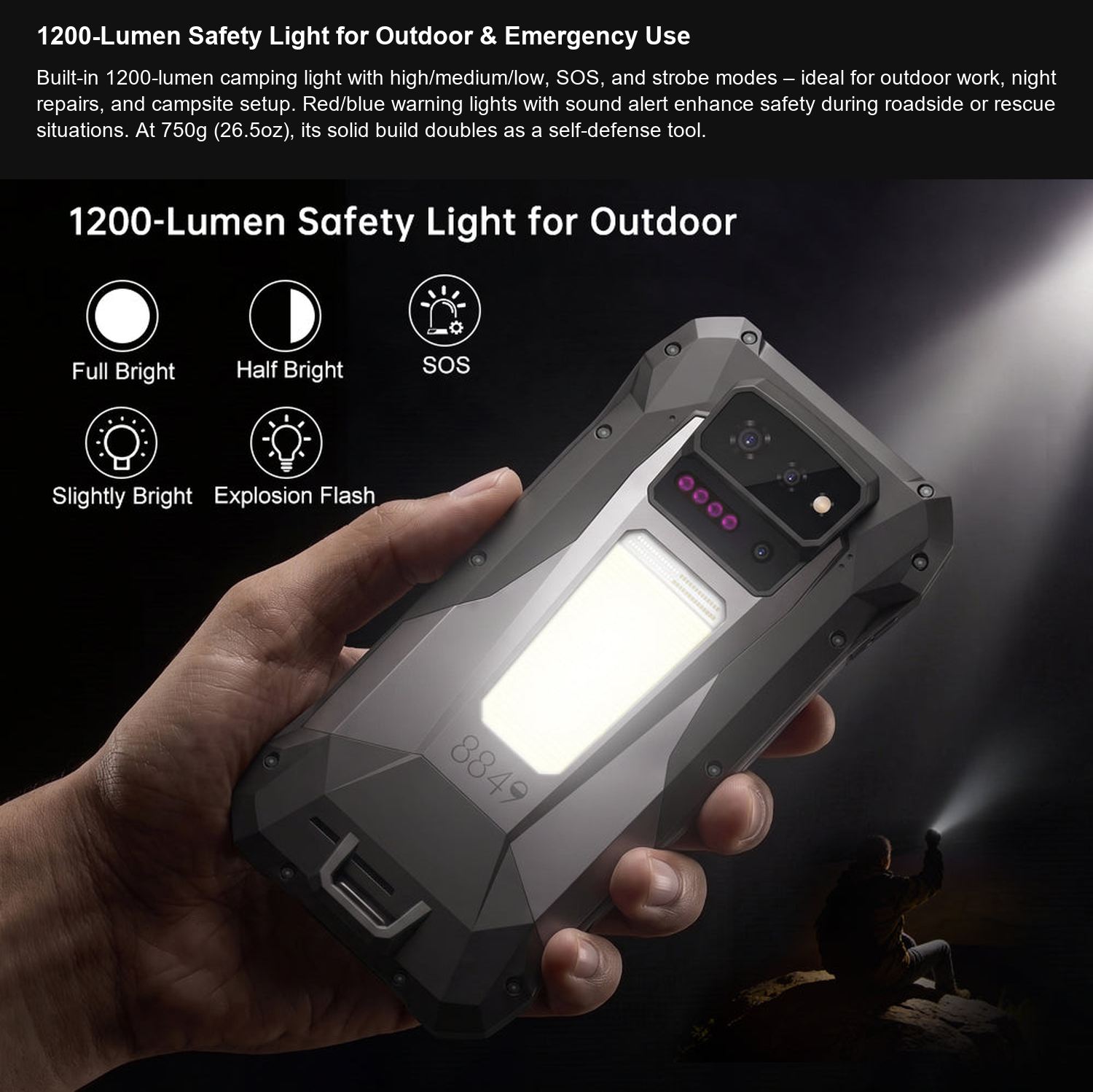

1200-Lumen Safety Light for Outdoor & Emergency Use

Built-in 1200-lumen camping light with high/medium/low, SOS, and strobe modes – ideal for outdoor work, night repairs, and campsite setup. Red/blue warning lights with sound alert enhance safety during roadside or rescue situations. At 750g (26.5oz), its solid build doubles as a self-defense tool.

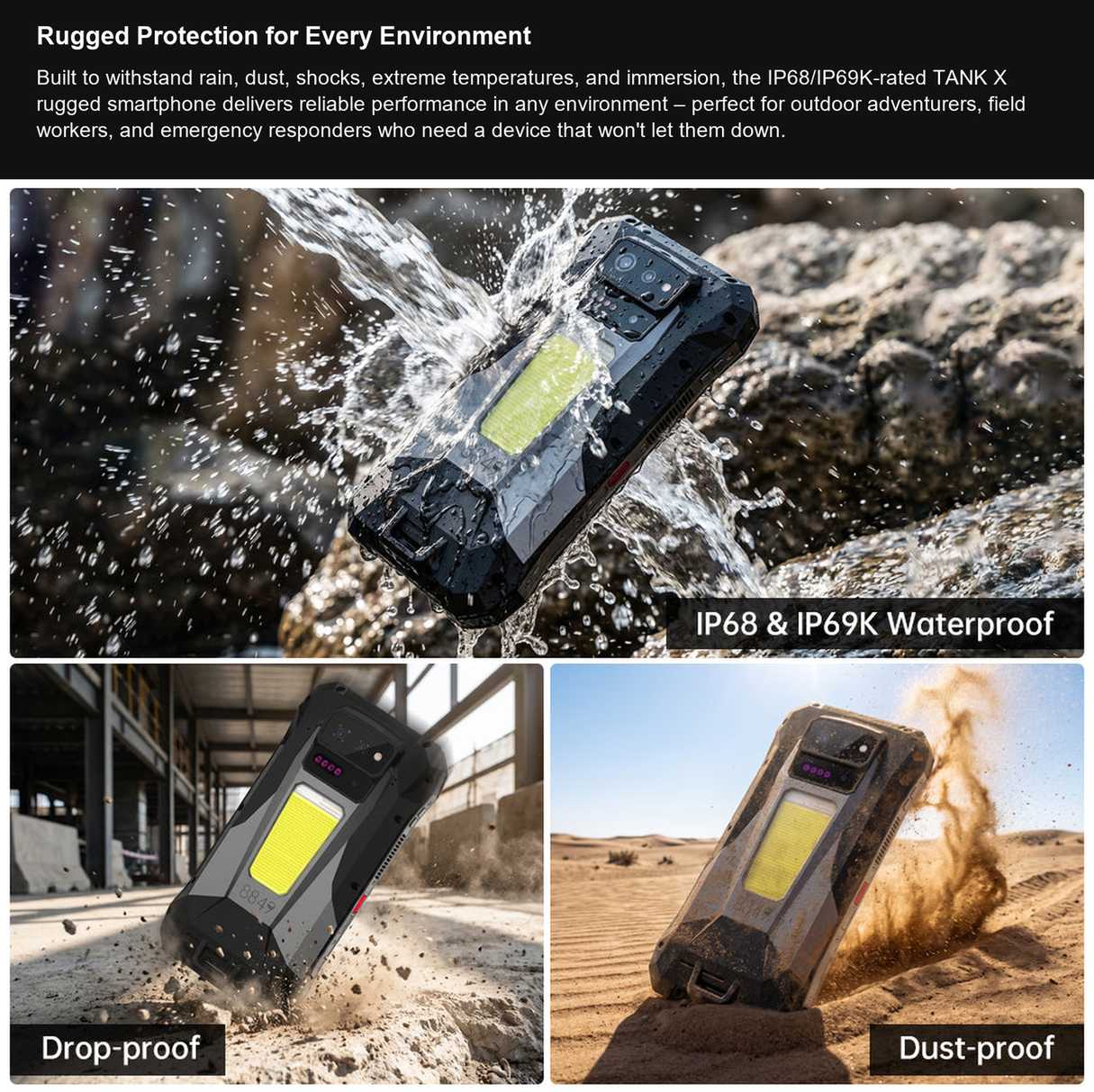

Rugged Protection for Every Environment

Built to withstand rain, dust, shocks, extreme temperatures, and immersion, the IP68/IP69K-rated TANK X rugged smartphone delivers reliable performance in any environment – perfect for outdoor adventurers, field workers, and emergency responders who need a device that won’t let them down.

Useful Toolkit –Built for Real Work and Harsh Environments

Built-in Toolbox includes compass, flashlight, camping lamp, bubble level, plumb bob, protractor, height measurement, barometer, speedometer, magnifier, pedometer, underwater camera, noise testing, and alarm alerts.

Daily Care Tips: Rugged phones aren’t unbreakable. Avoid drops on rough or uneven ground – screens and camera glass can crack. Keep dirt, sand, and lint out of the vents to prevent fan blockage. Keep waterproof covers sealed and avoid frequent exposure to water. Always use a case and screen protector.

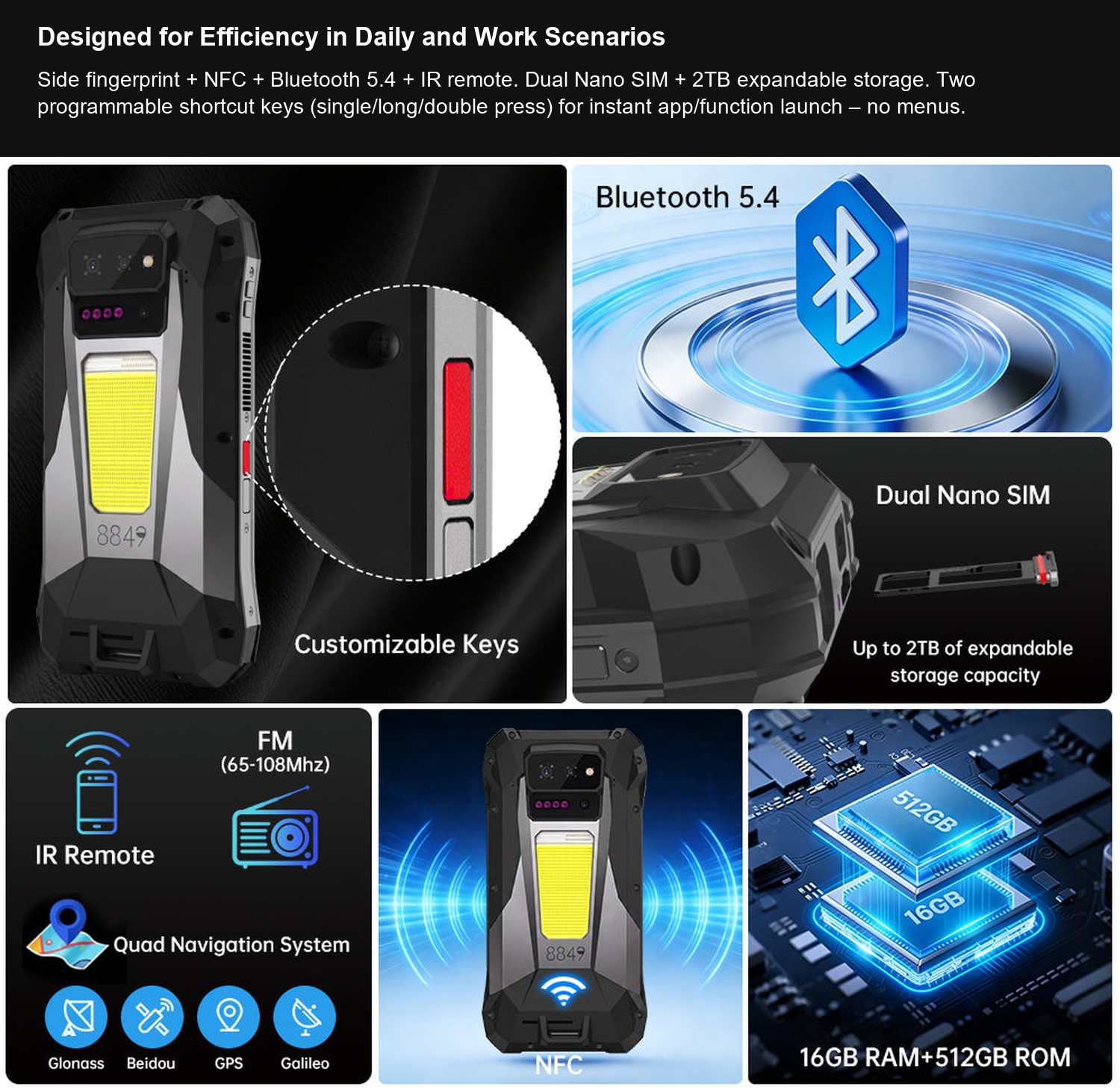

Designed for Efficiency in Daily and Work Scenarios

Side fingerprint + NFC + Bluetooth 5.4 + IR remote. Dual Nano SIM + 2TB expandable storage. Two programmable shortcut keys (single/long/double press) for instant app/function launch – no menus.

8849 TANK X Frequently Asked Questions

Which network operators are supported? Supported carriers:USA: Verizon, T‑MobileCanada: Bell, Rogers, Videotron, Freedom, TelusUnited Kingdom: EE, H3G, Sky, Telefonica(O2), Virgin, Vodafone, GammaAustralia: Optus, Telstra, VHAMajor carriers in other countries are supported. Please contact our customer service for details. contact online chat, or email support@8849tech.com

The projector on my Tank X is blurry. How can I fix it? Settings → Projector → Focus adjustment. Tap the + or – button to adjust the focus.

Tank X One-key Projection Setup Settings → Shortcut Keys → Func1 Key → Shortcut Settings → Long Press → Projector

8849 TANK X Bulk Orders

Choose 8849 TANK X by comparing the confirmed configuration above with your purchasing requirements. The product photos show the available finishes and different views of the product. Check the operating system, connection requirements, battery and charging information where listed, and the dimensions in the Specs tab before arranging a bulk order.

For a wholesale inquiry, specify the model, requested quantity, preferred color and delivery destination. Confirm the required charging equipment and package contents for your market before ordering. Check network support and the storage configuration against your intended applications. Extended RAM, when listed, uses storage as virtual memory; the physical RAM and storage figures are identified separately in the configuration. The display and camera specifications help compare how the product fits everyday communication, viewing documents and capturing images.

8849 TANK X product selection should start with the manufacturer information shown on this page. Review the display, memory, battery and camera details together, because each describes a different part of the device. Match the listed network bands to the local operator before placing an order. Product photos can show more than one finish or storage configuration; those views are presented in one simple product gallery. Use the model name and the requested quantity when preparing an inquiry so the configuration can be checked accurately.

For 8849 TANK X bulk purchases, review the full specifications and the product illustrations before comparing options. Check the dimensions against carrying or mounting requirements where measurements are provided. Review charging connections and package contents for your destination market. Any physical and extended memory figures should be read separately. Keep a record of the model, color and configuration required by your team. RuggedMaster can use that information to prepare the appropriate wholesale inquiry. No retail price is displayed on this product page.
