8849 TANK 5 Rugged Phones

Wholesale 8849 TANK 5 Rugged Phones for bulk orders at RuggedMaster. MediaTek Dimensity 9400e flagship chip, 4nm octa-core, 2.3M+ AnTuTu 220 lumen 2K projector, autofocus, keystone correction & rangefinder

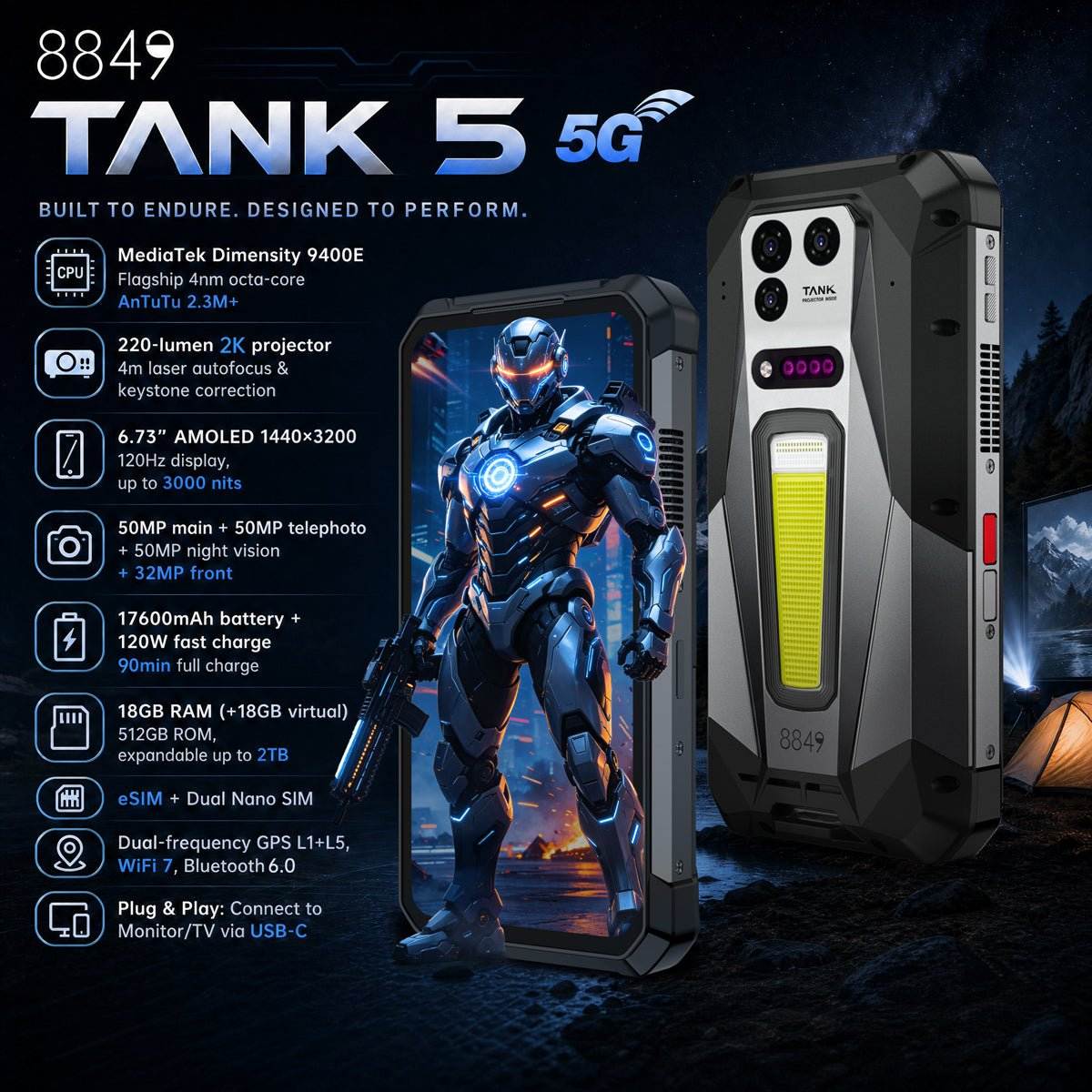

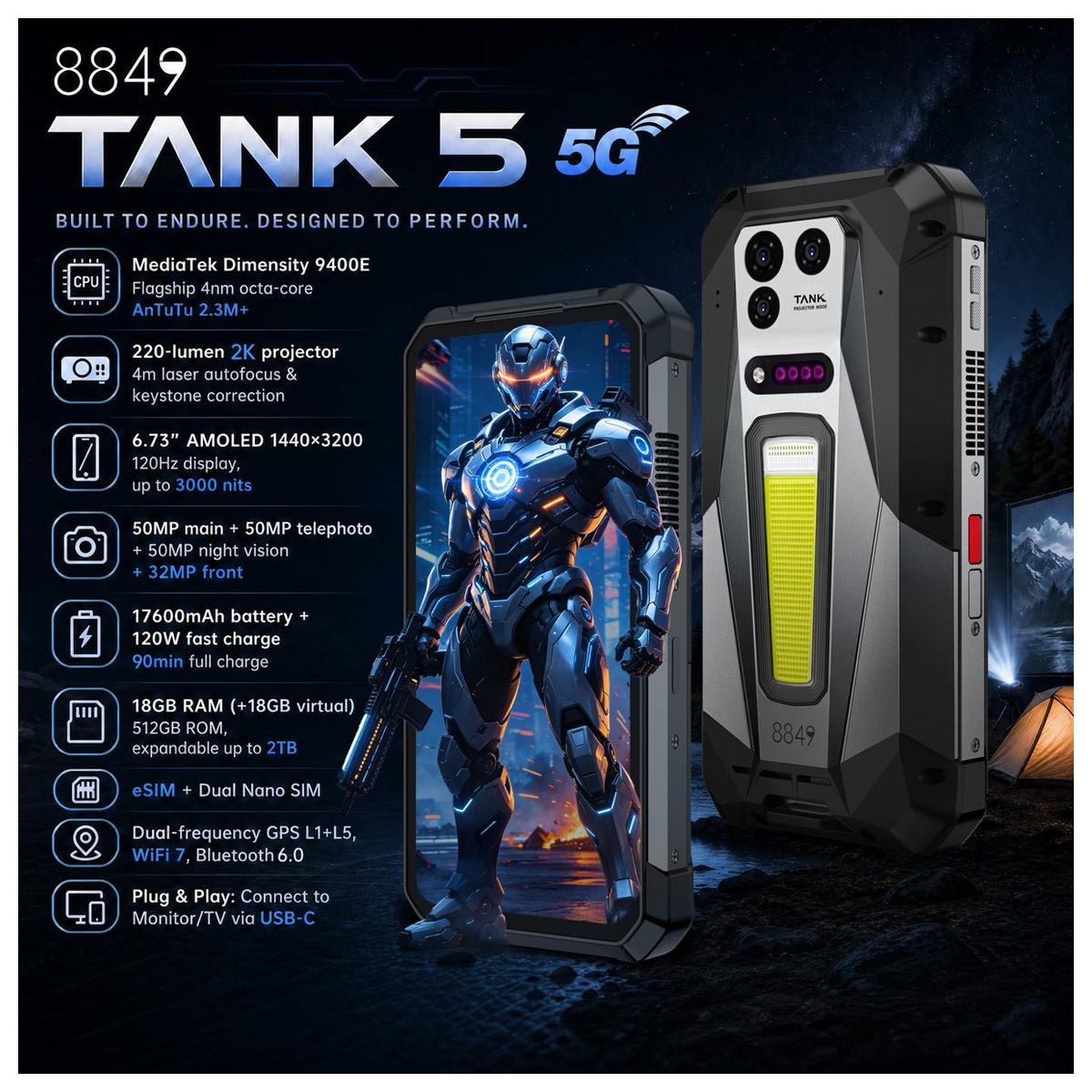

8849 TANK 5 Features and Configuration

MediaTek Dimensity 9400e flagship chip, 4nm octa-core, 2.3M+ AnTuTu

220 lumen 2K projector, autofocus, keystone correction & rangefinder

Upgraded 6.73″ 3K AMOLED 120Hz display, 3000 nits peak brightness

50MP main + 50MP telephoto + 50MP night vision + 32MP front

17600mAh battery + 120W fast charge, 90 min full charge

Upgraded: 18GB RAM (+18GB virtual), 512GB ROM, expandable to 2TB

Dual Nano, Nano + eSIM, Nano + microSD, or Nano + eSIM + microSD

Dual-frequency GPS L1+L5, WiFi 7, Bluetooth 6.0

USB-C 3.2 Gen 1 + DP1.4 Alt Mode for 4K Monitor/TV Output

Android 16, 5 years of security updates, unlocked

Included: TANK 5, fast charger, charging cable, phone case, screen protector, manual.

Difference between TANK 5 and TANK 5 Pro: Pro version only adds thermal imaging.

For other battery capacities or no projector, pls see the full model specs here.

Stock Update

September 26: TANK 5 is well stocked in the US（works with verizon &T mobile), Europe, and Canada. But limited stock remains in Australia. Orders are generally delivered within 4 to 6 days.

The package includes: 8849 Tank 5 phone, fast charger, phone case, triple-layer shatterproof screen protector, user manual. Note: A tempered glass screen protector (not a three-layer explosion-proof film) is already pre-applied at the factory, so you can continue using it and do not need to peel it off.

Usage & Safety Note

Projection FunctionFor optimal image quality and brightness, it is recommended to use the 8849 TANK 5 phone with a projection distance of 1.5–2 meters. Image resolution and brightness may decrease as the projection distance increases.

Drop Resistance DisclaimerAlthough 8849 rugged phones and tablets have passed IP68/IP69K certification tests, they are still precision electronic devices. Drop resistance may vary depending on factors such as impact angle, surface hardness, and long-term wear. It is strongly recommended to use the original protective case to enhance overall and long-term protection.

Water and Dust Resistance DisclaimerThis device is rated IP68/IP69K in accordance with the IEC 60529 international standard. Testing is conducted under controlled laboratory conditions in static fresh water (up to 1.8 meters deep for a maximum of 30 minutes). In daily use, exposure to seawater, swimming pool water, soapy water, hot water, or other liquids may reduce protective performance. Do not operate buttons or ports underwater. Water and dust resistance are not permanent and may diminish over time due to normal wear and tear.

Screen and DisplayThe 120Hz adaptive refresh rate automatically adjusts according to on-screen content to balance smooth performance and power consumption. Some applications or games may be limited to specific frame rates. The display uses high-strength glass with an anti-scratch coating; however, contact with sand, gravel, or sharp objects should still be avoided.

Storage and ExpansionThe operating system and pre-installed applications occupy a portion of the total storage capacity; therefore, actual available storage is less than the nominal value. For expandable storage, it is recommended to use a UHS-I Class 10 or higher microSD card, formatted as exFAT to support large files.

Dimensions and AppearanceThe size and weight of 8849 rugged smartphones may vary slightly due to manufacturing tolerances. Screen size is measured diagonally with rounded corners; the actual visible display area is slightly smaller.

Camera FeaturesCamera resolution and functions may be adjusted through software updates. Some shooting modes dynamically change resolution and frame rate. Camera startup and autofocus performance may be affected in extremely low or high temperature environments.

Network and ConnectivityVoLTE availability depends on local carrier support. Google services (such as Google Pay) may not be available in certain countries or regions. Please verify local compatibility in advance at: https://pay.google.com/about

Accessories and Maintenance8849 rugged mobile phones are equipped with waterproof port covers. Before use, ensure all covers are fully inserted and free from wear or damage. If the device becomes wet, wipe it dry and allow it to rest briefly before charging. Do not charge immediately. Regularly clean ports and speaker openings to prevent dust accumulation that may affect performance.

Environmental AdaptabilityRecommended Operating Temperature: 0°C–35°C (32°F–95°F). Battery performance and screen responsiveness may decrease under extreme temperature conditions. Prolonged exposure to ultraviolet light or chemical solvents may affect the durability and color of the device housing.

Warranty CoverageDamage caused by liquid ingress, drops, crushing, unauthorized disassembly or repair, or the use of non-original accessories is not covered under warranty.

Performance DisclaimerThe dynamic memory expansion (virtual RAM) feature allocates a portion of internal storage as additional system memory. Actual performance gains depend on application load and storage performance. Sufficient available storage space is required to enable this feature.

Durability NoticeWater, dust, and drop resistance are not permanent features. Protective performance may gradually decline due to daily wear, impacts, and aging. Dust or sand may enter the internal cooling fan and cause it to stop functioning. This issue can usually be resolved by using compressed air, such as at an automotive service shop. Do not intentionally test the device beyond its rated waterproof or drop-resistant limits.

Safety Reminder8849 TANK 5 smartphone is equipped with multiple built-in sensors and has been tested and validated by 8849 R&D laboratories. Long-term use in harsh environments—such as strong magnetic fields, high temperature and humidity, or heavy dust—may reduce sensor accuracy and shorten service life.

8849 TANK 5 Technical Overview

Brand: 8849

Model: TANK 5

Specification: 8849 TANK 5 Rugged Phone Specifications

BODY / Dimensions: 177.1 x 87 x 33.8 mm

BODY / Weight: 715 g

SIM / eSIM: Supported.

SIM / Flexible combo: Dual Nano, Nano + eSIM, Nano + microSD, or Nano + eSIM + microSD

DISPLAY / Type: 6.73-inch AMOLED Punch-Hole Display

DISPLAY / Resolution: 1440 x 3200 pixels (3K)

DISPLAY / Refresh Rate: 120Hz

DISPLAY / Peak Brightness: 3000 nits

DISPLAY / PPI: 522

DISPLAY / Dimming: 1920Hz PWM + DC

PLATFORM / Chipset: MediaTek Dimensity 9400e (MT6989T-e)

PLATFORM / CPU: 1x X4 @3.4 GHz + 3x X4 @2.85 GHz + 4x A720 @2.0 GHz

PLATFORM / GPU: Immortalis-G720 MC12

PLATFORM / Process: 4nm

PLATFORM / OS: Android 16

MEMORY / RAM: 18GB LPDDR5X

MEMORY / Internal Storage: 512GB UFS 4.0

MEMORY / Expandable Storage: via TF card

MEMORY: MAIN CAMERA (Quad)

MEMORY: 50 MP, Primary (Samsung S5KGN1SP)

MEMORY: 50 MP, Night Vision (wide), AF, 30Hz high frame rate (OmniVision OV50D40)

MEMORY: 50 MP, Telephoto, AF (OmniVision OV50D40)

MEMORY / Features: Dual-color temperature Flash LED (1.5A max) + 4 IR fill lights for night vision

SELFIE CAMERA: 32 MP, Fixed Focus (OmniVision OV32B40)

BATTERY / Capacity: 17600 mAh (2 x 8800 mAh, 7.74V, 68.11Wh), battery weight 260g

BATTERY / Wired Charging: 120W Max (fast charge), 7.5W (normal mode)

BATTERY / Reverse Wired Charging: Supported via USB-C 3.1 (5V 25W) and USB-C 3.0

CONNECTIVITY / Network: GSM/WCDMA/LTE(FDD,TDD)/5G NR(FDD,TDD)

CONNECTIVITY / 5G Bands: n1, n2, n3, n5, n7, n8, n20, n25, n28, n38, n40, n41, n66, n77, n78

CONNECTIVITY / 4G LTE FDD Bands: 1,2,3,4,5,7,8,12,13,17,18,19,20,25,26,28A,28B,66

CONNECTIVITY / 4G LTE TDD Bands: 34,38,39,40,41,42

CONNECTIVITY / 3G Bands: B1,2,4,5,6,8,19

CONNECTIVITY / 2G GSM Bands: B2,3,5,8

CONNECTIVITY / WLAN: Wi-Fi 802.11 a/b/g/n/ac/ax (2.4GHz & 5GHz), WiFi 7, WiFi 6, Wi-Fi Direct, Wi-Fi Display, Wi-Fi Hotspot V2.0, MIMO

CONNECTIVITY / Bluetooth: 6.0

CONNECTIVITY / GPS: Yes, with L1+L5 Dual-band, GLONASS, BDS, Galileo

CONNECTIVITY / NFC: Yes (THN31), Read/Write, Card Mode, ISO/IEC 14443A/B, 15693, EMVCo

CONNECTIVITY / Infrared Remote: Supported

PROJECTOR & SPECIAL FEATURES / Projector: DLP Technology, 2K resolution (2048 x 1080), 220 Lumens

PROJECTOR & SPECIAL FEATURES / Auto Focus: Laser, 4-meter range (focus distance: 0.5m – 4.0m)

PROJECTOR & SPECIAL FEATURES / Keystone Correction: 4-point TOF laser, ±45° horizontal/vertical

PROJECTOR & SPECIAL FEATURES / Projection Runtime: 5 hours (normal), 6 hours (night mode)

PROJECTOR & SPECIAL FEATURES / Projector Flashlight Mode: Yes

PROJECTOR & SPECIAL FEATURES / Laser Ranging: 4m distance measurement + auto-focus

PROJECTOR & SPECIAL FEATURES / Camping Light: Yes, with red/blue warning light

PROJECTOR & SPECIAL FEATURES / Water Resistance: IP68, IP69K

PROJECTOR & SPECIAL FEATURES / Side-mounted Fingerprint Sensor: Yes

PROJECTOR & SPECIAL FEATURES / Programmable Keys: 2x PTT keys (single/double/long press)

MULTIMEDIA / Loudspeaker: Smart PA (AWINIC), single speaker, 3.5cc sound chamber, 96dB loudness

MULTIMEDIA / 3.5mm Jack: Yes

MULTIMEDIA / Audio Features: Dual analog silicon microphone with noise cancellation

MULTIMEDIA / Vibration Motor: 1027 linear (flat) motor

SENSORS: Accelerometer, Gyroscope (hardware), Proximity, Compass, Ambient Light, Barometer

BUTTONS & PORTS / Physical Buttons: Power, Volume Up, Volume Down, 2x PTT programmable keys

BUTTONS & PORTS / USB Port: USB-C 3.1 (USB 3.2 Gen1 + DP1.4) supports fast charging, data, DP OUT

BUTTONS & PORTS / Second USB: Not supported

BUTTONS & PORTS / Audio Jack: 3.5mm

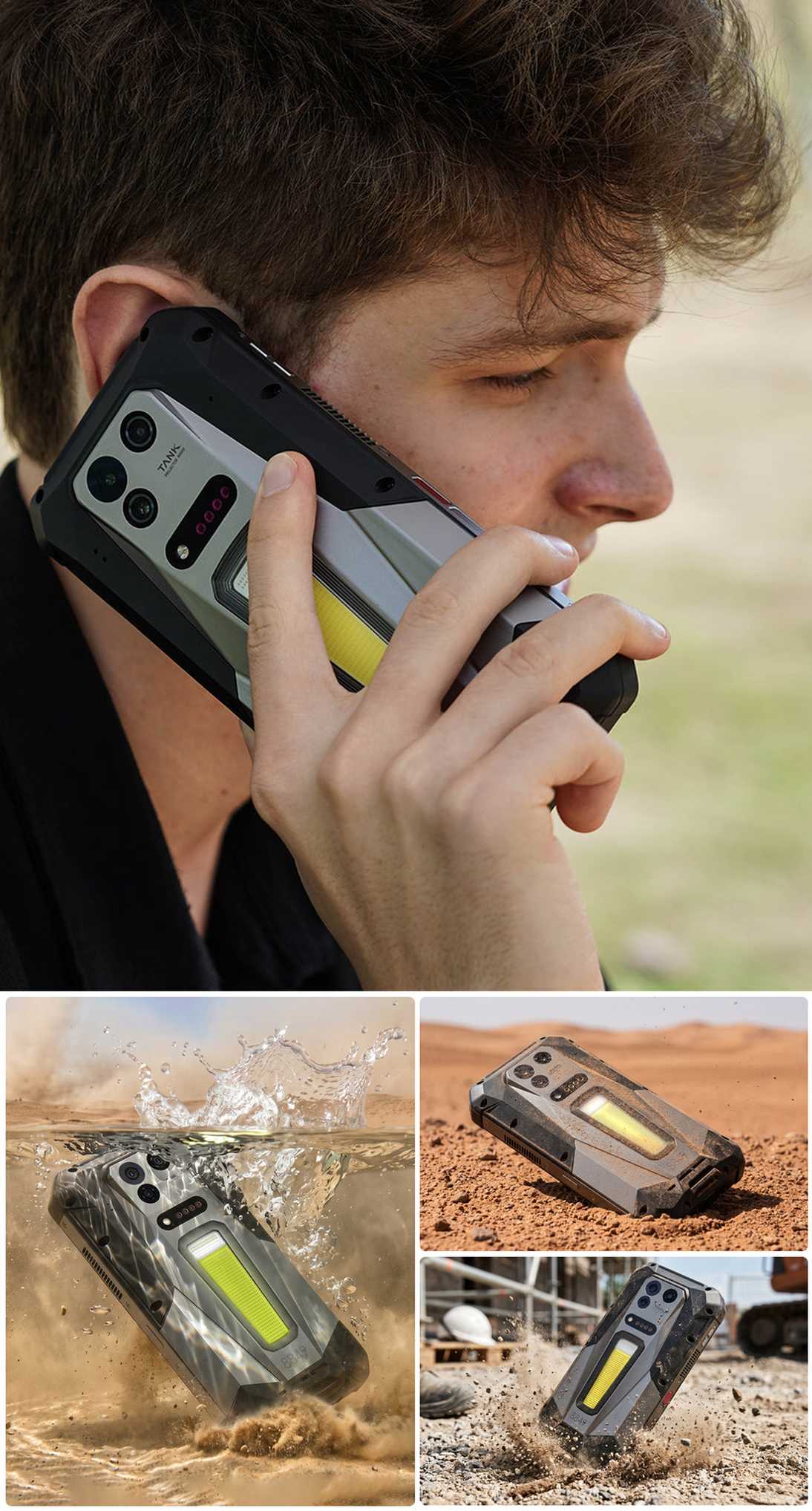

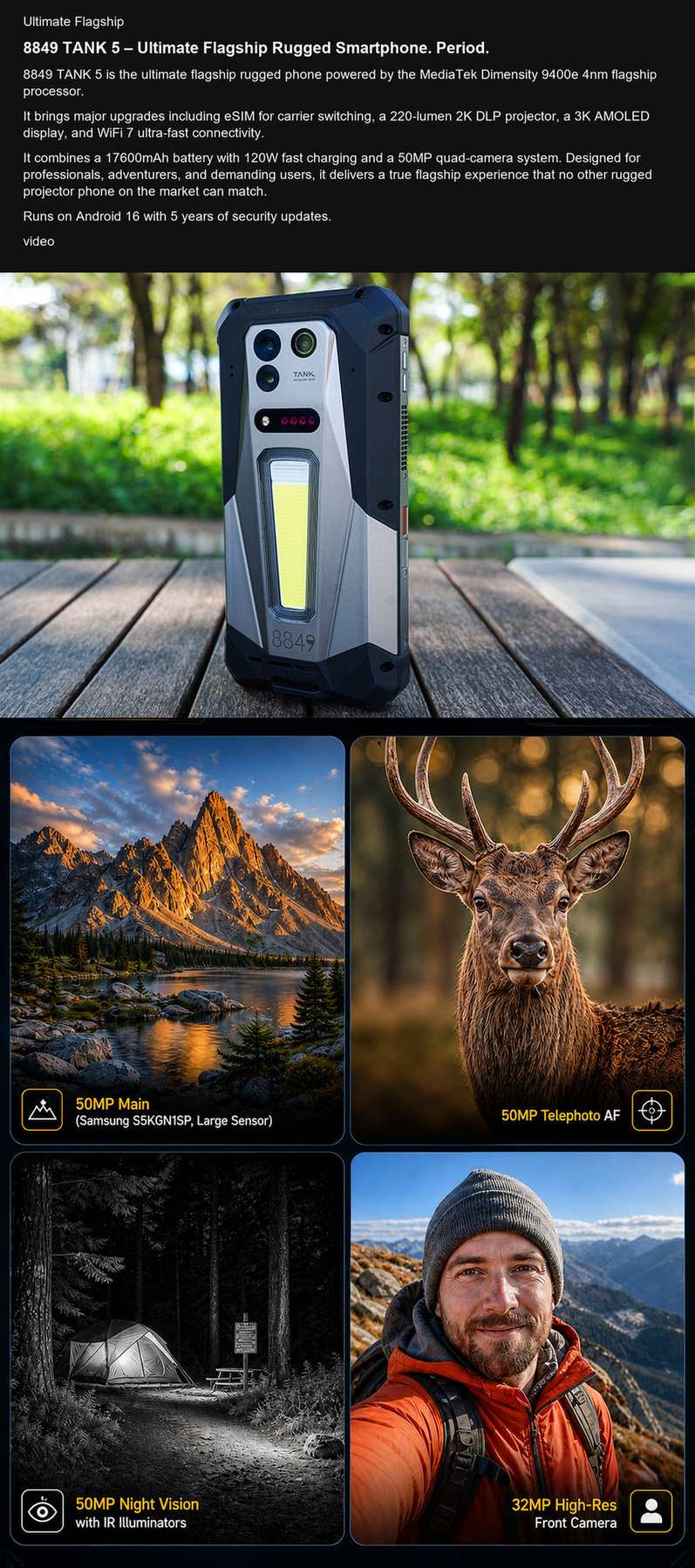

Ultimate Flagship

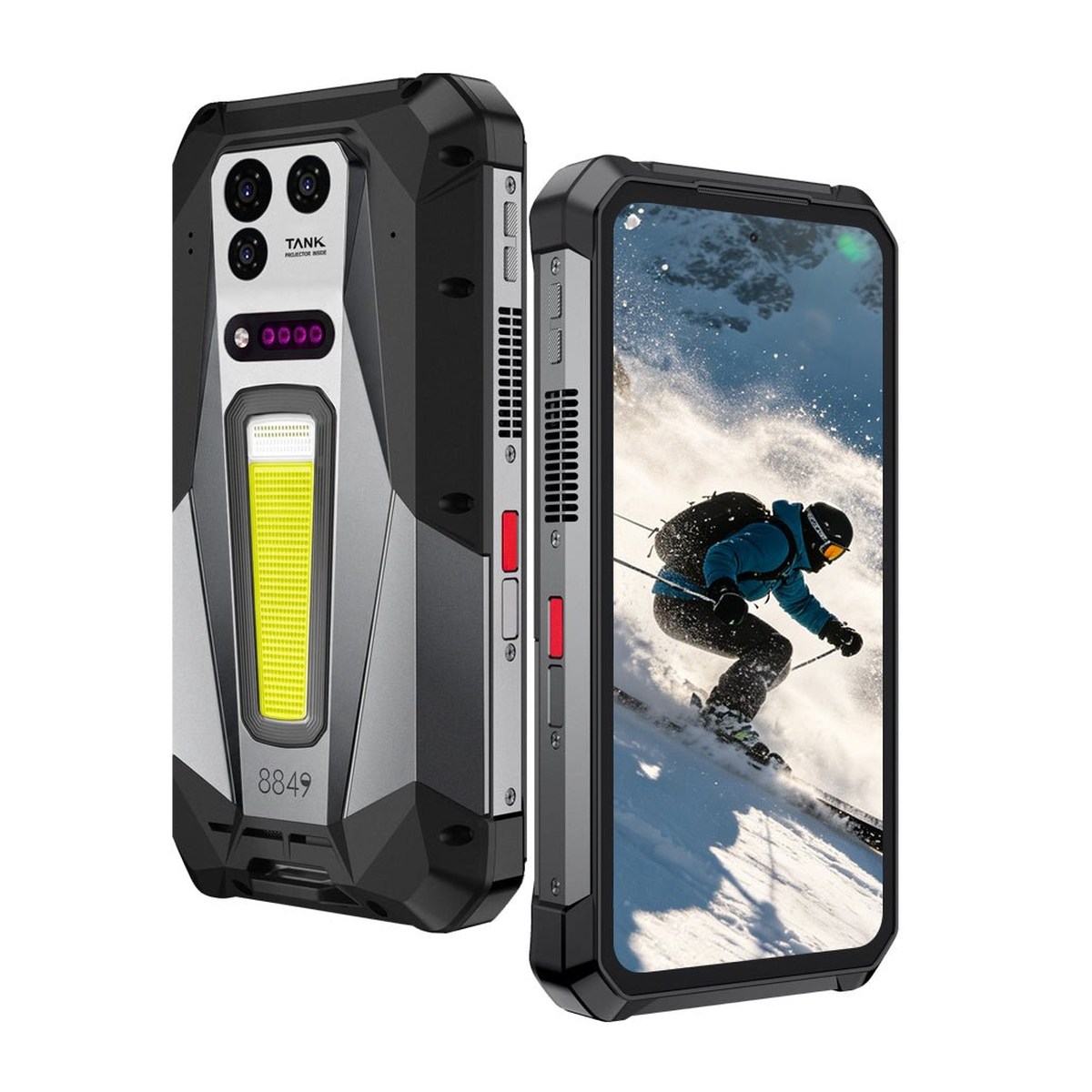

8849 TANK 5 – Ultimate Flagship Rugged Smartphone. Period.

8849 TANK 5 is the ultimate flagship rugged phone powered by the MediaTek Dimensity 9400e 4nm flagship processor.

It brings major upgrades including eSIM for carrier switching, a 220-lumen 2K DLP projector, a 3K AMOLED display, and WiFi 7 ultra-fast connectivity.

It combines a 17600mAh battery with 120W fast charging and a 50MP quad-camera system. Designed for professionals, adventurers, and demanding users, it delivers a true flagship experience that no other rugged projector phone on the market can match.

Runs on Android 16 with 5 years of security updates.

video

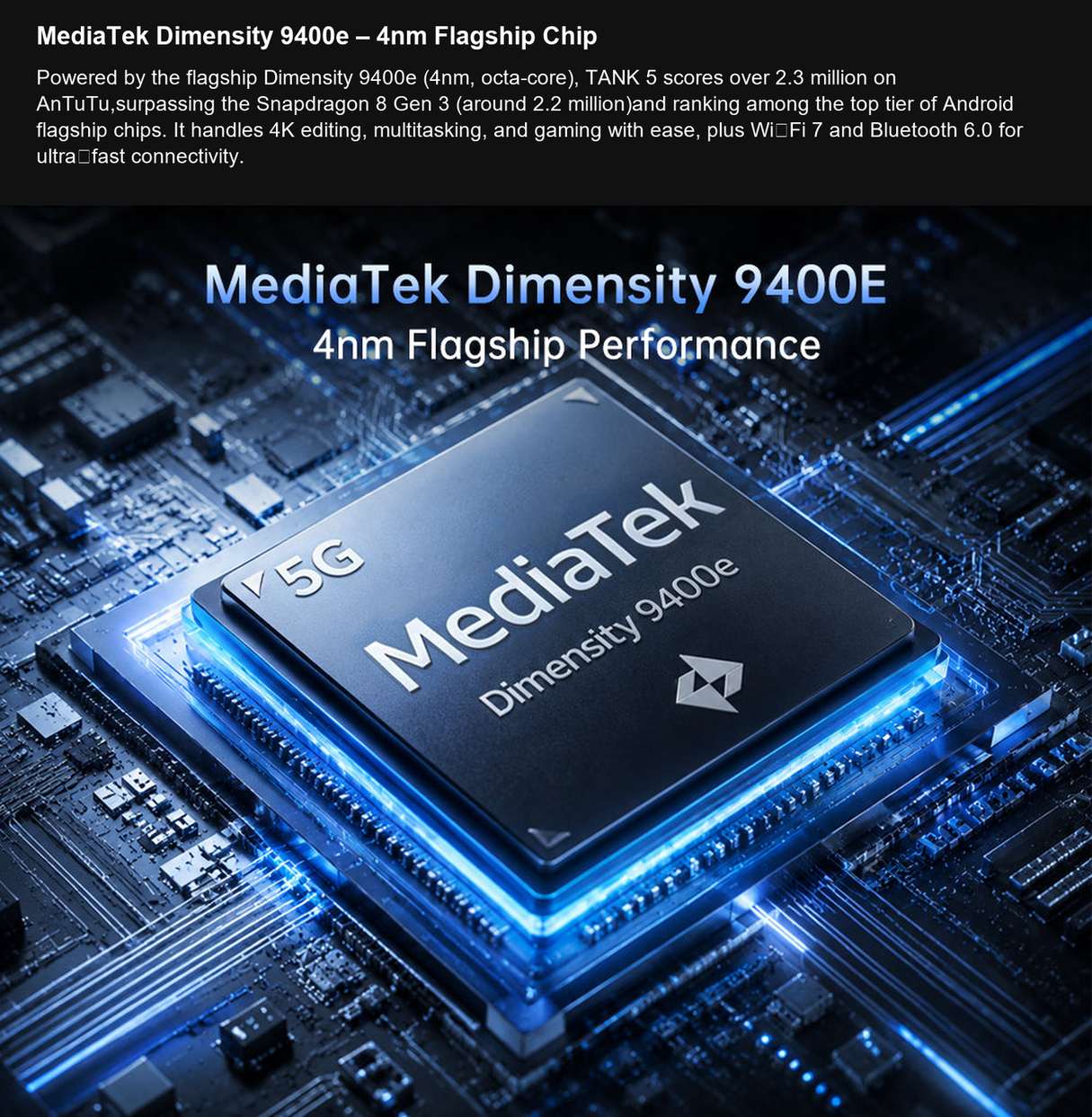

MediaTek Dimensity 9400e – 4nm Flagship Chip

Powered by the flagship Dimensity 9400e (4nm, octa-core), TANK 5 scores over 2.3 million on AnTuTu,surpassing the Snapdragon 8 Gen 3 (around 2.2 million)and ranking among the top tier of Android flagship chips. It handles 4K editing, multitasking, and gaming with ease, plus Wi‑Fi 7 and Bluetooth 6.0 for ultra‑fast connectivity.

220-lumen DLP projector with 2K resolution

TANK 5 debuts as the world’s first 2K projector phone, featuring a 220-lumen, 2048×1080 high-resolution projector—sharp and clear even in indoor daylight or shaded outdoor environments, not just darkness. Enjoy up to 5 hours of projection in High-Brightness Mode or 6 hours in Night Mode, with Projector Flashlight Mode for powerful illumination when needed. A 96dB Smart PA speaker delivers loud, clear sound for outdoor movies and presentations.

Auto Laser Autofocus & Keystone Correction

The TANK 5 features a built-in projector with laser autofocus (0.5–4.0m) for instant sharpening—no manual tweaking. ±45° keystone correction (vertical & horizontal) keeps images rectangular and distortion-free even when tilted. Perfect for tents, meeting rooms, or outdoor walls—quick setup, hassle-free.

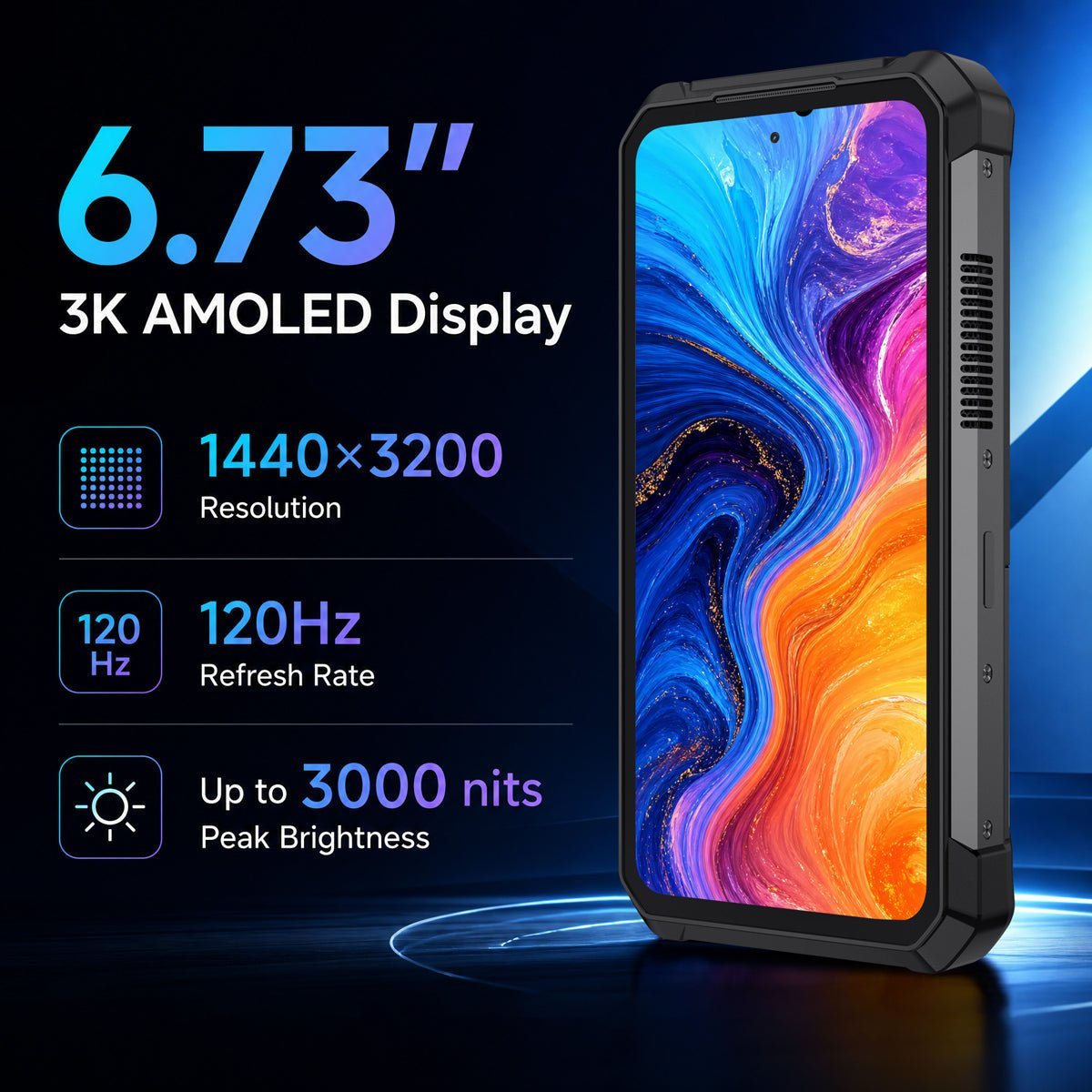

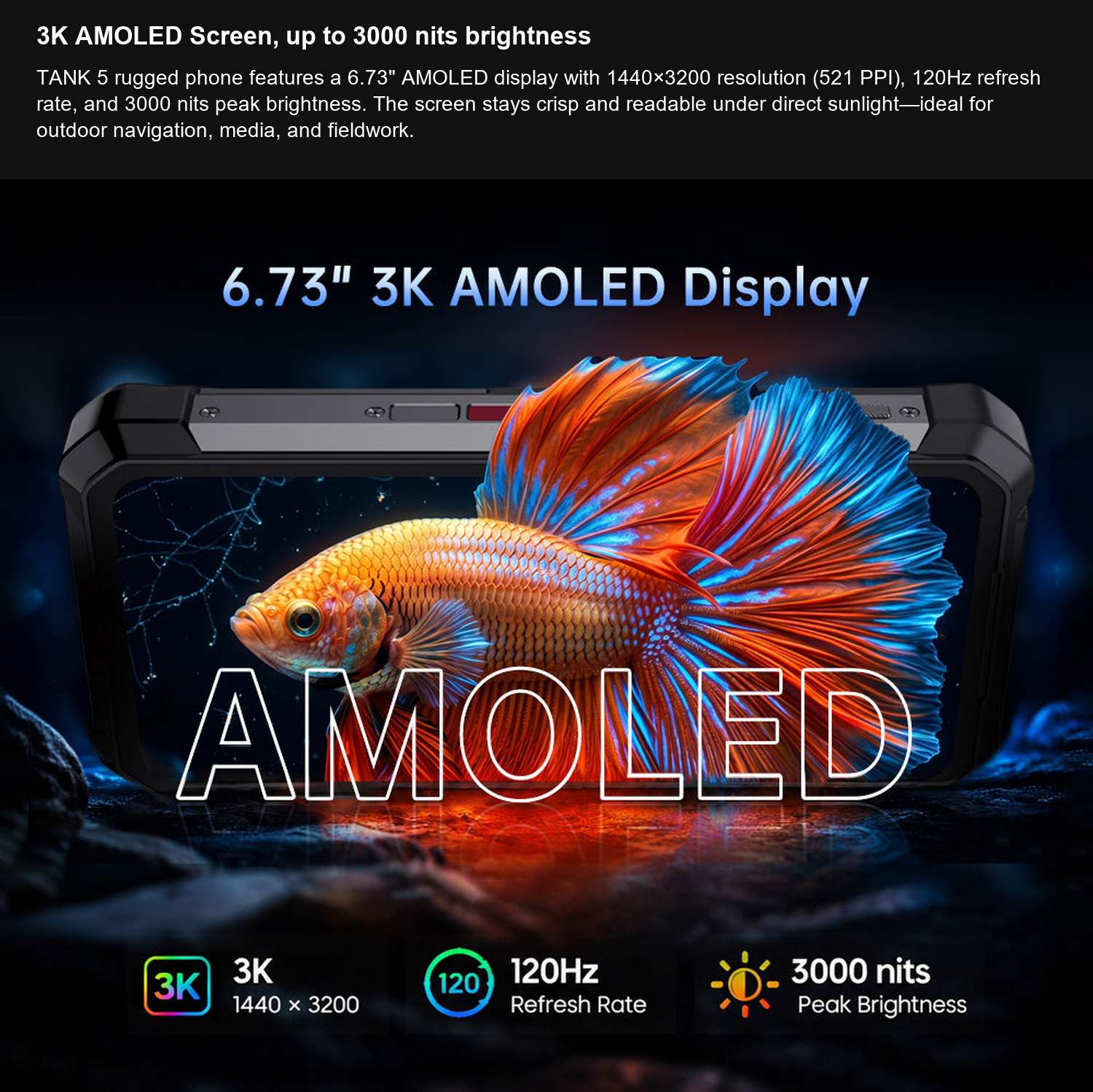

3K AMOLED Screen, up to 3000 nits brightness

TANK 5 rugged phone features a 6.73″ AMOLED display with 1440×3200 resolution (521 PPI), 120Hz refresh rate, and 3000 nits peak brightness. The screen stays crisp and readable under direct sunlight—ideal for outdoor navigation, media, and fieldwork.

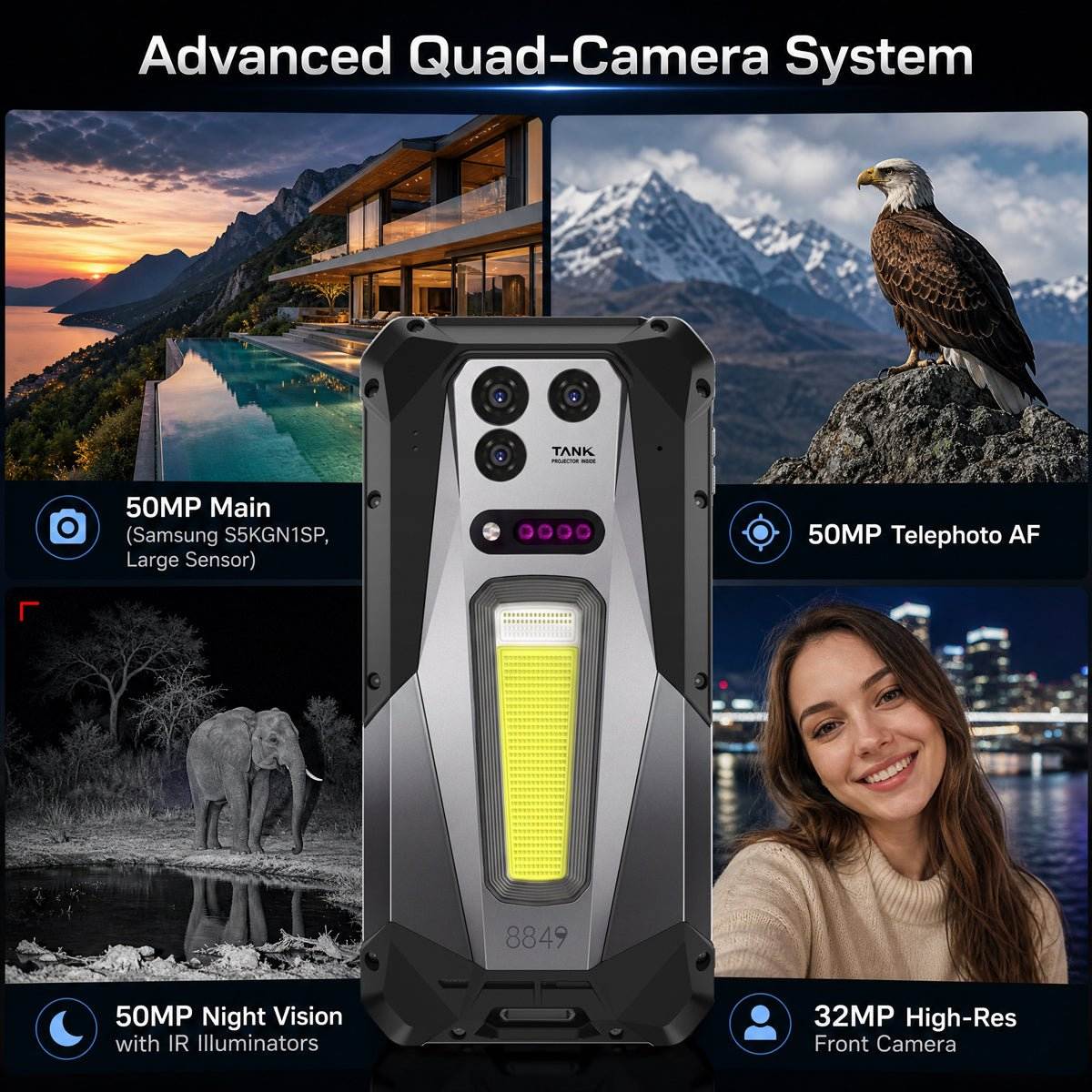

50MP Flagship Main Camera – Samsung S5KGN1SP Large Sensor

TANK 5 smartphone features a 50MP Samsung S5KGN1SP sensor (1/1.56″)—flagship-level imaging for a rugged phone. The large sensor captures more light for brighter, cleaner low-light shots with less noise. Full-pixel autofocus locks on quickly, even in dynamic outdoor scenes.

50MP Telephoto & 32MP High-Res Front Camera

Capture distant subjects clearly with the 50MP telephoto camera (AF, up to 20x zoom). For selfies and video calls, the 32MP front camera delivers exceptional sharpness and detail. This versatile combination lets you shoot from wide-angle to telephoto, making it ideal for outdoor activities, work documentation, and content creation.

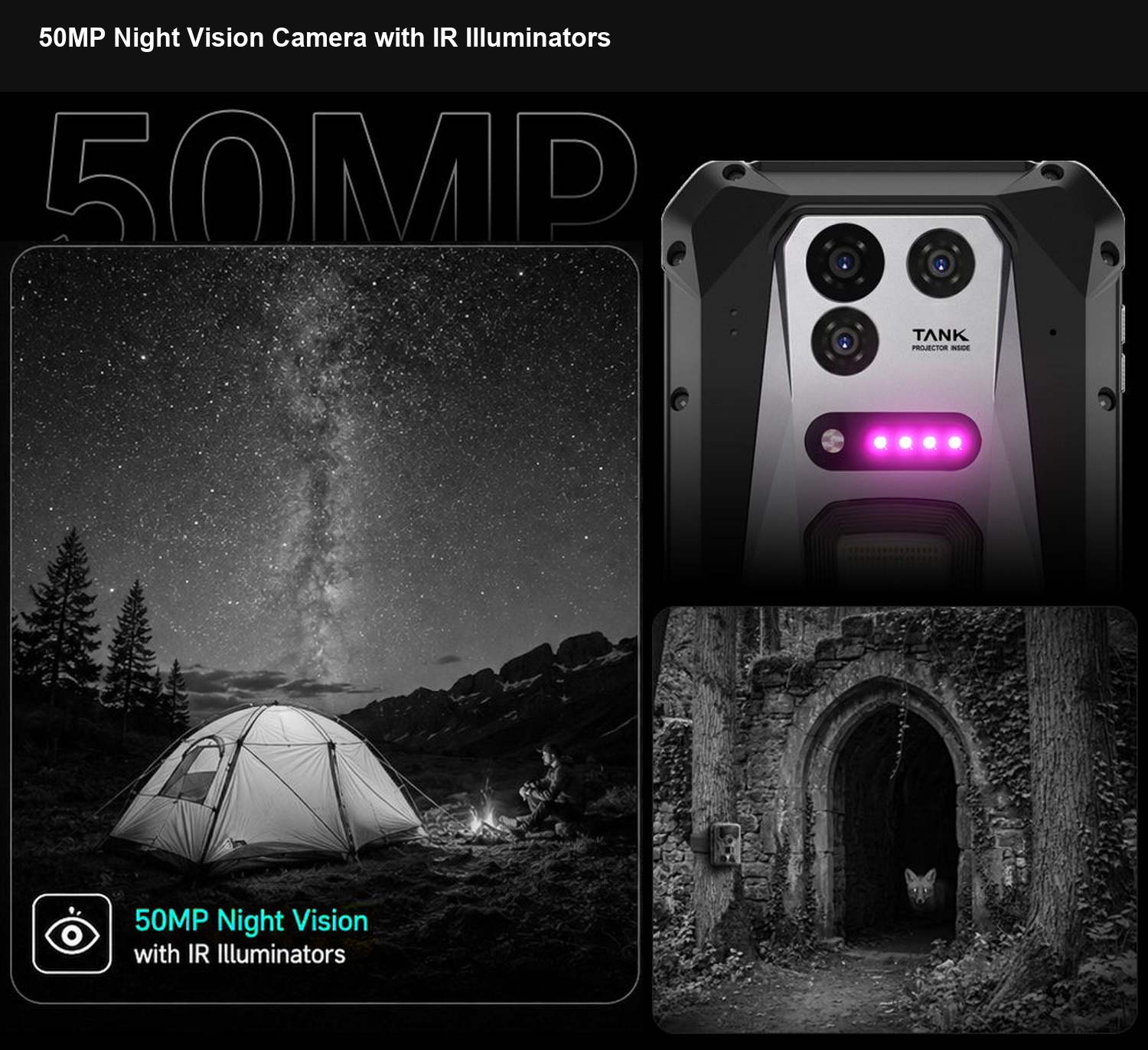

50MP Night Vision Camera with IR Illuminators

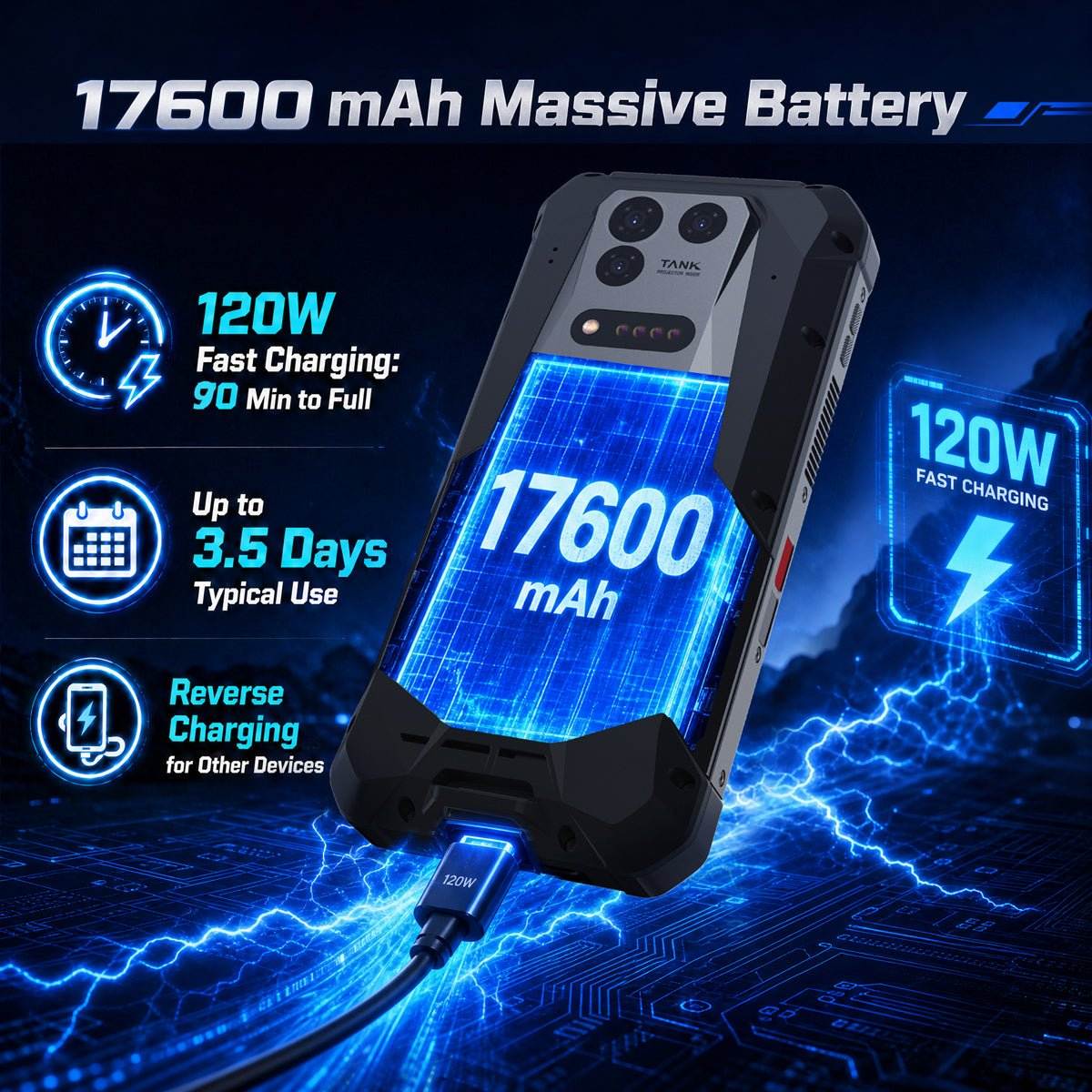

17,600mAh Massive Battery with 120W Fast Charging

Tank 5 packs a 17,600mAh battery – 3× larger than typical phones, flight-safe, and operable from –28°C to 56°C. It supports 120W fast charging (full in 90 min) and 25W reverse charging via USB 3.1, delivering 65h talk time and 6h projector use (Night Mode). Built for professionals, drivers, adventurers – anyone who never wants to run out of power.

eSIM & Nano SIM – Global Connectivity

TANK 5 Projector Phone supports eSIM for seamless carrier switching. Use Dual Nano SIM or Nano SIM + eSIM. eSIM uses the SIM2 interface, supports multiple profiles, with one active at a time.

GPS L1+L5 Dual-Band & Multi-GNSS

TANK 5 phone supports GPS (L1+L5 dual-band), GLONASS, Galileo, and Beidou. Dual-band GPS delivers accuracy within 1–2 meters, faster signal lock, and stable tracking even in dense forests or urban canyons. Whether hiking, driving, or working in remote areas, you’ll always know your exact location.

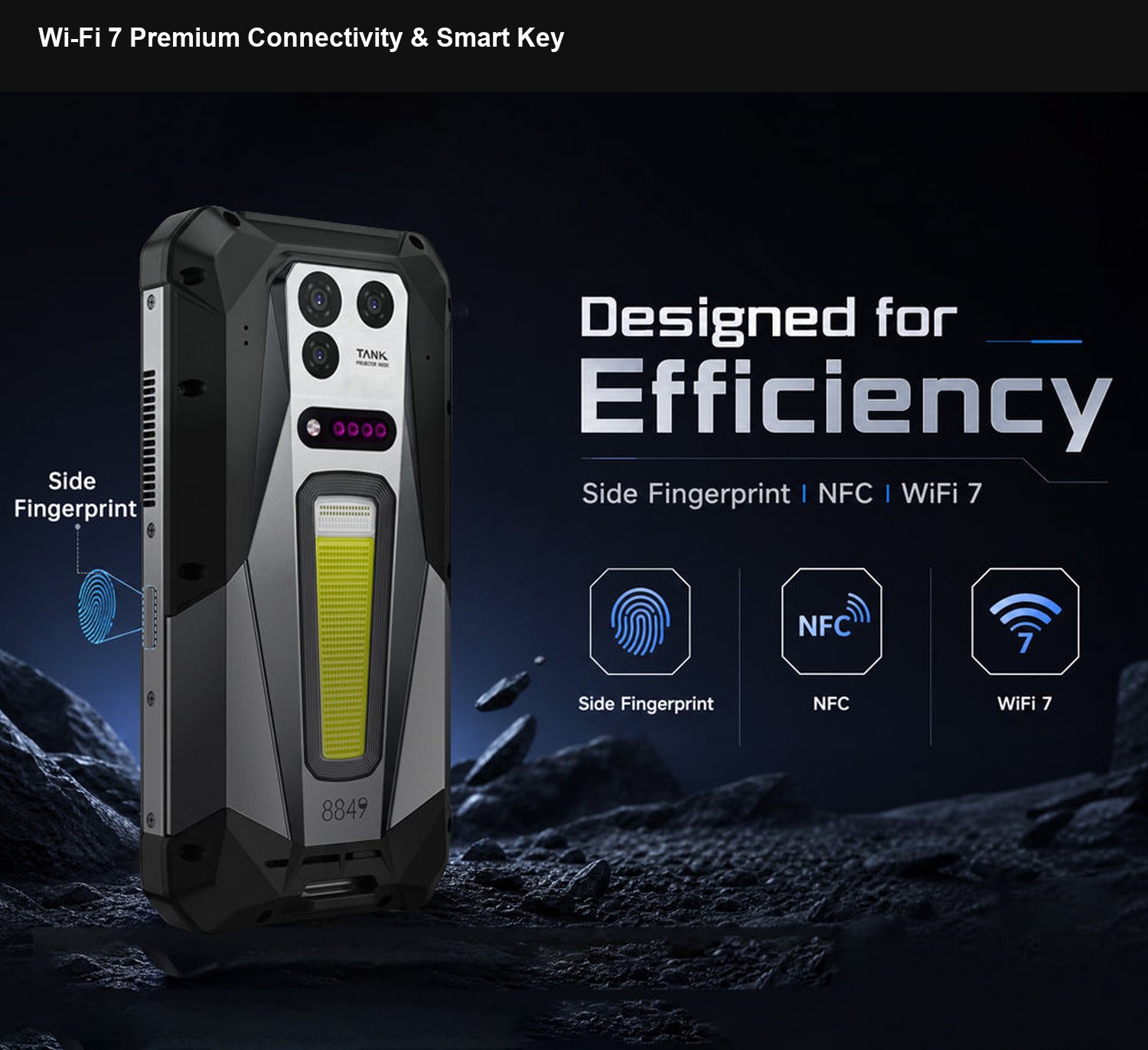

Wi-Fi 7 Premium Connectivity & Smart Key

USB-C (DP 1.4 Alt Mode) – Video Output to External Display

TANK 5 projector phone features a dedicated USB-C port with DP 1.4 Alt Mode (DP OUT) support. Plug directly into monitors, TVs, or projectors – no adapters needed. Mirror or extend your screen for presentations or watching movies on a larger display.

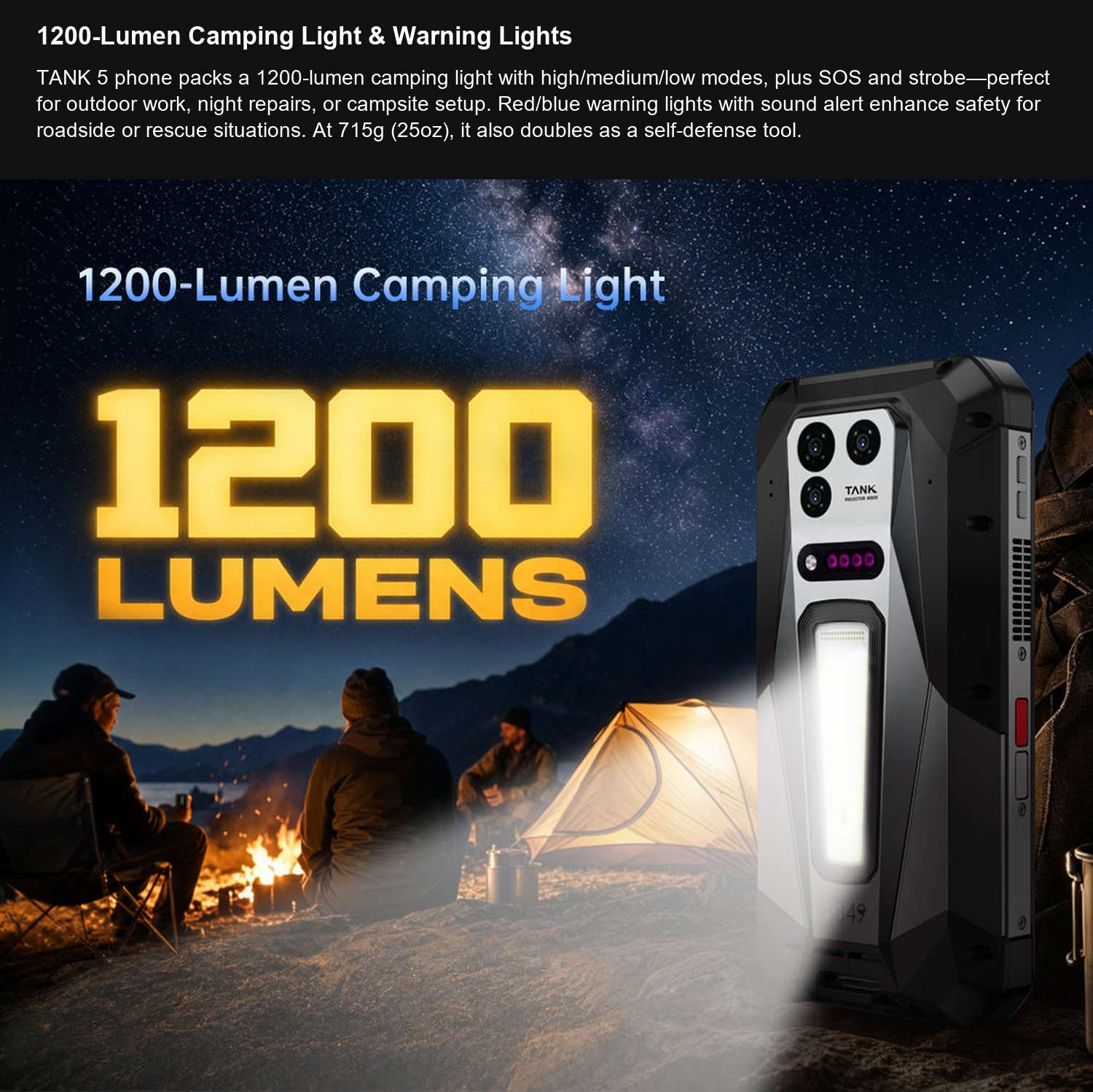

1200-Lumen Camping Light & Warning Lights

TANK 5 phone packs a 1200-lumen camping light with high/medium/low modes, plus SOS and strobe—perfect for outdoor work, night repairs, or campsite setup. Red/blue warning lights with sound alert enhance safety for roadside or rescue situations. At 715g (25oz), it also doubles as a self-defense tool.

Built-in Rangefinder – One Press, Real-Time Reading.

TANK 5 has a built-in laser rangefinder with a range from 50cm to 400cm. It supports four modes: Distance, Area, Volume, and Pythagorean. Designed for construction, interior design, home use, and field measurements. All-in-one, measure anywhere.

Rugged Protection & Practical Toolkit

TANK 5 is IP68/IP69K certified—waterproof, dustproof, shockproof, and resistant to extreme temperatures. The built-in Toolbox provides essential tools including compass, camping light, bubble level, protractor, height measure, barometer, speedometer, magnifier, pedometer, underwater camera, noise meter, and alarm alerts.

Daily Care Tips: Rugged smartphones aren’t unbreakable. Avoid drops on rough or uneven ground, as screens and camera glass can crack. Keep dirt, sand, and lint out of the vents to prevent fan blockage. Keep waterproof covers sealed and avoid frequent water exposure, as waterproof performance may decrease over time. Always use a case and screen protector.

8849 TANK 5 Frequently Asked Questions

Moisture forms inside the projector lens occasionally. Our China Shenzhen factory is near the sea with high humidity, so minor ambient moisture may remain inside the phone. When the projector runs, heavy heat evaporates this moisture, forming fog on the lens.Solution: Gently take out the SIM tray and leave the phone in a ventilated area, or use a fan to dry it. Run the projector for several hours to speed up evaporation. Repeat if fog remains. Once fully dried, secure all waterproof rubber plugs tightly to avoid moisture ingress, and the fogging will not recur.

Can I connect the Tank 5 to a Bluetooth speaker or use the Aux output while using the projection function? Yes.

Which network carriers are supported? Supported carriers:USA: Verizon, T‑MobileCanada: Bell, Rogers, Videotron, Freedom, TelusUnited Kingdom: EE, H3G, Sky, Telefonica(O2), Virgin, Vodafone, GammaAustralia: Optus, Telstra, VHAMajor carriers in other countries are supported. Please contact our customer service for details.

How to set Tank 5 One-key Projection Settings → Shortcut Keys → Func1 Key → Shortcut Settings → Long Press → Projector

8849 TANK 5 Bulk Orders

Choose 8849 TANK 5 by comparing the confirmed configuration above with your purchasing requirements. The product photos show the available finishes and different views of the product. Check the operating system, connection requirements, battery and charging information where listed, and the dimensions in the Specs tab before arranging a bulk order.

For a wholesale inquiry, specify the model, requested quantity, preferred color and delivery destination. Confirm the required charging equipment and package contents for your market before ordering. Check network support and the storage configuration against your intended applications. Extended RAM, when listed, uses storage as virtual memory; the physical RAM and storage figures are identified separately in the configuration. The display and camera specifications help compare how the product fits everyday communication, viewing documents and capturing images.

8849 TANK 5 product selection should start with the manufacturer information shown on this page. Review the display, memory, battery and camera details together, because each describes a different part of the device. Match the listed network bands to the local operator before placing an order. Product photos can show more than one finish or storage configuration; those views are presented in one simple product gallery. Use the model name and the requested quantity when preparing an inquiry so the configuration can be checked accurately.

For 8849 TANK 5 bulk purchases, review the full specifications and the product illustrations before comparing options. Check the dimensions against carrying or mounting requirements where measurements are provided. Review charging connections and package contents for your destination market. Any physical and extended memory figures should be read separately. Keep a record of the model, color and configuration required by your team. RuggedMaster can use that information to prepare the appropriate wholesale inquiry. No retail price is displayed on this product page.
