8849 TANK 5 Pro Rugged Phones

Wholesale 8849 TANK 5 Pro Rugged Phones for bulk orders at RuggedMaster. World’s 1st 95° Ultra-Wide Thermal Camera, FLIR Lepton 3.1R, 160×120 Native, 480×360 Enhanced MediaTek Dimensity 9400e flagship chip, 4nm octa-core, 2.3M+ AnTuTu

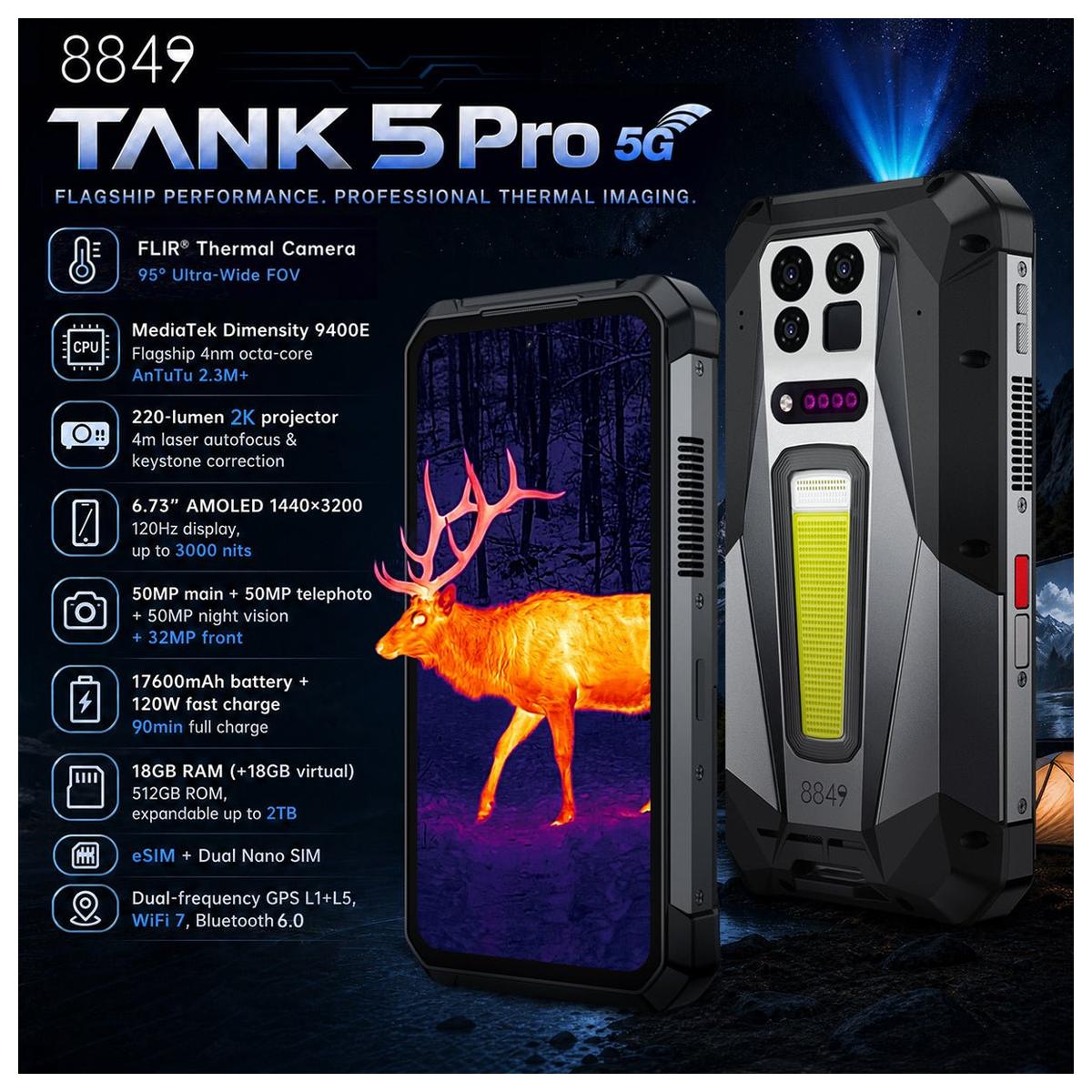

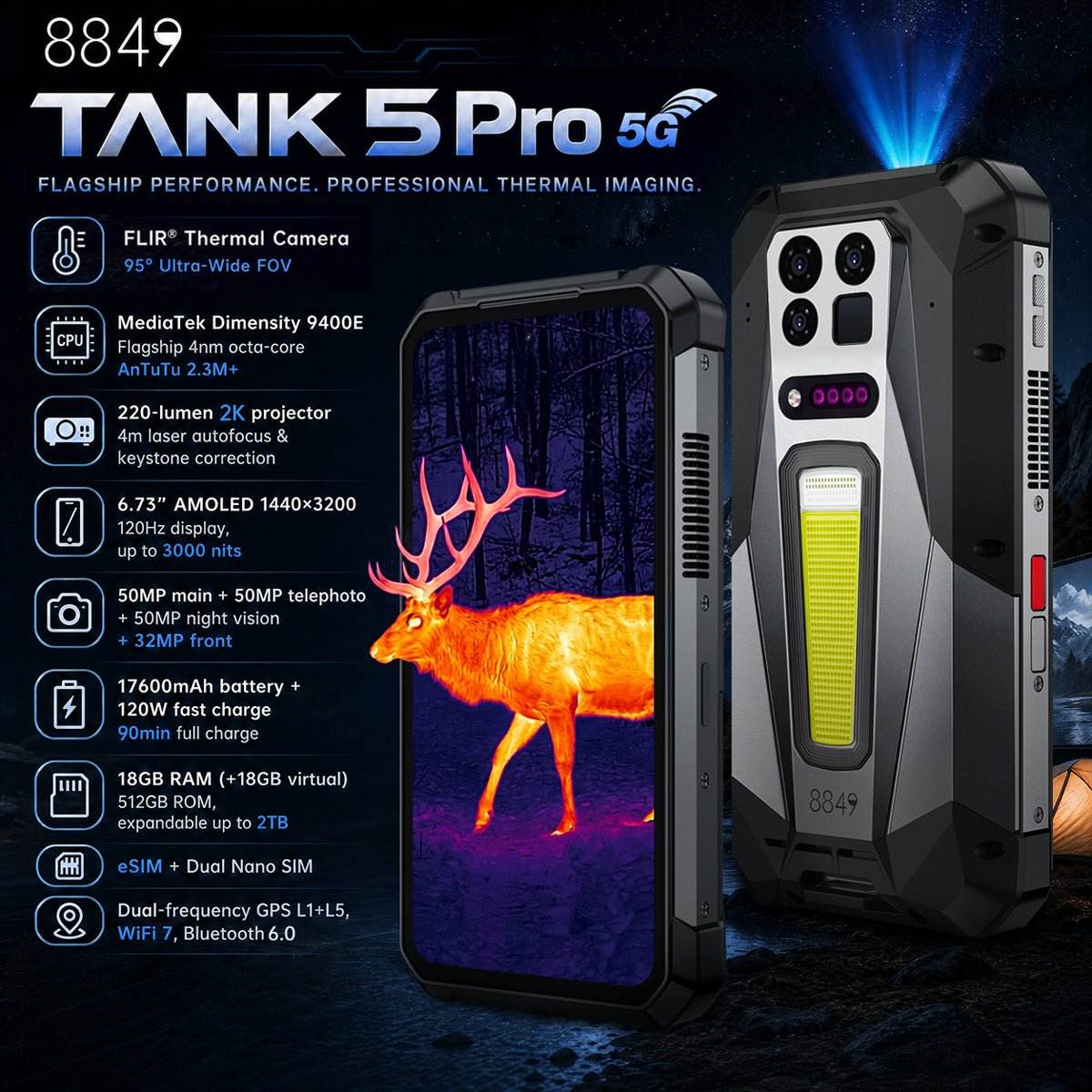

8849 TANK 5 Pro Features and Configuration

World’s 1st 95° Ultra-Wide Thermal Camera, FLIR Lepton 3.1R, 160×120 Native, 480×360 Enhanced

MediaTek Dimensity 9400e flagship chip, 4nm octa-core, 2.3M+ AnTuTu

World’s 1st 220 lumen 2K projector, autofocus, keystone & rangefinder

6.73″ 3K AMOLED 120Hz display, 3000 nits peak brightness

50MP main + 50MP telephoto + 50MP night vision + 32MP front

17600mAh battery + 120W fast charge, 90min full charge

Up to 18GB RAM (+18GB virtual) + 1TB ROM, expandable up to 2TB

Dual Nano, Nano + eSIM, Nano + microSD, or Nano + eSIM + microSD

Dual-frequency GPS L1+L5, WiFi 7, Bluetooth 6.0

USB-C 3.2 Gen 1 + DP1.4 Alt Mode for 4K Monitor/TV Output

Android 16, 5 years of security updates, unlocked

Included: TANK 5 Pro, fast charger, charging cable, phone case, screen protector, manual.

Difference between TANK 5 and TANK 5 Pro: Pro version only adds thermal imaging.

Shippment updates: (as of Oct 8, 2026)

16GB+512GB and 18GB+1TB version:

USA: Ships from Oct 30, 2026

Europe, UK, CA and other regions: Ships from November 15, 2026

18GB+512GB version:

You can check specs of other models.

The package includes: 8849 Tank 5 Pro phone, fast charger, phone case, triple-layer shatterproof screen protector, user manual. Note: A tempered glass screen protector (not a three-layer explosion-proof film) is already pre-applied at the factory, so you can continue using it and do not need to peel it off.

Usage & Safety Note

Projection FunctionFor optimal image quality and brightness, it is recommended to use the 8849 TANK 5 Pro with a projection distance of 1.5–2 meters. Image resolution and brightness may decrease as the projection distance increases.

Drop Resistance DisclaimerAlthough 8849 rugged phones and tablets have passed IP68/IP69K certification tests, they are still precision electronic devices. Drop resistance may vary depending on factors such as impact angle, surface hardness, and long-term wear. It is strongly recommended to use the original protective case to enhance overall and long-term protection.

Water and Dust Resistance DisclaimerThis device is rated IP68/IP69K in accordance with the IEC 60529 international standard. Testing is conducted under controlled laboratory conditions in static fresh water (up to 1.8 meters deep for a maximum of 30 minutes). In daily use, exposure to seawater, swimming pool water, soapy water, hot water, or other liquids may reduce protective performance. Do not operate buttons or ports underwater. Water and dust resistance are not permanent and may diminish over time due to normal wear and tear.

Screen and DisplayThe 120Hz adaptive refresh rate automatically adjusts according to on-screen content to balance smooth performance and power consumption. Some applications or games may be limited to specific frame rates. The display uses high-strength glass with an anti-scratch coating; however, contact with sand, gravel, or sharp objects should still be avoided.

Storage and ExpansionThe operating system and pre-installed applications occupy a portion of the total storage capacity; therefore, actual available storage is less than the nominal value. For expandable storage, it is recommended to use a UHS-I Class 10 or higher microSD card, formatted as exFAT to support large files.

Dimensions and AppearanceThe size and weight of 8849 rugged smartphones may vary slightly due to manufacturing tolerances. Screen size is measured diagonally with rounded corners; the actual visible display area is slightly smaller.

Camera FeaturesCamera resolution and functions may be adjusted through software updates. Some shooting modes dynamically change resolution and frame rate. Camera startup and autofocus performance may be affected in extremely low or high temperature environments.

Network and ConnectivityVoLTE availability depends on local carrier support. Google services (such as Google Pay) may not be available in certain countries or regions. Please verify local compatibility in advance at: https://pay.google.com/about

Accessories and Maintenance8849 rugged mobile phones are equipped with waterproof port covers. Before use, ensure all covers are fully inserted and free from wear or damage. If the device becomes wet, wipe it dry and allow it to rest briefly before charging. Do not charge immediately. Regularly clean ports and speaker openings to prevent dust accumulation that may affect performance.

Environmental AdaptabilityRecommended Operating Temperature: 0°C–35°C (32°F–95°F). Battery performance and screen responsiveness may decrease under extreme temperature conditions. Prolonged exposure to ultraviolet light or chemical solvents may affect the durability and color of the device housing.

Warranty CoverageDamage caused by liquid ingress, drops, crushing, unauthorized disassembly or repair, or the use of non-original accessories is not covered under warranty.

Performance DisclaimerThe dynamic memory expansion (virtual RAM) feature allocates a portion of internal storage as additional system memory. Actual performance gains depend on application load and storage performance. Sufficient available storage space is required to enable this feature.

Durability NoticeWater, dust, and drop resistance are not permanent features. Protective performance may gradually decline due to daily wear, impacts, and aging. Dust or sand may enter the internal cooling fan and cause it to stop functioning. This issue can usually be resolved by using compressed air, such as at an automotive service shop. Do not intentionally test the device beyond its rated waterproof or drop-resistant limits.

Safety Reminder8849 TANK 5 Pro rugged phone is equipped with multiple built-in sensors and has been tested and validated by 8849 R&D laboratories. Long-term use in harsh environments—such as strong magnetic fields, high temperature and humidity, or heavy dust—may reduce sensor accuracy and shorten service life.

8849 TANK 5 Pro Technical Overview

Brand: 8849

Model: TANK 5 Pro

Specification: 8849 TANK 5 Pro Rugged Phone Specifications

BODY / Dimensions: 177.1 x 87 x 33.8 mm

BODY / Weight: 715 g

SIM / eSIM: Supported.

SIM / Flexible combo: Dual Nano, Nano + eSIM, Nano + microSD, or Nano + eSIM + microSD

DISPLAY / Type: 6.73-inch AMOLED Punch-Hole Display

DISPLAY / Resolution: 1440 x 3200 pixels (3K)

DISPLAY / Refresh Rate: 120Hz

DISPLAY / Peak Brightness: 3000 nits

DISPLAY / PPI: 522

DISPLAY / Dimming: 1920Hz PWM + DC

PLATFORM / Chipset: MediaTek Dimensity 9400e (MT6989T-e)

PLATFORM / CPU: 1x X4 @3.4 GHz + 3x X4 @2.85 GHz + 4x A720 @2.0 GHz

PLATFORM / GPU: Immortalis-G720 MC12

PLATFORM / Process: 4nm

PLATFORM / OS: Android 16

MEMORY / RAM: 18GB LPDDR5X

MEMORY / Internal Storage: 512GB UFS 4.0

MEMORY / Expandable Storage: via TF card

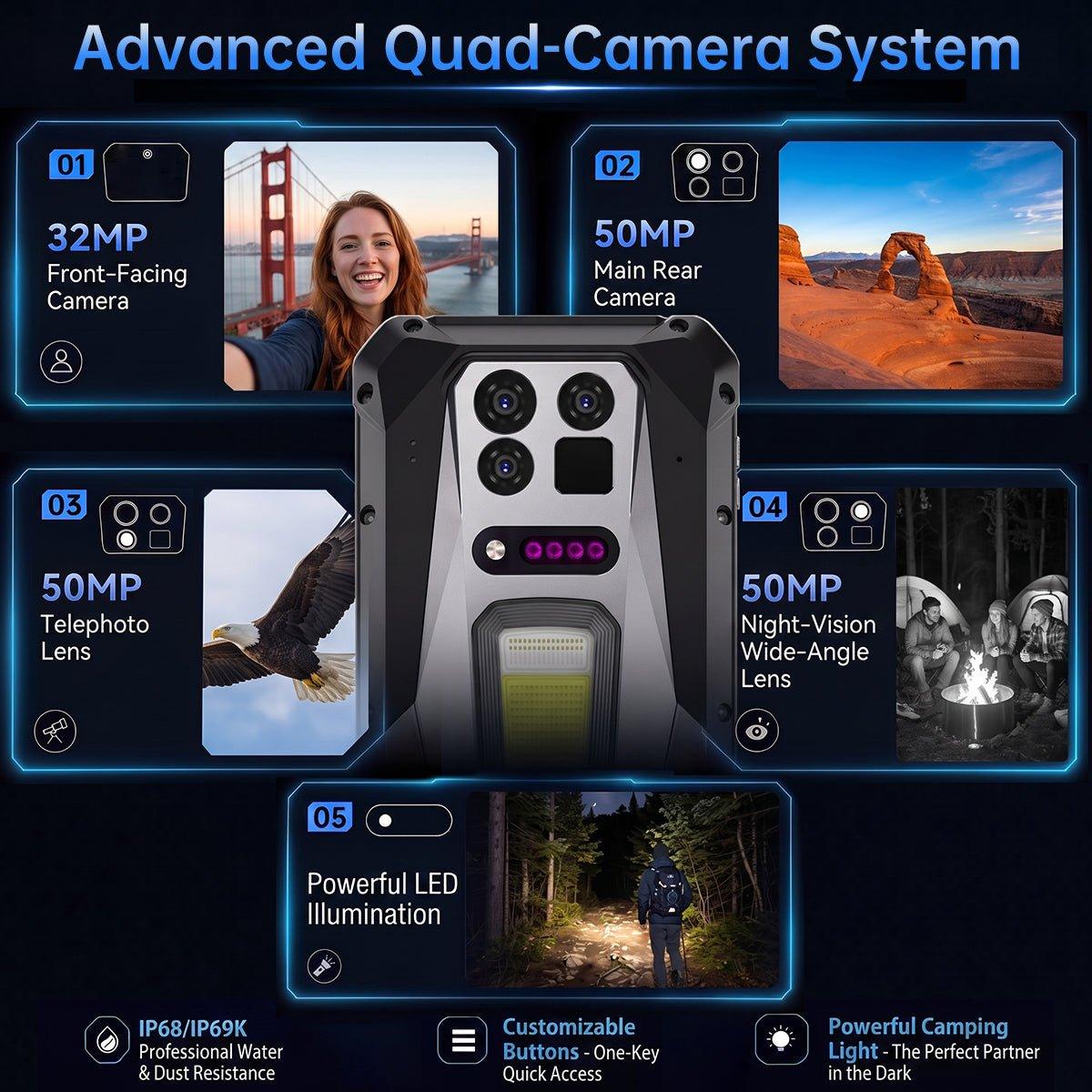

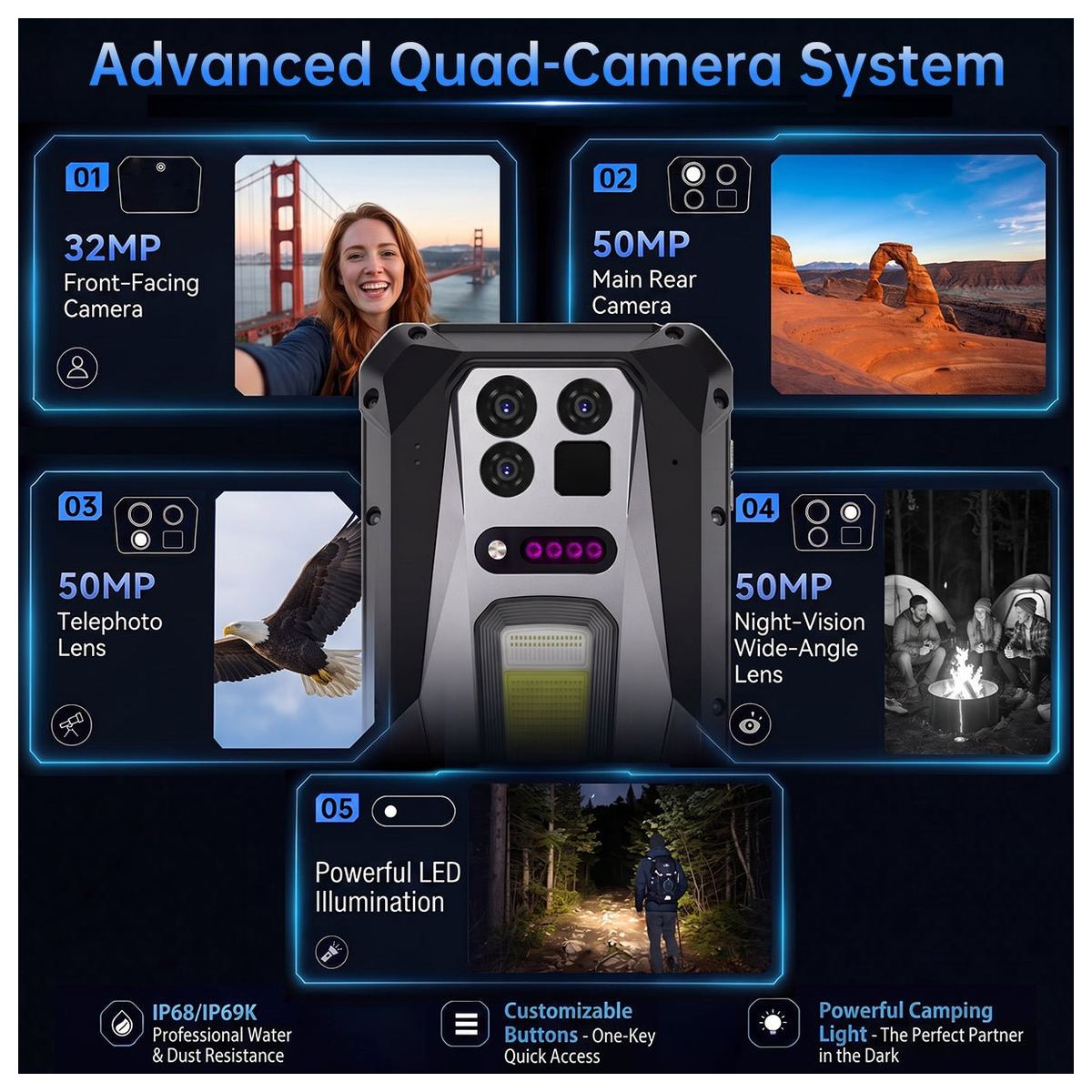

MEMORY: MAIN CAMERA (Quad)

MEMORY: 50 MP, Primary (Samsung S5KGN1SP)

MEMORY: 50 MP, Night Vision (wide), AF, 30Hz high frame rate (OmniVision OV50D40)

MEMORY: 50 MP, Telephoto, AF (OmniVision OV50D40)

MEMORY / Features: Dual-color temperature Flash LED (1.5A max) + 4 IR fill lights for night vision

SELFIE CAMERA: 32 MP, Fixed Focus (OmniVision OV32B40)

BATTERY / Capacity: 17600 mAh (2 x 8800 mAh, 7.74V, 68.11Wh), battery weight 260g

BATTERY / Wired Charging: 120W Max (fast charge), 7.5W (normal mode)

BATTERY / Reverse Wired Charging: Supported via USB-C 3.1 (5V 25W) and USB-C 3.0

CONNECTIVITY / Network: GSM/WCDMA/LTE(FDD,TDD)/5G NR(FDD,TDD)

CONNECTIVITY / 5G Bands: n1, n2, n3, n5, n7, n8, n20, n25, n28, n38, n40, n41, n66, n77, n78

CONNECTIVITY / 4G LTE FDD Bands: 1,2,3,4,5,7,8,12,13,17,18,19,20,25,26,28A,28B,66

CONNECTIVITY / 4G LTE TDD Bands: 34,38,39,40,41,42

CONNECTIVITY / 3G Bands: B1,2,4,5,6,8,19

CONNECTIVITY / 2G GSM Bands: B2,3,5,8

CONNECTIVITY / WLAN: Wi-Fi 802.11 a/b/g/n/ac/ax (2.4GHz & 5GHz), WiFi 7, WiFi 6, Wi-Fi Direct, Wi-Fi Display, Wi-Fi Hotspot V2.0, MIMO

CONNECTIVITY / Bluetooth: 6.0

CONNECTIVITY / GPS: Yes, with L1+L5 Dual-band, GLONASS, BDS, Galileo

CONNECTIVITY / NFC: Yes (THN31), Read/Write, Card Mode, ISO/IEC 14443A/B, 15693, EMVCo

CONNECTIVITY / Infrared Remote: Supported

PROJECTOR & SPECIAL FEATURES / Projector: DLP Technology, 2K resolution (2048 x 1080), 220 Lumens

PROJECTOR & SPECIAL FEATURES / Auto Focus: Laser, 4-meter range (focus distance: 0.5m – 4.0m)

PROJECTOR & SPECIAL FEATURES / Keystone Correction: 4-point TOF laser, ±45° horizontal/vertical

PROJECTOR & SPECIAL FEATURES / Projection Runtime: 5 hours (normal), 6 hours (night mode)

PROJECTOR & SPECIAL FEATURES / Projector Flashlight Mode: Yes

PROJECTOR & SPECIAL FEATURES / Laser Ranging: 4m distance measurement + auto-focus

PROJECTOR & SPECIAL FEATURES / Camping Light: Yes, with red/blue warning light

PROJECTOR & SPECIAL FEATURES / Water Resistance: IP68, IP69K

PROJECTOR & SPECIAL FEATURES / Side-mounted Fingerprint Sensor: Yes

PROJECTOR & SPECIAL FEATURES / Programmable Keys: 2x PTT keys (single/double/long press)

PROJECTOR & SPECIAL FEATURES: Thermal Imaging

PROJECTOR & SPECIAL FEATURES / Resolution: FLIR® Lepton 3.1R,

PROJECTOR & SPECIAL FEATURES: 160×120 Native Resolution, Enhanced to 480×360 with VividIR™

PROJECTOR & SPECIAL FEATURES / Horizontal FOV: 95° ultra-wide

PROJECTOR & SPECIAL FEATURES / Thermal Sensitivity (NEdT): < 50 mK (< 0.05°C)

PROJECTOR & SPECIAL FEATURES / Scene Dynamic Range:

PROJECTOR & SPECIAL FEATURES / High Gain Mode: -10 °C to 140 °C (14 °F to 284 °F)

PROJECTOR & SPECIAL FEATURES / Low Gain Mode: -10 °C to +400 °C (14 °F to 752 °F)

PROJECTOR & SPECIAL FEATURES / Software: MyFLIR® Pro app with MSX® and Vivid-IR™

MULTIMEDIA / Loudspeaker: Smart PA (AWINIC), single speaker, 3.5cc sound chamber, 96dB loudness

MULTIMEDIA / 3.5mm Jack: Yes

MULTIMEDIA / Audio Features: Dual analog silicon microphone with noise cancellation

MULTIMEDIA / Vibration Motor: 1027 linear (flat) motor

SENSORS: Accelerometer, Gyroscope (hardware), Proximity, Compass, Ambient Light, Barometer

BUTTONS & PORTS / Physical Buttons: Power, Volume Up, Volume Down, 2x PTT programmable keys

BUTTONS & PORTS / USB Port: USB-C 3.1 (USB 3.2 Gen1 + DP1.4) supports fast charging, data, DP OUT

BUTTONS & PORTS / Second USB: Not supported

BUTTONS & PORTS / Audio Jack: 3.5mm

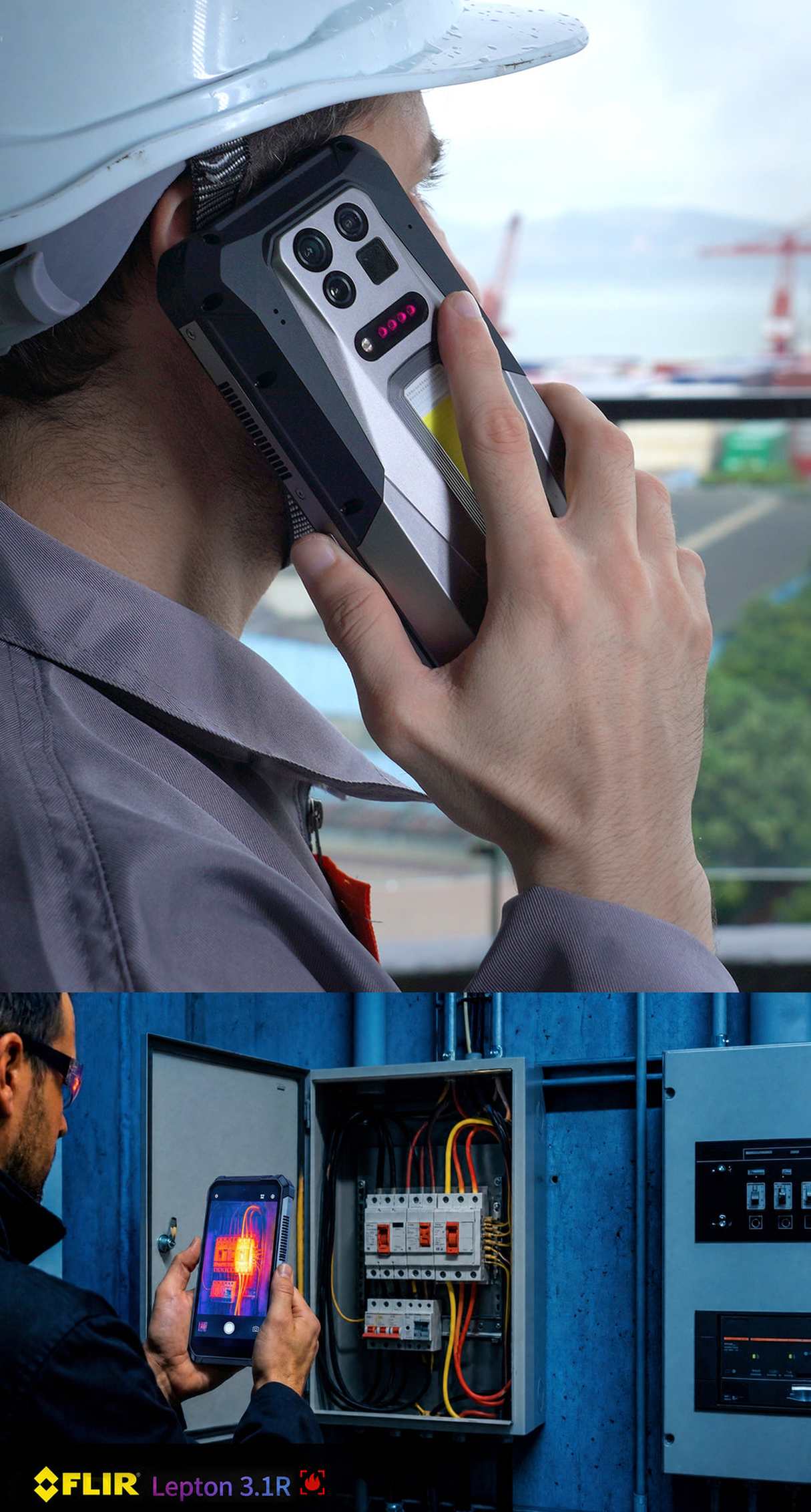

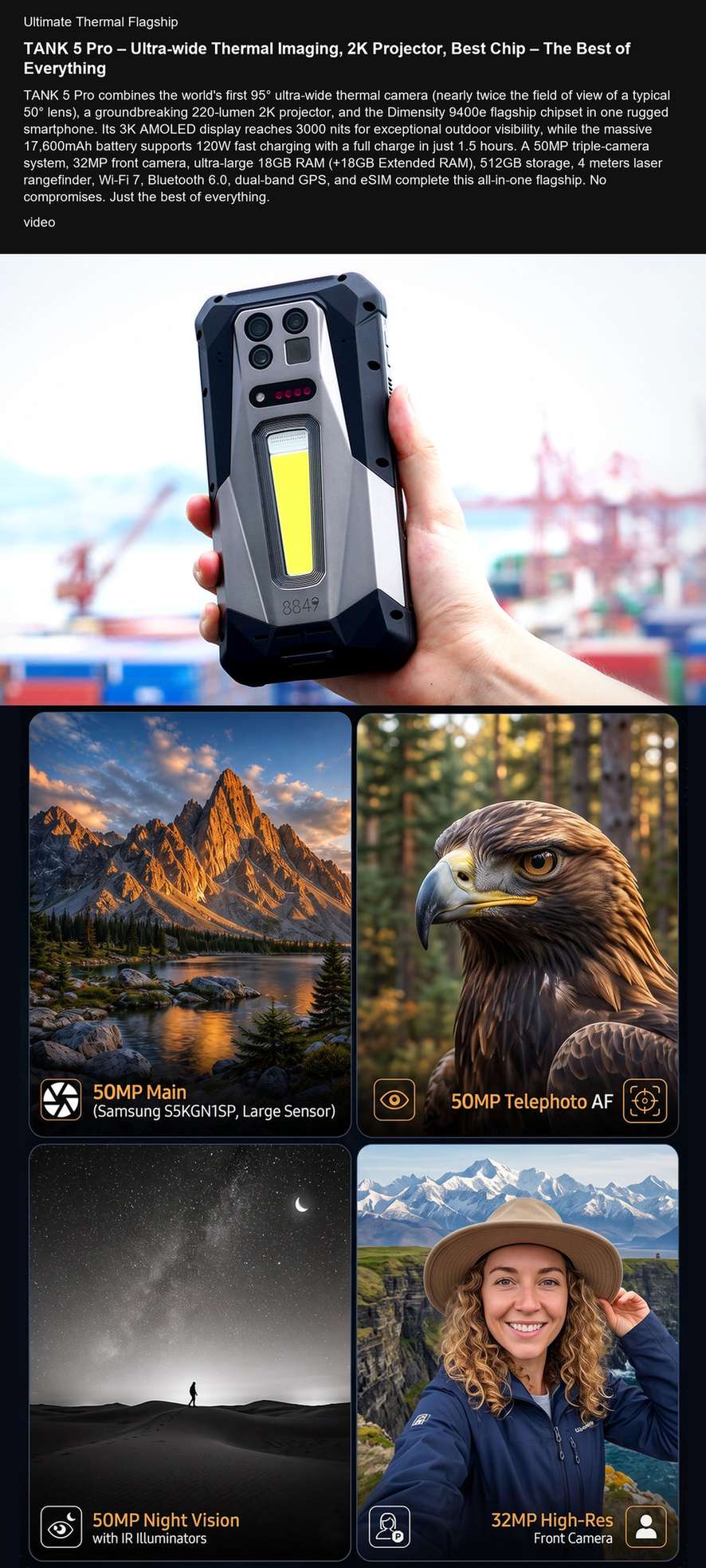

Ultimate Thermal Flagship

TANK 5 Pro – Ultra-wide Thermal Imaging, 2K Projector, Best Chip – The Best of Everything

TANK 5 Pro combines the world’s first 95° ultra-wide thermal camera (nearly twice the field of view of a typical 50° lens), a groundbreaking 220-lumen 2K projector, and the Dimensity 9400e flagship chipset in one rugged smartphone. Its 3K AMOLED display reaches 3000 nits for exceptional outdoor visibility, while the massive 17,600mAh battery supports 120W fast charging with a full charge in just 1.5 hours. A 50MP triple-camera system, 32MP front camera, ultra-large 18GB RAM (+18GB Extended RAM), 512GB storage, 4 meters laser rangefinder, Wi-Fi 7, Bluetooth 6.0, dual-band GPS, and eSIM complete this all-in-one flagship. No compromises. Just the best of everything.

video

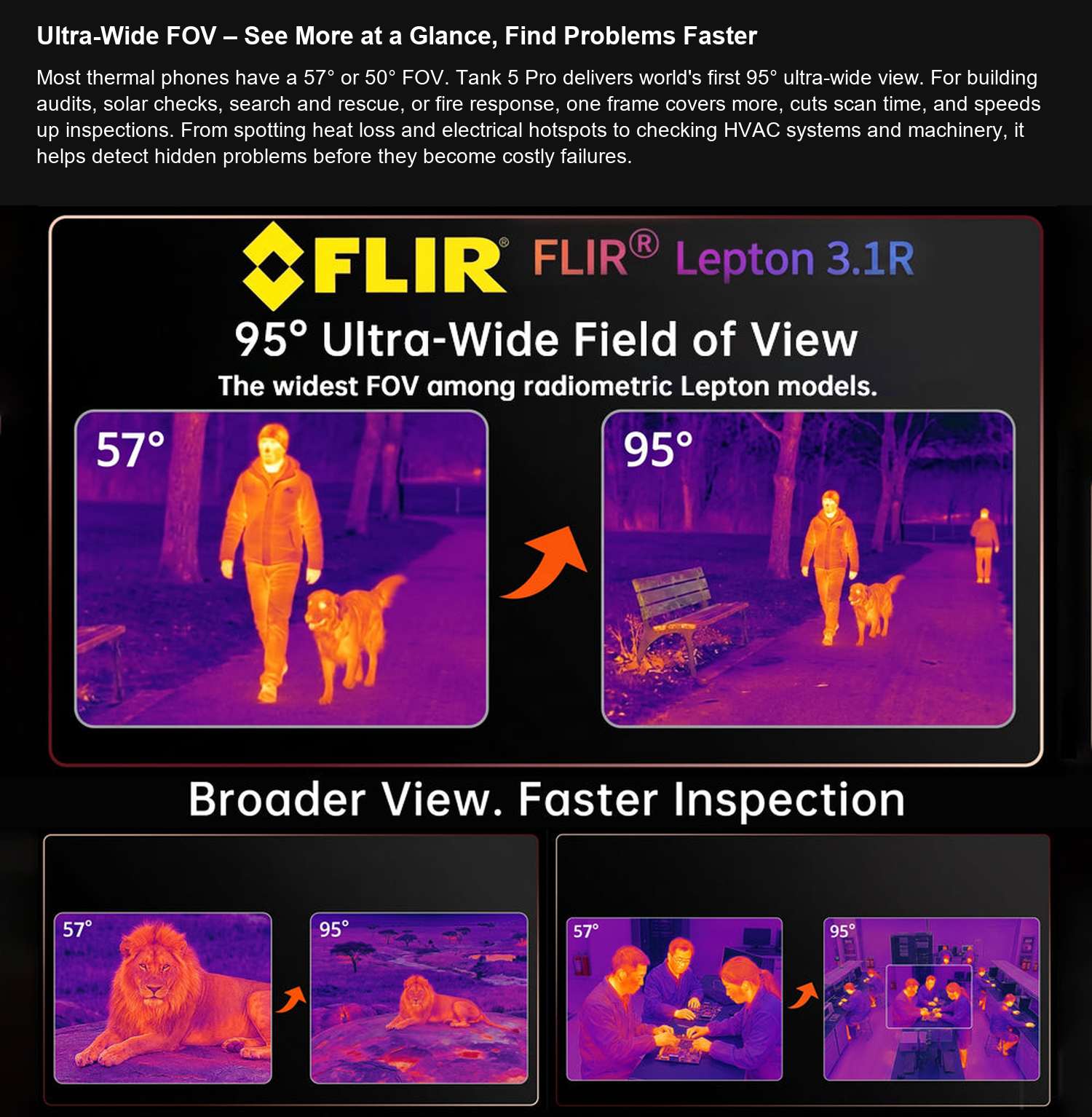

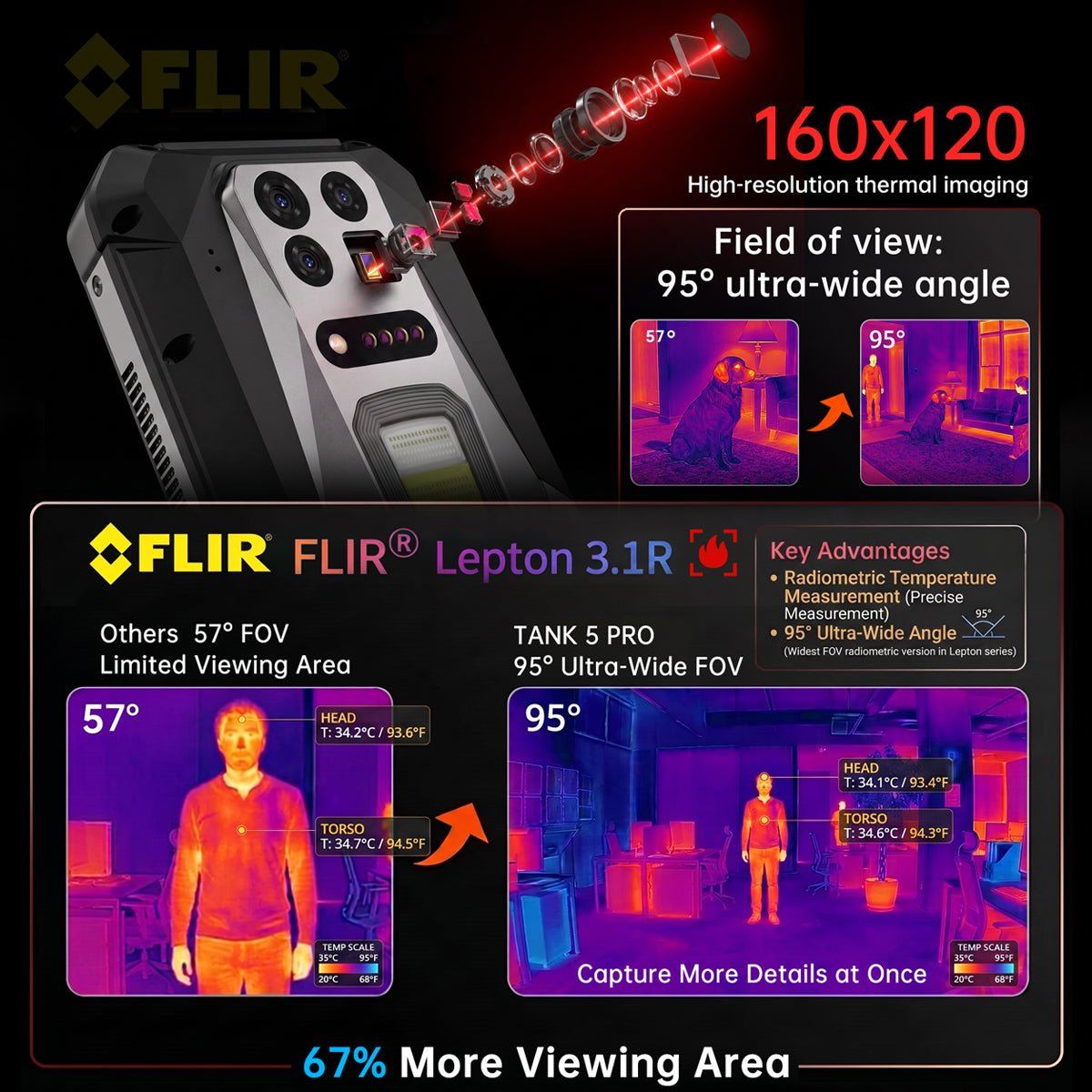

Ultra-Wide FOV – See More at a Glance, Find Problems Faster

Most thermal phones have a 57° or 50° FOV. Tank 5 Pro delivers world’s first 95° ultra-wide view. For building audits, solar checks, search and rescue, or fire response, one frame covers more, cuts scan time, and speeds up inspections. From spotting heat loss and electrical hotspots to checking HVAC systems and machinery, it helps detect hidden problems before they become costly failures.

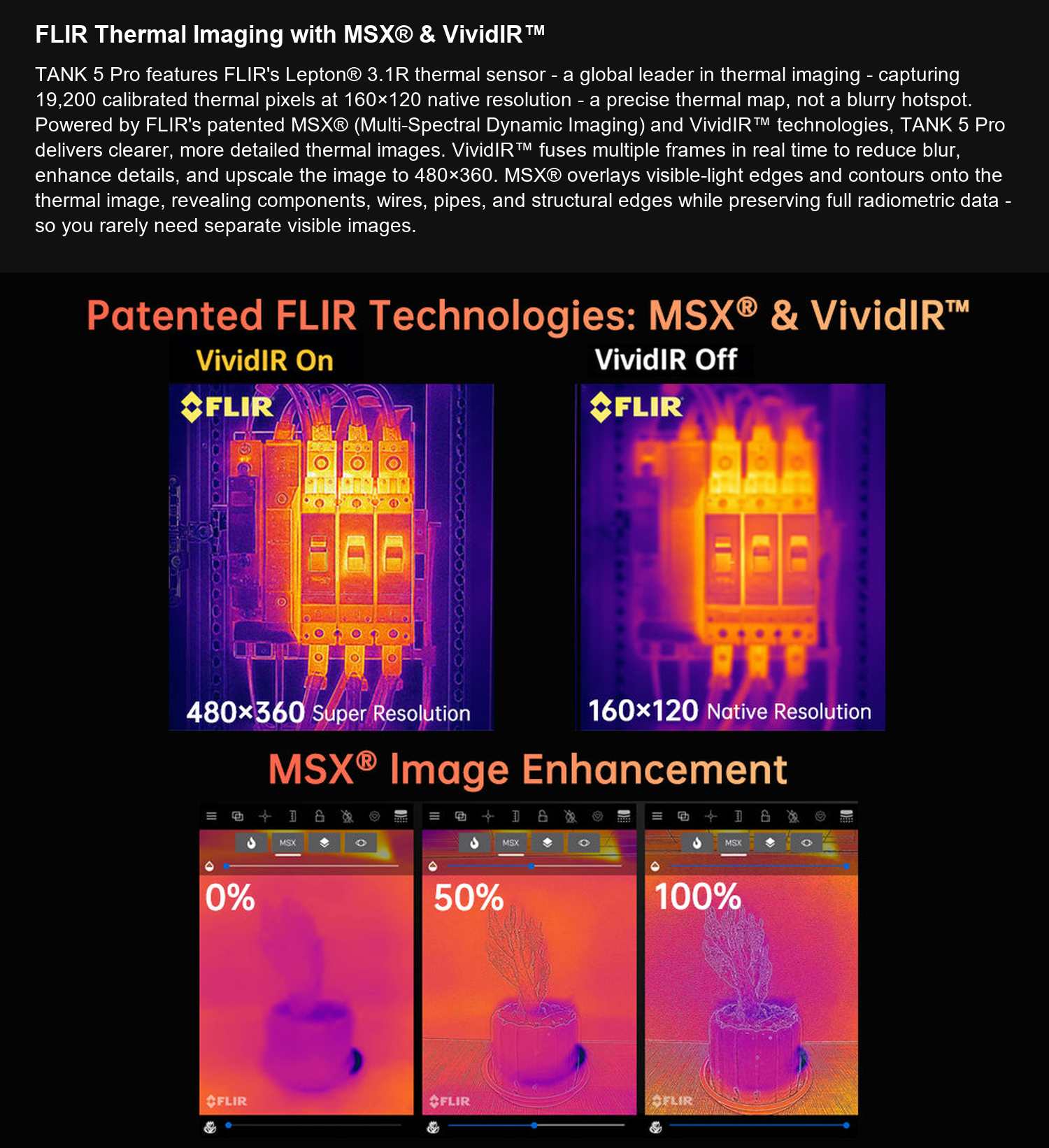

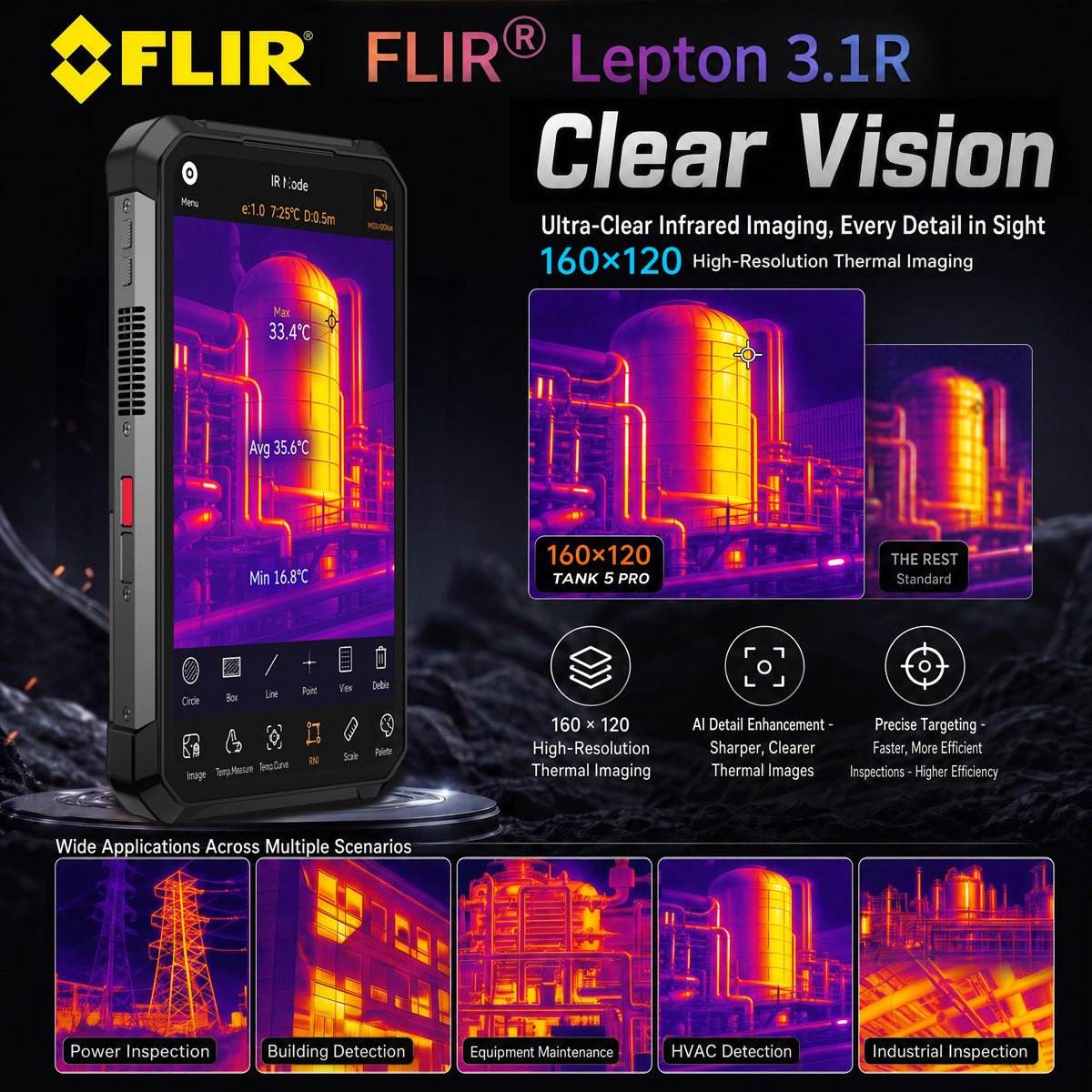

FLIR Thermal Imaging with MSX® & VividIR™

TANK 5 Pro features FLIR’s Lepton® 3.1R thermal sensor – a global leader in thermal imaging – capturing 19,200 calibrated thermal pixels at 160×120 native resolution – a precise thermal map, not a blurry hotspot. Powered by FLIR’s patented MSX® (Multi-Spectral Dynamic Imaging) and VividIR™ technologies, TANK 5 Pro delivers clearer, more detailed thermal images. VividIR™ fuses multiple frames in real time to reduce blur, enhance details, and upscale the image to 480×360. MSX® overlays visible-light edges and contours onto the thermal image, revealing components, wires, pipes, and structural edges while preserving full radiometric data – so you rarely need separate visible images.

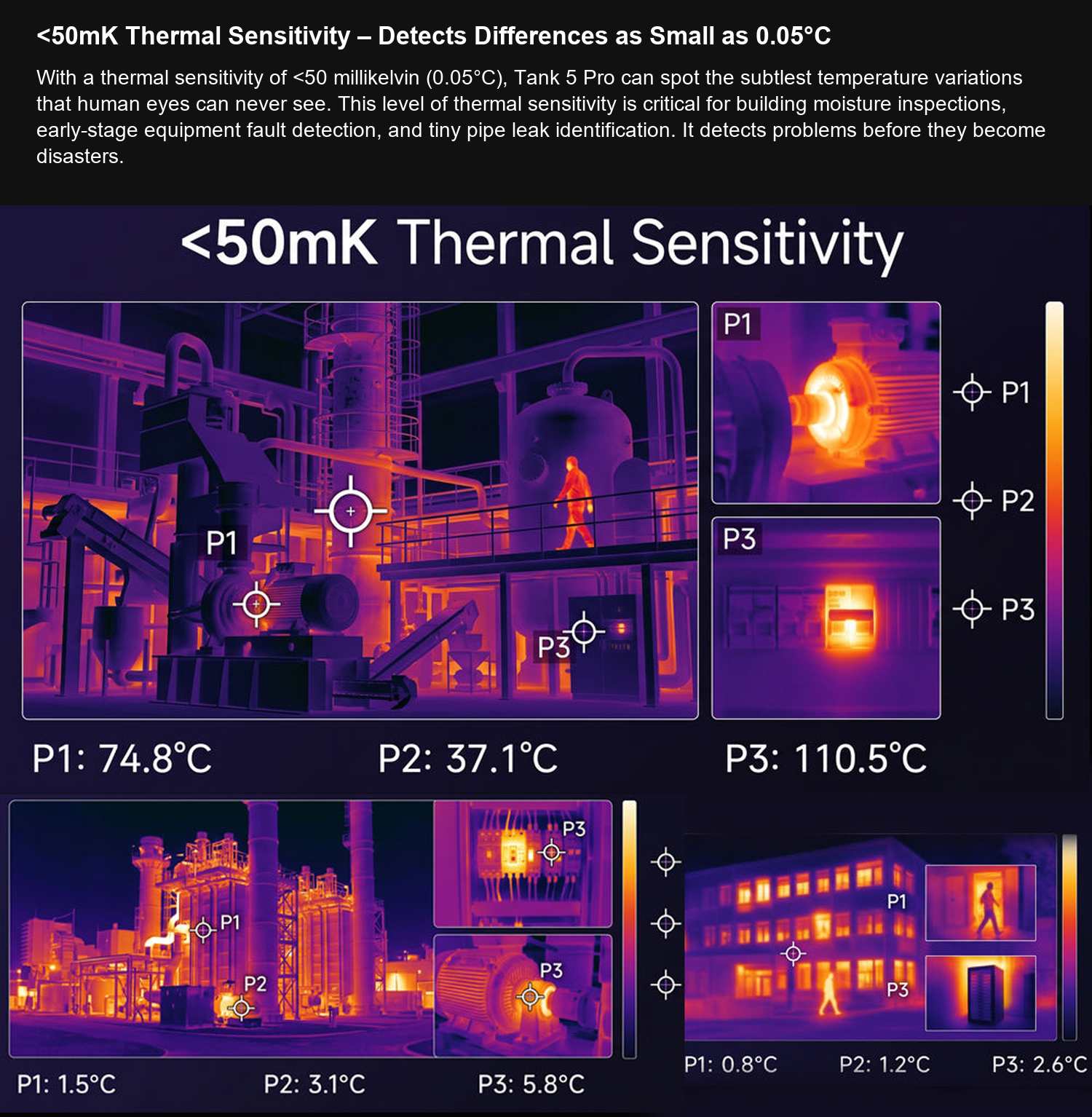

<50mK Thermal Sensitivity – Detects Differences as Small as 0.05°C

With a thermal sensitivity of <50 millikelvin (0.05°C), Tank 5 Pro can spot the subtlest temperature variations that human eyes can never see. This level of thermal sensitivity is critical for building moisture inspections, early-stage equipment fault detection, and tiny pipe leak identification. It detects problems before they become disasters.

Dual Gain Modes for Every Scenario

High Gain Mode-10°C to 140°C / 14°F to 284°FHigher sensitivity and finer thermal detail for building, moisture, and equipment inspections.

Low Gain Mode-10°C to 400°C / 14°F to 752°FWider range for high-temperature equipment, engines, and flame monitoring.

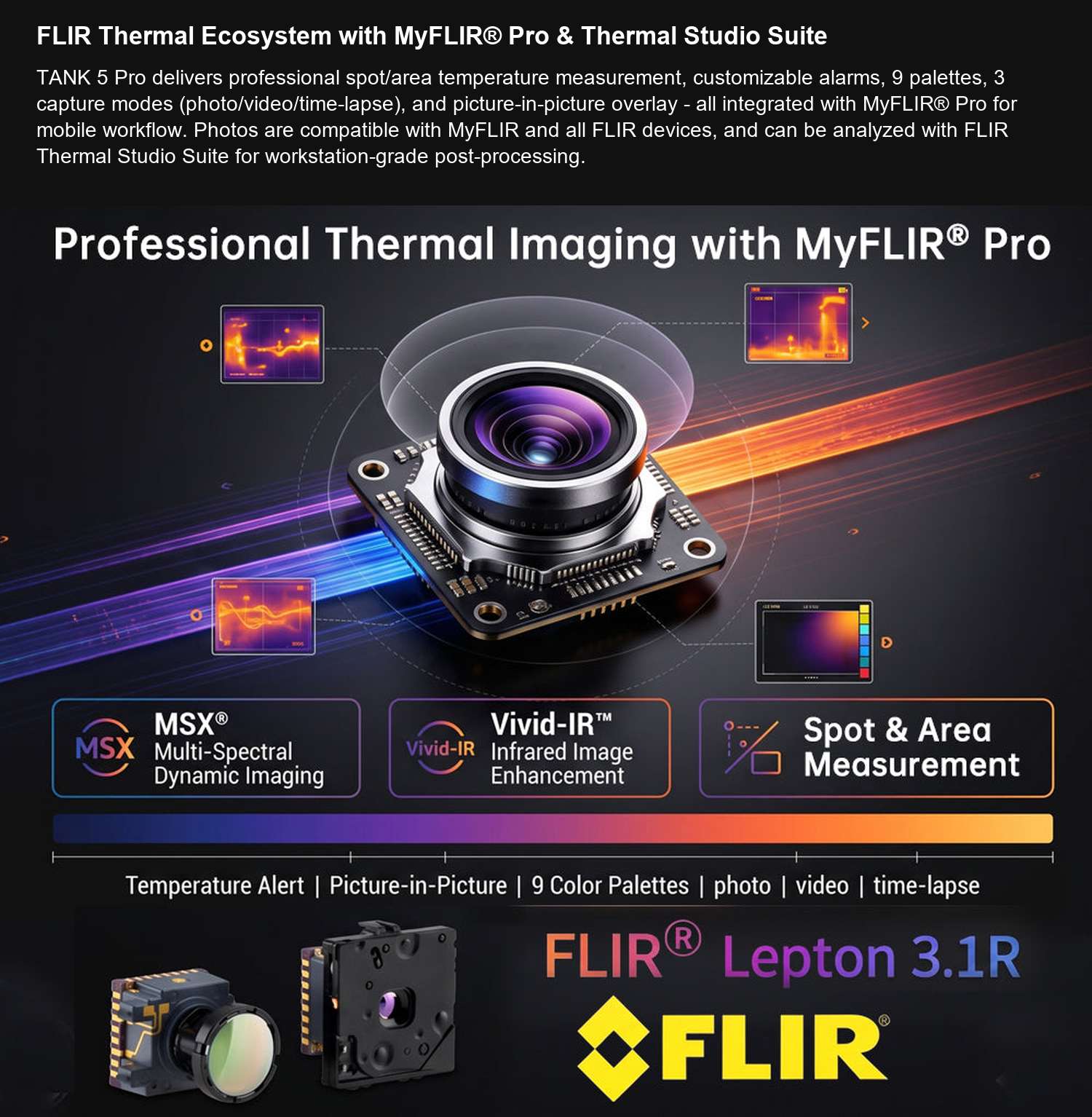

FLIR Thermal Ecosystem with MyFLIR® Pro & Thermal Studio Suite

TANK 5 Pro delivers professional spot/area temperature measurement, customizable alarms, 9 palettes, 3 capture modes (photo/video/time-lapse), and picture-in-picture overlay – all integrated with MyFLIR® Pro for mobile workflow. Photos are compatible with MyFLIR and all FLIR devices, and can be analyzed with FLIR Thermal Studio Suite for workstation-grade post-processing.

Top‑Tier Dimensity 9400e Outperforms Snapdragon 8 Gen 3

Powered by the flagship Dimensity 9400e (4nm, octa-core), the TANK 5 Pro scores over 2.3 million on AnTuTu,surpassing the Snapdragon 8 Gen 3 (around 2.2 million)and ranking among the top tier of Android flagship chips. It handles 4K editing, multitasking, and gaming with ease, plus Wi‑Fi 7 and Bluetooth 6.0 for ultra‑fast connectivity.

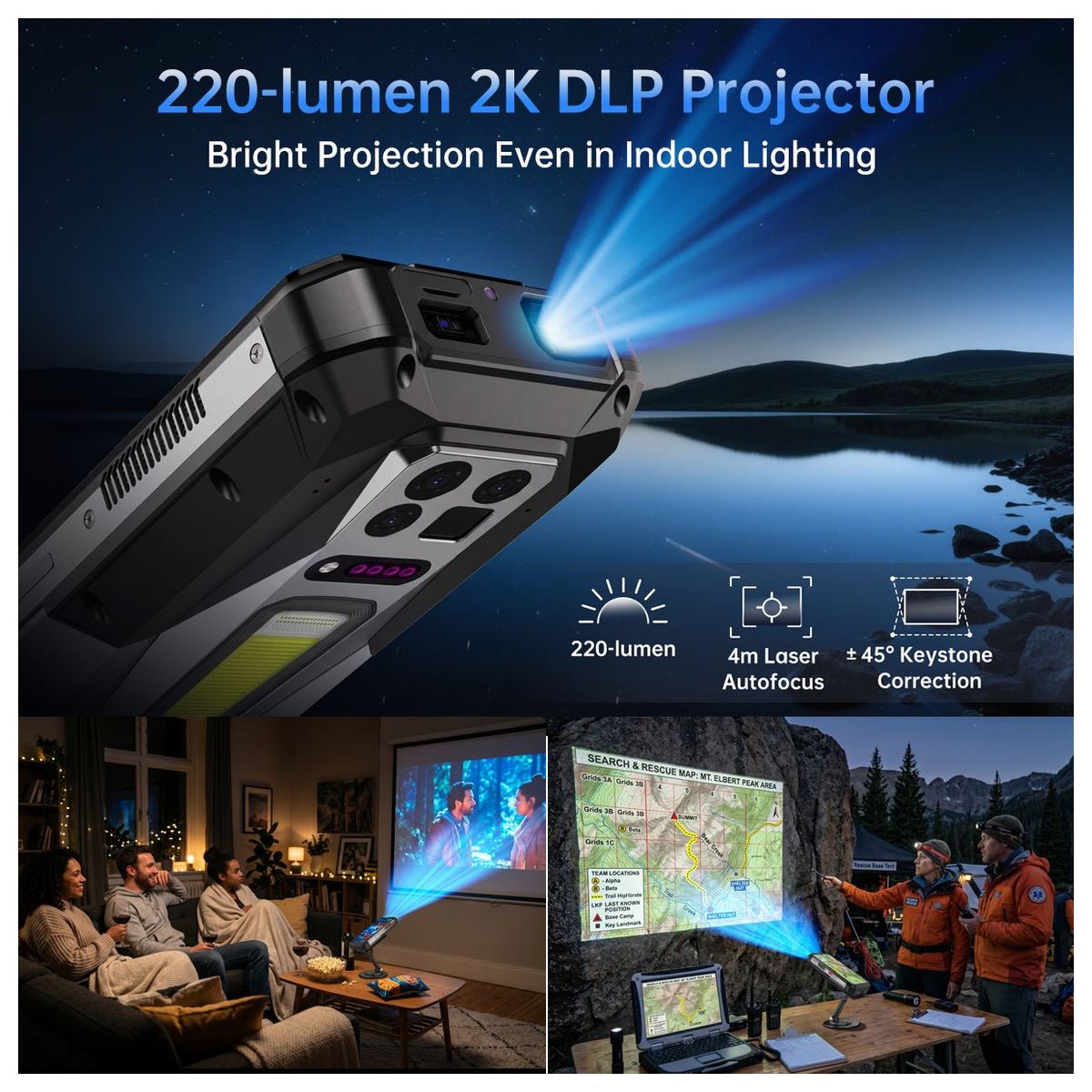

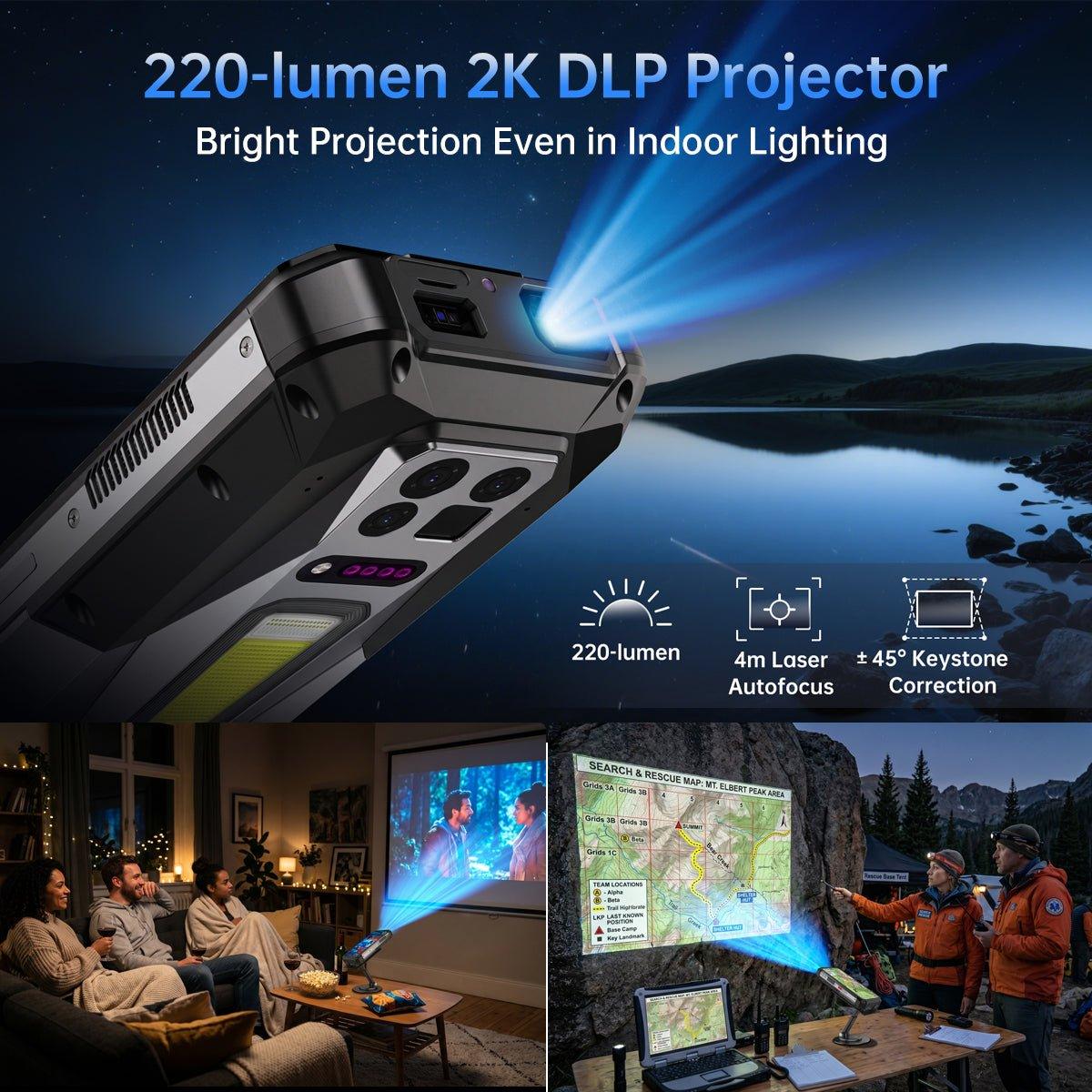

2K Projection

TANK 5 Pro is the world’s first 2K (2048×1080) projector phone, featuring laser autofocus (0.5–4m) and ±45° keystone correction for fast, distortion-free setup.

The laser module also works as a 4m rangefinder for distance, area, volume, and Pythagorean measurements, while the projection lens doubles as a high-intensity flashlight.

Enjoy up to 5 hours of high-brightness projection or 6 hours in Night Mode, with a 96dB Smart PA speaker. USB-C 3.2 Gen 1 with DP 1.4 Alt Mode supports 4K external display output.

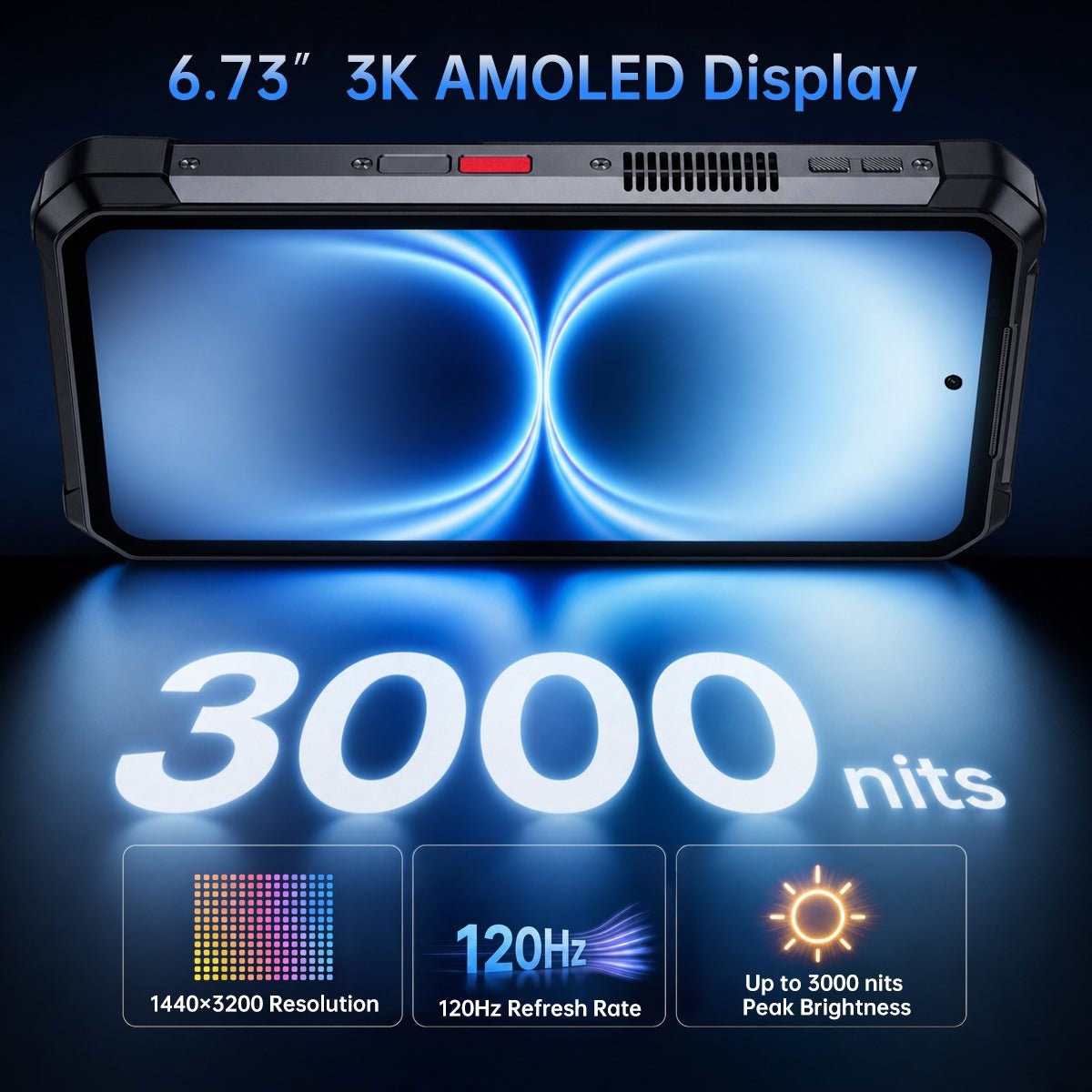

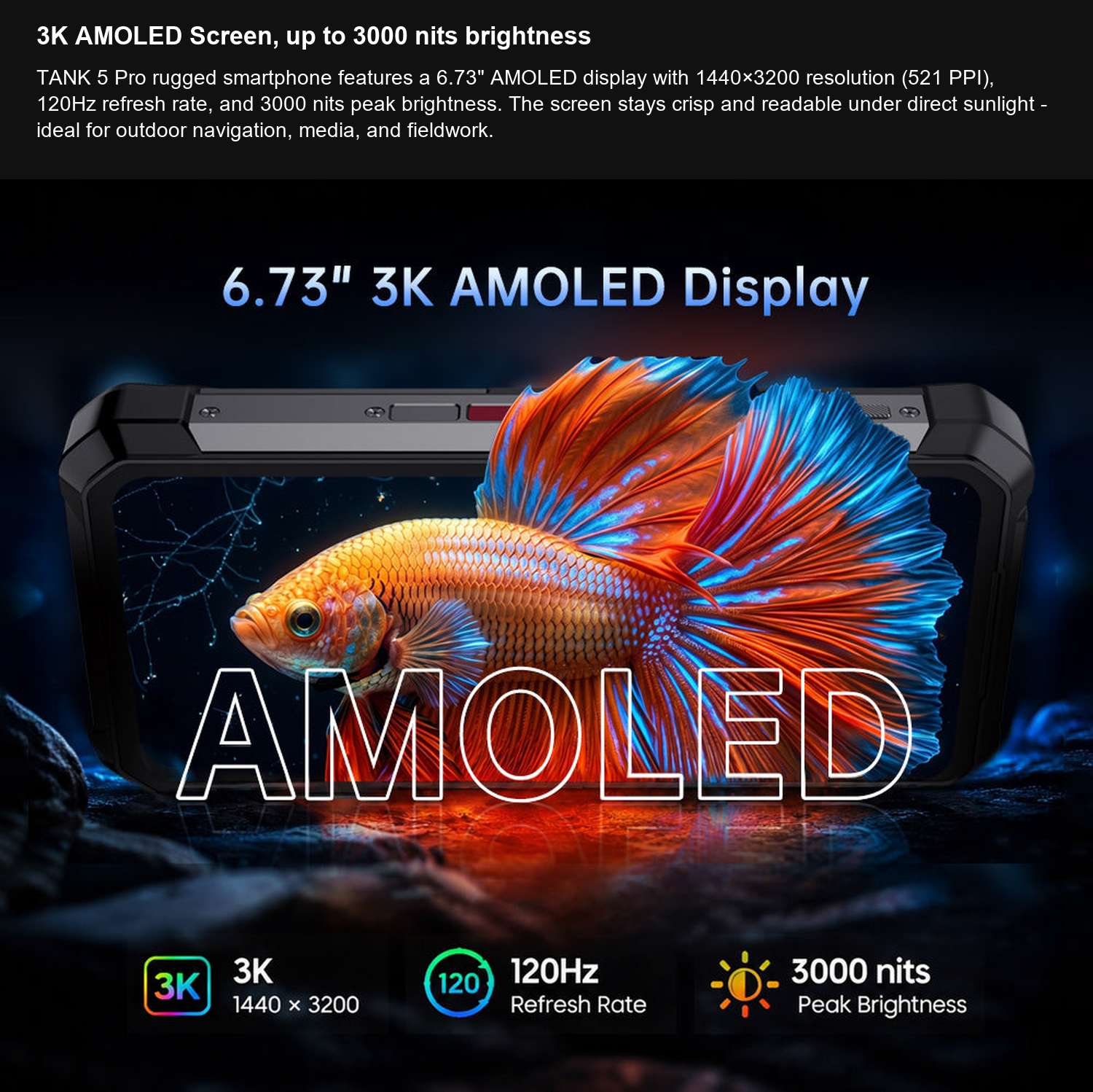

3K AMOLED Screen, up to 3000 nits brightness

TANK 5 Pro rugged smartphone features a 6.73″ AMOLED display with 1440×3200 resolution (521 PPI), 120Hz refresh rate, and 3000 nits peak brightness. The screen stays crisp and readable under direct sunlight – ideal for outdoor navigation, media, and fieldwork.

50MP Flagship Main Camera – Samsung S5KGN1SP Large Sensor

TANK 5 Pro rugged phone features a 50MP Samsung S5KGN1SP sensor (1/1.56″) – flagship-level imaging for a rugged phone. The large sensor captures more light for brighter, cleaner low-light shots with less noise. Full-pixel autofocus locks on quickly, even in dynamic outdoor scenes.

50MP Telephoto & 32MP High-Res Front Camera

Capture distant subjects clearly with the 50MP telephoto camera (AF, up to 20x zoom). For selfies and video calls, the 32MP front camera delivers exceptional sharpness and detail. This versatile combination lets you shoot from wide-angle to telephoto, making it ideal for outdoor activities, work documentation, and content creation.

50MP Night Vision Camera with IR Illuminators

eSIM & Dual Nano SIM – Stay Connected Worldwide

TANK 5 Pro Projector Phone supports eSIM for seamless carrier switching. Use Dual Nano SIM or Nano SIM + eSIM. eSIM uses the SIM2 interface, supports multiple profiles, with one active at a time.

Built for Tough Jobs

TANK 5 Pro delivers fast, reliable positioning with GPS (L1+L5 dual-band), GLONASS, Galileo, and BeiDou, providing 1–2 meter accuracy and stable tracking in challenging environments. Whether hiking, camping, off-roading, surveying, construction, or working remotely, you can stay confidently on track.

Beyond navigation, the 2K projector for entertainment, rangefinder, and thermal imaging add practical versatility, while the large battery and rugged, drop-resistant design keep TANK 5 Pro ready for long days and harsh outdoor conditions.

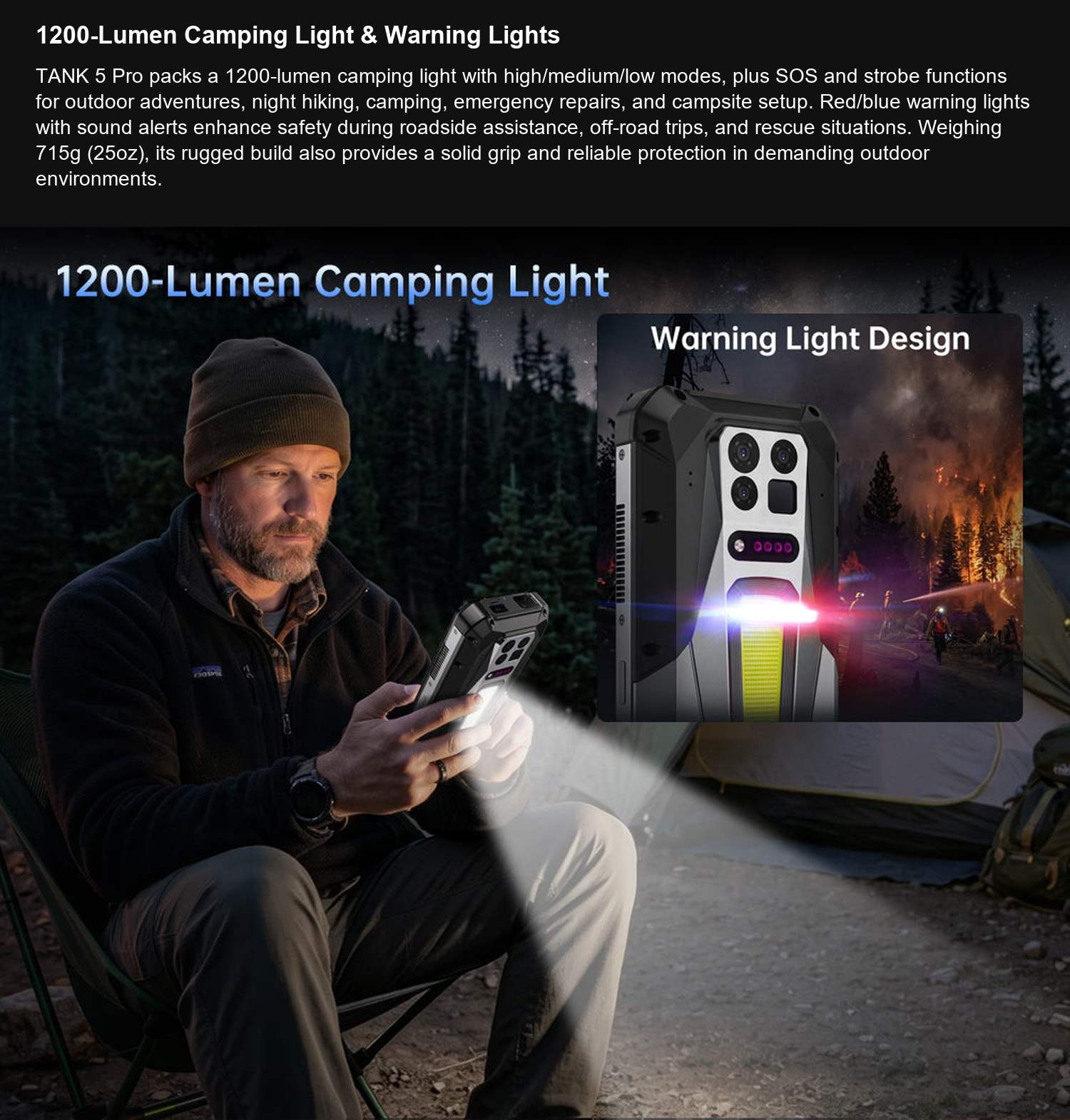

1200-Lumen Camping Light & Warning Lights

TANK 5 Pro packs a 1200-lumen camping light with high/medium/low modes, plus SOS and strobe functions for outdoor adventures, night hiking, camping, emergency repairs, and campsite setup. Red/blue warning lights with sound alerts enhance safety during roadside assistance, off-road trips, and rescue situations. Weighing 715g (25oz), its rugged build also provides a solid grip and reliable protection in demanding outdoor environments.

Rugged Protection & Practical Toolkit

TANK 5 Pro rugged smartphone is IP68/IP69K certified – waterproof, dustproof, shockproof, and extreme-temperature resistant. Built-in Toolbox app puts essential tools at your fingertips: compass, camping light, bubble level, protractor, height measure, barometer, speedometer, magnifier, pedometer, underwater camera, noise meter, and alarm alerts.

Daily Care Tips: Rugged phones aren’t unbreakable. Avoid drops on rough or uneven ground, as screens and camera glass can crack. Keep vents free of dirt, sand, and lint to prevent fan blockage. Keep waterproof covers sealed and limit water exposure, as waterproof performance may decrease over time. Always use a case and screen protector.

8849 TANK 5 Pro Frequently Asked Questions

Which network carriers are supported? Supported carriers:USA: Verizon, T‑MobileCanada: Bell, Rogers, Videotron, Freedom, TelusUnited Kingdom: EE, H3G, Sky, Telefonica(O2), Virgin, Vodafone, GammaAustralia: Optus, Telstra, VHAMajor carriers in other countries are supported. Please contact our customer service for details.

Moisture forms inside the projector lens occasionally. Our China Shenzhen factory is near the sea with high humidity, so minor ambient moisture may remain inside the phone. When the projector runs, heavy heat evaporates this moisture, forming fog on the lens.Solution: Gently take out the SIM tray and leave the phone in a ventilated area, or use a fan to dry it. Run the projector for several hours to speed up evaporation. Repeat if fog remains. Once fully dried, secure all waterproof rubber plugs tightly to avoid moisture ingress, and the fogging will not recur.

Can I connect the Tank 5 / TANK 5 Pro to a Bluetooth speaker or use the Aux output while using the projection function? Yes.

How to set Tank 5 / TANK 5 Pro One-key Projection Settings → Shortcut Keys → Func1 Key → Shortcut Settings → Long Press → Projector

8849 TANK 5 Pro Bulk Orders

Choose 8849 TANK 5 Pro by comparing the confirmed configuration above with your purchasing requirements. The product photos show the available finishes and different views of the product. Check the operating system, connection requirements, battery and charging information where listed, and the dimensions in the Specs tab before arranging a bulk order.

For a wholesale inquiry, specify the model, requested quantity, preferred color and delivery destination. Confirm the required charging equipment and package contents for your market before ordering. Check network support and the storage configuration against your intended applications. Extended RAM, when listed, uses storage as virtual memory; the physical RAM and storage figures are identified separately in the configuration. The display and camera specifications help compare how the product fits everyday communication, viewing documents and capturing images.

8849 TANK 5 Pro product selection should start with the manufacturer information shown on this page. Review the display, memory, battery and camera details together, because each describes a different part of the device. Match the listed network bands to the local operator before placing an order. Product photos can show more than one finish or storage configuration; those views are presented in one simple product gallery. Use the model name and the requested quantity when preparing an inquiry so the configuration can be checked accurately.

For 8849 TANK 5 Pro bulk purchases, review the full specifications and the product illustrations before comparing options. Check the dimensions against carrying or mounting requirements where measurements are provided. Review charging connections and package contents for your destination market. Any physical and extended memory figures should be read separately. Keep a record of the model, color and configuration required by your team. RuggedMaster can use that information to prepare the appropriate wholesale inquiry. No retail price is displayed on this product page.
