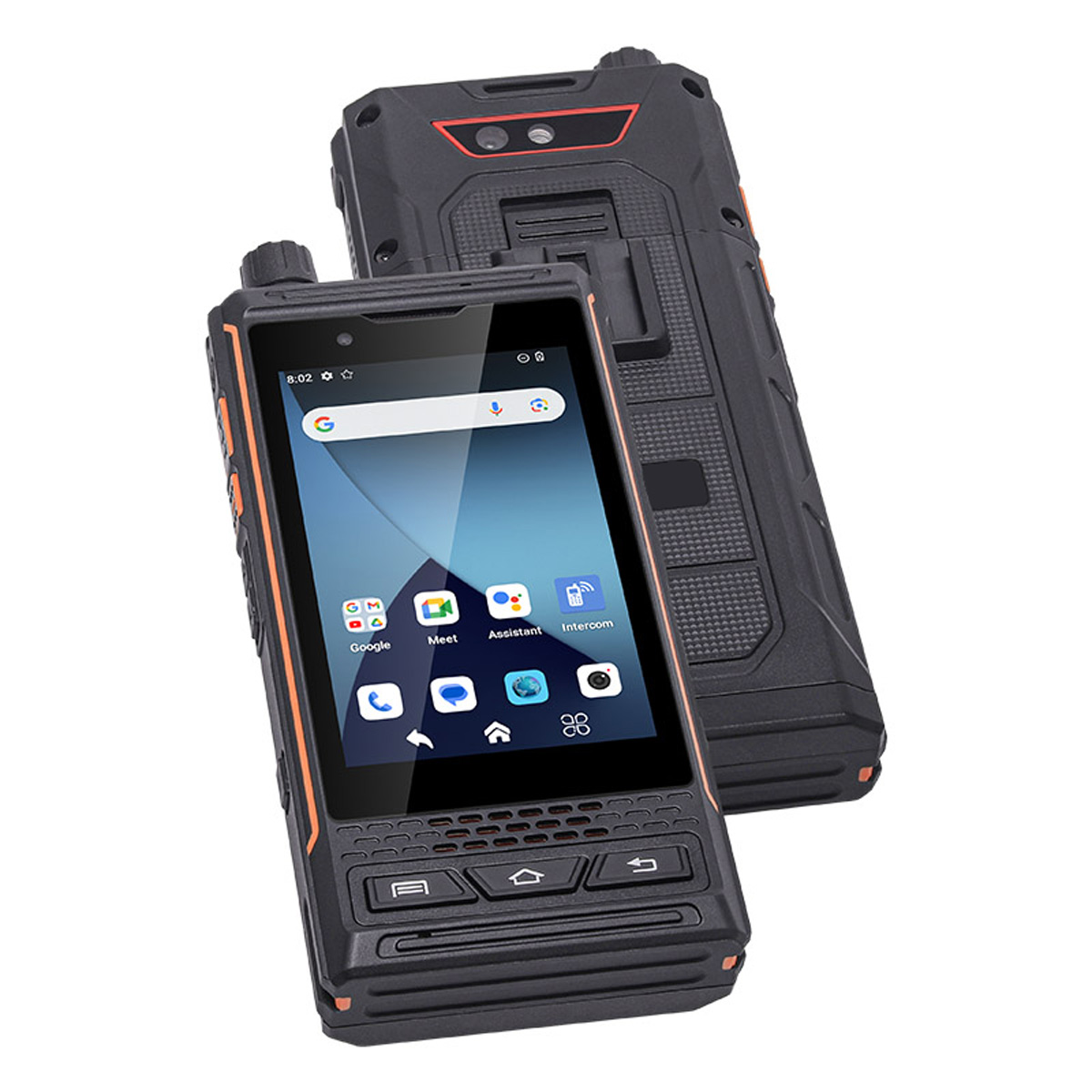

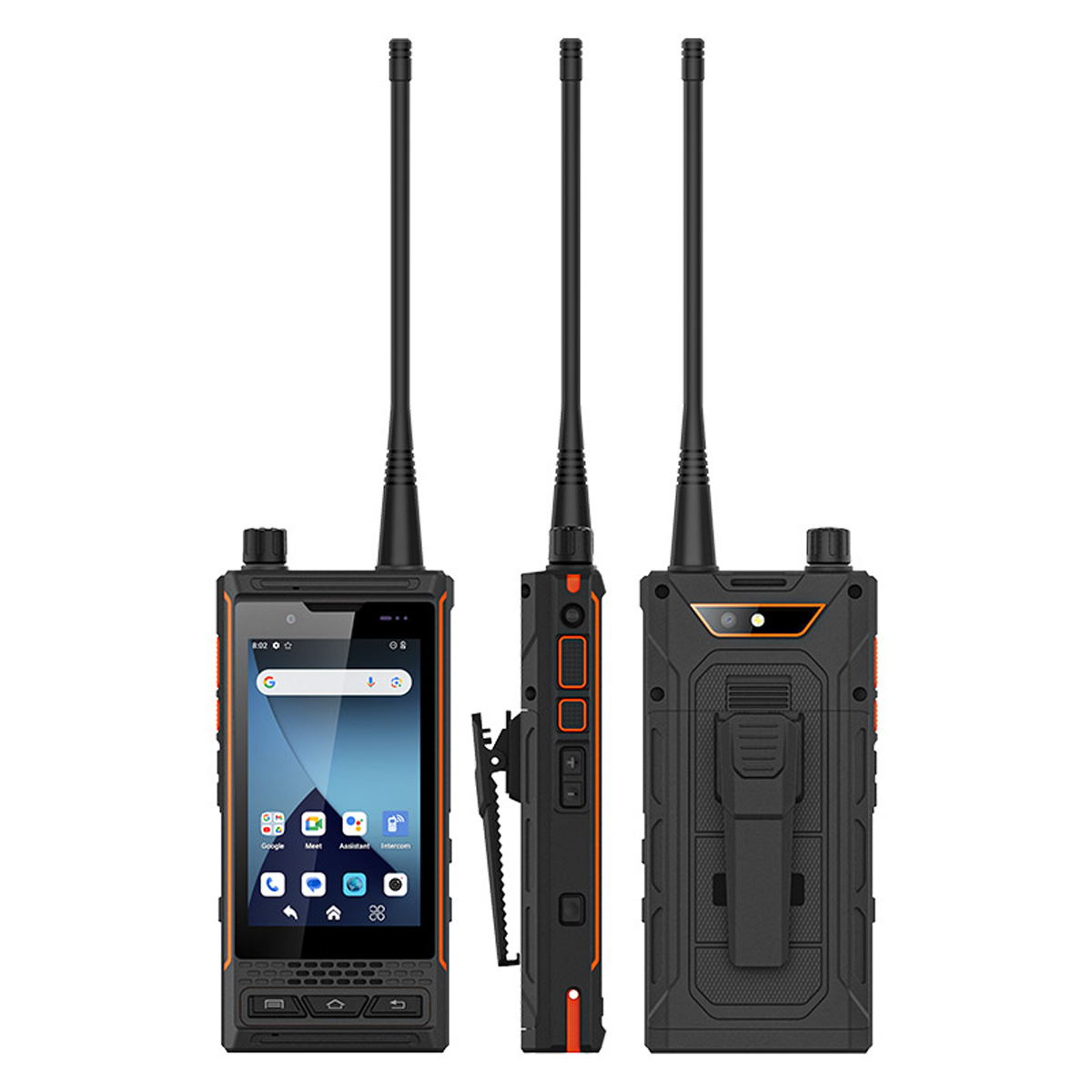

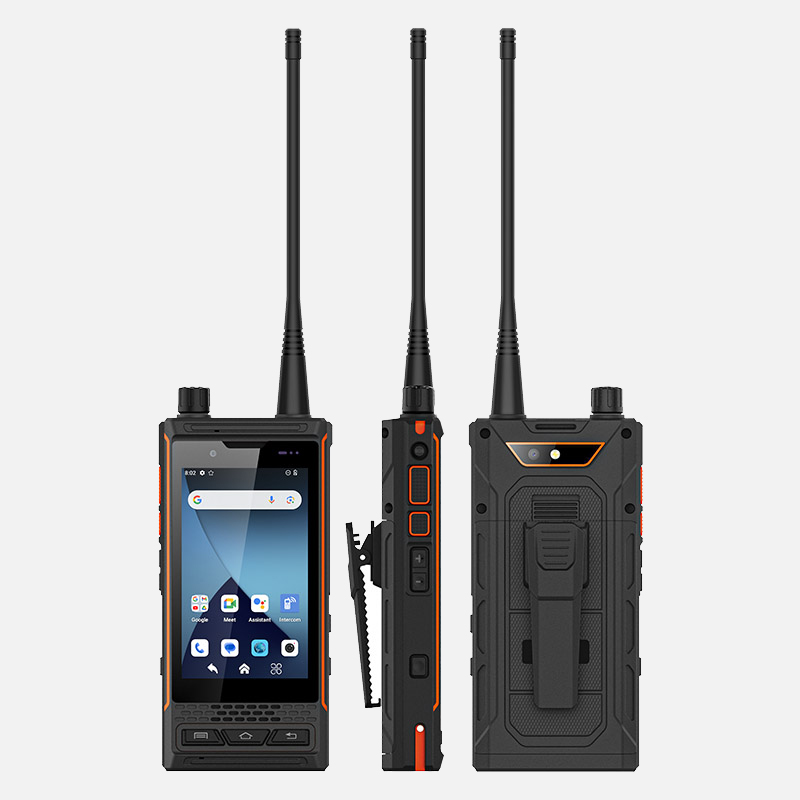

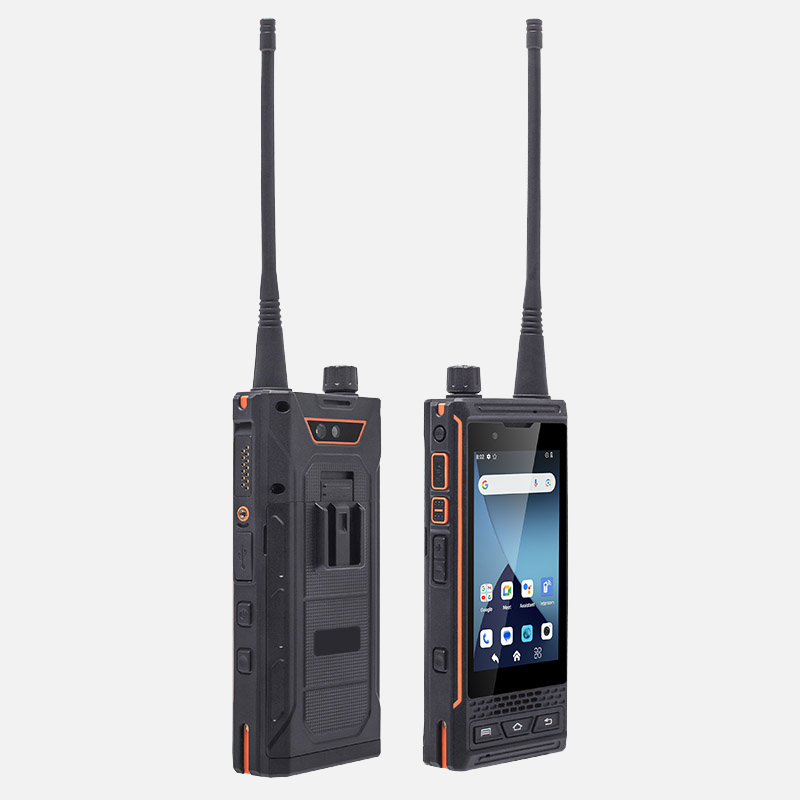

RM-P4 Plus
4.0″ IPS Android 14 Rugged Phone
The RM-P4 Plus Rugged Phone is purpose-built for critical communication and reliable operation in hazardous and high-risk industrial environments. It features a compact 4.0-inch IPS capacitive touchscreen protected by Corning Gorilla Glass, delivering clear visibility and responsive control in demanding field conditions. Powered by the MediaTek Helio P35 octa-core processor with 4GB RAM and 64GB storage (expandable via TF card), the RM-P4 Plus ensures stable multitasking for communication, data handling, and professional applications. A removable 7.6V 3000mAh battery supports extended operation, while integrated DMR/analog walkie-talkie functions, PTT and POC buttons, and active noise cancellation enable dependable voice communication. With IP68 and MIL-STD-810G protection, wide-temperature operation, GNSS positioning, NFC, and optional UWB or RFID modules, the RM-P4 Plus is a compact yet powerful solution for safety-critical field operations.

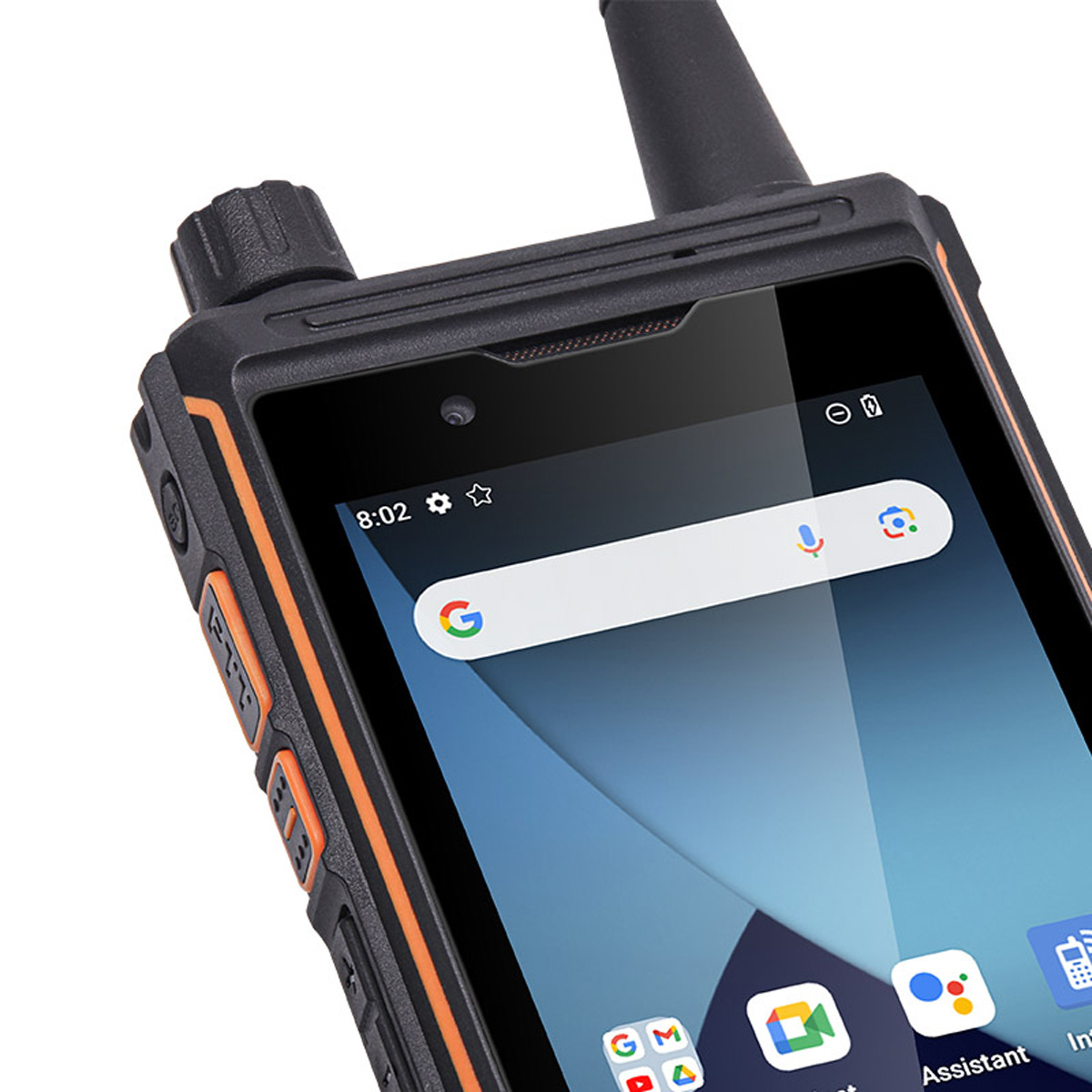

4.0″ IPS Touch Display
Helio P35 Octa-Core Processor,

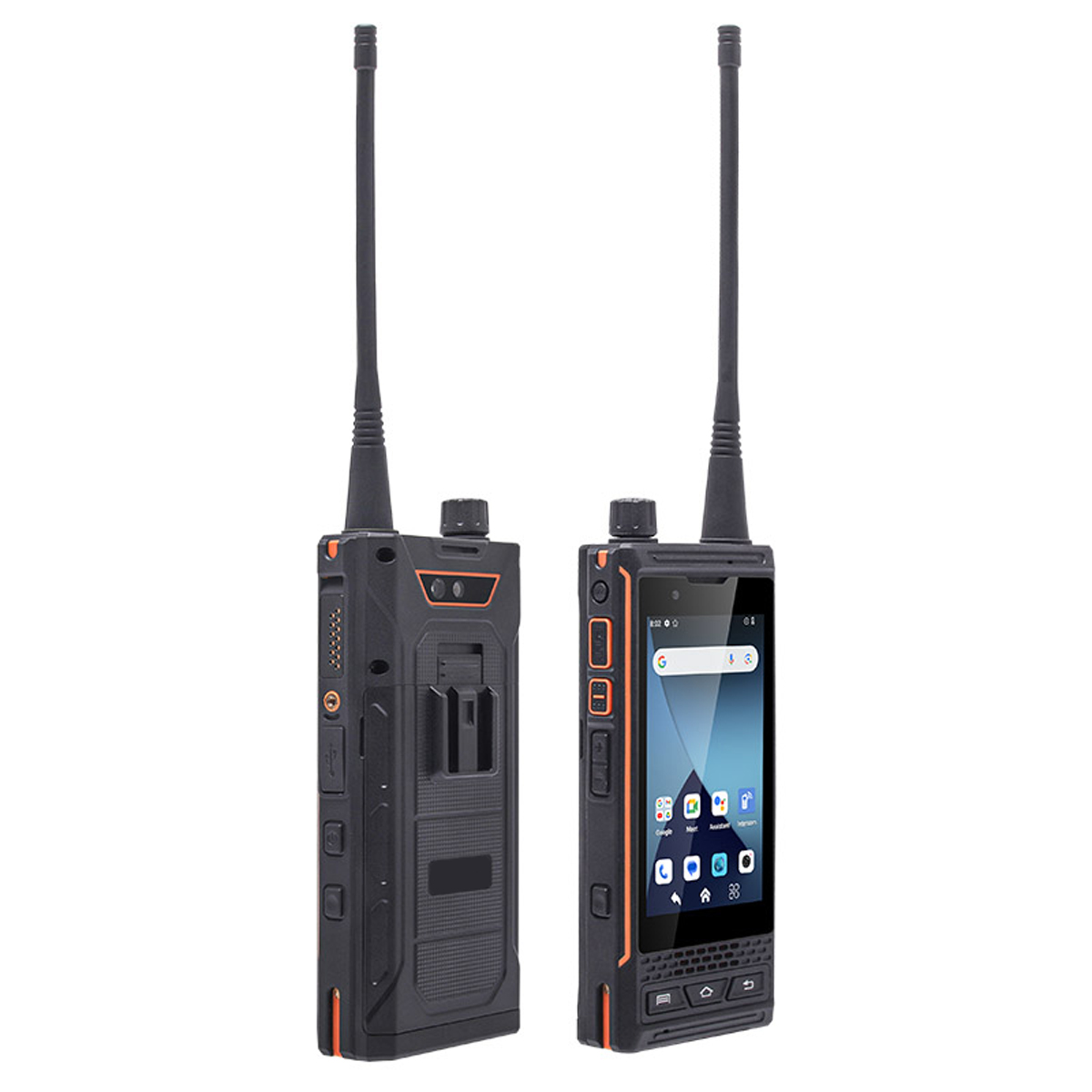

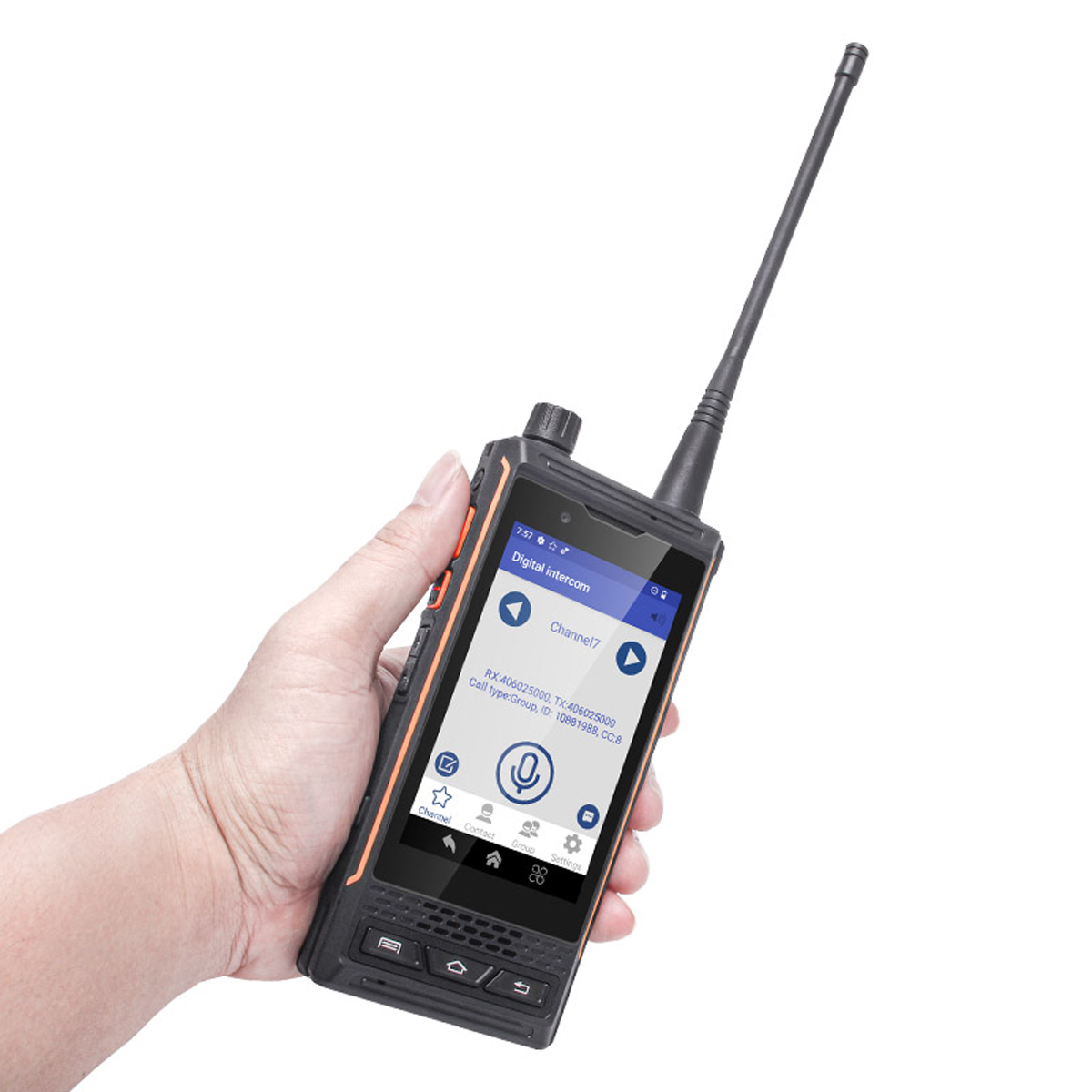

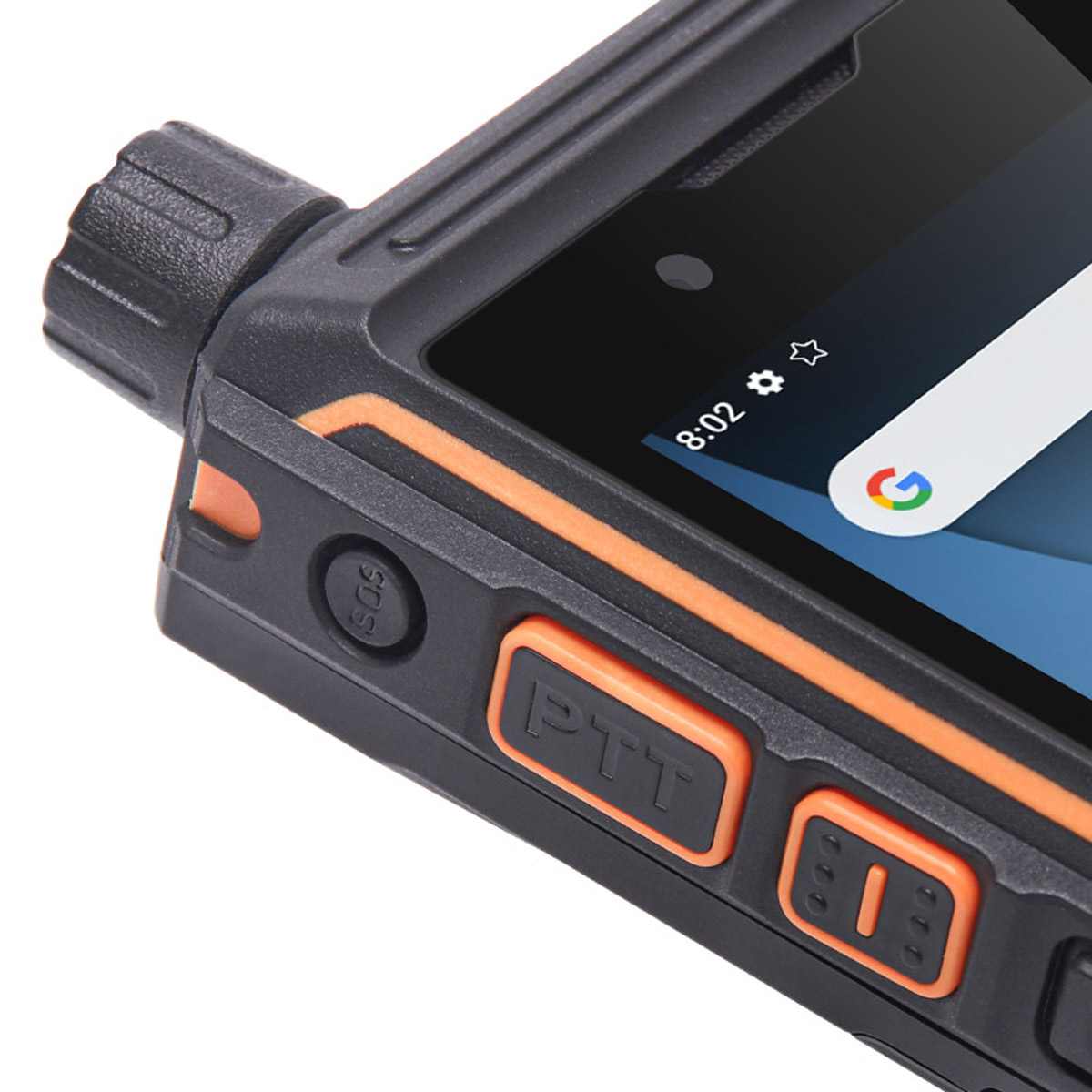

DMR / Analog Walkie-Talkie with PTT
IP68 & MIL-STD-810G Protection
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
One-stop Solutation
RUGGEDMASTER offer End-to-End Solutions from Design to Production
Rich Experience
RUGGEDMASTER has more than 10 years of OEM and ODM manufacturing experience in customizing rugged tablets,rugged phones,rugged handhelds,rugged laptop,etc.
Strong R & D Capabilities
More than 10 years experienced R&D engineers provide mature custom solutions of outdoors products
Strict Quality Control
Including raw material test, online production test, PCS test, finished product test.
Competitive prices
RUGGEDMASTER offer competitive prices as we are able to produce our products efficiently and cost-effectively in our own factory.
view more >
Just Email Us :
Email : sales@ruggedmaster.com
Address: 4th Floor, A3 Building Yinlong Industry Base, Longdong Community, Longgang District,Shenzhen
Between 9:00 am-6: 00 pm from Monday to Friday Beijing time
We will reply you witin 12hours.
Can I buy from you online directly?
No, direct online purchase is not acceptable now as we want to give our partner more profits at their side
Can you send me a price list or no middleman quotation?
Yes,we can send it to your directly,please just email us and get our latest quotation directly.
Can you send me a catalog or brochure?
Yes,You can email us and we will send you our latest products catalogs to you
Do Your Company Accept Customizaion?
Yes,We accept OEM service. We have our own factory and excellent RD team, OEM is a part of our business, in addition, we offer ODM service, we would love to make good ideas happen.
What's the normaly lead time for OEM order?
Takes about 30 days for 500pcs OEM order after sample confirmed.
Do you sell refurbished or reconditioned devices?
Hello, no, we do not supply any refurbished or reconditioned devices or produucts, if you are interested in our night vision products, you can send your dealer or distributor request information
Do you sell your products to the military?
no, we do not supply the military because our products do not meet military standards and are intended only for civil purposes such as hunting, security, monitoring and other civil fields.
For the civil interest, the customers can send the dealer or distributor request information
TECHNICAL PARAMETERS
| TECHNICAL PARAMETERS | |
|---|---|
| MODEL: | RM-P4 Plus |
| Operating System | Android 14 |
| Dimension | 148 × 71 × 25 mm |
| Weight | 366 g (including battery) |
| Material | Plastic |
| Color | Black / Orange |
| Languages | Multi-language |
| Screen | 4.0-inch Corning Gorilla IPS capacitive touch screen |
| Resolution | 480 × 800 |
| CPU | Mediatek MT6765 Helio P35 Octa Core, up to 2.2GHz |
| GPU | PowerVR Rogue GE8320 |
| RAM / ROM | 4GB + 64GB |
| Storage Expansion | TF card supported, up to 256GB |

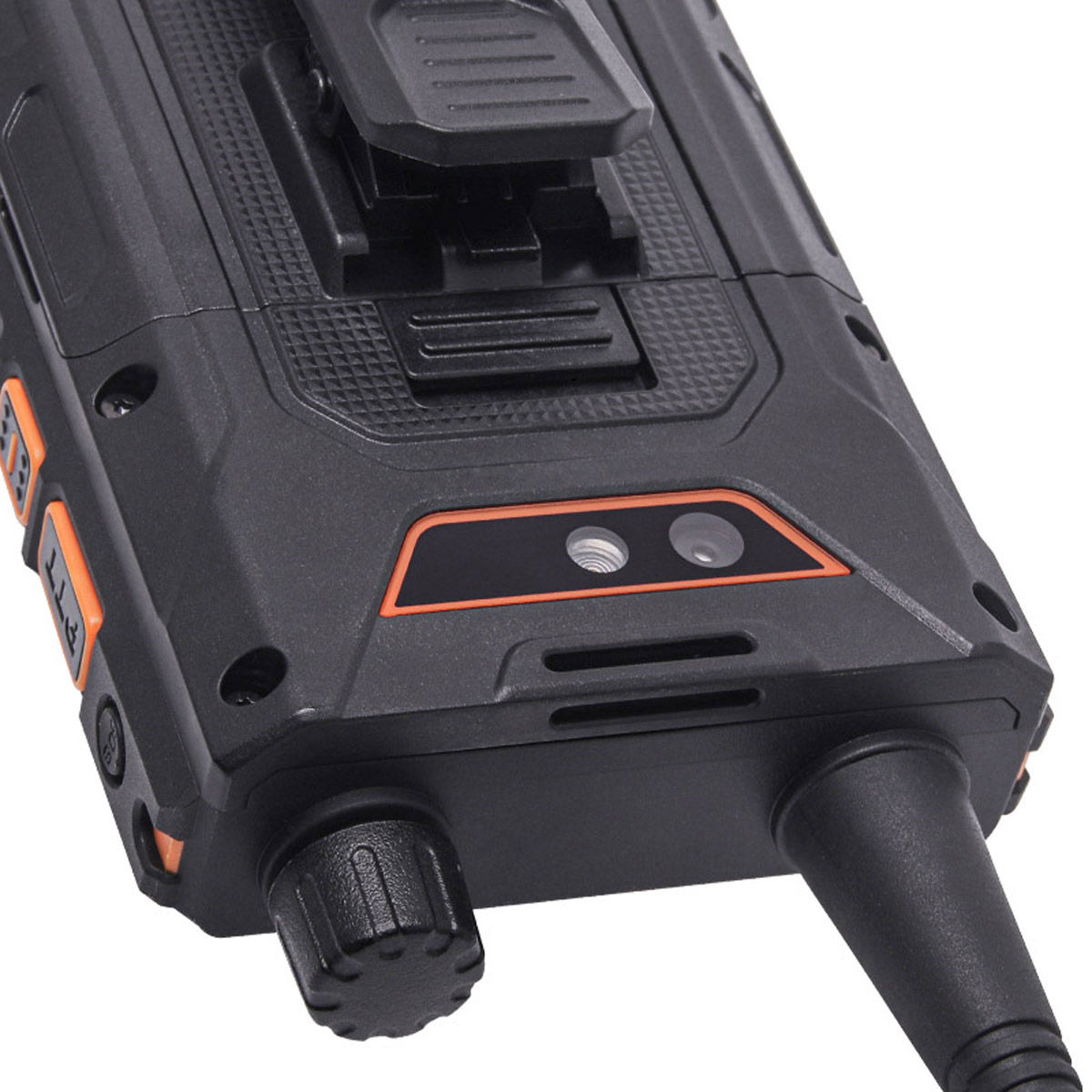

| Camera | Front: 8MP |
| Rear: 13MP AF with flashlight | Removable 4000mAh Li-polymer battery |
| Speaker | Φ36 / 8Ω Waterproof Speaker |
| Sensors | Gravity sensor, Light sensor, Proximity sensor, Magnetic field sensor |
| Buttons | Power, Volume ±, PTT Button, PoC Button, Custom Button, Menu / Back / Home Keys, Switch Knob |

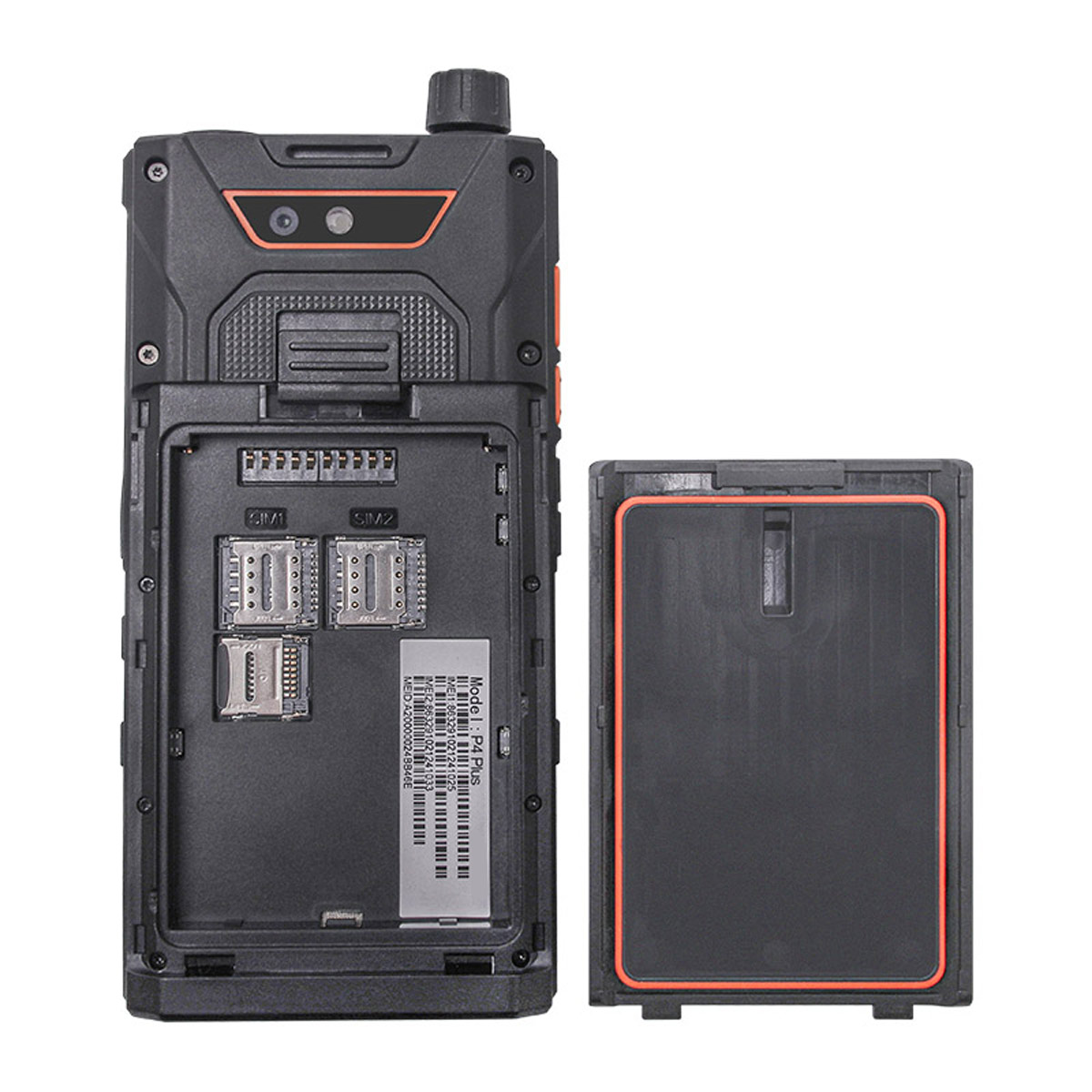

| Battery | Removable 7.6V / 3000mAh Li-polymer battery |
| SIM | Dual SIM |
| Network | 4G / 3G / 2G |
| 2G Bands | GSM 850 / 900 / 1800 / 1900 MHz |
| 3G Bands | WCDMA 850 / 900 / 1700 / 1900 / 2100 MHz |
| TD-SCDMA B34 / B39 | GSM 850 / 900 / 1800 / 1900 MHz |
| CDMA BC0 | WCDMA 850 / 900 / 1700 / 1900 / 2100 MHz |
| 4G Bands | FDD-LTE B1 / B2 / B3 / B4 / B5 / B7 / B12 / B17 / B20 / B66 |
| TDD-LTE B38 / B39 / B40 / B41 | FDD-LTE B1 / 2 / 3 / 4 / 5 / 7 / 8 / 12 / 13 / 17 / 18 / 19 / 20 / 25 / 26 / 28A / 28B |
| WiFi | IEEE 802.11 a/b/g/n/ac, 2.4G + 5G |
| Bluetooth | BT 5.0 |
| GNSS | GPS / A-GPS / Beidou / GLONASS / Galileo |
| NFC | 13.56MHz |

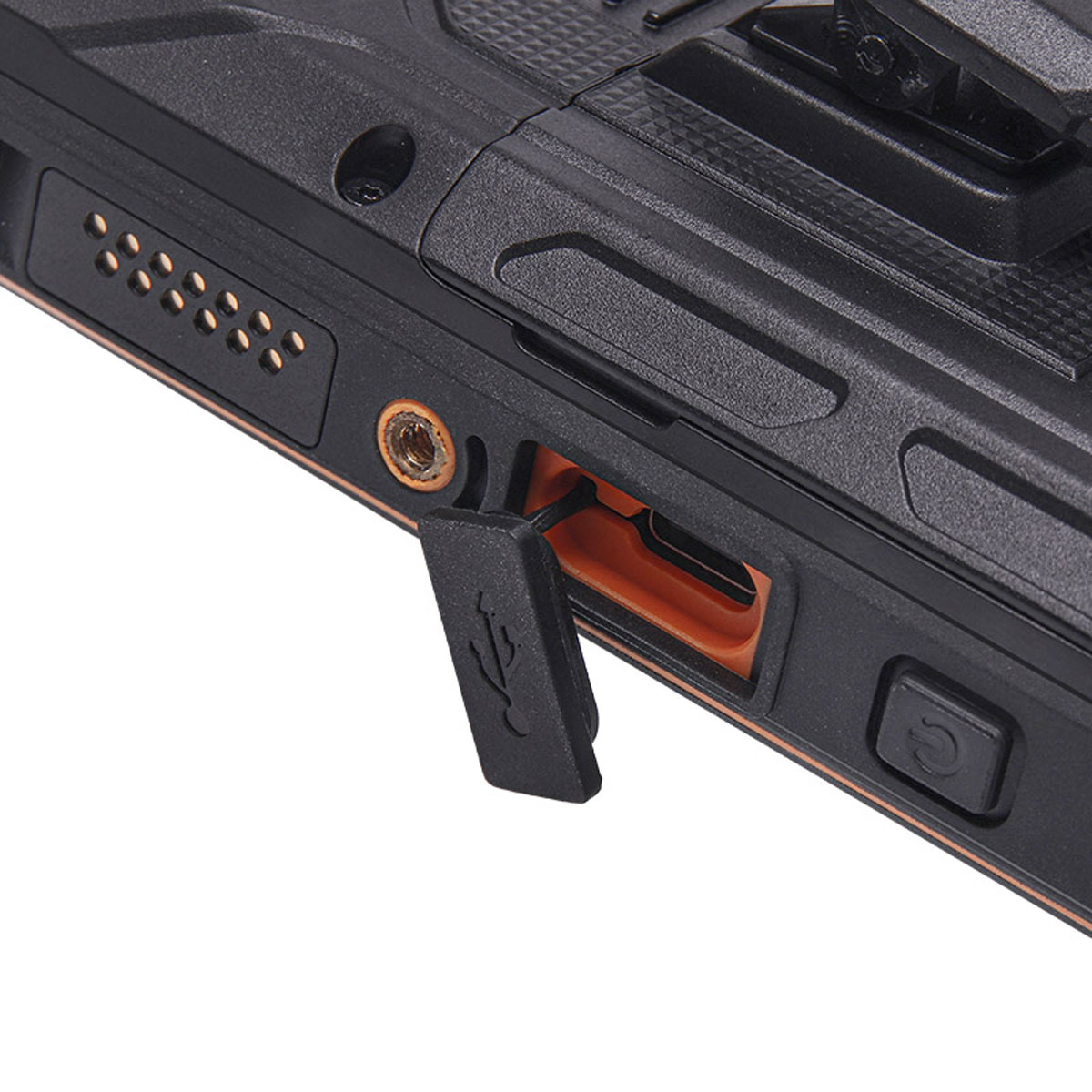

| USB | USB Type-C |
| Charging Contacts | Charging contacts ×2 |
| Expansion Port | M6 Port ×1 |
| Walkie Talkie | DMR / Analog Walkie Talkie |
| Frequency | UHF: 400–470MHz or VHF: 136–174MHz |
| Intercom Power | High: 4W / Low: 2W |
| PoC | Support |
| SOS | Support |
| Noise Cancellation | Active Noise Cancellation |
| UWB Positioning | Optional |
| RFID | Optional |
| ID Card Recognition | Optional |
| IP Rating | IP68 |
| Rugged Standard | MIL-STD-810G |
| Drop Resistance | 1.2 meters |
| Operating Temperature | -35℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Standard Accessories | Power adaptor ×1, Battery ×1, USB cable ×1, Antenna ×1, Belt clip ×1, User manual ×1 |
| Optional Accessories | Charging dock |
| Factory Warranty | 2 Years |
