RM-W109

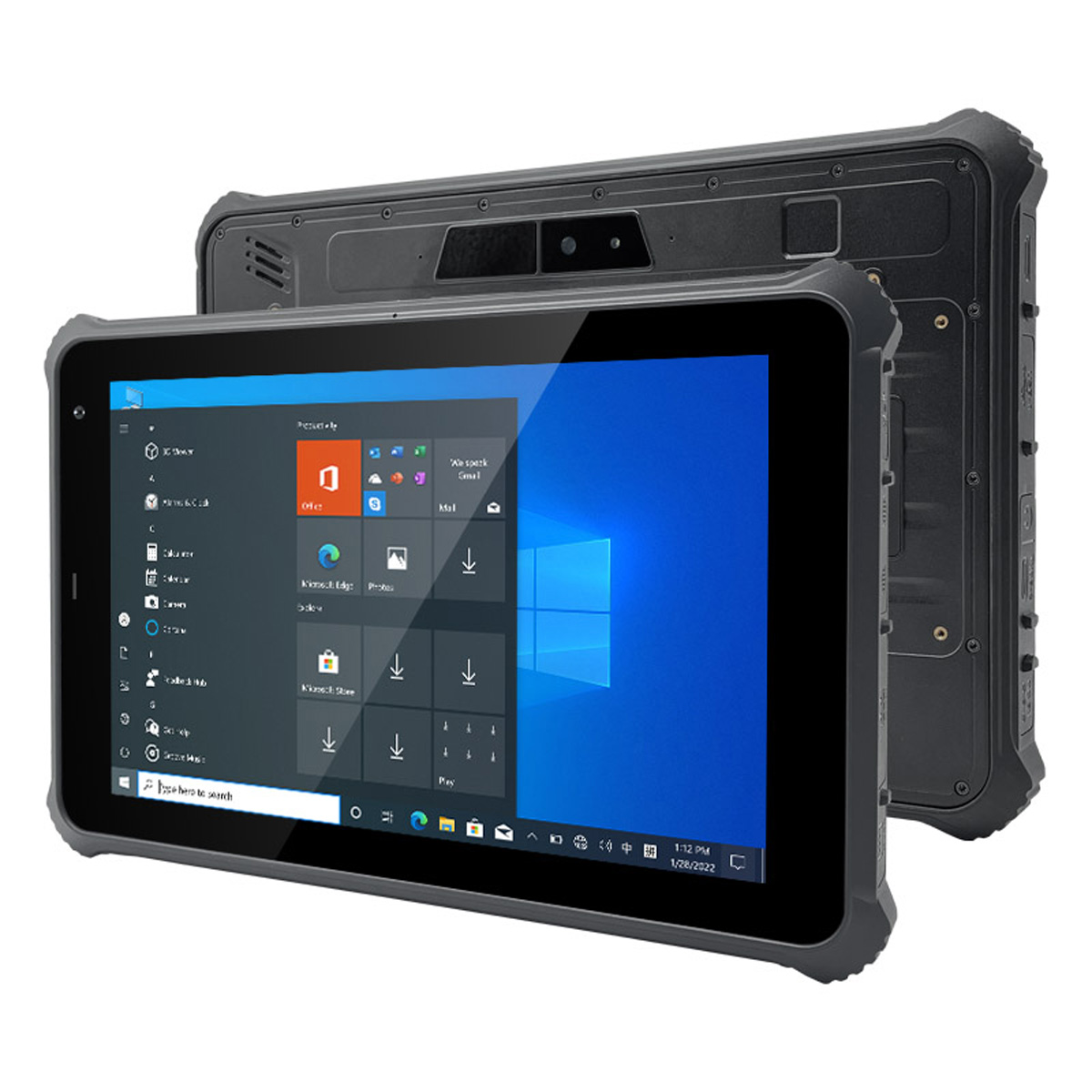

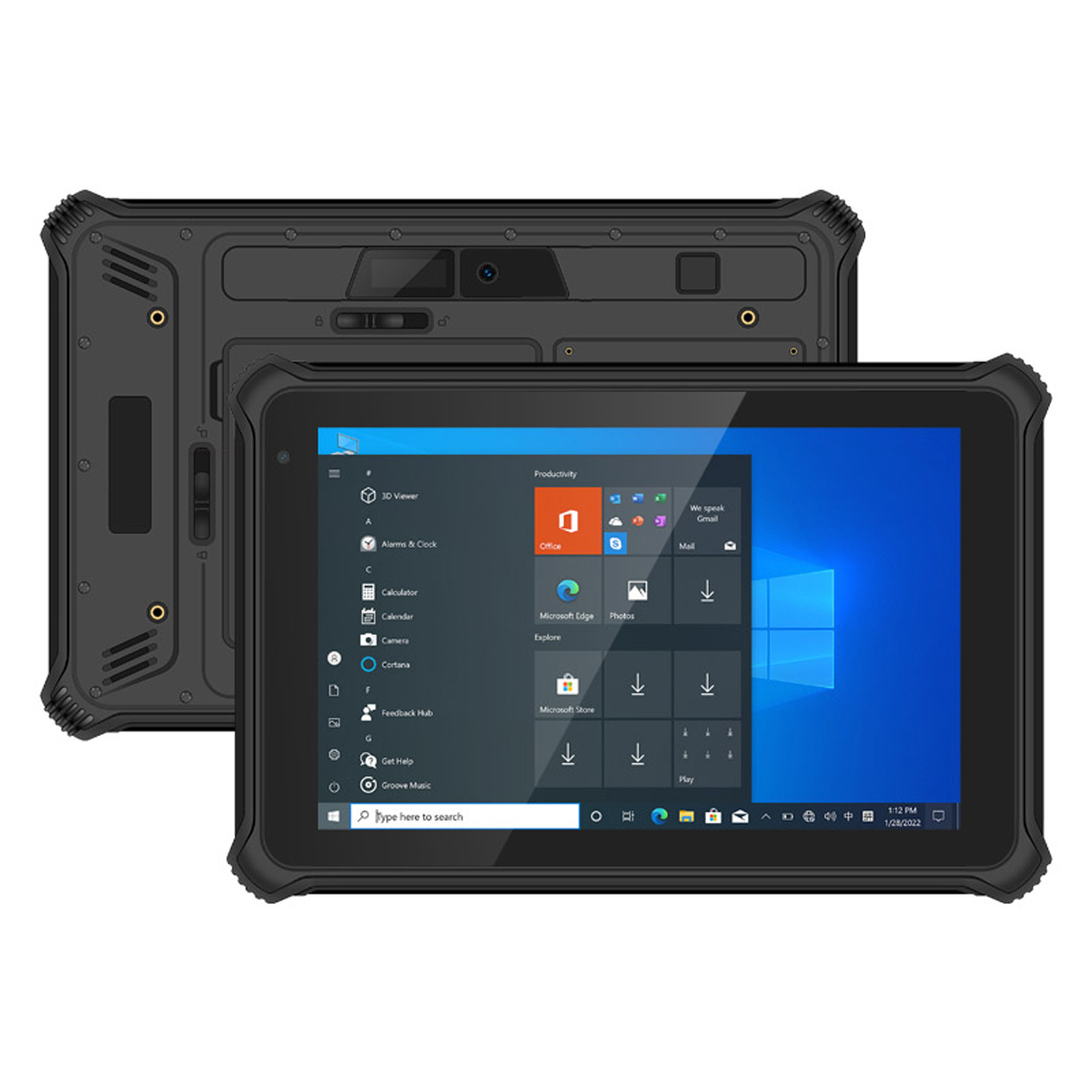

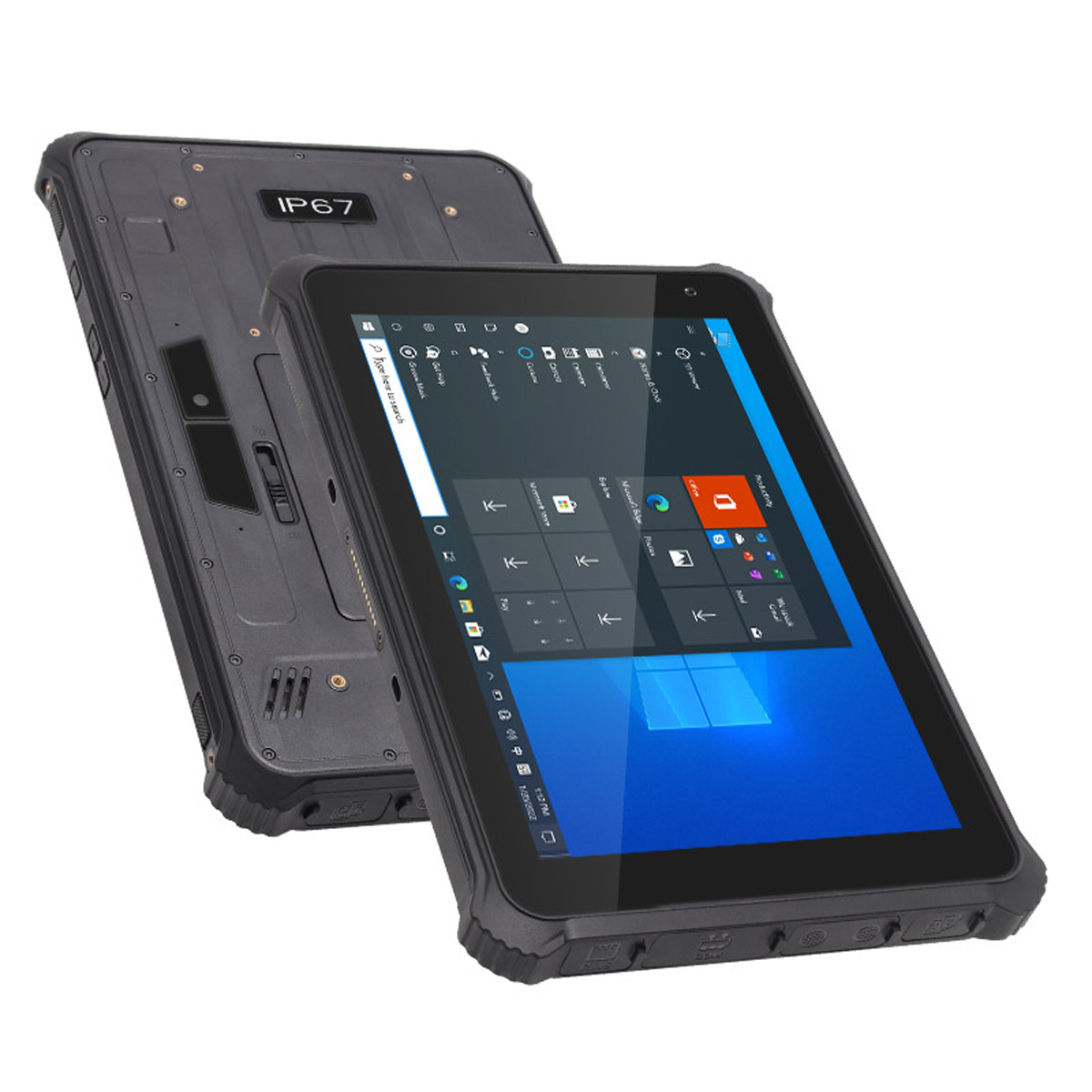

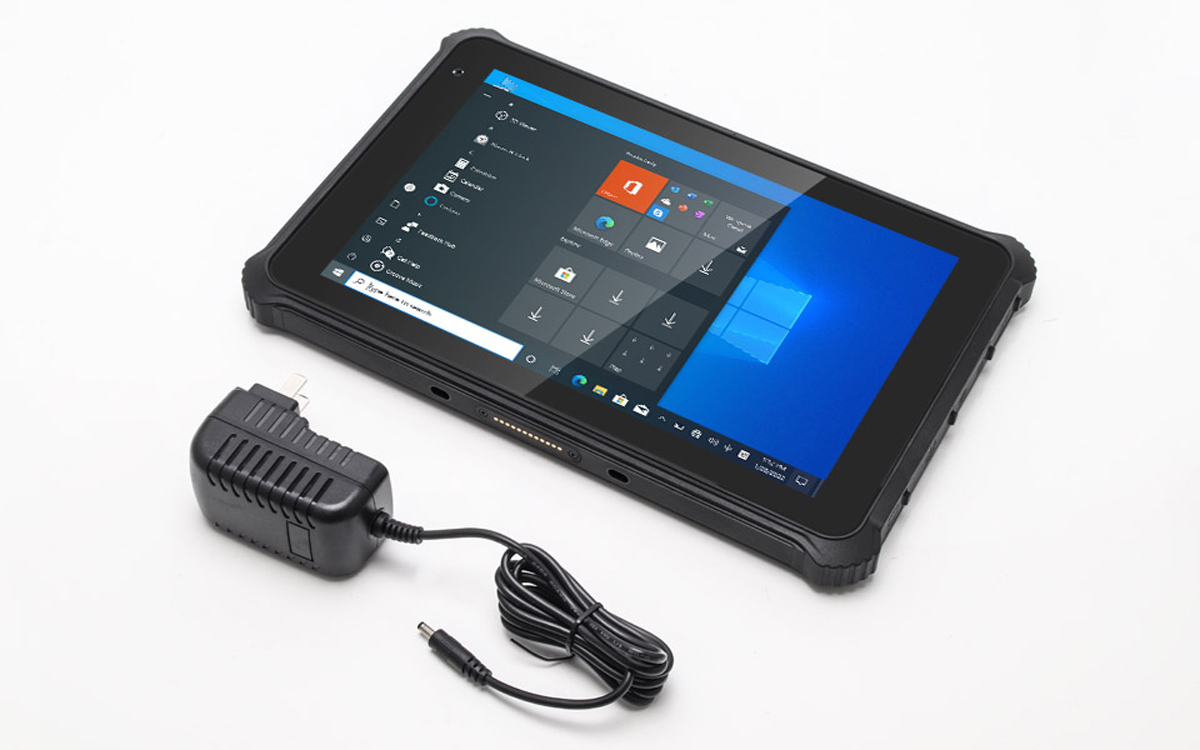

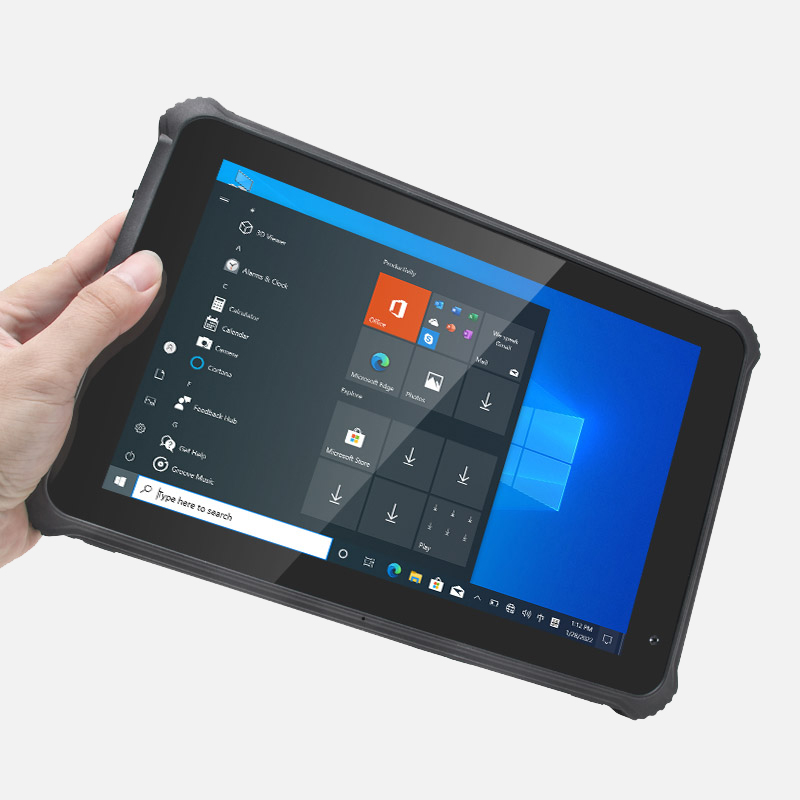

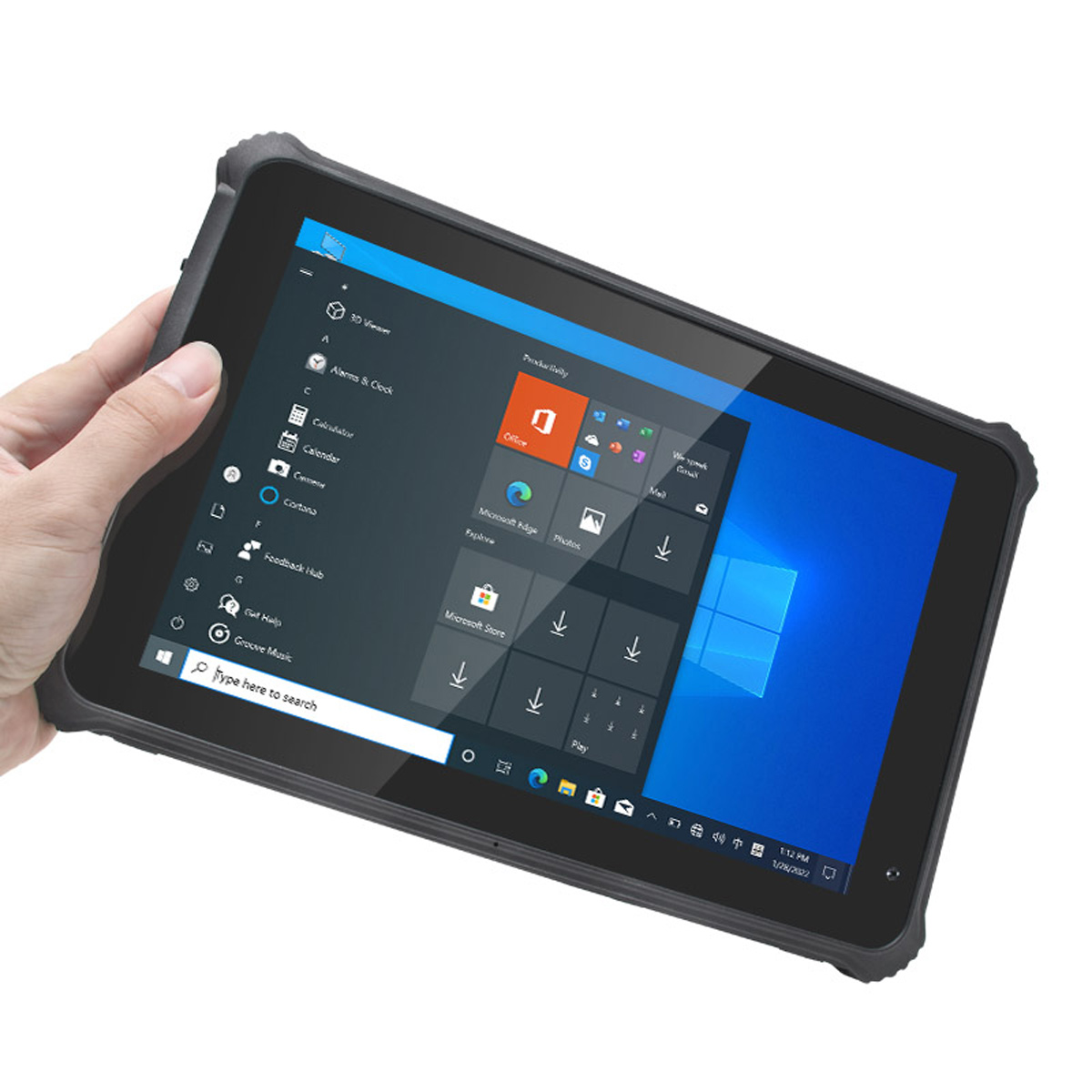

10.1 Inch 4+64GB Windows 10 Rugged Tablet
RM-W109 is a tough, all-terrain 10.1-inch tablet built for demanding fieldwork and industrial environments. Featuring a Corning® Gorilla® Glass III touchscreen with 1280×800 resolution and 450cd/㎡ brightness, it delivers clear visuals indoors and out. Powered by an Intel® Cherry Trail quad-core processor with 4GB RAM and 64GB storage (expandable to 256GB), it handles tasks smoothly in the field. With IP67 waterproofing, 1.2m drop resistance, and a wide range of connectivity options including 4G LTE, dual-band Wi-Fi, GPS/BeiDou, RJ45, RS232, and HDMI, it’s ready for any mission. Optional modules like NFC, RFID, barcode scanning, and fingerprint recognition make it versatile for logistics, public safety, inspections, and more.

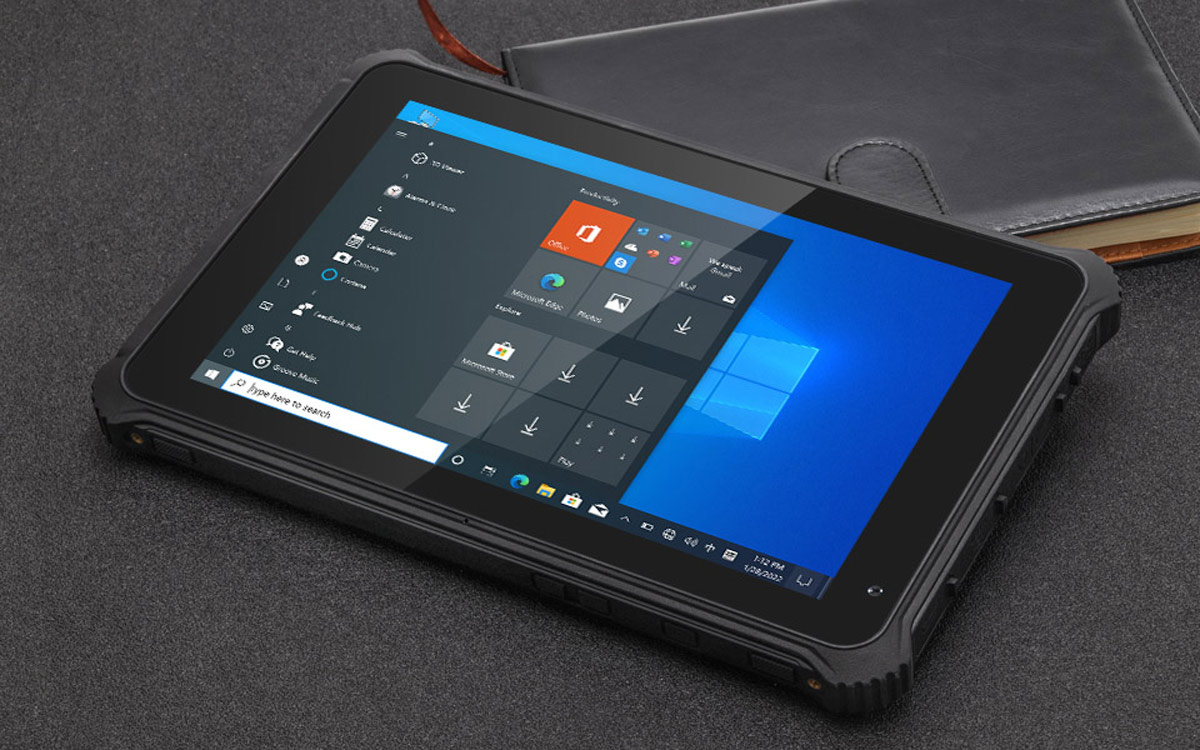

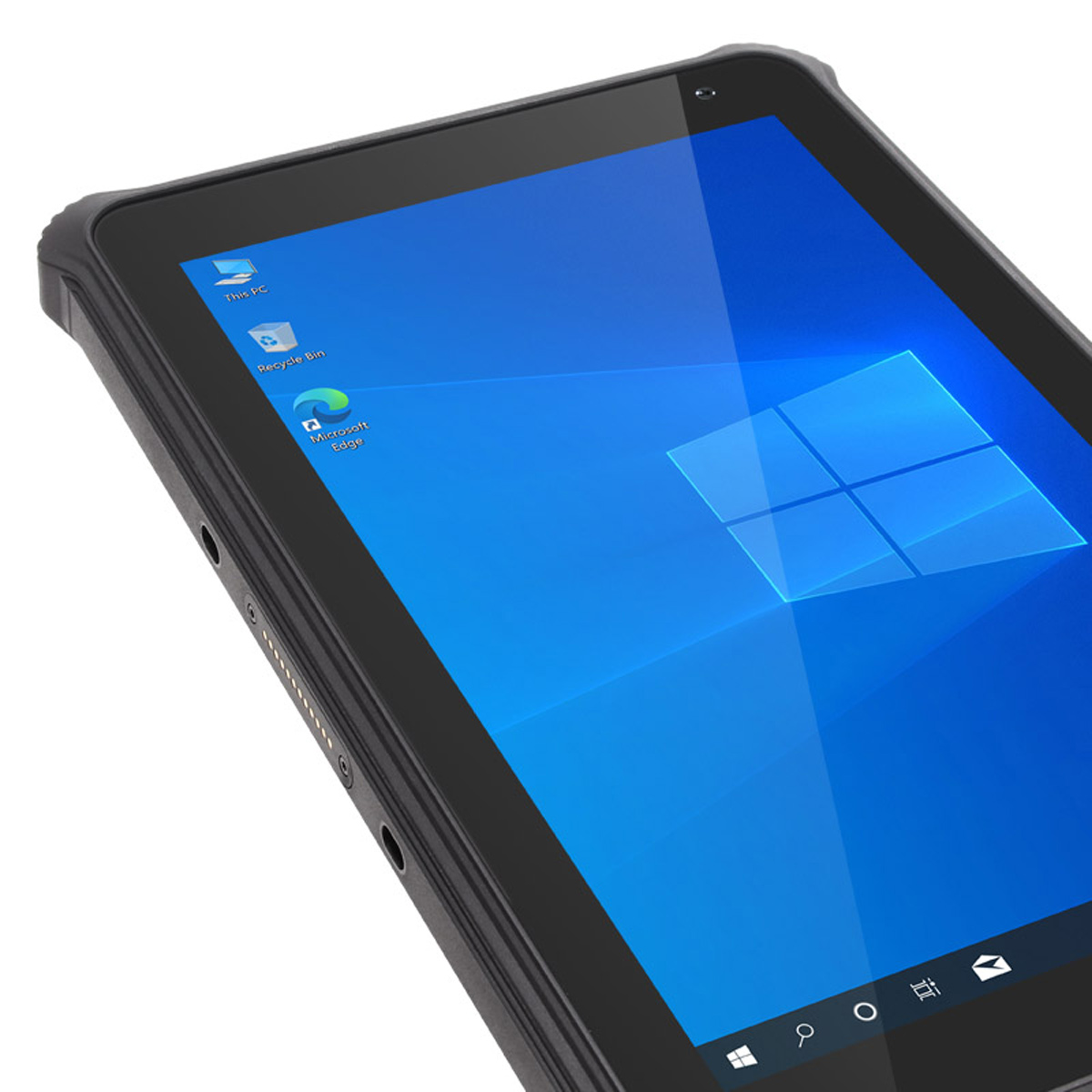

10.1″ Gorilla® Glass III Touchscreen
Intel® Quad-Core Processor

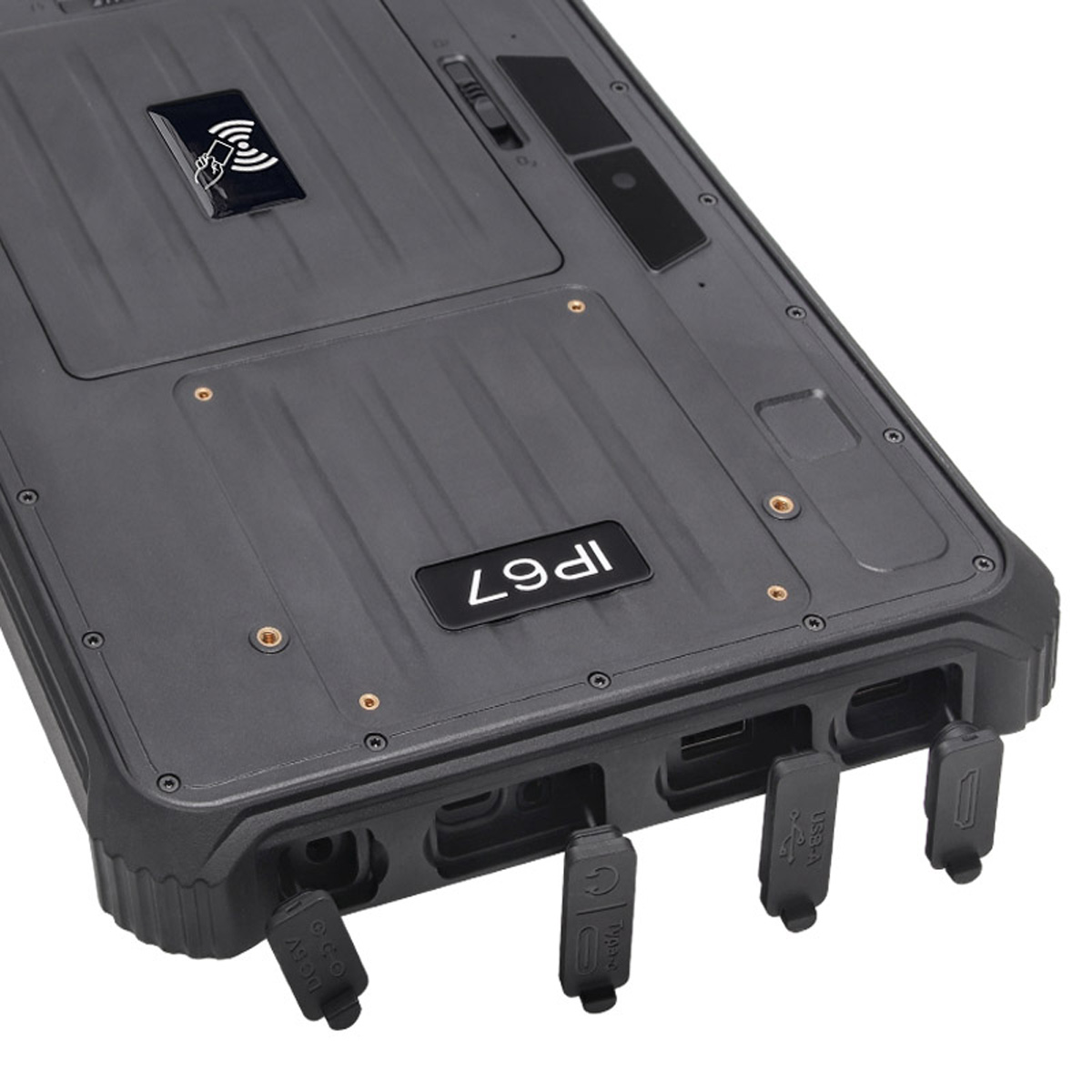

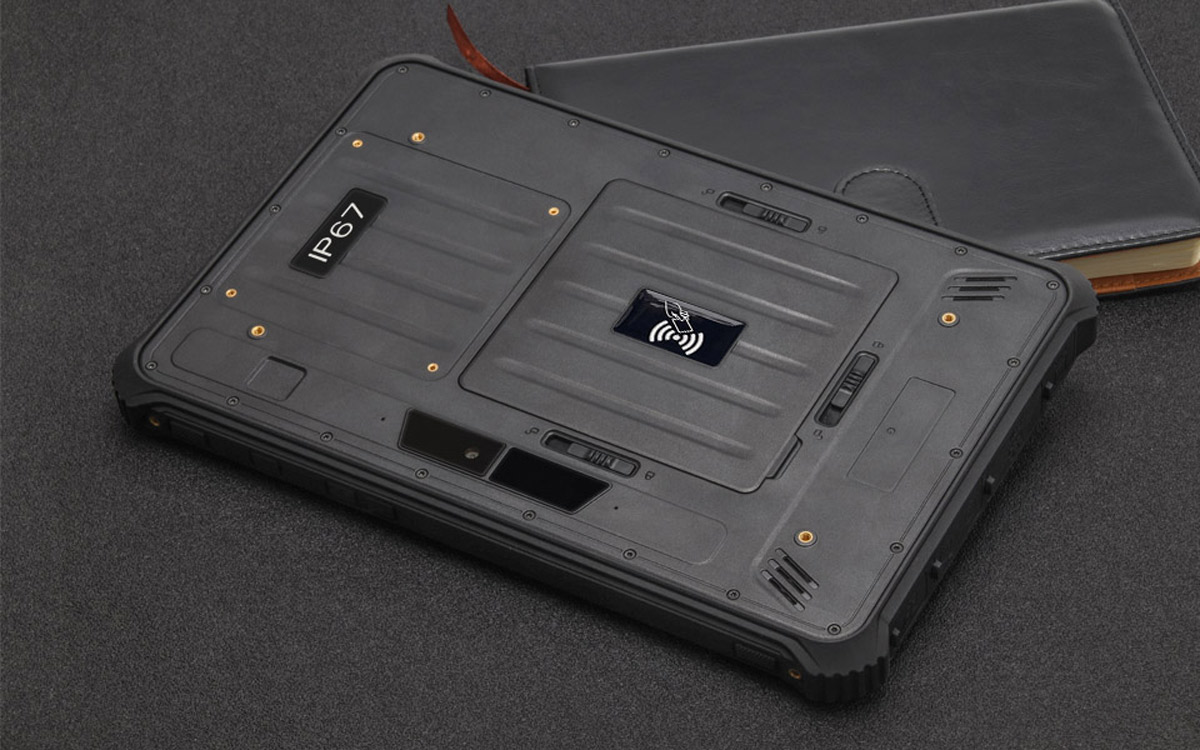

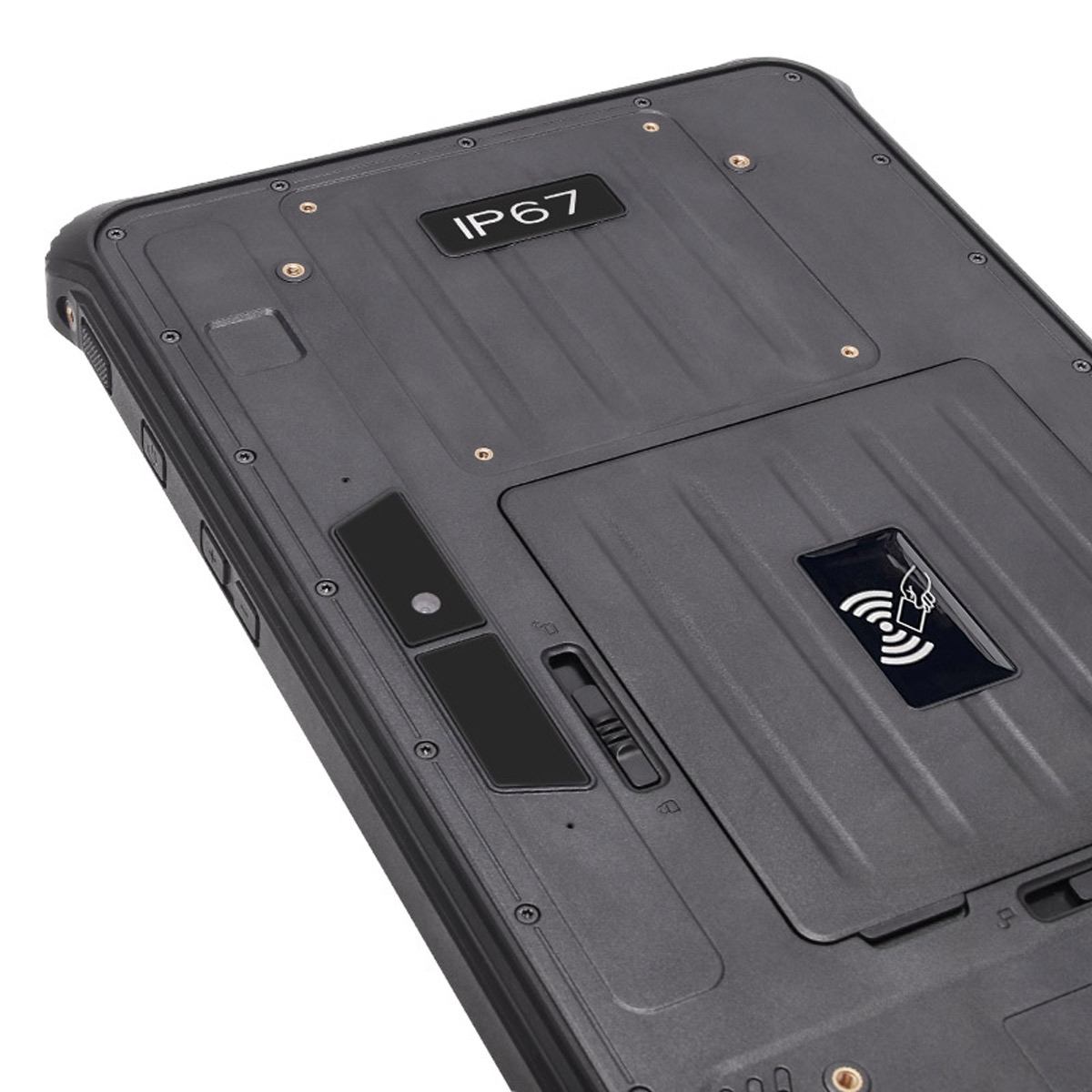

IP67 Waterproof & 1.2m Drop-Proof
Multiple Connectivity & Expandable Functions
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
One-stop Solutation
RUGGEDMASTER offer End-to-End Solutions from Design to Production
Rich Experience
RUGGEDMASTER has more than 10 years of OEM and ODM manufacturing experience in customizing rugged tablets,rugged phones,rugged handhelds,rugged laptop,etc.
Strong R & D Capabilities
More than 10 years experienced R&D engineers provide mature custom solutions of outdoors products
Strict Quality Control
Including raw material test, online production test, PCS test, finished product test.
Competitive prices
RUGGEDMASTER offer competitive prices as we are able to produce our products efficiently and cost-effectively in our own factory.
view more >
Just Email Us :
Email : sales@ruggedmaster.com
Address: 4th Floor, A3 Building Yinlong Industry Base, Longdong Community, Longgang District,Shenzhen
Between 9:00 am-6: 00 pm from Monday to Friday Beijing time
We will reply you witin 12hours.
Can I buy from you online directly?
No, direct online purchase is not acceptable now as we want to give our partner more profits at their side
Can you send me a price list or no middleman quotation?
Yes,we can send it to your directly,please just email us and get our latest quotation directly.
Can you send me a catalog or brochure?
Yes,You can email us and we will send you our latest products catalogs to you
Do Your Company Accept Customizaion?
Yes,We accept OEM service. We have our own factory and excellent RD team, OEM is a part of our business, in addition, we offer ODM service, we would love to make good ideas happen.
What's the normaly lead time for OEM order?
Takes about 30 days for 500pcs OEM order after sample confirmed.
Do you sell refurbished or reconditioned devices?
Hello, no, we do not supply any refurbished or reconditioned devices or produucts, if you are interested in our night vision products, you can send your dealer or distributor request information
Do you sell your products to the military?
no, we do not supply the military because our products do not meet military standards and are intended only for civil purposes such as hunting, security, monitoring and other civil fields.
For the civil interest, the customers can send the dealer or distributor request information
TECHNICAL PARAMETERS
| TECHNICAL PARAMETERS | |
|---|---|
| MODEL: | RM-W109 |
| Operating system | Windows 10 home (Win 10 pro, Win 10 IOT optional) |
| Dimension | 277.48*182.74*21.5mm |
| Weight | 1155g |
| Material | PC+TPU |
| Color | Black (can be customized) |
| Language | Multi-language |
| HARDWARE | |
| Display | 10.1 inch Corning Gorilla III IPS capacitive touch screen, 1280*800px, 450cd/㎡ |
| Processor | Intel Cherry Trail Z8350 quad core, 1.44GHz ~ 1.92GHz; GPU: Intel HD Graphics Gen8 |
| RAM | 4GB RAM |
| ROM | 64GB ROM (32GB/128GB ROM optional), support TF card up to 256GB maximally |
| Camera | Rear camera: 5MP; Front camera: 2MP |

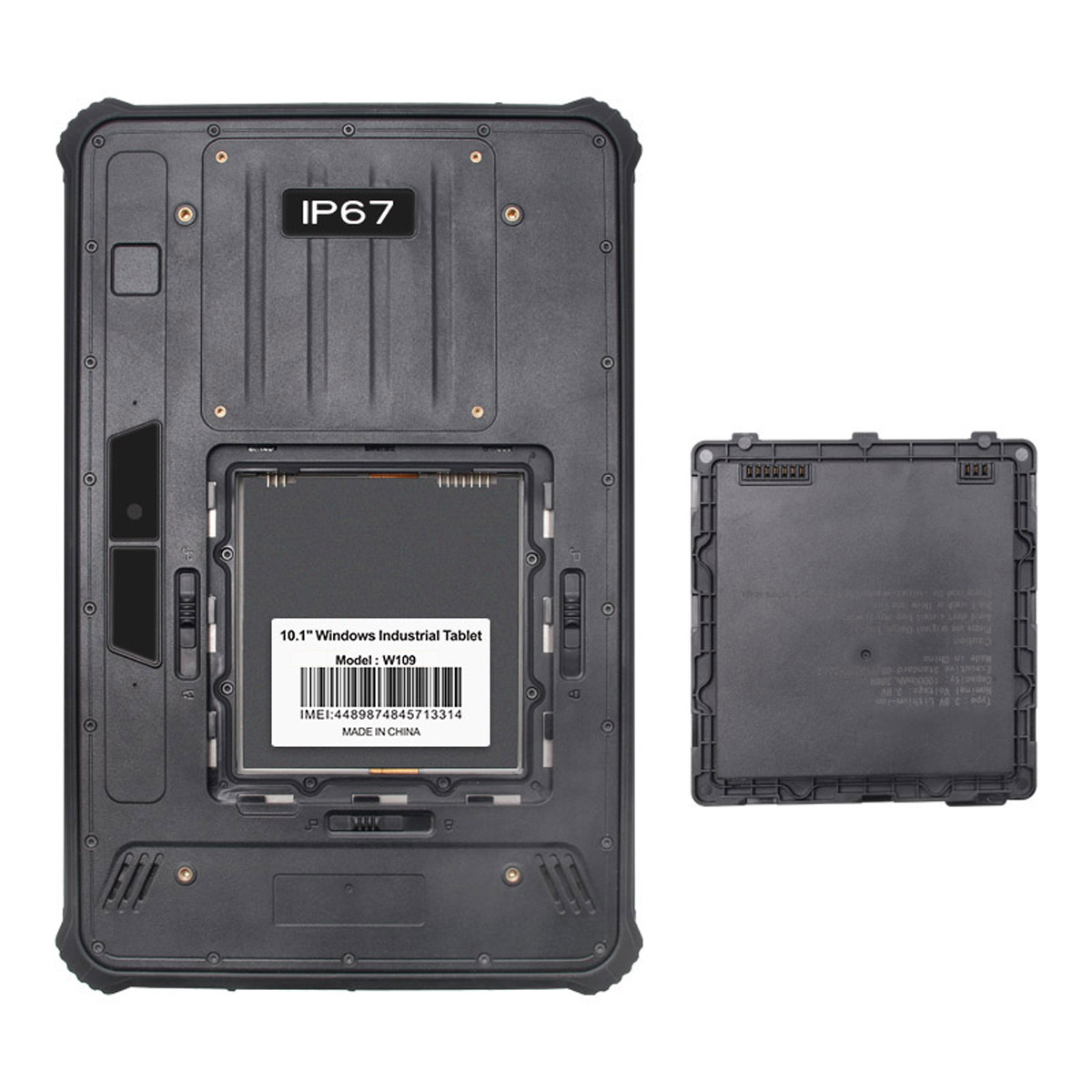

| Battery | Removable 3.8V/8500mAh Li-ion battery |
| Sensor | Gravity sensor |
| Speaker | *2, 1.2W/8Ω |
| Receiver | *1 |
| Mic | *2 |
| Keys | Power key, Volume+/-, P-Key, F-Key |
| Indicator light | *1 |
| NETWORK & CONNECTIVITY | |
| Bands | 2G: GSM 900/1800MHz |
| 3G: WCDMA 850/900/2100MHz | |
| 4G: FDD-LTE B1/B3/B5/B7/B8/B20, TDD-LTE B38/B40/B41 | |
| WiFi | IEEE 802.11a/b/g/n/ac, support 2.4G/5.8G dual-band WiFi |
| BT | V4.0(BLE), ~10 meter |
| GNSS | Built-in U-blox M7N module, support GPS/BDS |

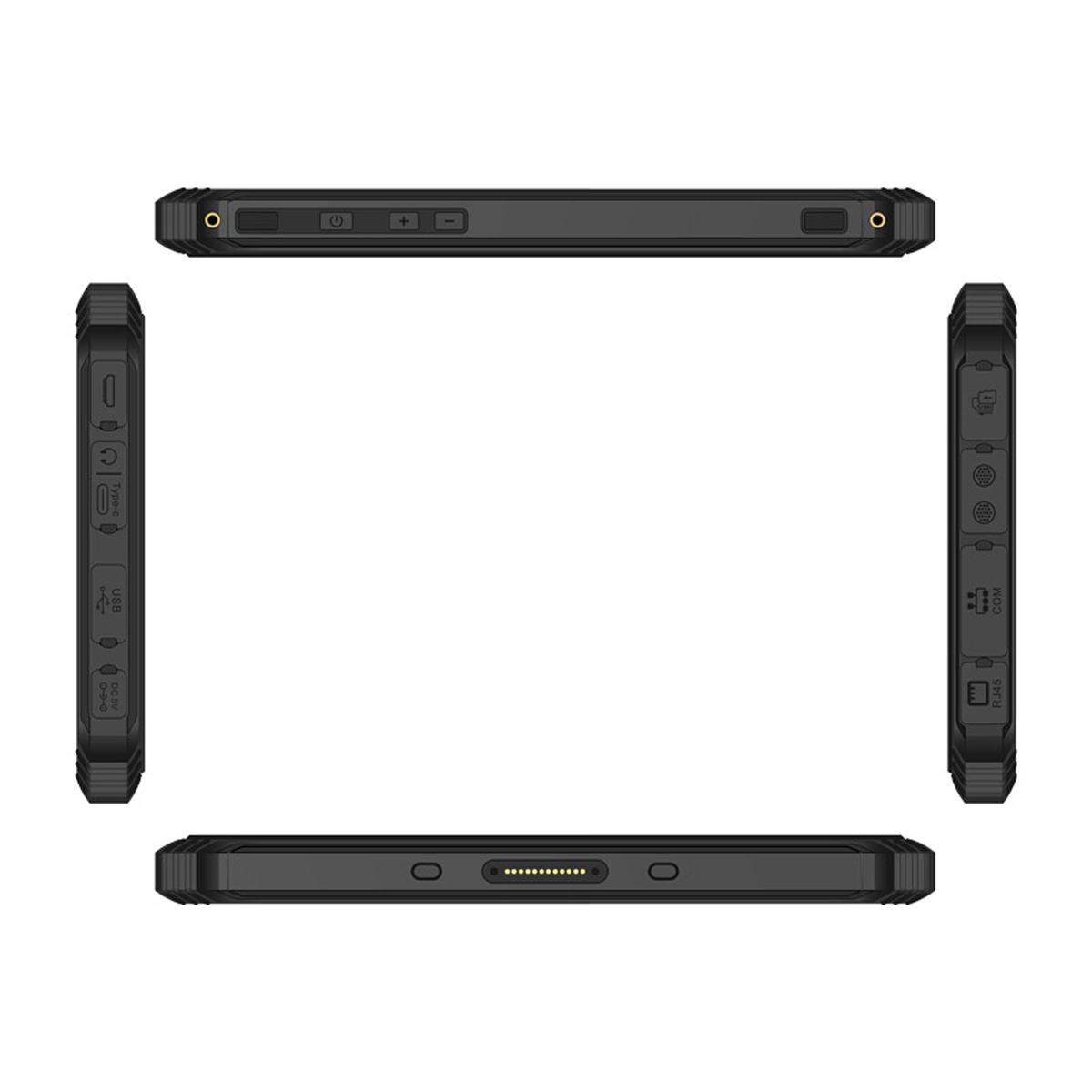

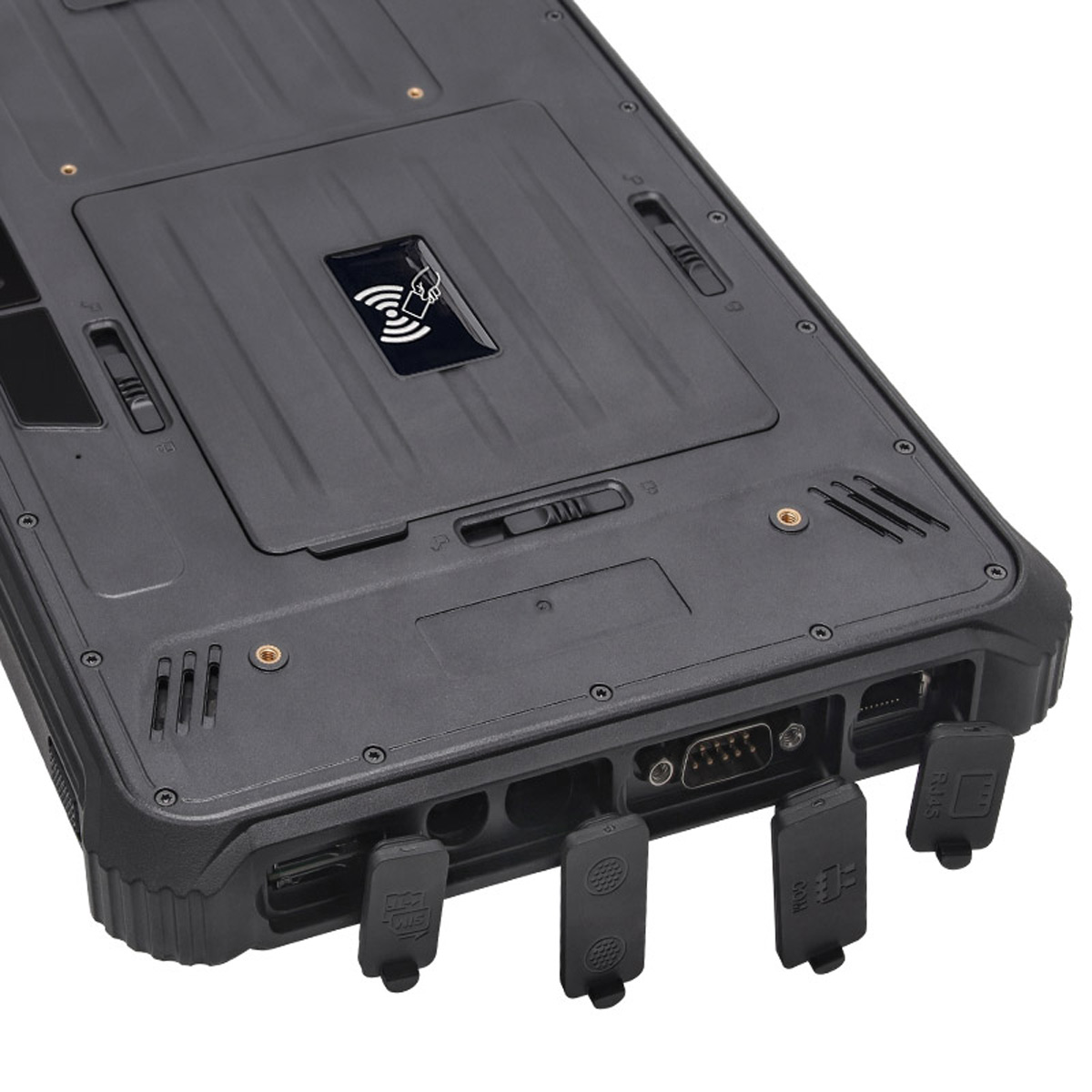

| I/O INTERFACES | |
| Micro SIM Slot | *1 |
| TF Card slot | *1 |
| USB Type-C 2.0 | *1, Support OTG |
| USB Type-A 2.0 | *1 |
| RJ45 Ethernet Port | *1, 100Mbps |
| RS232 | *1 |
| DC-IN | *1 |
| Mini HD-MI | *1 |
| 3.5mm Audio Jack | *1 |
| Pogo Pin | *1 |
| CONINVERS | RS232/USB/DC5V/CAN BUS optional |
| OPTIONAL FUNCTIONS | |

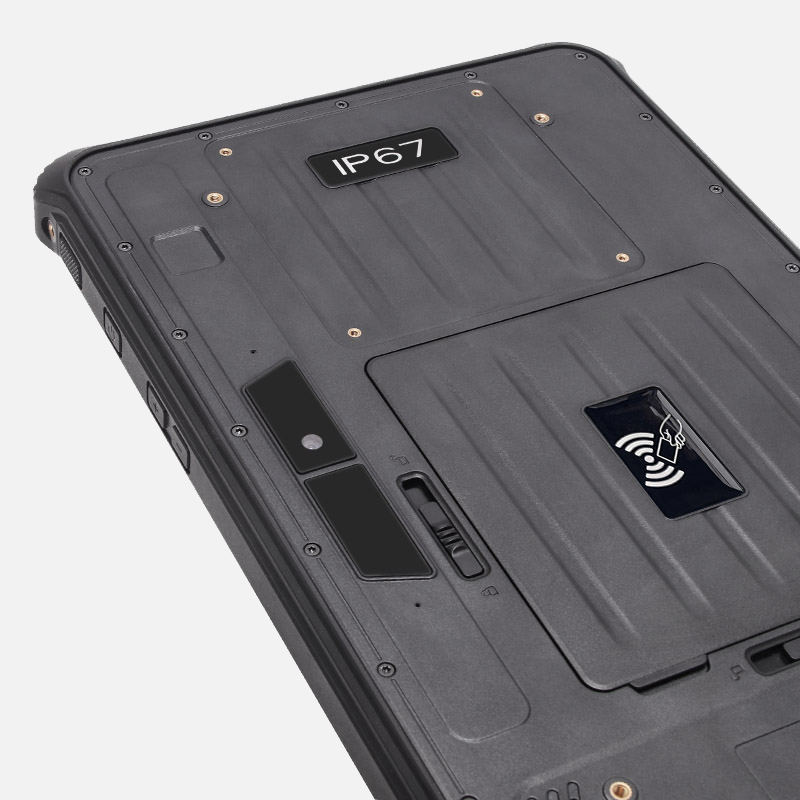

| NFC | 13.56MHz, Support: 14443A/14443B/15693 |
| UHF RFID | PR9200, Read distance: 1.5m-3m; Read distance 2: 5m-8m |
| ID Card Reader | Support reading 2th Generation ID card |
| Fingerprint | 1: Ordinary industrial fingerprint 2: Fingerprint authentication by the Ministry of Public Security 3: FBI certified fingerprint |
| 1D barcode scanner | Zebra SE655 |
| 2D barcode scanner | Zebra SE2707 |
| Screen | 800cd/㎡(1920*1200px),1000cd/㎡(1280*800px),Wet hand touch, Glove touch, Active/passive capacitor pen, AG+AF Coating, AR Coating |
| RELIABILITY | |
| Waterproof | IP67 |
| Drop-proof | 1.2M,Cement floor |
| Temperature range | Operating: -20℃~60℃ Storage: -30℃~70℃ |
| ACCESSORIES | |
| Charger(5V/3A) | *1 |
| User Manual | *1 |
| Hand strap | Optional |
| Mounted bracket | Optional |
| Standby Battery | Optional |
| Docking | Optional |
| Type-C Cable | Optional |
| OTG Cable | Optional |
| Factory Warranty | 2 Years |
