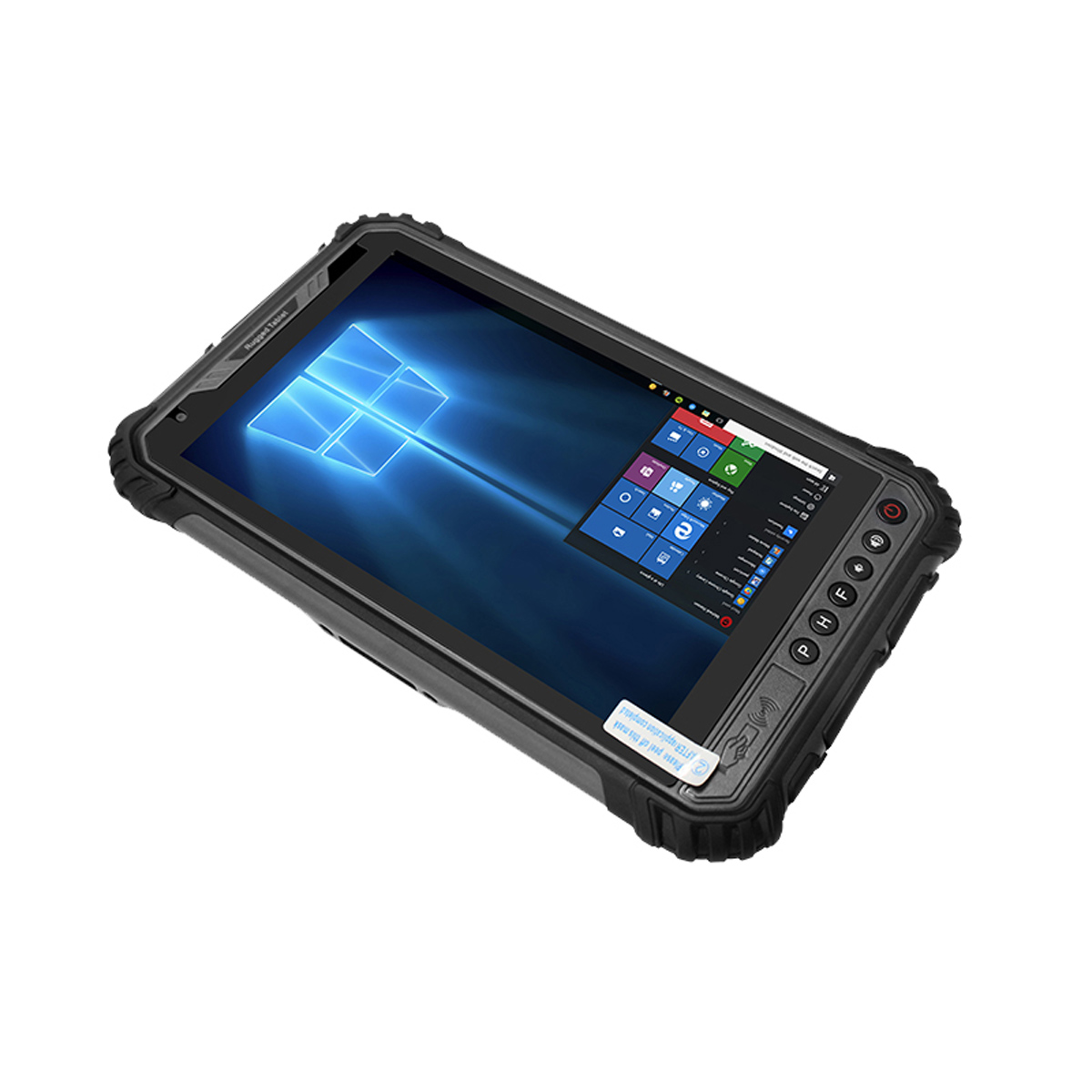

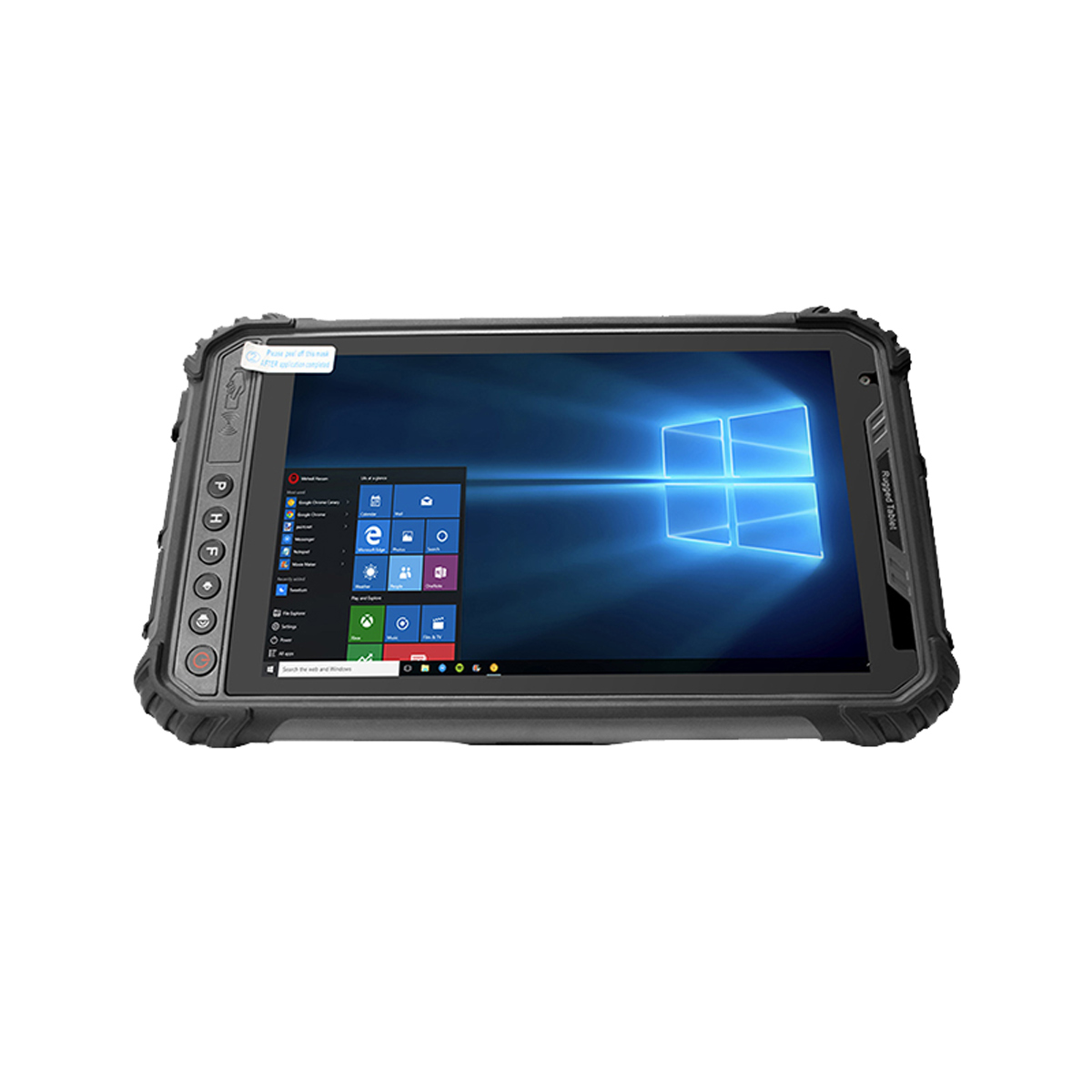

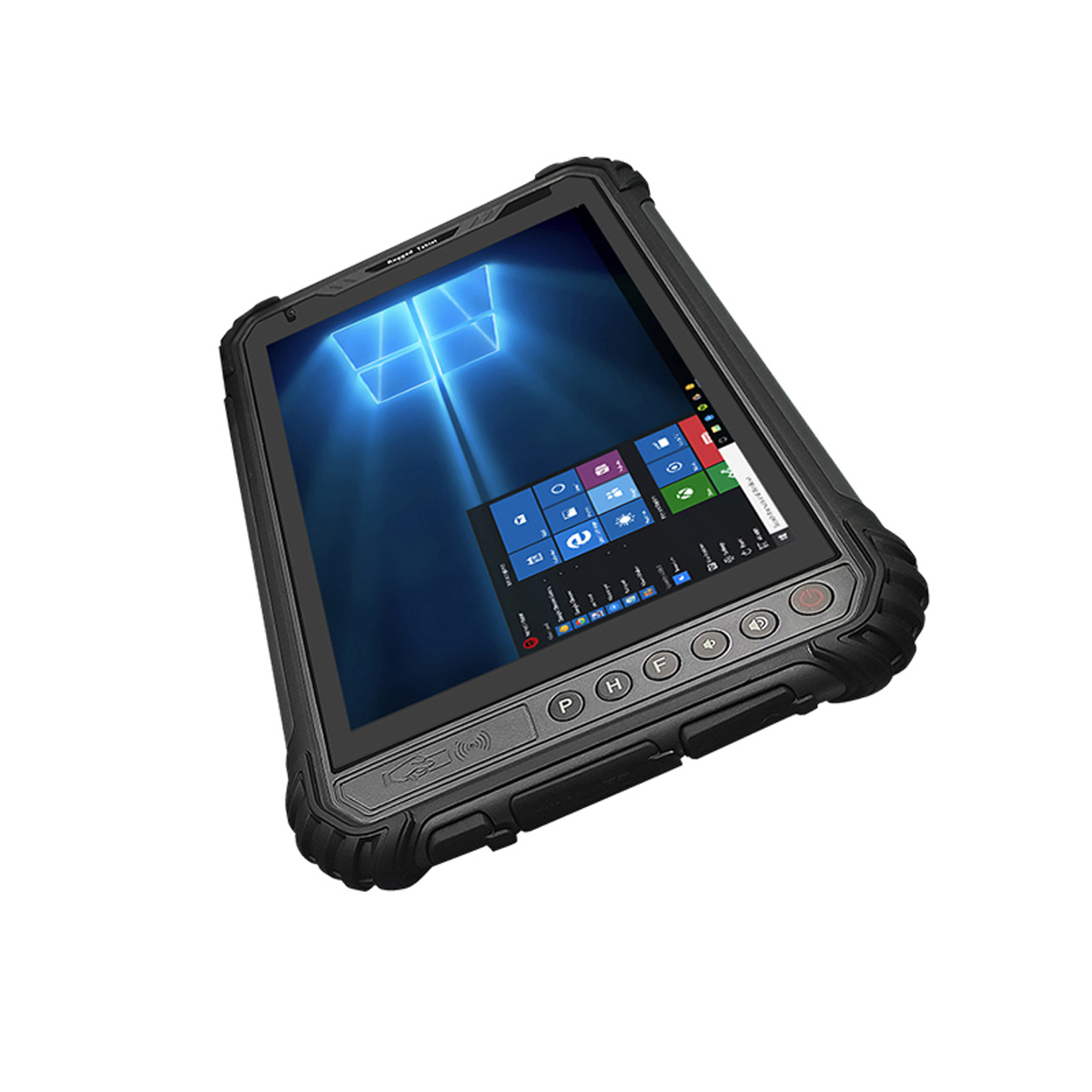

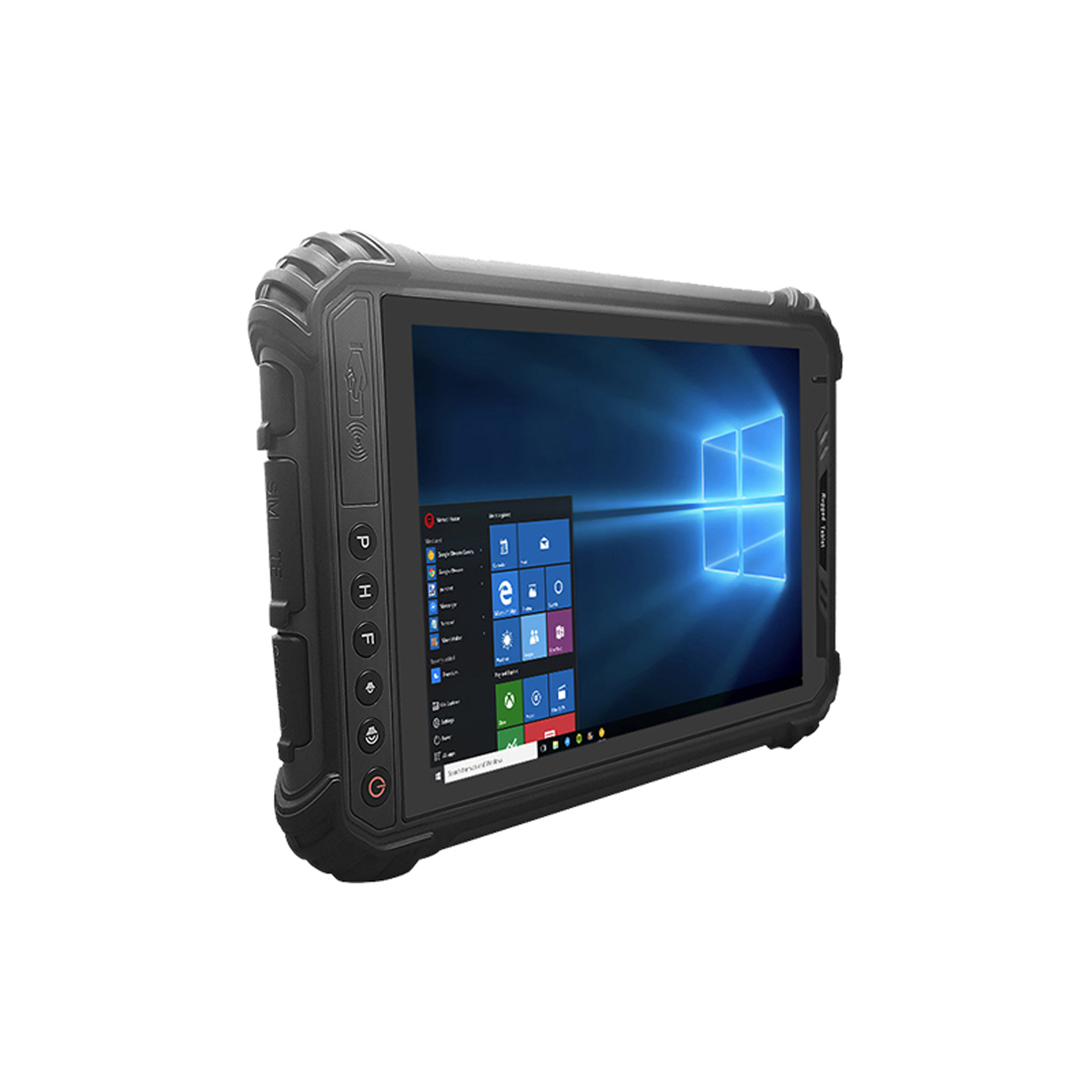

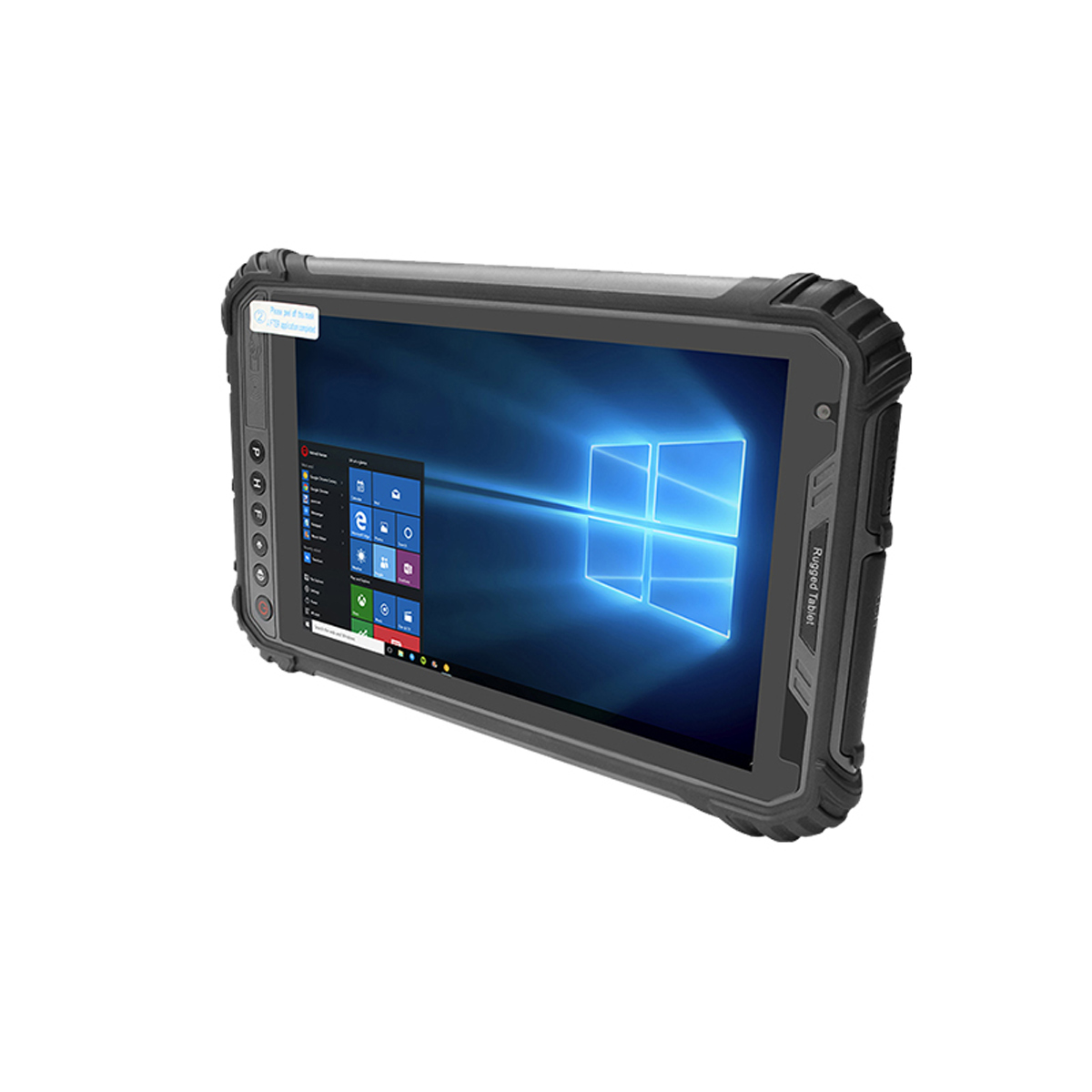

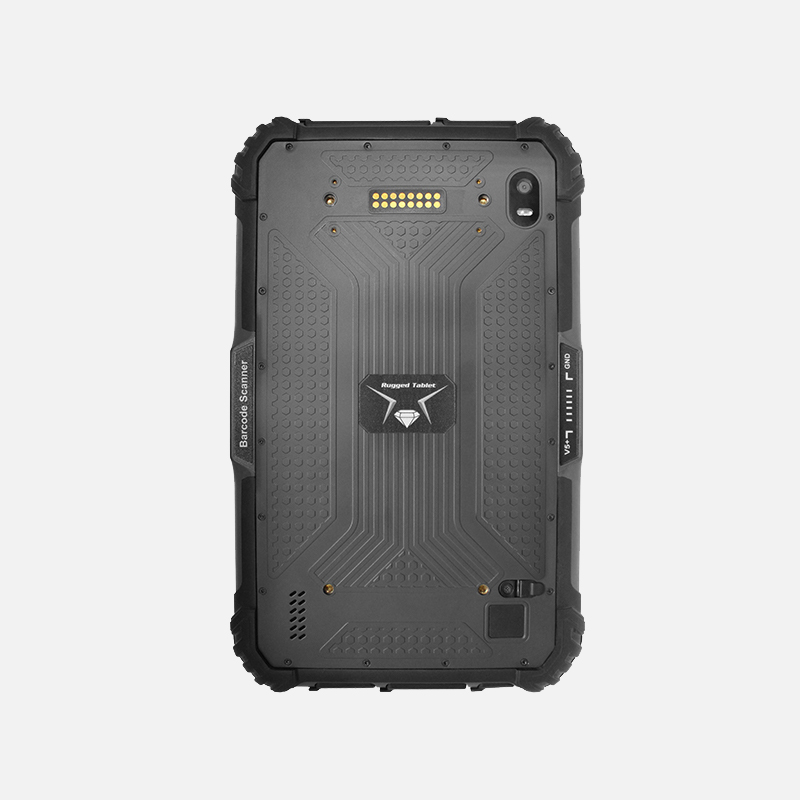

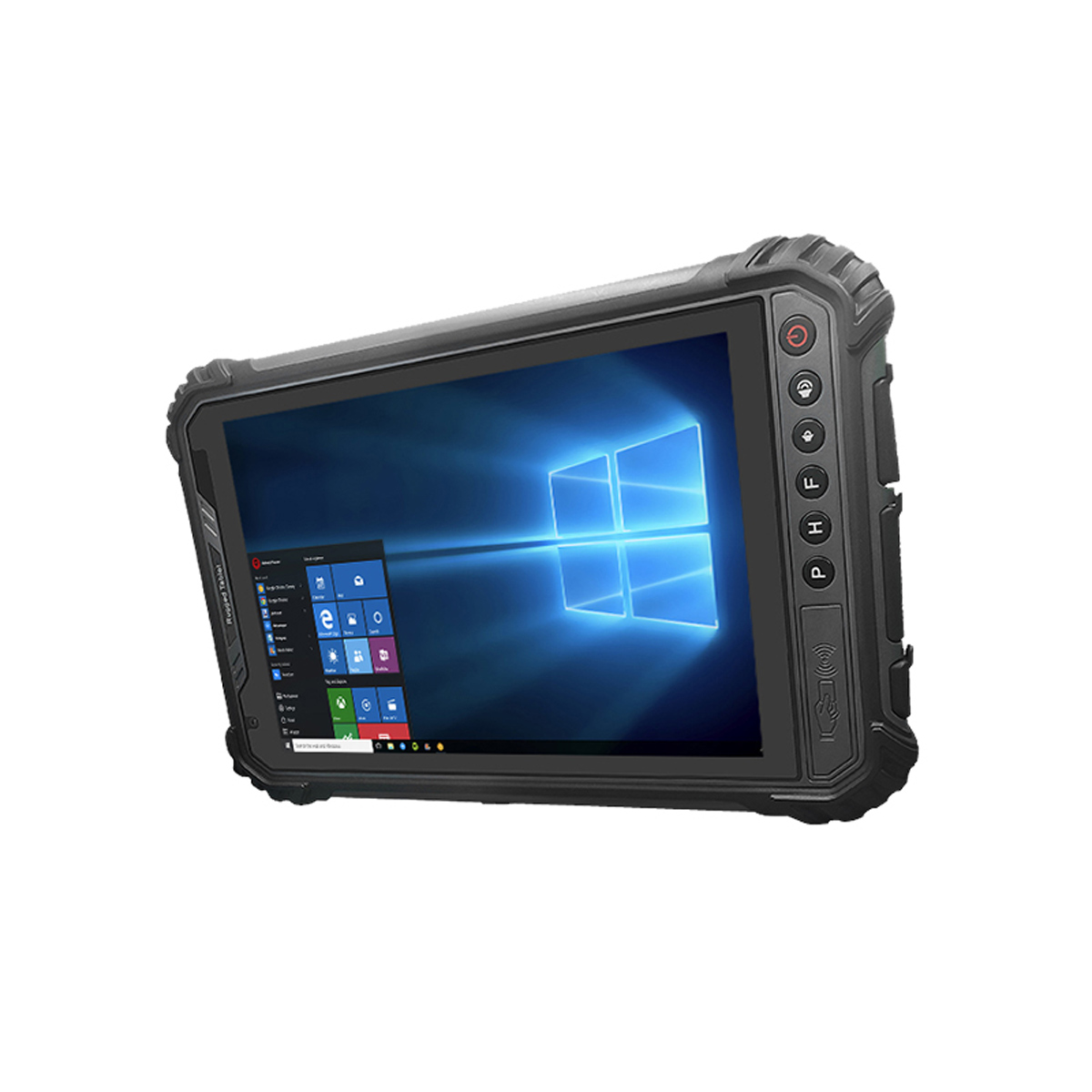

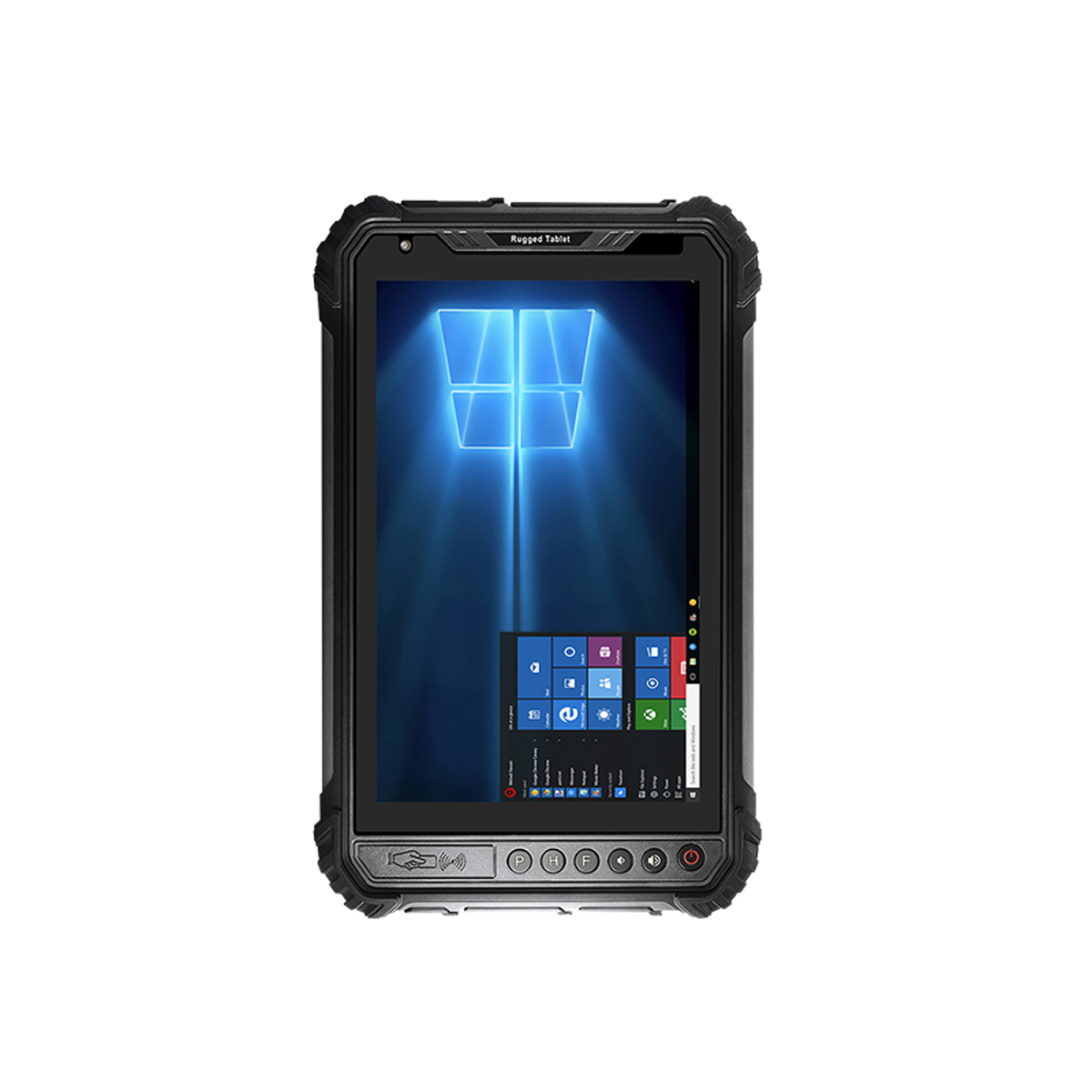

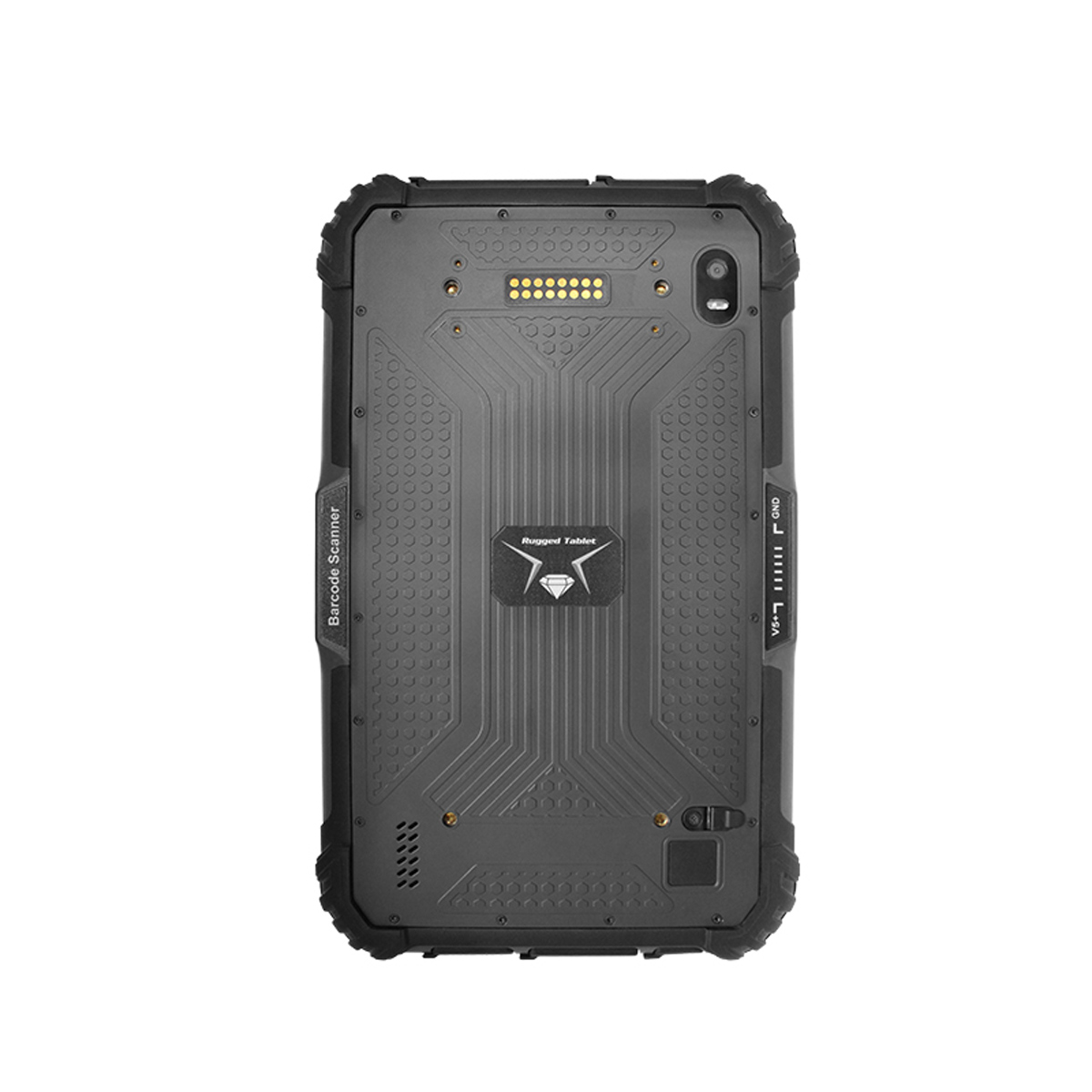

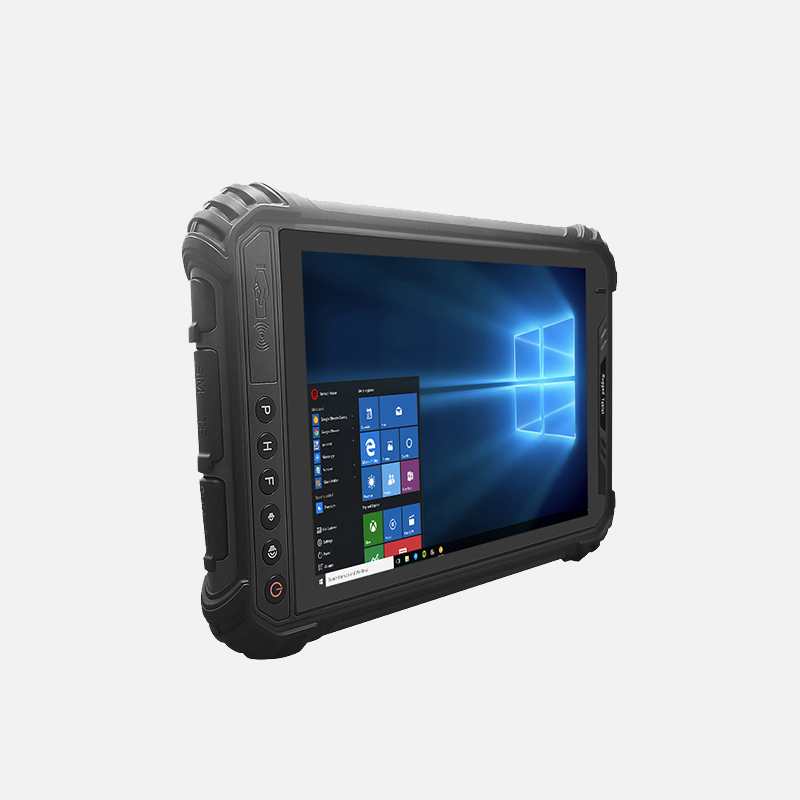

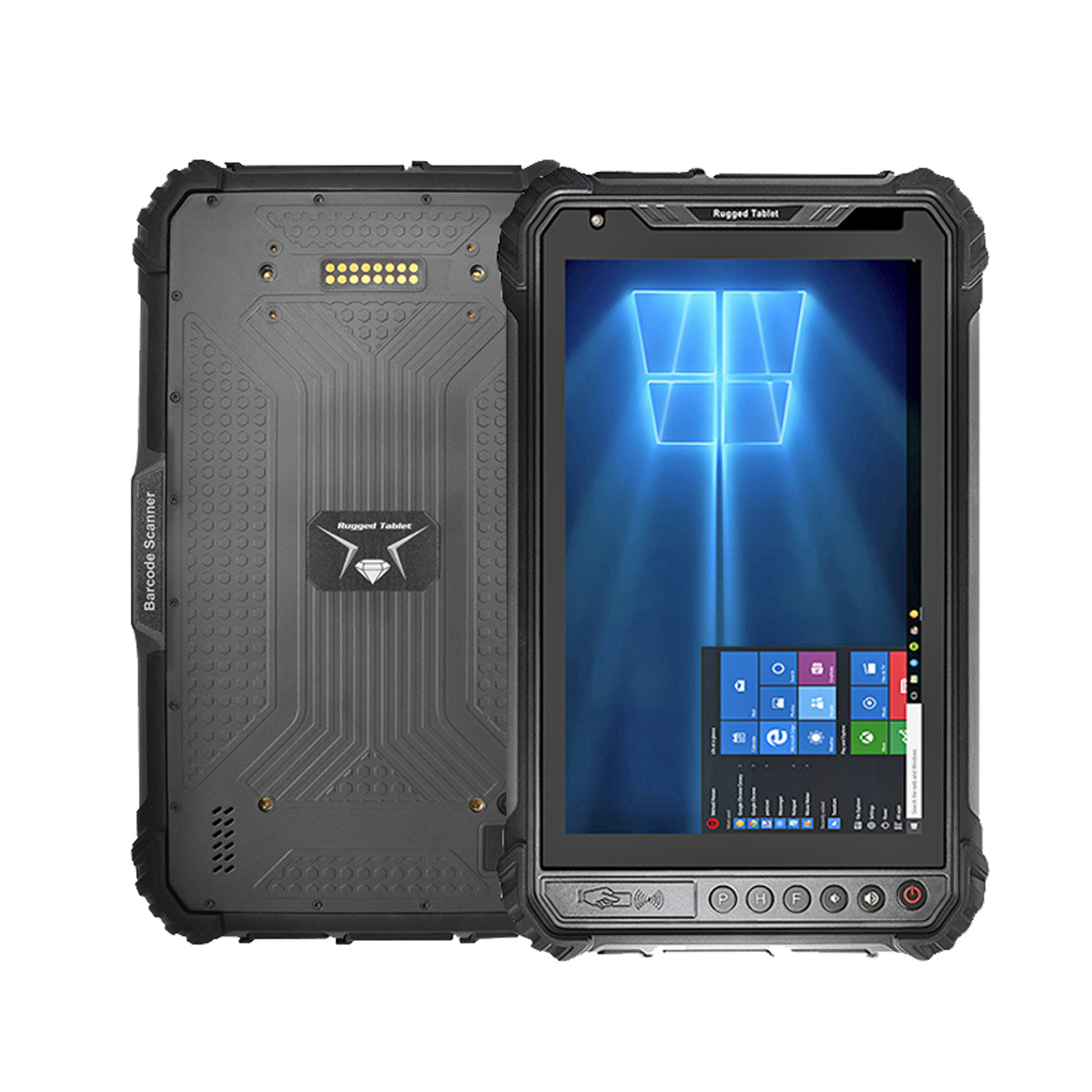

RM-ST9-M
8 Inch 16+512GB Windows 11 Pro Rugged Tablet
Designed for professionals who need Windows computing power in the field, the RM-ST9-M delivers robust performance in a compact 8`` form factor. Powered by an Intel® Core™ i5-8200Y processor with UHD Graphics 615, it runs Windows 10 Pro or optional Windows 11 Pro smoothly for multitasking, data processing, and industrial applications. The bright Full HD IPS touch display with stylus support ensures clear visibility indoors and outdoors. Built to IP65 and MIL-STD-810G standards with 1.2-meter drop resistance, it’s ready for harsh environments, from extreme cold to high heat. With 4G LTE, GPS, dual-band Wi-Fi, NFC, and optional barcode scanning or UHF RFID, it’s the ideal tool for logistics, manufacturing, field services, and public safety.
8″ IPS Touchscreen with Stylus Support
Intel® Core™ i5-8200Y, 16GB RAM + 512GB ROM
IP65, MIL-STD-810G, -20°C to 55°C Operation
4G LTE, GPS, Dual-Band Wi-Fi, NFC, Optional Barcode & UHF RFID
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
One-stop Solutation
RUGGEDMASTER offer End-to-End Solutions from Design to Production
Rich Experience
RUGGEDMASTER has more than 10 years of OEM and ODM manufacturing experience in customizing rugged tablets,rugged phones,rugged handhelds,rugged laptop,etc.
Strong R & D Capabilities
More than 10 years experienced R&D engineers provide mature custom solutions of outdoors products
Strict Quality Control
Including raw material test, online production test, PCS test, finished product test.
Competitive prices
RUGGEDMASTER offer competitive prices as we are able to produce our products efficiently and cost-effectively in our own factory.
view more >
Just Email Us :
Email : sales@ruggedmaster.com
Address: 4th Floor, A3 Building Yinlong Industry Base, Longdong Community, Longgang District,Shenzhen
Between 9:00 am-6: 00 pm from Monday to Friday Beijing time
We will reply you witin 12hours.
Can I buy from you online directly?
No, direct online purchase is not acceptable now as we want to give our partner more profits at their side
Can you send me a price list or no middleman quotation?
Yes,we can send it to your directly,please just email us and get our latest quotation directly.
Can you send me a catalog or brochure?
Yes,You can email us and we will send you our latest products catalogs to you
Do Your Company Accept Customizaion?
Yes,We accept OEM service. We have our own factory and excellent RD team, OEM is a part of our business, in addition, we offer ODM service, we would love to make good ideas happen.
What's the normaly lead time for OEM order?
Takes about 30 days for 500pcs OEM order after sample confirmed.
Do you sell refurbished or reconditioned devices?
Hello, no, we do not supply any refurbished or reconditioned devices or produucts, if you are interested in our night vision products, you can send your dealer or distributor request information
Do you sell your products to the military?
no, we do not supply the military because our products do not meet military standards and are intended only for civil purposes such as hunting, security, monitoring and other civil fields.
For the civil interest, the customers can send the dealer or distributor request information
TECHNICAL PARAMETERS
| TECHNICAL PARAMETERS | |
|---|---|
| MODEL: | RM-ST9-M |
| OS | Windows 10 Pro Windows 10 Home / Iot Optional Windows 11 Pro Optional Ubuntukylin-20.04 Optional |
| CPU | Intel I5-8200Y (Dual Core, Quad Threads; 1.30GHz) Trubo can reach 3.90GHz |
| GPU | Intel® UHD Graphics 615 |
| RAM/ROM | 8GB/256GB 16GB/512GB Optional |
| LCD | 8 inch; 1200*1920; 400nits (MAX) IPS Screen; 1000nits(800*1280) Optional |
| Touch Screen | 10 Point Touch Support stylus |
| Camera | Front: 5MP; Rear: 13MP |
| Power and Battery | 5000mAh; 7.7V Charging time: about 3H Usage time: 6H30min (50% volume, 60% brightness, playing local 1080P video) |
| WWAN | FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28 TDD-LTE: B40 WCDMA: B1/B2/B4/B5/B8 GSM/EDGE: B2/B3/B5/B8 Module: SLM770A (EC25-AUX in North America) |
| GPS | BDS, GPS, GLONASS |
| WIFI | 802.11a/b/g/n/ac Wireless Internet Wireless AP ( Mobile AP )2.4G, 5G Intel Stone Peak 7265 (WiFi/Bluetooth 2-in-1) |
| BLUETOOTH | 4.2 Version |
| NFC | 13.56 MHz, Distance: 1-3cm ISO14443 TYPE A |
| MIC | Sensitivity: -32±2d Output Impedance: 2.2kΩx1 |
| SPEAKER | 8Ω 1.5 Watt |
| Sensor | 1. Light sensor 2. Acceleration sensor 3. Gravity sensor |
| Size | 234*144*16.8mm |
| Weight | 700±50g |
| Language | Multi language |
| Interface In/Out Port | 1. HDMI*1 2. SIM Card Slot*1 3. RS232*1(mini-USB) 4. Earphone*1 5. DC*1; 4.0*15mm 6. USB 3.0 *3 Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232 |
| Button | V+ -, Power, "F" for Barcode Scan Customized Button: P, H (Default No Functionality) |
| 1D/2D Barcode | Optional NLS-N1 Optional M1 Optional SE2707 Optional |
| UHF RFID | M-500 Optional American standard M-500 (902Mhz – 928Mhz) External: card reading distance of 3-5M European standard M-500 (865MHz – 868MHz) External: Card reading distance of 3-5M M-301 Optional American standard M-301 (902Mhz – 928Mhz) External: card reading distance of 5-8M European standard M-301 (865MHz – 868MHz) External: Card reading distance of 5-8M |
| Fingerprint | Optional ZAZ-0A0 Optional 1020A Optional |
| High Precision GPS | Optional UM960 |
| Accessories | 1. Blue Box 2. DC Charger (12V 4A) 3. Wrist strap 4. Screw Optional: 1. Docking Station 2. Car Holder 3. Car Docking |
| Multi-Media (Hardware Decoding) | 1. Photo Viewer: BMP, JPG, GIF, PNG 2. Video Format: MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format: MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license) |
| Proof Degree | Anti-dust & Waterproof IP65 Dropping Resistance 1.2 meters |
| Certification | 1. MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C |
| Temperature | Storate Temperature: -25 °C to 80 °C Operation Temperature: -20 °C to 55 °C |
| Factory Warranty | 2 Years |
