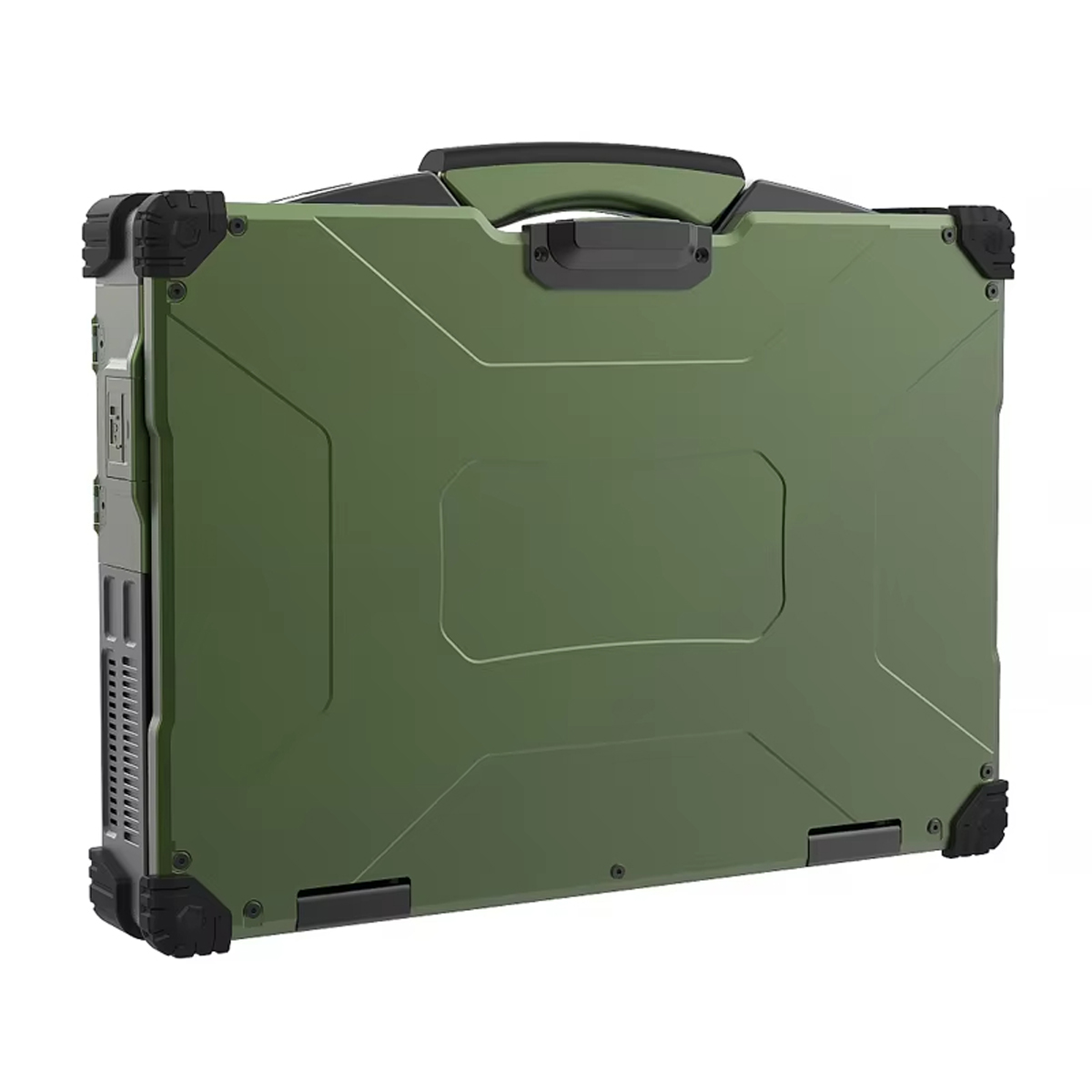

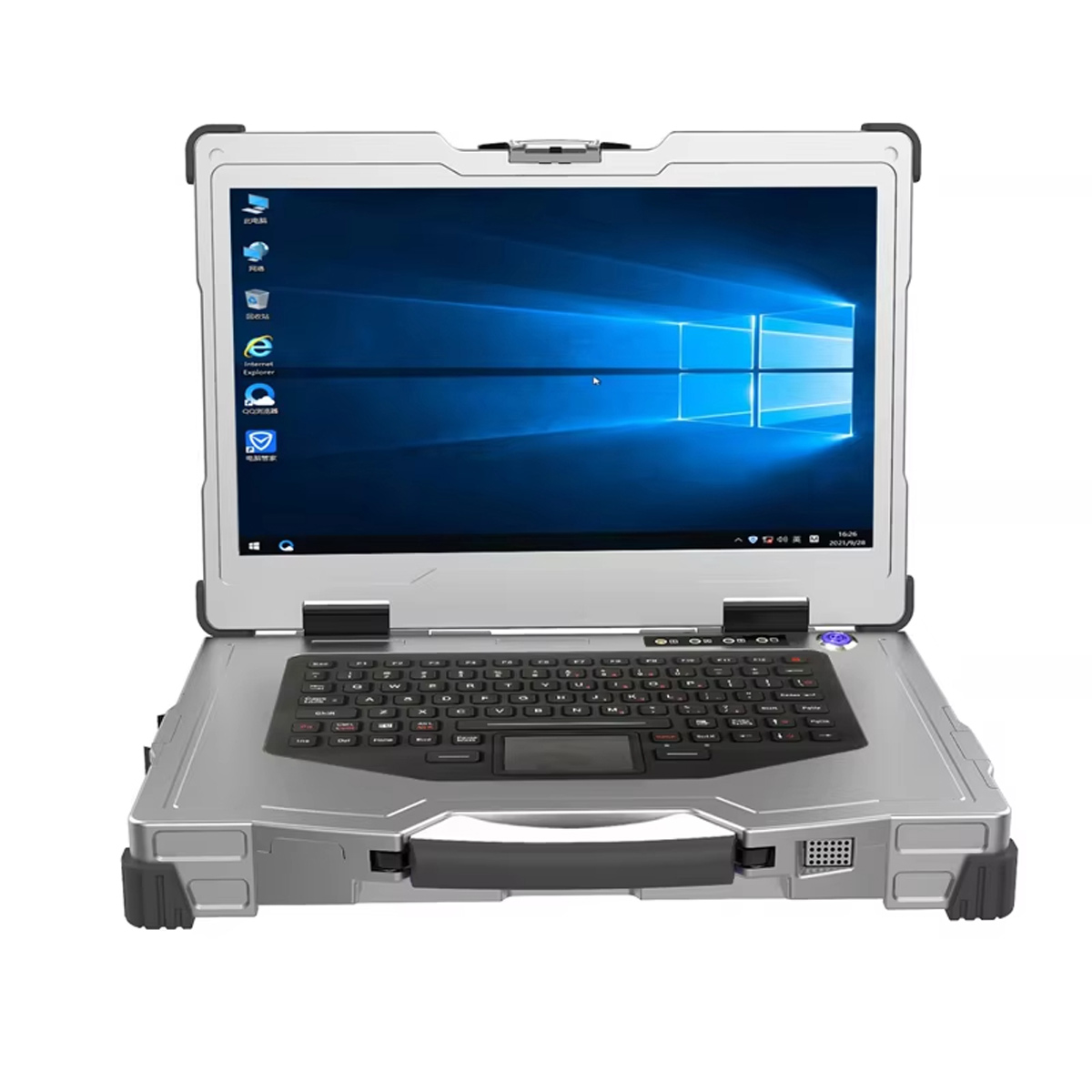

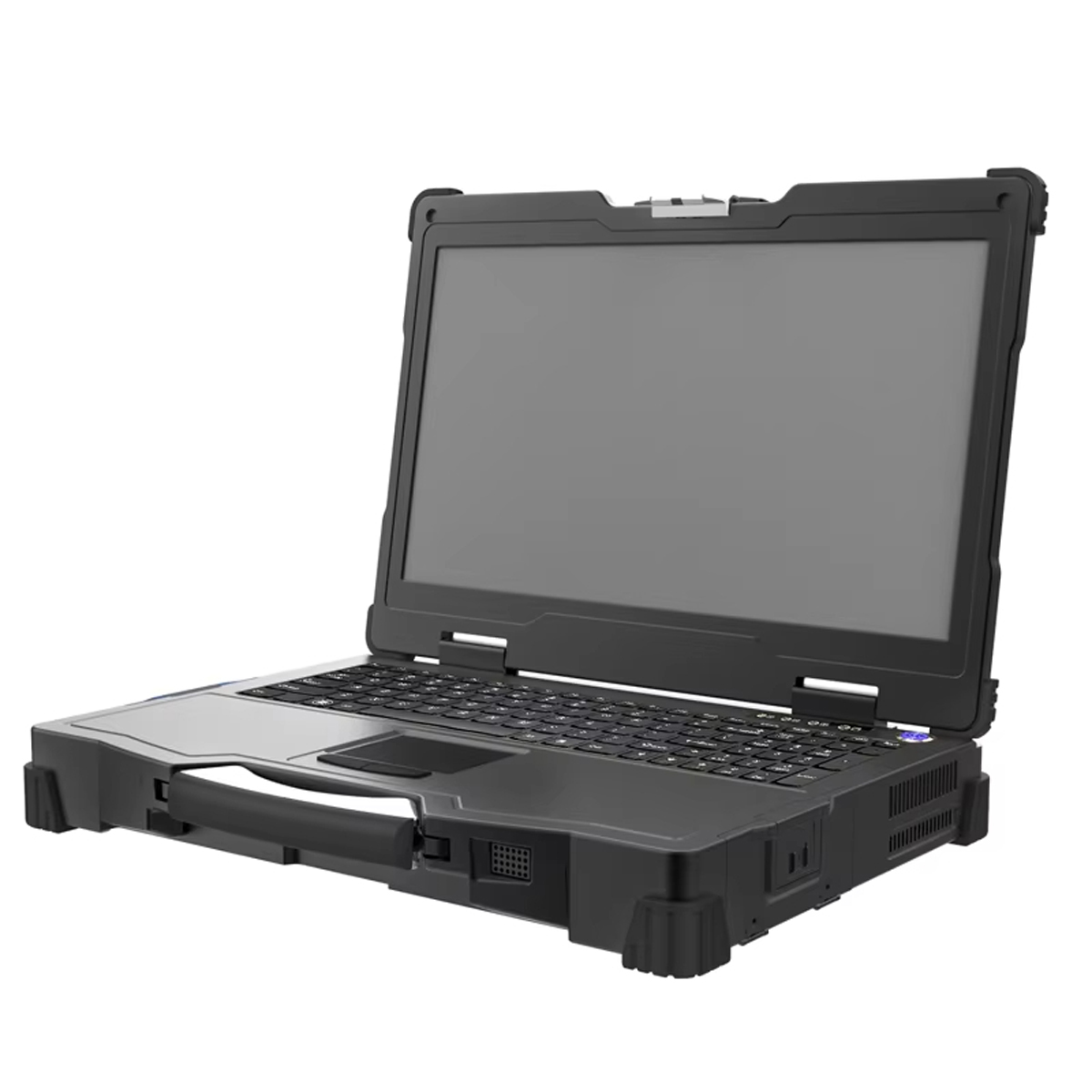

RM-DWTJ15A

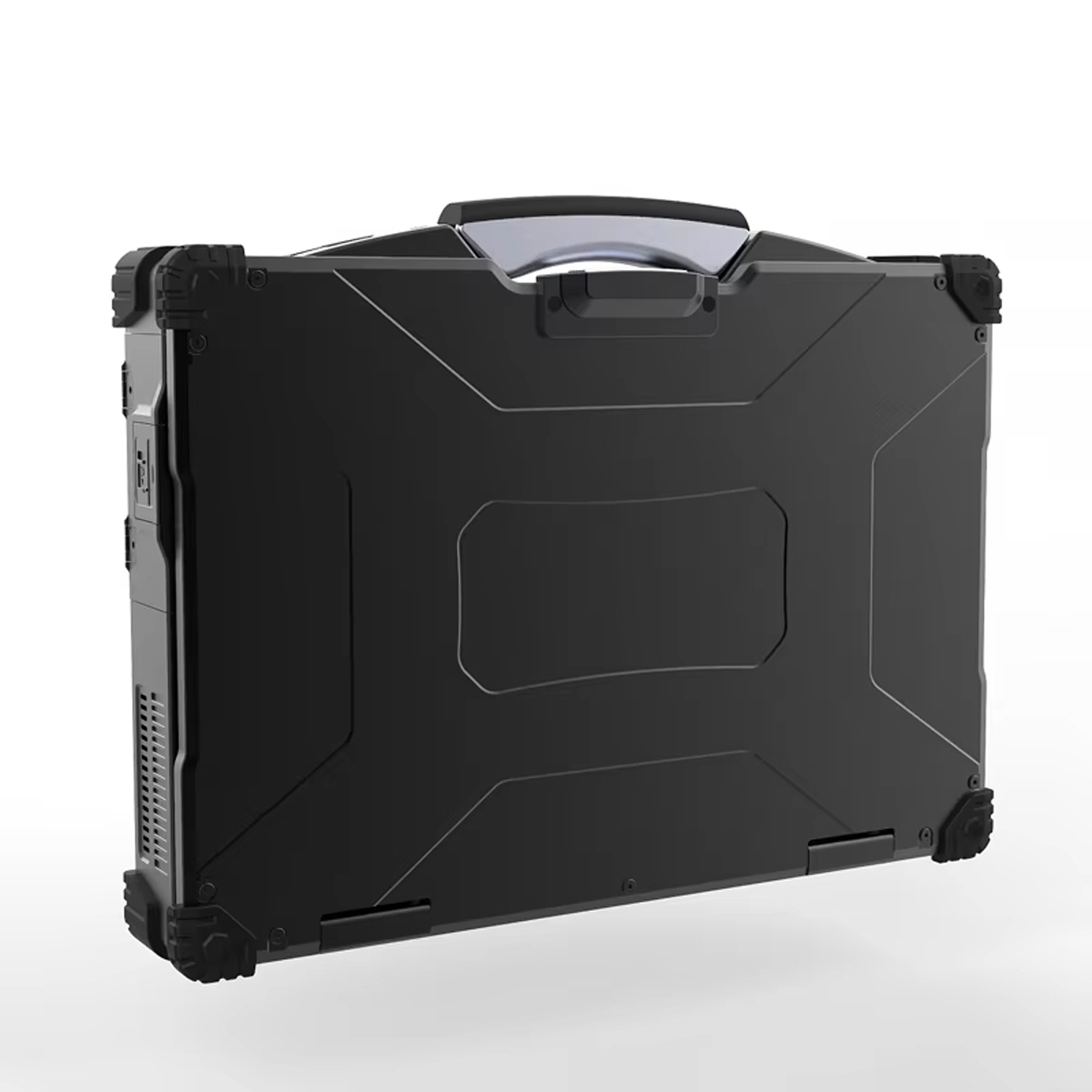

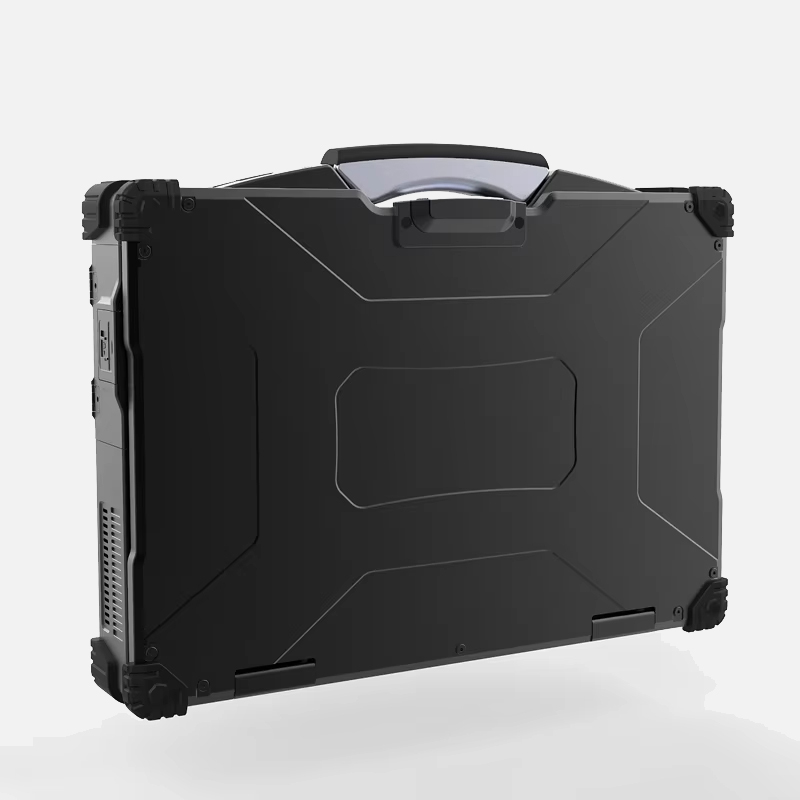

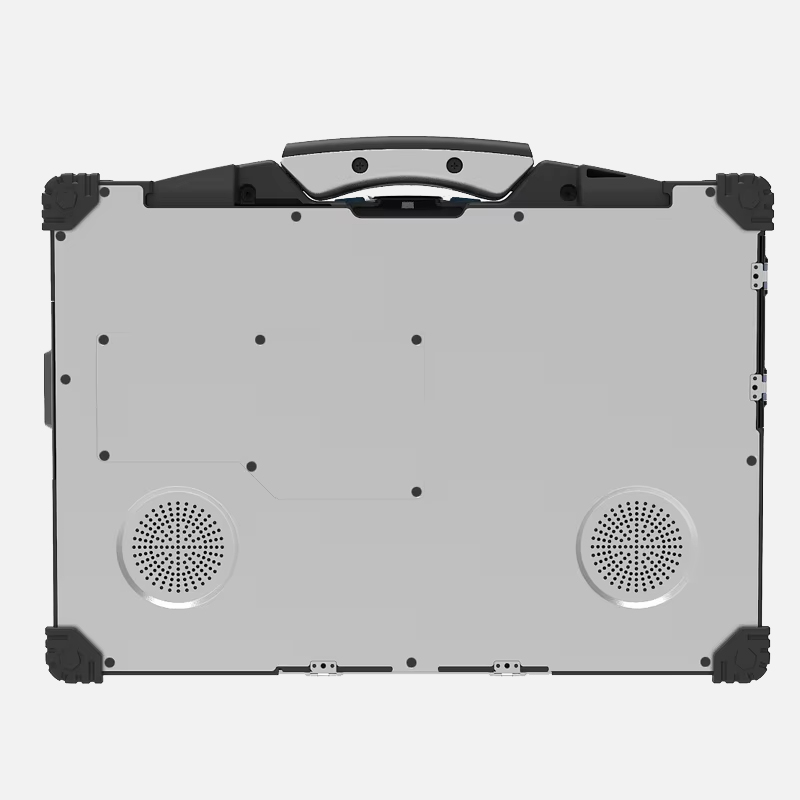

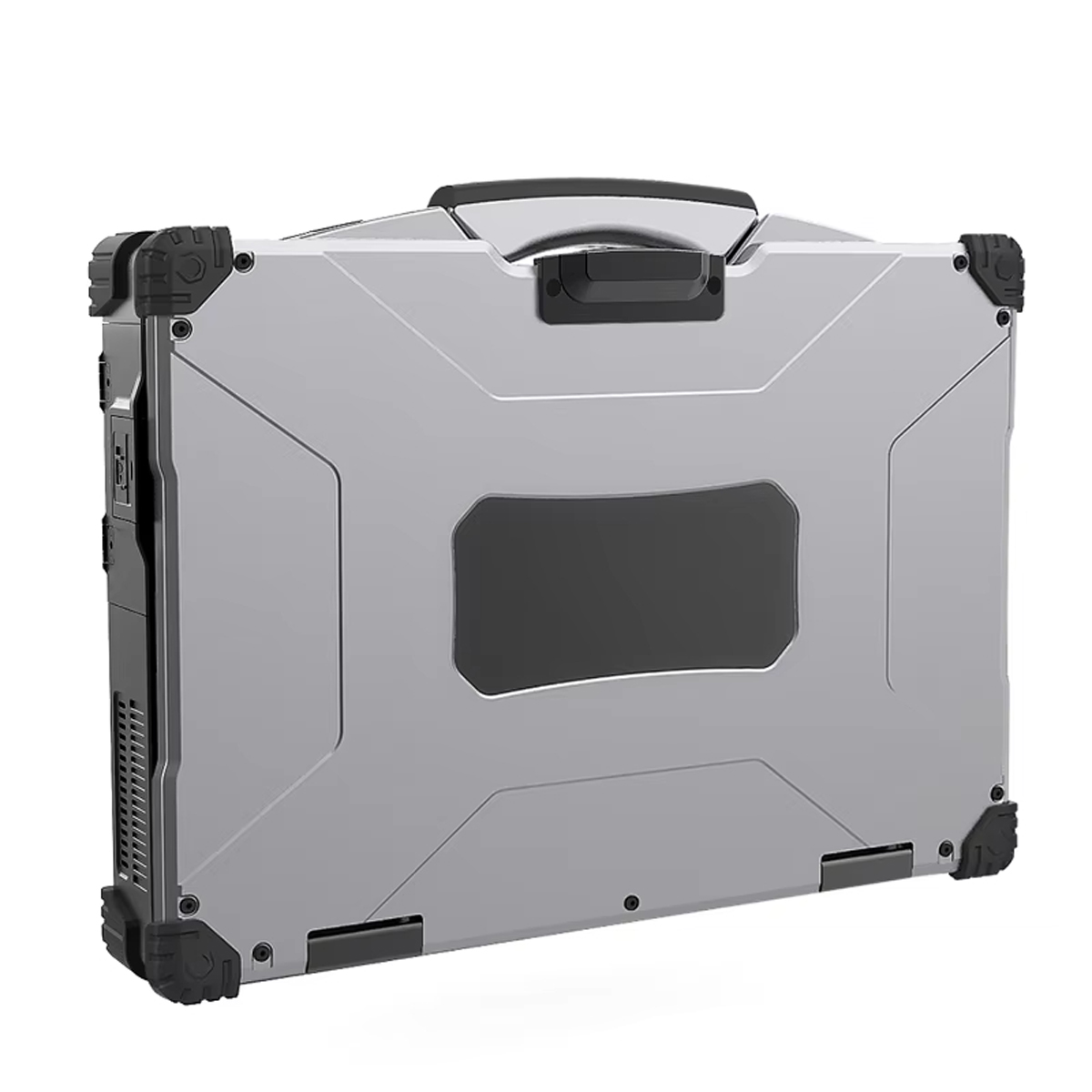

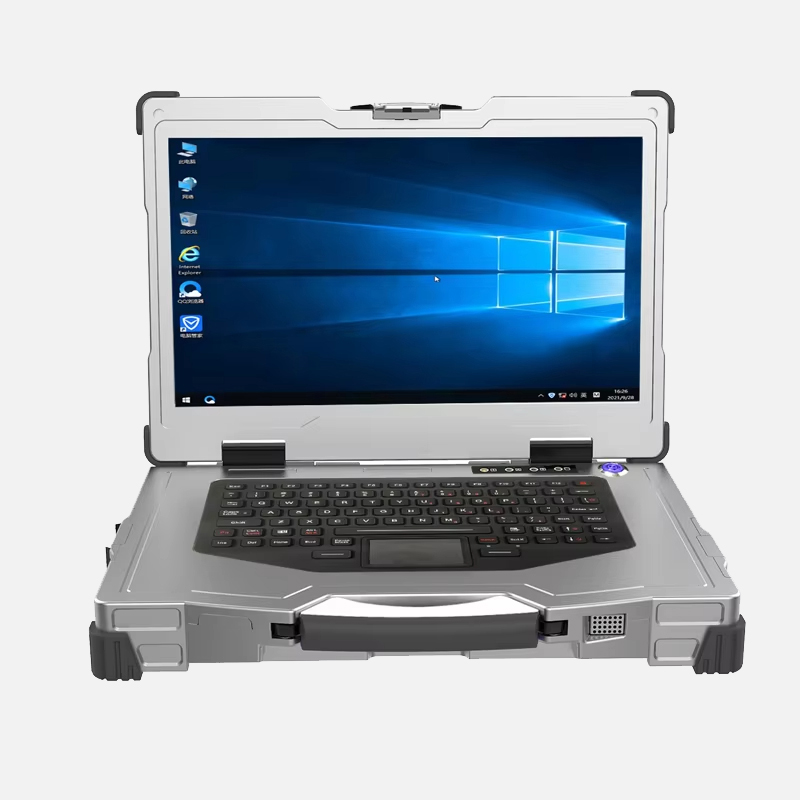

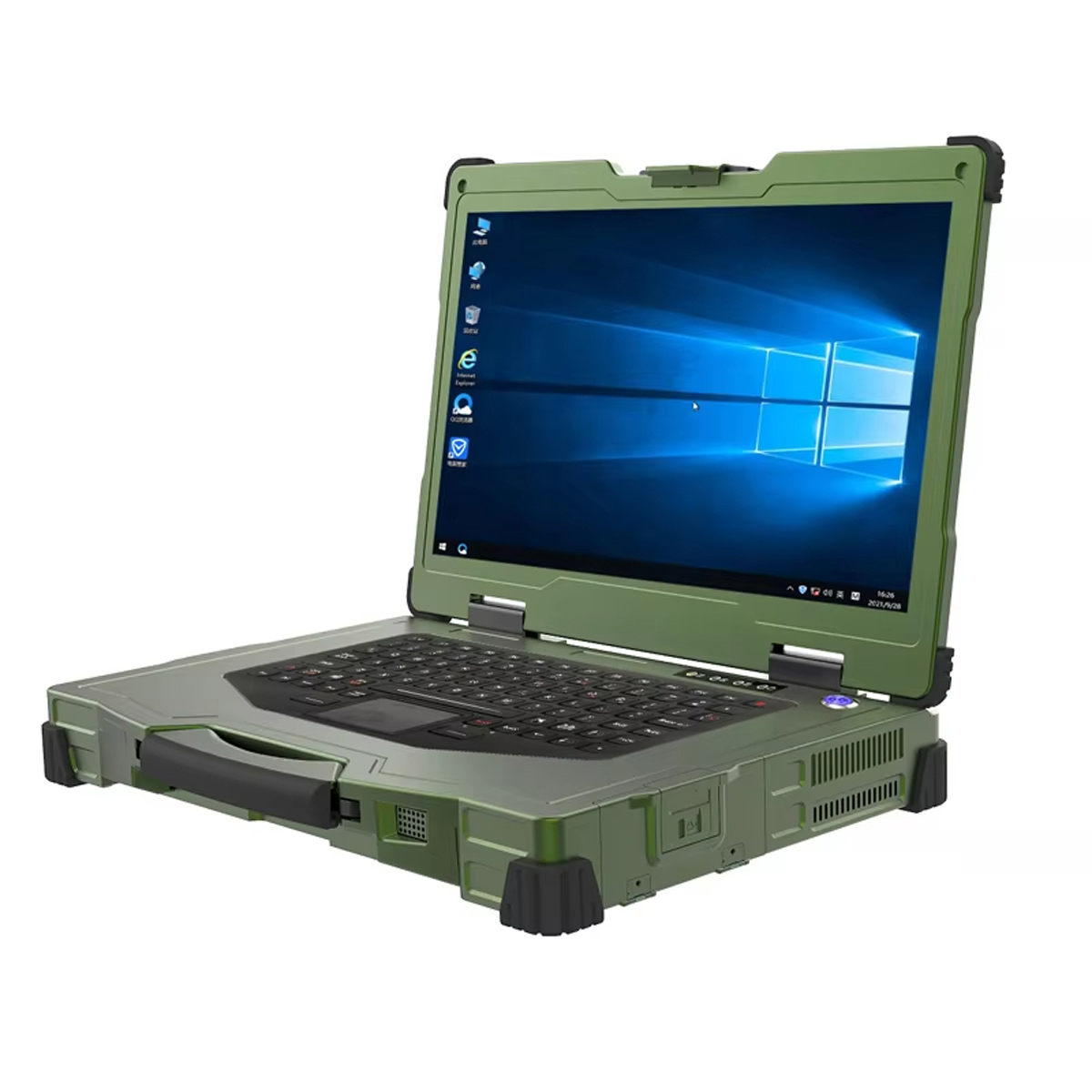

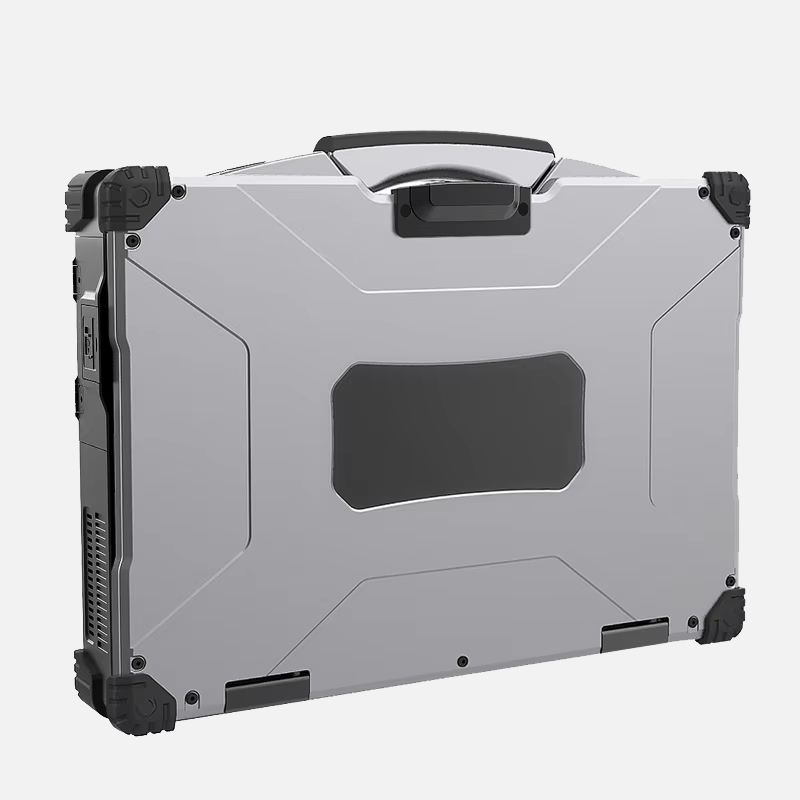

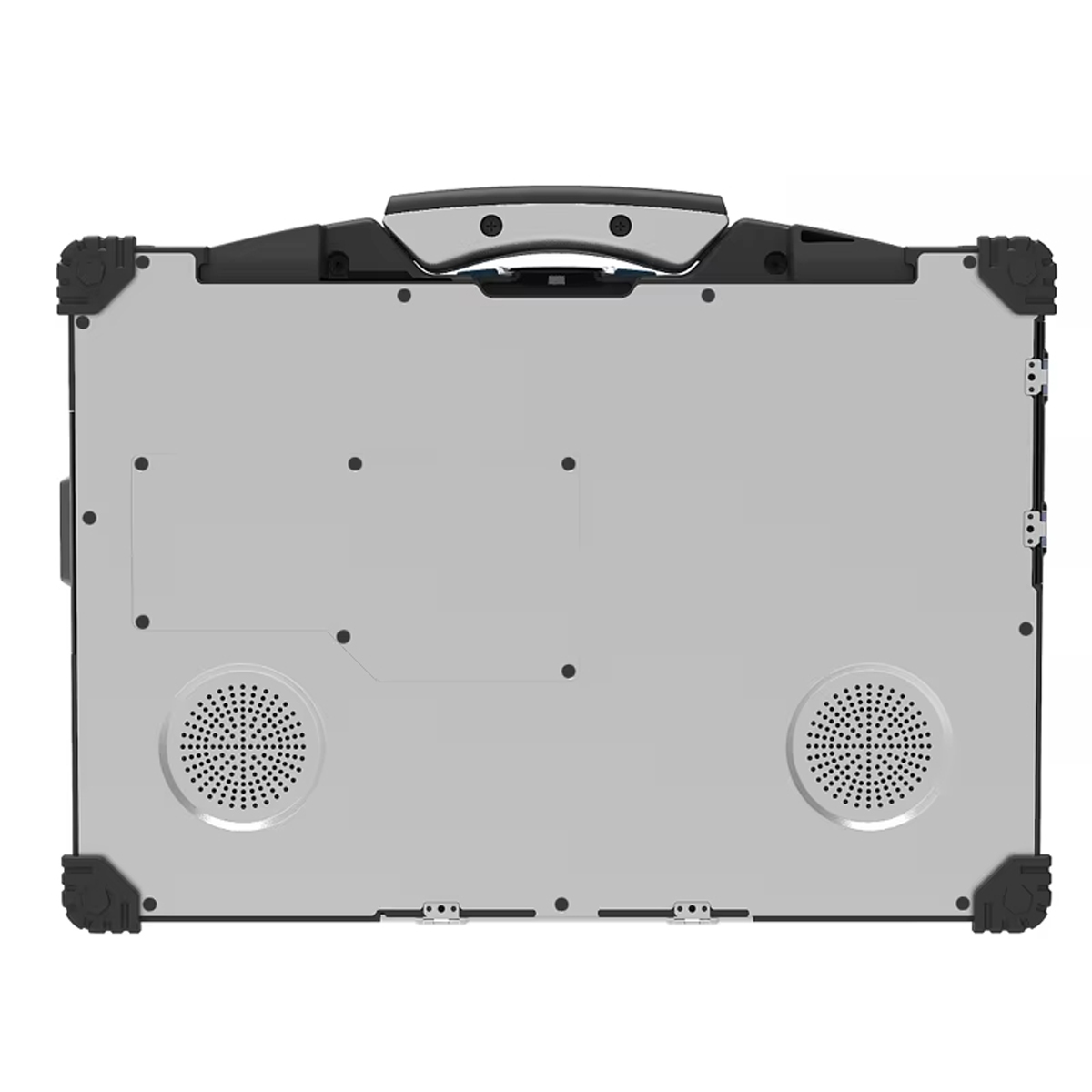

15.6″ FHD IP65 CNC Rugged Laptop
The RM-DWTJ15A Rugged Laptop is built for demanding industrial and field environments where durability, performance, and uptime matter most. Featuring a precision-machined CNC metal chassis and full IP65 protection, it is designed to withstand dust, water, and harsh working conditions. The 15.6-inch Full HD display with 500-nit brightness delivers clear visibility for outdoor and on-site operations, with optional touch support for flexible interaction. Powered by Intel® Core™ i7 or i9 high-performance processors and NVIDIA® GTX 1650 discrete graphics, the RM-DWTJ15A handles data analysis, diagnostics, and graphics-intensive tasks smoothly. Dual removable 8000mAh batteries enable extended operation and quick battery swapping in the field, while the waterproof backlit keyboard, rich I/O interfaces, and Windows 10 Pro / Windows 11 Pro support make it a reliable mobile workstation for industrial control, inspection, and mission-critical applications.
15.6″ FHD 500-Nit Display
Intel® Core™ i7 / i9 CPU+ GTX 1650
Dual Removable 8000mAh Batteries
IP65 CNC Rugged Design
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
One-stop Solutation
RUGGEDMASTER offer End-to-End Solutions from Design to Production
Rich Experience
RUGGEDMASTER has more than 10 years of OEM and ODM manufacturing experience in customizing rugged tablets,rugged phones,rugged handhelds,rugged laptop,etc.
Strong R & D Capabilities
More than 10 years experienced R&D engineers provide mature custom solutions of outdoors products
Strict Quality Control
Including raw material test, online production test, PCS test, finished product test.
Competitive prices
RUGGEDMASTER offer competitive prices as we are able to produce our products efficiently and cost-effectively in our own factory.
view more >
Just Email Us :
Email : sales@ruggedmaster.com
Address: 4th Floor, A3 Building Yinlong Industry Base, Longdong Community, Longgang District,Shenzhen
Between 9:00 am-6: 00 pm from Monday to Friday Beijing time
We will reply you witin 12hours.
Can I buy from you online directly?
No, direct online purchase is not acceptable now as we want to give our partner more profits at their side
Can you send me a price list or no middleman quotation?
Yes,we can send it to your directly,please just email us and get our latest quotation directly.
Can you send me a catalog or brochure?
Yes,You can email us and we will send you our latest products catalogs to you
Do Your Company Accept Customizaion?
Yes,We accept OEM service. We have our own factory and excellent RD team, OEM is a part of our business, in addition, we offer ODM service, we would love to make good ideas happen.
What's the normaly lead time for OEM order?
Takes about 30 days for 500pcs OEM order after sample confirmed.
Do you sell refurbished or reconditioned devices?
Hello, no, we do not supply any refurbished or reconditioned devices or produucts, if you are interested in our night vision products, you can send your dealer or distributor request information
Do you sell your products to the military?
no, we do not supply the military because our products do not meet military standards and are intended only for civil purposes such as hunting, security, monitoring and other civil fields.
For the civil interest, the customers can send the dealer or distributor request information
TECHNICAL PARAMETERS
| TECHNICAL PARAMETERS | |
|---|---|
| MODEL: | RM-DWTJ15A |
| Certification | IP65 |
| Rugged Standard | MIL-STD-810G |
| Material | Plastic Material |
| Dimensions | 407 × 305.8 × 45.5 mm |
| Weight | 3.3 kg |
| Color | Black |
| Operating System | Windows 10 |
| OS Option | Windows 11 |
| CPU Model | Intel® Core™ i5-1135G7 |
| CPU Cores / Threads | 4C / 8T |
| CPU Base Frequency | 2.4 GHz |
| CPU Max Frequency | 4.2 GHz |
| CPU Optional Model | Intel® Core™ i7-1165G7 |
| CPU Optional Base Frequency | 2.8 GHz |
| CPU Optional Max Frequency | 4.7 GHz |
| GPU | Intel® Iris® Xe Graphics |
| Memory Type | DDR4 Onboard |
| Memory Capacity | 8GB |
| Memory Optional | 16GB |
| Memory Optional | 32GB |
| Storage Type | SSD |
| SSD Capacity | 256GB |
| SSD Optional | 512GB |
| SSD Optional | 1TB |
| HDD | Optional |
| TPM | TPM 2.0 Built-in |
| TPM Chip | SLB9670VQ2.0 |
| Hall Switch | Support |
| Screen Size | 15.6 inch |
| Screen Ratio | 16:9 |
| Screen Resolution | 1920 × 1080 |
| Screen Brightness | 750 nits |
| Touch Panel | Optional |
| Touch Type | 10-Point Capacitive |
| Touch Structure | G+G |
| Touch Glass | Corning Gorilla Glass |
| Touch Hardness | ＞7H |
| Camera | Front 2.0MP |
| Power Button | ×1 |
| Reset Button | ×1 |
| Reset Type | Pinhole |
| P-Key | ×1 |
| P-Key Function | Screen On / Off |
| Speaker | 8Ω / 1W ×2 |
| Microphone | Digital MIC ×2 |
| Built-in Battery Voltage | 7.4V |
| Built-in Battery Capacity | 1750mAh |
| Built-in Battery Runtime | Up to 0.5 Hour |
| Hot-Swap Battery Type | Removable |
| Hot-Swap Battery Voltage | 7.4V |
| Hot-Swap Battery Capacity | 6300mAh |
| Hot-Swap Battery Runtime | Up to 6.5 Hours |
| Wi-Fi | Wi-Fi 6 |
| Wi-Fi Standard | 802.11 a/b/g/n/ac/ax |
| Bluetooth Version | BT 5.1 |
| Bluetooth Feature | BLE |
| Bluetooth Class | Class 1 |
| 4G LTE | Optional |
| 4G Form Factor | M.2 |
| 5G | Optional |
| 5G Form Factor | M.2 |
| GNSS | GPS |
| GNSS | GLONASS |
| GNSS | BeiDou |
| GNSS | Galileo |
| GPS Module | U-blox NEO-7 |
| GPS Module Optional | U-blox NEO-M8N |
| NFC | Optional |
| NFC Chip | NXP |
| Fingerprint | Built-in SPI Fingerprint |
| Fingerprint Feature | Boot Login |
| USB 2.0 | ×1 |
| USB 3.0 | ×3 |
| HDMI | ×1 |
| Audio Jack | 3.5mm ×1 |
| SD Card Slot | ×1 |
| SIM Slot | ×1 |
| DC-IN | 19V 3.42A |
| RS232 | DB9 ×1 |
| RJ45 | ×2 |
| Ethernet Speed | 10/100/1000 Mbps |
| Pogo Pin | ×1 |
| Expansion Dock | Optional |
| Expansion Type | PCIe x4 |
| Expansion Option | HDD |
| Power Indicator | ×1 |
| Battery Indicator | ×1 |
| HDD Indicator | ×1 |
| 3G / 4G Indicator | ×1 |
| Adapter Input | AC 100–240V |
| Adapter Output | 19V 3.42A |
| Adapter Power | 65W |
| Drop Resistance | 1.22 m |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Humidity | 95% Non-Condensing |
| Certification | CE |
| Certification | RoHS |
| Certification | CCC |
| Certification Optional | FCC |
| Factory Warranty | 2 Years |
