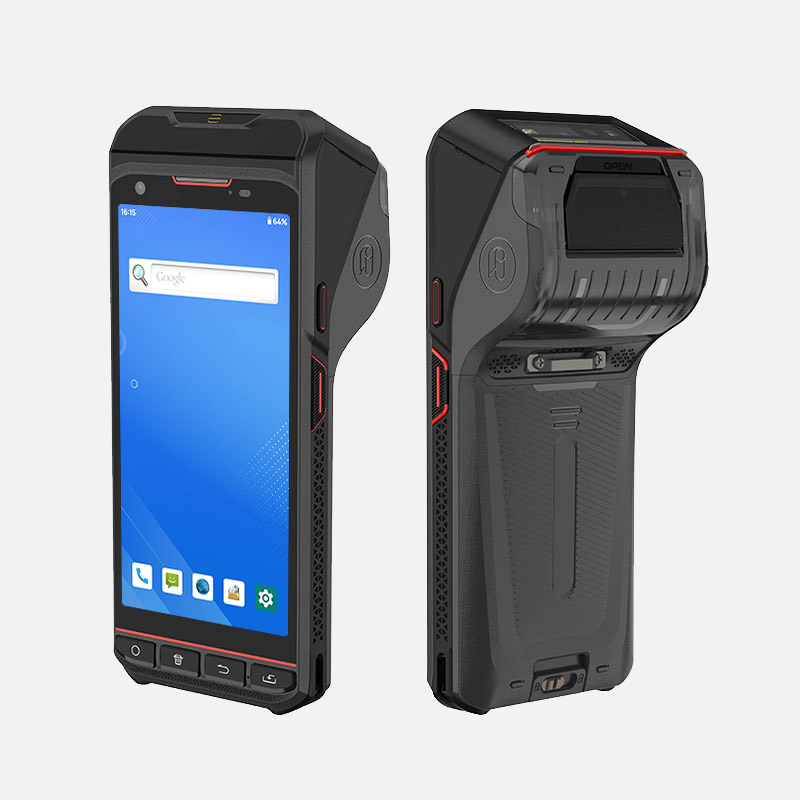

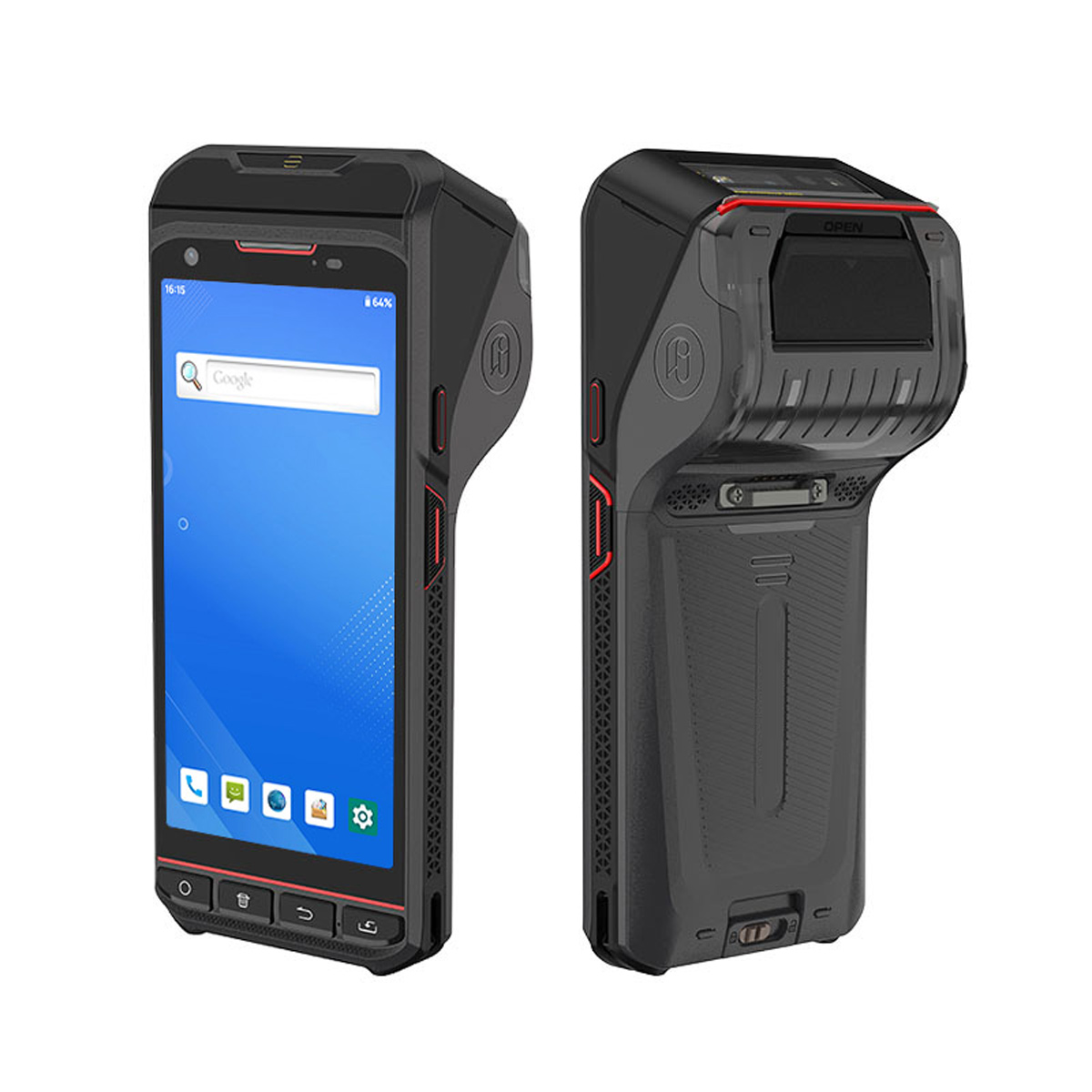

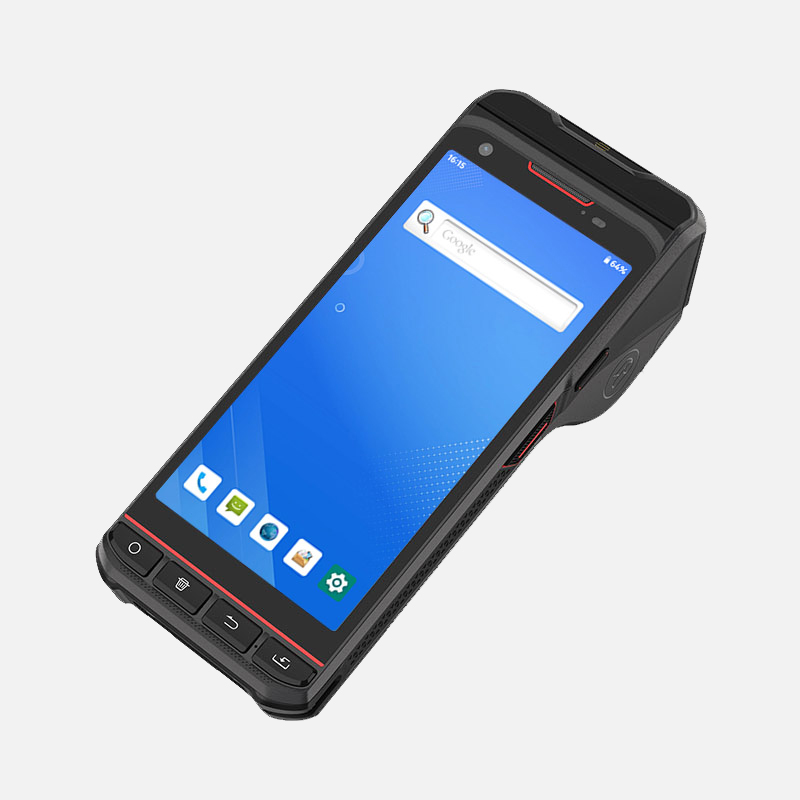

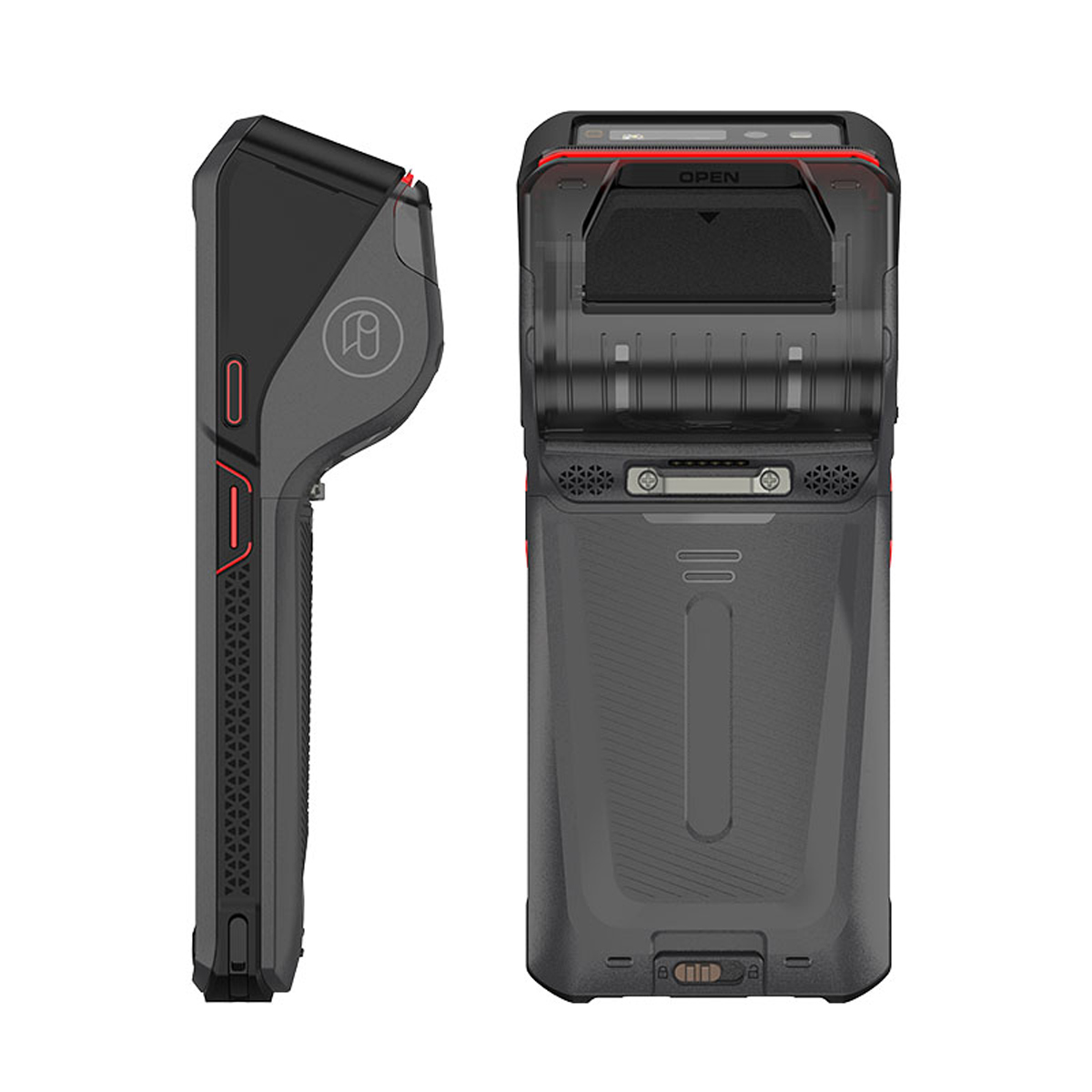

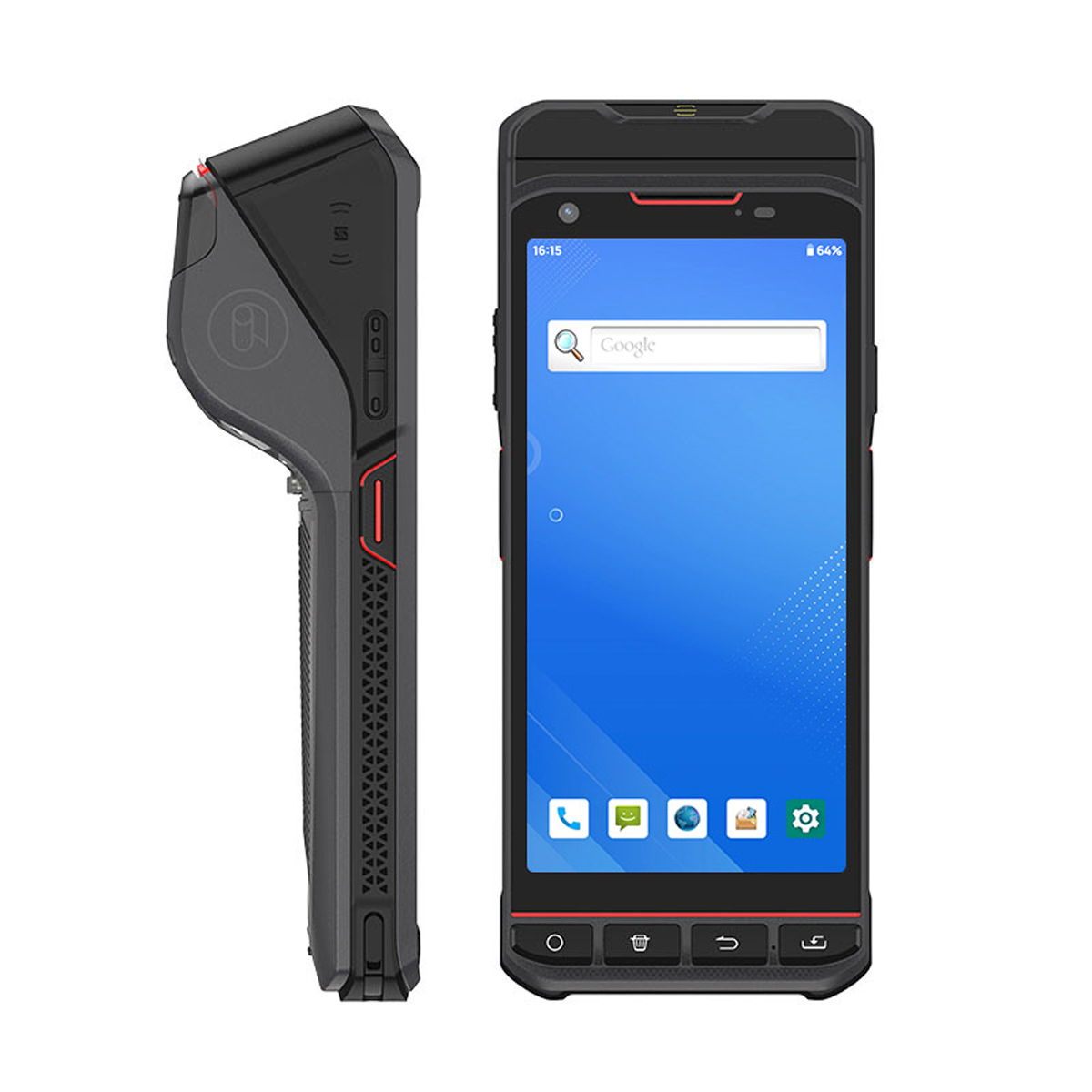

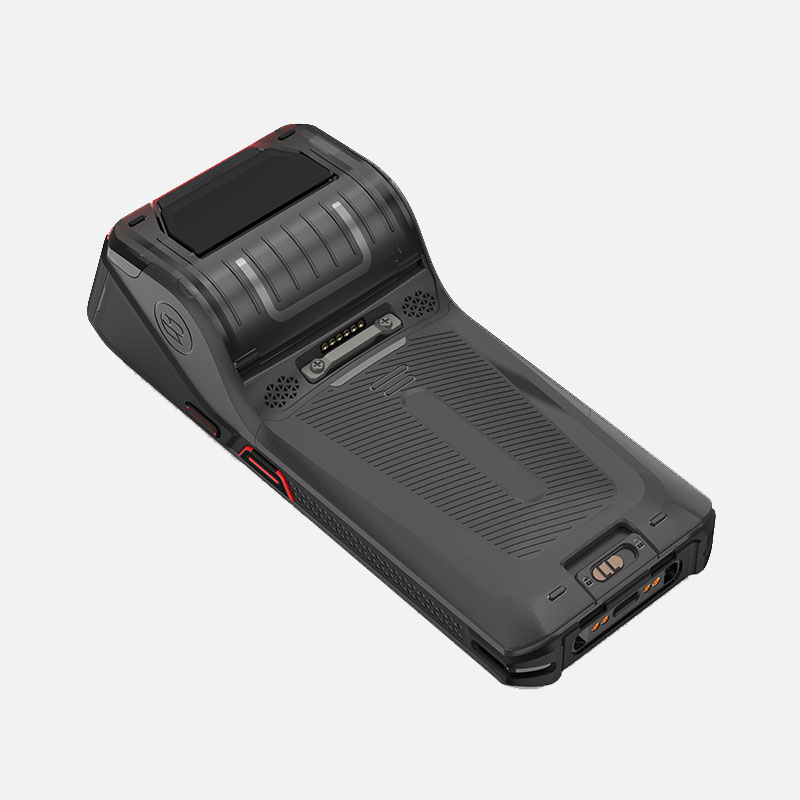

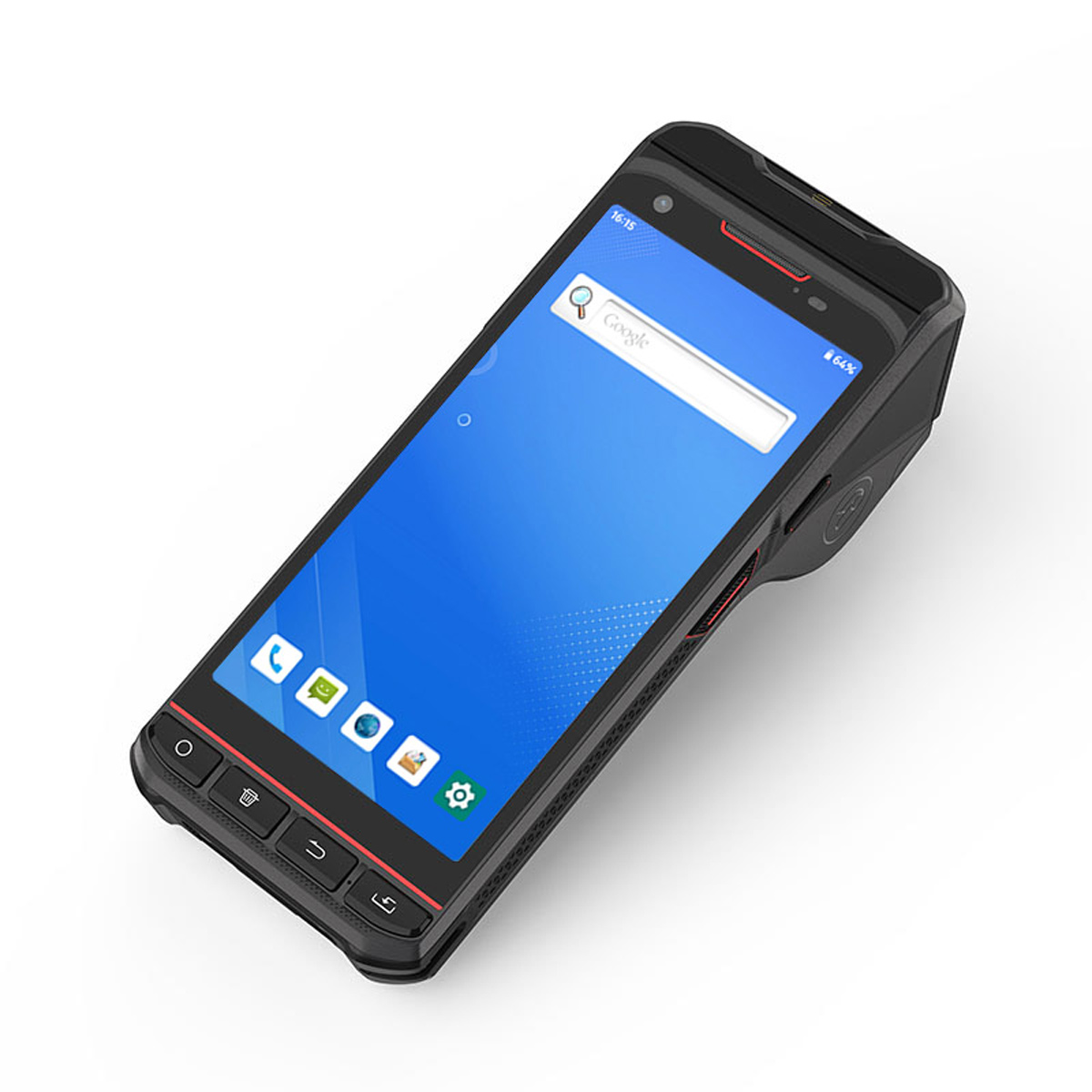

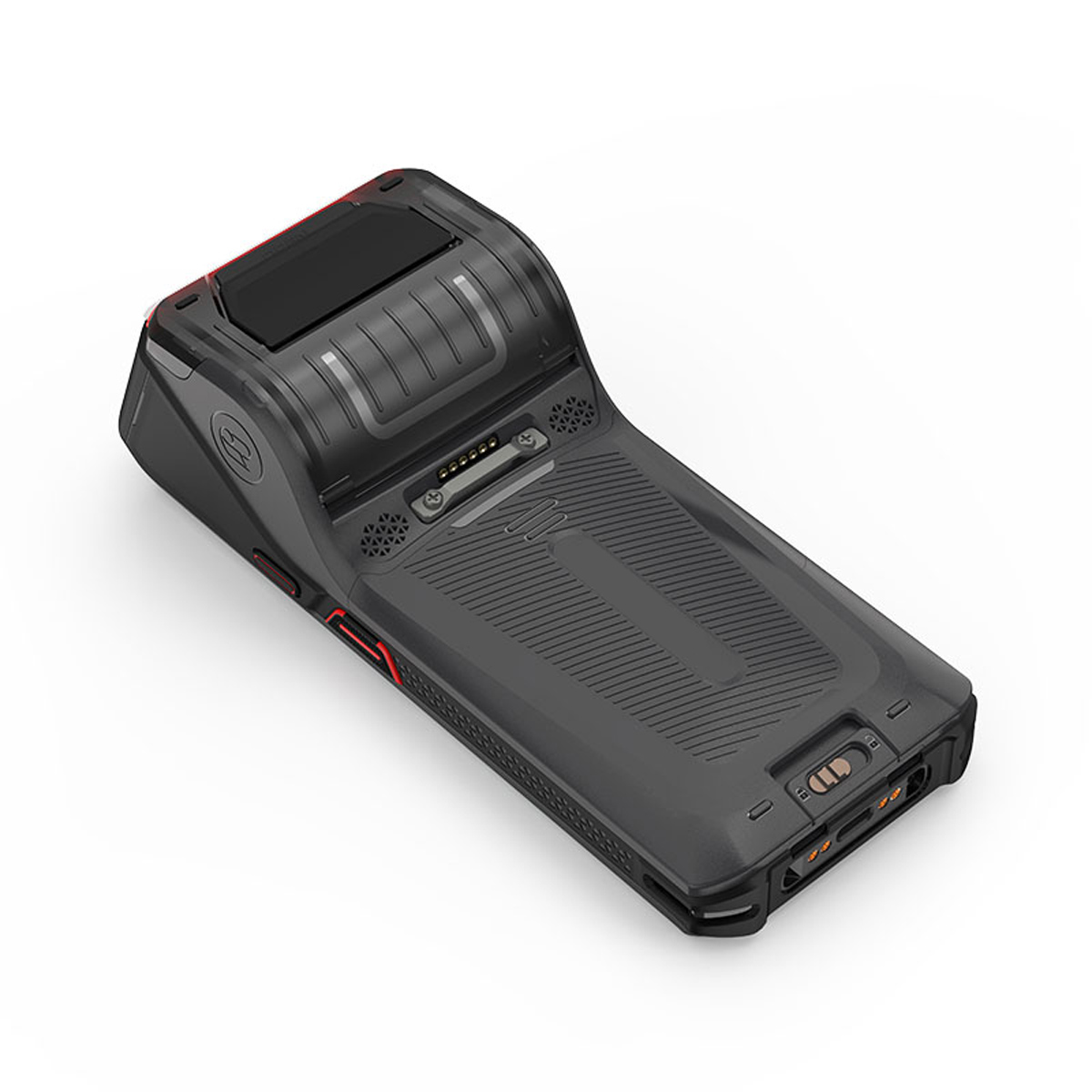

RM-V5P

5.5″ Android 10 Rugged Barcode Scanner with Thermal Printer

RM-V5P rugged barcode scanner is designed to streamline mobile data collection and on-site label printing for logistics, retail, warehousing, and delivery operations. Featuring a 5.5-inch IPS capacitive touch screen with 1440×720 resolution and high brightness up to 550cd/㎡, it ensures clear visibility for daily operational tasks both indoors and outdoors. Powered by the MT6762 octa-core processor and Android 10 operating system, the device delivers stable performance for scanning, printing, and enterprise applications running simultaneously.

Equipped with a built-in 58mm thermal sticker printer supporting fast 70mm/s printing speed, RM-V5P enables instant label and receipt printing directly in the field, improving workflow efficiency without additional equipment. The removable high-capacity battery supports extended working hours, while optional NFC, PSAM, and professional 2D barcode scanning modules provide flexible configuration for different industry requirements. With IP54 protection and 1.2-meter drop resistance, RM-V5P is built to handle demanding working environments with reliable performance.

5.5″ IPS Capacitive Touch Display

MT6762 Octa-Core Processor

Built-in 58mm Thermal Label Printer

NFC & Professional 2D Barcode Scanning

SEND US A MESSAGE

Just Email Us :

Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109

CONTACT INFORMATION

Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109

Reply Within 24hours for almost message!

One-stop Solutation

RUGGEDMASTER offer End-to-End Solutions from Design to Production

Rich Experience

RUGGEDMASTER has more than 10 years of OEM and ODM manufacturing experience in customizing rugged tablets,rugged phones,rugged handhelds,rugged laptop,etc.

Strong R & D Capabilities

More than 10 years experienced R&D engineers provide mature custom solutions of outdoors products

Strict Quality Control

Including raw material test, online production test, PCS test, finished product test.

Competitive prices

RUGGEDMASTER offer competitive prices as we are able to produce our products efficiently and cost-effectively in our own factory.

view more >

Just Email Us :

Email : sales@ruggedmaster.com

Address: 4th Floor, A3 Building Yinlong Industry Base, Longdong Community, Longgang District,Shenzhen

Between 9:00 am-6: 00 pm from Monday to Friday Beijing time

We will reply you witin 12hours.

Can I buy from you online directly?

No, direct online purchase is not acceptable now as we want to give our partner more profits at their side

Can you send me a price list or no middleman quotation?

Yes,we can send it to your directly,please just email us and get our latest quotation directly.

Can you send me a catalog or brochure?

Yes,You can email us and we will send you our latest products catalogs to you

Do Your Company Accept Customizaion?

Yes,We accept OEM service. We have our own factory and excellent RD team, OEM is a part of our business, in addition, we offer ODM service, we would love to make good ideas happen.

What's the normaly lead time for OEM order?

Takes about 30 days for 500pcs OEM order after sample confirmed.

Do you sell refurbished or reconditioned devices?

Hello, no, we do not supply any refurbished or reconditioned devices or produucts, if you are interested in our night vision products, you can send your dealer or distributor request information

Do you sell your products to the military?

no, we do not supply the military because our products do not meet military standards and are intended only for civil purposes such as hunting, security, monitoring and other civil fields.

For the civil interest, the customers can send the dealer or distributor request information

TECHNICAL PARAMETERS

TECHNICAL PARAMETERS
MODEL:RM-V5P
Operating SystemAndroid 10.0
Dimension179 × 74.5 × 22.5mm (Printer 49.5mm)
Weight330g (Including Battery)
MaterialPlastic
ColorBlack
LanguagesMulti-language
Display5.5 Inch IPS Capacitive Multi-touch Screen
Resolution1440 × 720 Pixels
Brightness550 cd/㎡
ProcessorMediatek MT6762 Octa-Core
CPU FrequencyUp To 2.0GHz
GPUIMG GE8320, 650MHz
RAM2GB / 4GB
ROM16GB / 64GB
TF Card ExpansionSupport Up To 256GB
Front Camera2MP
Rear Camera13MP AF With Flashlight
Speaker1W Speaker
SensorsGravity Sensor
Light SensorSupported
Proximity SensorSupported
Battery TypeRemovable Li-ion Battery
Battery Capacity7.6V / 2750mAh (Equal To 3.8V 5500mAh)
KeysHome Key / Delete Key / Back Key / Confirm Key
ButtonsPower Button
Volume ButtonVolume +/-
Scan ButtonScan Button ×2
Thermal PrinterBuilt-in Thermal Sticker / Label Printer
Printing Speed70mm/s
Printing Resolution384 Dots
Paper Width58mm
Paper Diameter35mm
SIM SlotNano SIM ×1
TF Card Slot×1
USB PortUSB Type-C (Support OTG)
PSAM SlotOptional
Network2G / 3G / 4G
2G BandsGSM 850 / 900 / 1800 / 1900MHz
3G BandsWCDMA 850 / 900 / 1900 / 2100MHz
FDD-LTE BandsB1 / B3 / B4 / B7 / B8 / B12 / B20
TDD-LTE BandsB38 / B39 / B40 / B41
WiFiIEEE 802.11 ac/a/b/g/n
WiFi Frequency2.4GHz & 5GHz Dual Band
BluetoothBT 5.0 (BLE)
GNSSGPS
GLONASSSupported
GalileoSupported
BeidouSupported
Waterproof LevelIP54
Drop Resistance1.2m Drop On Marble
Operating Temperature-20℃ ~ +55℃
Storage Temperature-40℃ ~ +70℃
2D Barcode ModuleOptional
ID Card IdentificationOptional
NFCOptional
USB Charger5V / 2A
USB CableIncluded
Protective FilmIncluded
User ManualIncluded
Factory Warranty2 Years
