Designed for flexible industry deployment, RM-F501 supports optional 1D/2D barcode scanning and advanced optical biometric fingerprint modules including FAP10, FAP20, and FAP30 standards, making it suitable for identity authentication and secure data access scenarios. The removable 5000mAh battery provides reliable all-day operation, while NFC capability and dual USB Type-A and Type-C interfaces enhance connectivity with external peripherals and systems. With IP54 protection and ergonomic rugged design, RM-F501 maintains dependable performance in demanding working environments.
5.0″ IPS Capacitive Touch Display
MT6762 Octa-Core Processor

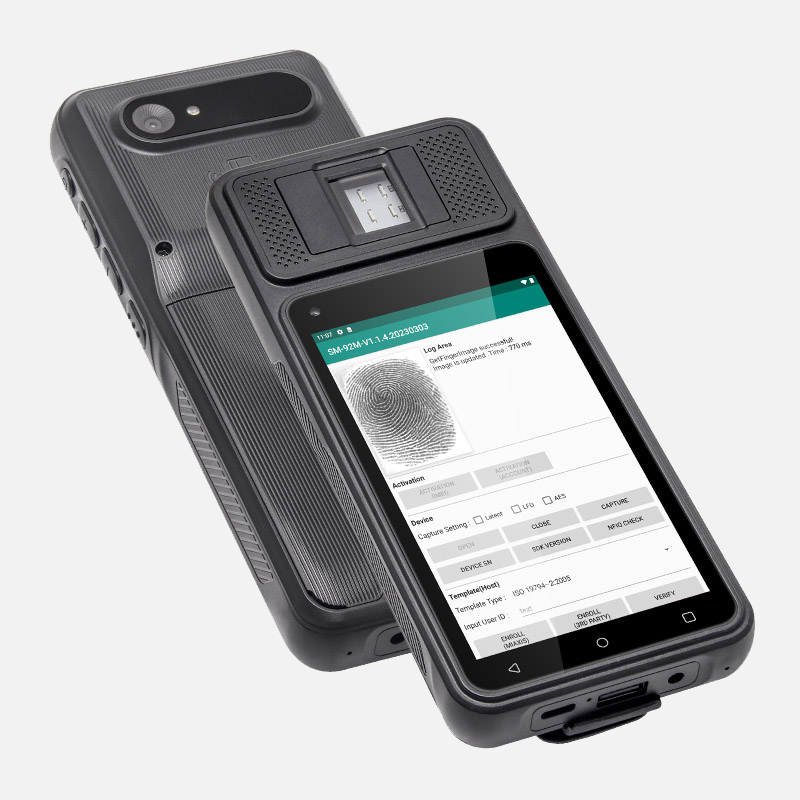

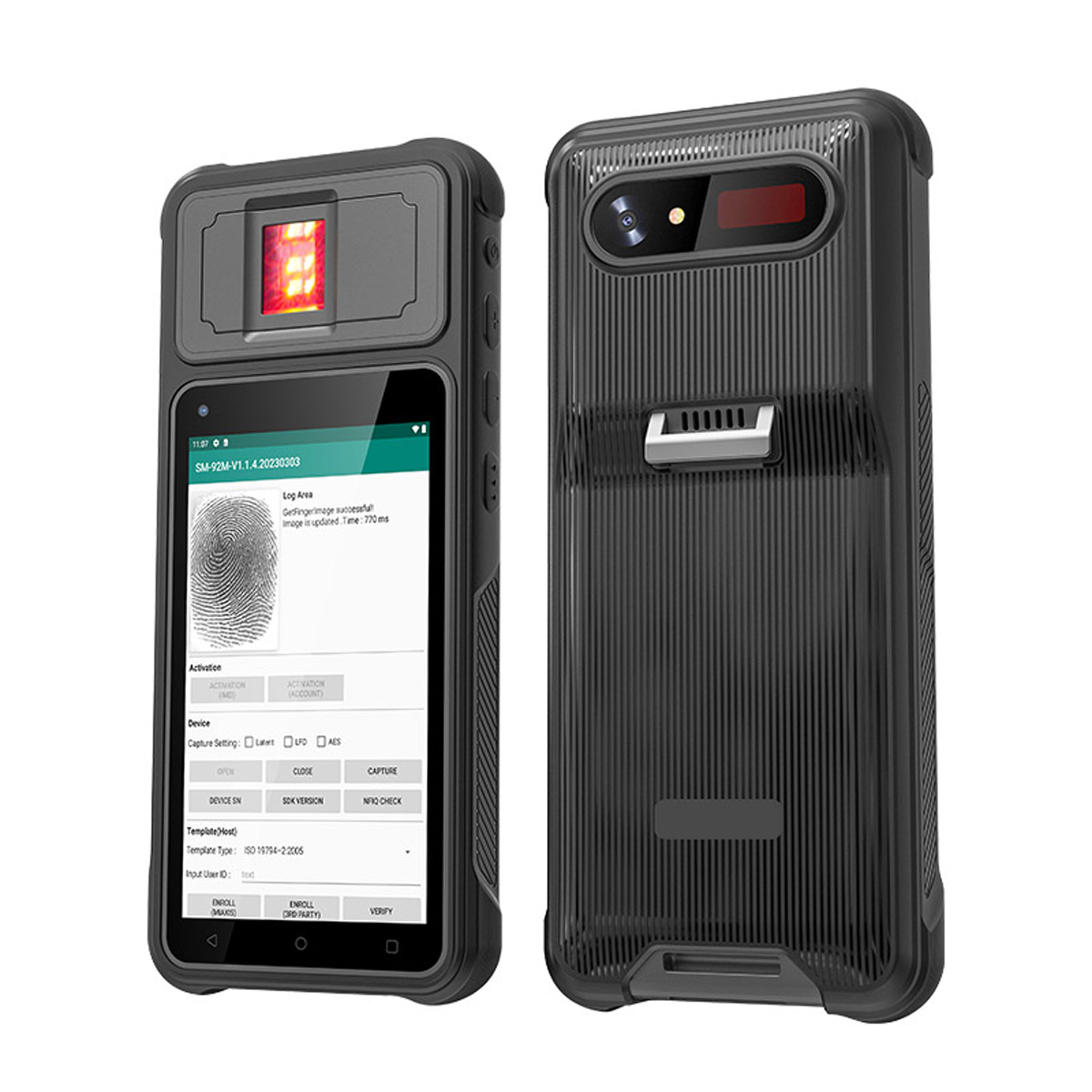

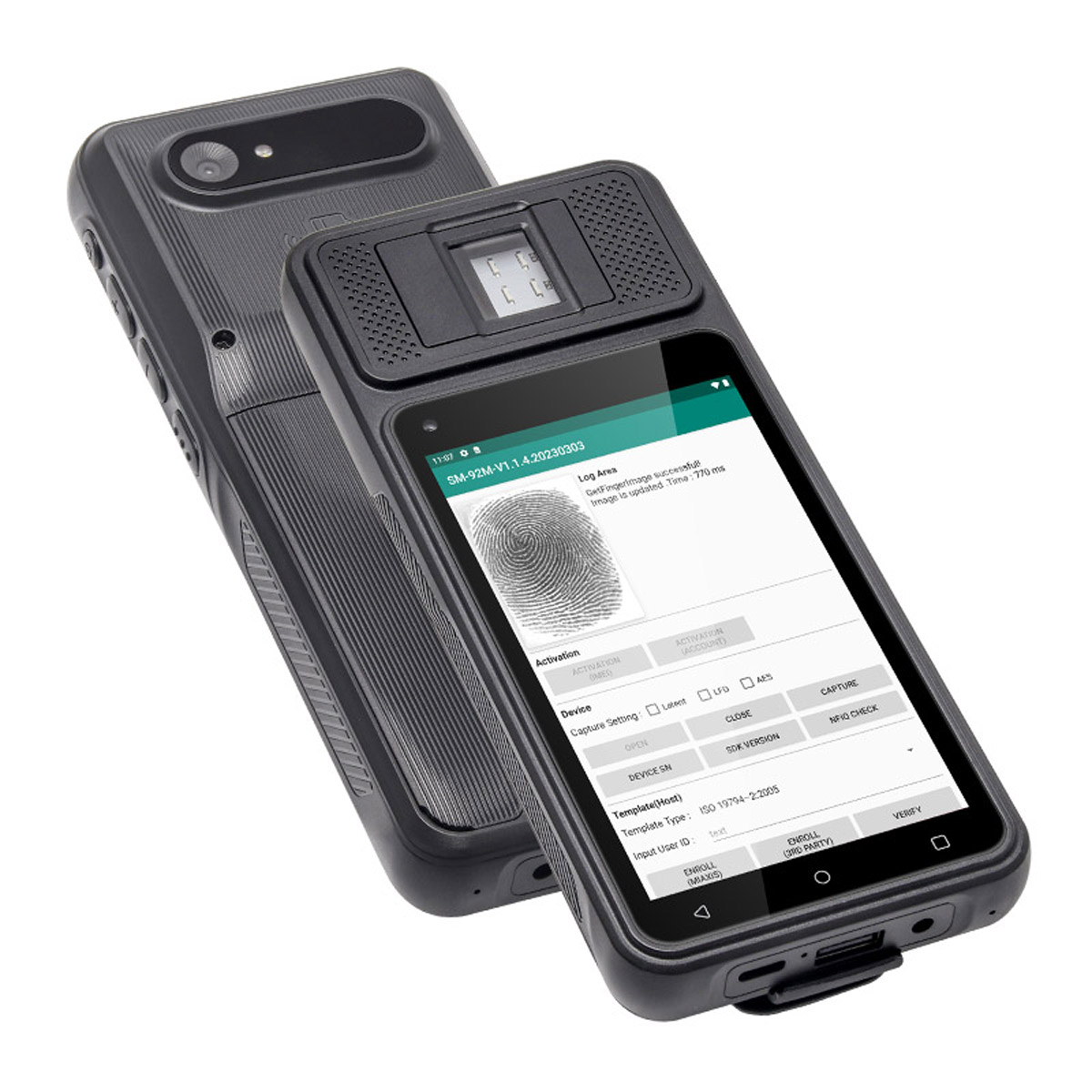

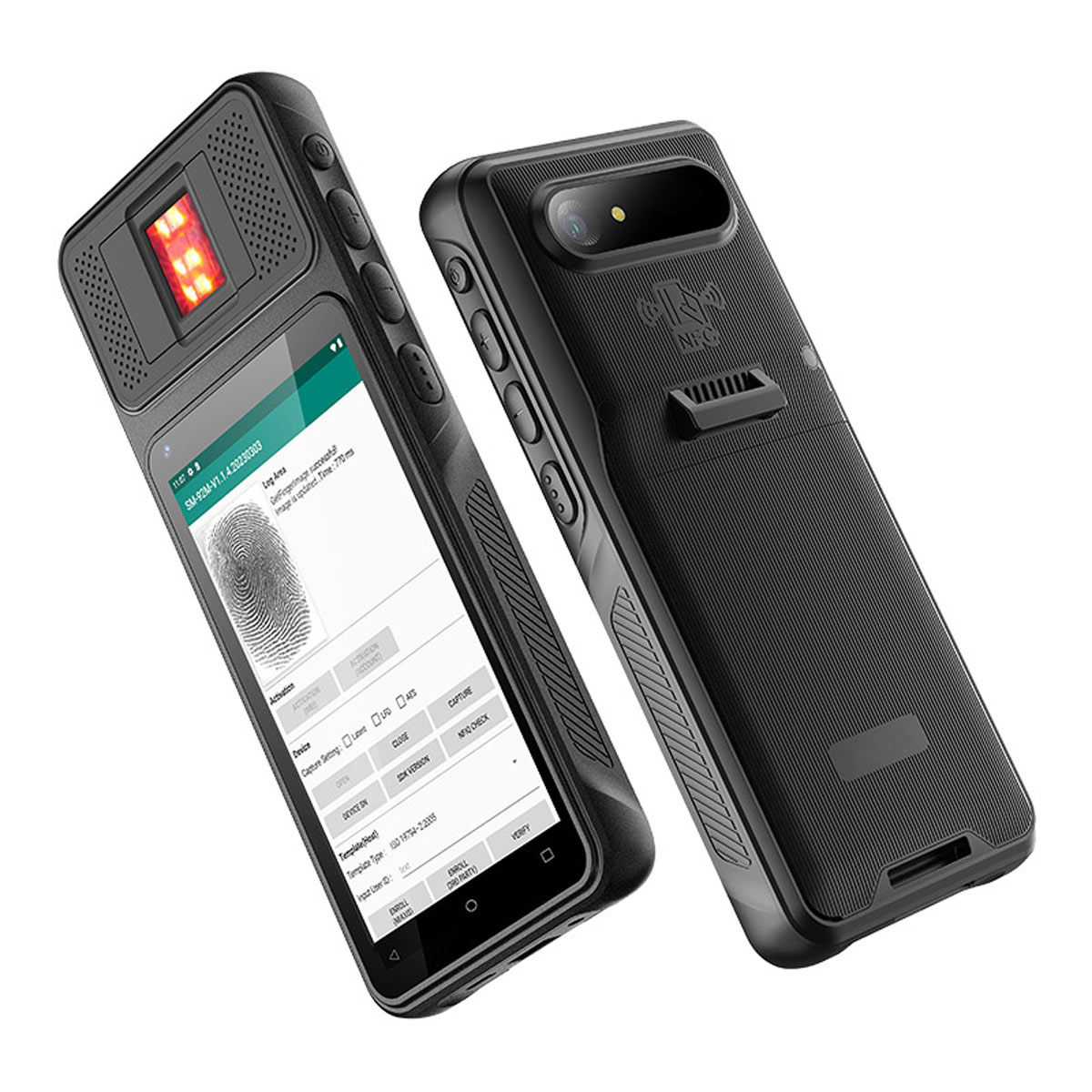

Optical Fingerprint & Barcode Scanning

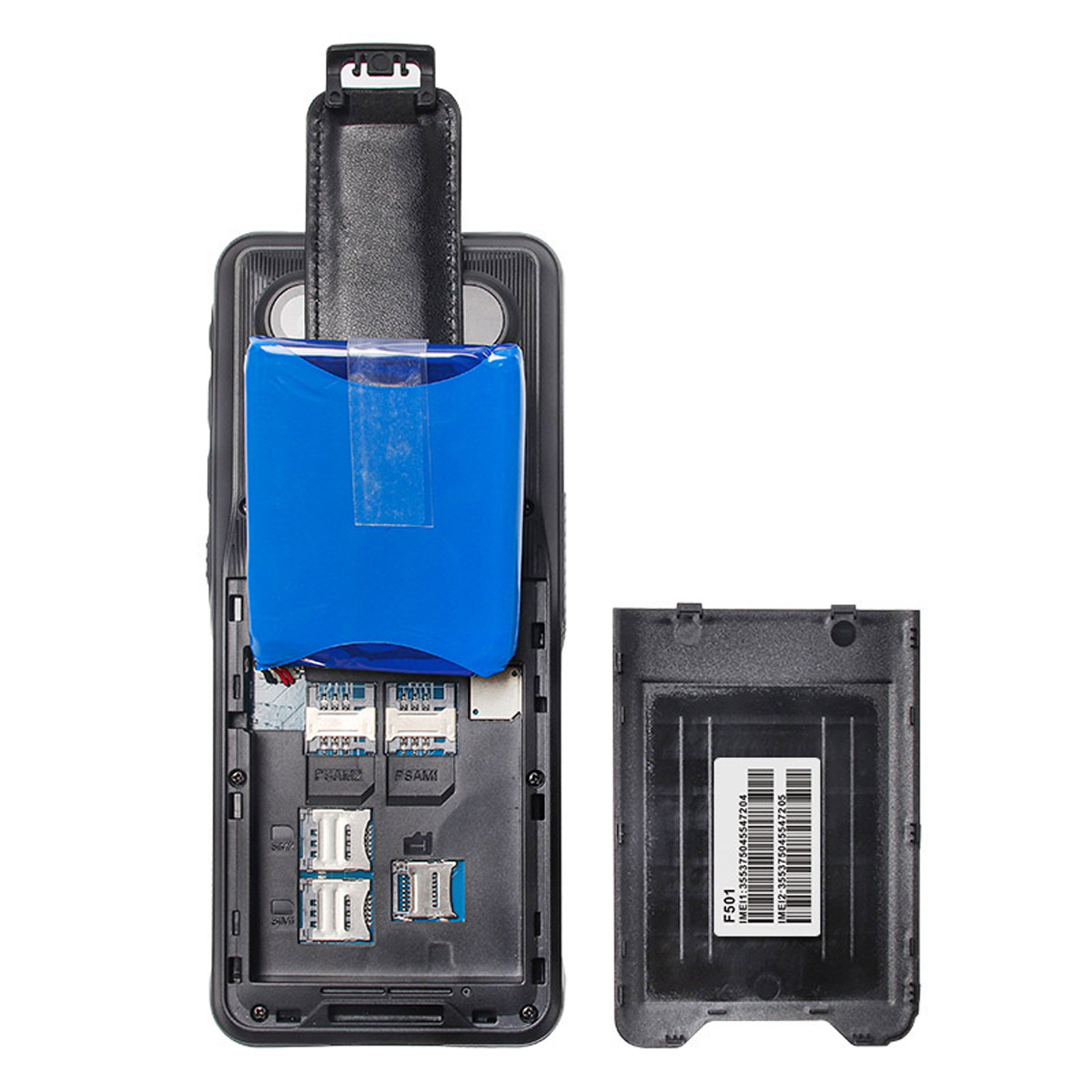

Removable 5000mAh Battery with NFC Support

Reply Within 24hours for almost message!





view more >
No, direct online purchase is not acceptable now as we want to give our partner more profits at their side
Yes,we can send it to your directly,please just email us and get our latest quotation directly.
Yes,You can email us and we will send you our latest products catalogs to you
Yes,We accept OEM service. We have our own factory and excellent RD team, OEM is a part of our business, in addition, we offer ODM service, we would love to make good ideas happen.
Takes about 30 days for 500pcs OEM order after sample confirmed.
Hello, no, we do not supply any refurbished or reconditioned devices or produucts, if you are interested in our night vision products, you can send your dealer or distributor request information
no, we do not supply the military because our products do not meet military standards and are intended only for civil purposes such as hunting, security, monitoring and other civil fields.
For the civil interest, the customers can send the dealer or distributor request information
| TECHNICAL PARAMETERS | |
|---|---|
| MODEL: | RM-F501 |
| Operating System | Android 12 |
| Dimension | 191 × 80 × 21.3mm |
| Weight | 310g |
| Material | Plastic |
| Color | Black |
| Languages | Multi-language |
| Display | 5.0 Inch G+F IPS Capacitive Touch Screen |
| Resolution | 1280 × 720 Pixels |
| Processor | Mediatek MT6762 Cortex A53 Octa Core |
| CPU Frequency | Up To 2.0GHz |
| GPU | IMG PowerVR GE8320 650MHz |
| RAM | 2GB / 4GB Optional |
| ROM | 32GB / 64GB Optional |
| TF Card Expansion | Support Up To 128GB |
| Front Camera | 5.0MP |
| Rear Camera | 13MP With Flashlight |
| Battery Type | Removable Li-Po Battery |
| Battery Capacity | 3.8V / 5000mAh |
| Sensors | G-Sensor |
| Buttons | Power Button / Volume +/- / Scan Button |
| SIM Slot | 2 SIM + 1 PSAM or 1 SIM + 2 PSAM |
| TF Card Slot | 1 |
| USB Type-A Port | 1 |
| USB Type-C Port | 1 |
| DC-IN | 1 |
| Fingerprint Module | Optional: FAP10 / FAP20 / FAP30 Optical (FBI & STQC Certified) |
| 1D/2D Barcode | Optional |
| OTG Function | Supported |
| Network Bands | 2G: GSM 850/900/1800/1900MHz |
| 3G Bands | WCDMA 850/900/1900/2100MHz |
| 4G Bands | FDD-LTE B1/B2/B3/B5/B7/B8/B20; TDD-LTE B38/B39/B40/B41 |
| WiFi | IEEE 802.11 a/b/g/n/ac, 2.4GHz/5GHz Dual Band |
| Bluetooth | V4.2 (BLE) |
| NFC | 13.56MHz, Support Type A/B, Mifare, ISO14443 |
| GNSS | GPS / GLONASS / Beidou |
| Waterproof | IP54 |
| Charger | 5V/2A |
| Protective Case | Included |
| User Manual | Included |
| Factory Warranty | 2 Years |
